Custom Home Plan with 3 Floors – CAD Architectural Designs
Explore this 3-story home blueprint with 4 bedrooms, 3 bathrooms, vaulted ceilings, and a basement. Includes stunning indoor and outdoor architectural designs!
Stunning 3-Floor Home Plan with Basement and 4 Bedrooms
A Spacious Home With a Thoughtful Layout
This 3-story custom home plan features a blend of traditional and Craftsman designs. With 4, 539 heated square feet and an additional 1, 577 unheated square feet, this layout provides ample room for family living and entertaining. Whether you’re a builder, architect, or homeowner, this CAD-designed blueprint brings efficiency and beauty to life.
The home’s 45-foot width and 57-foot depth make it ideal for mid-sized lots while maximizing indoor and outdoor spaces. Its large-scale design includes 4 bedrooms and 3 bathrooms to accommodate growing families. The spacious basement offers endless possibilities for recreation, storage, or even additional living areas.
Indoor Features for Luxurious Living
The property boasts several standout features that add convenience, beauty, and versatility:
* Has Basement: Perfect for customization or storage.
* Has Fireplace: Adds charm and warmth to the living area.
* Has Great Room and Family Room: Multiple spaces for relaxation and family gatherings.
* Has an Office/Study: A quiet space for work-from-home needs or study time.
* Vaulted Ceilings: Enhances the openness and elegance of the rooms.
* Ultimate Kitchen with Breakfast Nook: A functional yet luxurious cooking and dining space.
Incredible Outdoor Features for Gatherings
Step outside and enjoy the elegant outdoor areas this plan offers. Relax on the covered front porch or in the stunning screened porch – perfect for enjoying nature while staying comfortable. For open-air events, the back patio is a welcoming space for dining and socializing.
Quality Materials and Timeless Architecture
Crafted from brick, siding, and shingles, this home combines durability with sophistication. Its unique blend of traditional and Craftsman-style architecture brings timeless charm that stands out in any neighborhood. Ideal for families, this large single-family home balances form and function seamlessly.
The Benefits of Every Home Plan
Every blueprint purchase includes both CAD files and PDFs, making it easy for architects and builders to adapt the plans. Your purchase also comes with an unlimited-build license, free foundation design changes, and access to professional structural engineering. Unlike competitors, we provide full transparency with every design package and affordable modification options.
Ready to build the home of your dreams? Reach out to us at support@https://myhomefloorplans.com today and make your dream design a reality!
All home plans include BOTH the CAD file and PDF file.

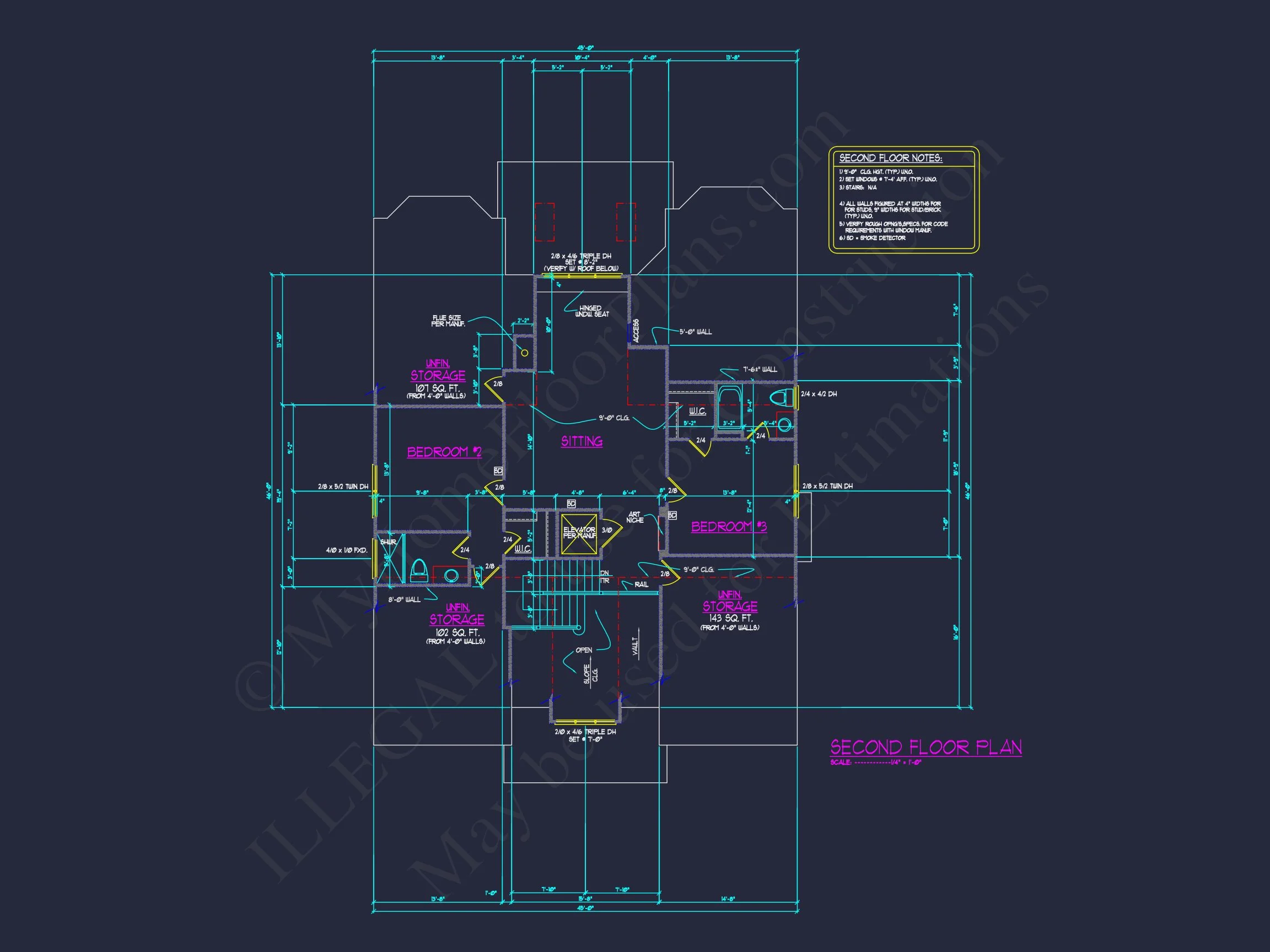

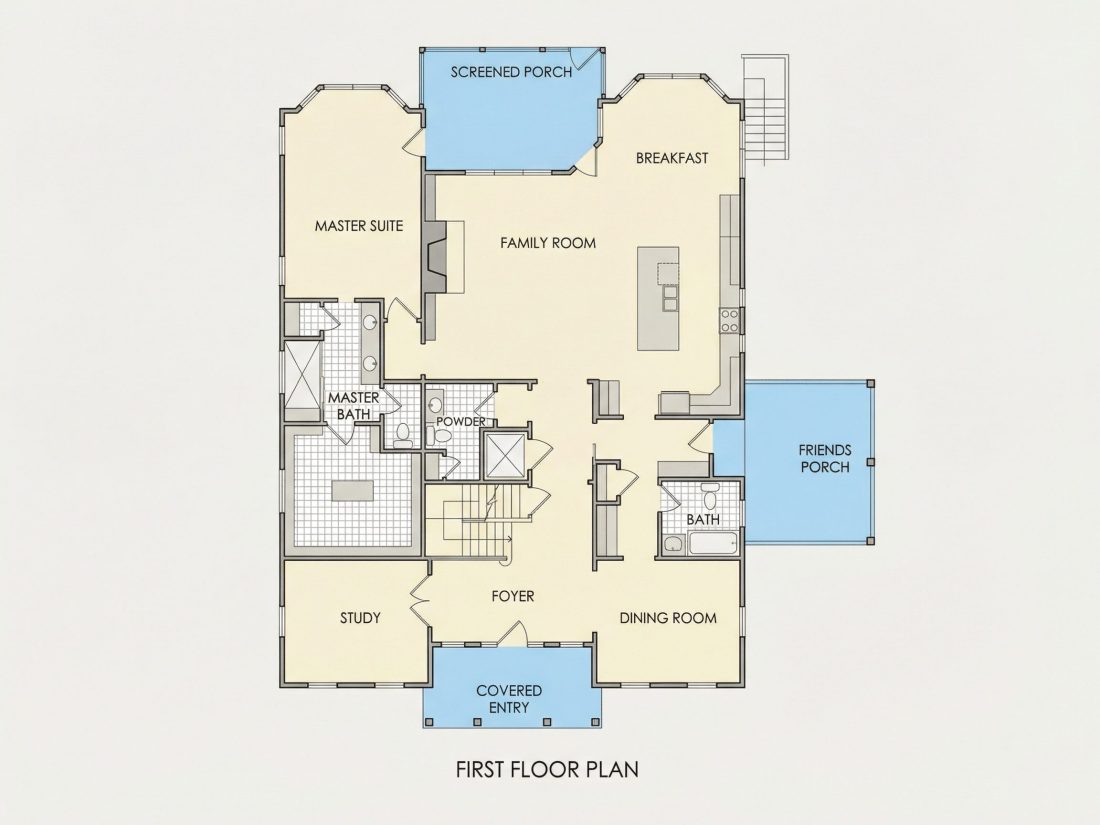

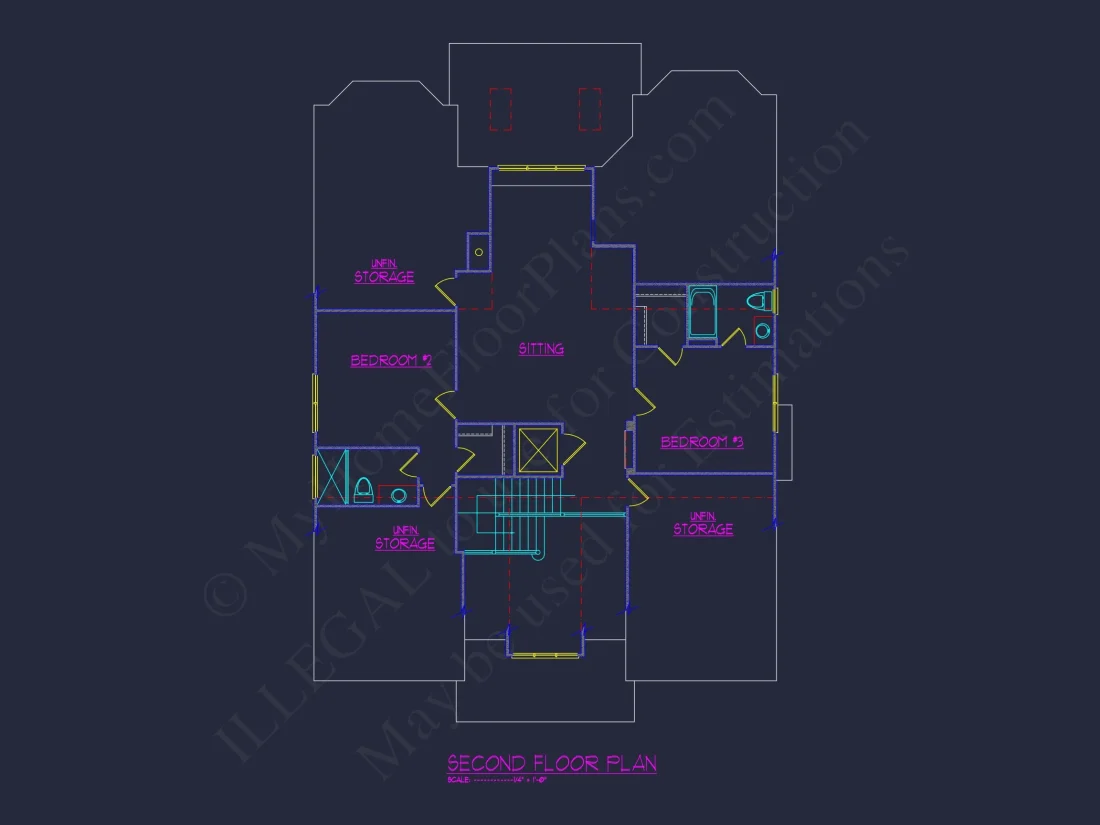

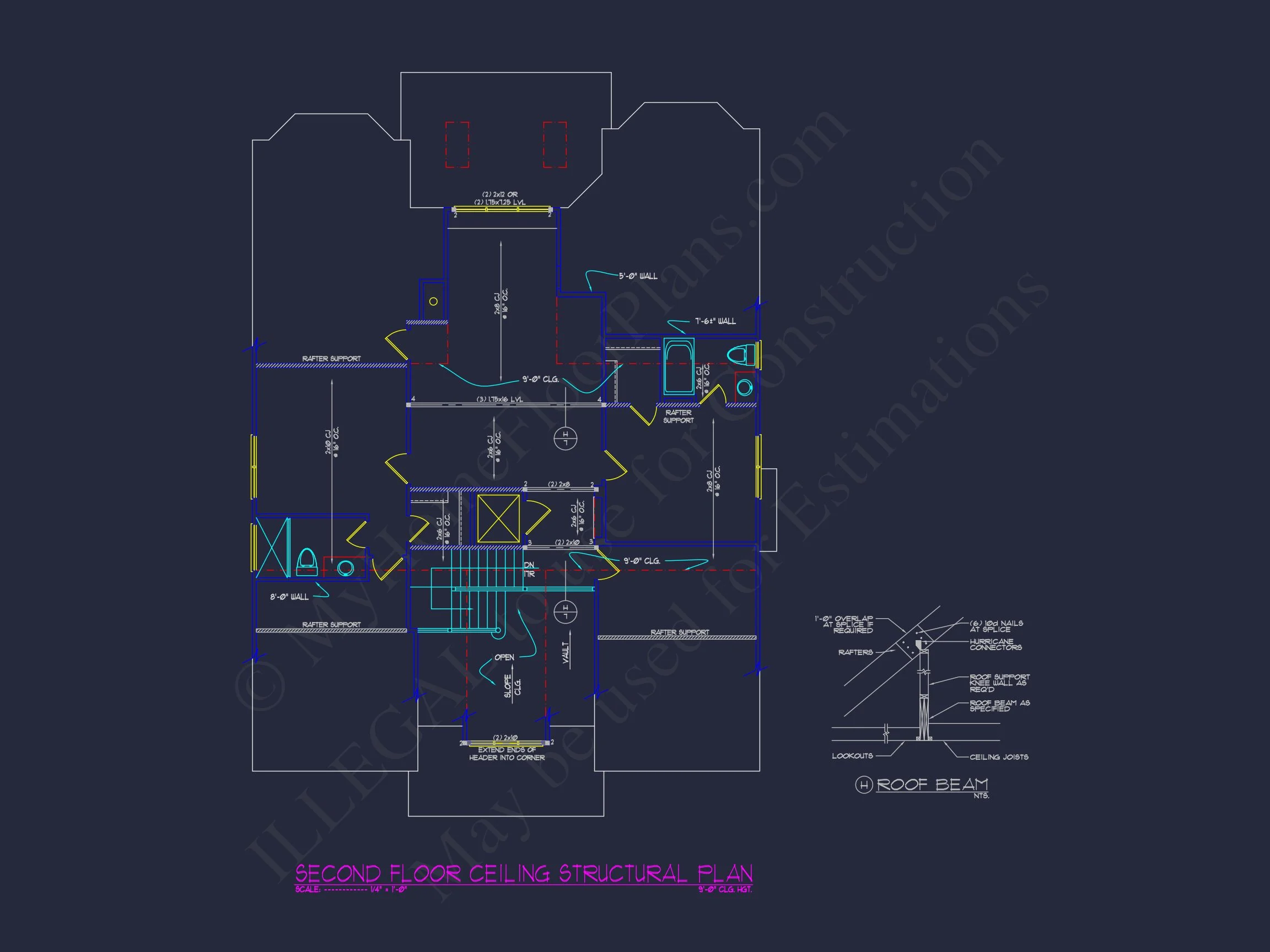

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

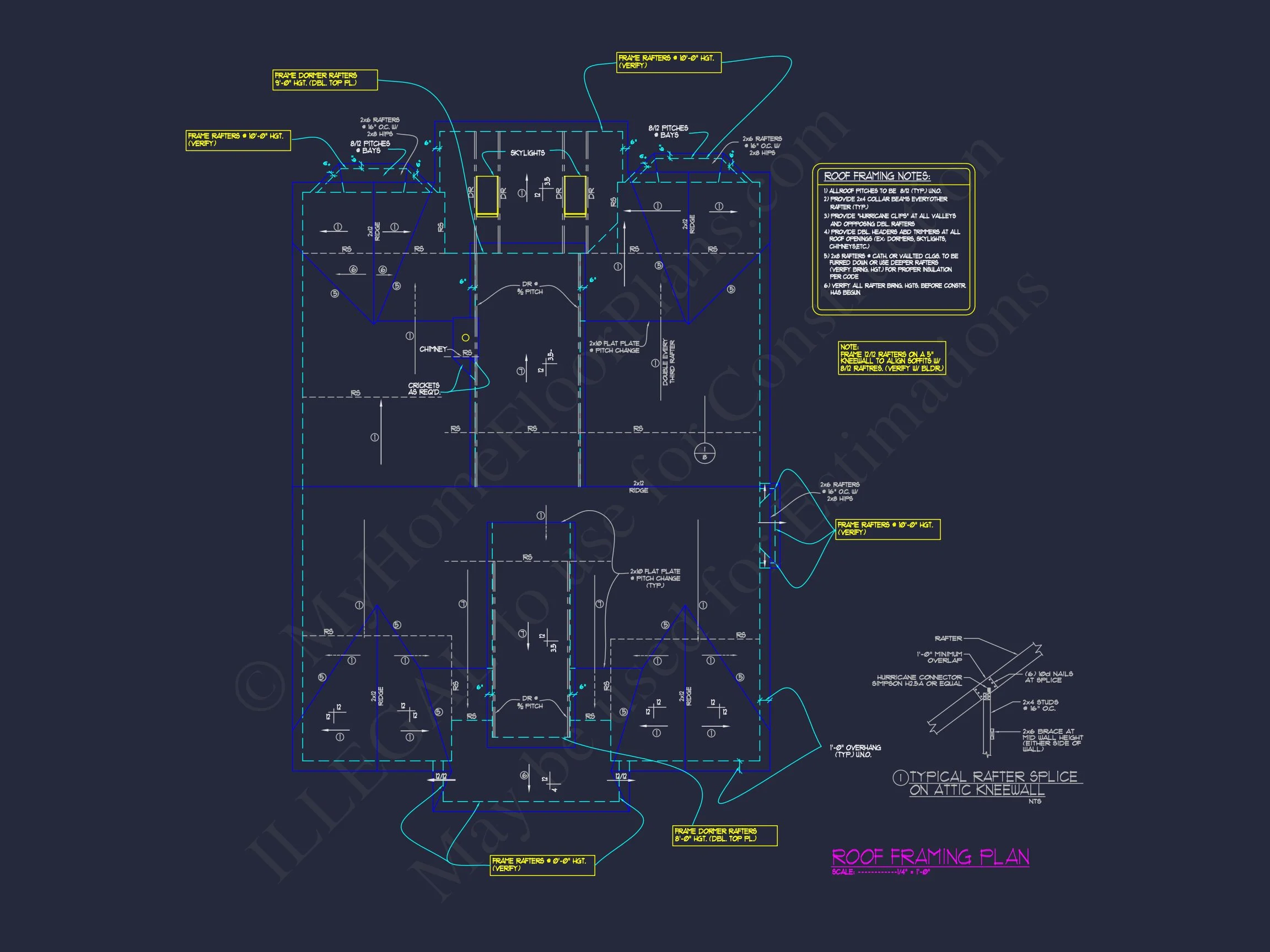

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
