Stunning Architectural Home Floor Plan with CAD Design
Discover this spacious home floor plan with 3, 064 heated sq. ft., 4 bedrooms, bonus spaces, and vaulted ceilings—includes CAD blueprints and full customization benefits.
This architectural house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 064 sq. ft. across two stories.
- Unheated extras: Spacious 3-car garage, front and rear porches, screened porch, and covered deck.
Bedrooms & Bathrooms
- 4 total bedrooms including a luxurious first-floor Owner Suite with walk-in closet.
- 3 full bathrooms offering comfort, privacy, and smart placement throughout the layout.
Interior Highlights
- Vaulted ceilings in the main living areas enhance natural light and airiness.
- Open floor plan with fluid transitions between the kitchen, dining, and family room. View open layouts.
- Kitchen island and a walk-in pantry for added prep and storage ease. See kitchen island plans.
- Fireplace in the family room adds cozy charm. Explore fireplace designs.
- Bonus and recreation rooms upstairs offer flexibility for guests, hobbies, or play.
Garage & Storage Details
- Garage Bays: 3-car garage with convenient front entry.
- Garage Type: Attached garage layout designed for accessibility and curb appeal.
- Storage: Mudroom, walk-in pantry, attic space, and large closets throughout.
Outdoor Living Features
- Screened porch, covered rear deck, and shaded front porch—perfect for relaxing or entertaining.
- Brick and siding exterior details add lasting beauty and durability.
Architectural Style: Traditional Farmhouse & Craftsman
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the traditional farmhouse style or explore its roots on ArchDaily.
Bonus Features
- Flex room ideal for a home office, workout space, or guest use.
- Recreation room upstairs for leisure and entertainment.
- Elegant foyer entry with architectural ceiling lines.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Traditional House Plans
- Farmhouse Style House Plans
- Plans with First Floor Owner Suites
- Covered Porch House Plans
- House Plans with Bonus Rooms
Frequently Asked Questions
What’s included with this house plan? Every plan includes editable CAD files, print-ready PDFs, unlimited builds, structural engineering, and free foundation modifications.
Can I customize the layout? Yes! Our in-house team offers quick and affordable changes. Request a quote.
Does it include a bonus or flex space? Absolutely. The plan features a bonus room and a flex space suitable for work or play.
Is this layout suitable for large families? Yes. With 4 bedrooms, 3 bathrooms, and multiple living zones, it’s ideal for growing or multigenerational households.
Can I preview the architectural sheets? Yes. View every sheet online before purchase.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

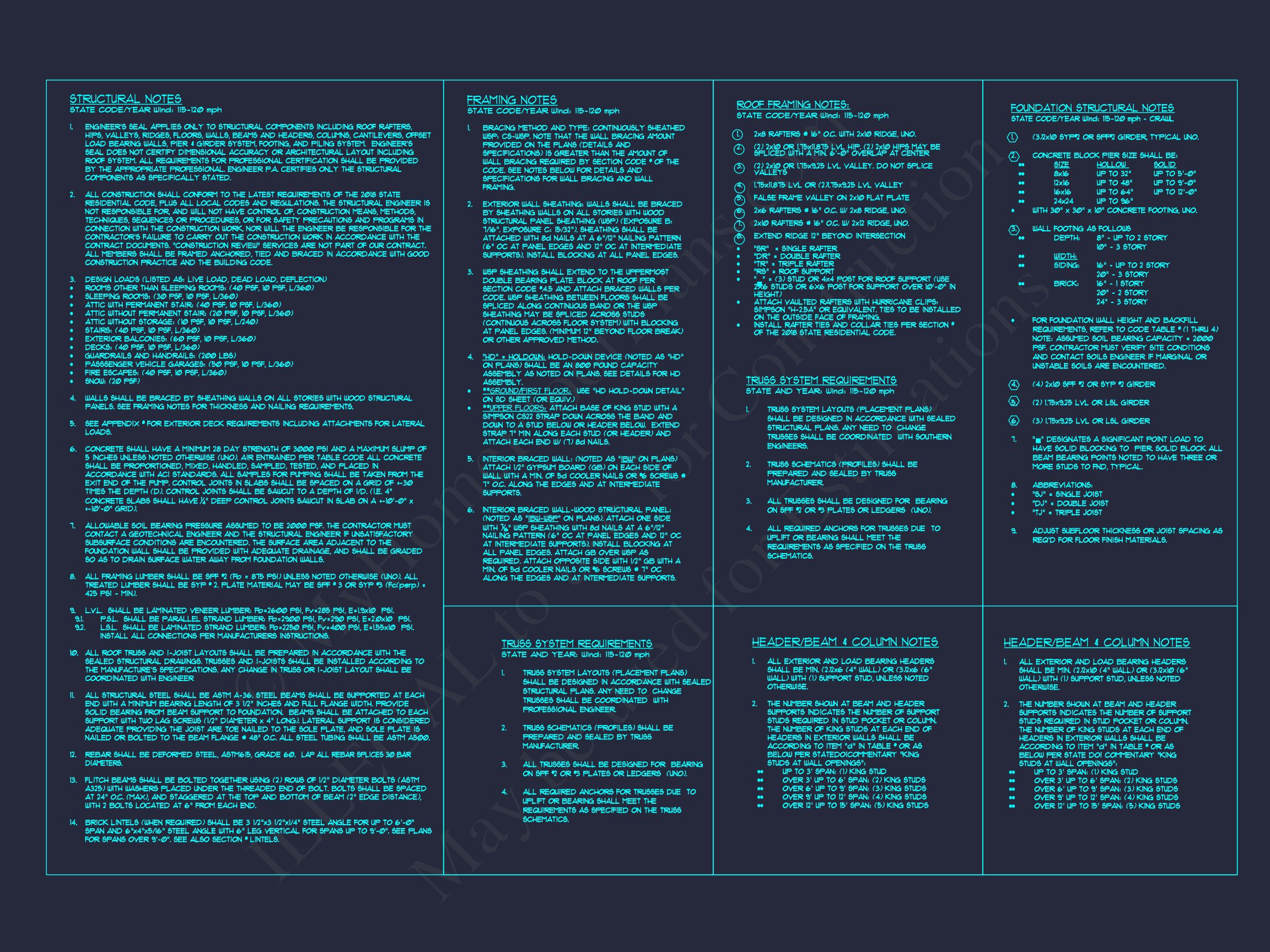

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

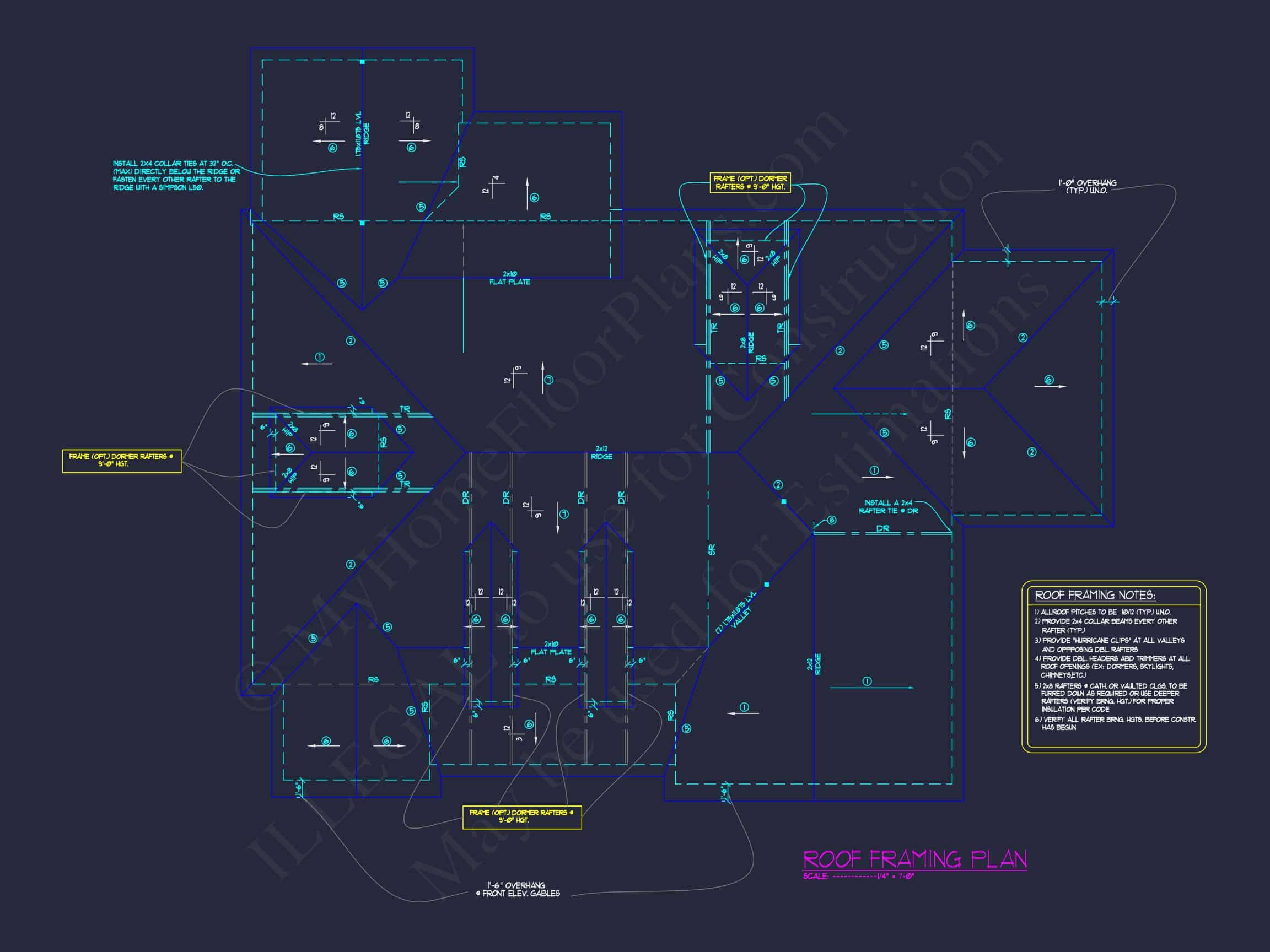

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
