14-1504 GARAGE – Custom Garage Plan with Study: Modern CAD Blueprint Designs for You

Explore a custom garage floor plan with living space featuring a cozy study and double garage bays. Perfect for designers or area-conscious houseowners!

Custom Garage Plan with Study – Smart Layout & Double Bay Design This compact yet versatile garage plan with living space includes 423 heated sq. ft., a private study, and dual garage bays—includes CAD blueprints, PDFs, and engineering. This garage plan with study offers a highly functional …

Read More

Original price was: $1,150.56.Current price is: $651.99.

999 in stock

Width

22'-0"

Depth

23'-0"

Htd SF

Unhtd SF

Bedrooms

Bathrooms

# of Floors

Htd SF Range

Unhtd SF Range

# Garage Bays

Architectural Styles

,

Indoor Features

, , ,

Kitchen Features

Garage Features

, ,

Ceiling Features

,

Structure Type

Exterior Material

,

# Front Elevations

Depth Range

Width Range

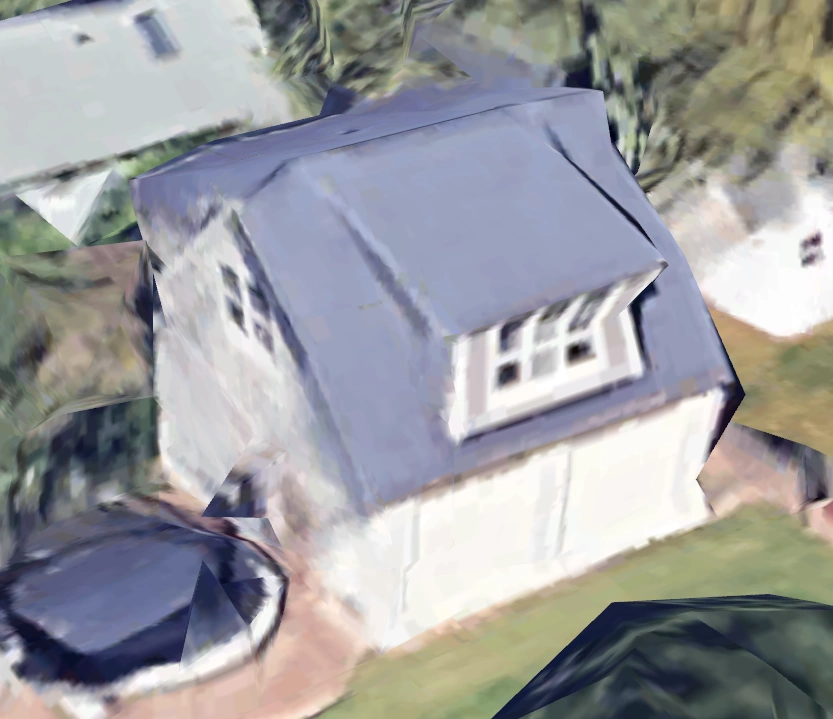

After Build Photos

Timothy Wilkerson – October 20, 2023

Foundation design included raft option that suited our high water table.

Custom Garage Plan with Study – Smart Layout & Double Bay Design

This compact yet versatile garage plan with living space includes 423 heated sq. ft., a private study, and dual garage bays—includes CAD blueprints, PDFs, and engineering.

This garage plan with study offers a highly functional footprint with architectural appeal. Whether you’re planning a guest house, studio workspace, or need extra storage, this design delivers flexibility and style.

Key Features of the Home Plan

Living Areas – Heated & Unheated

  • Heated area: 423 sq. ft. on the upper level.
  • Unheated extras: 506 sq. ft. garage space on the main level.

Bedrooms & Bathrooms

  • No bedrooms, but includes a flexible private study for work, hobbies, or guest accommodations.
  • 1 full bathroom on the upper floor for convenience.

Interior Highlights

  • Private study room offers quiet focus or creative use.
  • Open living space upstairs ideal for lounging or conversion to guest quarters.
  • Compact architectural layout ideal for multi-purpose usage.

Garage & Storage Details

  • Garage Bays: 2-car garage with front entry access.
  • Garage Type: Attached, monolithic slab foundation for easy access and affordability.
  • Storage: Room above the garage can also serve as additional storage or utility space.

Outdoor Living Features

  • Exterior features charming board and batten siding with shingle accents.
  • Compact footprint suitable for narrow lot house plans.

Architectural Style: Compact Craftsman Garage

This blueprint showcases a Craftsman-inspired garage structure designed for functional living. Learn more about the Craftsman style or explore its background on ArchDaily.

Bonus Features

  • Multi-use study room—perfect for home office, library, or guest space.
  • Simple footprint that fits tight urban lots or backyard additions.
  • Affordable construction with energy-efficient potential.

Included Benefits with Every Plan

  • CAD + PDF Files: Editable and printable blueprint files included.
  • Unlimited Build License: Build as many times as you’d like—no restrictions.
  • Free Foundation Changes: Switch between slab, crawlspace, or basement at no cost. See foundation options.
  • Structural Engineering Included: Professionally reviewed and code-compliant.
  • Lower Modification Costs: Custom changes available for less than half the industry average. Explore customization.
  • View Before You Buy: See every sheet before purchase.

Similar Collections You Might Love

Frequently Asked Questions

What’s included with this garage plan? You’ll receive editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation adjustments.
Can I use the study as a guest room? Yes! The study can double as a small guest area, library, or studio.
Is this suitable for small lots? Absolutely. Its compact width and front-entry garage make it ideal for narrow or urban spaces.
Does the plan include heating upstairs? Yes, the upper-level living space includes 423 heated sq. ft., ideal for a quiet getaway.
Can I preview the blueprint before purchase? Yes. Click here to see what’s included before you buy.

Start Building Your Dream Space Today

Have questions or ready to personalize this garage plan? Reach out to our expert team at [email protected] or contact us here.

Your future project begins with a plan that works—customize it now and build confidently!
