Spacious Ranch house Plan with 3 Bedrooms and CAD Designs
Explore this spacious ranch-style house plan featuring 3 bedrooms, 2 baths, a recreational room, and covered porches. Includes CAD designs and blueprints.
Original price was: $1,582.56.$896.79Current price is: $896.79.
999 in stock
| Width | 44'-2" |
|---|---|
| Depth | 64'-10" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Dining Room, Family Room, Kitchen with Bar, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Spacious Ranch Home Plan with 3 Bedrooms and CAD Designs
Explore this 2, 140 sq. ft. ranch-style house plan featuring 3 bedrooms, 2 baths, an open layout, and covered porches—includes CAD blueprints and unlimited build rights.
This ranch-style house plan offers the perfect combination of comfort and functionality. Designed with families and first-time builders in mind, it blends a single-story layout with thoughtful features and modern flow.
Key Features of the Home Plan

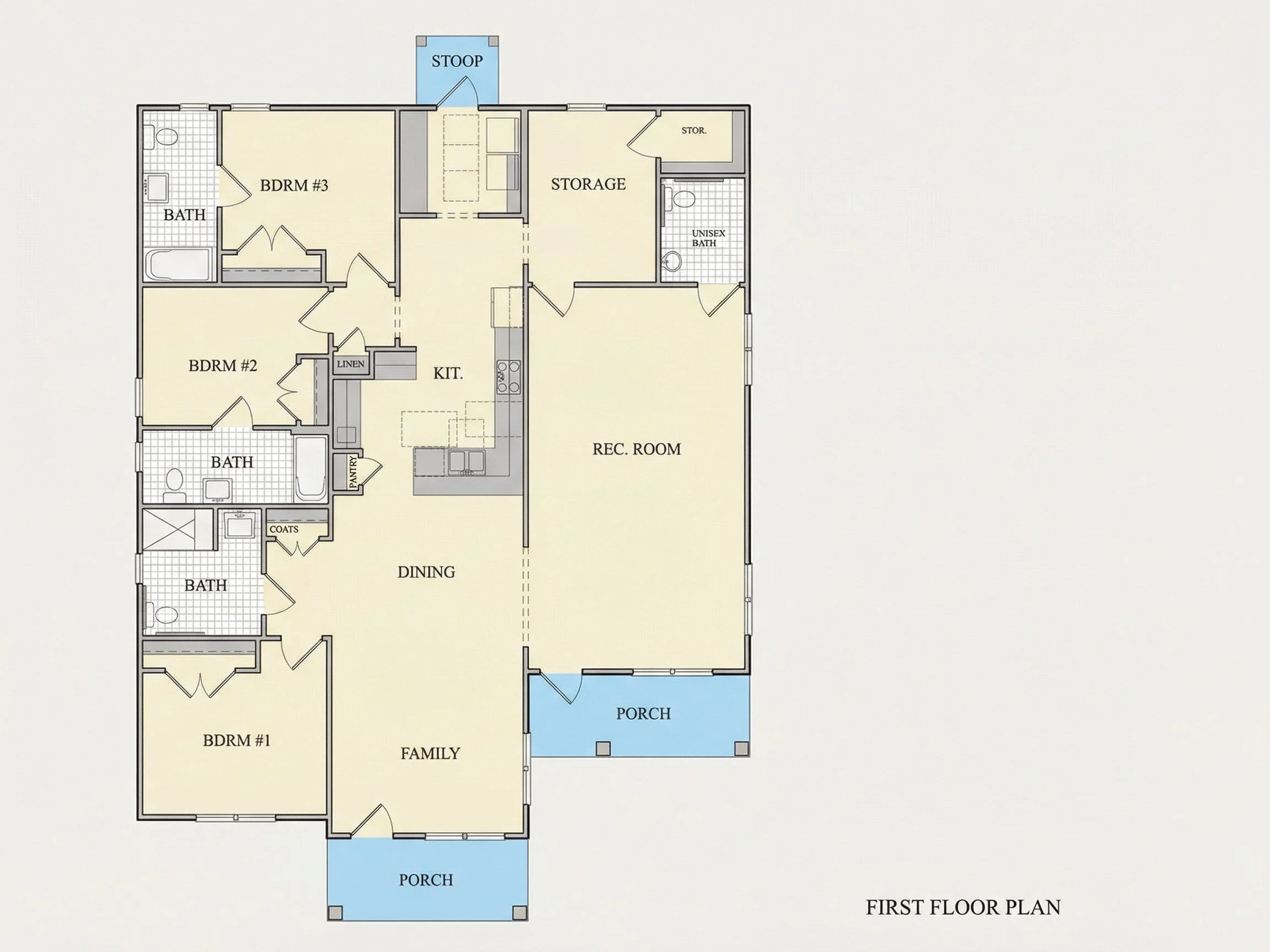

Living Areas – Heated & Unheated

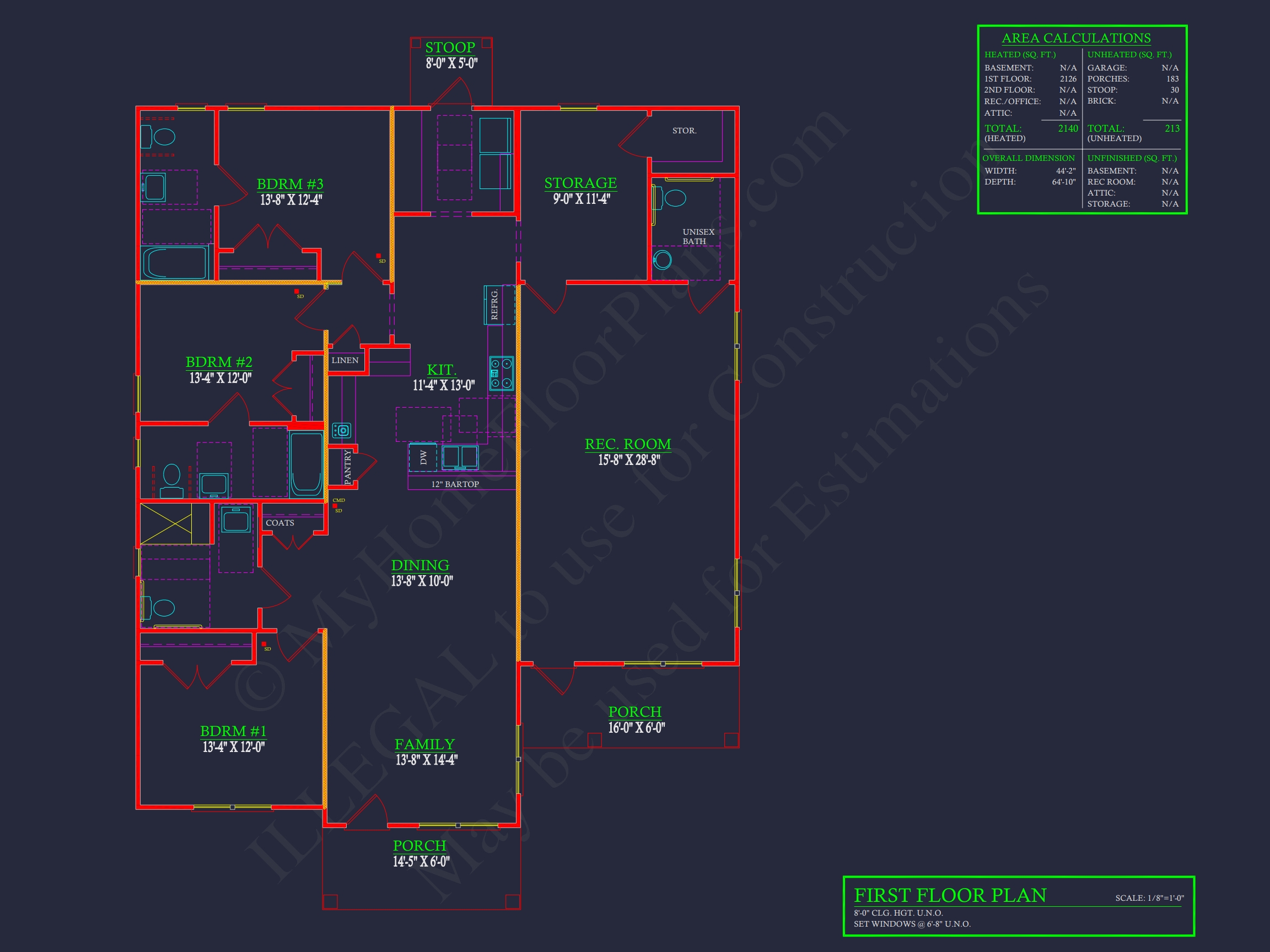

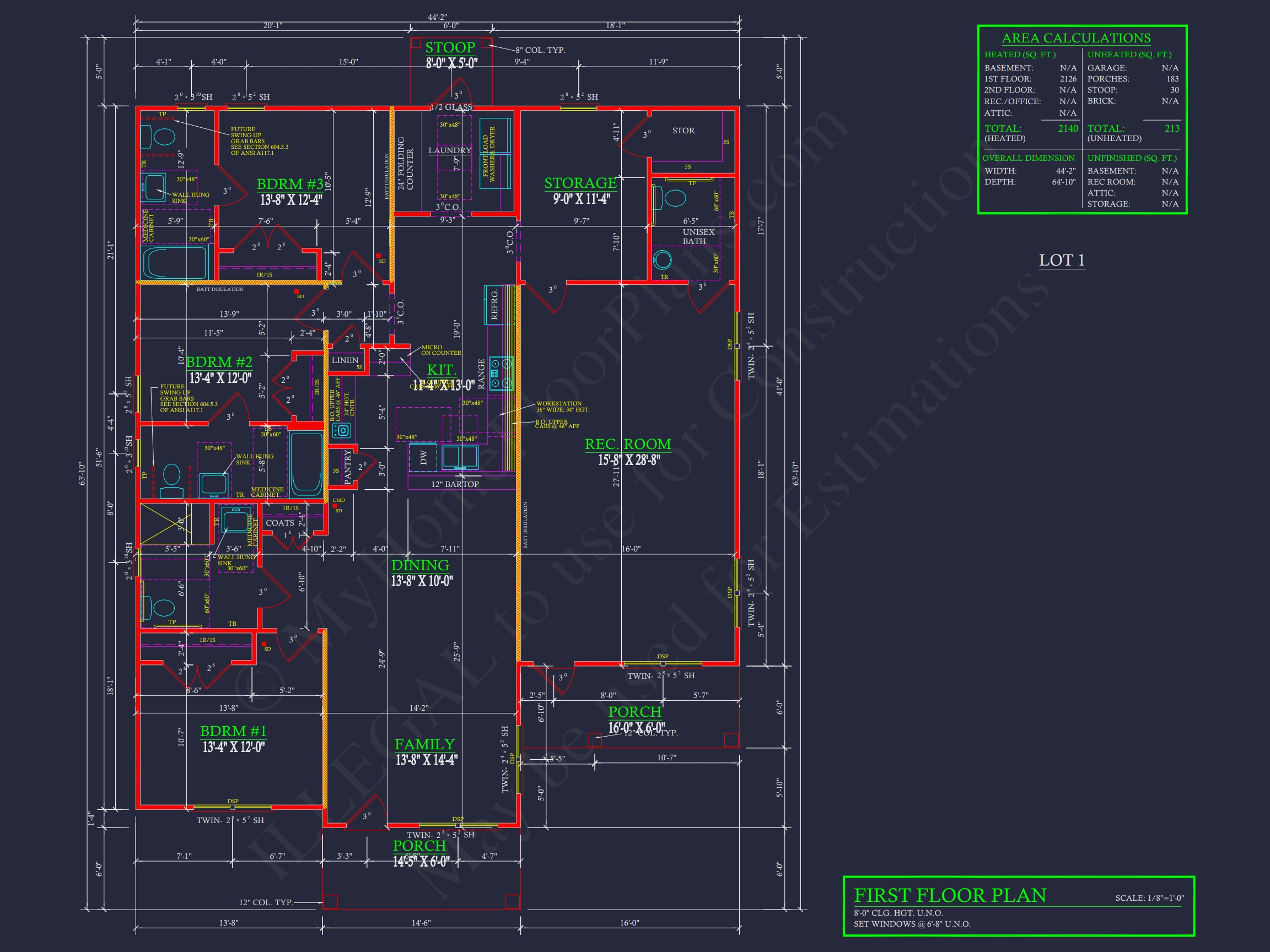

- Heated area: 2, 140 sq. ft. in a single-level floor plan.
- Unheated extras: 213 sq. ft. of covered front and rear porches.
Bedrooms & Bathrooms
- 3 bedrooms including a spacious Owner Suite with ensuite bath and closet.
- 2 full bathrooms conveniently positioned for daily living and privacy.
Interior Highlights
- Open floor plan connecting kitchen, dining, and living spaces. Explore open layouts.
- Recreational room adds a flexible space for hobbies or games. See more plans with rec rooms.
- Kitchen with eating bar for casual meals or quick breakfasts.
- Dedicated dining room for formal or family gatherings.
- Ample storage including linen and utility closets throughout.
Garage & Storage Details
- Garage Bays: Optional add-on depending on your lot and needs.
- Garage Type: Detached or attached options available during customization.
- Storage: Includes built-in closets and utility space.
Outdoor Living Features
- Charming covered front and rear porches for relaxing or entertaining outdoors.

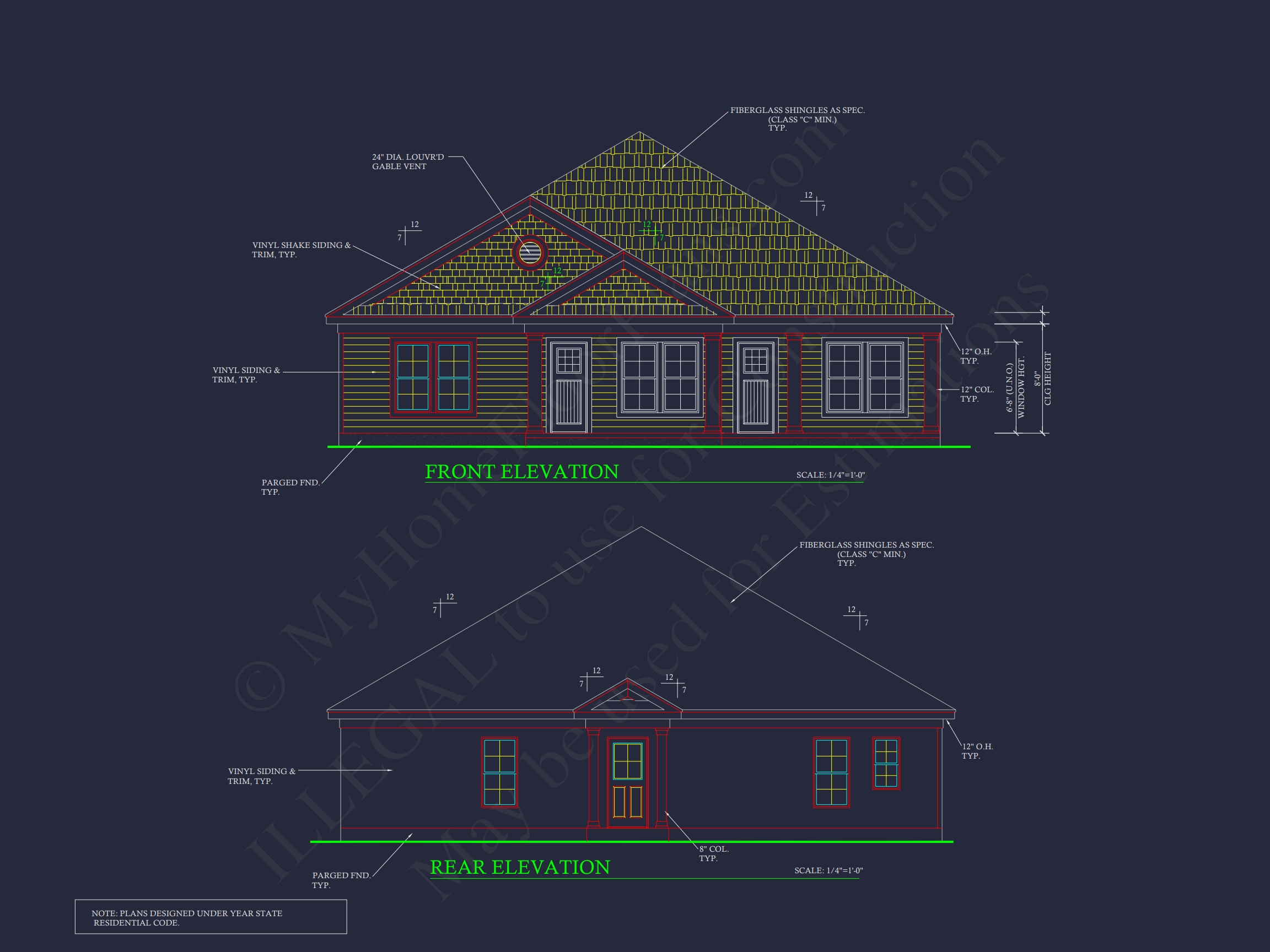

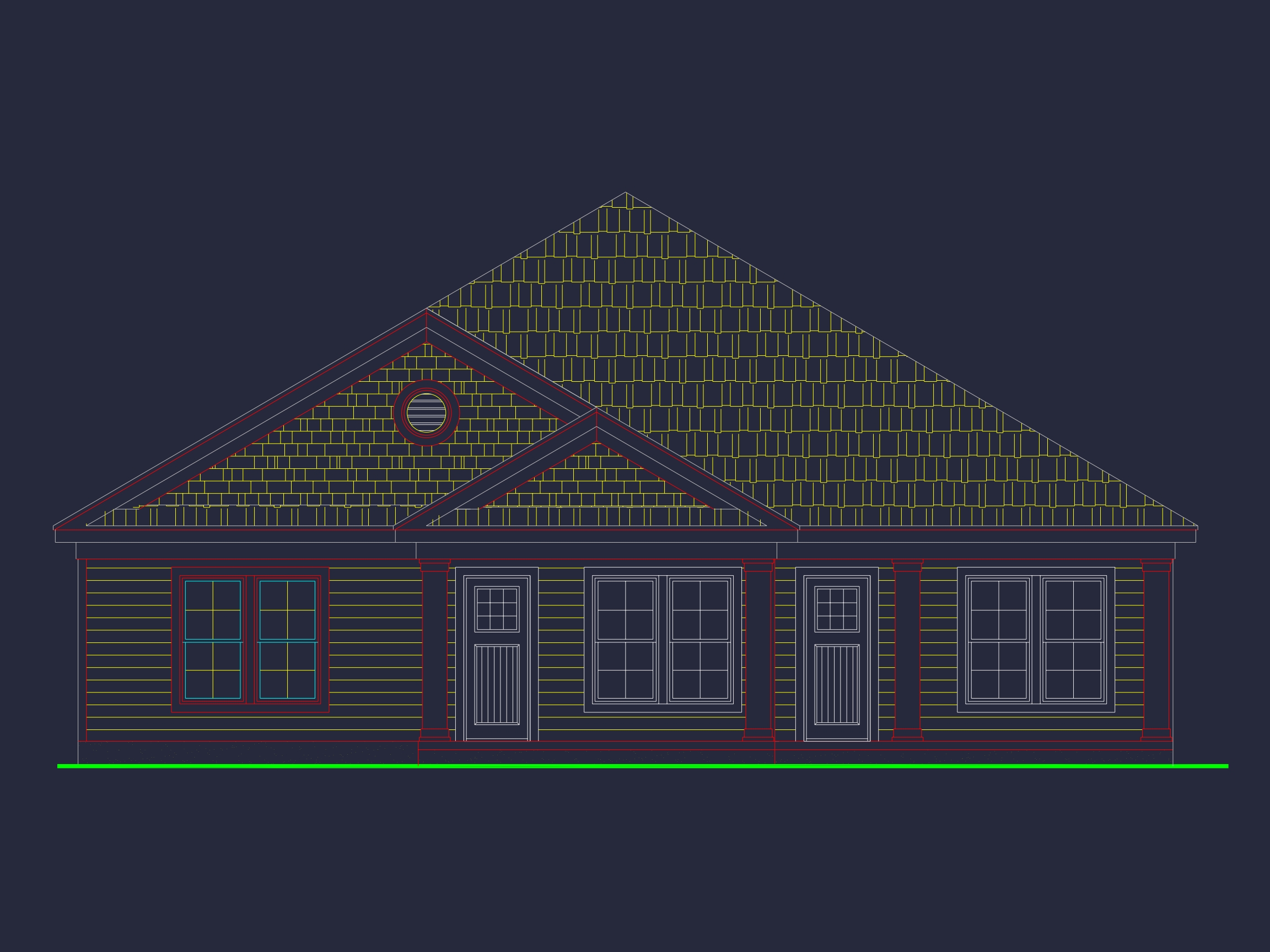

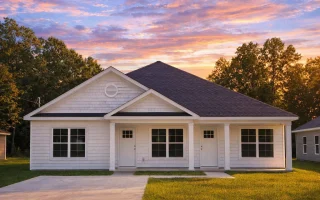

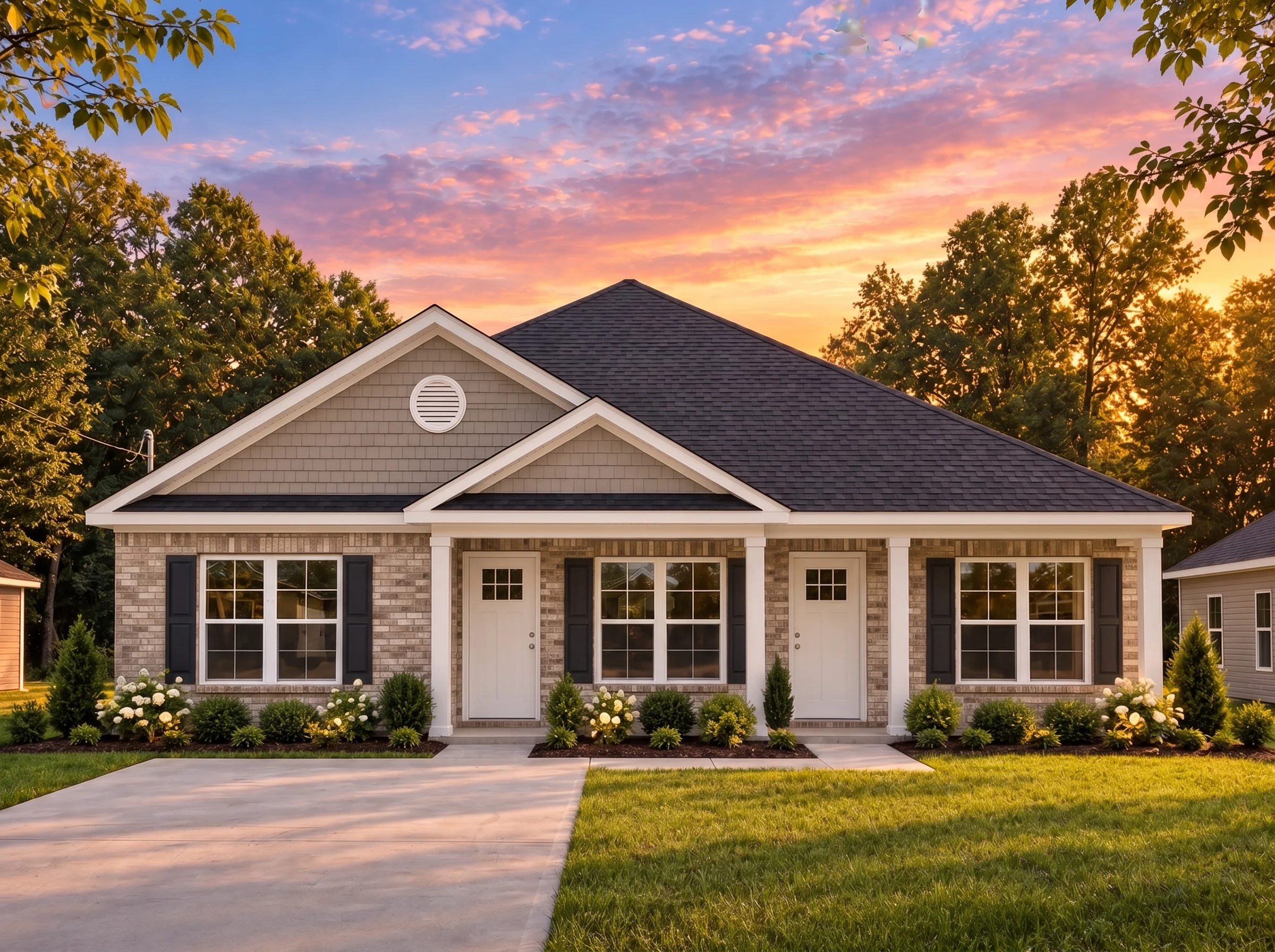

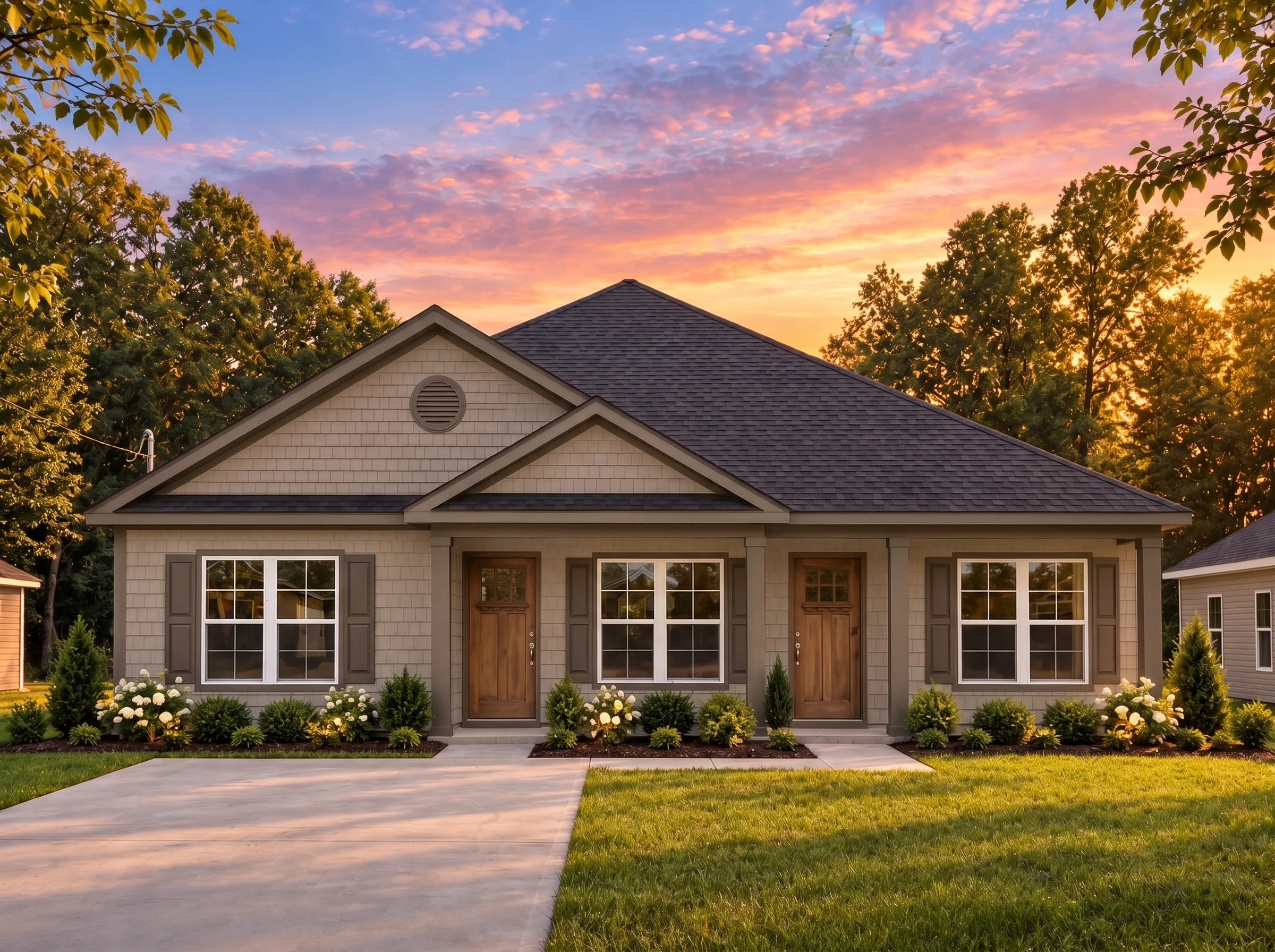

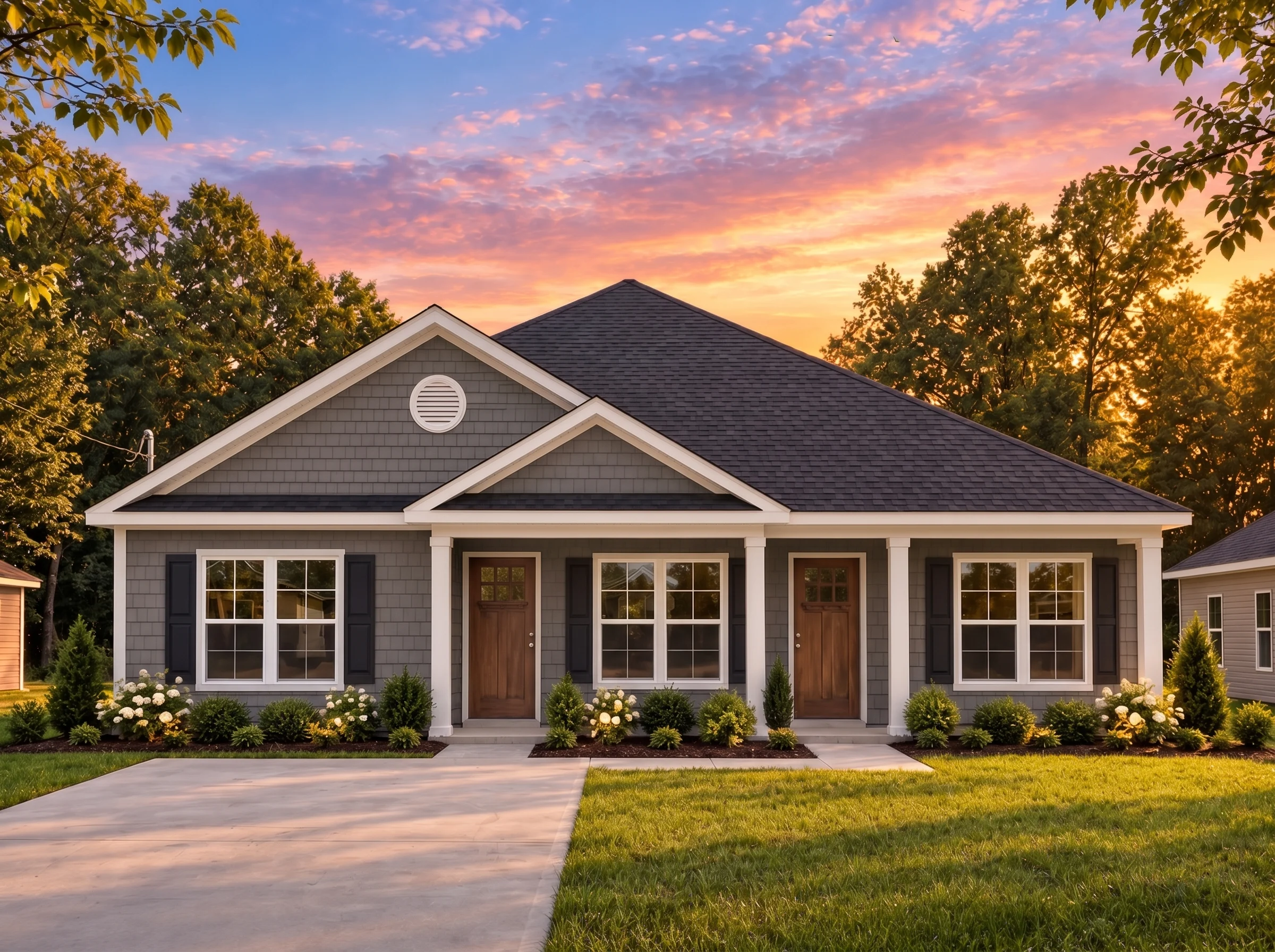

- Exterior finishes feature vinyl siding with shake accents for classic curb appeal.
Architectural Style: Ranch
This layout reflects the charm of classic ranch house plans—known for their simplicity, single-level living, and accessibility. Learn more about ranch architecture on ArchDaily.
Bonus Features
- Recreational Room: Great for a game space, home gym, or creative studio.
- Open Concept Layout: Ideal for mobility, aging-in-place, and modern family living.
- Dining Nook: Conveniently positioned for kitchen access and backyard views.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and print-ready for easy revisions.
- Unlimited Build License: No per-use fees—build one or many houses.
- Free Foundation Changes: Choose from slab, crawlspace, or basement at no cost. Learn more.

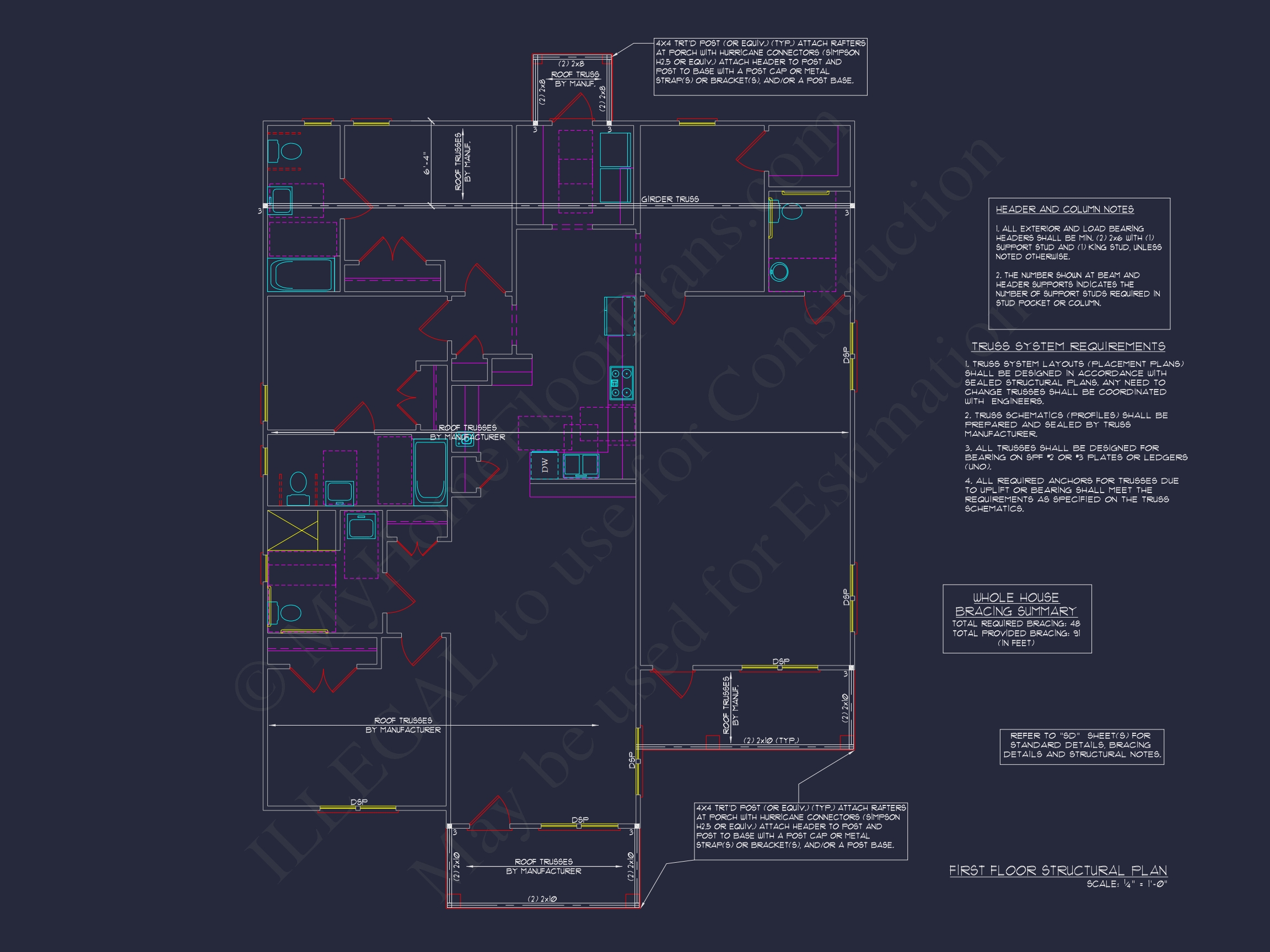

- Structural Engineering Included: All plans come code-ready with engineering review.
- Lower Modification Costs: Our rates are up to 50% less than other sites.
- View Before You Buy: See every sheet upfront.
Similar Collections You Might Love
- 3-Bedroom House Plans
- Simple House Plans
- Plans with Recreation Rooms
- Covered Porch House Plans
- Functional Layout House Plans
Frequently Asked Questions
What’s included with this ranch house plan? You’ll receive the full CAD and PDF blueprint set, an unlimited-build license, structural engineering review, and free foundation type changes.
Can I customize the layout? Yes. We offer low-cost, fast modifications—request a quote here.
Is this a good first-time builder’s house? Definitely. The single-story layout and clear plans make it perfect for first builds or DIYers.
Does it come with outdoor space? Yes! Both front and rear covered porches are included in the plan.
Can I preview the blueprint set before purchase? Of course. Preview all sheets here.
Start Building Your Dream Home Today
Have questions about this layout or ready to personalize it? Reach out to our team at [email protected] or use our contact form.
This is more than just a floor plan—it’s the start of your future. Design, customize, and build with confidence today.
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
15-1784A HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
