Modern 3-Story Floor Plan With CAD Architectural Designs
This 3-story home plan combines functionality with modern design. Featuring 4 bedrooms, a spacious basement, and an open concept, it includes CAD blueprints.
STUNNING 3-STORY FLOOR PLAN FOR MODERN LIVING
If you’re searching for a spacious and thoughtfully designed home, this 3-story floor plan may be the solution. Featuring ample space and modern architecture, this home perfectly blends practicality and elegant design. Whether you’re a future homeowner, builder, or architect, this design provides flexibility to meet any family’s needs.
KEY INDOOR FEATURES
This stunning home is equipped with the following highlights:

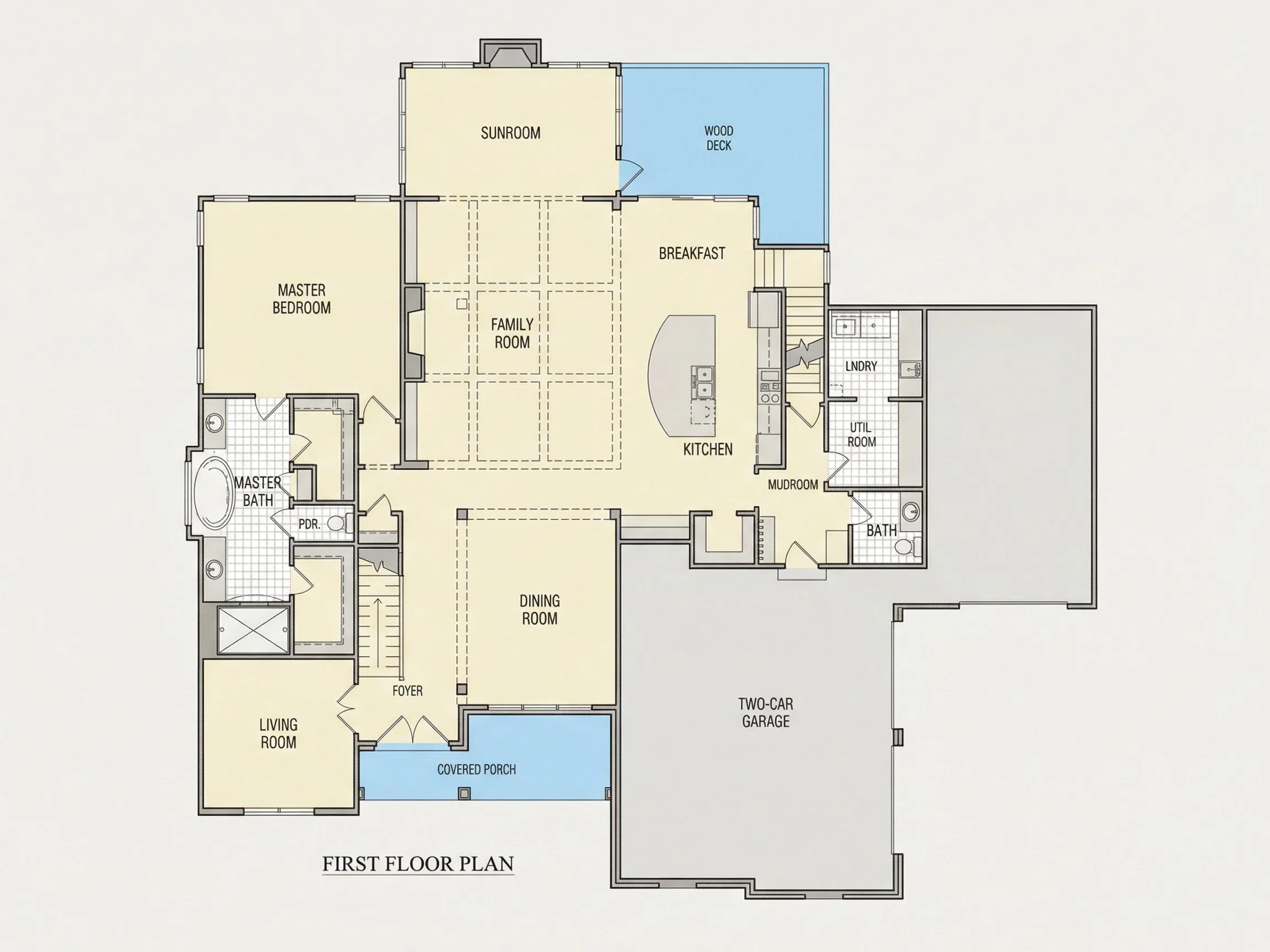

* 4 generously sized bedrooms, including a luxurious owner’s suite on the first floor and additional bedrooms on the second floor.

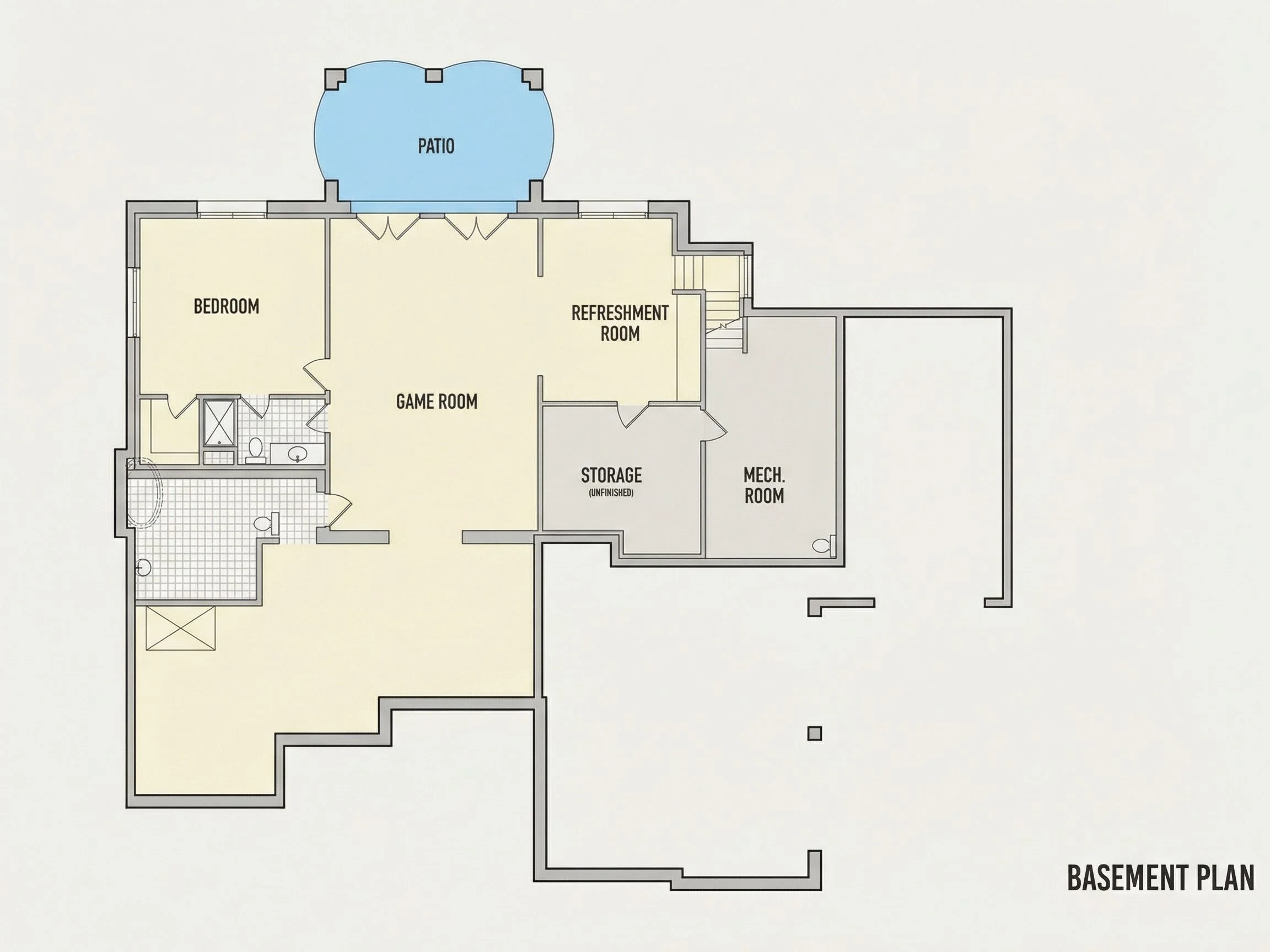

* A fully finished basement with a recreational/game room, an additional bedroom, and a full bathroom, offering great versatility.
* Open floor plan ideal for entertaining and connected living environments.
* Elegant ceiling features, including vaulted and tray ceilings, enhance the living and dining spaces.
* Organized spaces such as a mudroom, walk-in pantry, and storage areas for hassle-free living.
* A cozy fireplace, providing a perfect focal point in the family room for relaxation and gatherings.
OUTDOOR FEATURES
Elevate your outdoor enjoyment with several well-planned external features:
* Covered front porch, a welcoming architectural detail for curb appeal.
* A patio and a covered deck, perfect for hosting outdoor gatherings or enjoying peaceful evenings.
VERSATILE ARCHITECTURAL STYLE

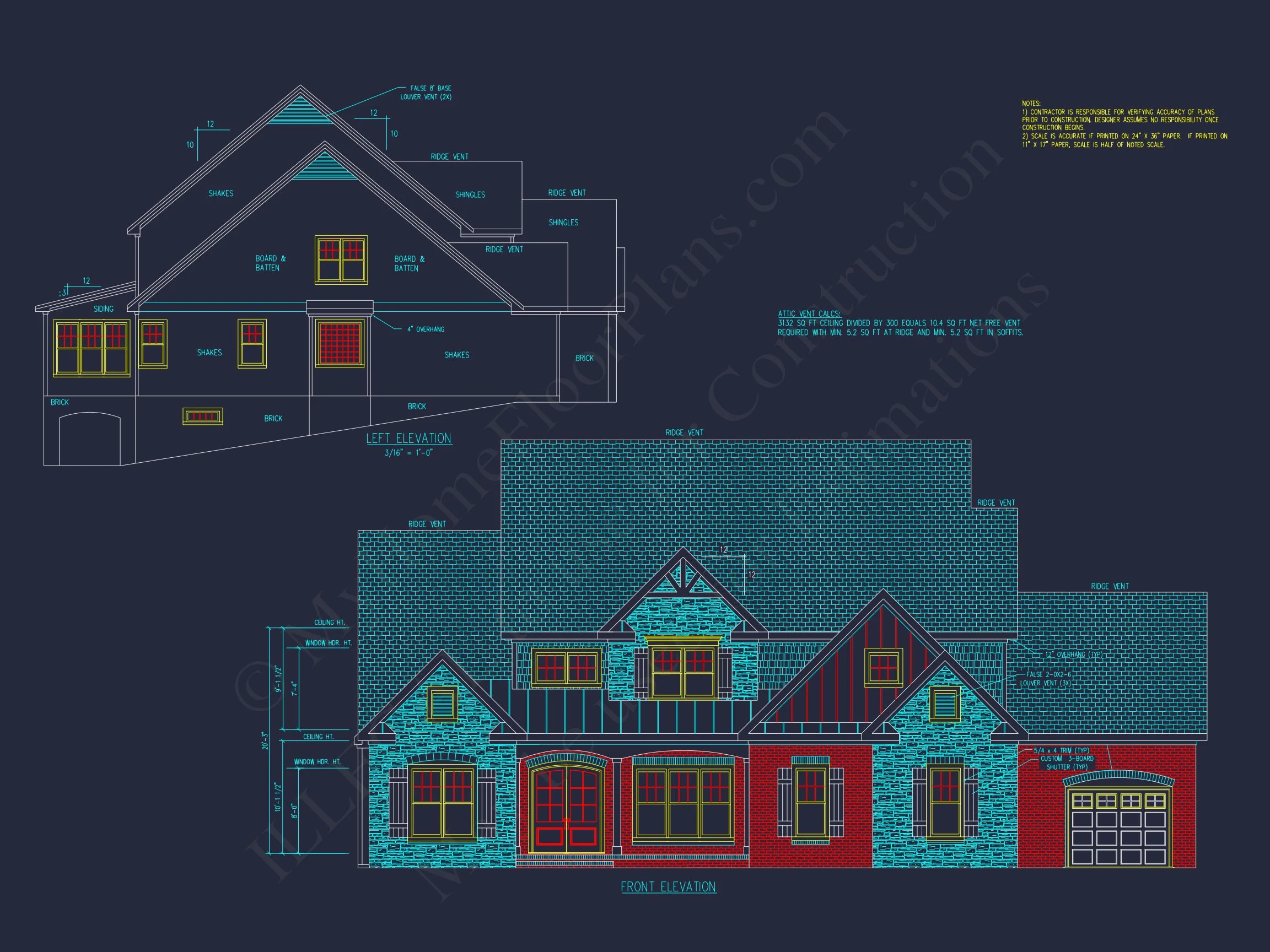

This home’s Craftsman-inspired design combines timeless charm with a contemporary twist. The exterior materials, including brick, shingles, and board & batten, create a polished yet inviting aesthetic. Designed with 5, 119 heated square feet and additional unheated space, this floor plan serves large families or those seeking extra room for activities and storage.
WHY CHOOSE THIS FLOOR PLAN?

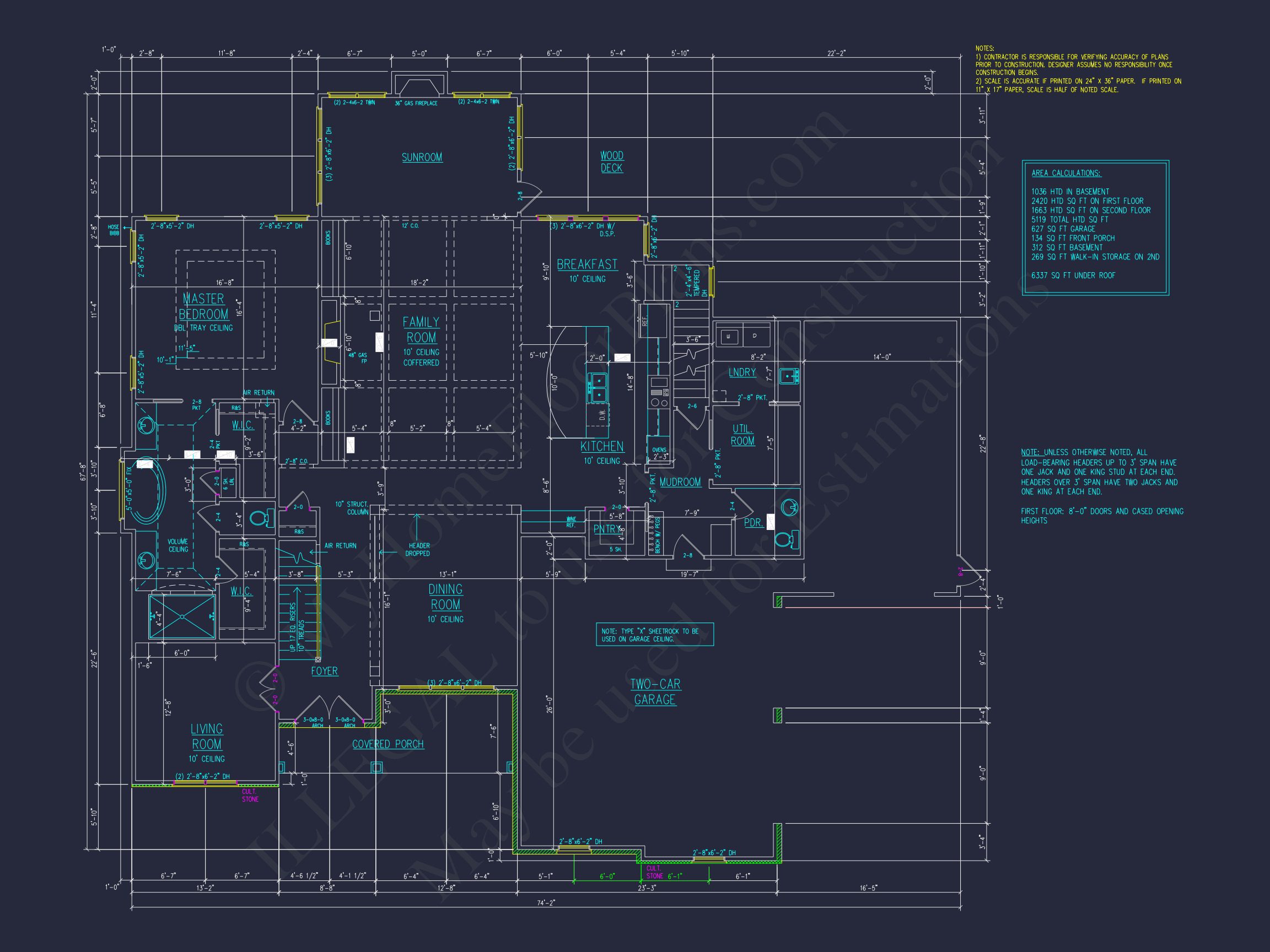

With 3 stories of versatile living space, this plan caters to both comfort and aesthetics. Every home blueprint includes a complete CAD file and PDF layout. Buyers also receive an unlimited build license, free foundation modifications, and structural engineering support. View all layout sheets before purchase and enjoy seamless customization at a fraction of the cost offered by competitors.
Ready to bring your dream home to life? Contact us at support@https://myhomefloorplans.com for personalized support and modifications!
All home plans include BOTH the CAD file and PDF file.

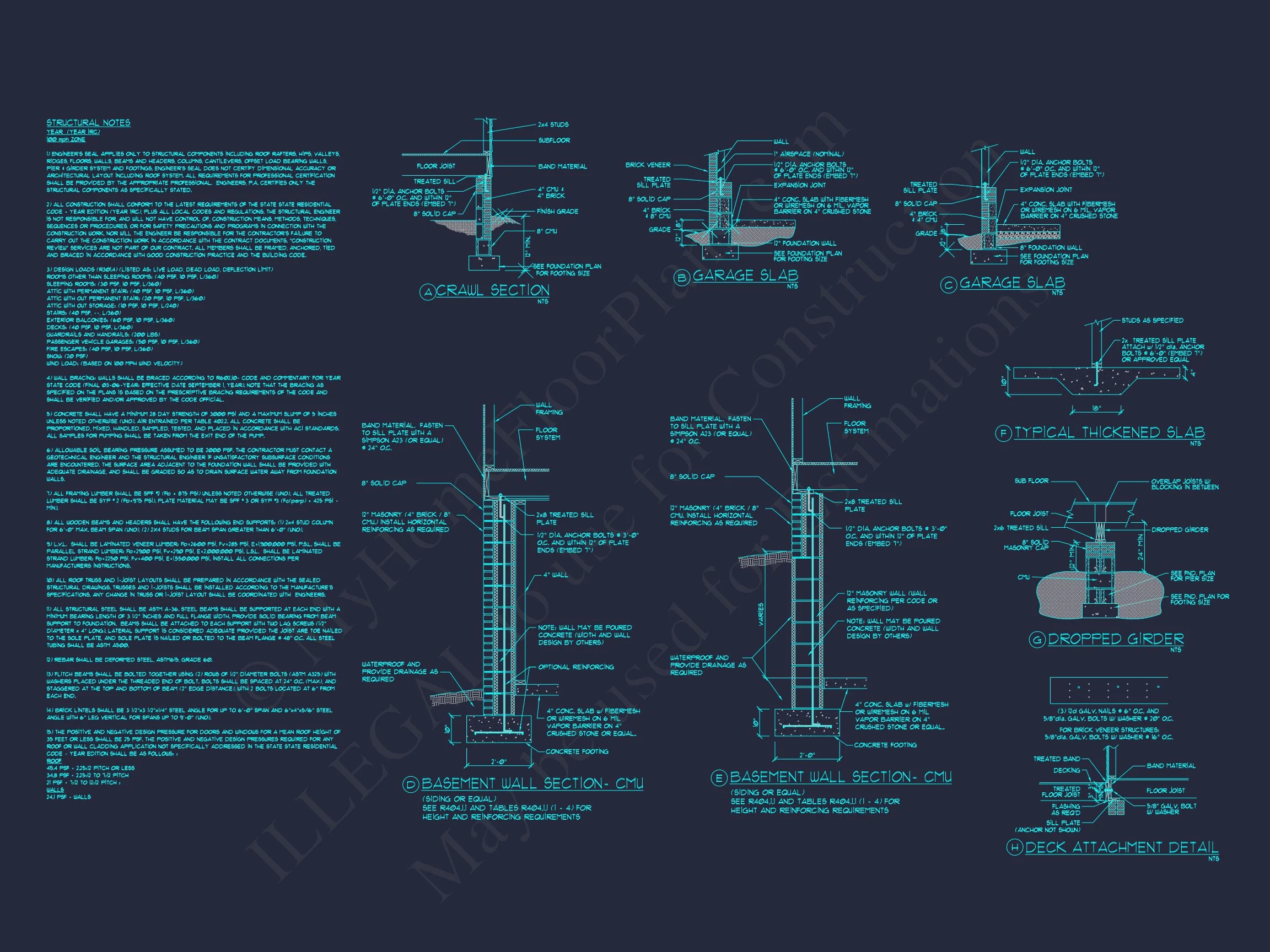

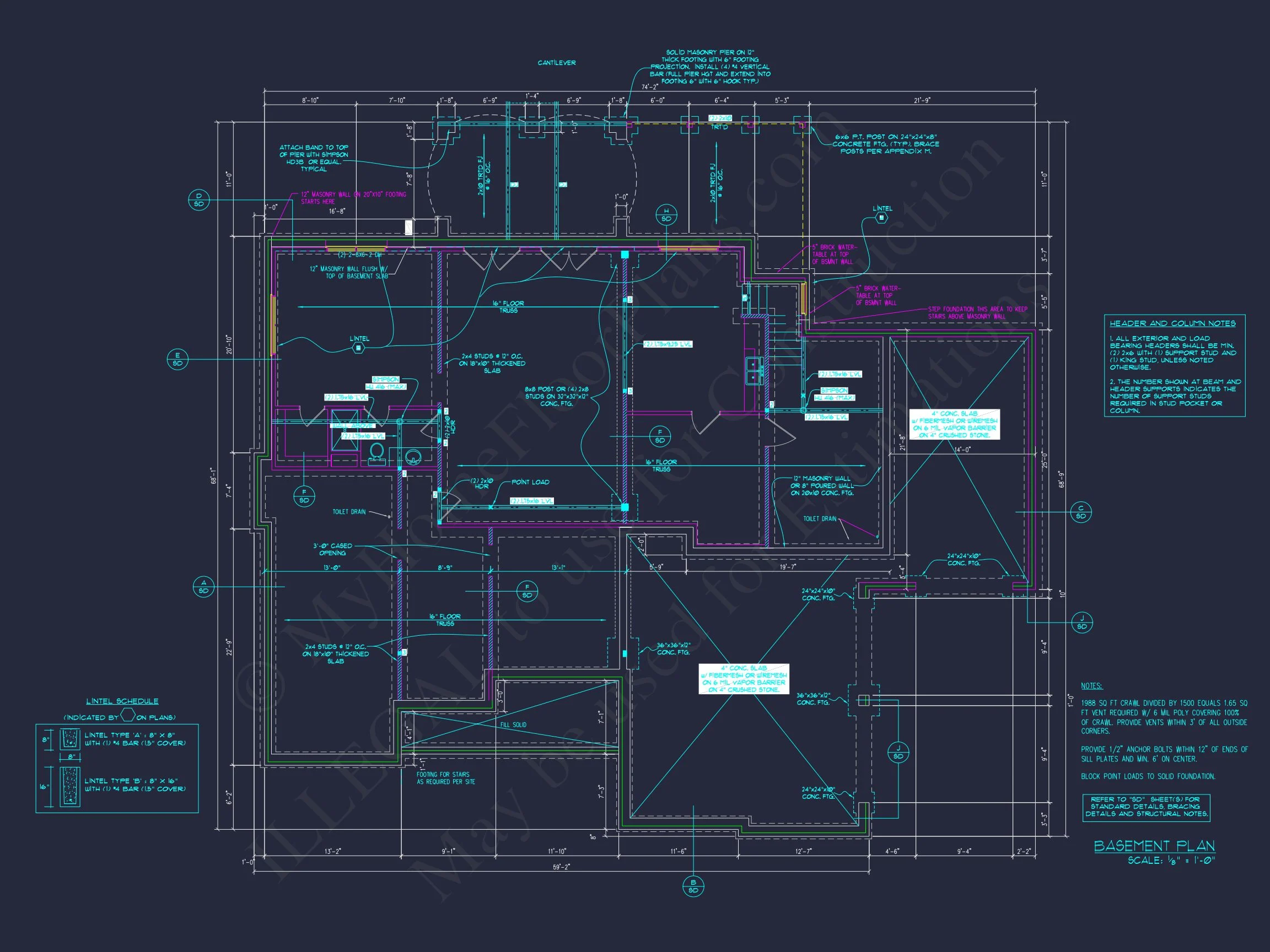

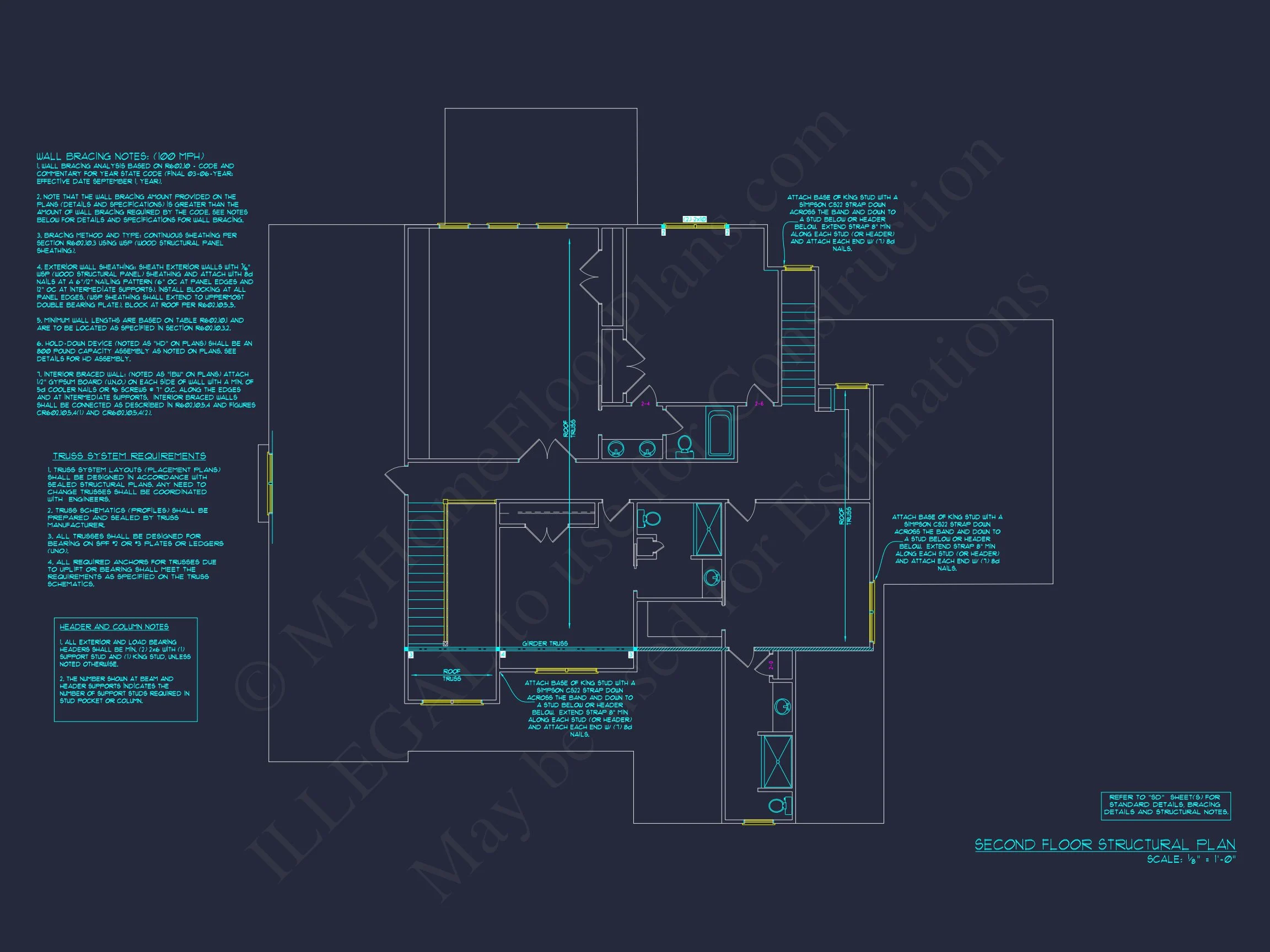

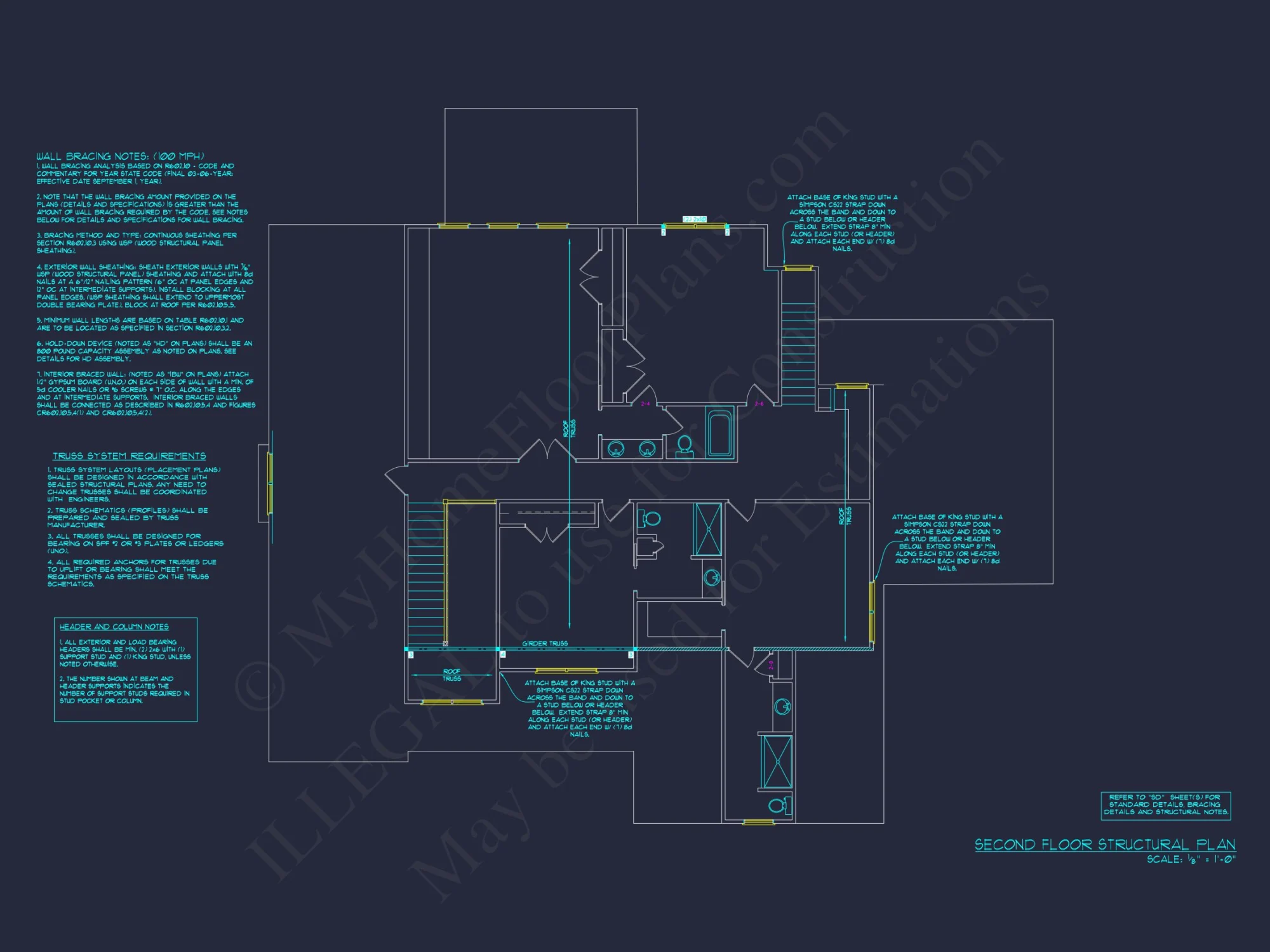

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

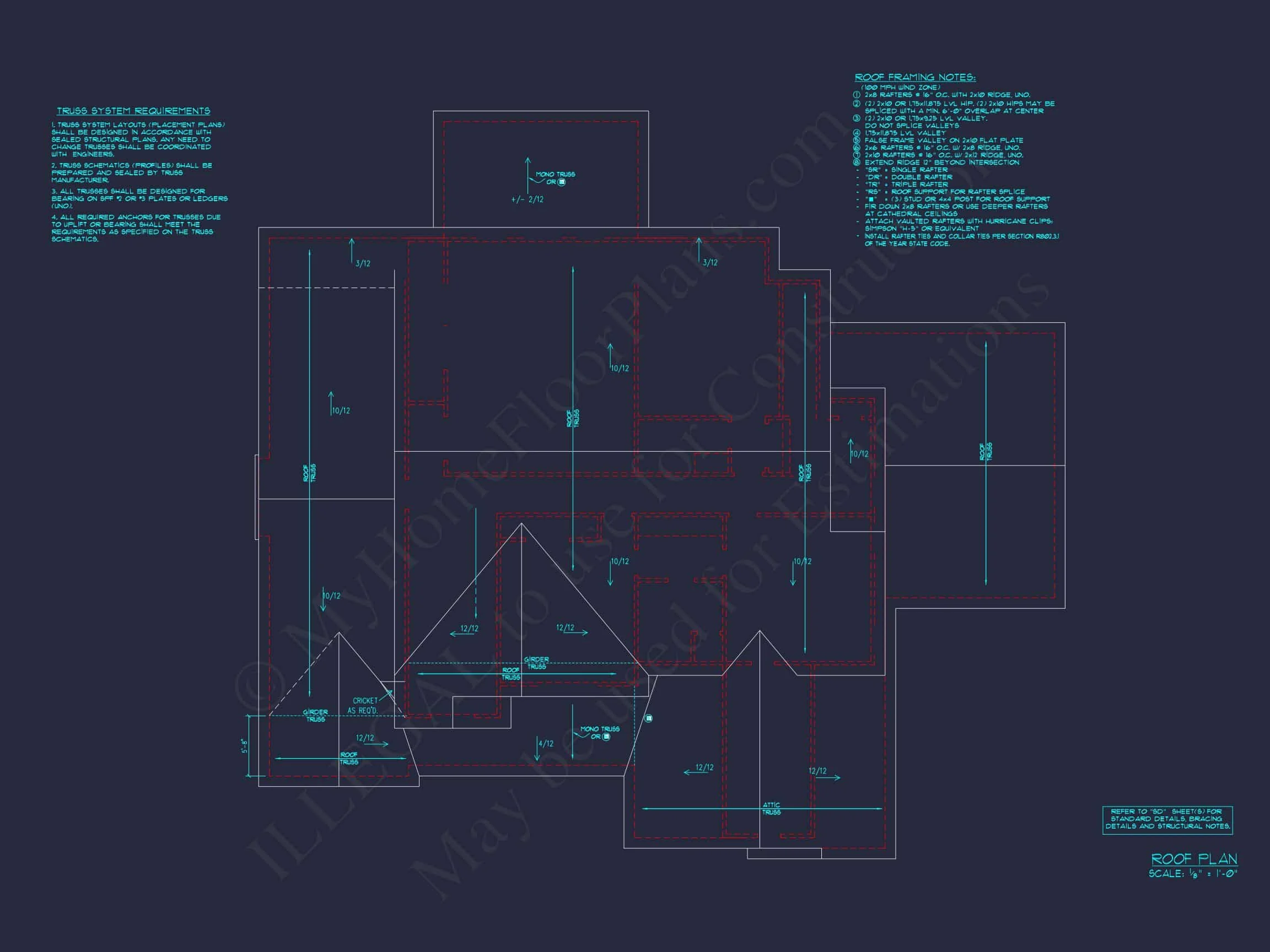

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
16-1025 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
