Modern Beach house CAD Blueprint with 2-Story Floor Plan
Explore this stunning 2-story beach house design with CAD blueprints. Featuring 3 bedrooms, 2 baths, and a spacious open floor plan with coastal charm.
Original price was: $439.60.$175.84Current price is: $175.84.
999 in stock
| Width | 34'-6" |
|---|---|
| Depth | 48'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | Covered Front Porch, Balcony, Covered Rear Porch, Deck, Patio |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Modern Beach House CAD Blueprint with 2-Story Floor Plan
Explore this stunning 2-story beach house design with CAD blueprints. Featuring 3 bedrooms, 2 baths, and a spacious open floor plan with coastal charm.
Discover the Perfect Beach House Design
Designing your dream beach house has never been easier. This 2-story beach house plan combines functionality and style, offering a modern take on coastal living. With 1844 square feet of heated space, this home is perfect for families or individuals looking for a serene escape by the shore.
Functional Floor Plans Tailored for Your Needs

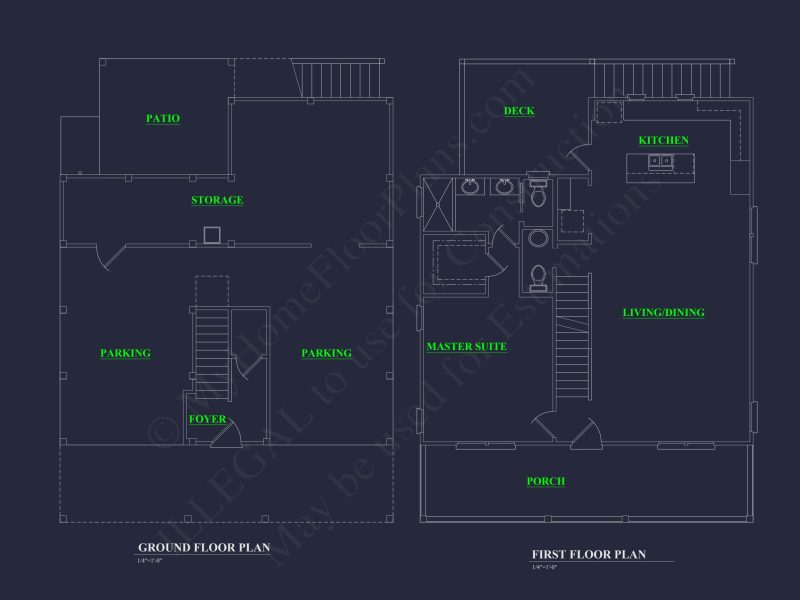

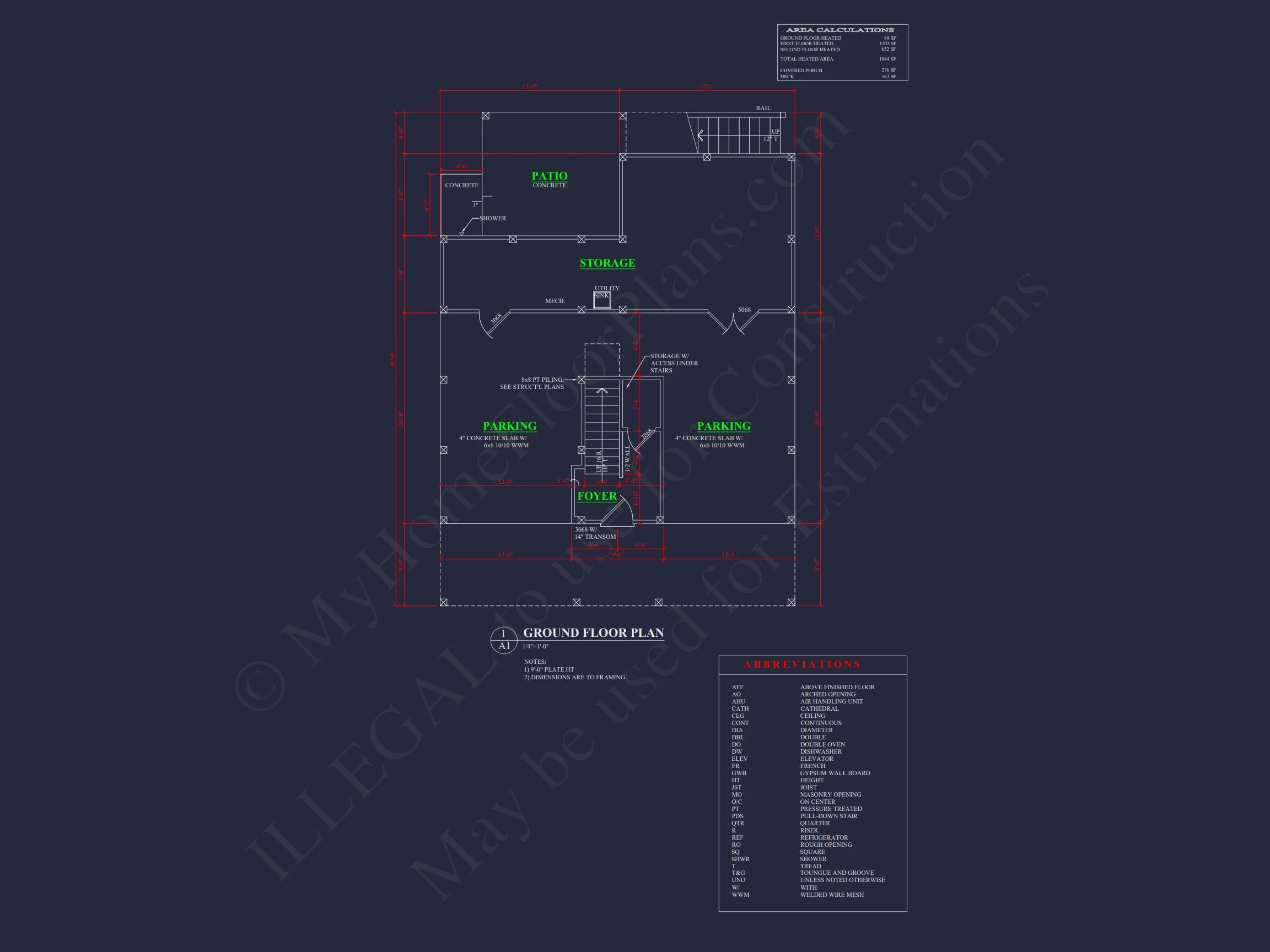

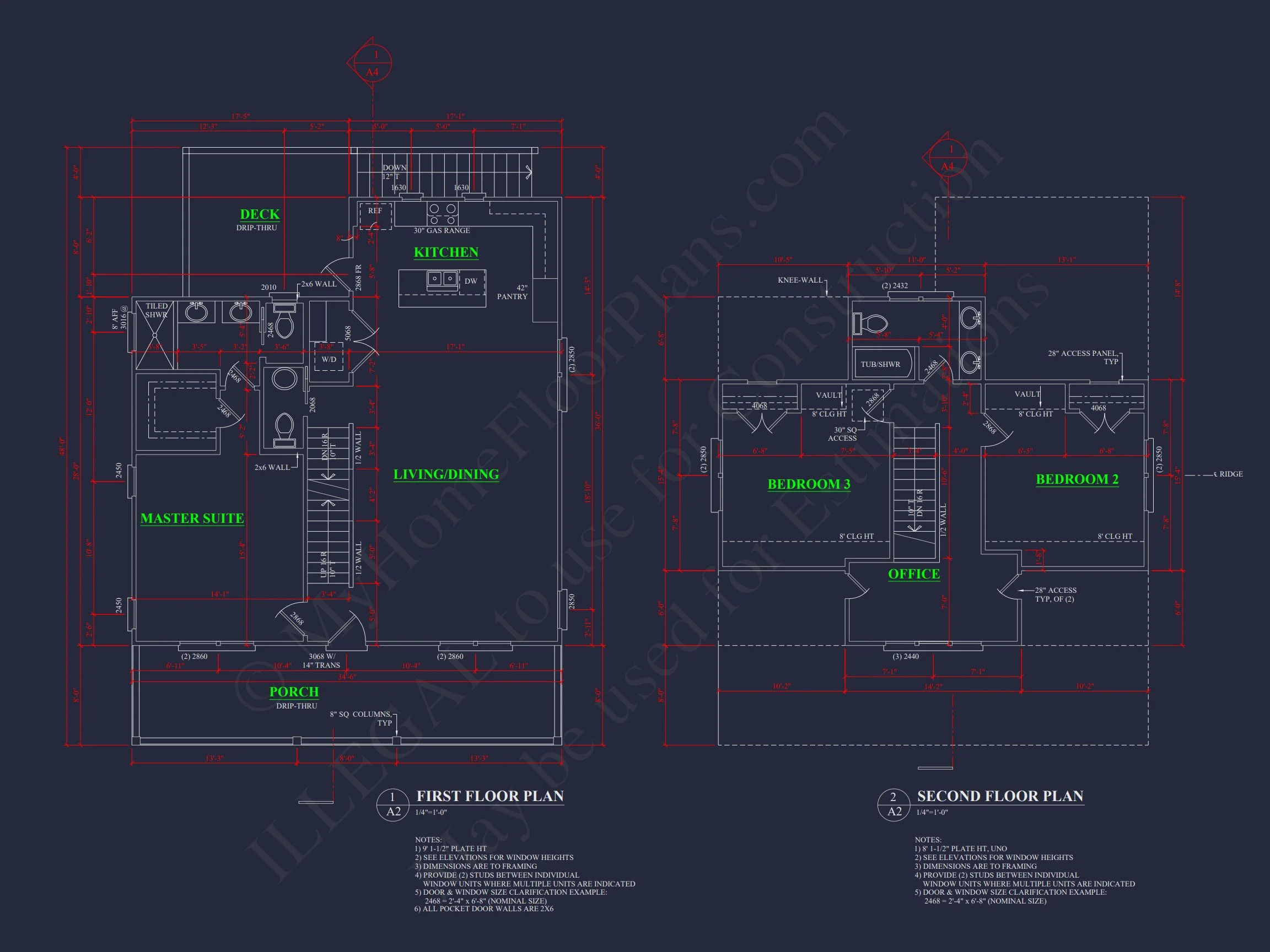

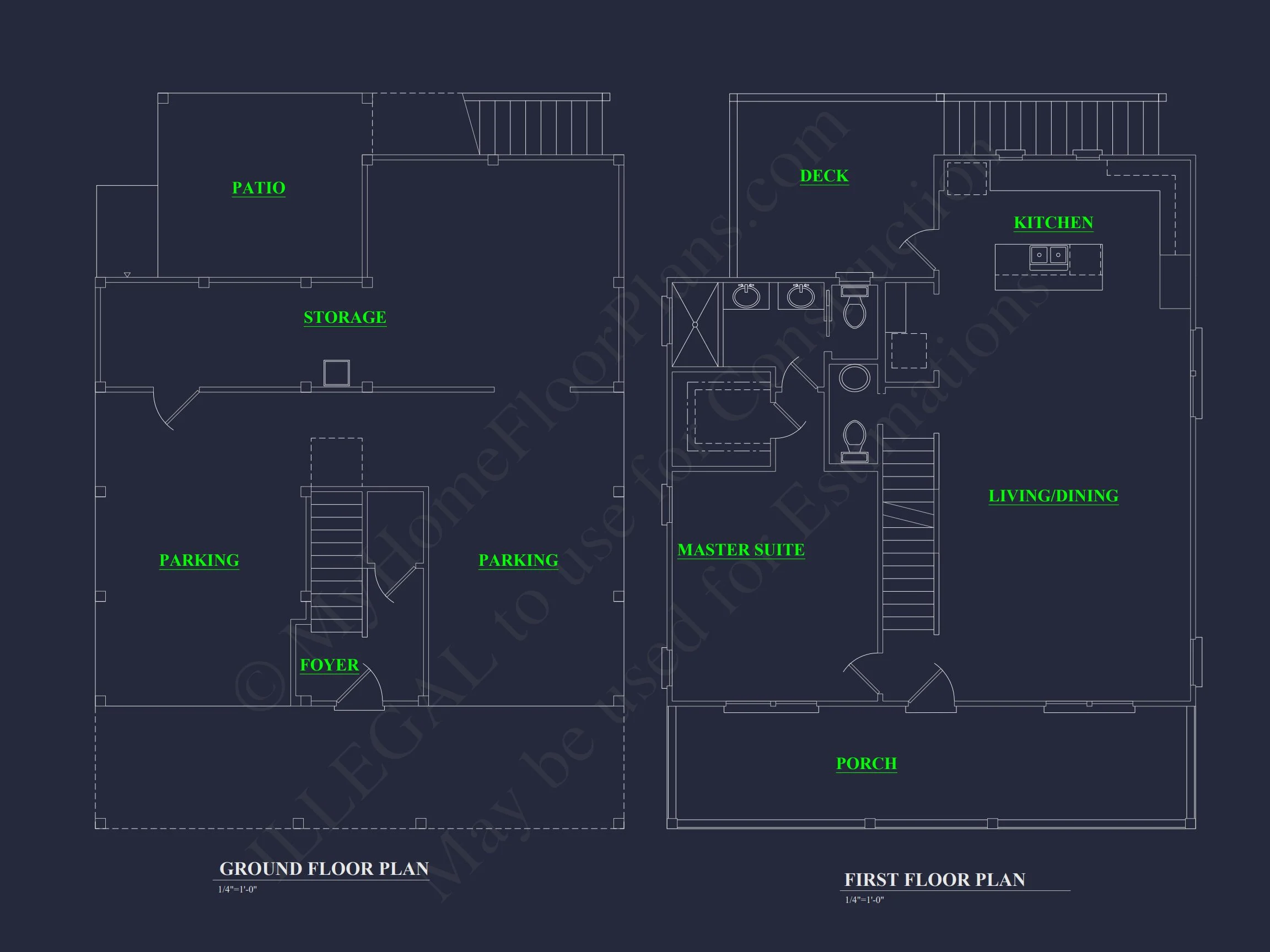

Ground Floor:
* Storage Space: Ideal for seasonal items and beach gear.
* Parking Area: Ample space for cars or recreational vehicles.
* Foyer: A welcoming entrance to your beach retreat.
First Floor:
* Owner Suite: Features a walk-in closet for ample storage.
* Open Floor Plan: Combines the kitchen, dining, and living areas for seamless entertaining.
* Deck and Porch: Perfect for enjoying ocean breezes and scenic views.

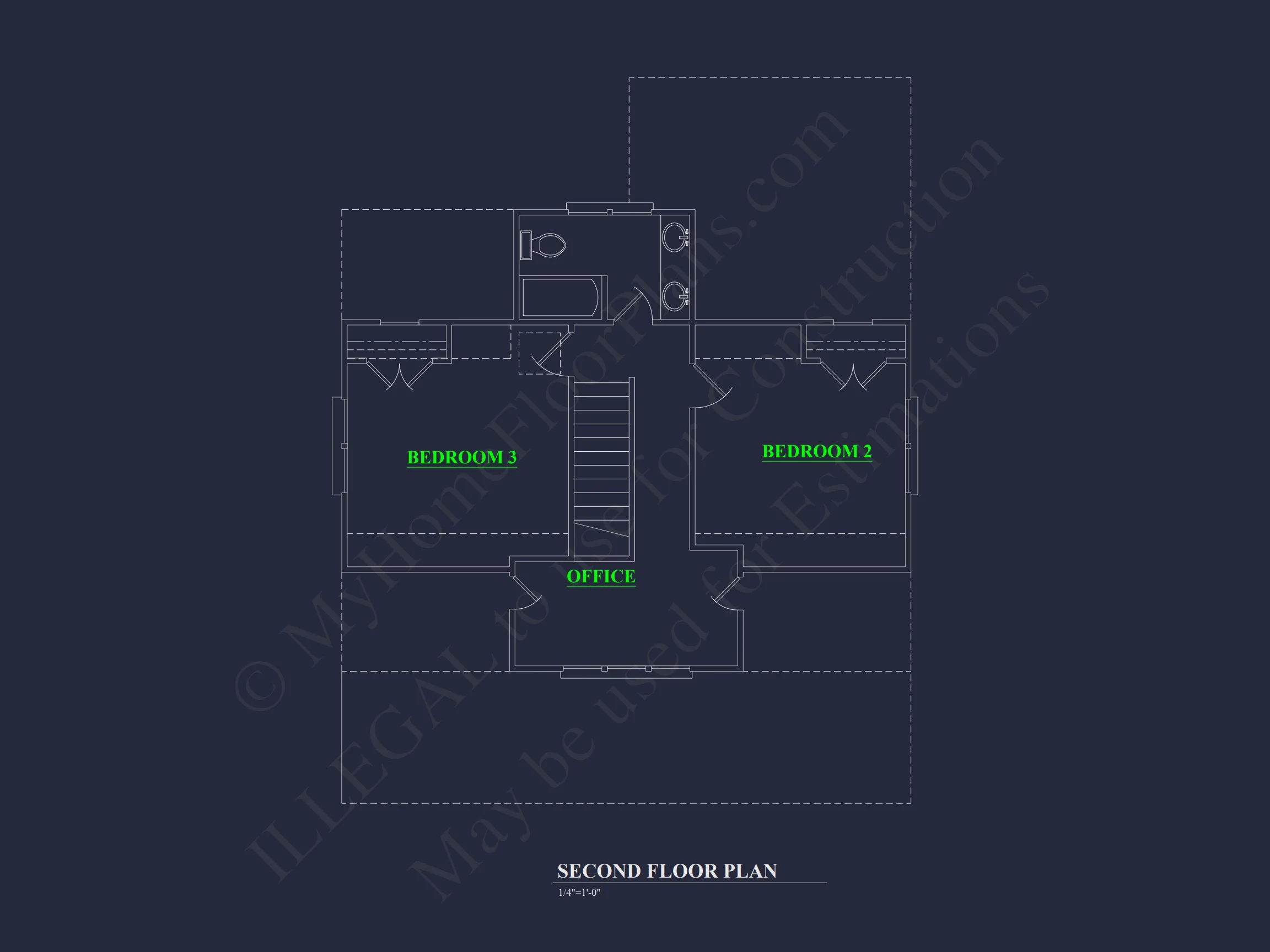

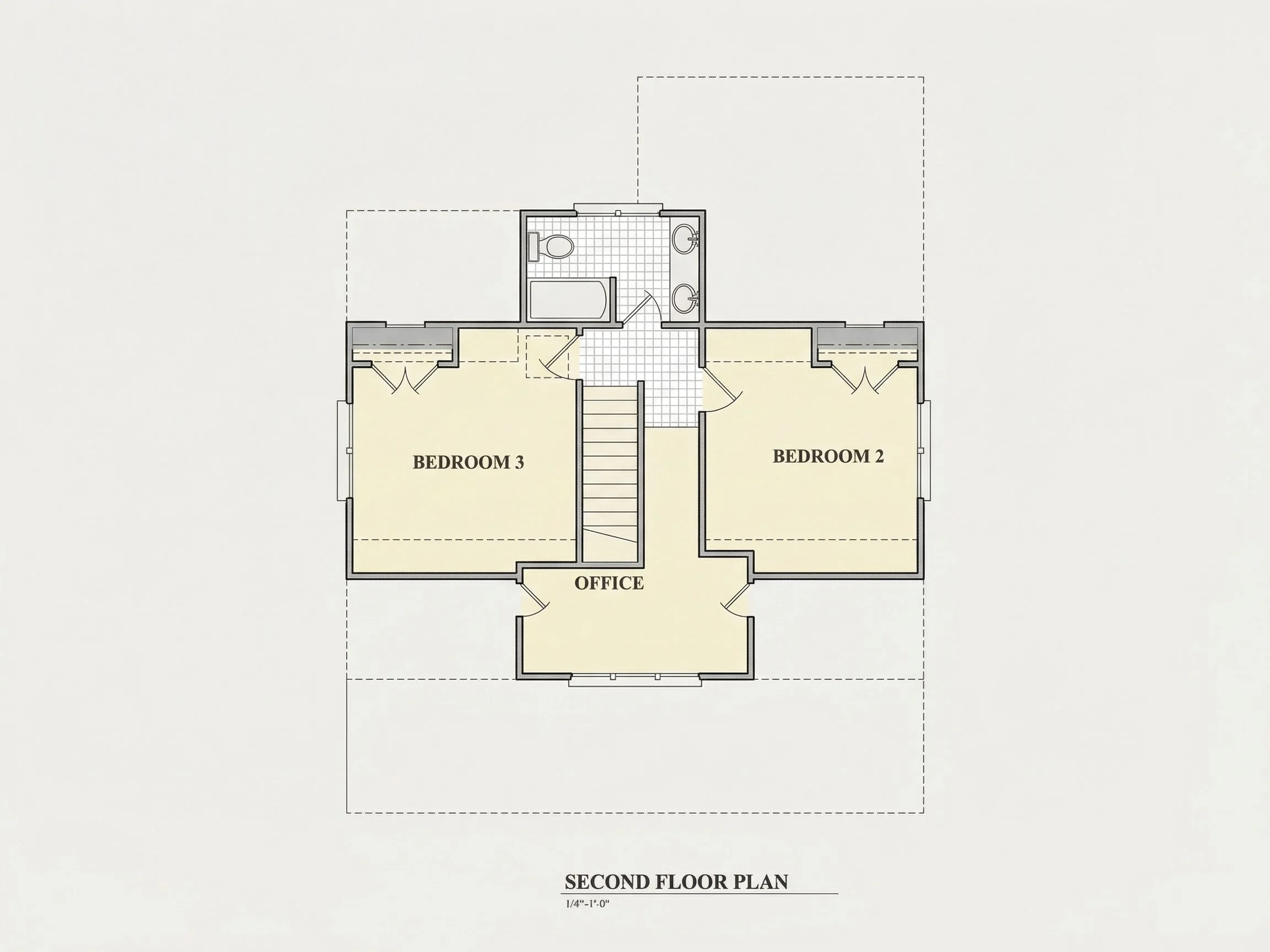

Second Floor:

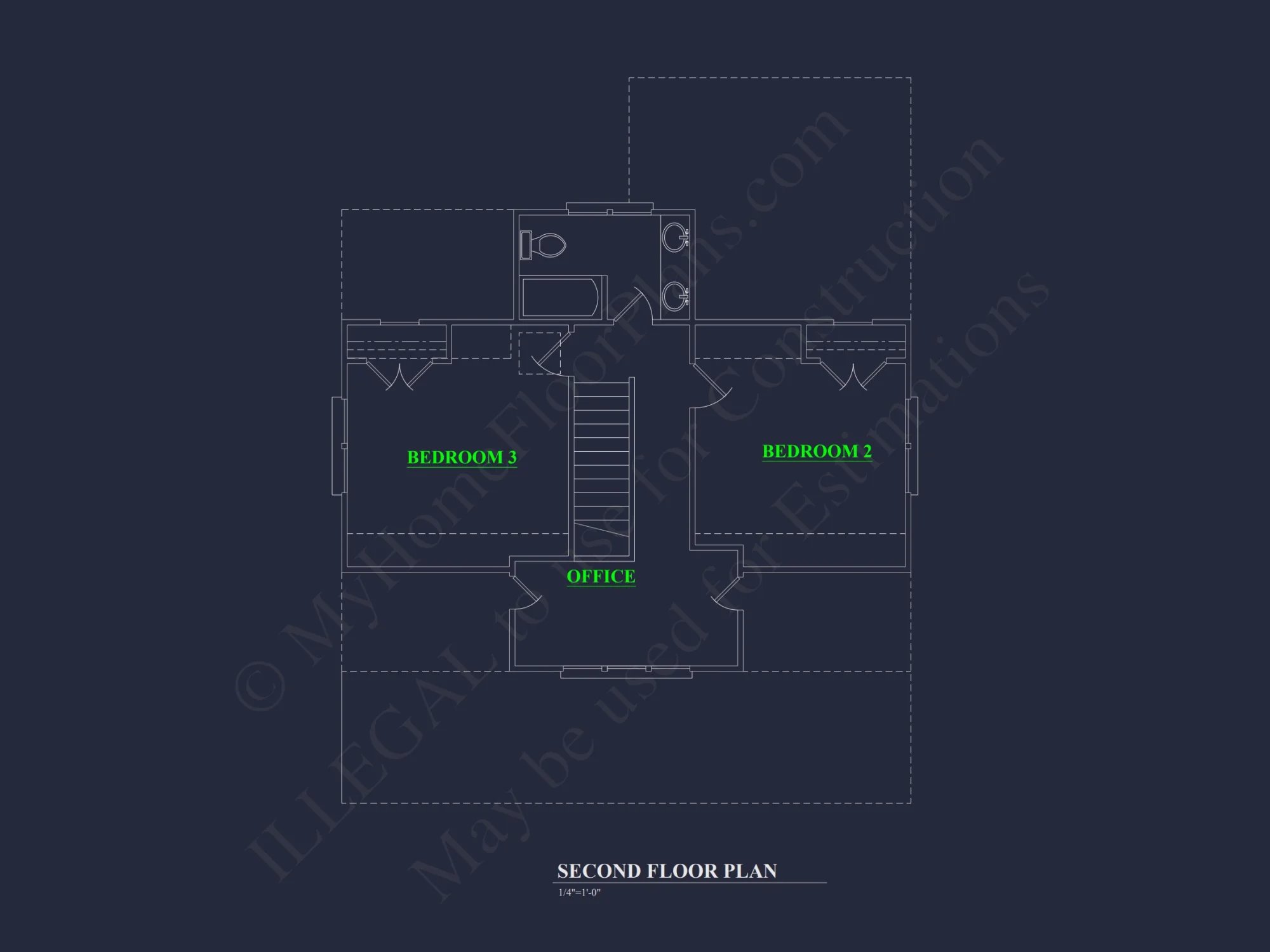

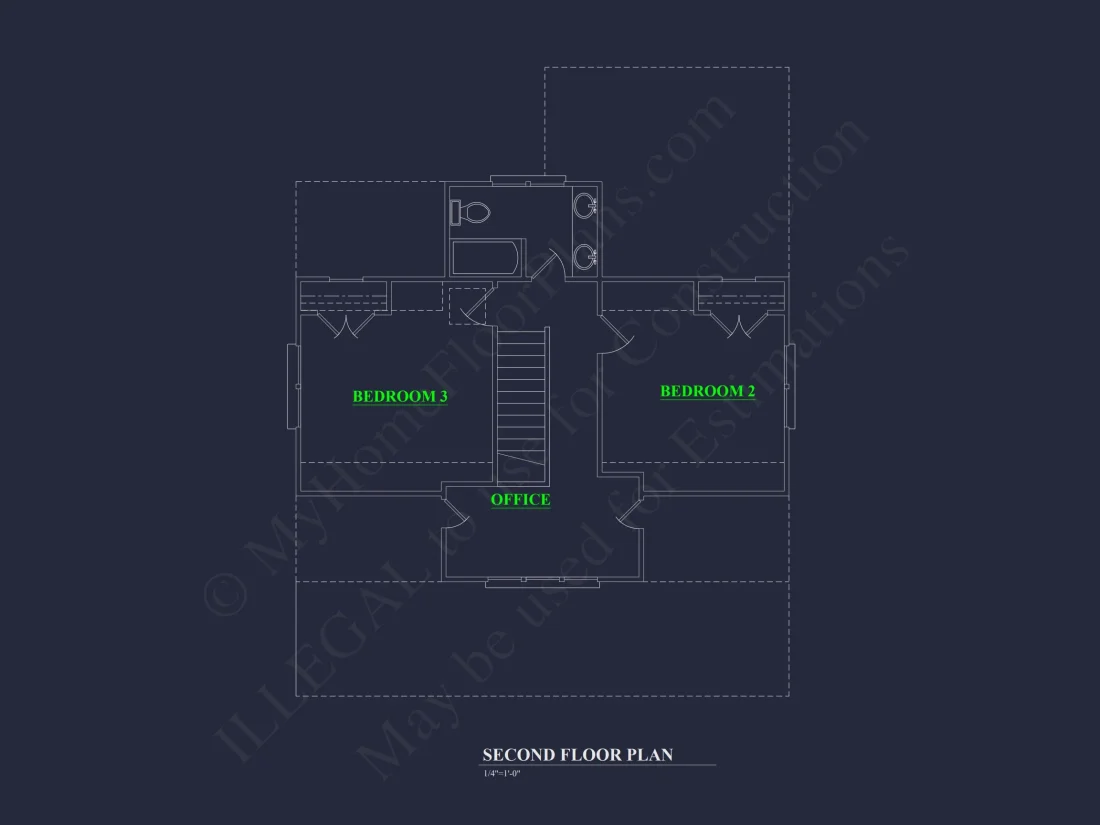

* Two Additional Bedrooms: Spacious accommodations for family or guests.
* Office/Study: A quiet retreat for work or hobbies.
Indoor and Outdoor Features
* Indoor Features:
* Open Floor Plan
* Walk-in Closet
* 9ft+ Ceilings
* Private Office/Study
* Outdoor Features:
* Covered Front and Rear Porch
* Deck and Balcony
* Patio for relaxation
Coastal Charm and Quality Construction

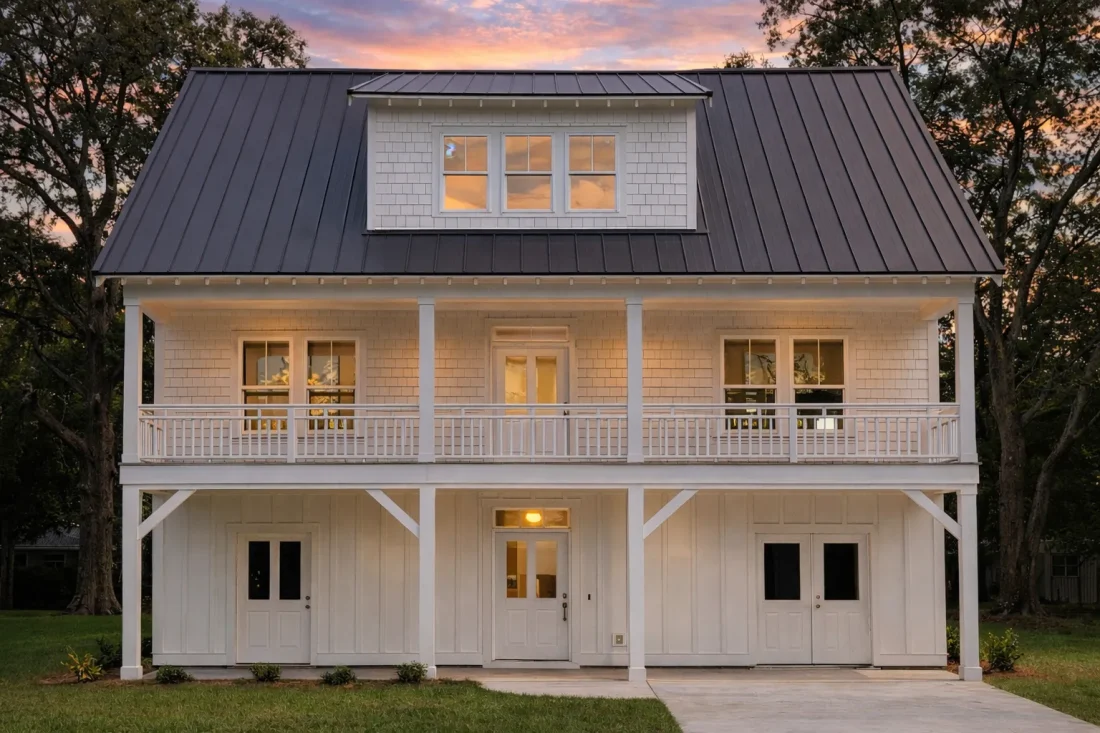

The exterior features a durable shake and siding finish designed to withstand coastal weather. Built on a piling foundation, this home is perfect for a sloped lot or areas with higher flood risks. Whether you’re designing for a family retreat or a starter home, this plan offers versatility and timeless appeal.
Benefits Included with Every Plan
Every home plan includes the original CAD file and PDF, along with an unlimited-build license. Free foundation modifications are part of the package, ensuring your design fits your specific needs. Structural engineering is included with all plans, and our affordable customization options make this plan truly your own.
Ready to Design Your Dream Home?
Start your journey to owning the perfect beach house. Contact us at support@https://myhomefloorplans.com and make your dream a reality today!
All home plans include BOTH the CAD file and PDF file.

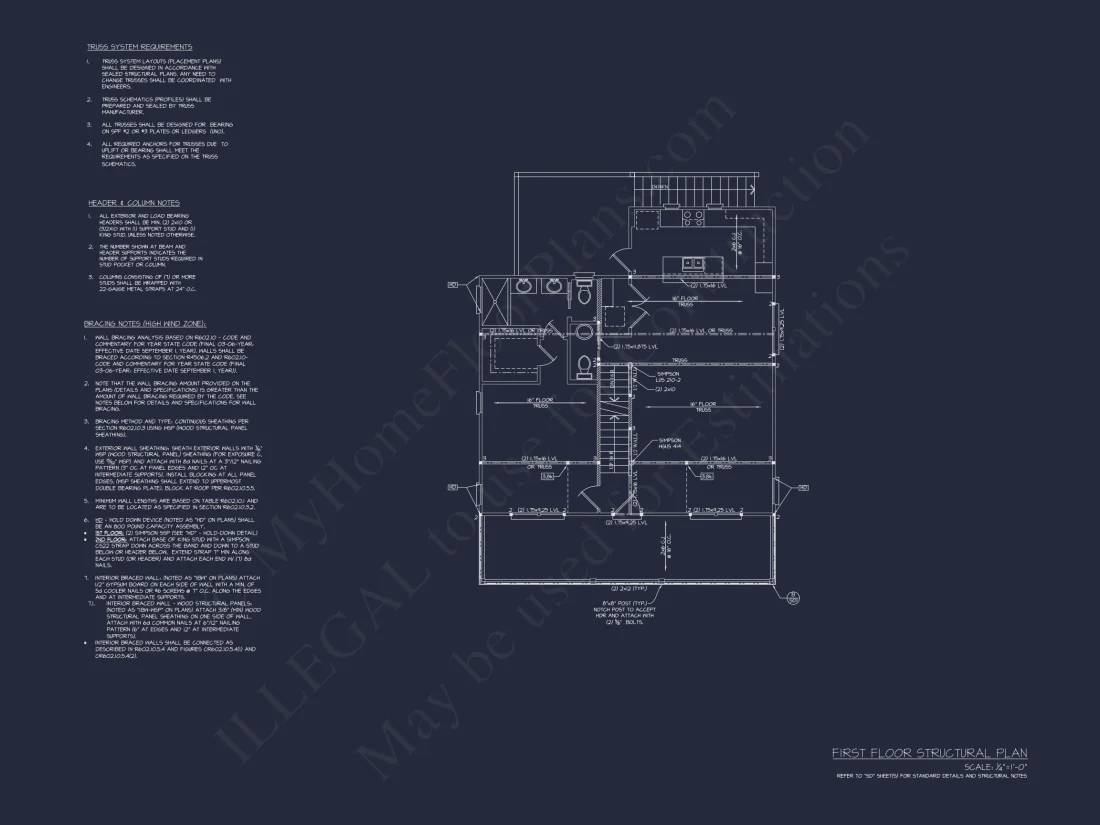

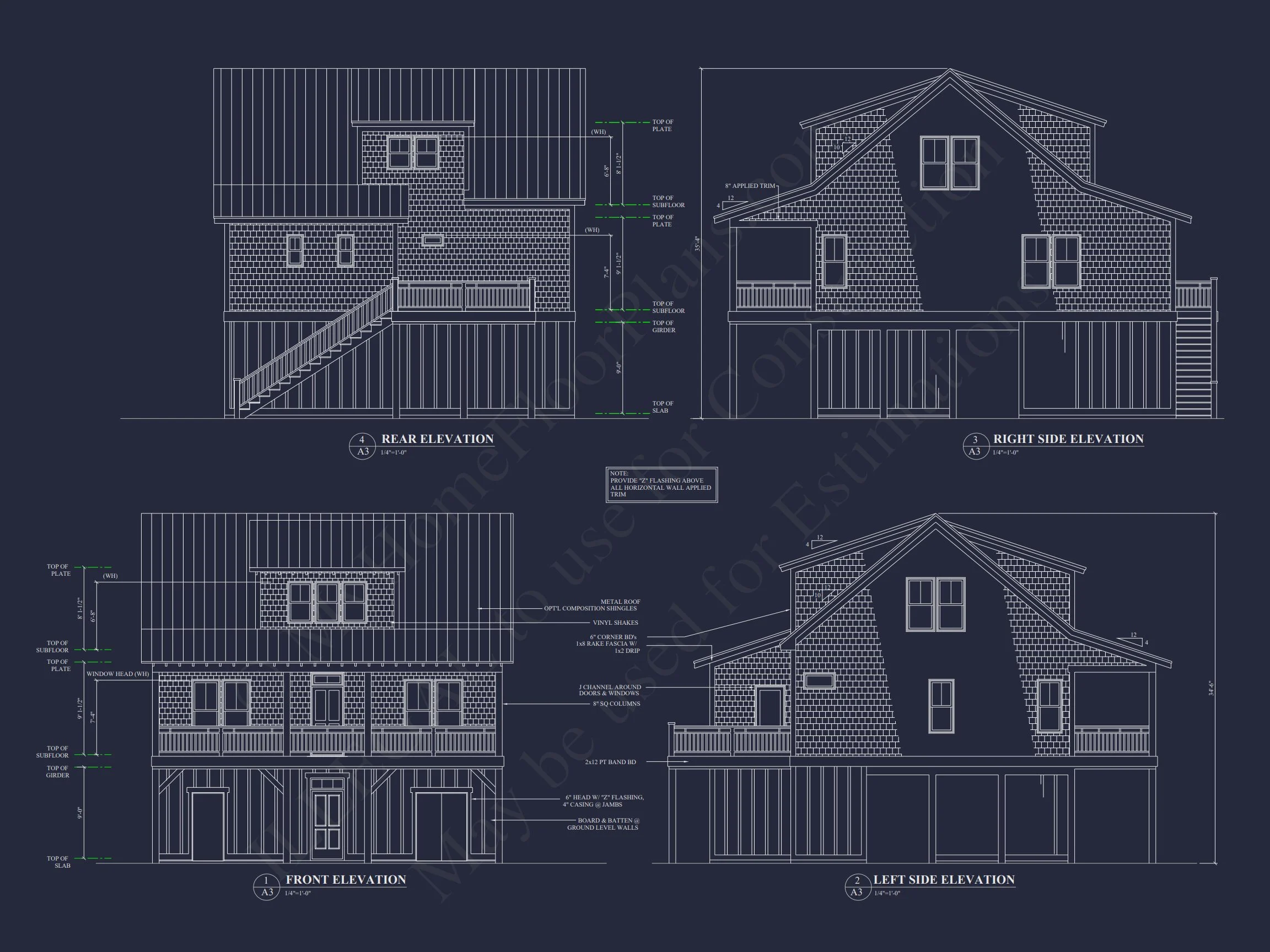

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

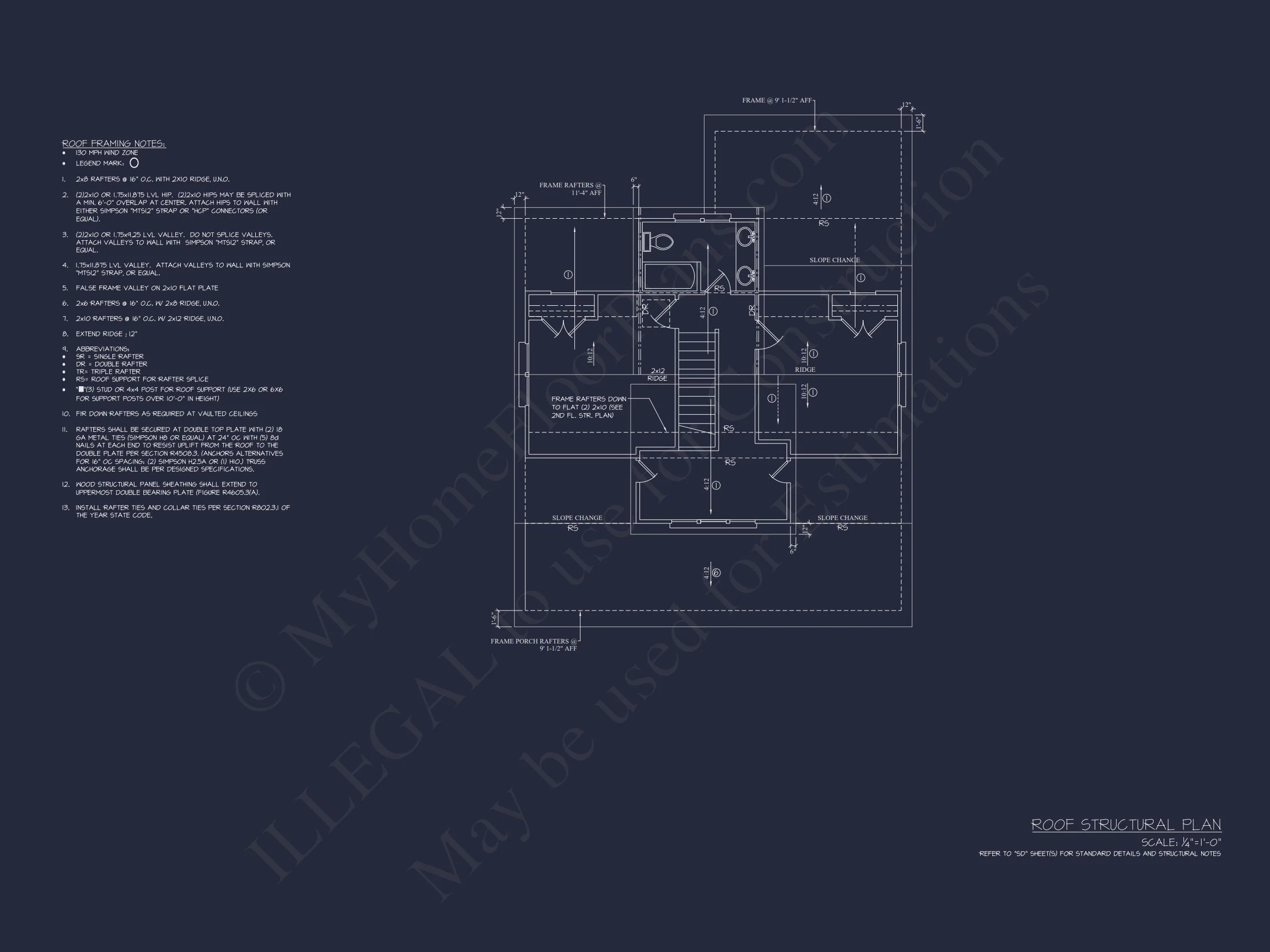

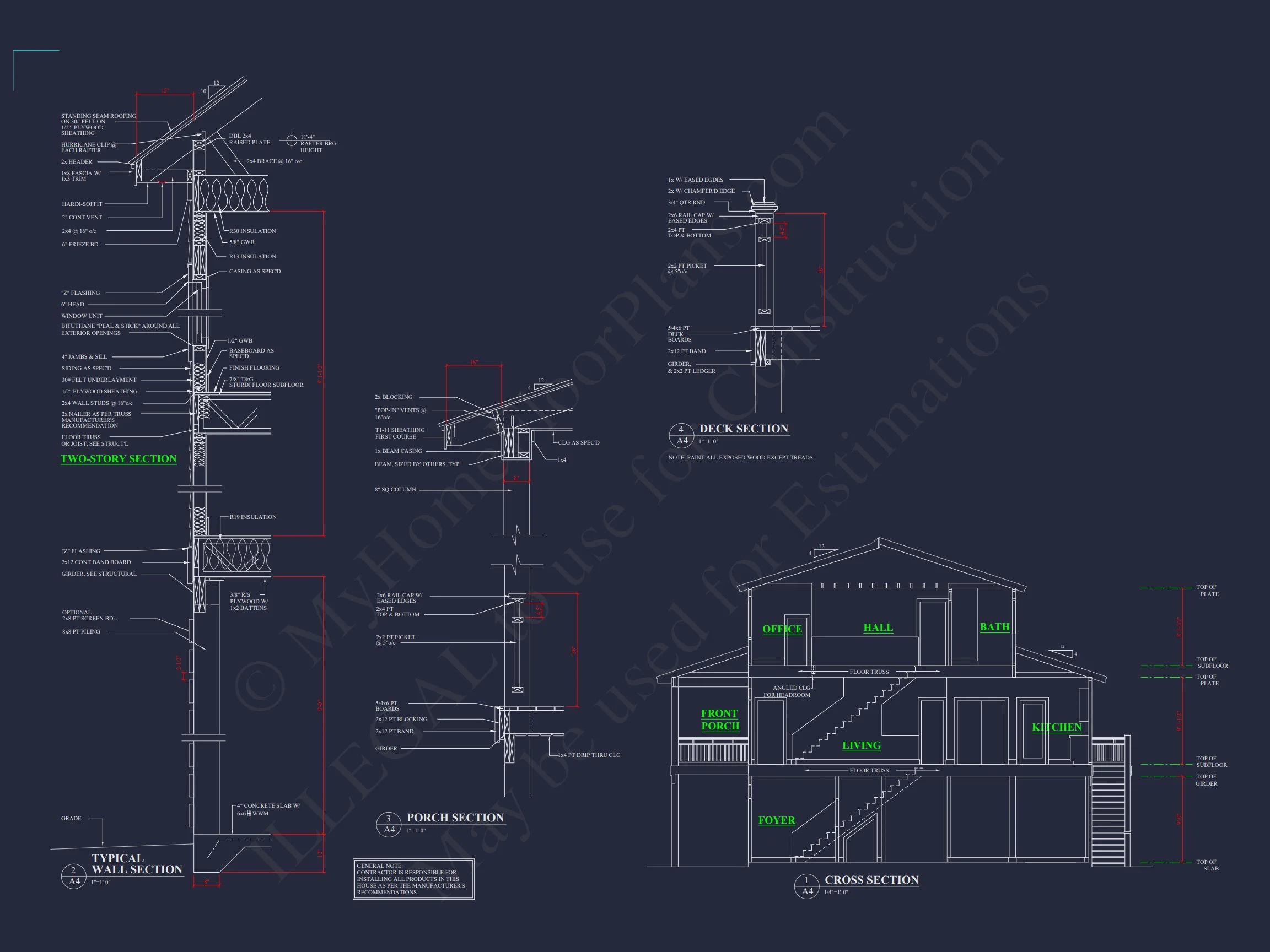

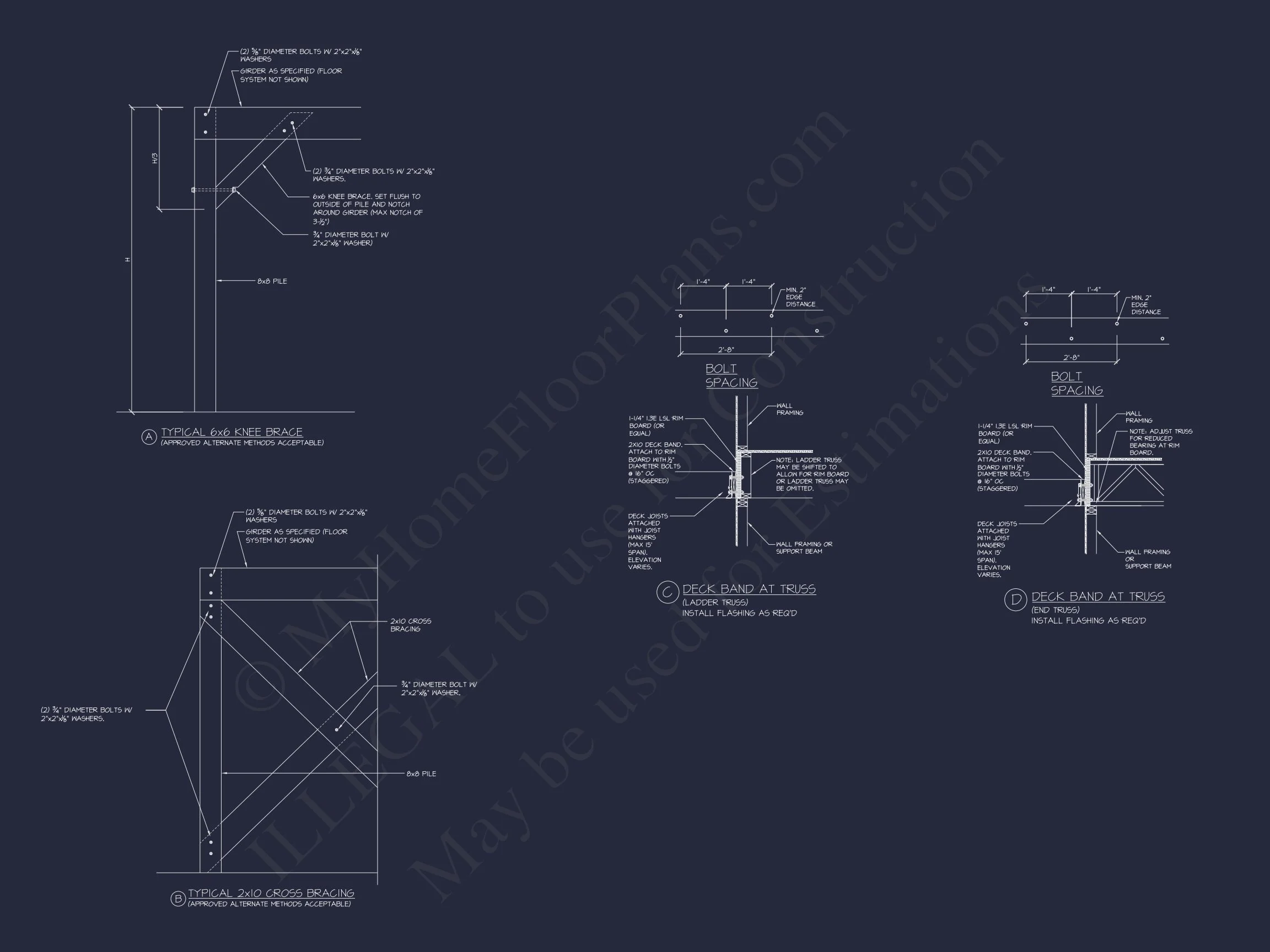

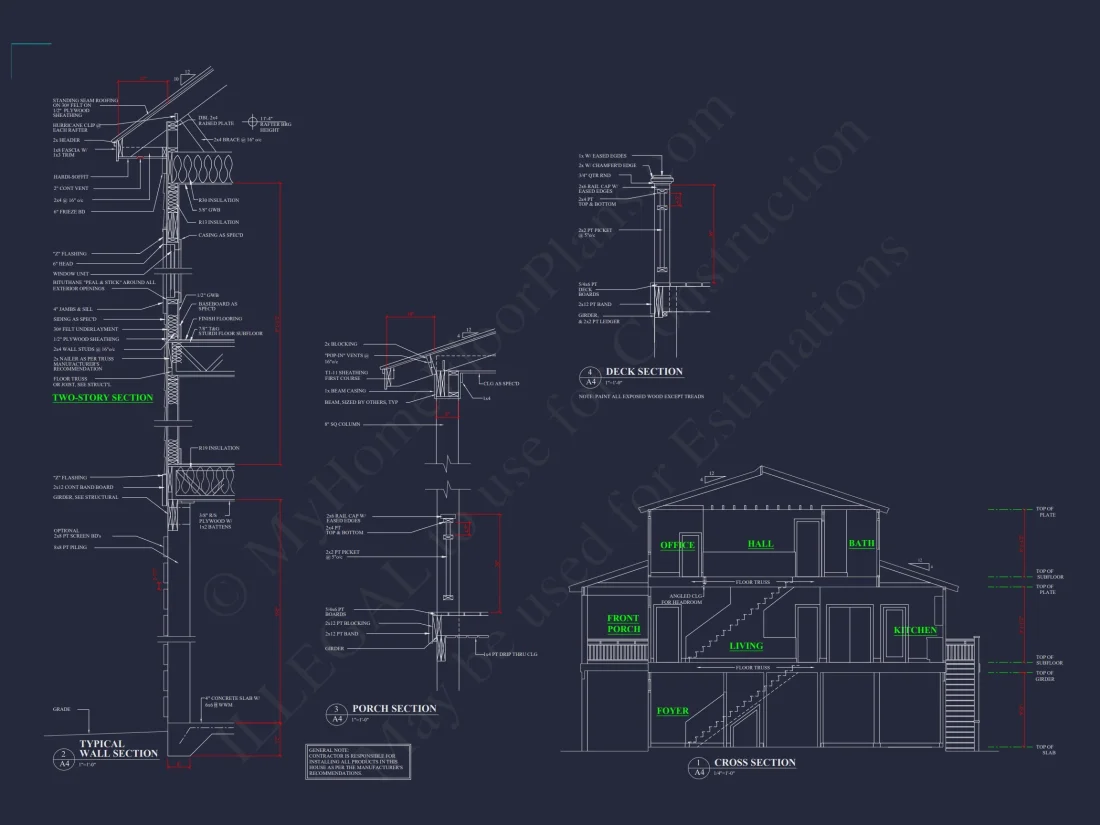

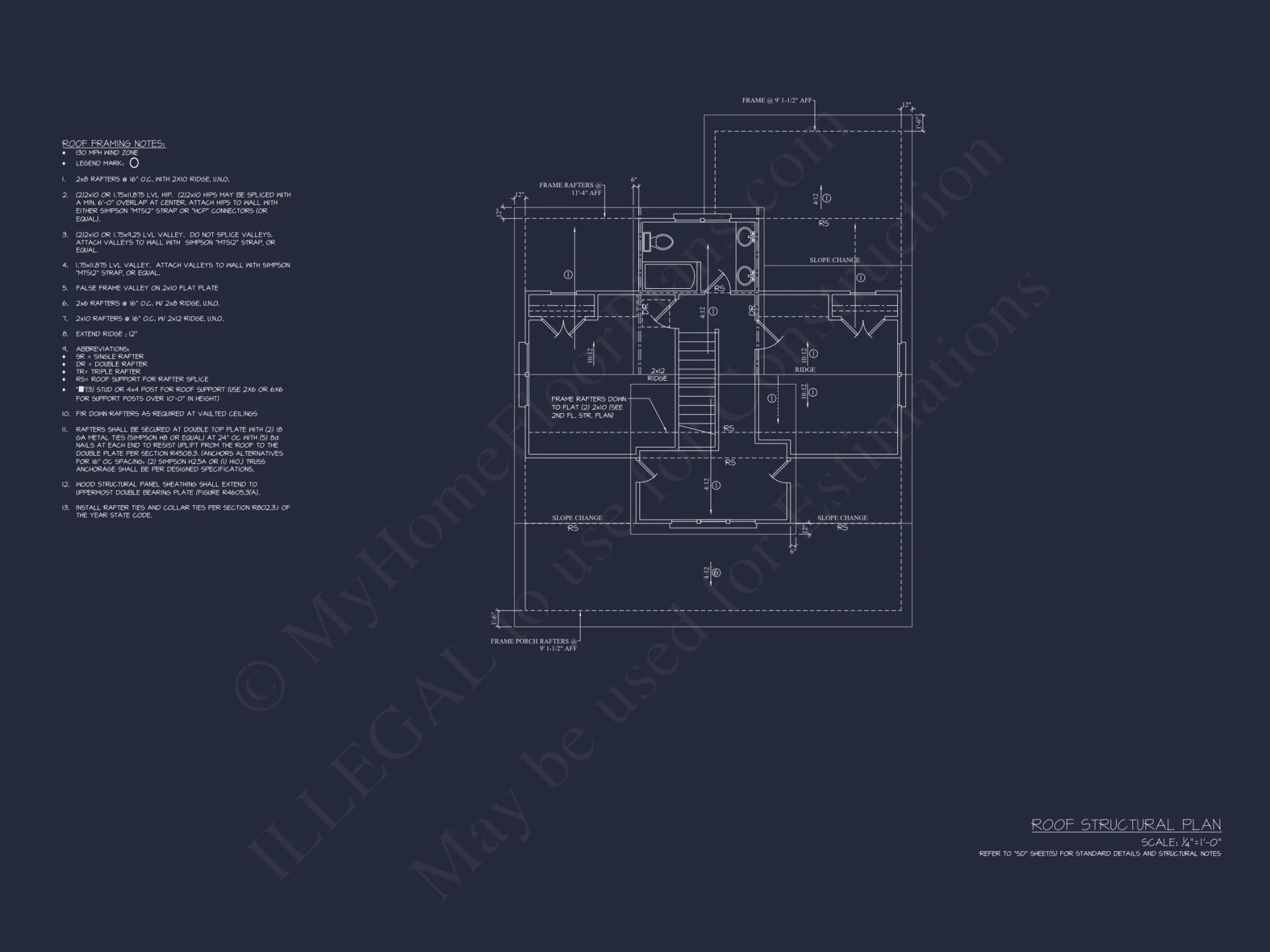

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
17-1845 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
