Spacious 5-Bedroom house Plan with Detailed CAD Designs
Explore this stunning 3-story traditional house plan with 5 bedrooms, 4 bathrooms, modern layout, detailed CAD blueprints, and unique architectural designs.
Spacious 5-Bedroom Home Plan with Detailed CAD Designs
Explore this stunning 3-story traditional house plan with 3, 300 heated sq. ft., 5 bedrooms, 4 bathrooms, and unique architectural features—includes CAD blueprints and unlimited builds.
This traditional-style house plan offers a perfect mix of classic character and modern flexibility. Designed for families and builders, it delivers a spacious layout, thoughtful features, and strong curb appeal.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 300 sq. ft. spread across 3 full stories.
- Unheated extras: 1, 418 sq. ft. including a screened porch, uncovered deck, attic, and garage spaces.
Bedrooms & Bathrooms
- 5 spacious bedrooms including a luxurious Owner Suite with tray ceiling and walk-in closet.
- 4 full bathrooms including a Jack-and-Jill setup and future attic bath option.
Interior Highlights
- 9ft+ ceilings on the main floor for an open, airy feel.
- Open floor plan connects the family room, kitchen, and breakfast nook. See open concepts.
- Functional kitchen island and walk-in pantry support everyday cooking and entertaining.
- Fireplace anchors the cozy family room. Explore plans with fireplaces.
- Bonus room, study/office, and future recreation space in the attic provide versatile living zones.
Garage & Storage Details
- Garage Bays: 2-car garage with front entry for convenience.
- Garage Type: Attached, easily accessible from the mudroom.
- Storage: Dedicated mudroom, attic space, and built-in storage areas.
Outdoor Living Features
- Welcoming covered front porch for curbside charm.

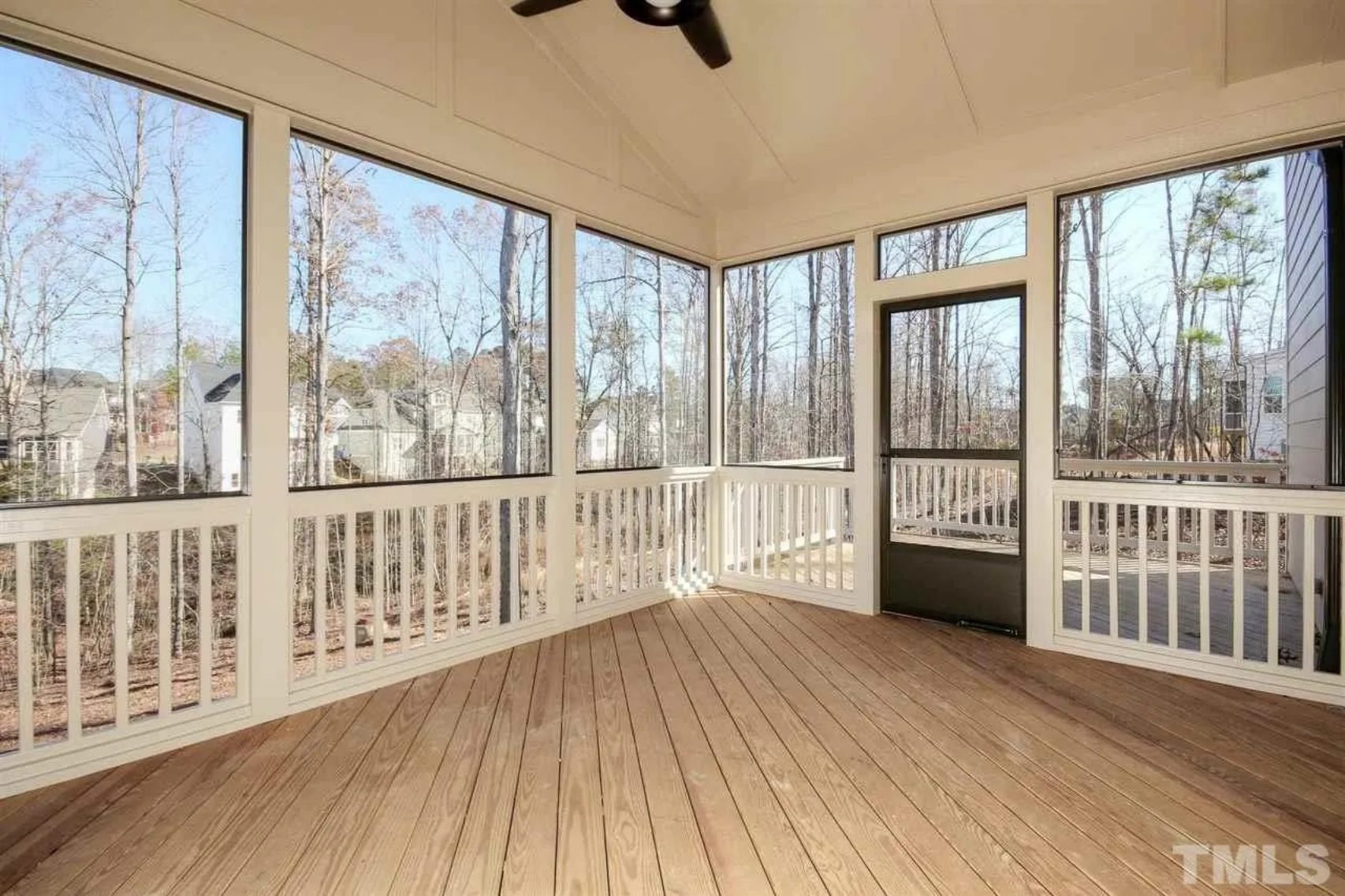

- Relaxing screened porch and an uncovered backyard deck for seasonal use.
- Exterior design includes board & batten, brick accents, and shingle textures for a Craftsman-inspired finish.
Architectural Style: Traditional with Craftsman Influence
This design artfully combines Craftsman-style materials with a traditional house layout for timeless elegance and daily comfort. Want to dive deeper into Craftsman roots? Read more on ArchDaily.
Bonus Features
- Dedicated study/office perfect for working from home.
- Future recreation room in the attic with potential for an additional bathroom.
- Spacious playroom upstairs for children or guests.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and ready for your contractor or builder.
- Unlimited Build License: No limit on how many times you build.
- Free Foundation Changes: Switch between slab, crawlspace, or basement easily. Learn more.
- Structural Engineering Included: Professionally stamped to meet local code.
- Lower Modification Costs: Customization is faster and more affordable than anywhere else.
- View Before You Buy: See every sheet upfront.
Similar Collections You Might Love
- 5-Bedroom House Plans
- House Plans with Attics
- Jack-and-Jill Bathroom Layouts
- Plans with Screened or Covered Porches
- Traditional Craftsman House Plans
Frequently Asked Questions
Is this home suitable for growing families? Absolutely—five bedrooms, multiple flex spaces, and three levels make it ideal for large or multigenerational families.
Can I modify the attic into a game room? Yes! The attic is designed with a future recreation room and optional bath—easy to convert.
Are the plans ready to submit for permits? Yes, with structural engineering included, the plans are stamped and code-ready.
Does the plan support working from home? Definitely. It includes a quiet office/study plus a bonus room adaptable for remote work.
Can I preview the entire plan set online? Yes. View all sheets before you purchase.
Start Building Your Dream Home Today
Have questions or ready to make this plan yours? Reach out to our expert team at [email protected] or contact us online.
Customize it, view it, and build with confidence—your forever home starts here!
Spacious 5-Bedroom Home Plan with Detailed CAD Designs Explore this stunning 3-story traditional house plan with 3,300 heated sq. ft., 5 bedrooms, 4 bathrooms, and unique architectural features—includes CAD blueprints and unlimited builds. This traditional-style house plan offers a perfect mix…
Read MoreOriginal price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 59'-0" |
|---|---|
| Depth | 45'-7" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Bedrooms on the First Floor, Bedrooms on the Second Floor, Bonus Room, Family Room, Fireplace, Foyer, Great Room, Mudroom, Office/Study, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
9 FT+ Ceilings | After Build Photos | Attics | Bedrooms on the First Floor | Bedrooms on the Second Floor | Bonus Rooms | Breakfast Nook | Builder Favorites | Covered Front Porch | Craftsman | Family Room | Fireplaces | Foyer | Front Entry | Great Room | Home Plans with Mudrooms | Kitchen Island | Office/Study | Owner’s Suite on Second Floor | Recreational Room | Screened Porches | Second Floor Bedroom | Small | Traditional | Tray Ceilings | Uncovered Deck | Walk-in Closet | Walk-in Pantry
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
18-1145 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
