Custom Home Floor Plan: Stunning Architecture & CAD Designs
Explore this custom home floor plan featuring 4 bedrooms, 3 bathrooms, a spacious great room, and modern architecture with CAD blueprint designs.
A Stunning Home Design with Exceptional Features
Designing your dream home just got easier with this thoughtfully crafted floor plan. This spacious single-family home combines the charm of a traditional Craftsman style with modern conveniences, offering the perfect balance of comfort and functionality.
Versatile Layout for Every Lifestyle
This two-story home spans over 3, 254 heated square feet, featuring 4 bedrooms and 3 bathrooms, ideal for growing families or those who love to entertain. The main floor includes a luxurious Owner suite with a walk-in closet, while the second floor houses additional bedrooms and a bonus space, making it perfect for privacy and flexibility.
Indoor Features That Enhance Daily Living
The interior is designed to maximize space and utility, with a range of sought-after features:
* Great Room: A central gathering space with a cozy fireplace.
* Large Laundry Room: Spacious enough for all your organizational needs.
* Open Floor Plan: Seamlessly connects the kitchen, dining, and living areas.
* Sunroom: A bright and airy space for relaxation.
* Mudroom: Keeps your home organized and clean.
* Bonus Room: A versatile space for work or play.
Each feature is carefully curated to provide maximum comfort and efficiency, making this home ideal for modern living.
Outdoor Spaces for Relaxation and Entertainment
Step outside to enjoy the thoughtfully designed outdoor areas, including a covered front porch, a spacious patio, and an inviting outdoor living space. These areas are perfect for hosting gatherings or simply unwinding after a long day.
High-Quality Materials and Architecture
The home's exterior boasts a combination of shakes, shingles, stone, and siding, enhancing its aesthetic appeal while ensuring durability. This plan is a testament to modern craftsmanship and architectural innovation.
Benefits Included with Every Plan
All home plans come with detailed CAD files and PDFs, ensuring every aspect of your design is clear and customizable. Enjoy features like free foundation changes, an unlimited-build license, and structural engineering support. We also offer modifications at competitive prices, making it easier than ever to bring your dream home to life.
Ready to start your journey? Contact us at support@https://myhomefloorplans.com to learn more and begin designing your perfect home today!
All home plans include BOTH the CAD file and PDF file.

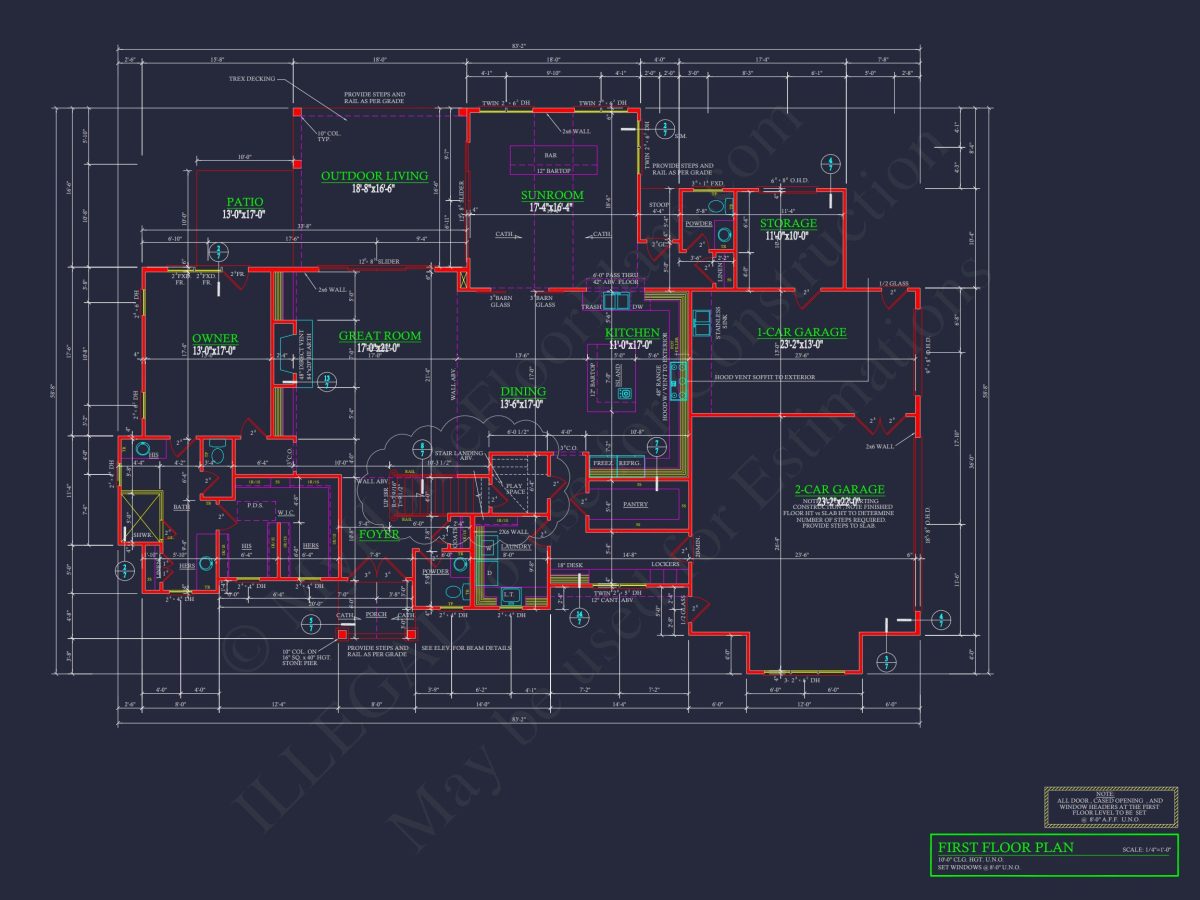

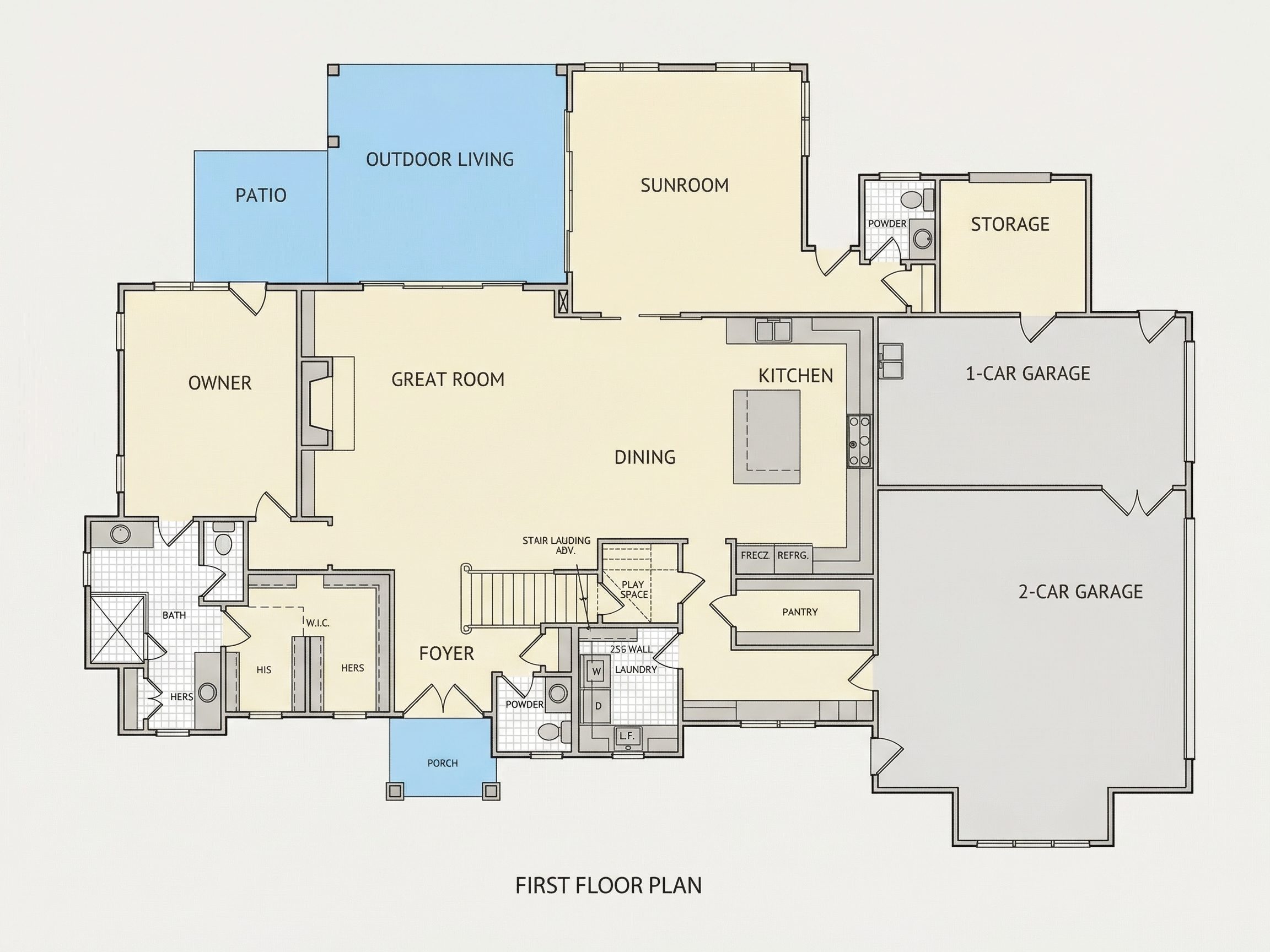

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

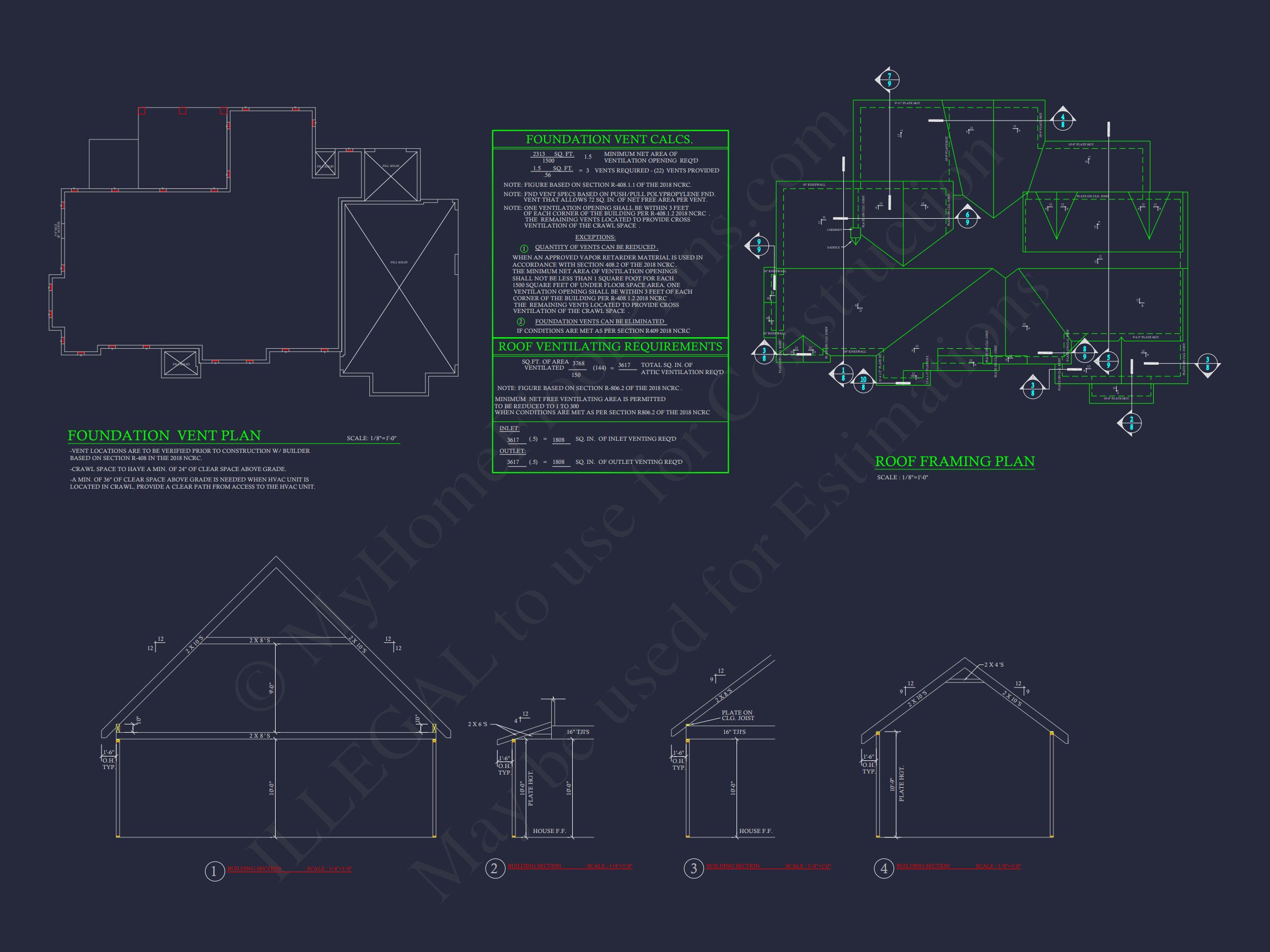

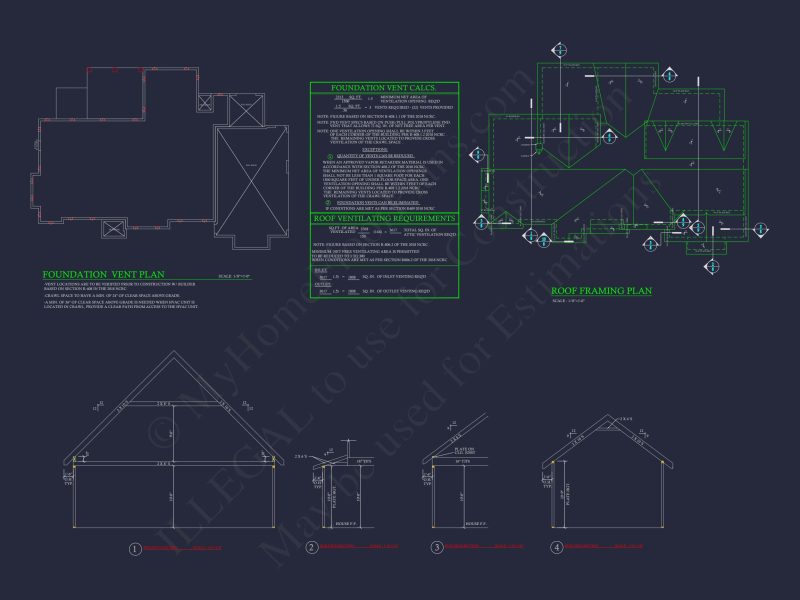

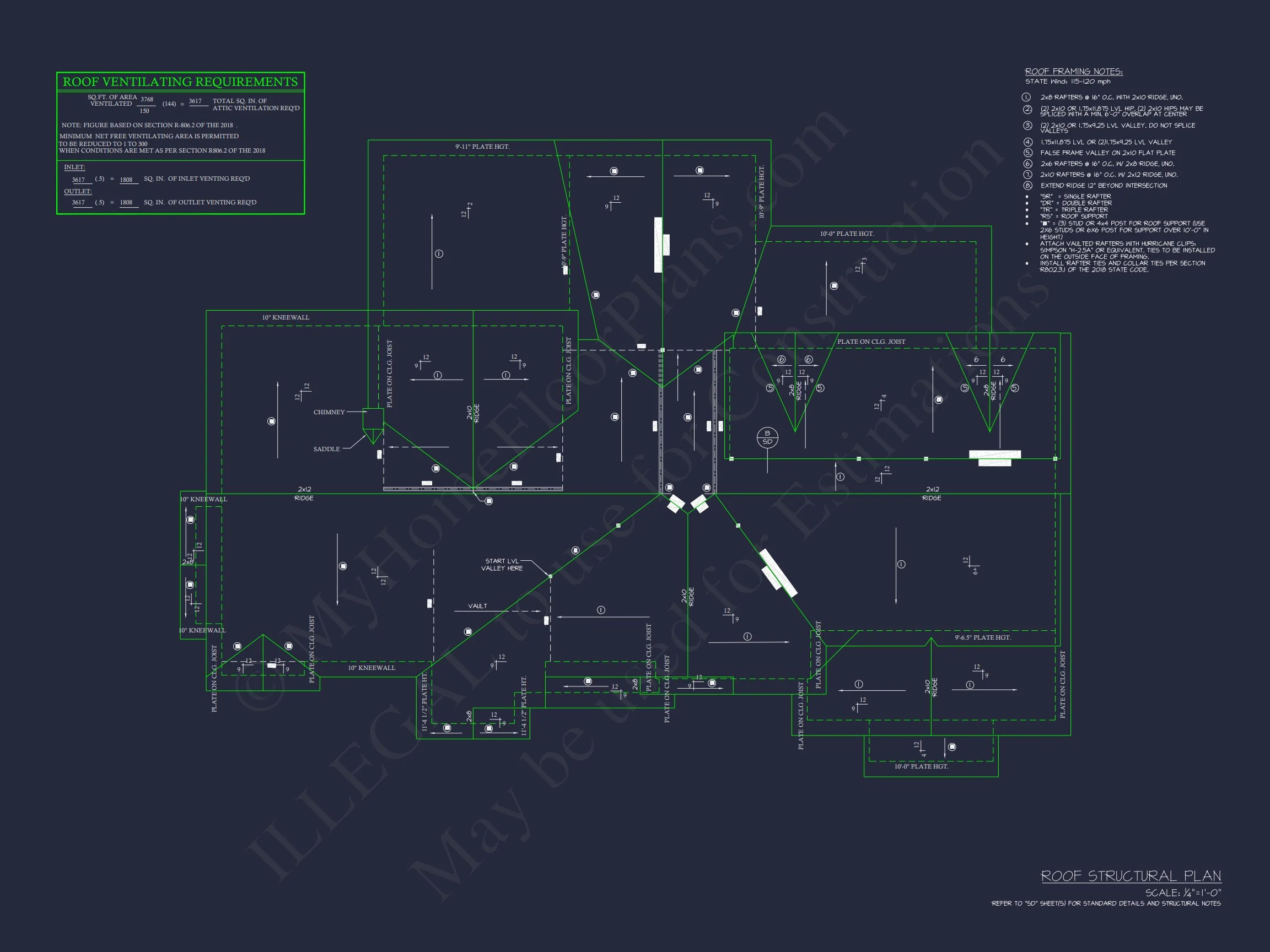

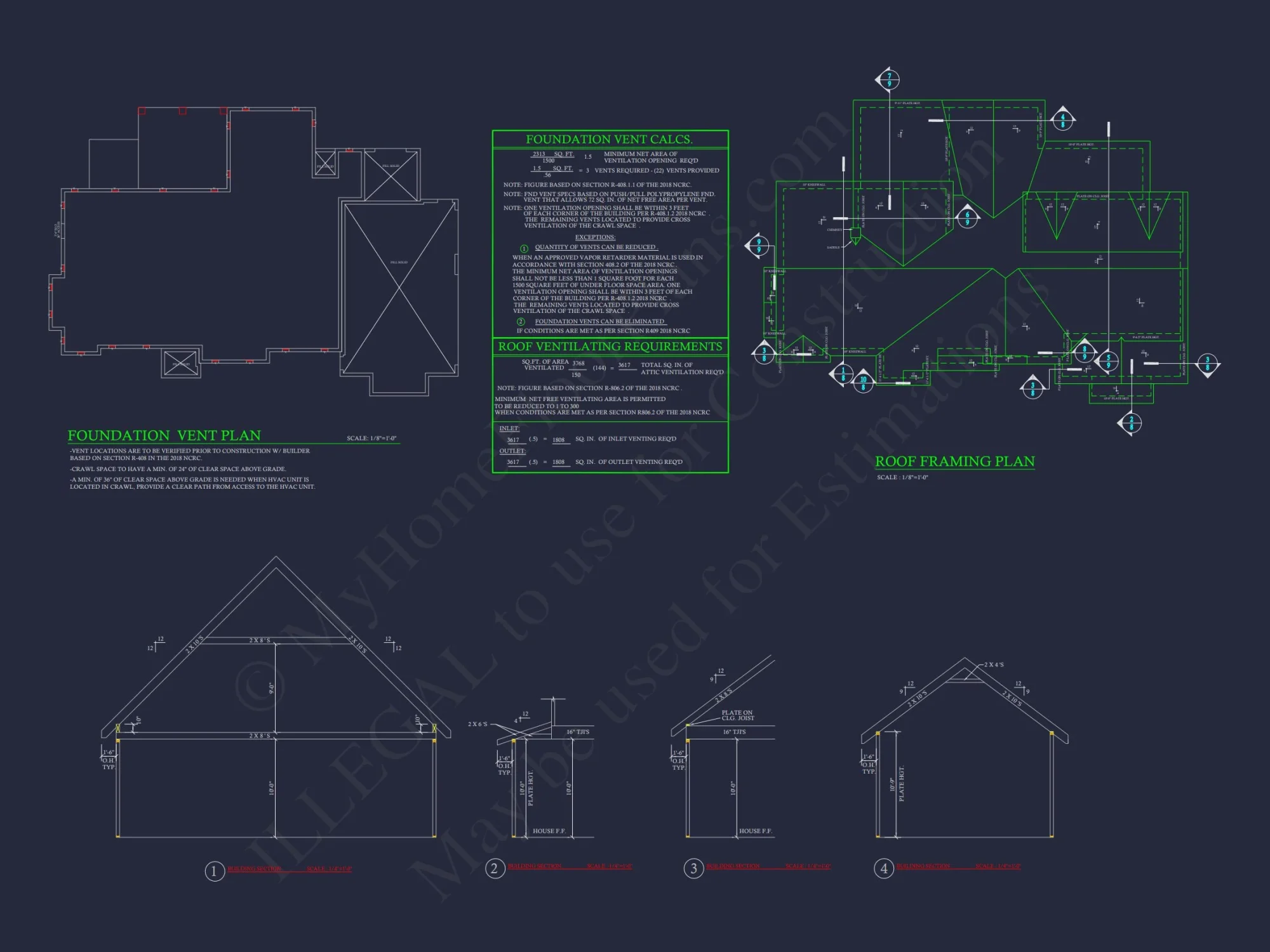

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

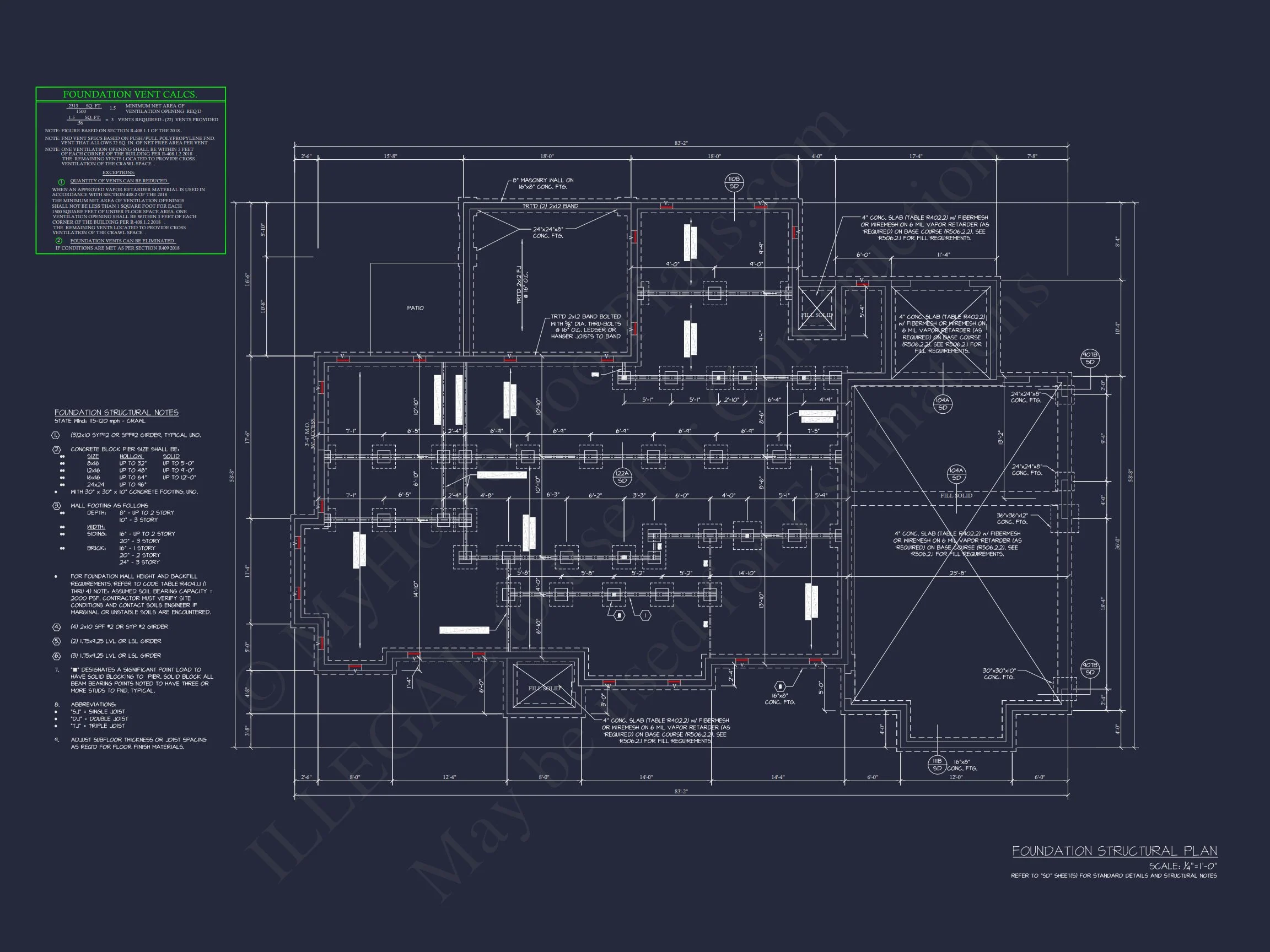

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
