Elegant House Plan with Blueprint CAD Architecture Designs
Explore this spacious house design featuring a detailed floor plan, architectural CAD blueprints, and modern designs. Includes 5 bedrooms, 4 baths, and a large garage.
Discover Your Dream House with Modern CAD Architecture Designs
Designing your dream house just got easier with this spacious and thoughtfully planned house design. Whether you are a future homeowner, architect, or builder, this blueprint and floor plan provide everything you need to create a functional and stunning living space.
A Detailed Overview of the House Plan
This house design boasts 5 bedrooms and 4 bathrooms, making it perfect for large families or those who love hosting guests. The two-story layout offers ample space for privacy while still encouraging togetherness with open areas such as the family room and kitchen. Modern architecture meets practicality with features like a walk-in pantry, a kitchen island, and a cozy breakfast nook.
Indoor Features
* Spacious Great Room: Ideal for family gatherings or entertaining.
* Private Office/Study: A quiet space for work or hobbies.
* Recreational Room: Perfect for game nights or leisure activities.
* Walk-In Closets: Ample storage in every bedroom.
* Mudroom: Keeps your house clean and organized.
Outdoor Features
Step outside to enjoy a covered front porch, a screened porch, and a spacious patio. These features are perfect for enjoying the outdoors in any weather.
Architectural Highlights
Crafted with stone and siding, this house's exterior combines durability and beauty. The 9ft and 10ft ceilings add a touch of elegance, while the convenient crawlspace foundation ensures a solid structure.
Benefits Included with Every Plan
When you choose this house design, you get more than just a floor plan and blueprint. Our plans come with CAD files for easy modifications, an unlimited-build license, and structural engineering support. We even offer free foundation changes to suit your specific needs. Unlike other providers, you can preview every detail of your plan before purchase.
Are you ready to design your dream house? Contact us today to bring this stunning architectural design to life!
All home plans include BOTH the CAD file and PDF file.

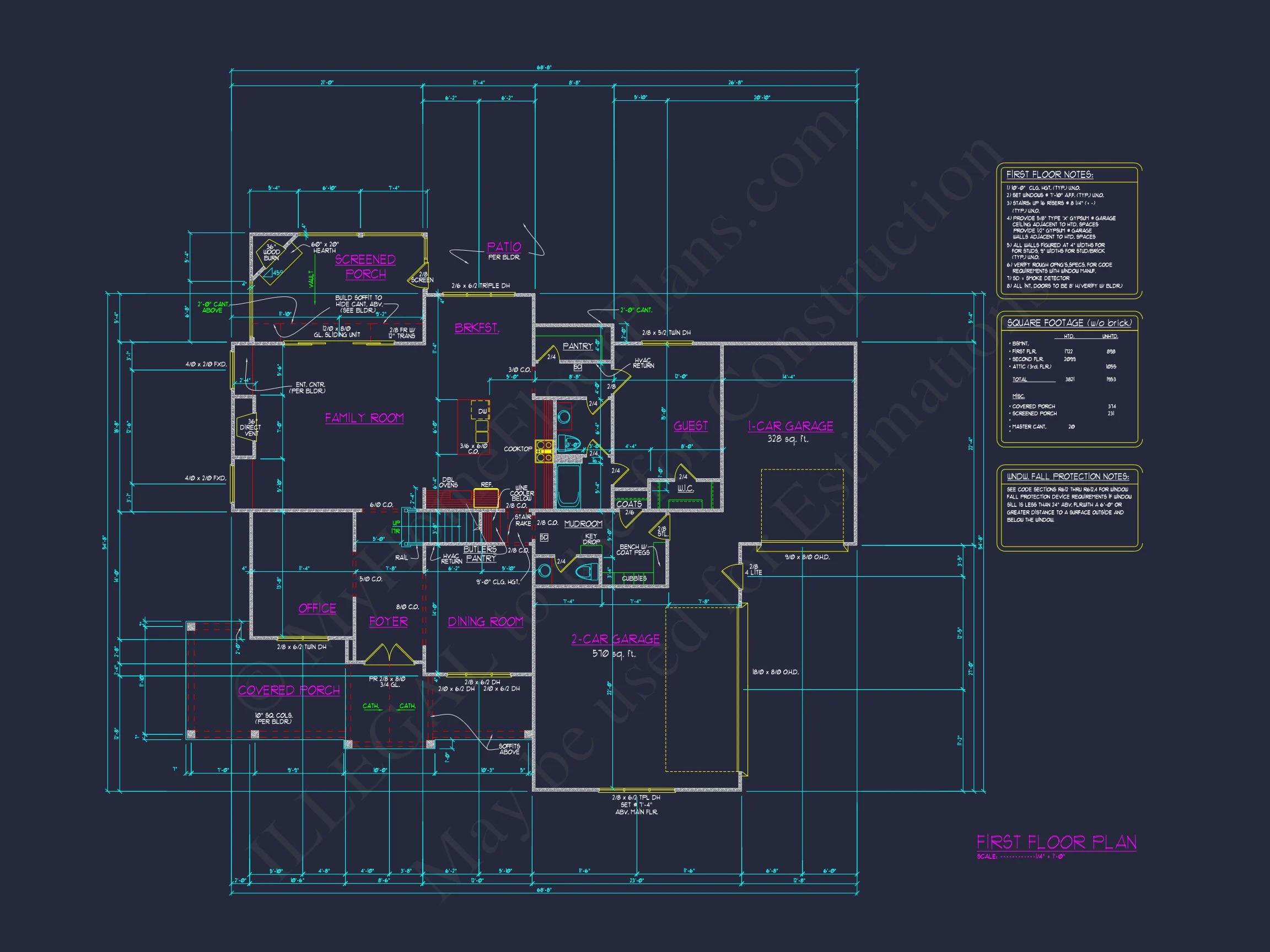

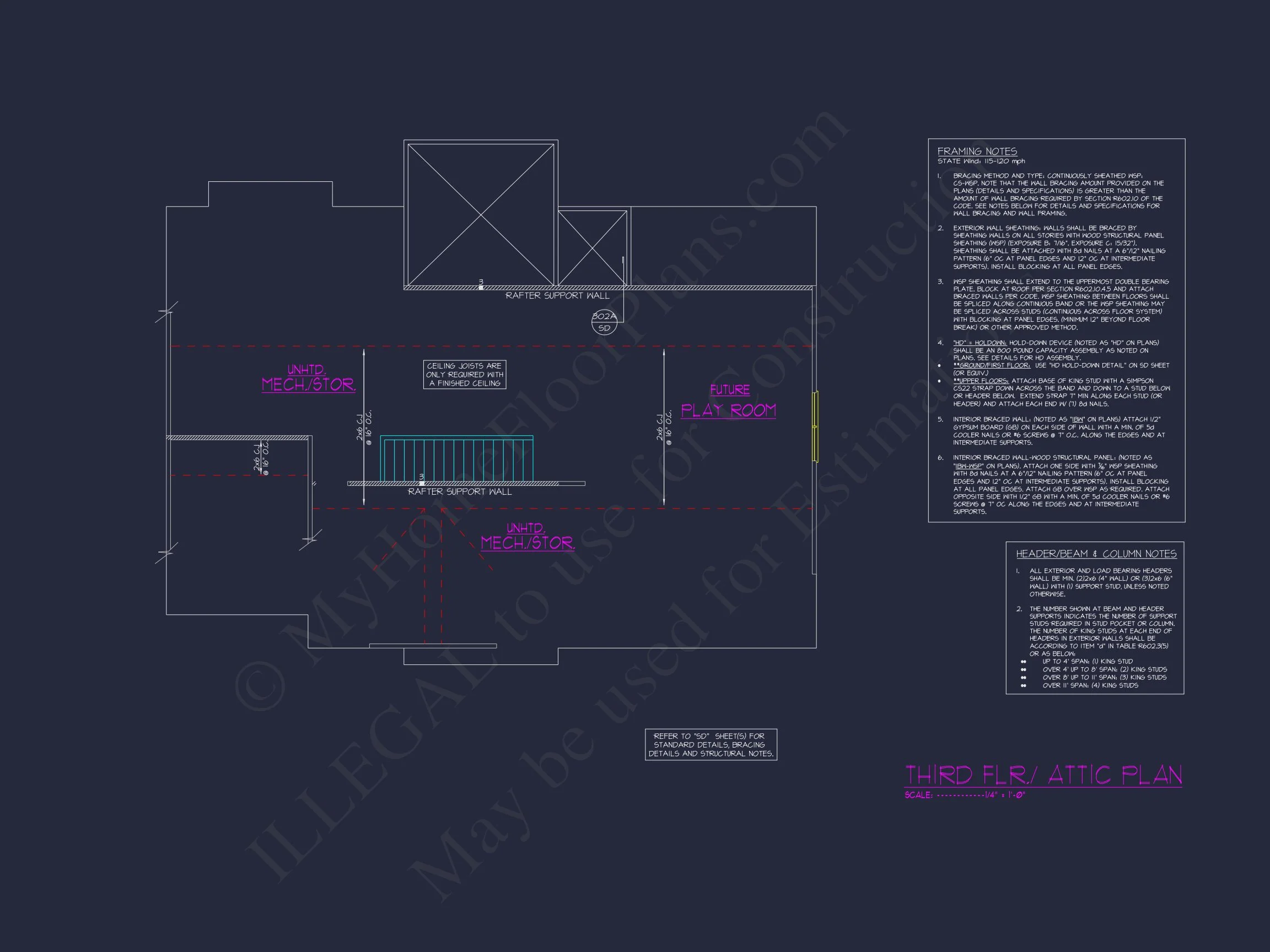

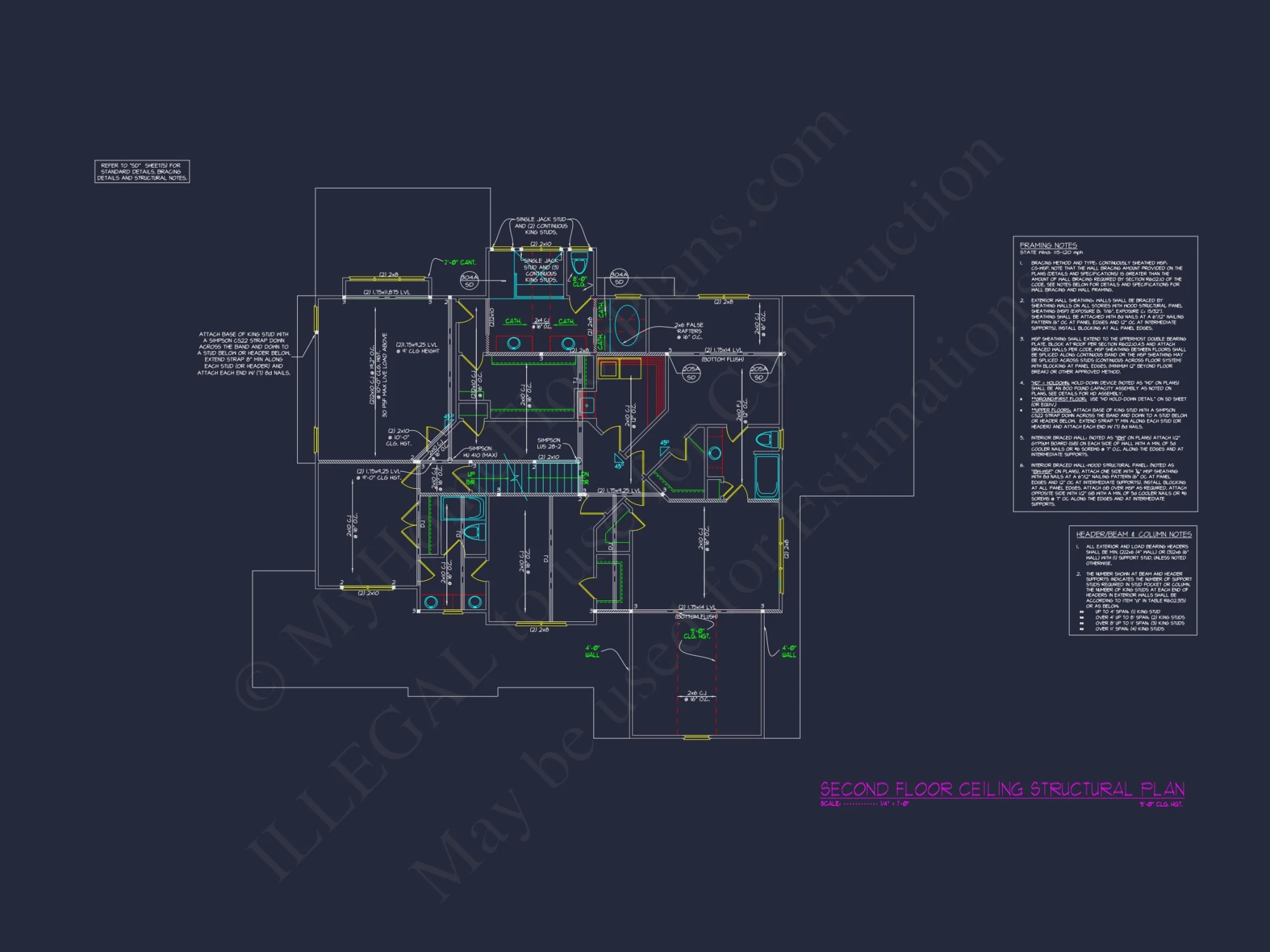

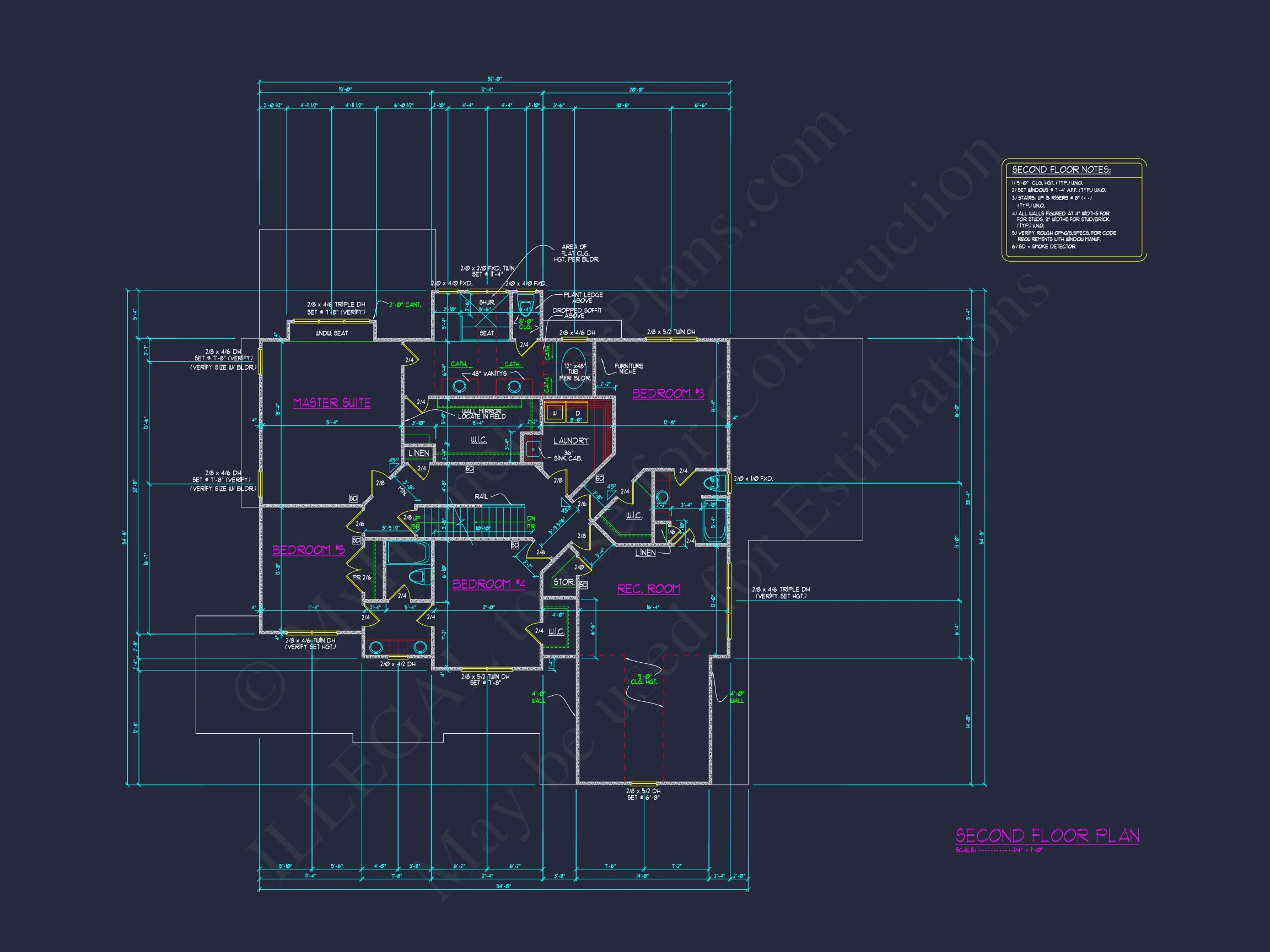

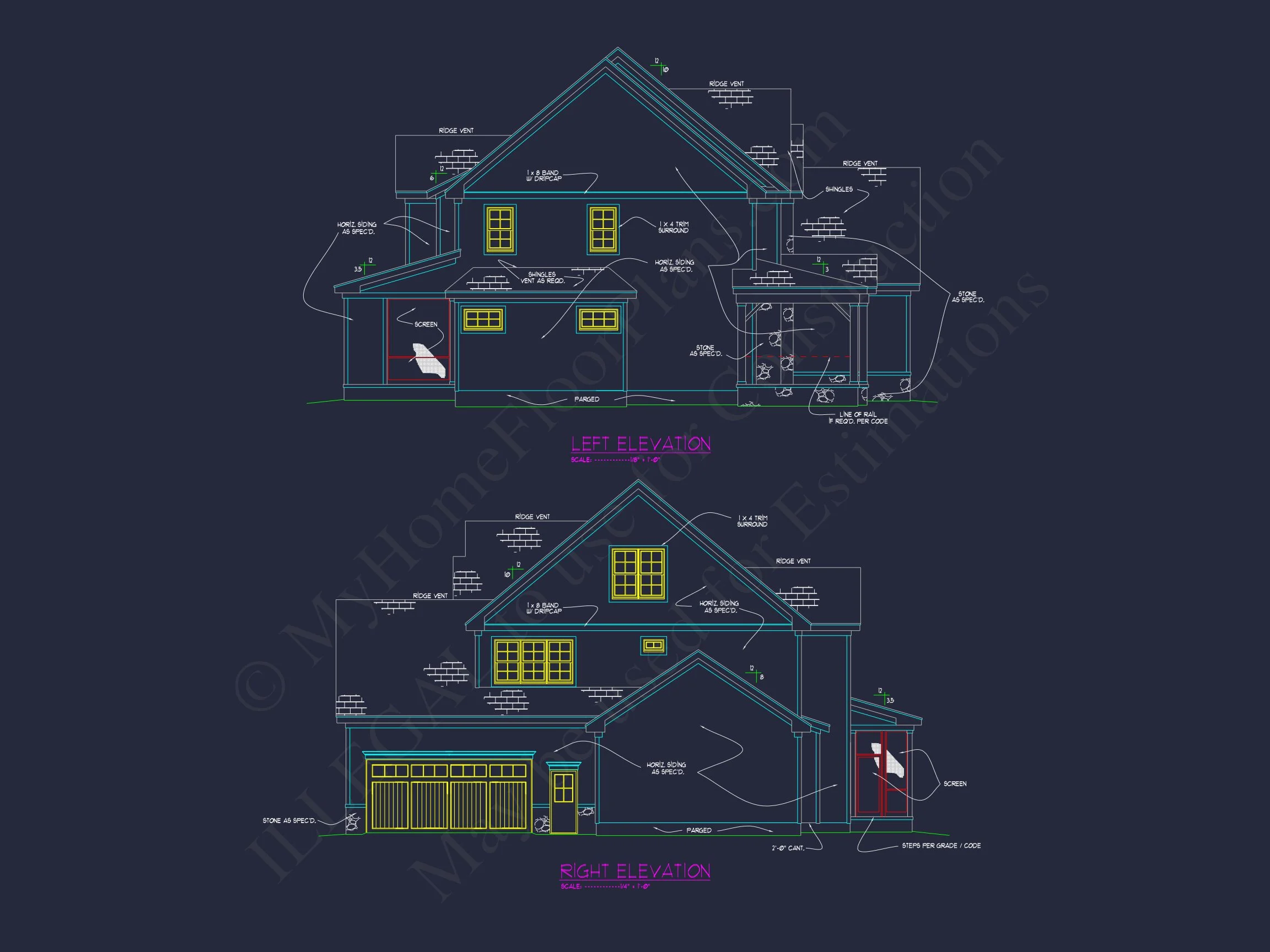

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

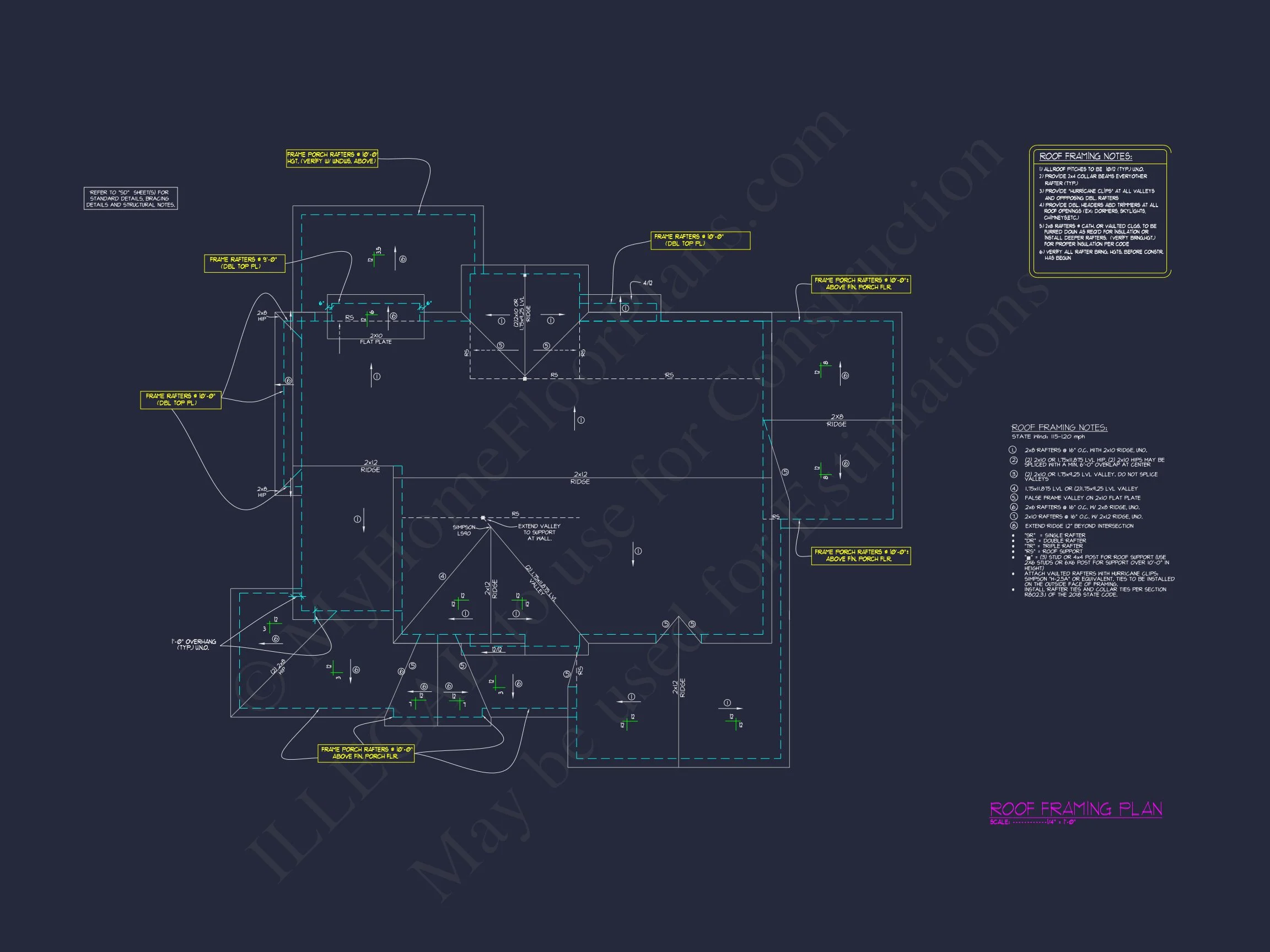

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
