Charming 1-Bedroom Garage Home Plan with Open Layout and CAD Blueprints Explore this smartly designed garage home plan featuring 591 heated sq. ft., an open-concept floor plan, walk-in closet, balcony, and full CAD blueprint designs. This garage apartment house plan offers a perfect mix of com…
Read More
Charming 1-Bedroom Garage Home Plan with Open Layout and CAD Blueprints
Explore this smartly designed garage home plan featuring 591 heated sq. ft., an open-concept floor plan, walk-in closet, balcony, and full CAD blueprint designs.
This garage apartment house plan offers a perfect mix of compact functionality and modern comfort. Designed to maximize narrow lots, it delivers architectural charm with practical indoor and outdoor living spaces.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 591 sq. ft. across two stories.
- Unheated extras: Includes 649 sq. ft. of garage, attic, and porch space.
Bedrooms & Bathrooms
- 1 cozy upstairs bedroom with a private walk-in closet and balcony access.
- 1 full bathroom with easy access from the main living areas.
Interior Highlights
- Open floor plan seamlessly connects the living room, bonus room, and bar area. Explore open layouts.
- Bonus room adds flexibility for a home office, guest space, or hobbies.
- Wet bar and eating bar make entertaining easy and space-efficient. Browse bar-equipped designs.
- Attic storage provides extra room without compromising living space. See attic-accessible homes.
Outdoor Living Features
- Covered front porch for welcoming curb appeal and relaxation.
- Private balcony off the bedroom for fresh air and personal retreat. View balcony plans.
Architectural Style: Craftsman Cottage
This compact Craftsman Cottage design blends brick and siding materials with 9ft+ ceilings for an open, airy feel—ideal for those who appreciate classic character in a modern-sized footprint.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Garage and Vehicle Storage Plans
- Garage Apartment Plans
- Narrow Lot House Plans
- Simple House Plans
- Affordable House Plans
Frequently Asked Questions
What’s included with this house plan? All plans come with editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation changes.
Can I customize the layout? Yes! We offer fast and affordable modifications. Get a quote here.
Is this suitable for narrow lots? Absolutely. This plan was designed specifically for compact and urban lots.
How many stories is this home? It’s a two-level layout with the garage on the first floor and living space above.
Can I preview the blueprints? Yes. Preview every sheet before you buy.
Learn More About the Craftsman Cottage Style
Explore the origins and charm of Craftsman cottages in this expert article from ArchDaily.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 30'-0" |
|---|---|
| Depth | 24'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Bed and Bath Features | |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
All home plans include BOTH the CAD file and PDF file.

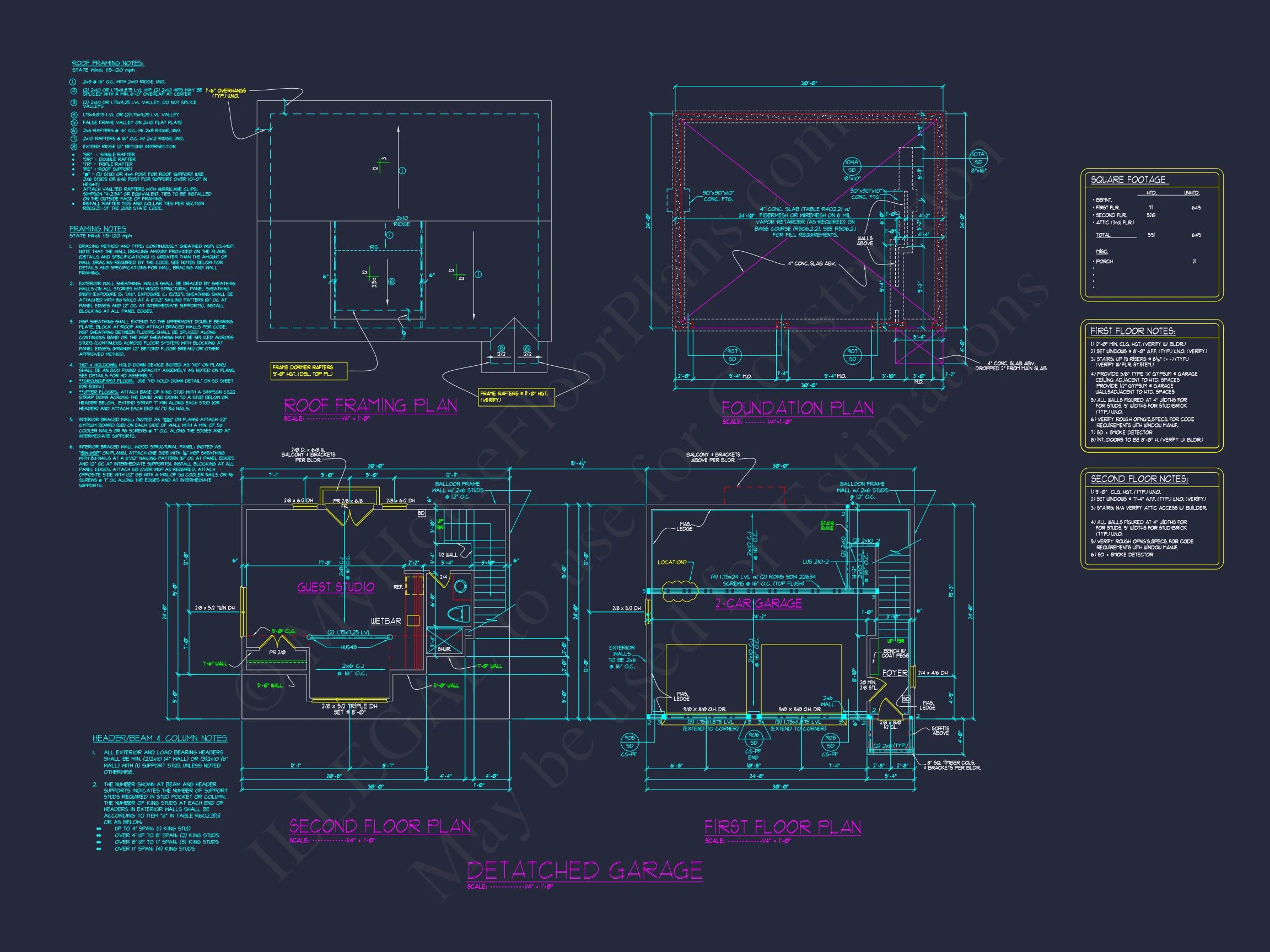

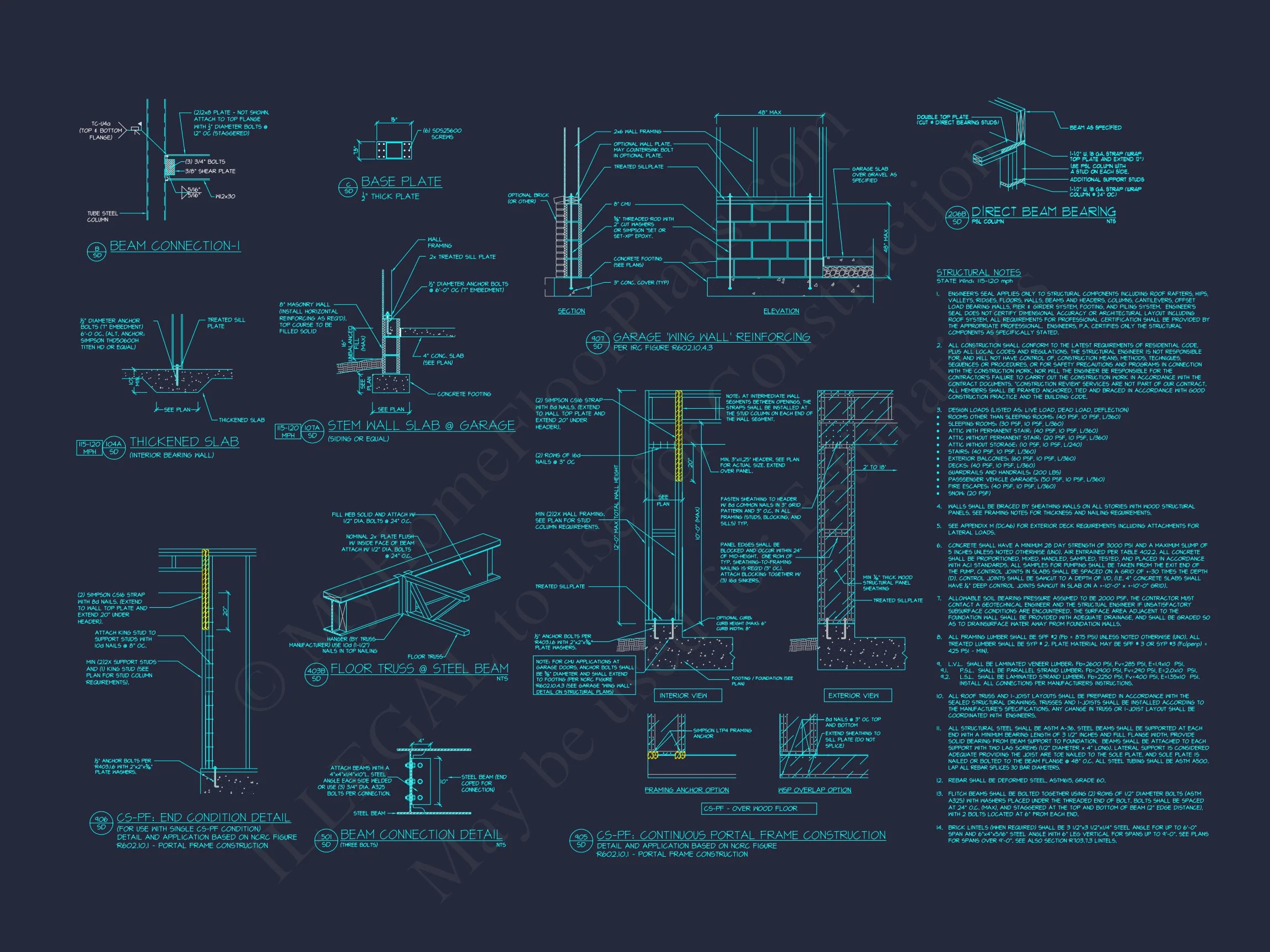

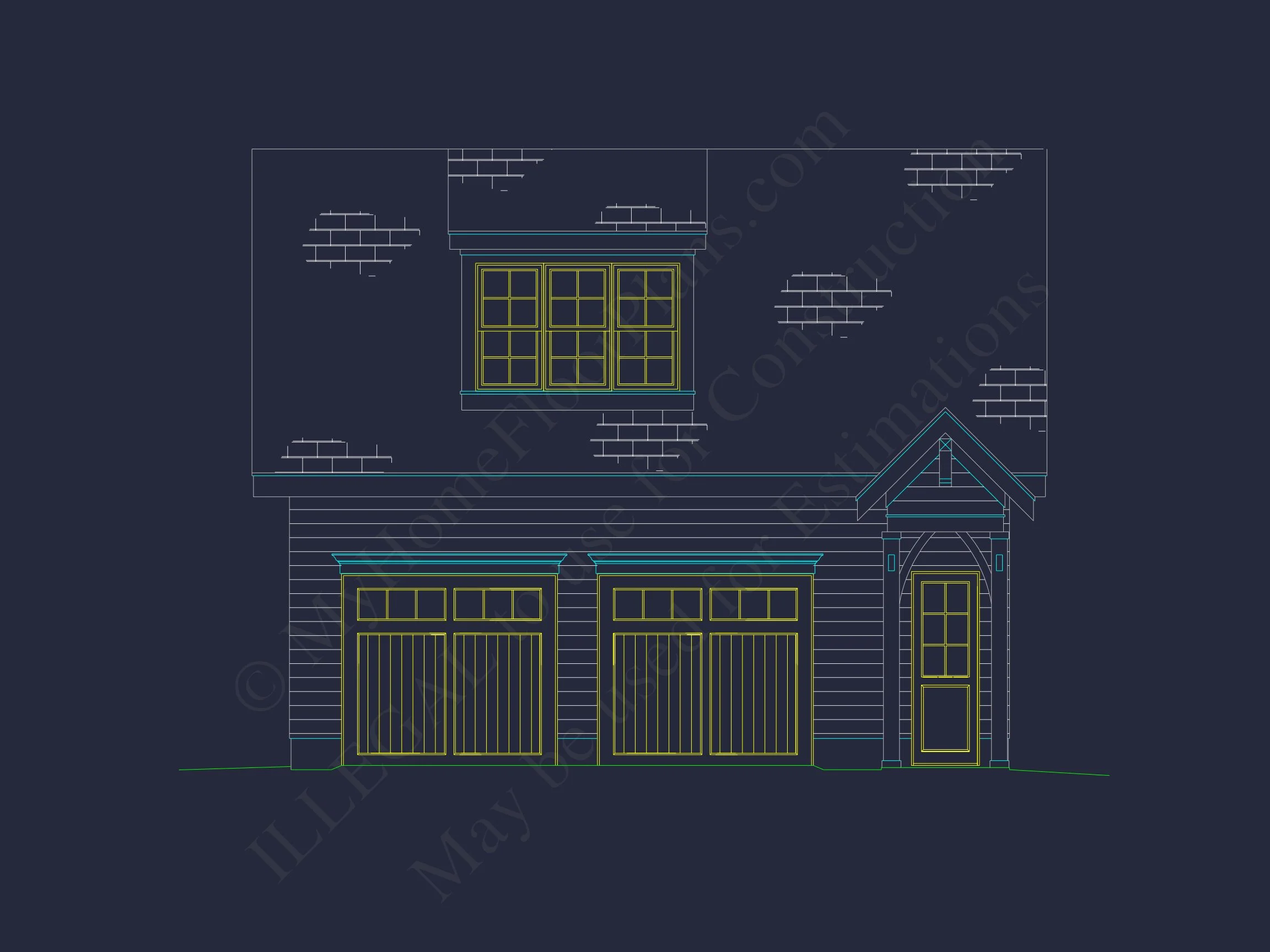

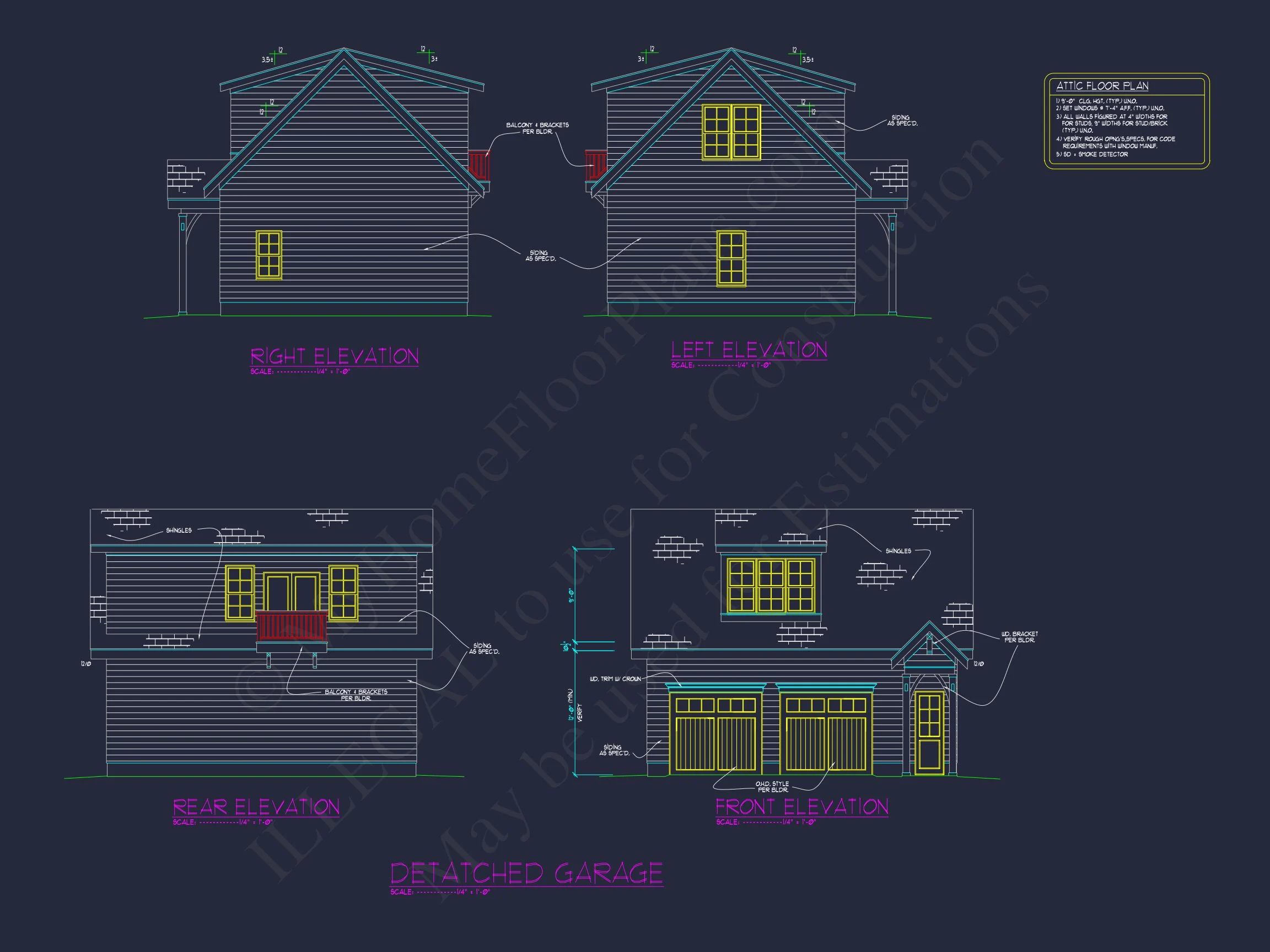

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

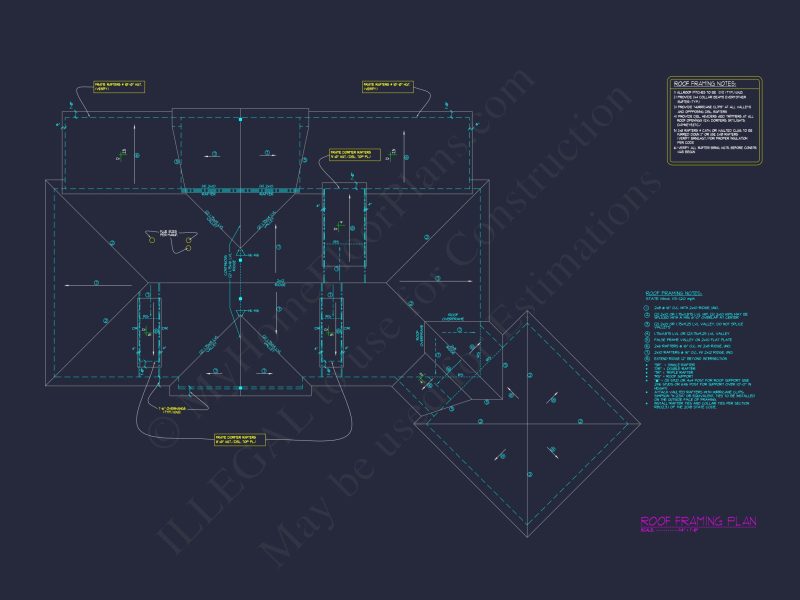

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
