Coastal Craftsman Home Plan with Detailed CAD Floor Designs
Stunning 2-story home plan with 4 bedrooms, 3 baths, & a spacious garage. Features include fireplace, bonus room & walk-in pantry. CAD & PDF included!
ENHANCE YOUR DREAM HOME WITH THIS COASTAL CRAFTSMAN HOME PLAN
Embark on your homebuilding journey with this versatile and spacious home plan. Designed for ultimate functionality and aesthetic appeal, this two-story design highlights 4 bedrooms, 3 baths, and a lively bonus room for added flexibility. With a heated square footage of 3, 758 sq. ft., it seamlessly blends modern family living and aesthetic coastal charm.
HIGHLIGHTS OF THIS HOME PLAN
The heart of this design is the open floor plan concept. The gourmet kitchen, equipped with a walk-in pantry, kitchen island, and cozy breakfast nook, flows effortlessly into the great room, creating a welcoming area for gatherings. The Owner suite, located on the second floor, offers privacy, comfort, and a spacious walk-in closet. With additional bedrooms upstairs and features such as a Jack and Jill bathroom, this home ensures every family member has their personal space.
THOUGHTFUL INDOOR FEATURES
* Open Floor Plan: Connects the great room and dining space.
* Mudroom & Laundry: Helps transition from outdoor to indoor living.
* Bonus Room: Offers versatility for an office or play area.
* Fireplace in the Great Room: Creates a warm and inviting atmosphere.
* Recreational Room & Living Room: Perfect for entertaining guests.
STANDOUT OUTDOOR FEATURES AND MATERIALS
This home contributes to curb appeal with covered front porches, board & batten siding, and stone accents. Patio access from the family room creates the perfect outdoor retreat for relaxation or entertaining guests.
BENEFITS FOR BUILDERS AND DIY HOMEBUYERS
This blueprint comes with full CAD designs, giving architects and builders the ability to make custom modifications. Not only do you get a detailed PDF, but also an unlimited-build license for peace of mind. Featuring a foundation suited for a basement or monolithic slab, this design adapts to varied terrains.
BENEFITS INCLUDED IN EVERY PLAN
Every blueprint includes CAD files and a PDF version, unlimited builds, and complimentary foundation adjustments. Free modifications and engineering support ensure a seamless journey from start to finish.
Are you ready to design your dream home? Contact us at support@https://myhomefloorplans.com today for personalized assistance!
All home plans include BOTH the CAD file and PDF file.

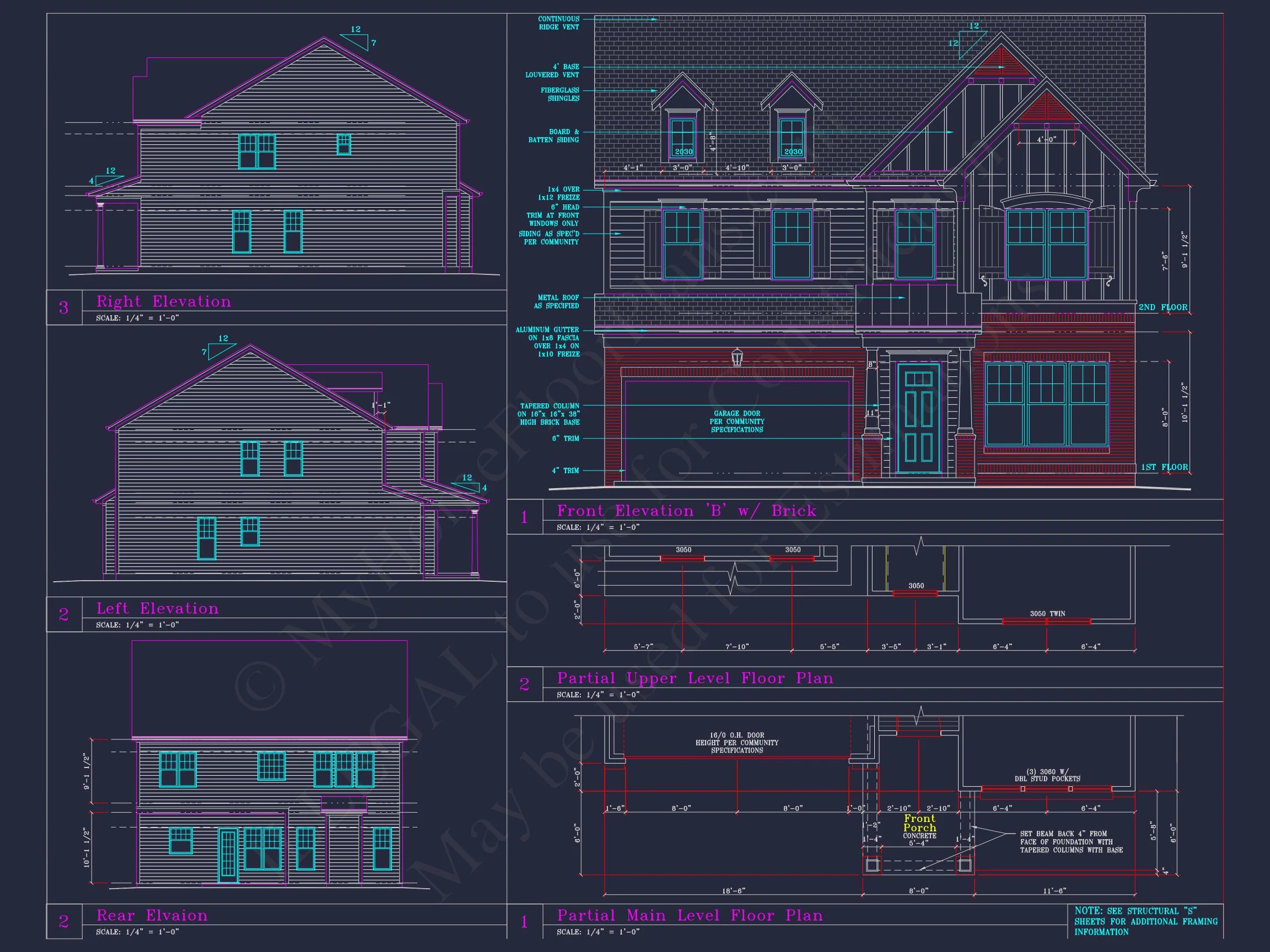

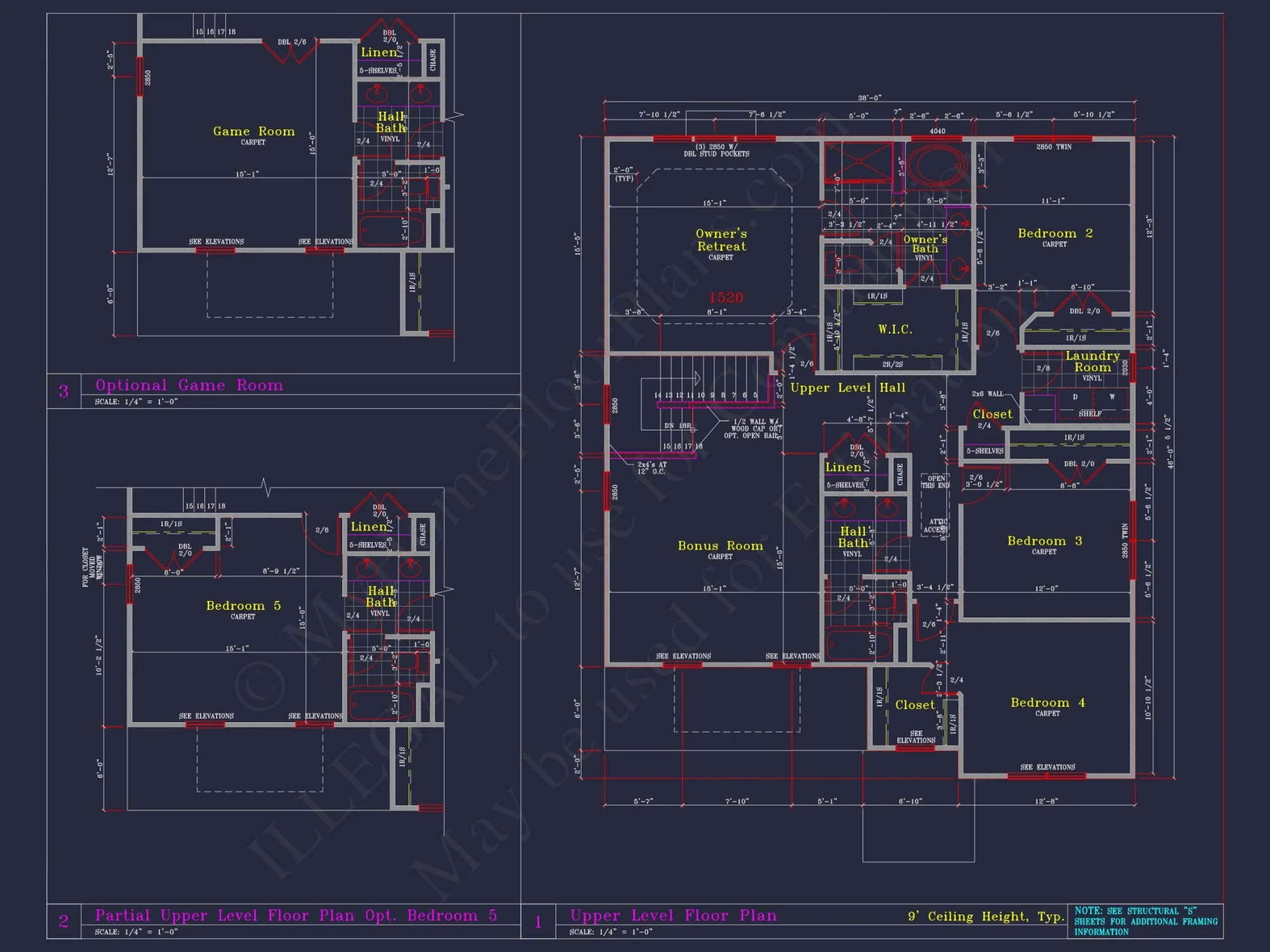

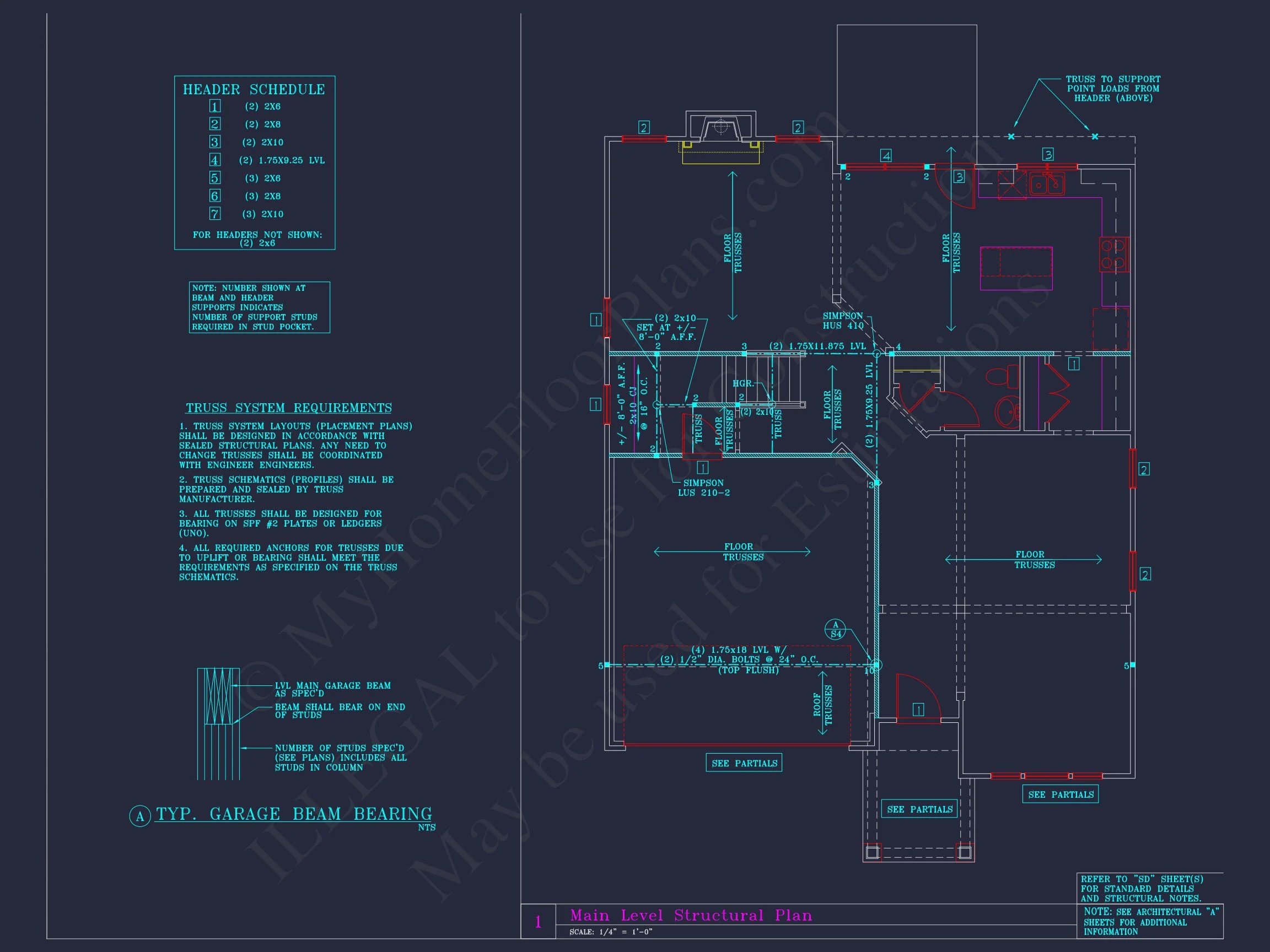

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

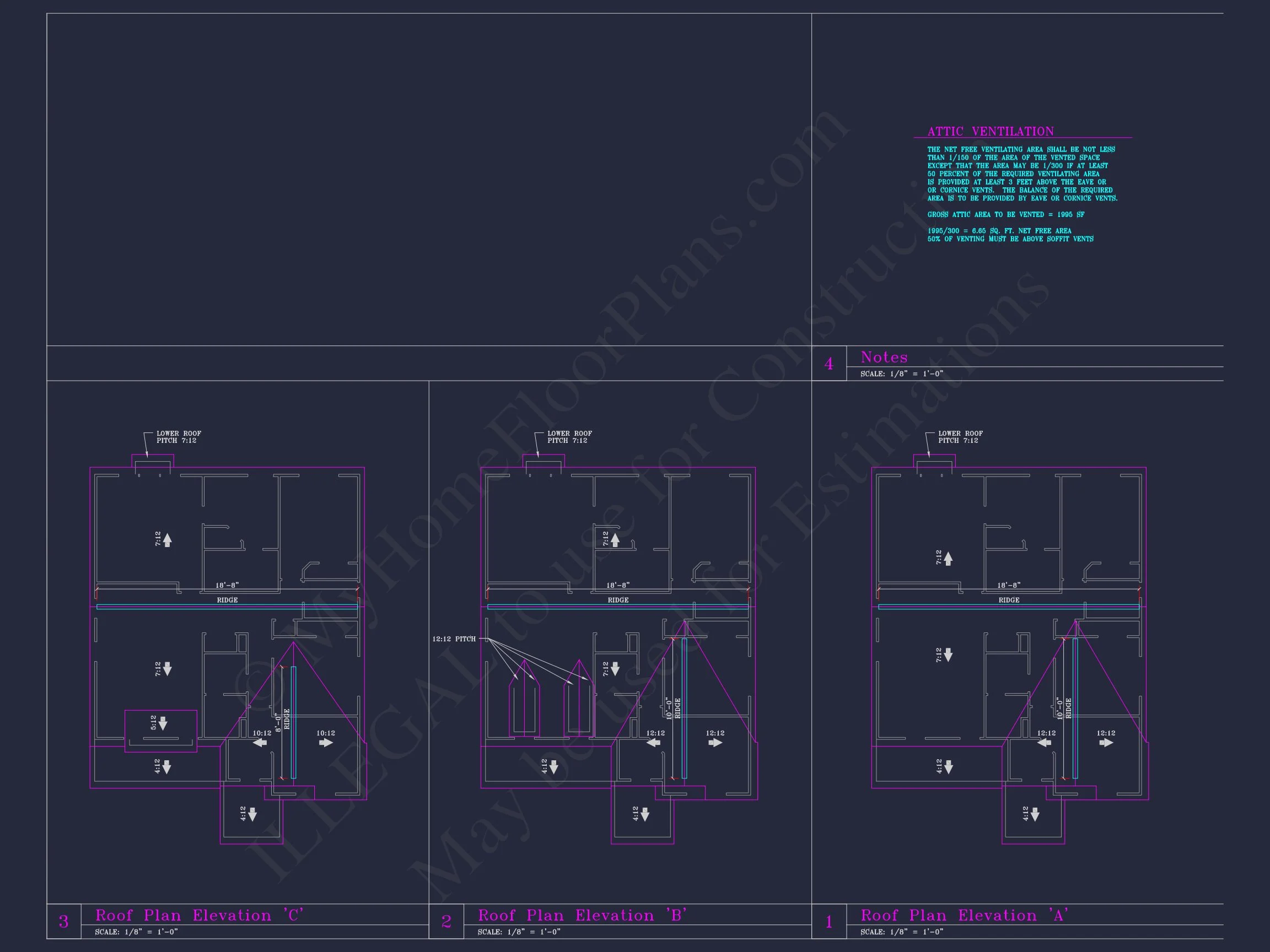

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
