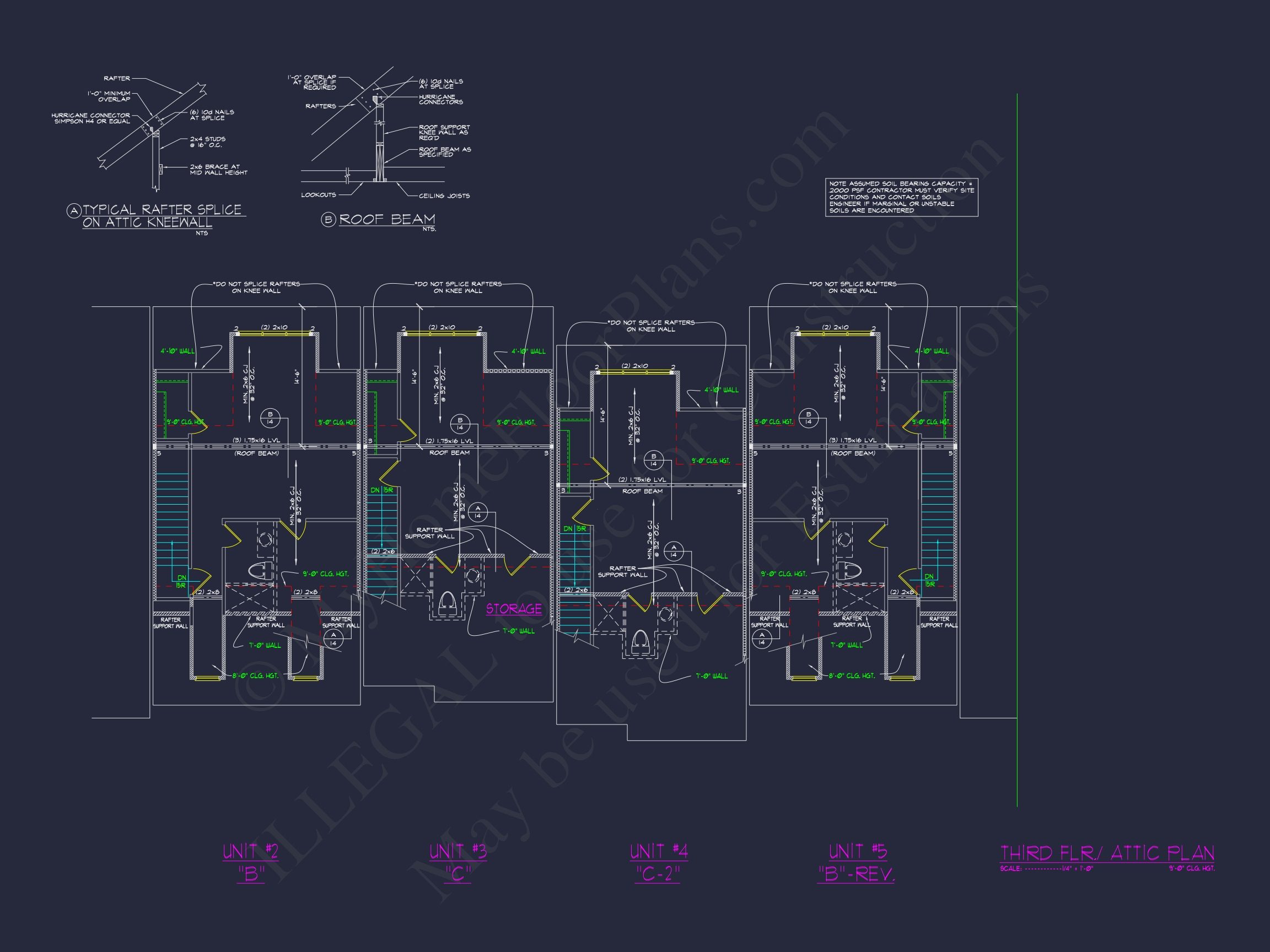

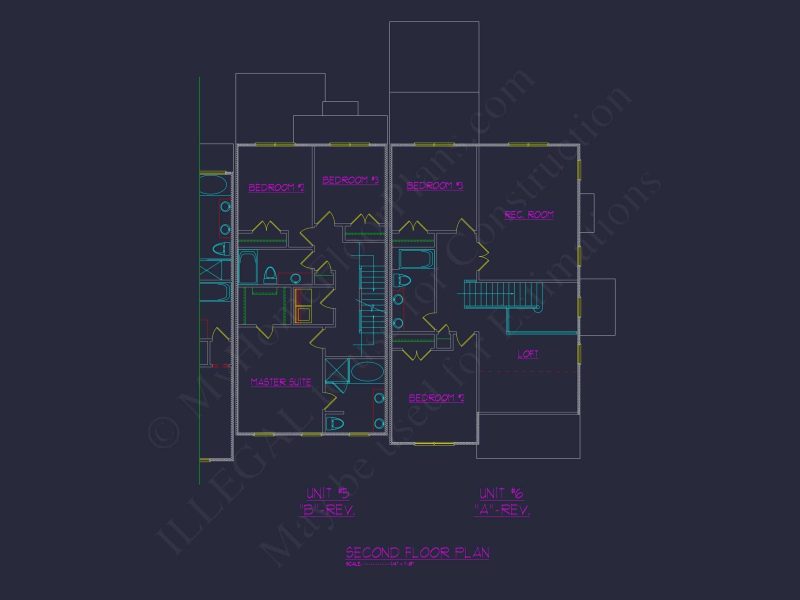

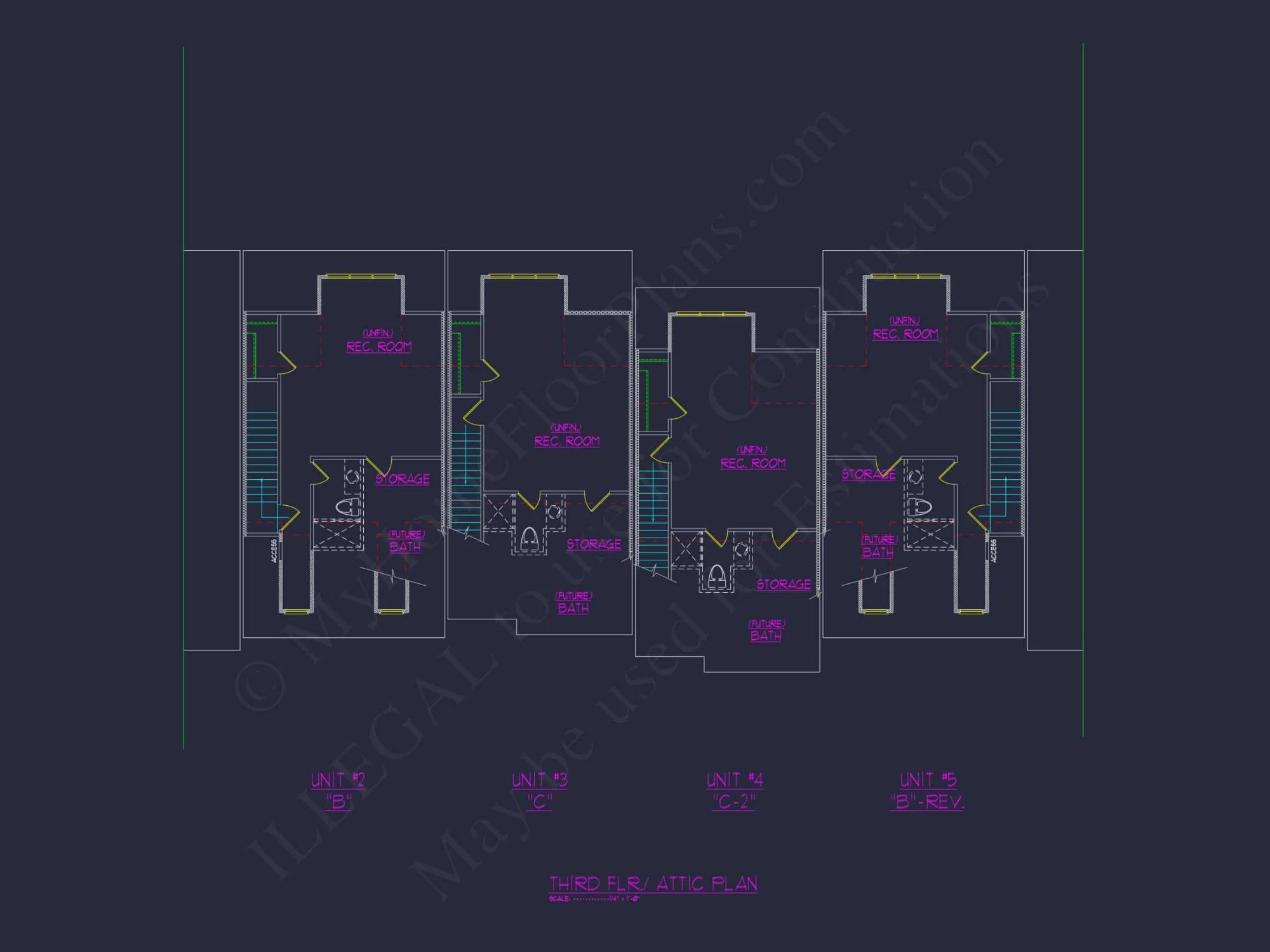

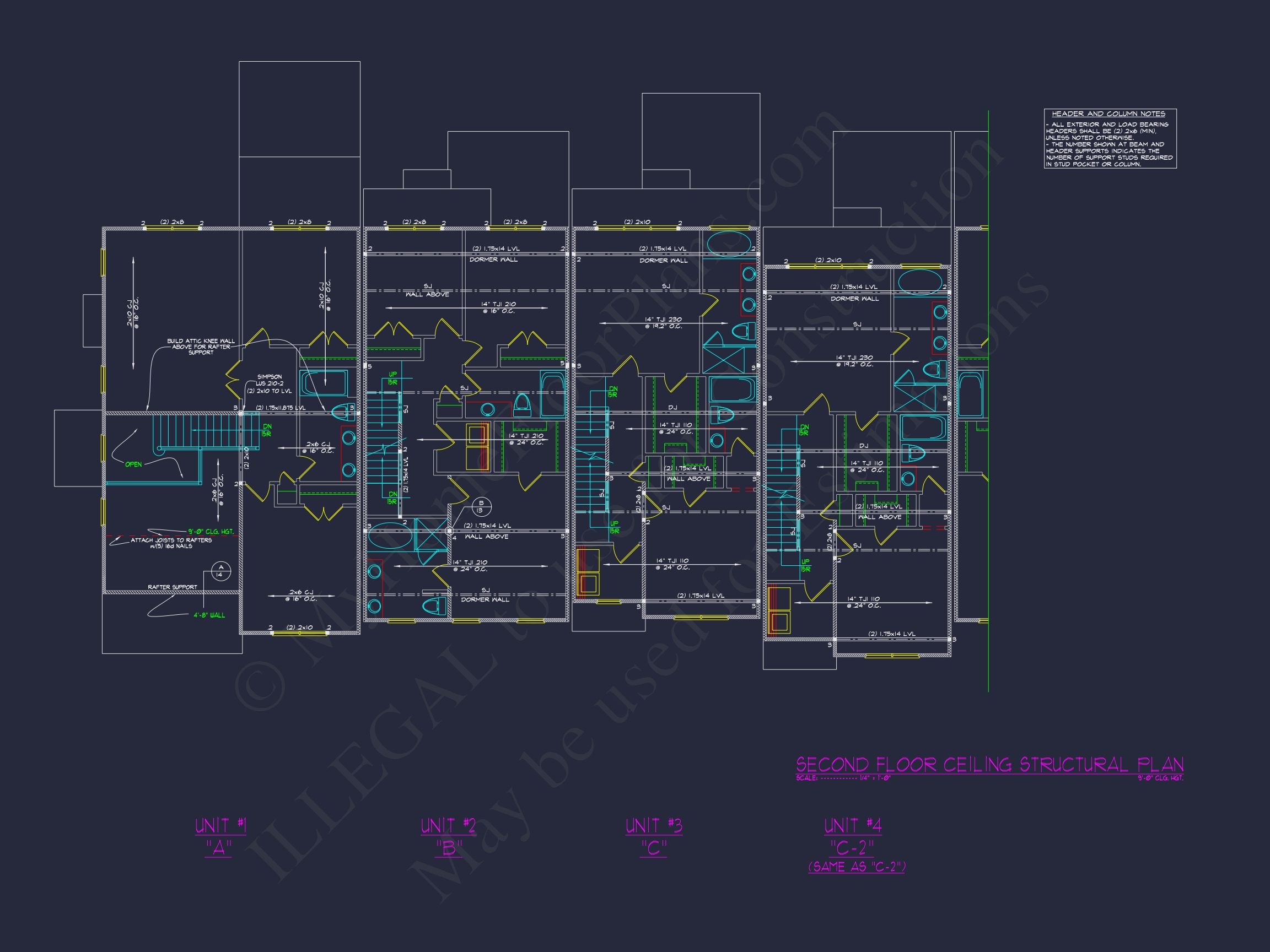

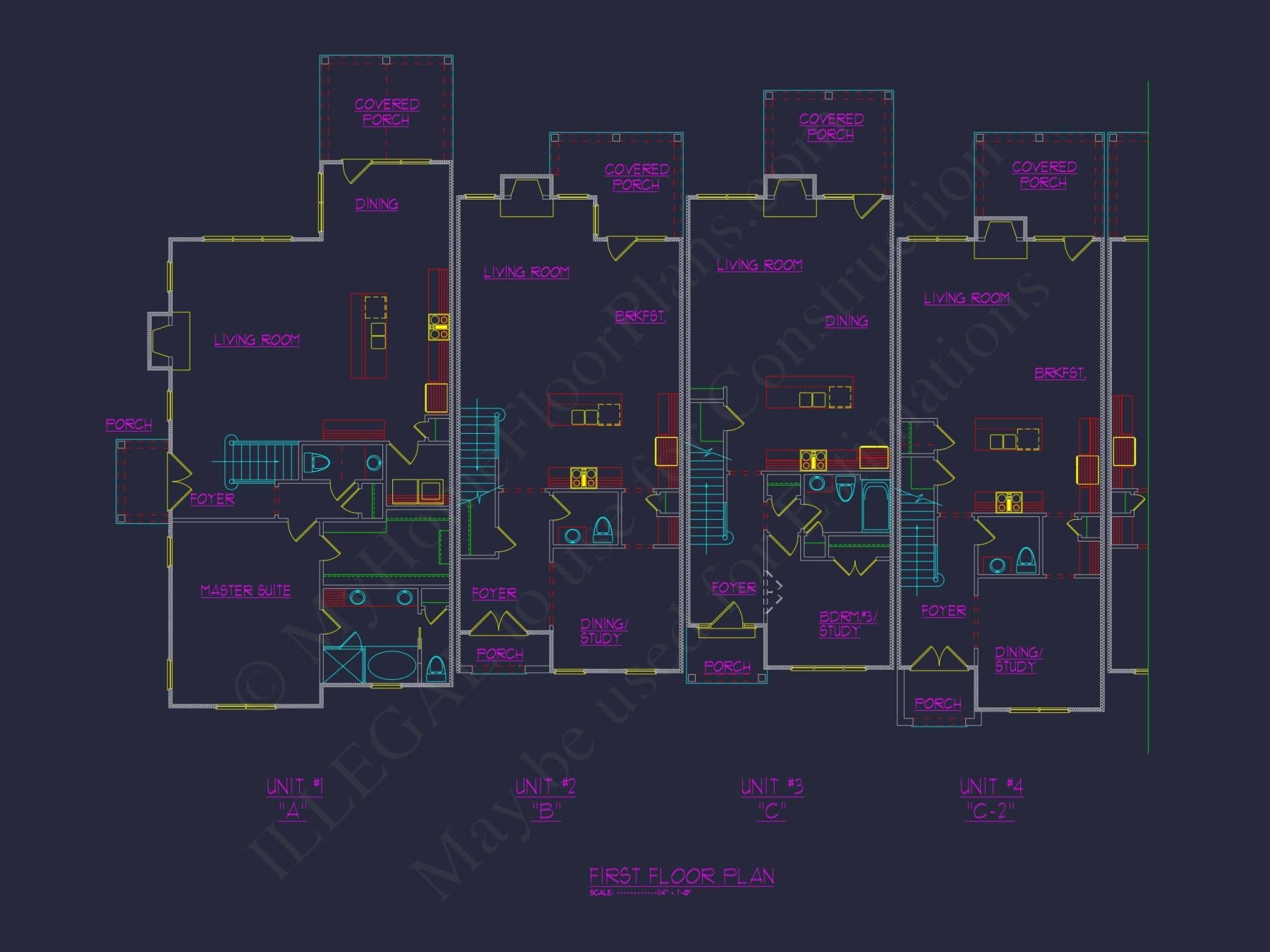

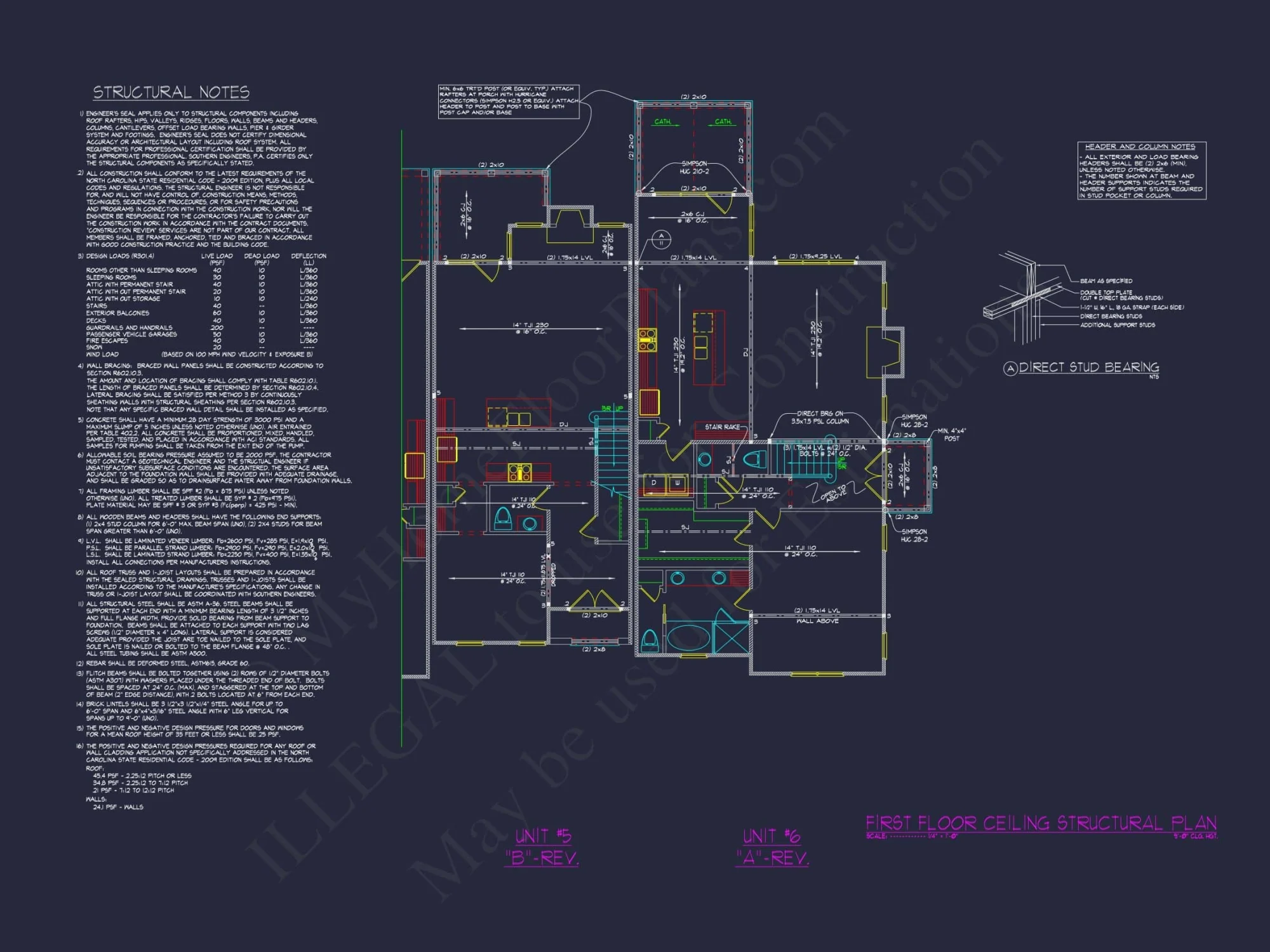

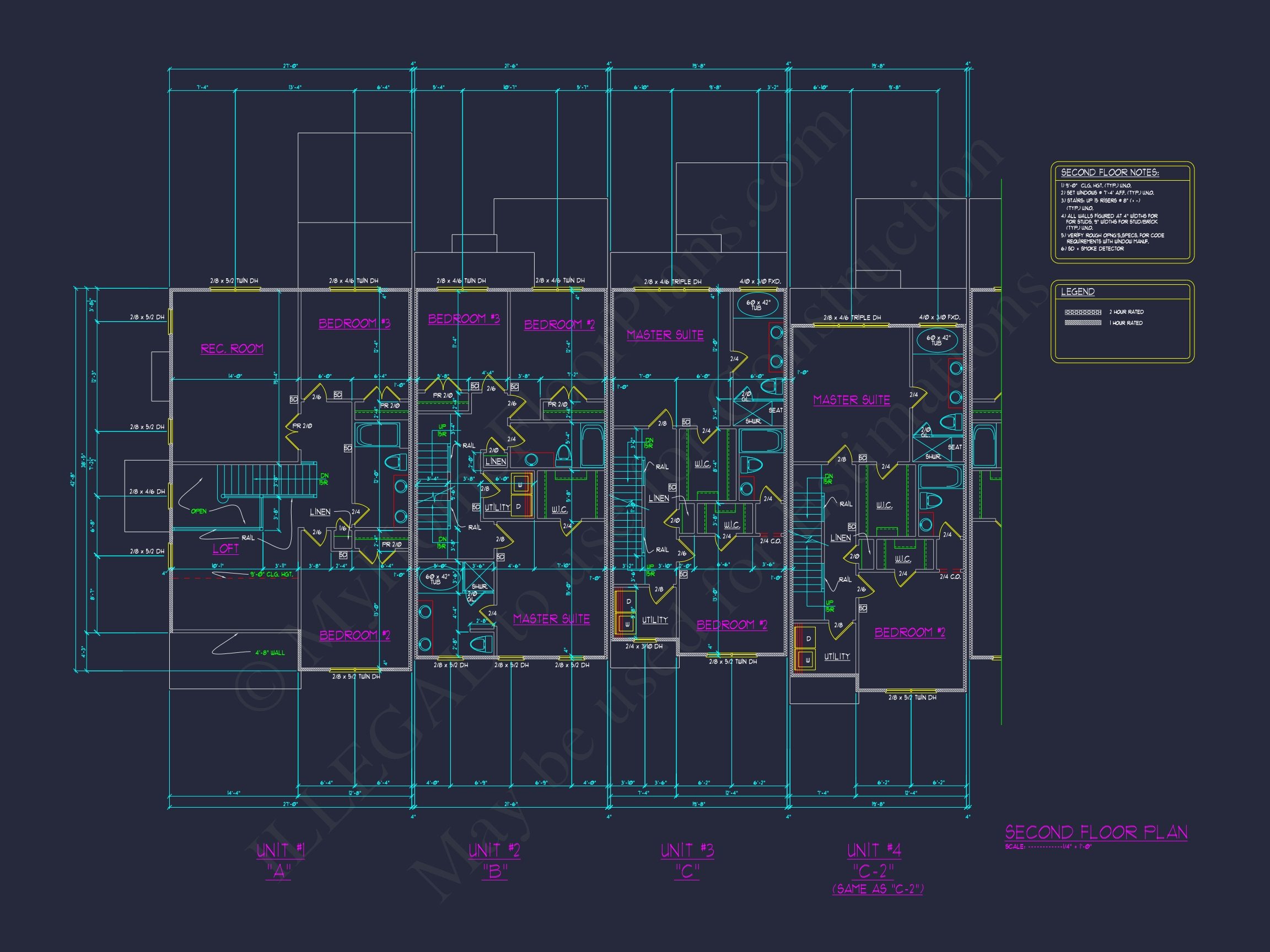

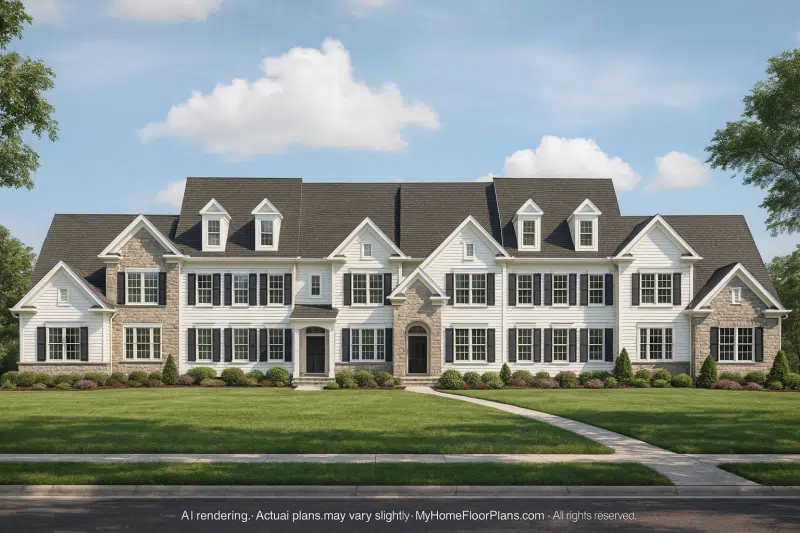

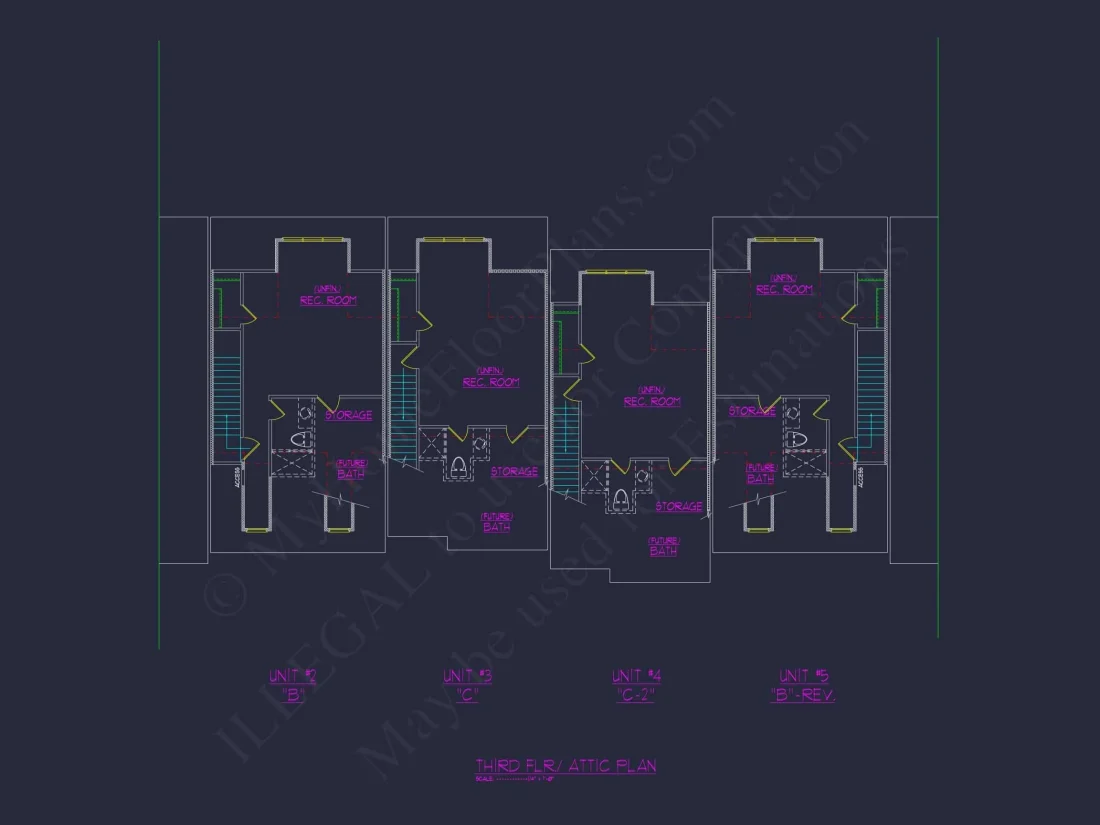

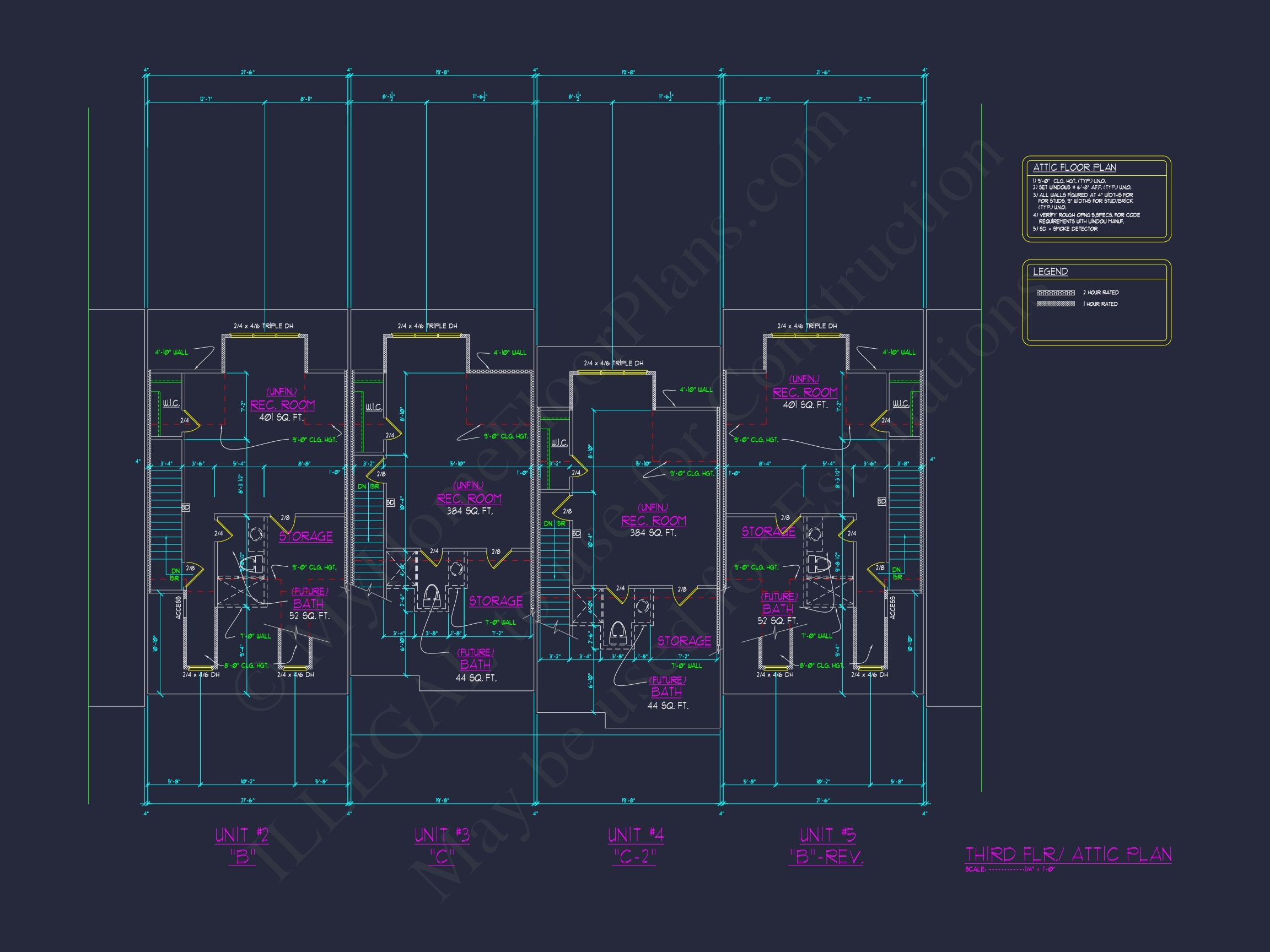

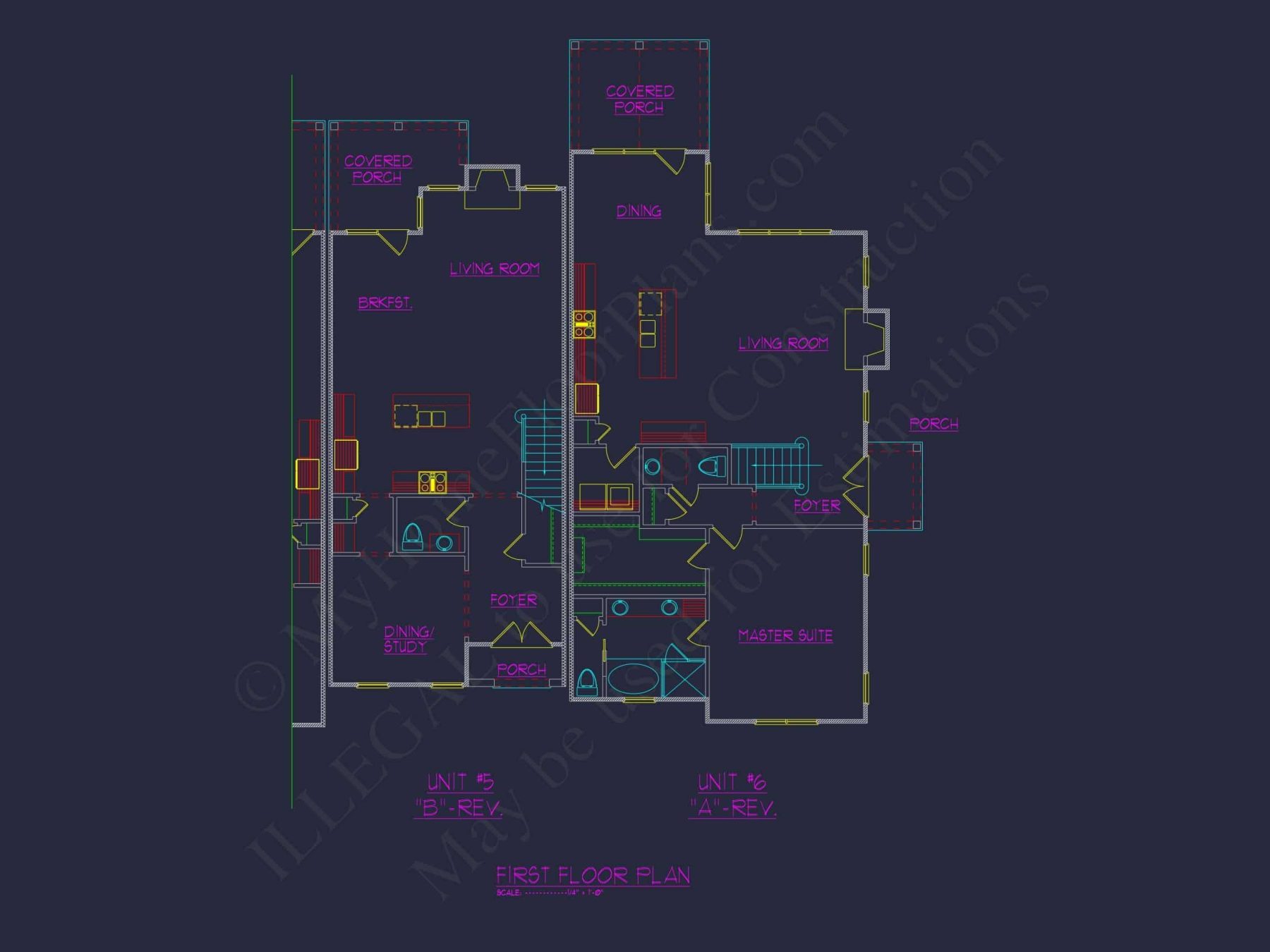

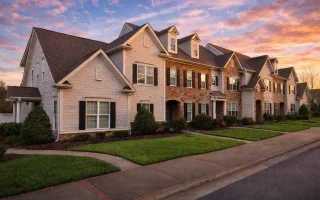

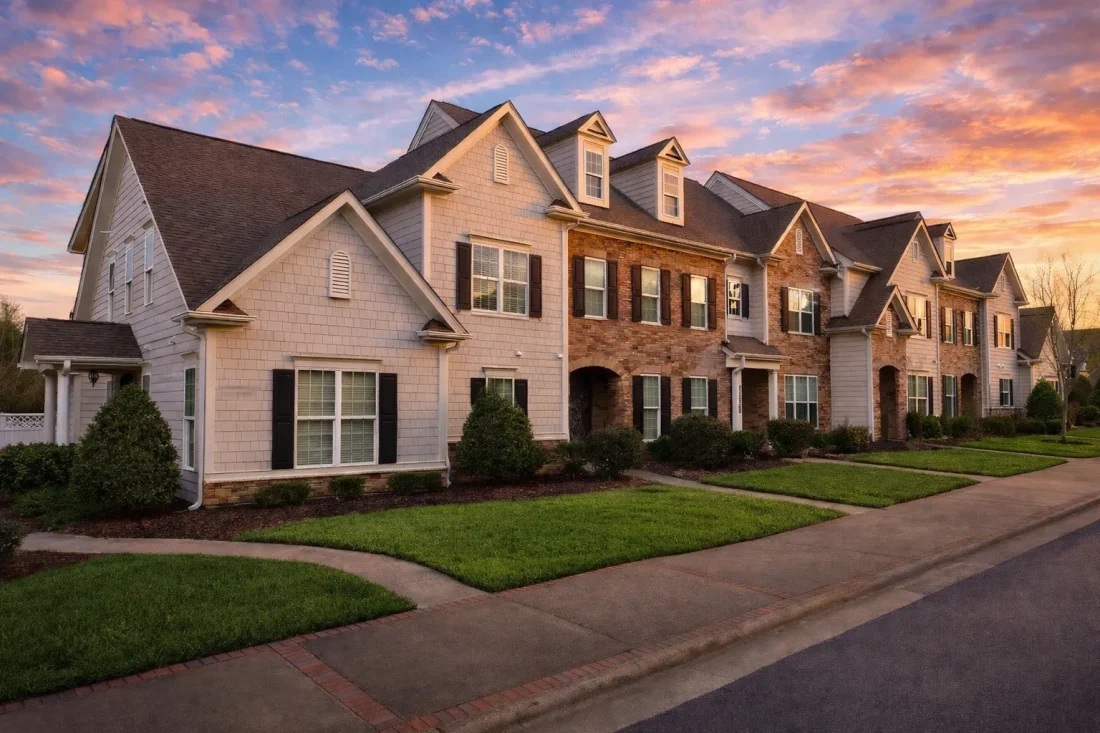

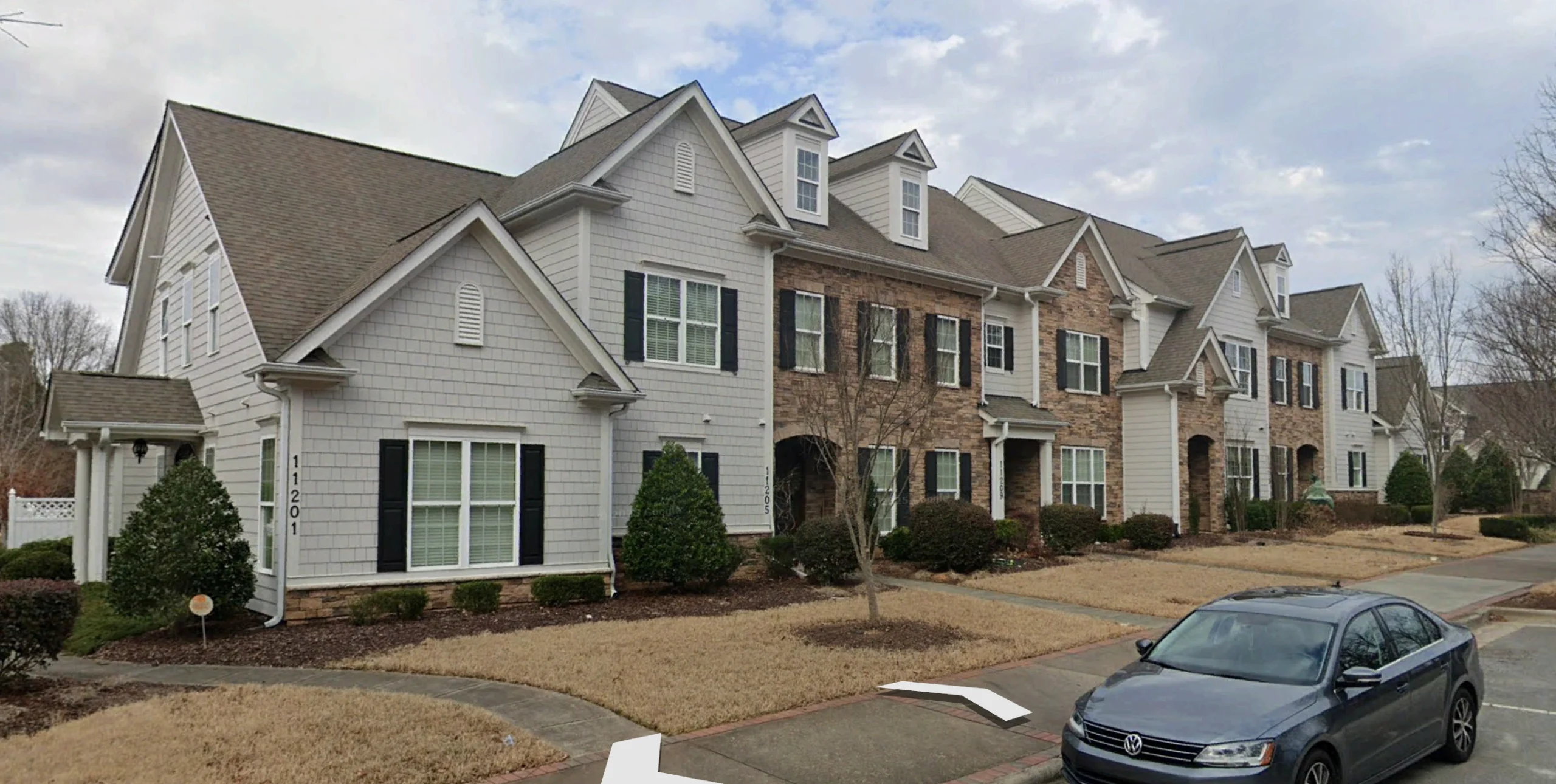

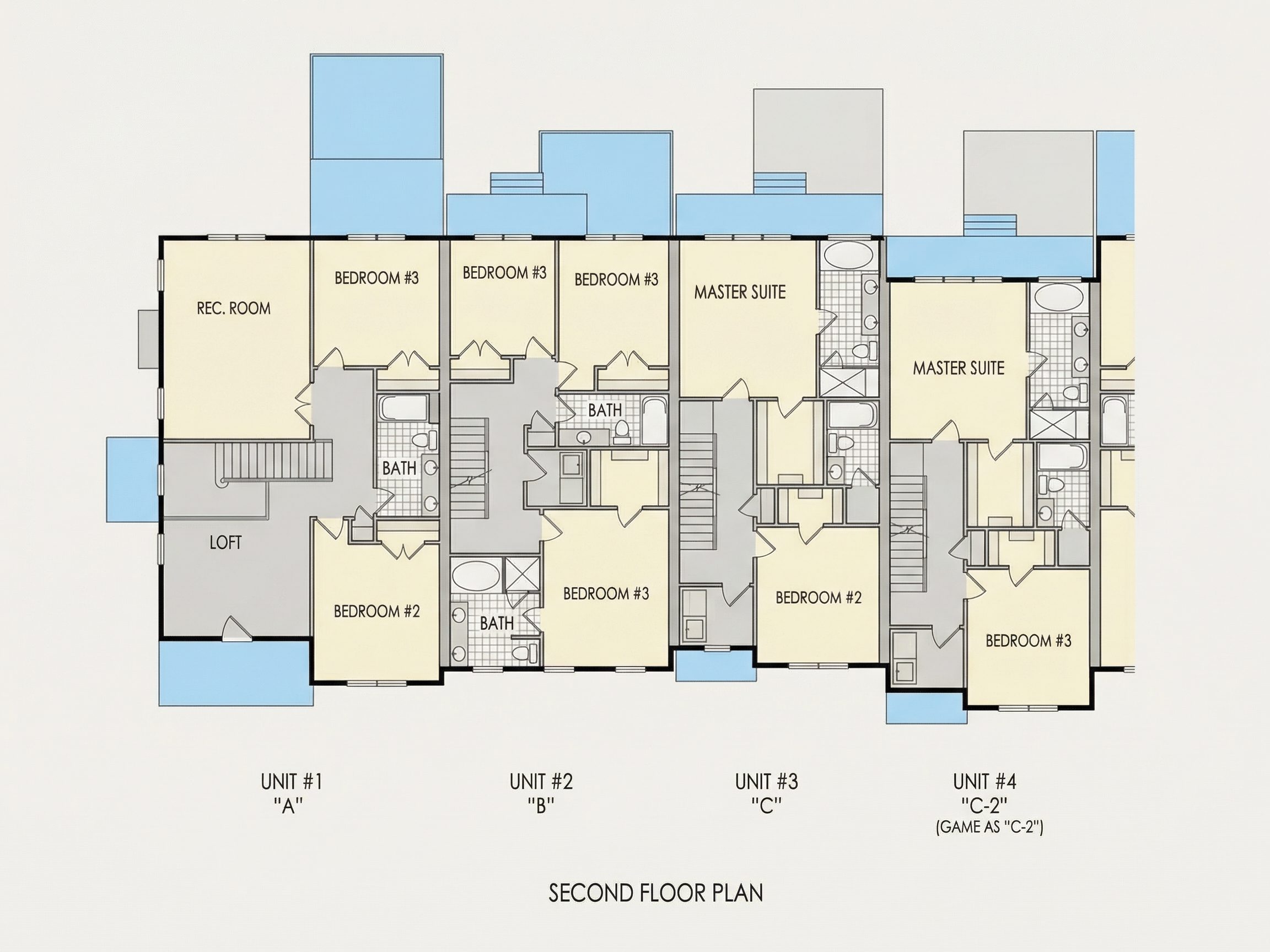

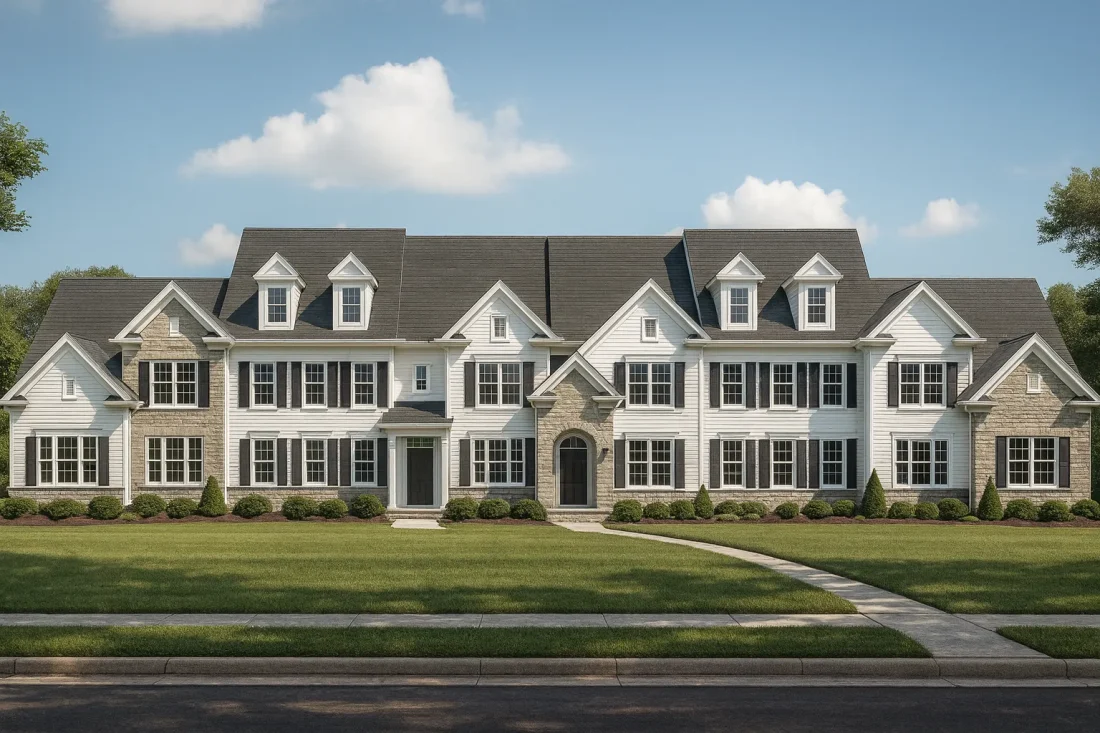

Beautiful Multi-Unit House Plan with CAD Blueprints & Traditional Design
Explore this 2-story multi-unit house plan featuring 11, 928 heated sq. ft., 6 connected units, vaulted ceilings, and elegant CAD designs—perfect for families or developers.
This multi-unit townhome house plan offers a perfect mix of spacious living, colonial-inspired architecture, and modern amenities. Whether you’re building for investment or extended family living, this home design delivers timeless style and practical comfort.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 11, 928 sq. ft. across two stories and six units.
- Unheated extras: Approximately 2, 218 sq. ft. including front/back porches and attic storage.

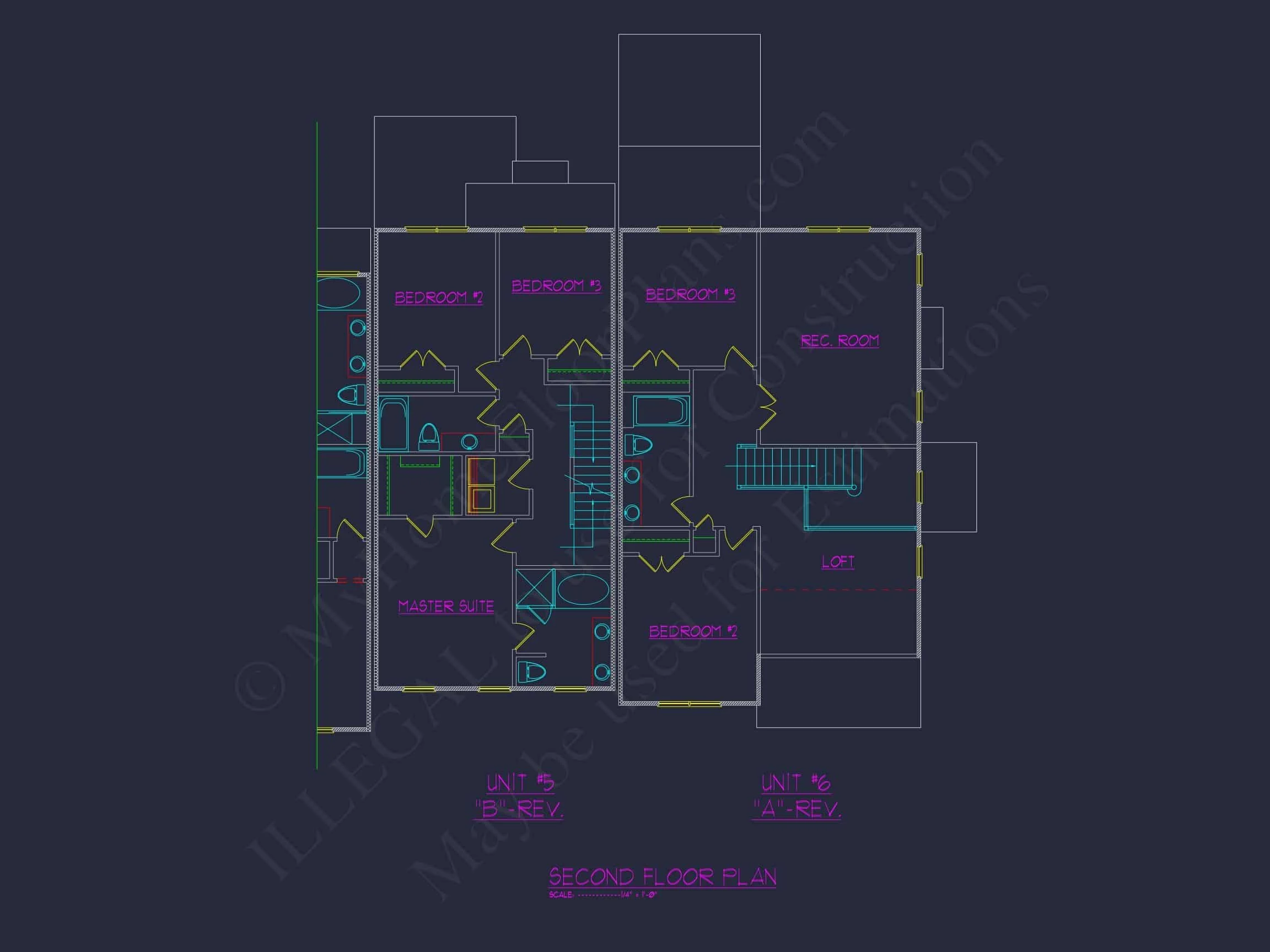

Bedrooms & Bathrooms
- Each unit includes multiple bedrooms with privacy-first layouts.
- Jack and Jill bathrooms allow efficient shared use for families and guests.

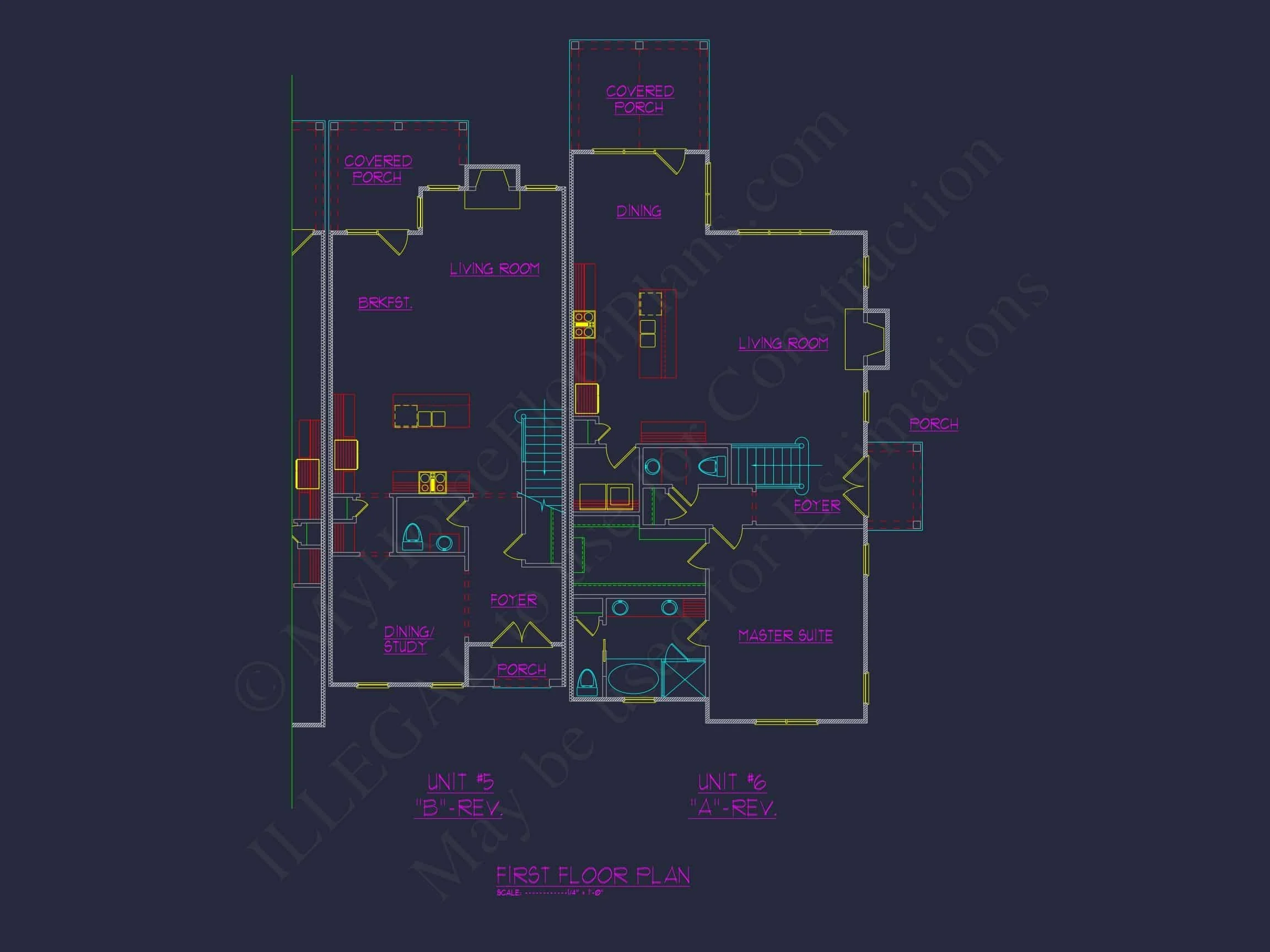

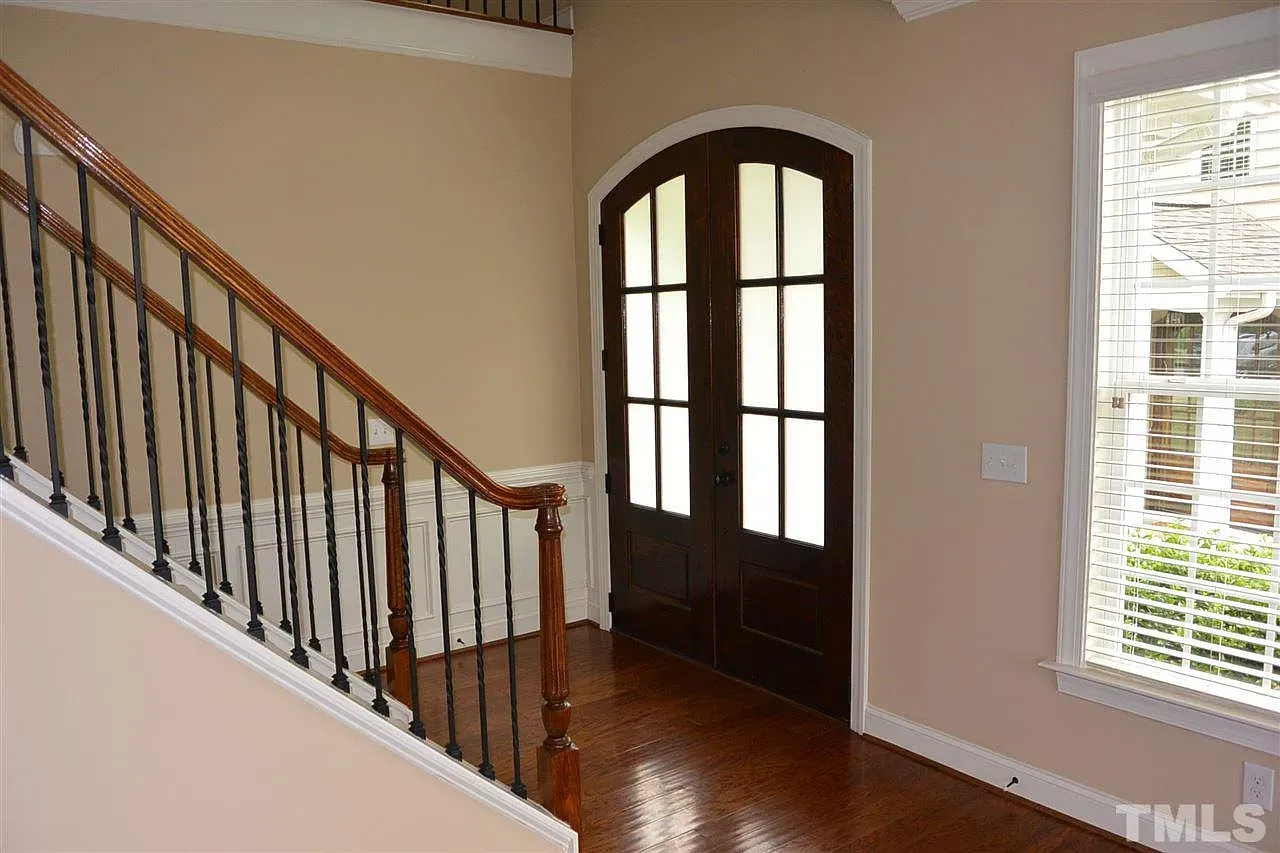

Interior Highlights
- Vaulted ceilings throughout key spaces for extra light and height.
- Open floor plan maximizes connectivity between kitchen, dining, and living areas. Explore more open layouts.

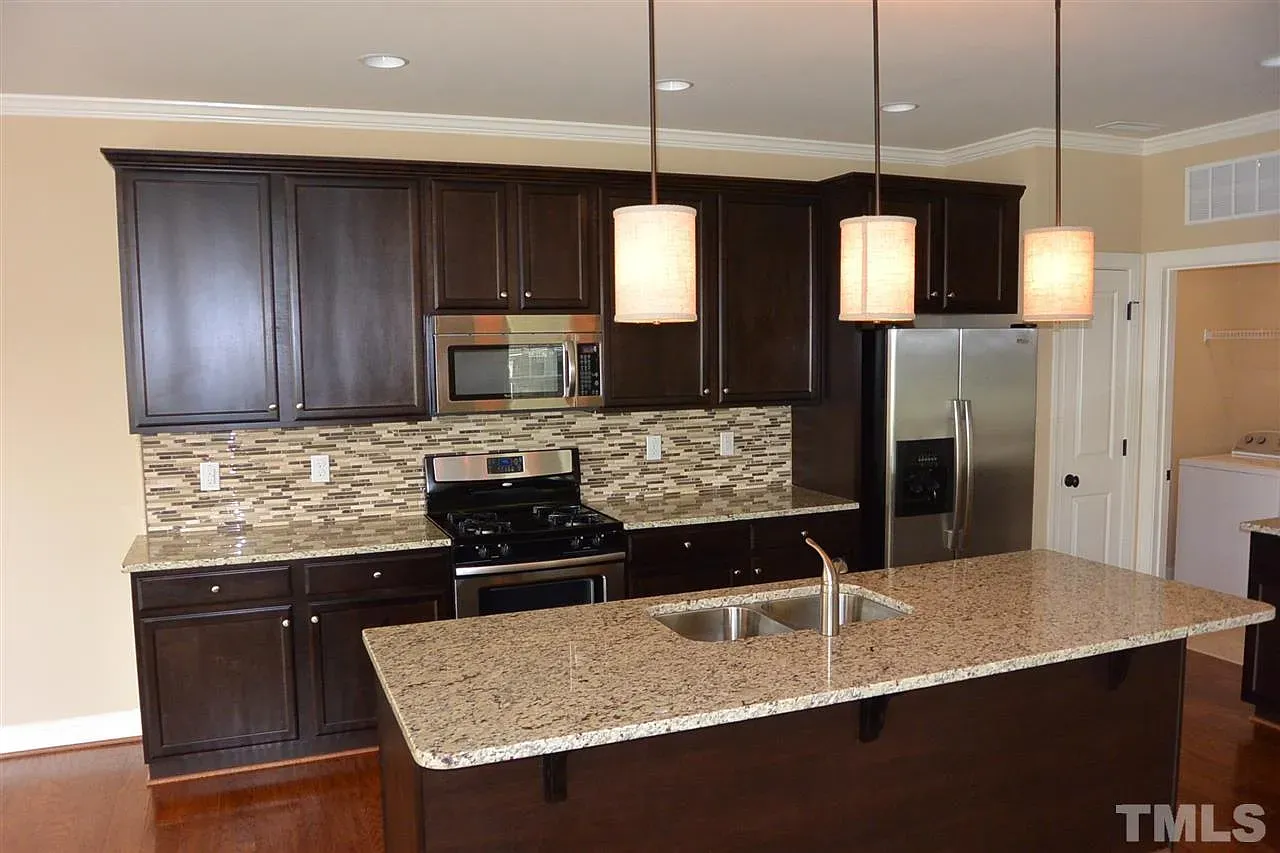

- Kitchen features: Eating bars, breakfast nooks, and walk-in pantries for practical flow.

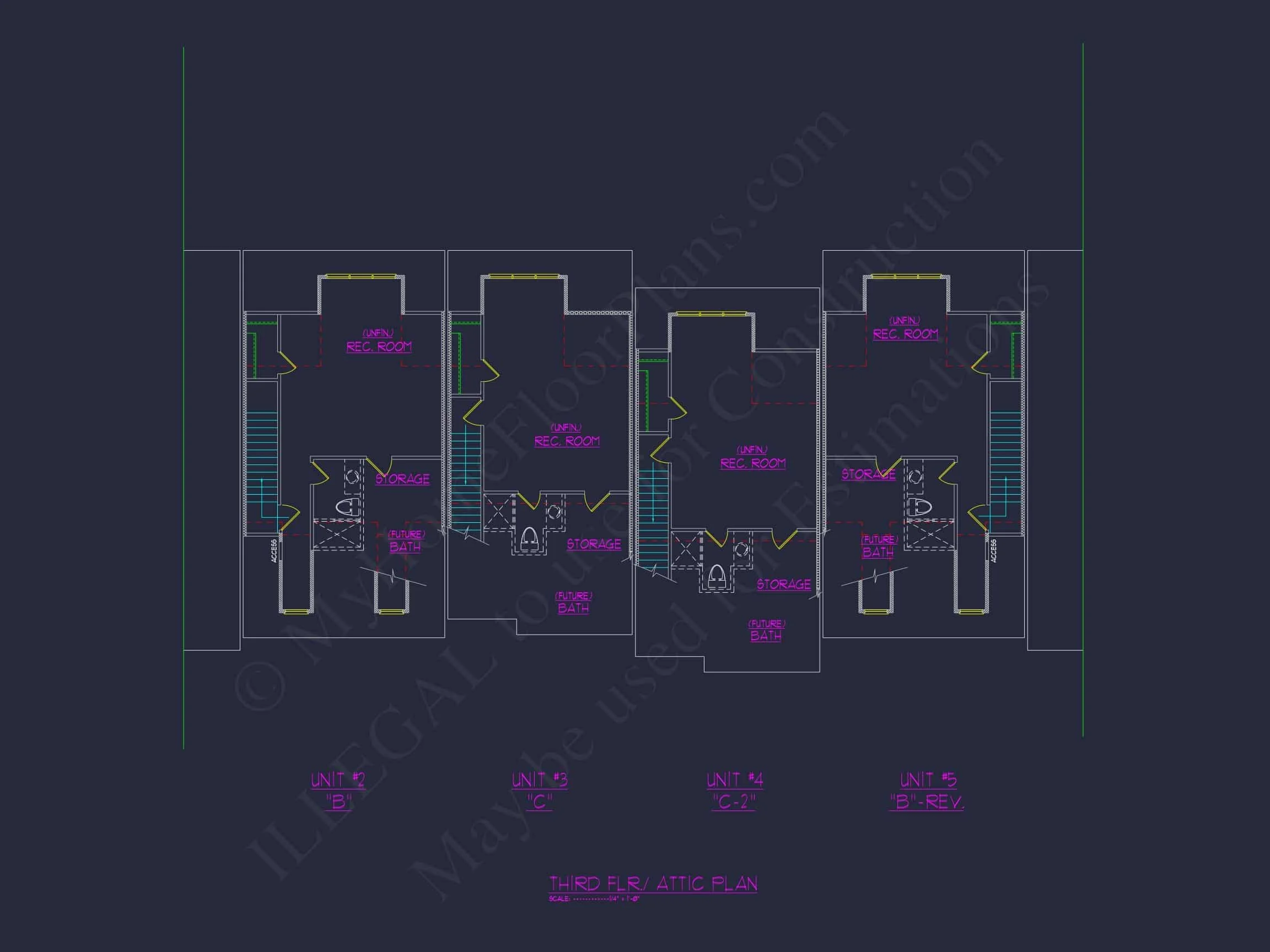

- Attics and extra closets for bonus storage in each unit.
Garage & Storage Details

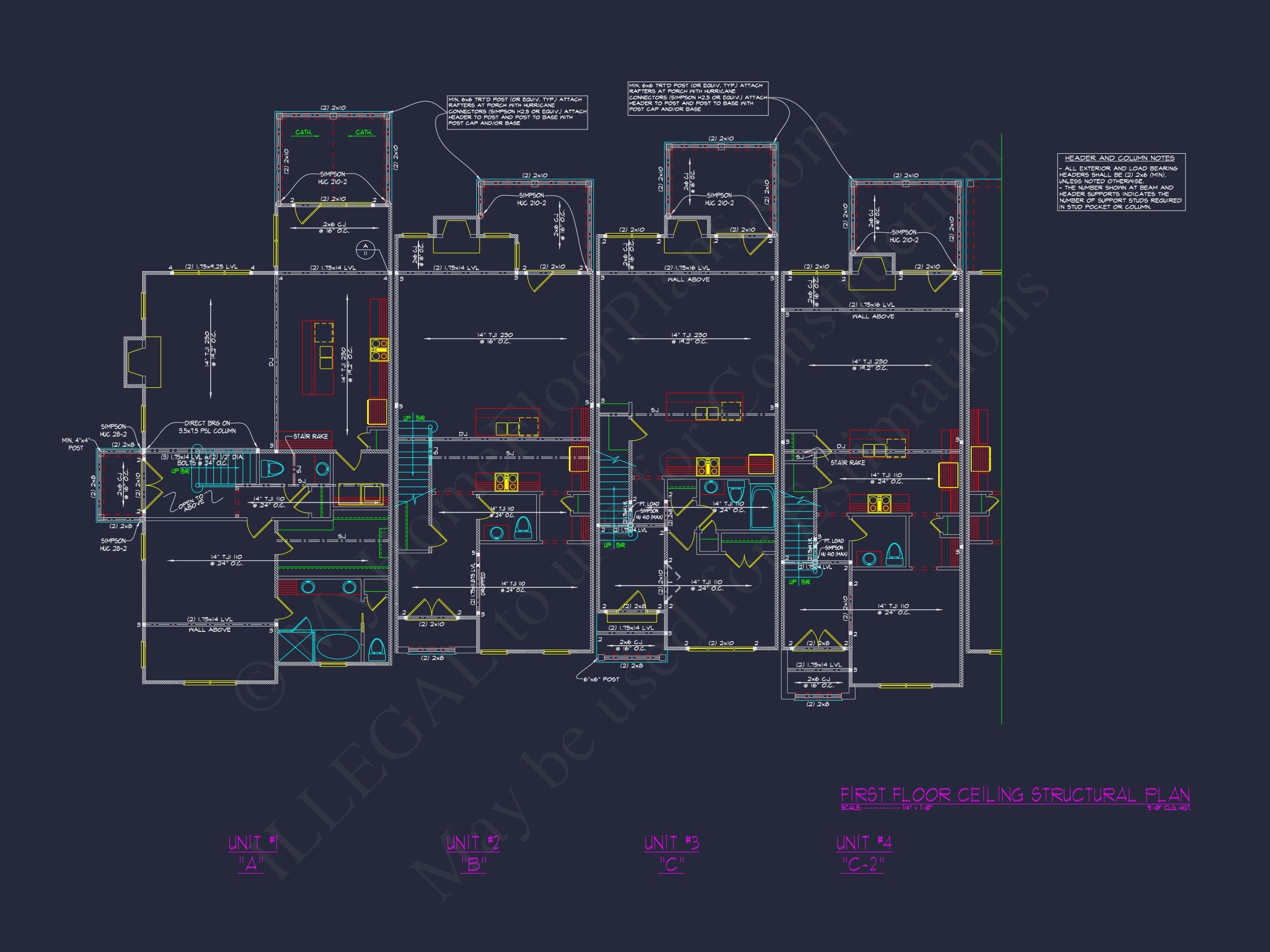

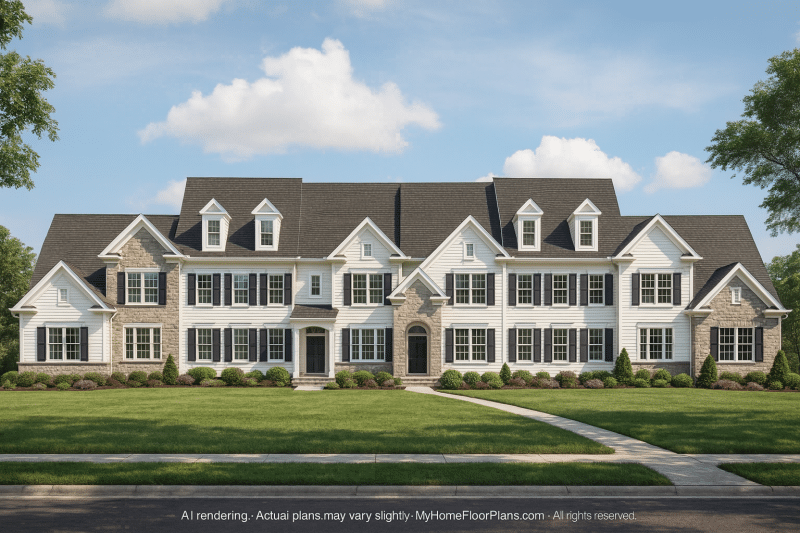

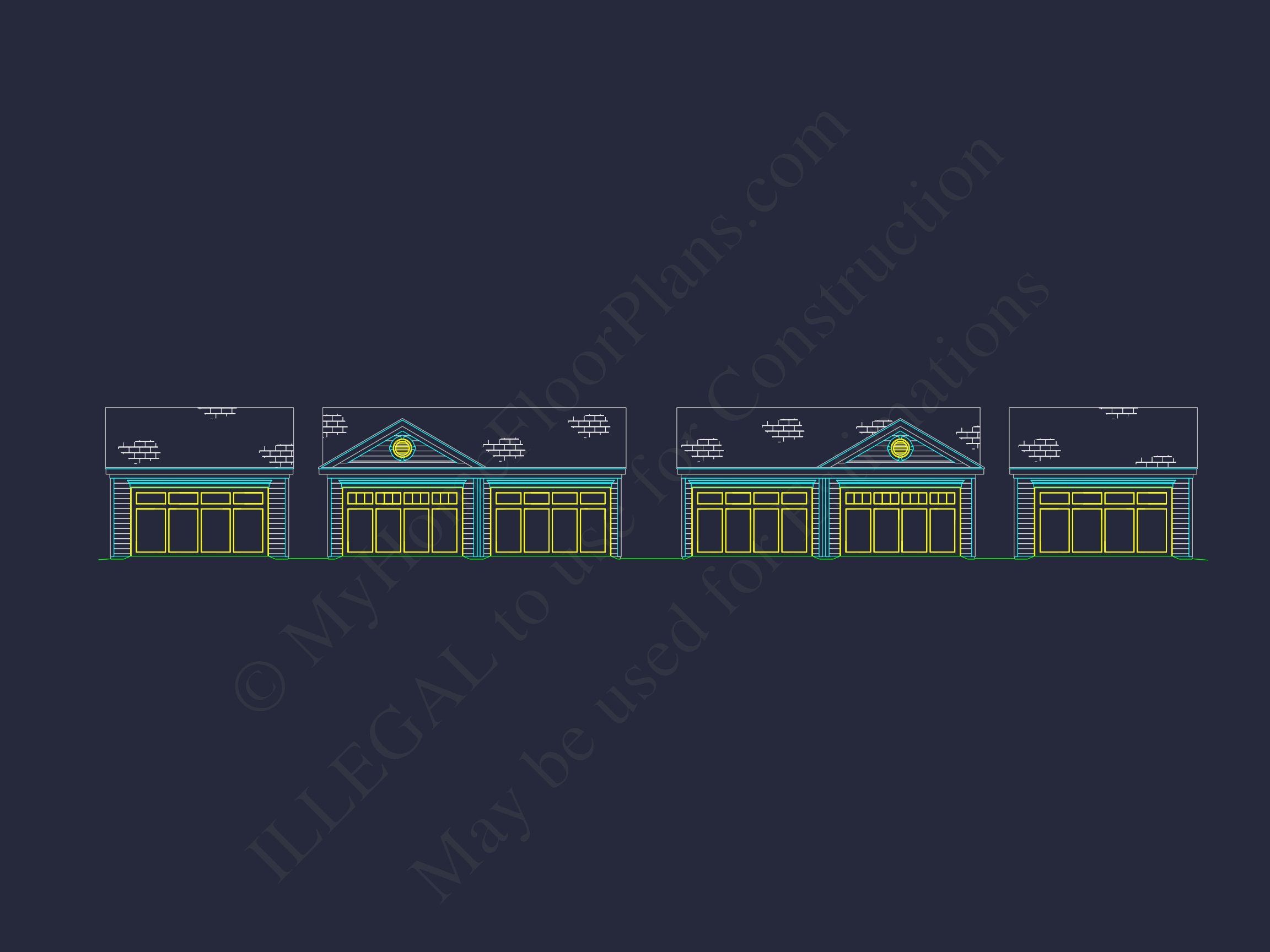

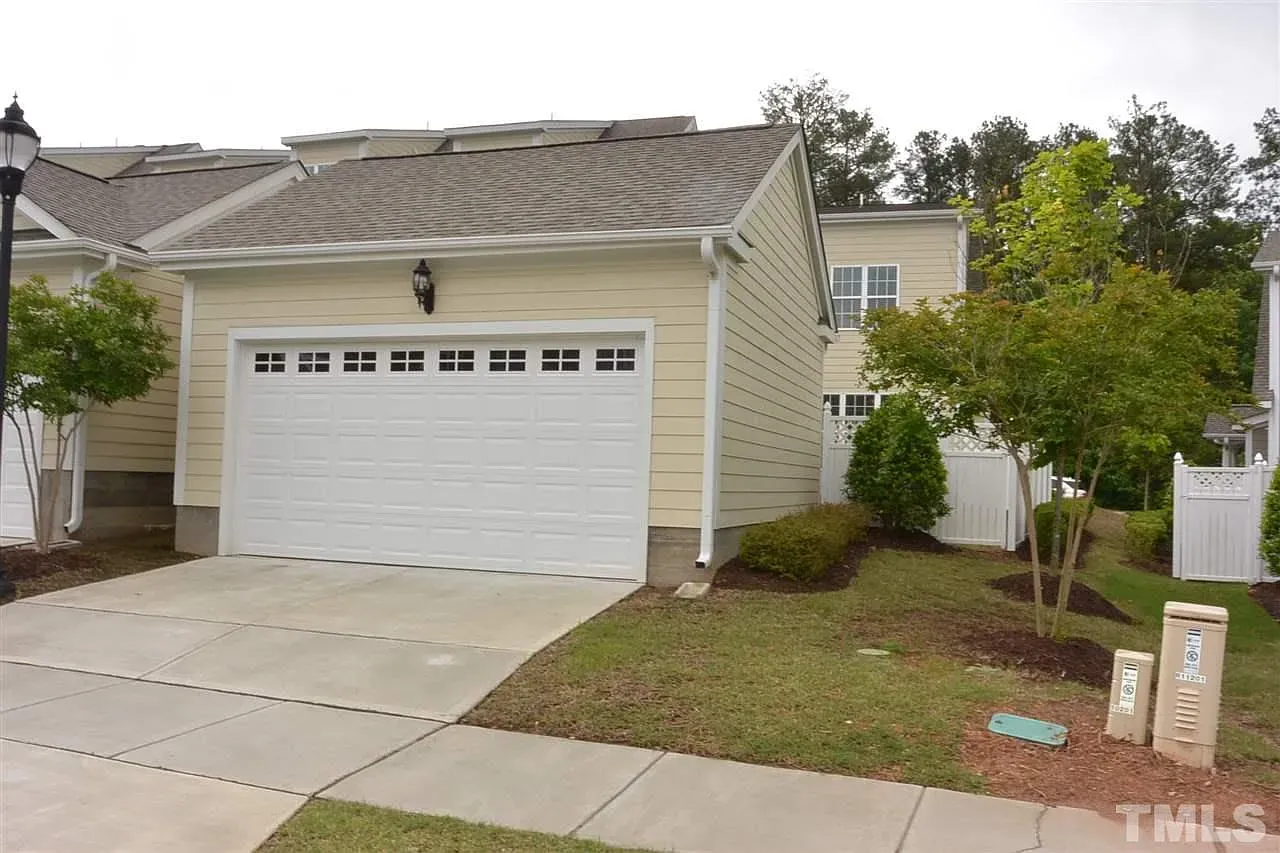

- Garage Bays: On-lot parking options or detached garages per builder preference.
- Garage Type: Compatible with street-front or alley-load configurations.
- Storage: Attic-level areas in each unit offer seasonal or long-term storage solutions.
Outdoor Living Features

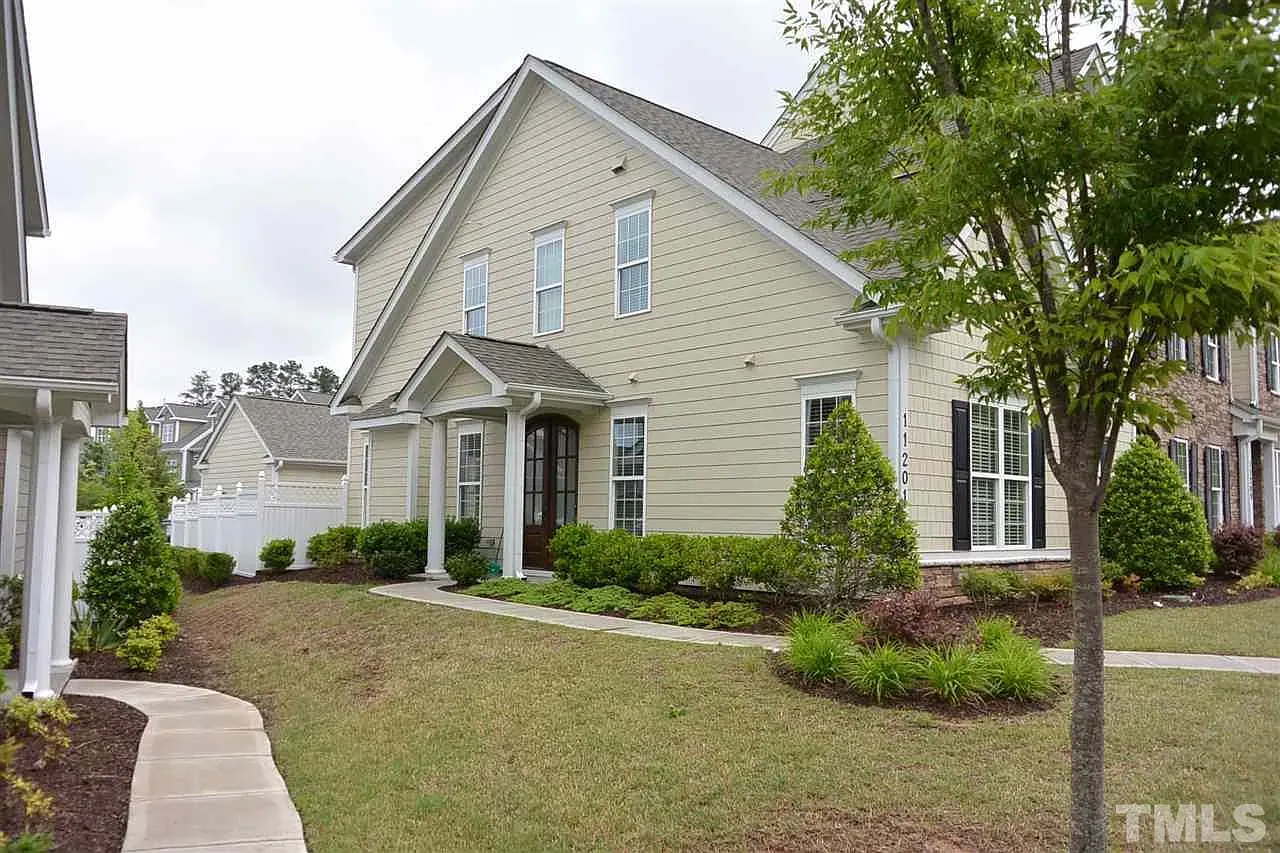

- Covered front and rear porches on each unit add charm and functionality.
- Exterior finishes include brick, shake, and stone materials for lasting curb appeal.
Architectural Style: Colonial Revival
This layout reflects classic Colonial Revival elements—symmetry, traditional detailing, and strong vertical lines. These six units blend traditional elegance with today’s functional needs. Learn more about the Colonial House Plans or explore the history of this style on Architectural Digest.
Bonus Features
- Split bedroom layouts ideal for roommates, extended family, or rental setups

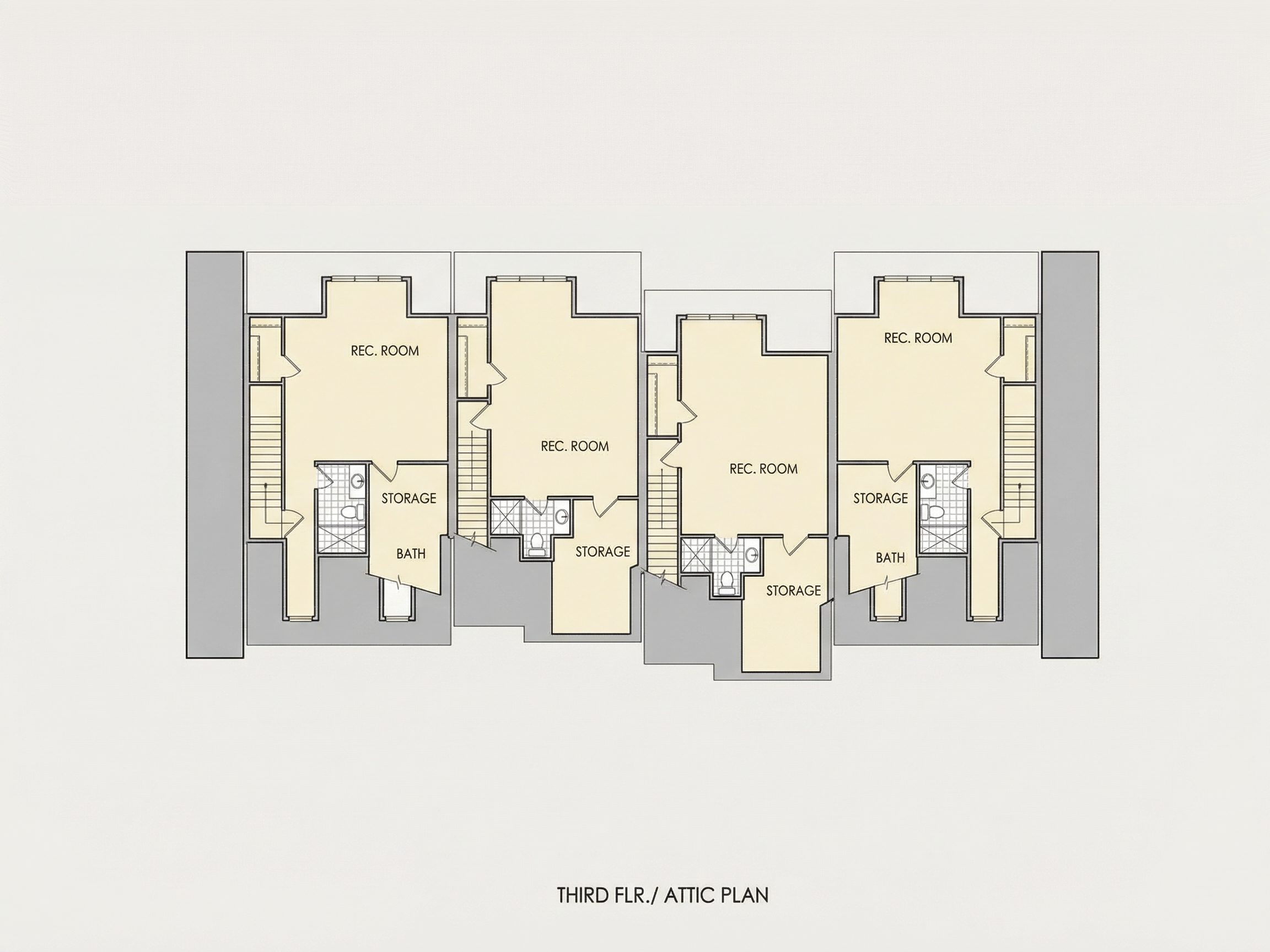

- Optional recreational room or loft space depending on configuration
- Owner bedroom on the first floor for added accessibility and convenience
Included Benefits with Every Plan
- CAD + PDF Files: Editable, printable, and construction-ready documents included.
- Unlimited Build License: Build as many units as you like—no repeat licensing needed.
- Free Foundation Changes: Easily switch to slab, crawlspace, or basement at no extra cost. Learn more.
- Structural Engineering Included: All plans include professional stamps for compliance.
- Lower Modification Costs: Customize for less—up to 50% cheaper than competitors. Request changes.
- View Before You Buy: Preview every sheet before purchasing.
Similar Collections You Might Love
- Townhome Floor Plans
- Traditional House Plans
- Duplex House Plans
- First Floor Owner Suites
- Plans with Attic Storage
Frequently Asked Questions
How many square feet are included? This plan offers 11, 928 heated sq. ft. plus over 2, 200 sq. ft. of unheated space.
Can I build this as an investment property? Yes! It’s perfect for developers or multifamily investors due to its 6-unit layout and unlimited build license.
Is each unit fully private? Yes. Each unit includes its own entry, bedrooms, bathrooms, and kitchen areas for full independence.
Can I request modifications? Absolutely. Get a fast quote for layout changes, extra features, or exterior revisions.
Are CAD files included? Yes—all purchases come with CAD + PDF files for seamless building and local adjustments.
Start Building Your Dream Home Today
Ready to customize this multi-unit design or need more info? Email our team at [email protected] or contact us here.
With timeless style and unbeatable plan benefits, your project starts here—build smart, build confidently.

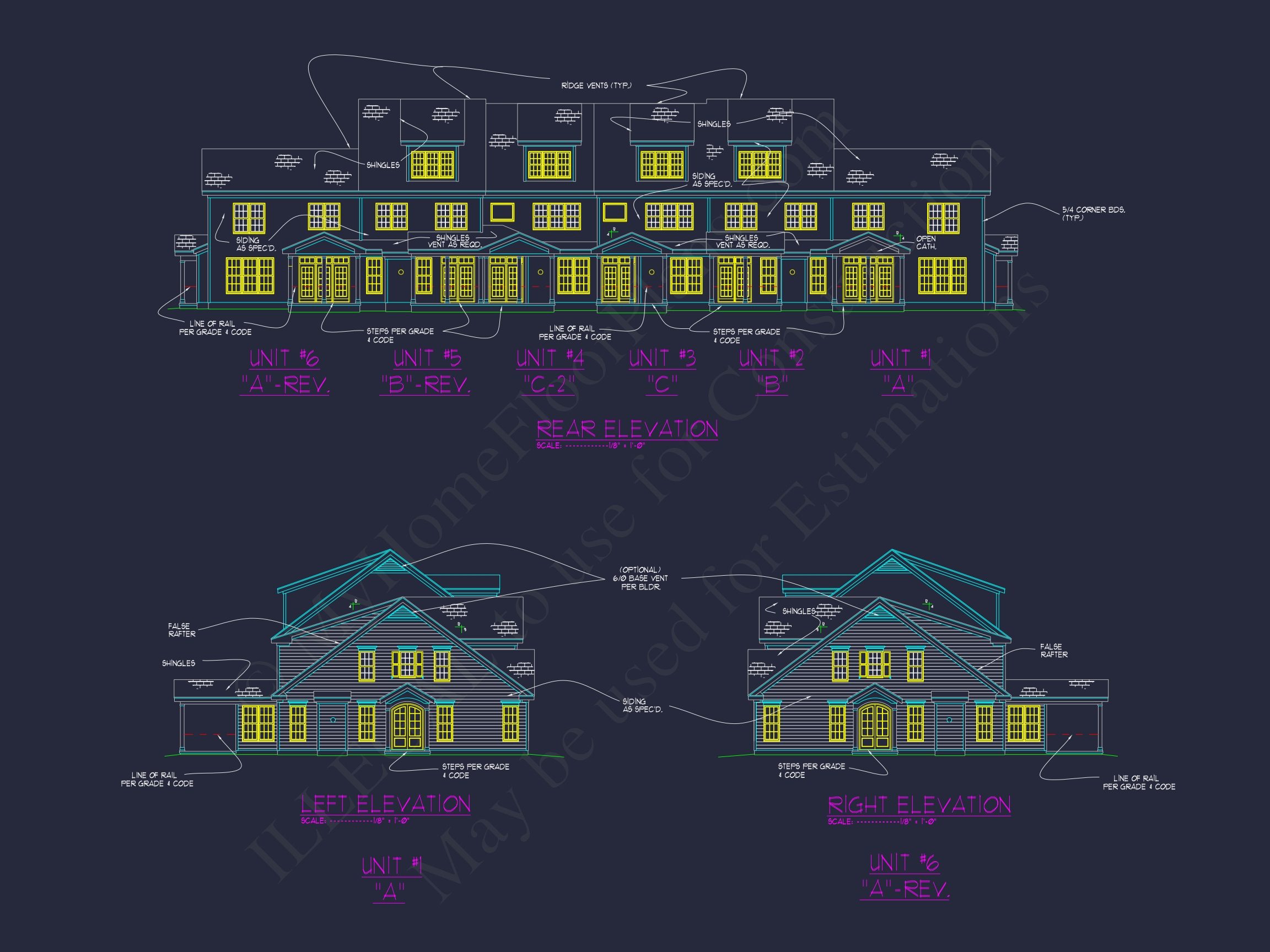

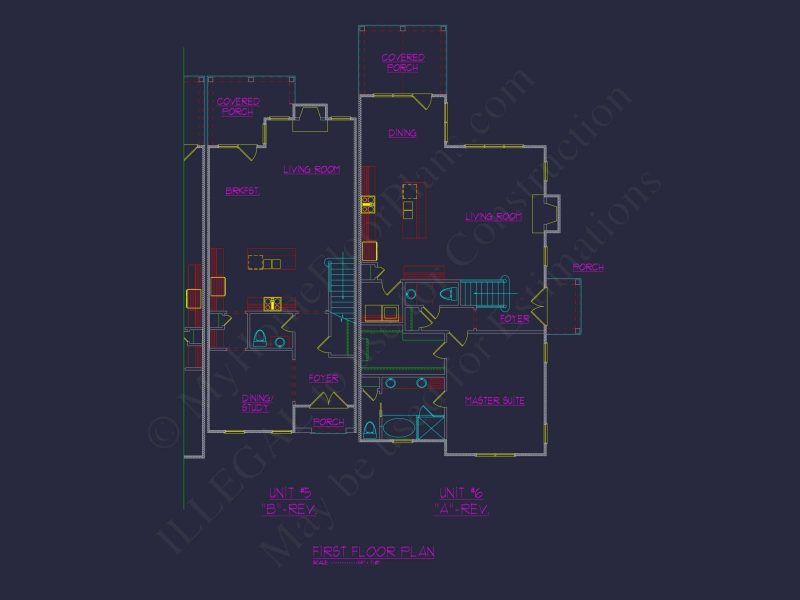

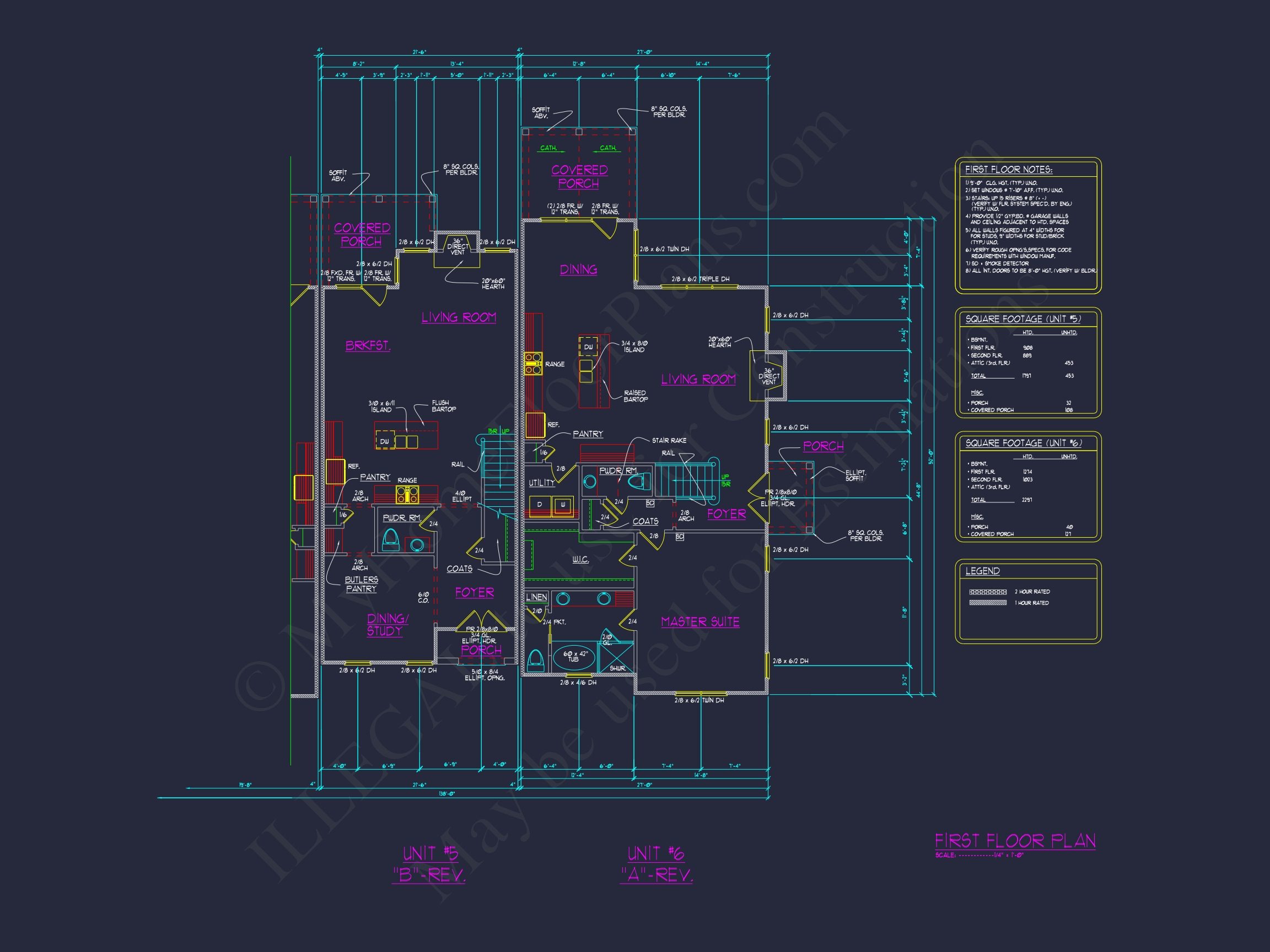

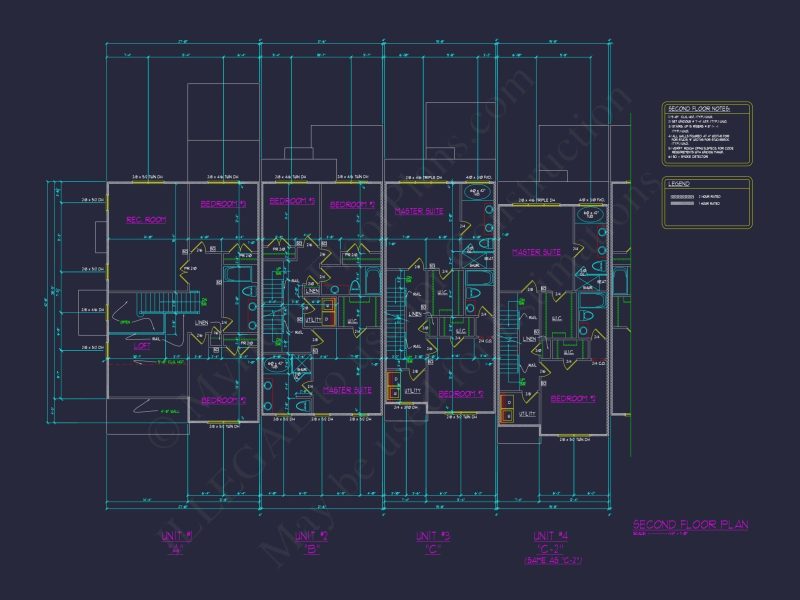

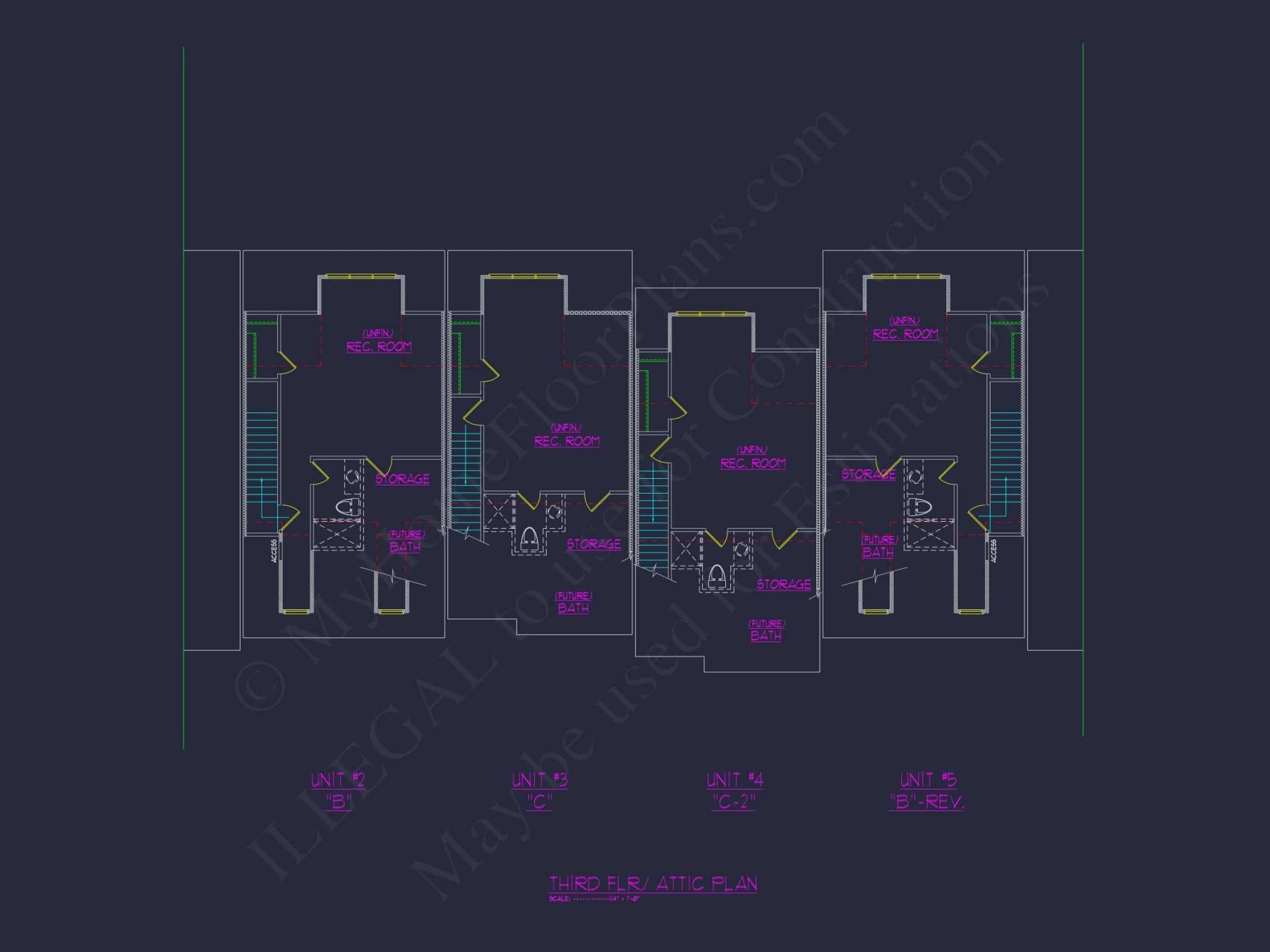

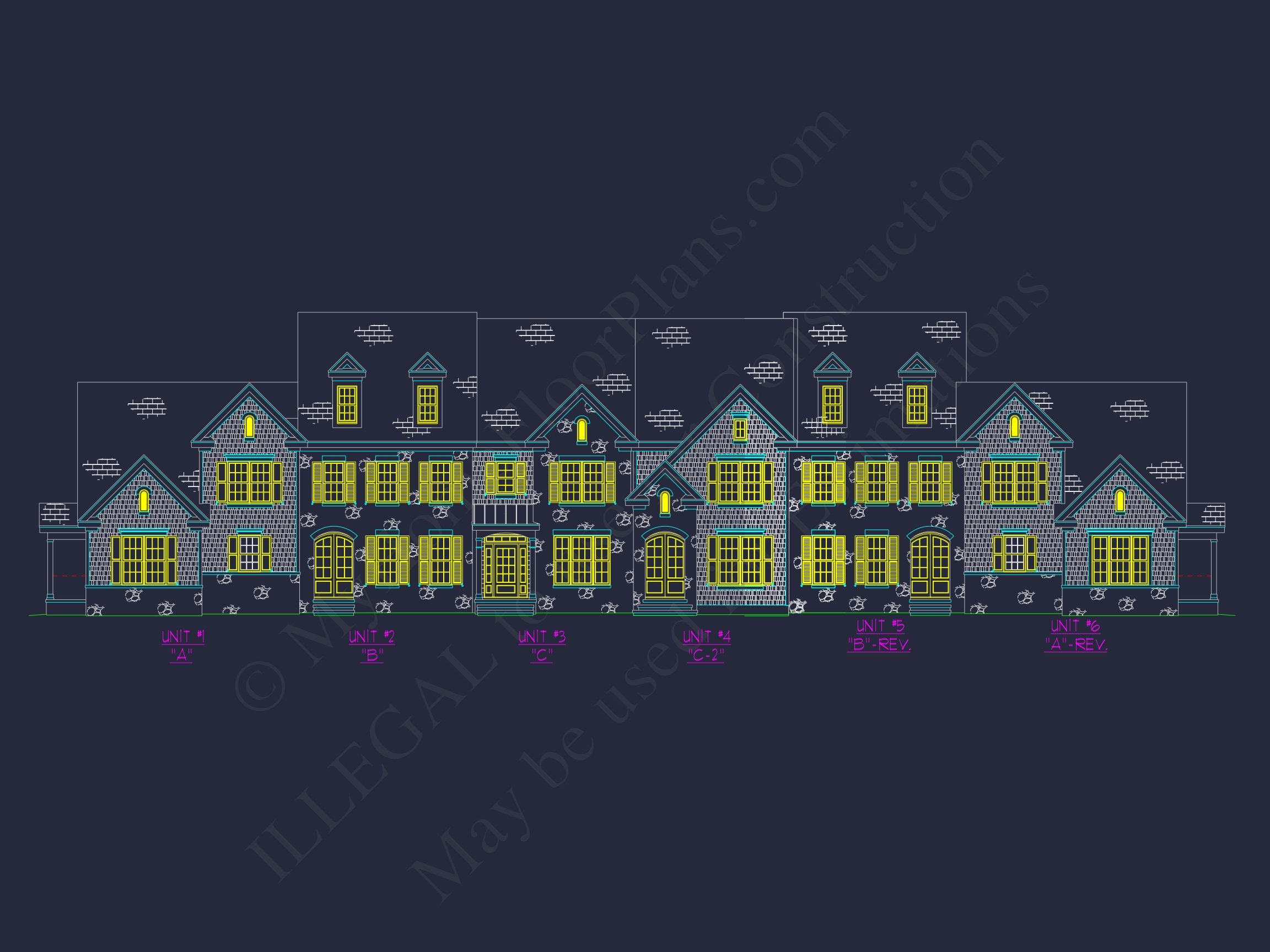

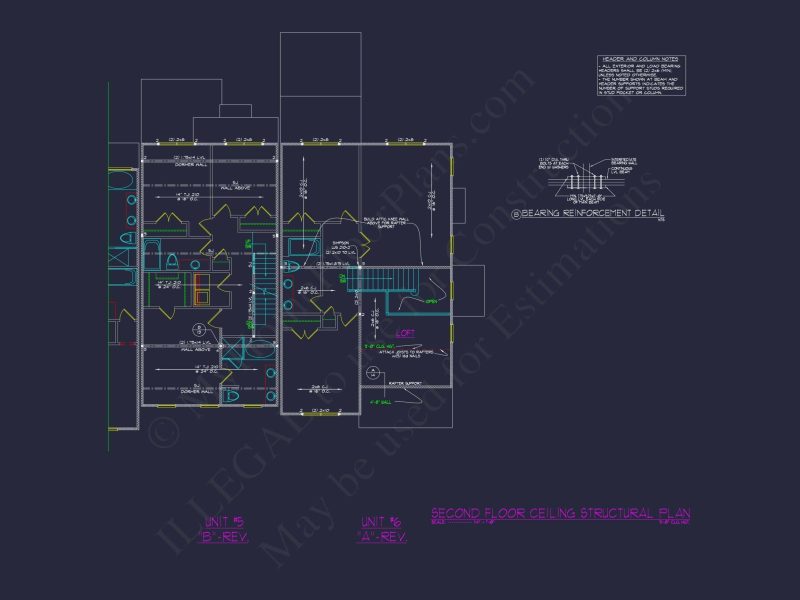

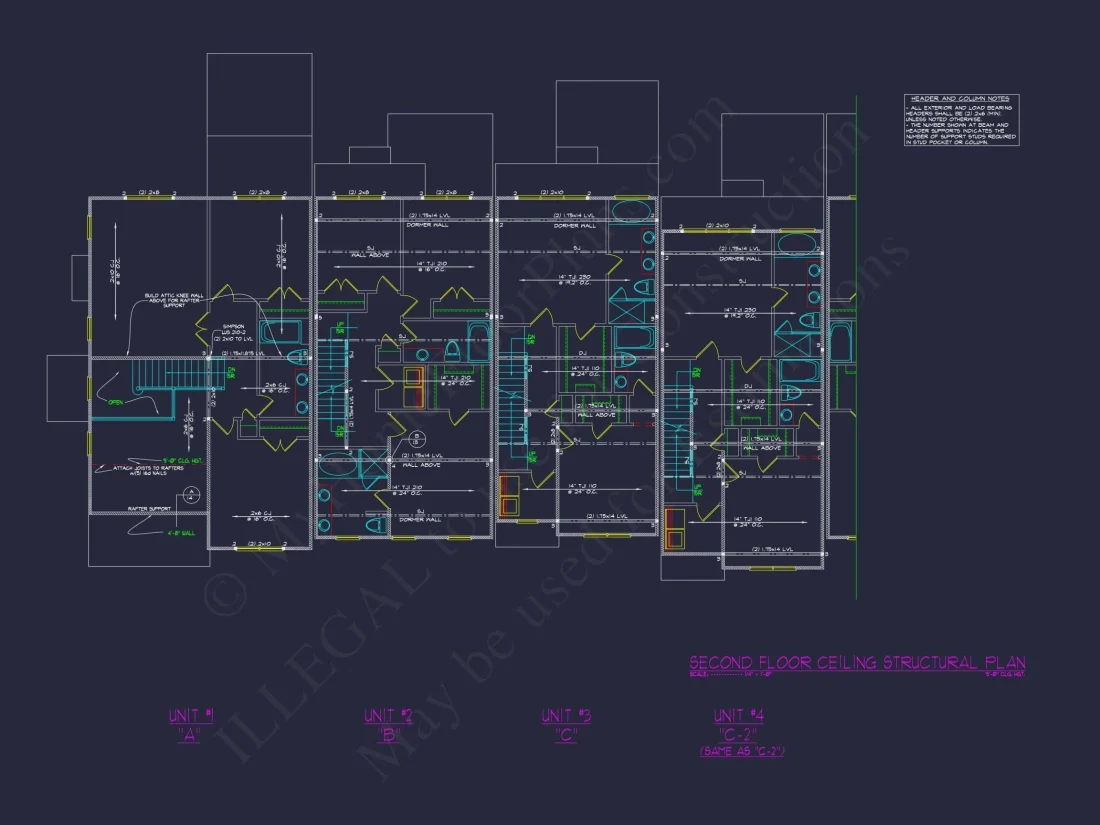

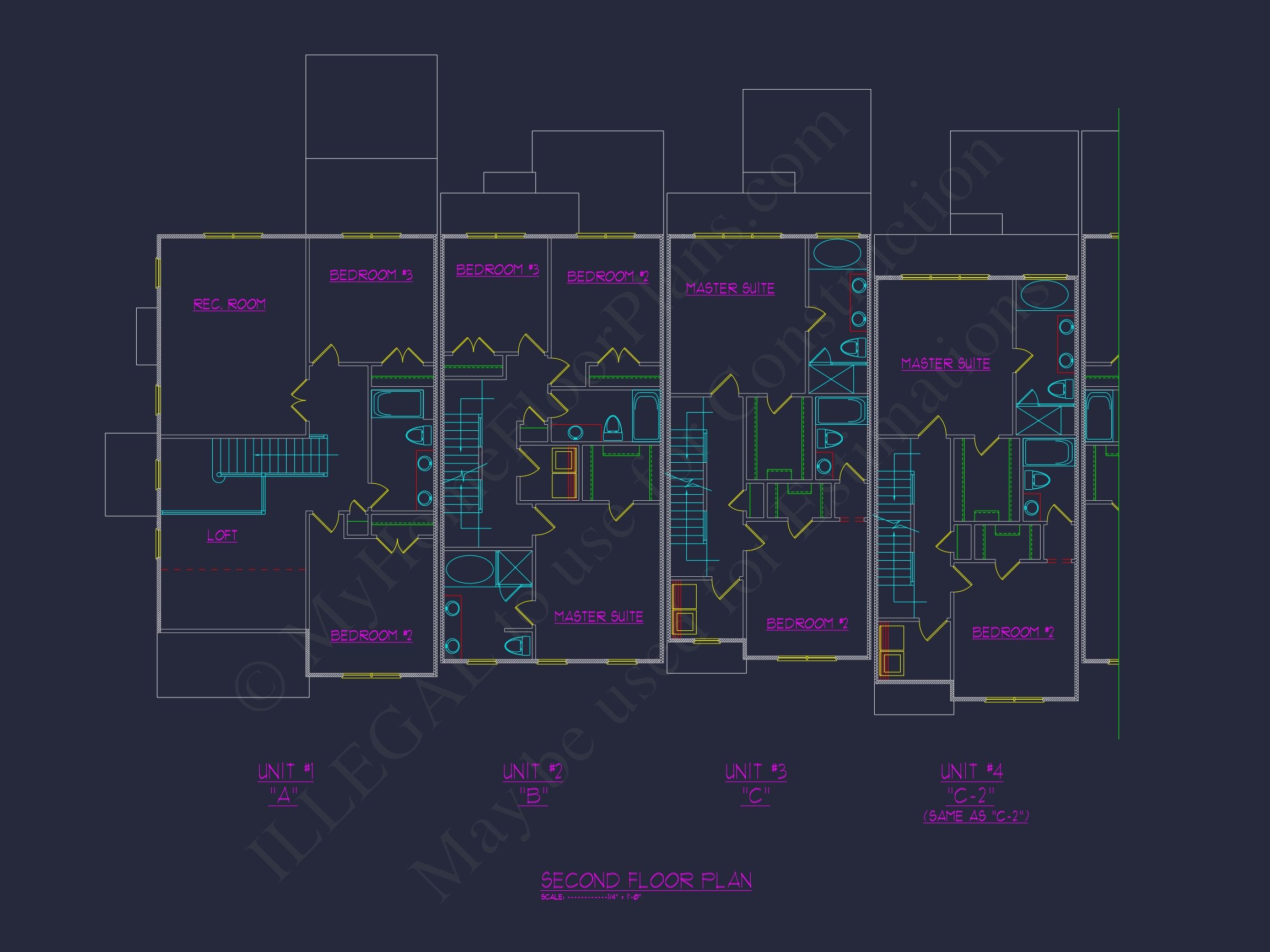

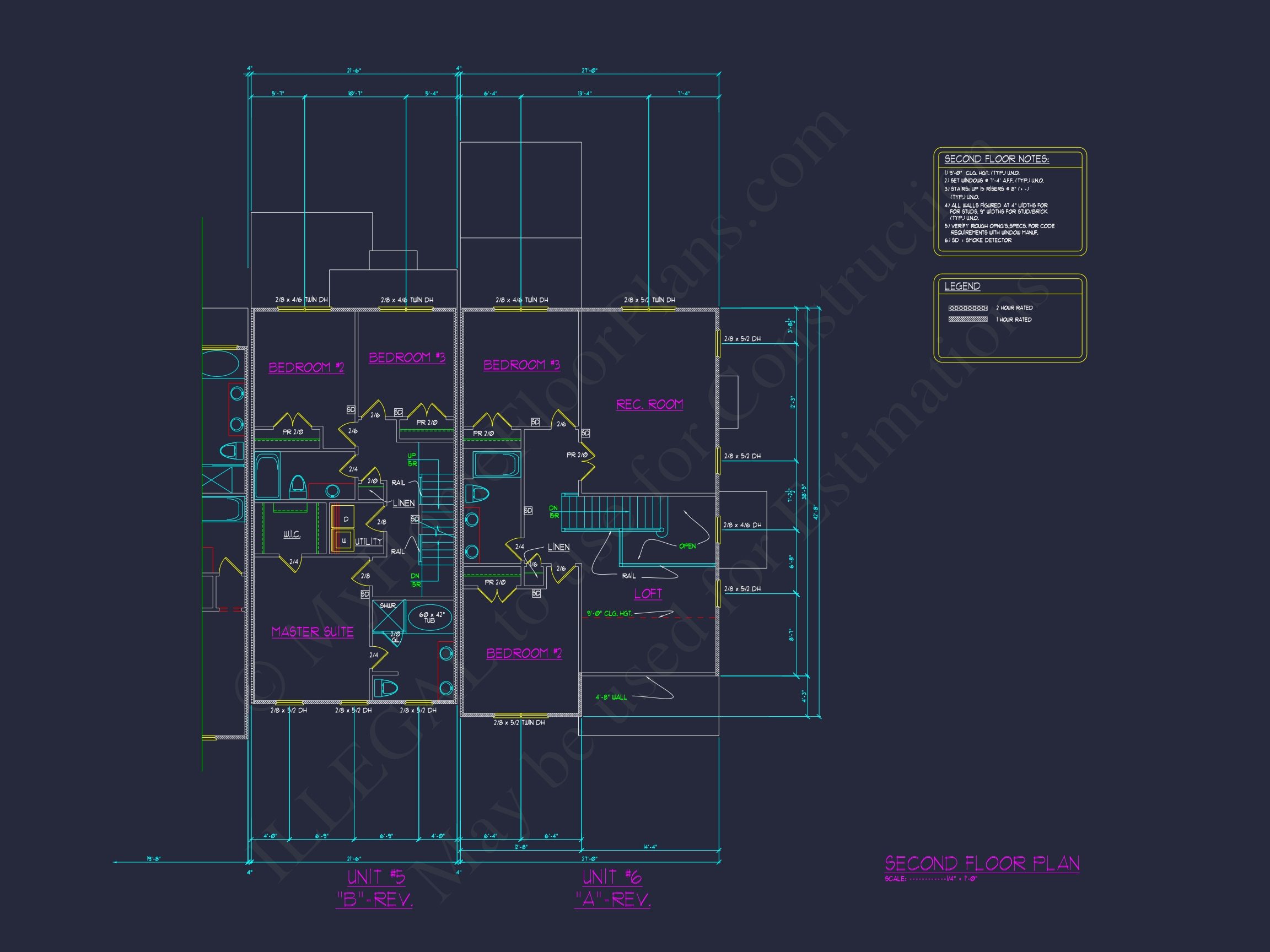

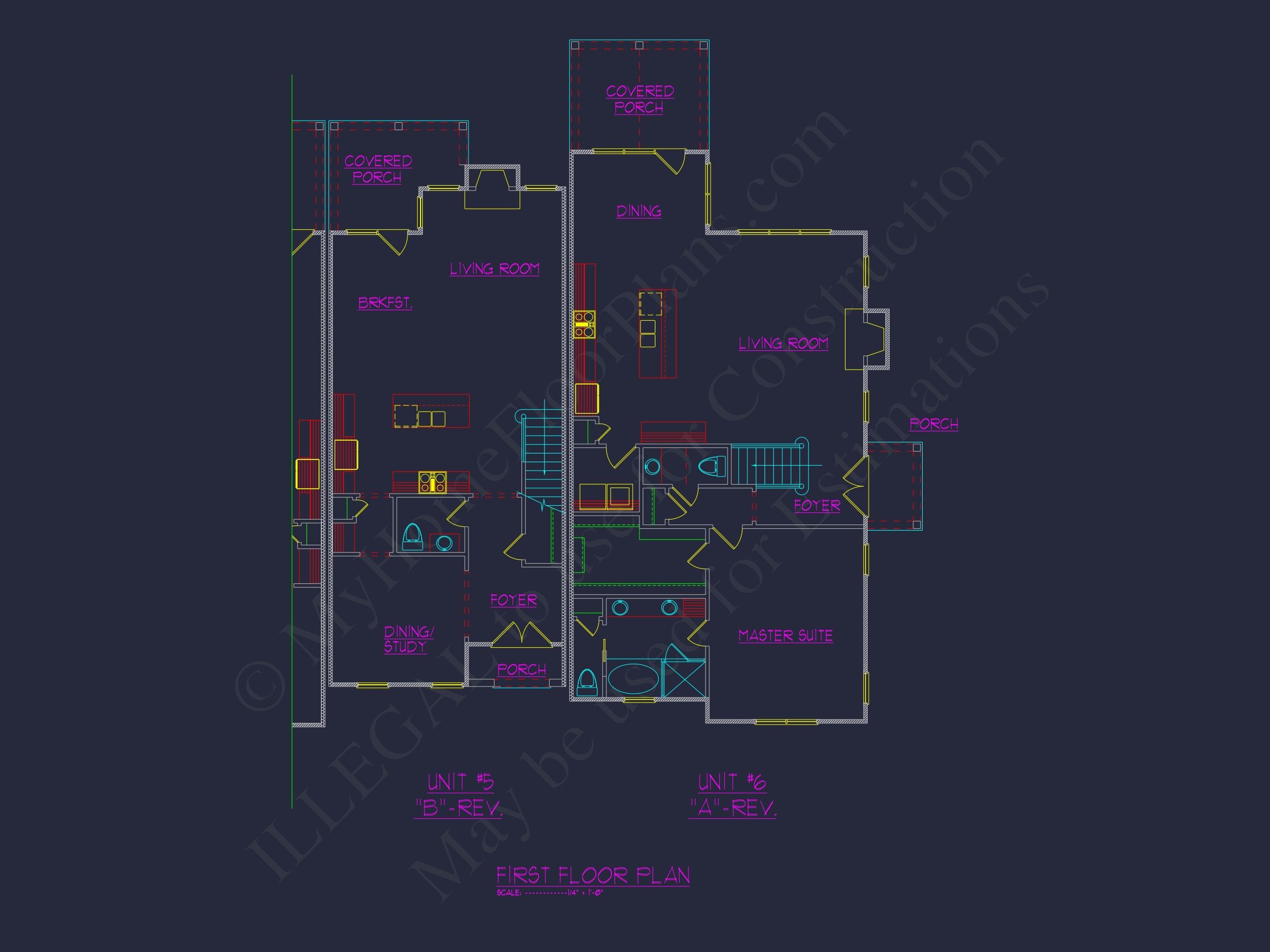

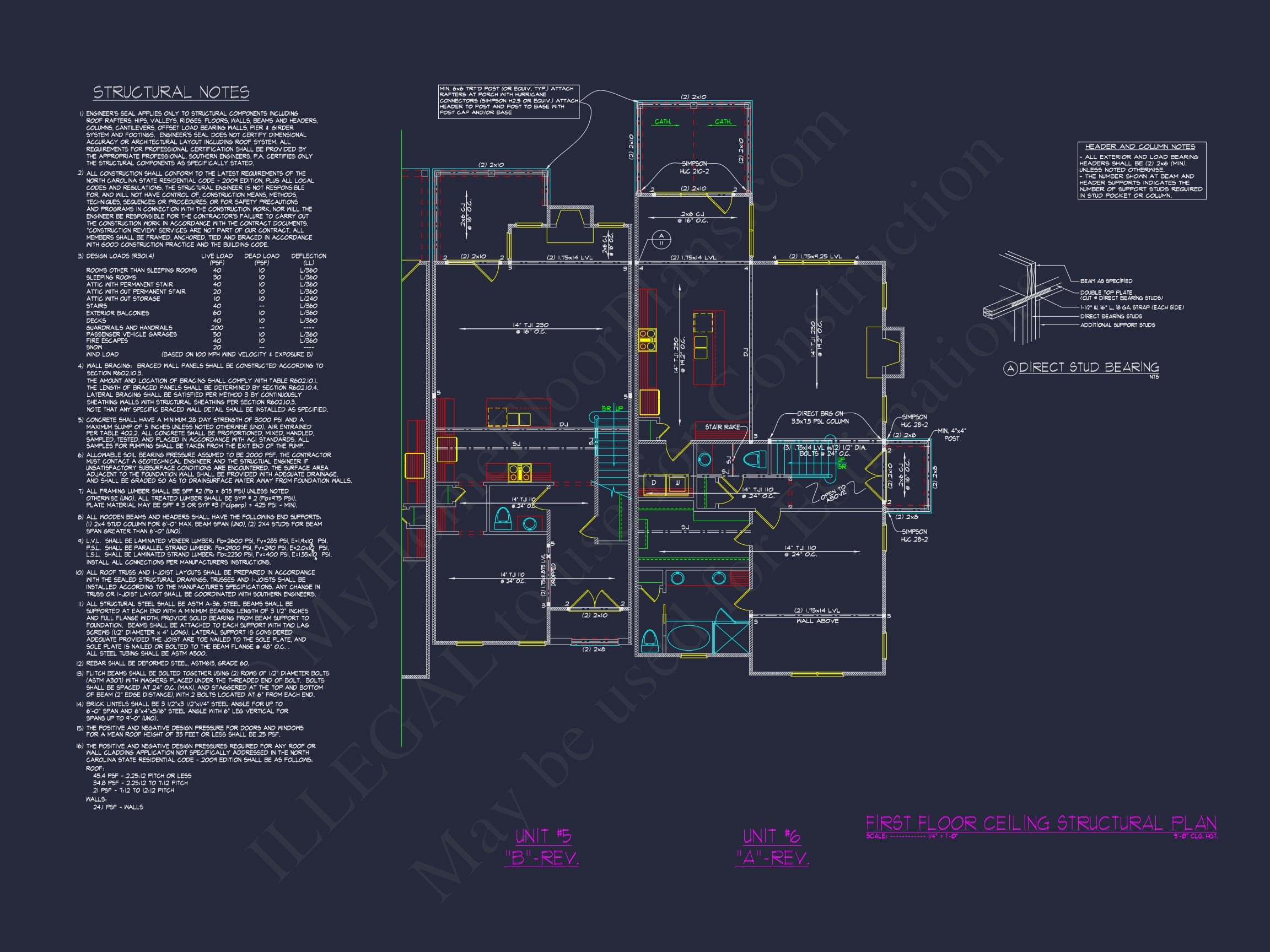

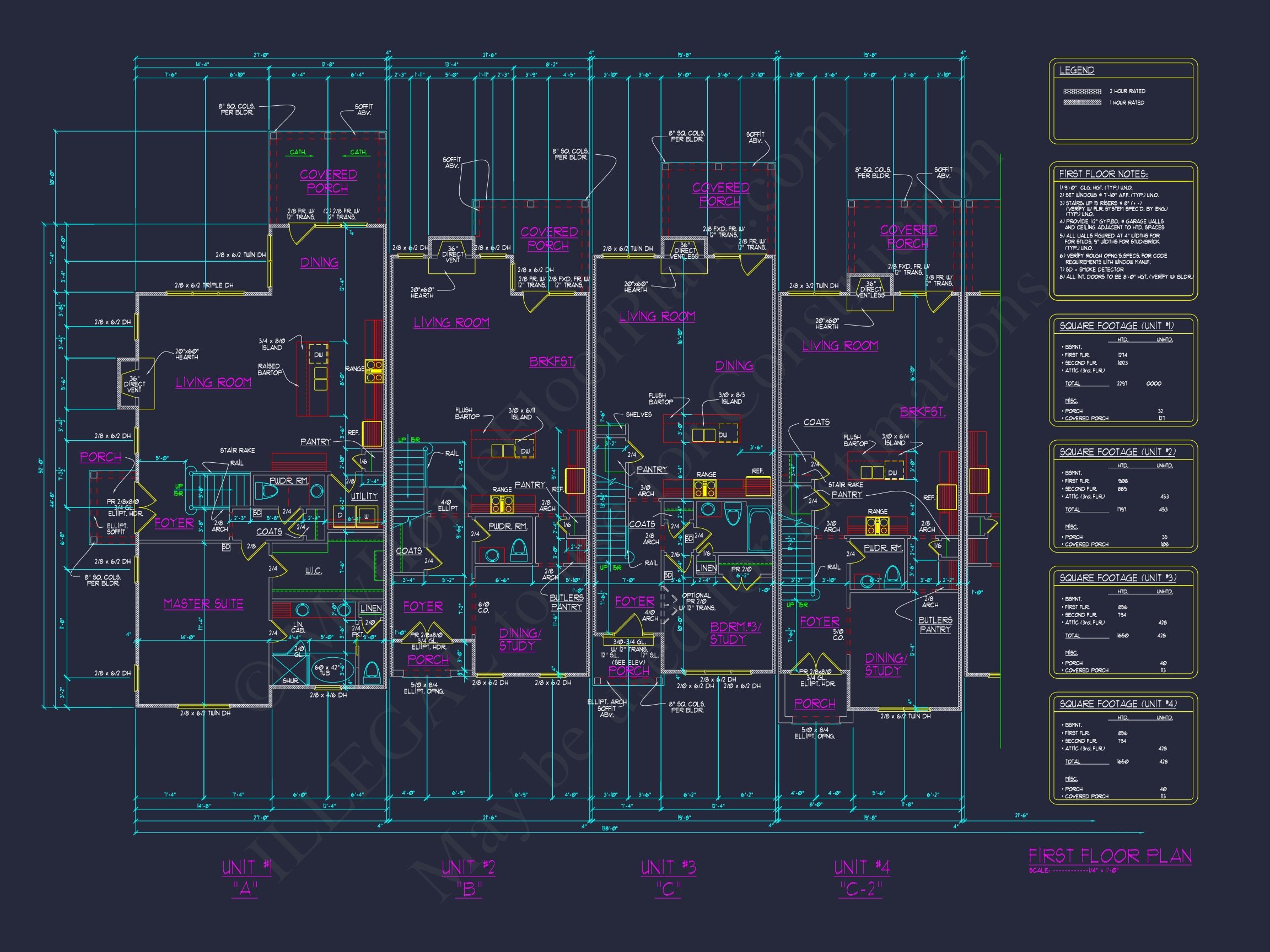

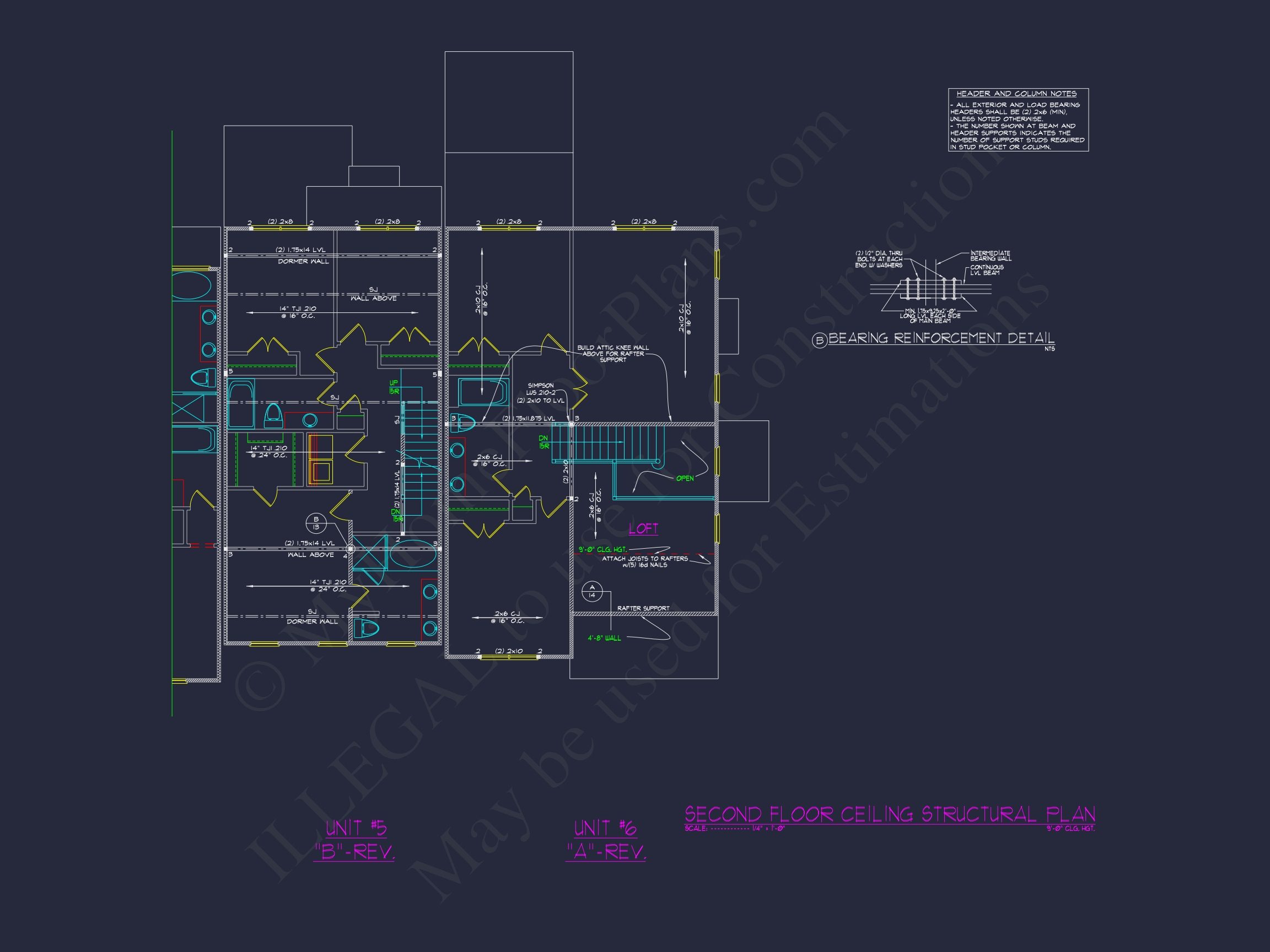

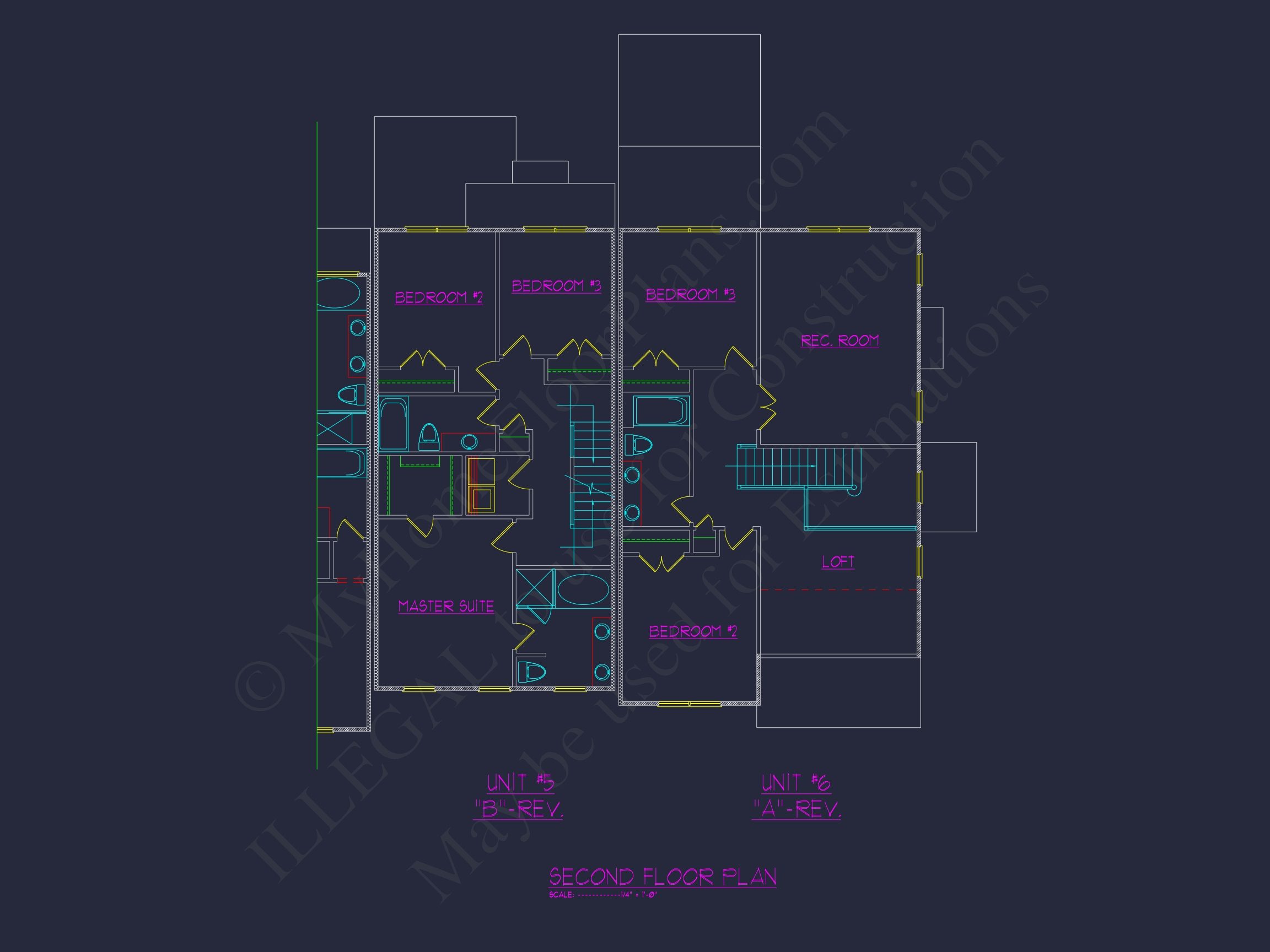

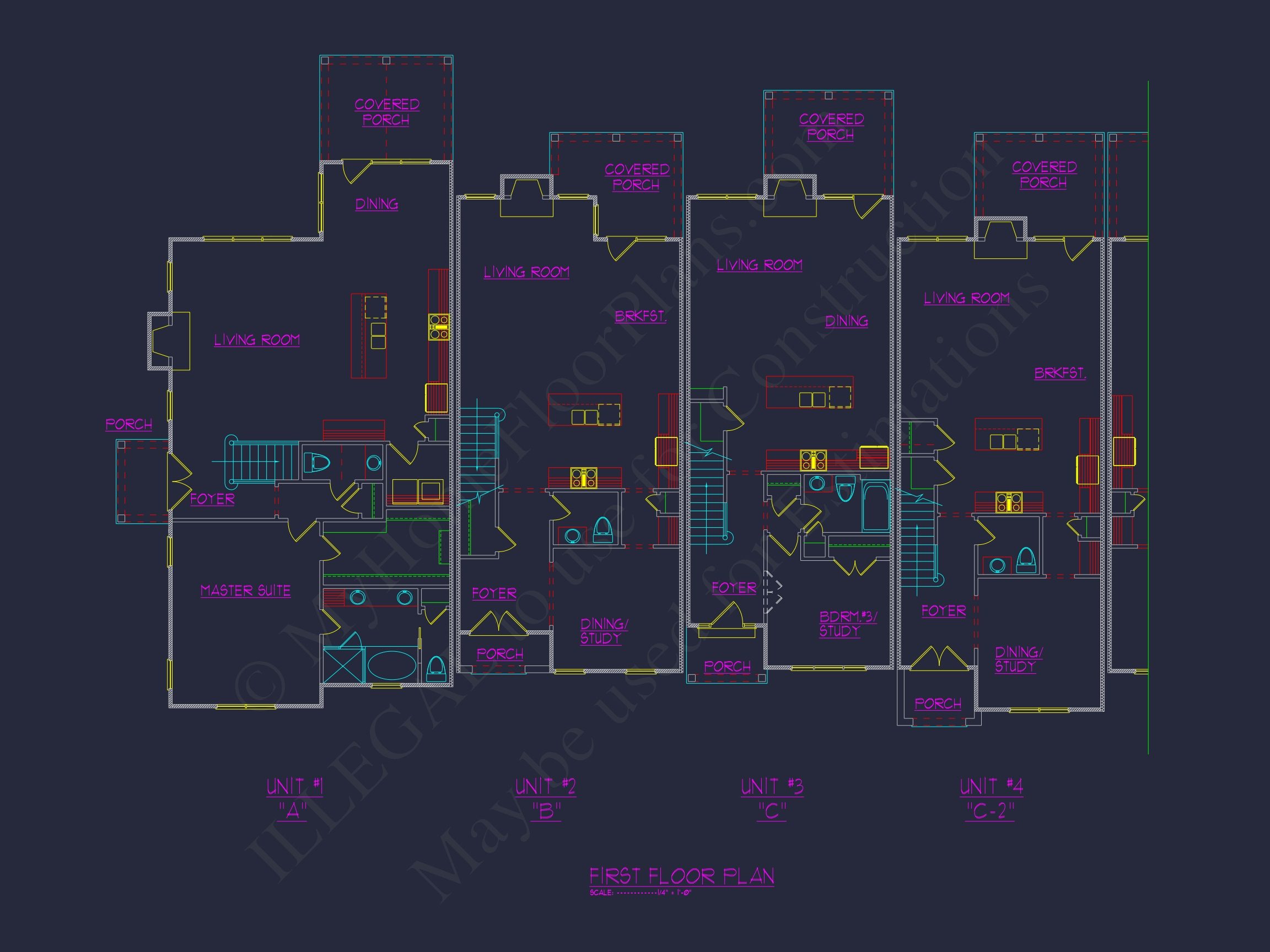

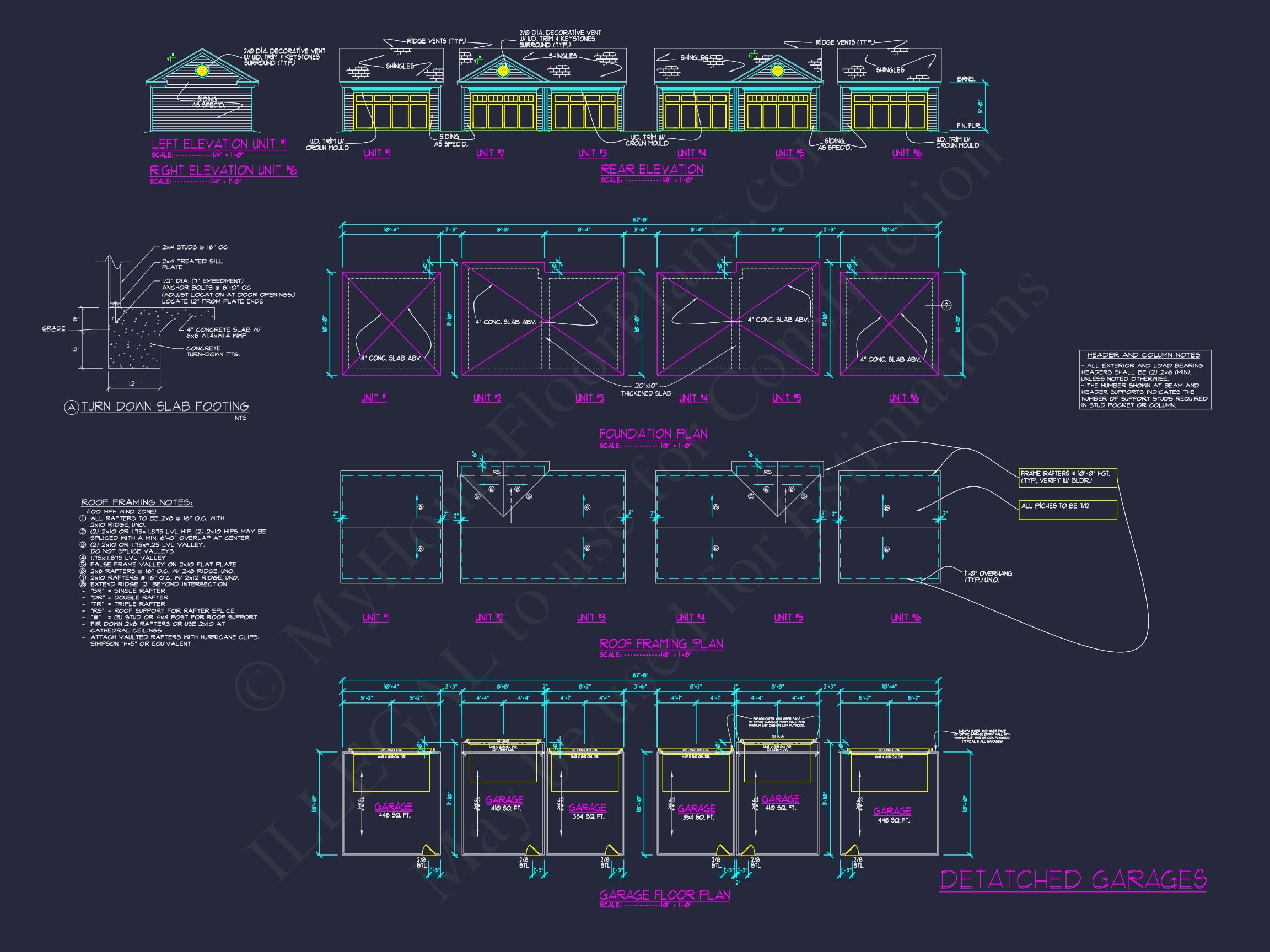

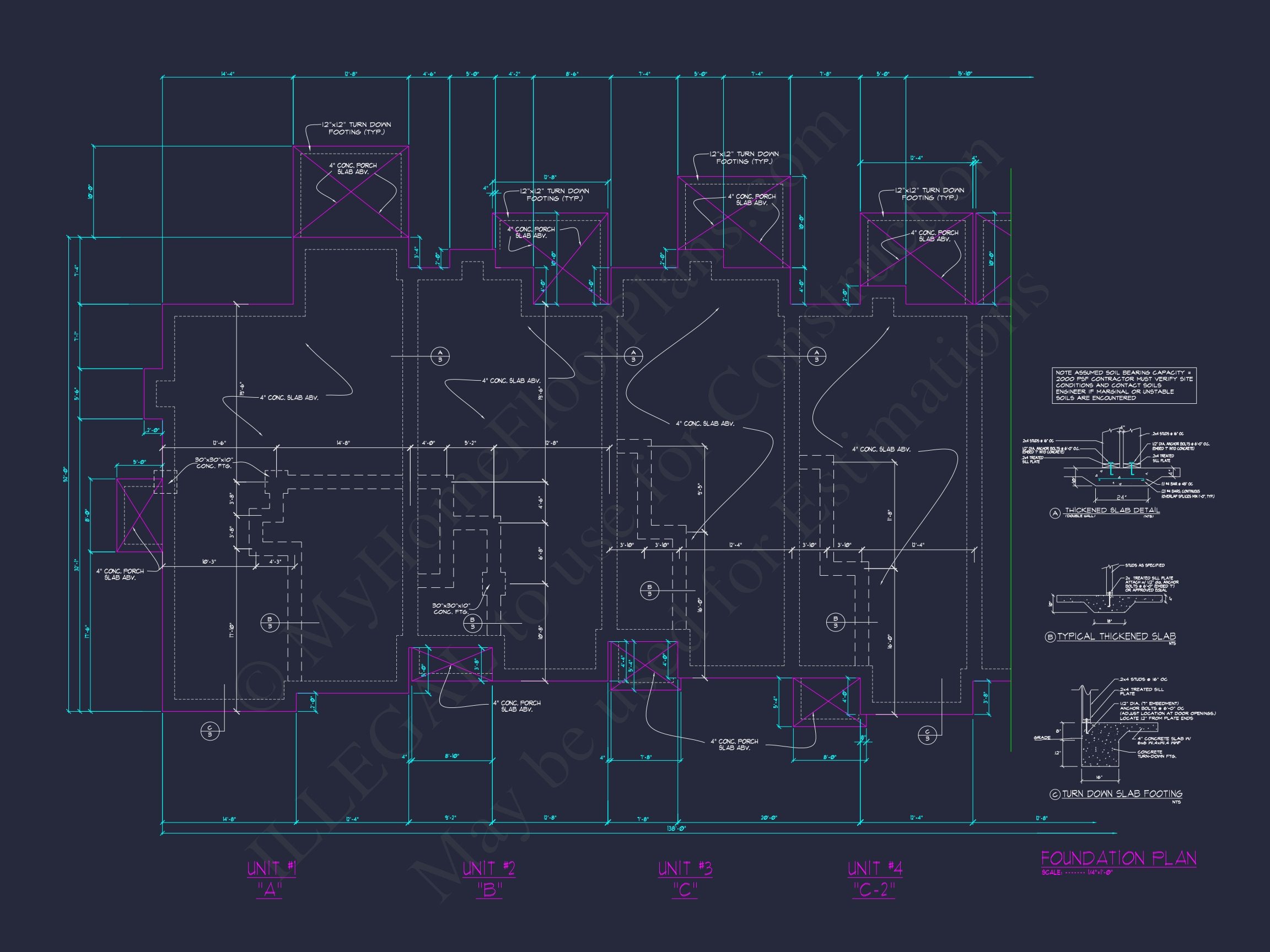

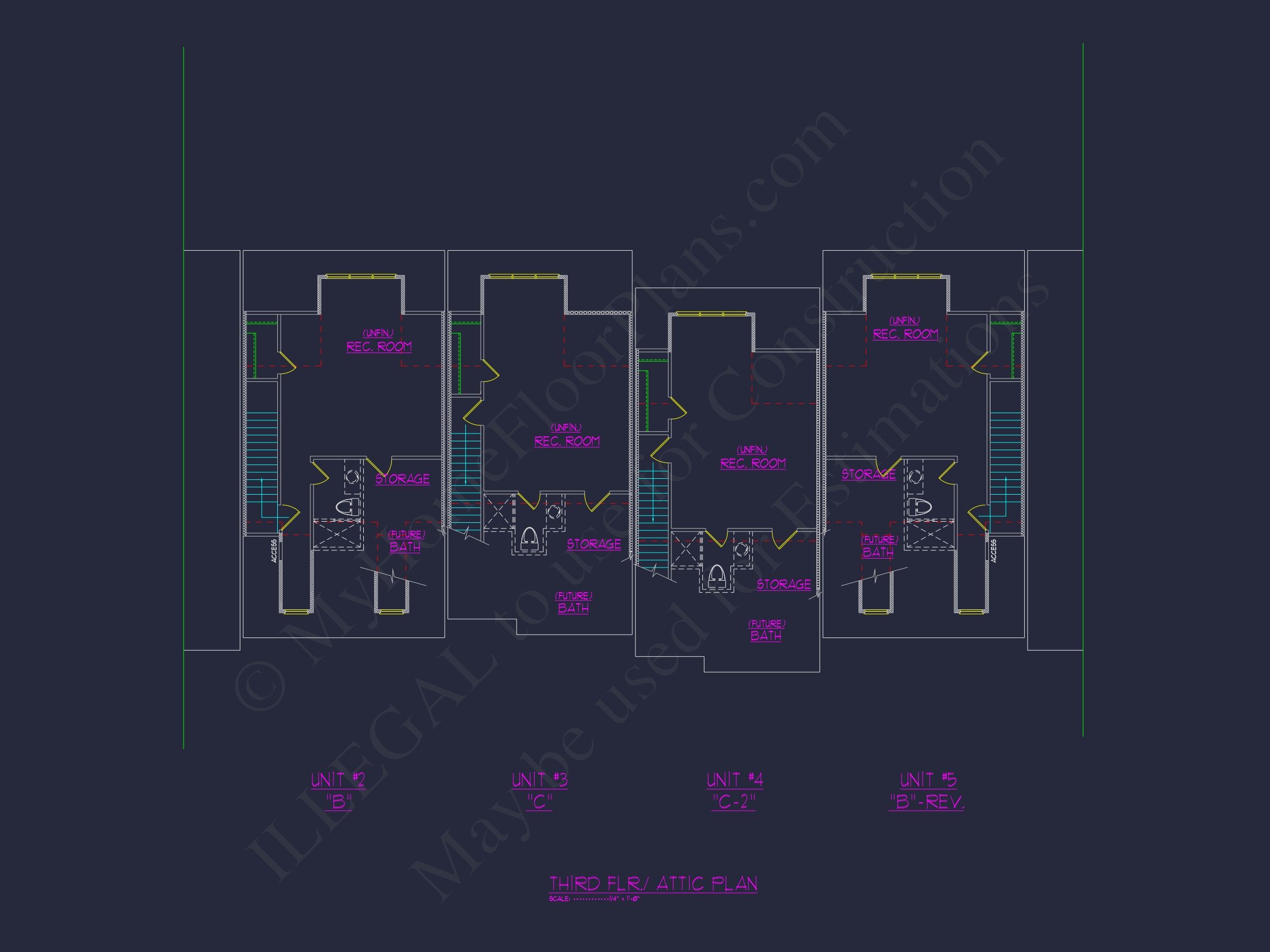

All home plans include BOTH the CAD file and PDF file.

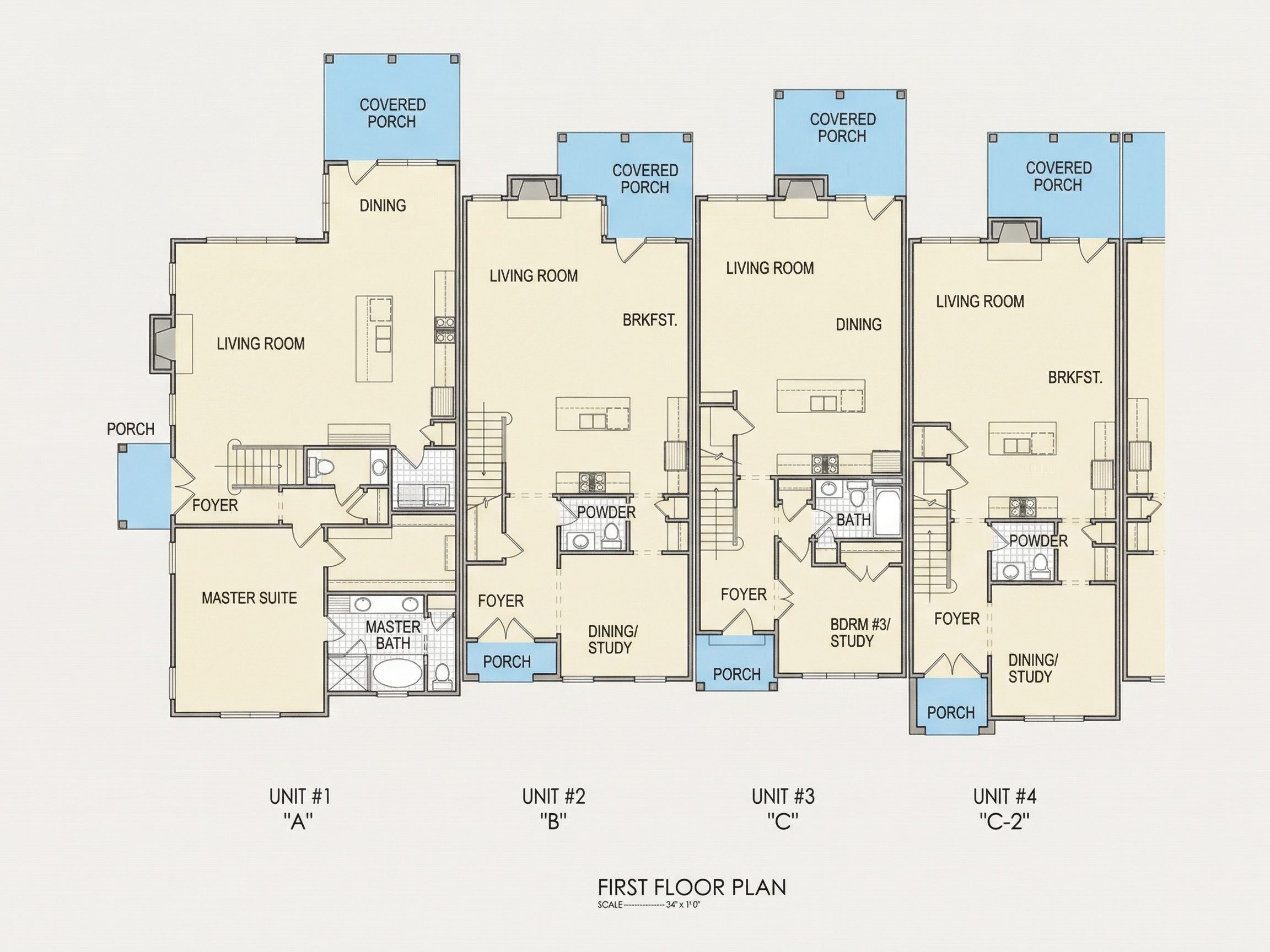

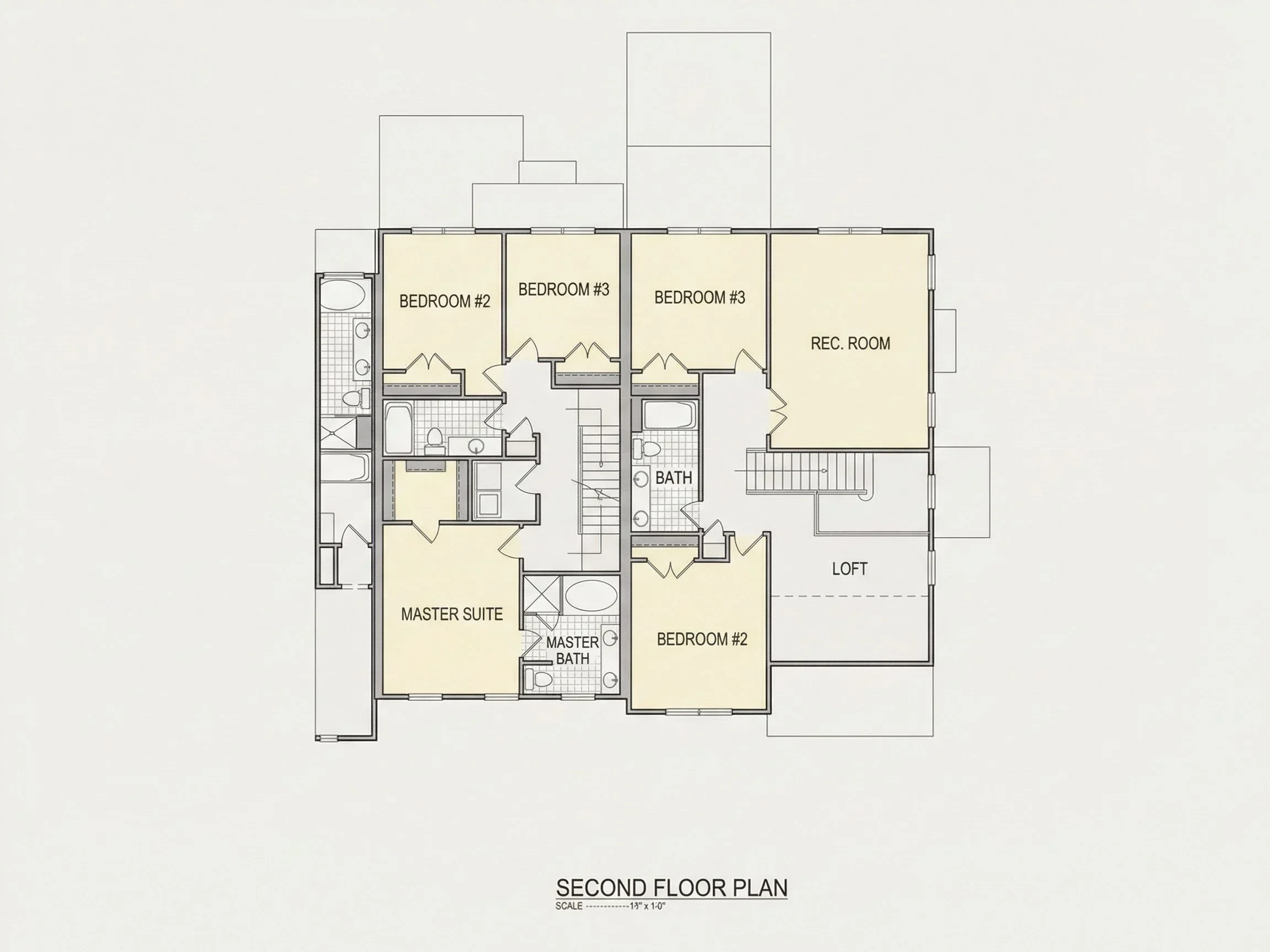

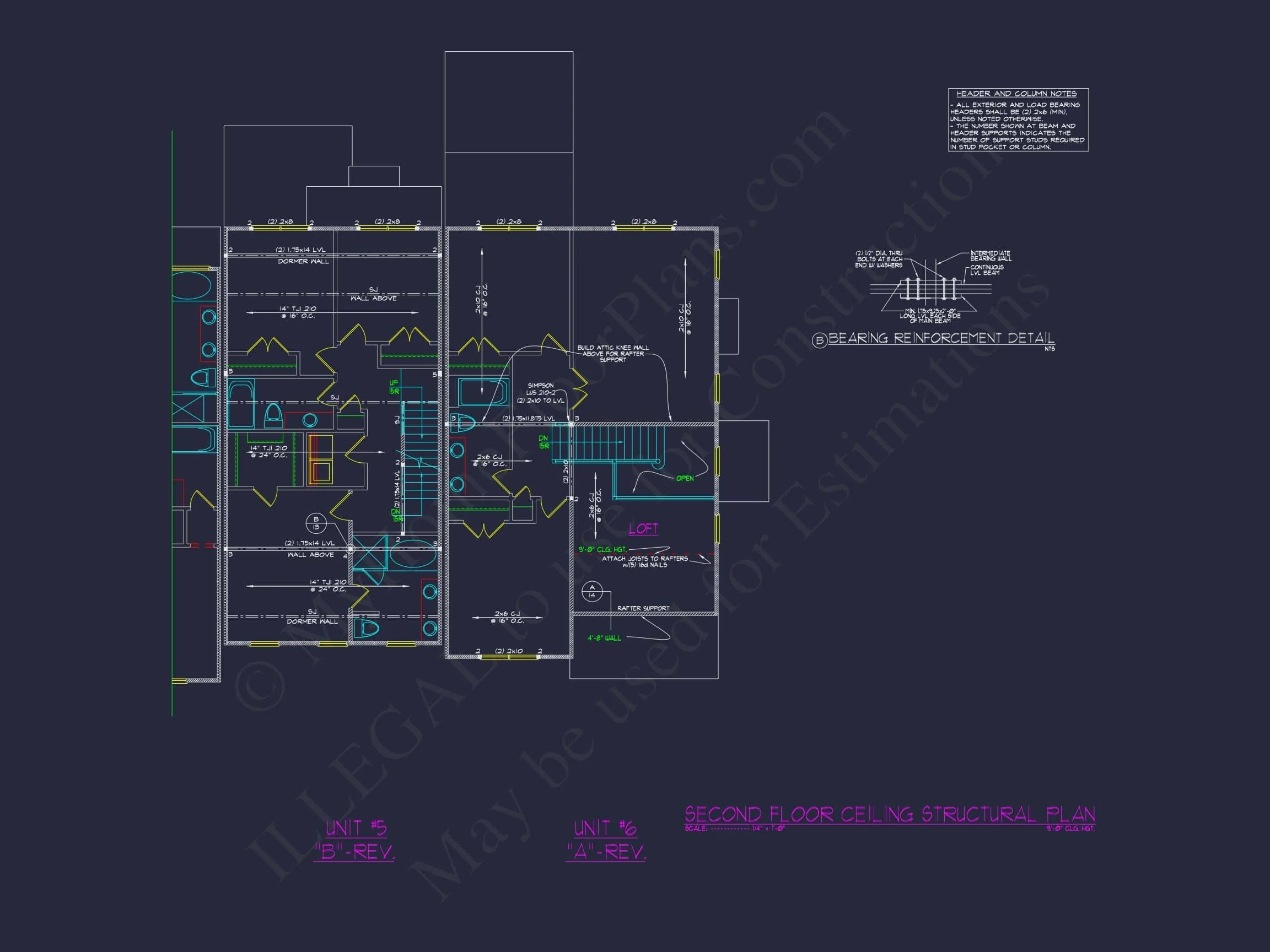

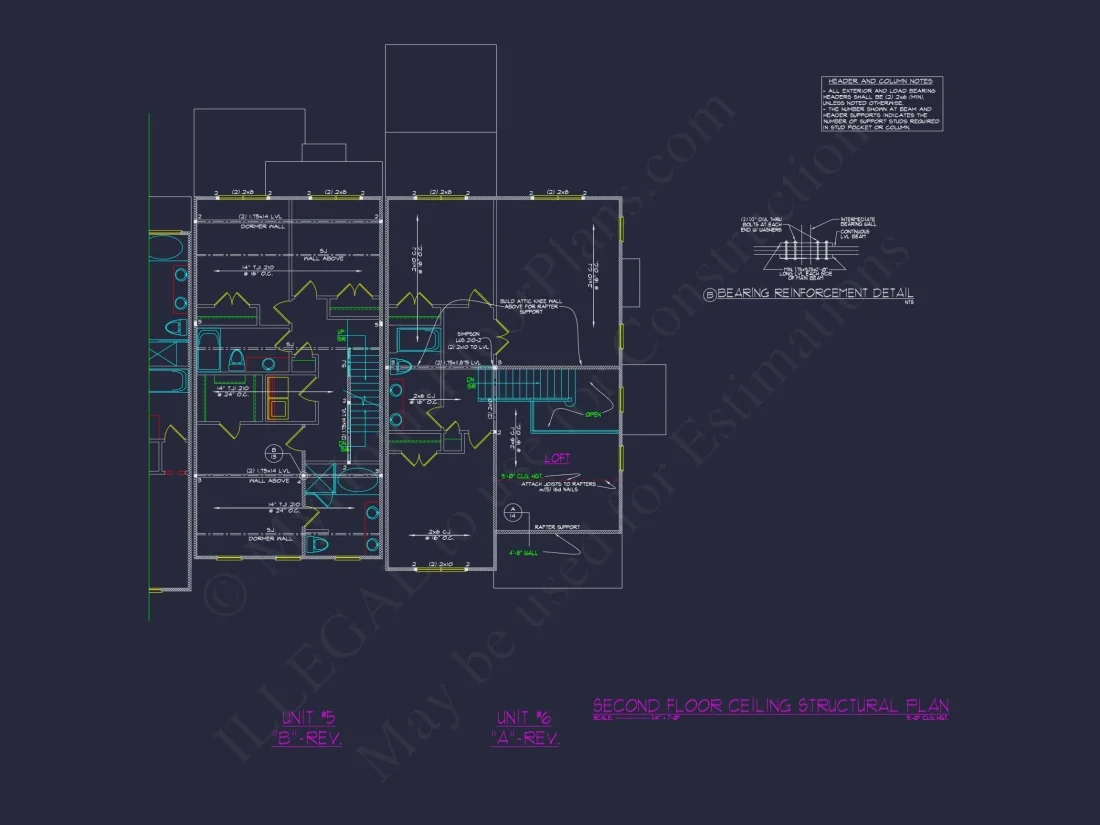

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

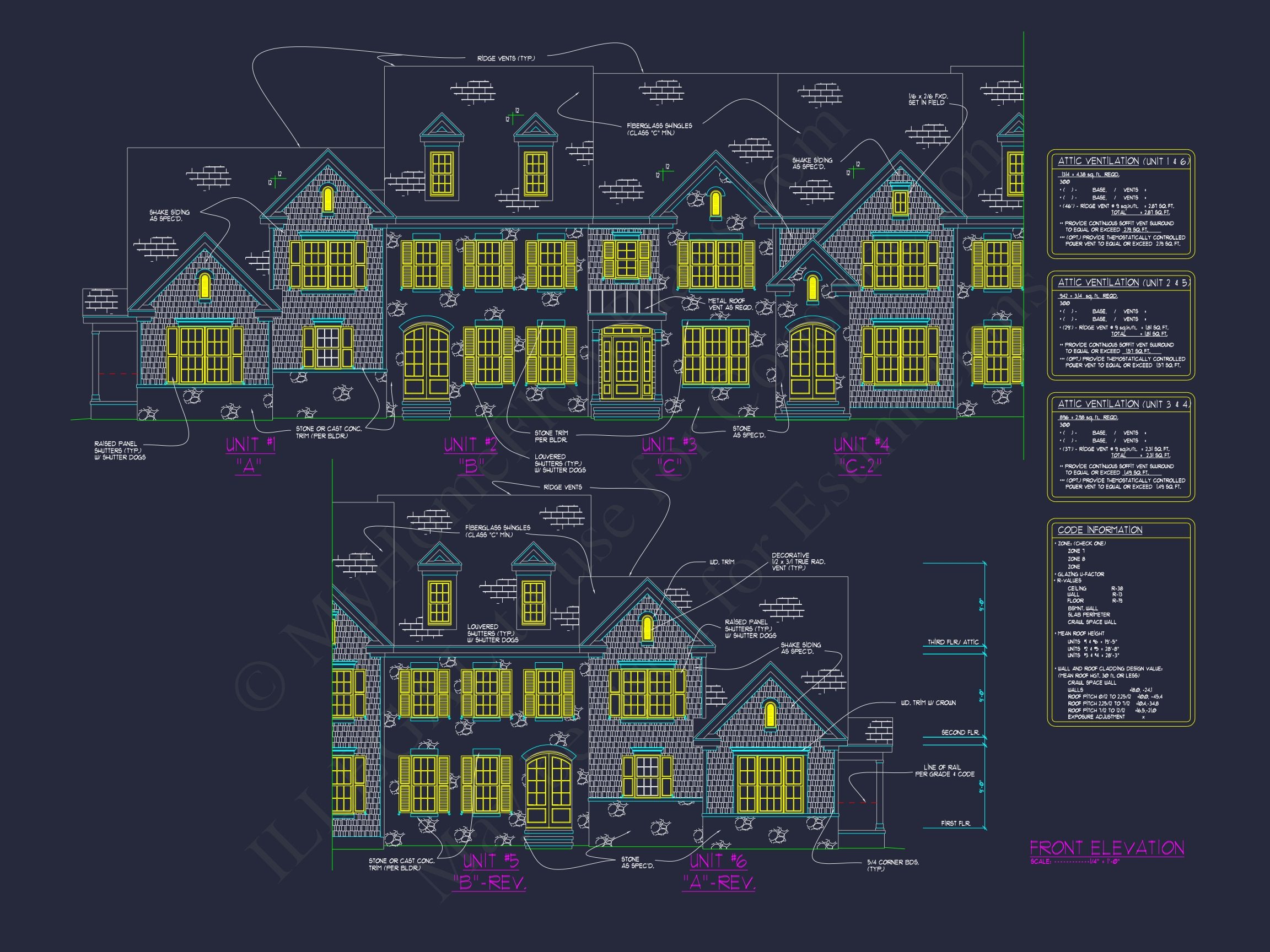

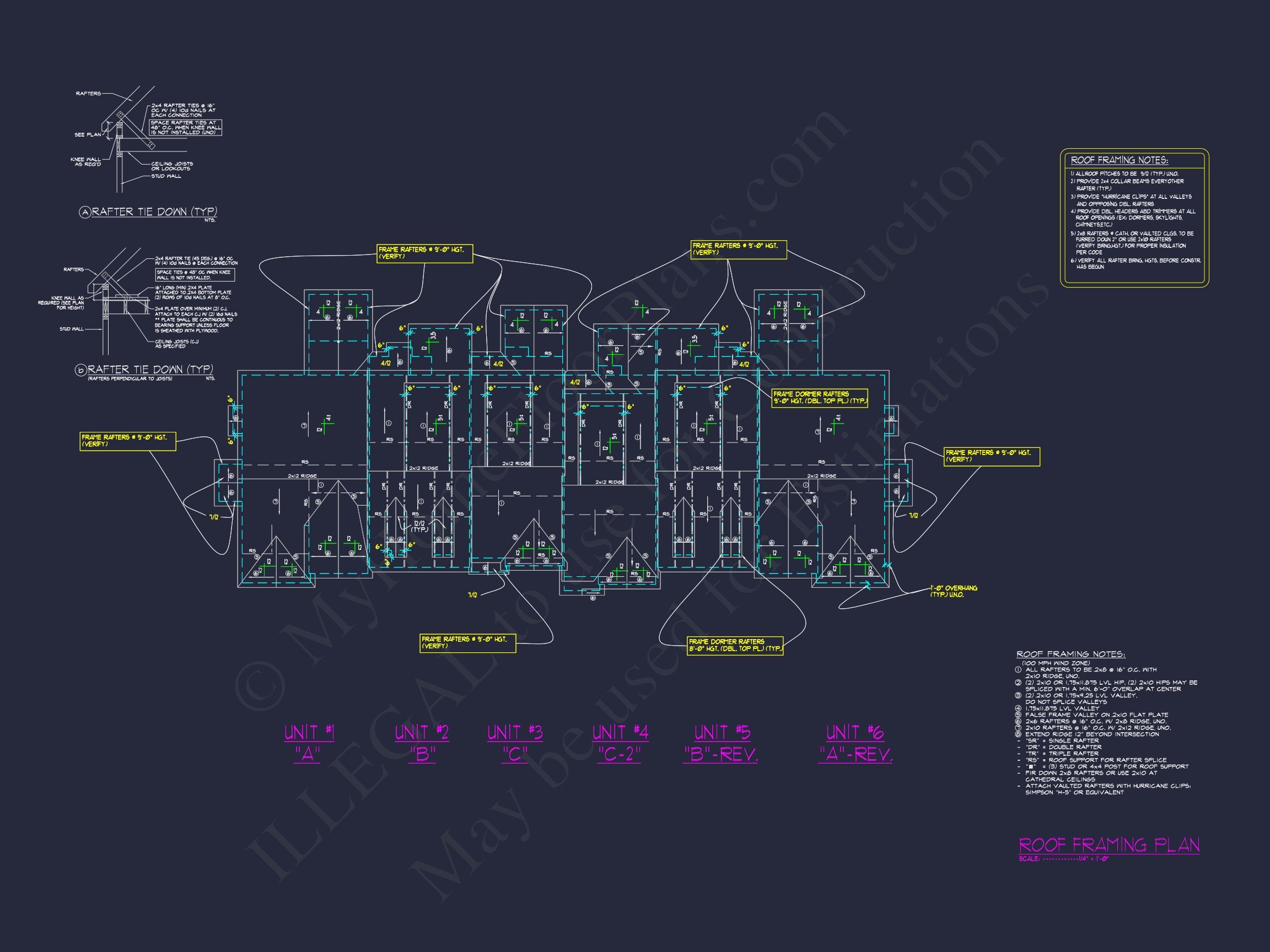

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

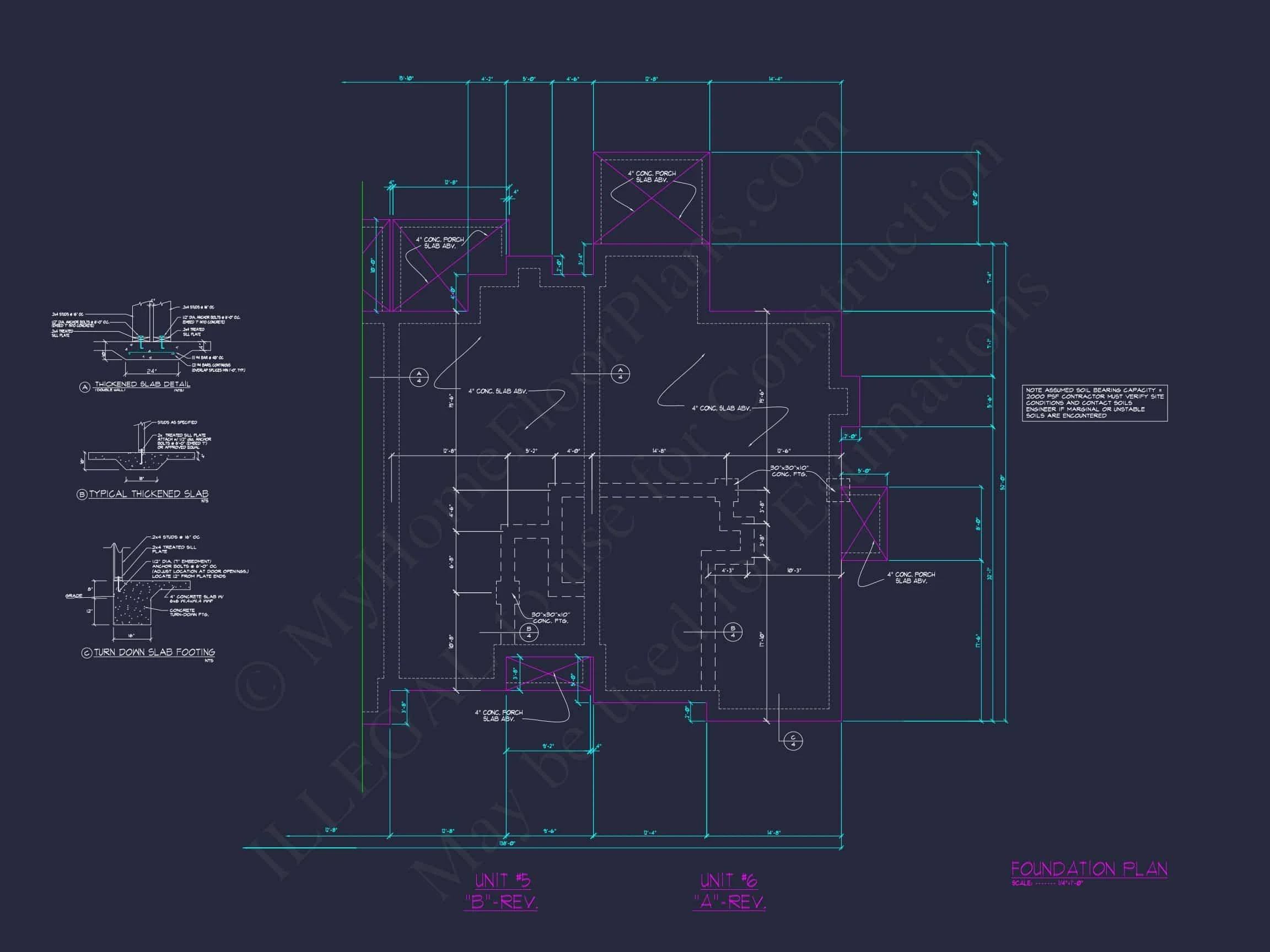

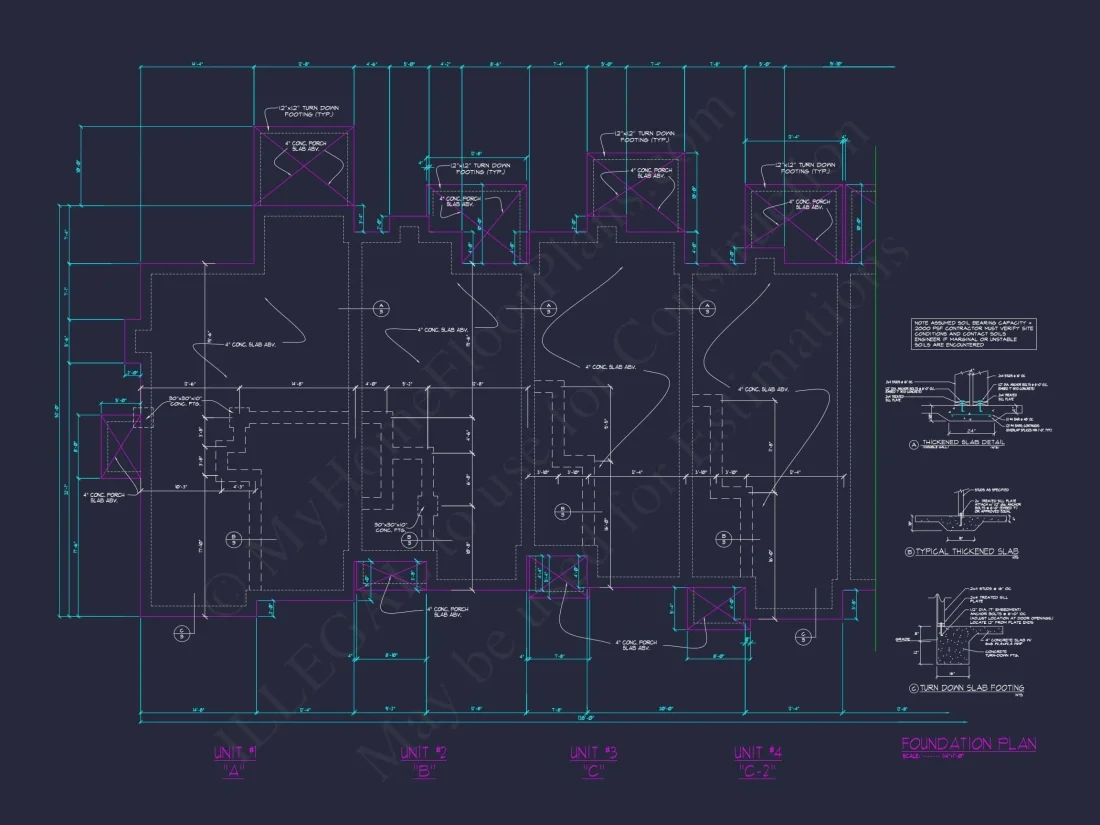

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
10-1728 6-UNIT TOWNHOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
