Craftsman Home Plan: Floor Plan, CAD Designs & Blueprint
Discover a stunning 4-bedroom Craftsman home plan featuring detailed blueprints, CAD architecture, and open floor designs perfect for modern living.
EXPLORE THE PERFECT CRAFTSMAN HOME PLAN FOR MODERN LIVING
Designing your dream home just got easier with this Craftsman-style home plan, combining timeless architecture with modern features. This 2-story single-family home offers 2, 898 heated square feet and an array of thoughtful designs perfect for families and builders alike.
KEY FEATURES OF THIS HOME PLAN
SPACIOUS LAYOUT
The home boasts 4 bedrooms and 3 bathrooms, providing plenty of space for families or guests. The Owner bedroom on the first floor offers privacy and convenience, complete with a walk-in closet and an en-suite bath. The Jack and Jill bathroom upstairs is perfect for shared living spaces, making it ideal for growing families.
ELEGANT INDOOR FEATURES
This home includes features designed for comfort and utility:
* Family Room: Central to the home, perfect for gatherings.
* Open Floor Plan: Seamless flow between rooms, creating a spacious feel.
* Bonus Room: Ideal for an office or playroom.
* Laundry Room: Convenient and spacious for everyday needs.
* Recreational Room: A great space for entertainment or hobbies.
* Mudroom: A practical area for daily essentials.
* Foyer: A welcoming entrance that adds charm.
FUNCTIONAL OUTDOOR AREAS
Enjoy your outdoor spaces with these versatile features:
* Covered Front Porch: A cozy spot to enjoy mornings.
* Screened Porch: Perfect for outdoor lounging without pests.
* Grill Deck: Ideal for hosting weekend barbecues.
TIMELESS EXTERIOR AND STRUCTURE
Crafted with brick, siding, and stone, the exterior exudes a traditional Southern charm while remaining durable and low-maintenance. The front-entry garage accommodates two vehicles and includes a workshop area for added utility.
FOUNDATION AND UNIQUE FEATURES
This plan includes crawlspace and slab foundation options, catering to various lot types. Unique features like an affordable design and designer-recommended layouts make it a top choice for new builds.
BENEFITS INCLUDED WITH EVERY PLAN
All home plans include CAD files and detailed blueprints for ease of construction. With your purchase, enjoy:
* Unlimited-build license.
* Free foundation changes.
* Structural engineering support.
Take the first step toward building your dream home. Contact us today at support@https://myhomefloorplans.com for expert assistance in crafting your perfect design!
What's Included
What's NOT Included
Modifications
Plan Pricing
All home plans include BOTH the CAD file and PDF file.

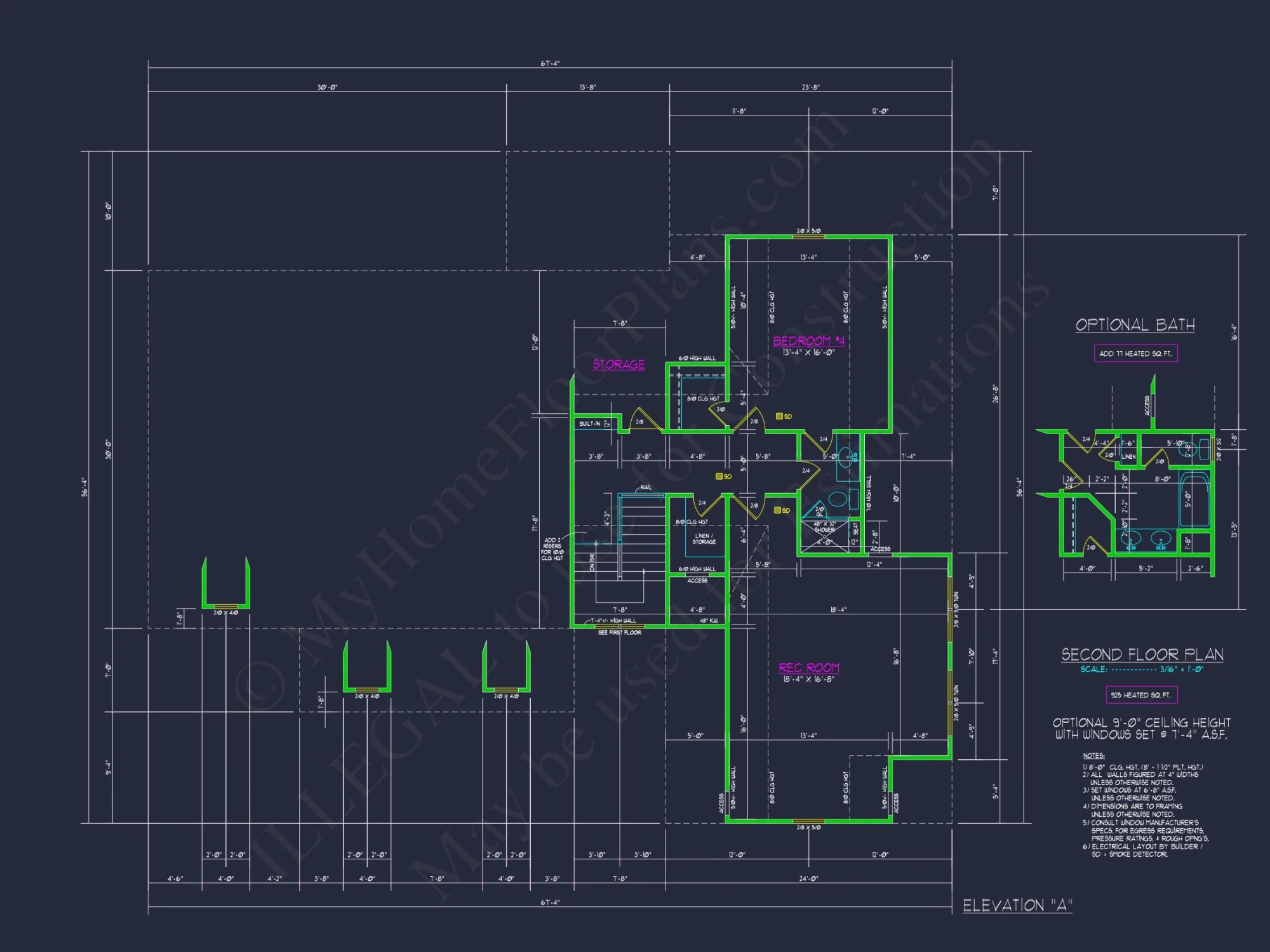

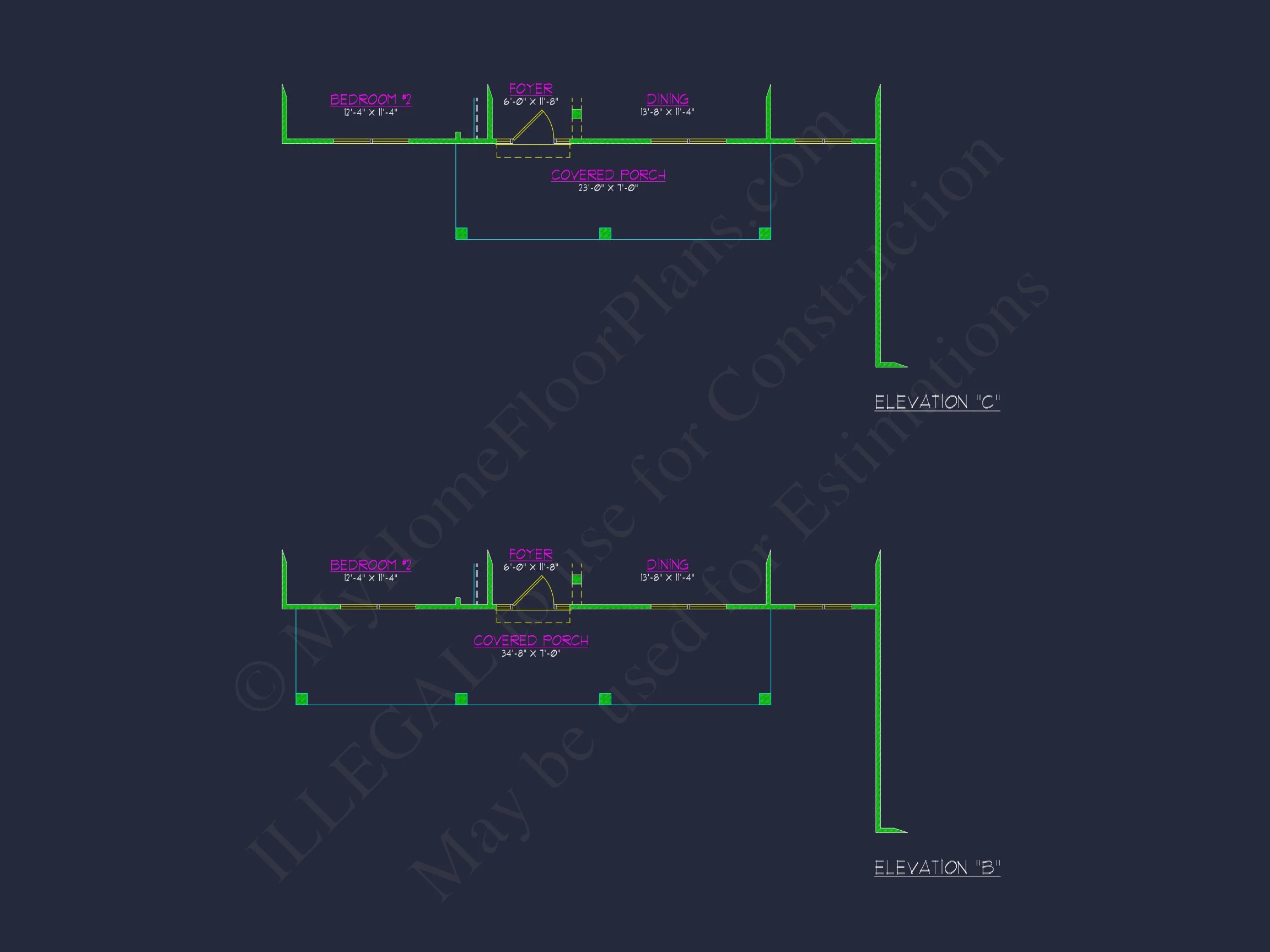

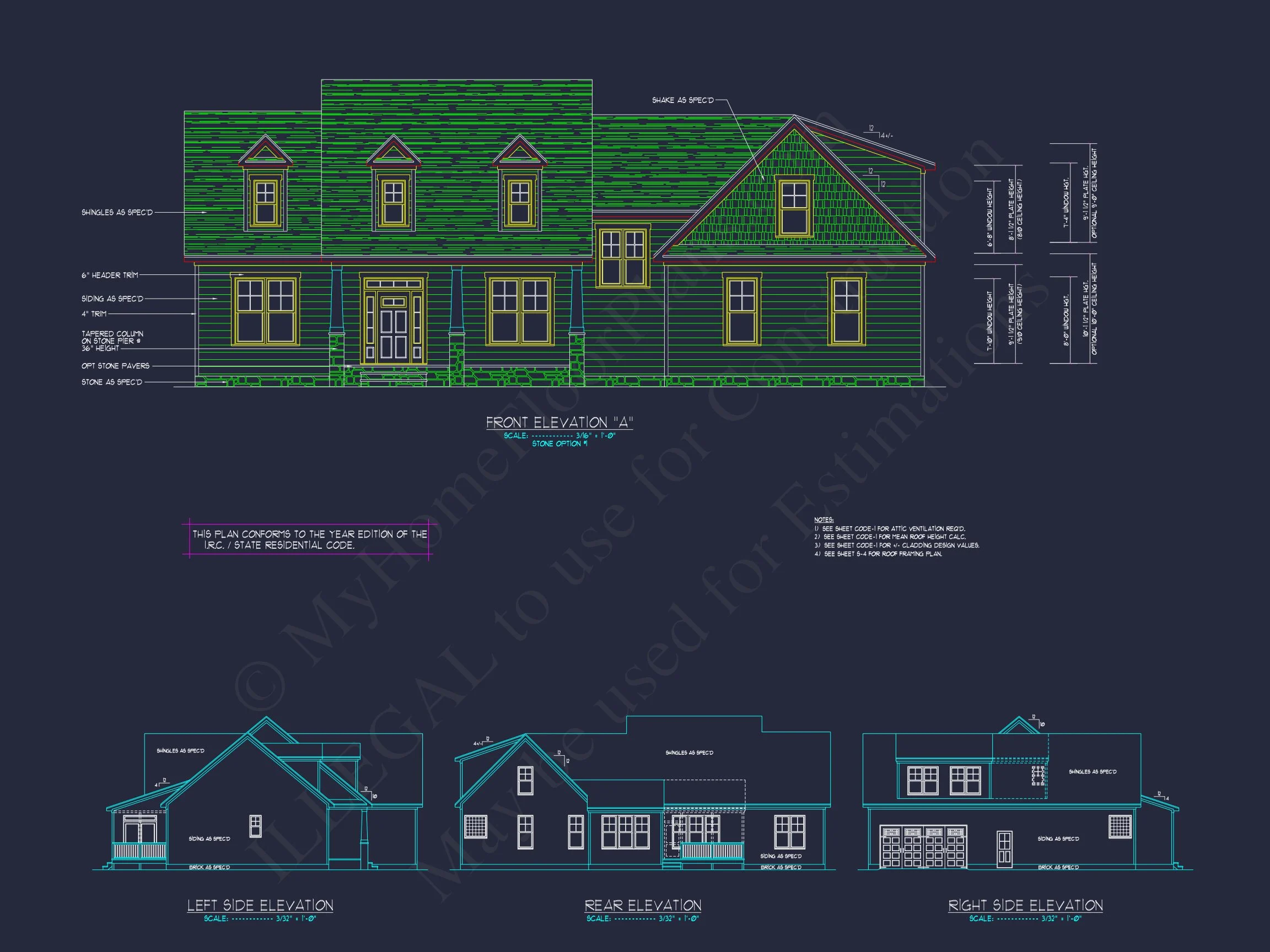

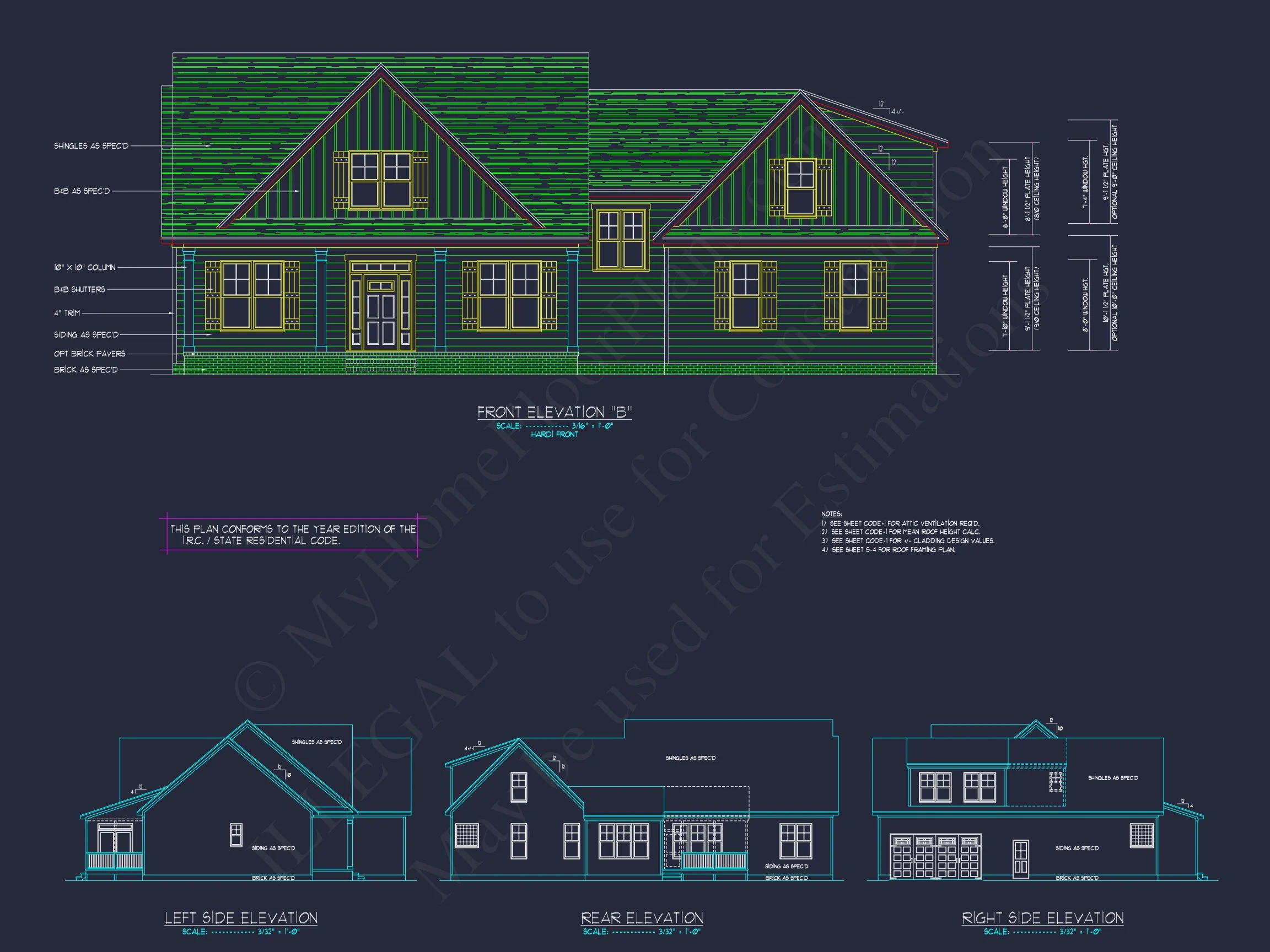

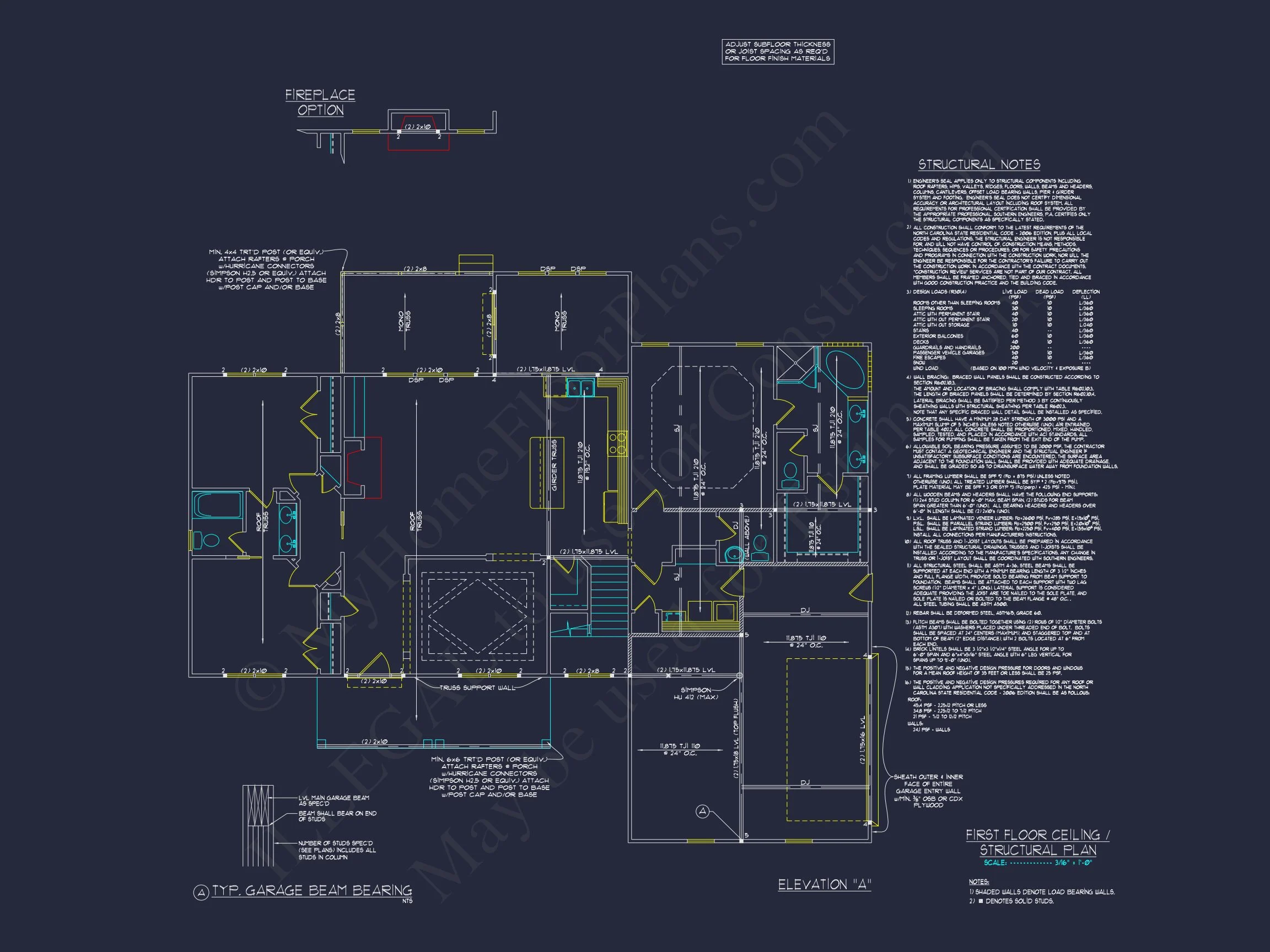

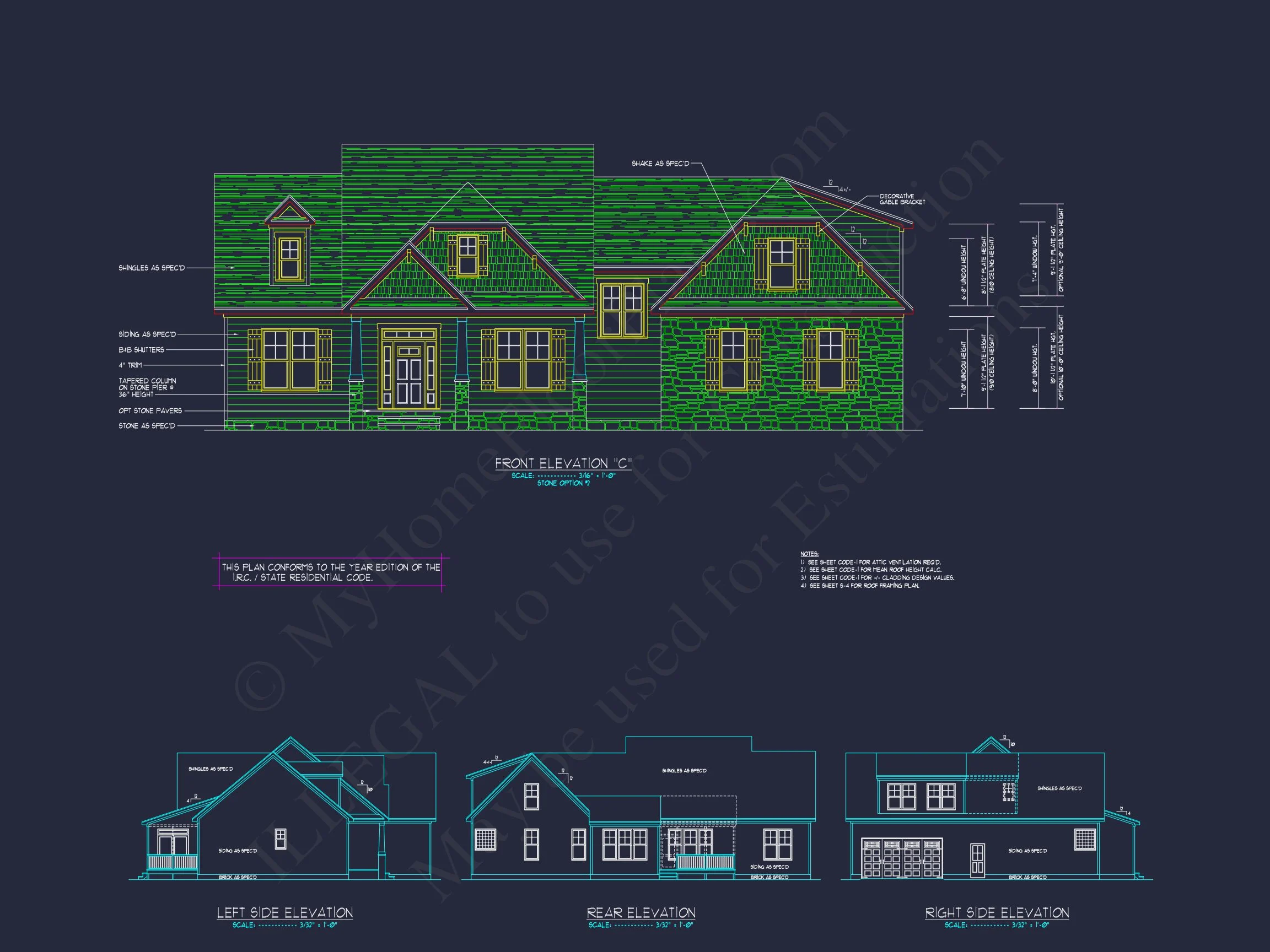

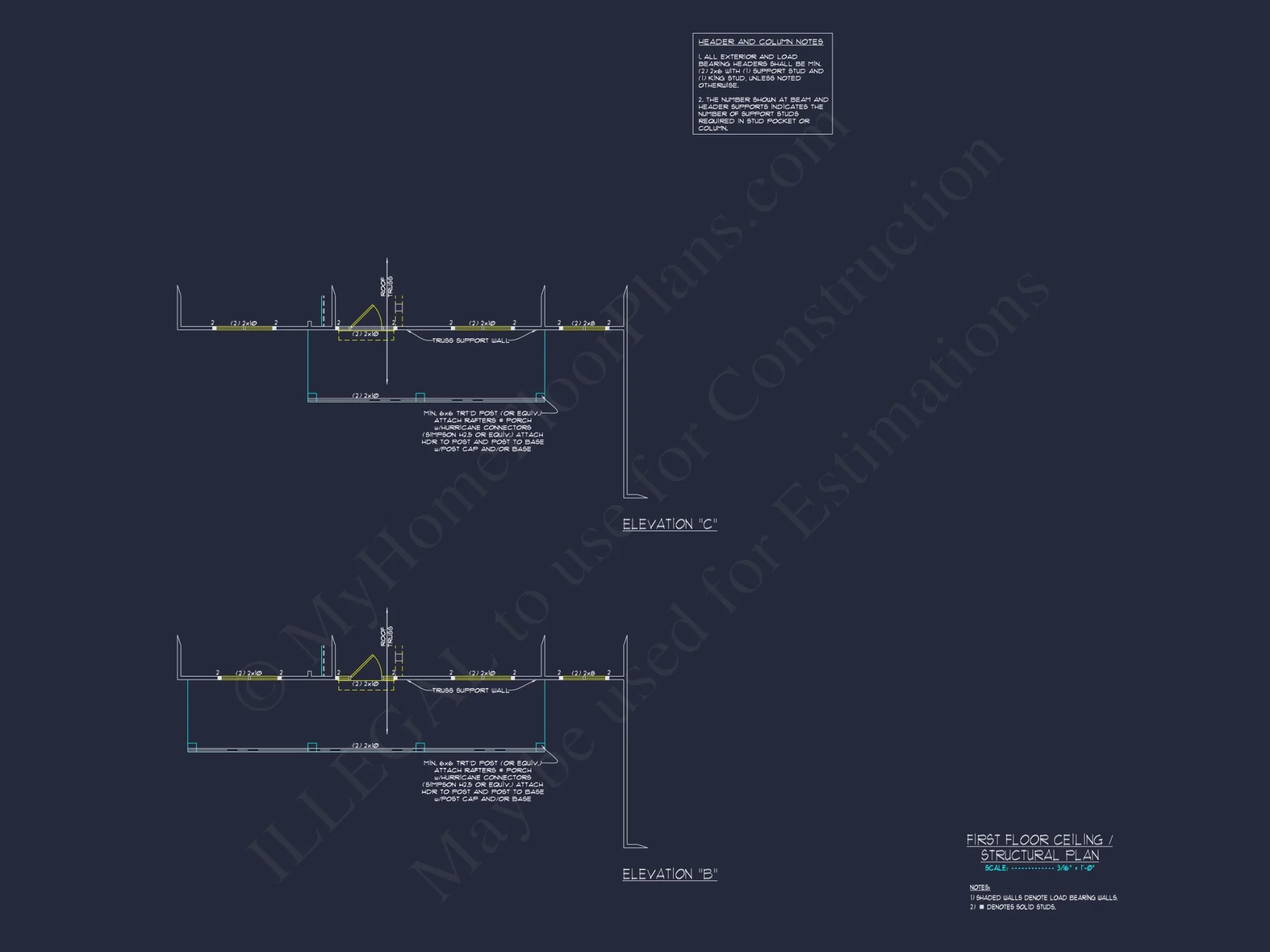

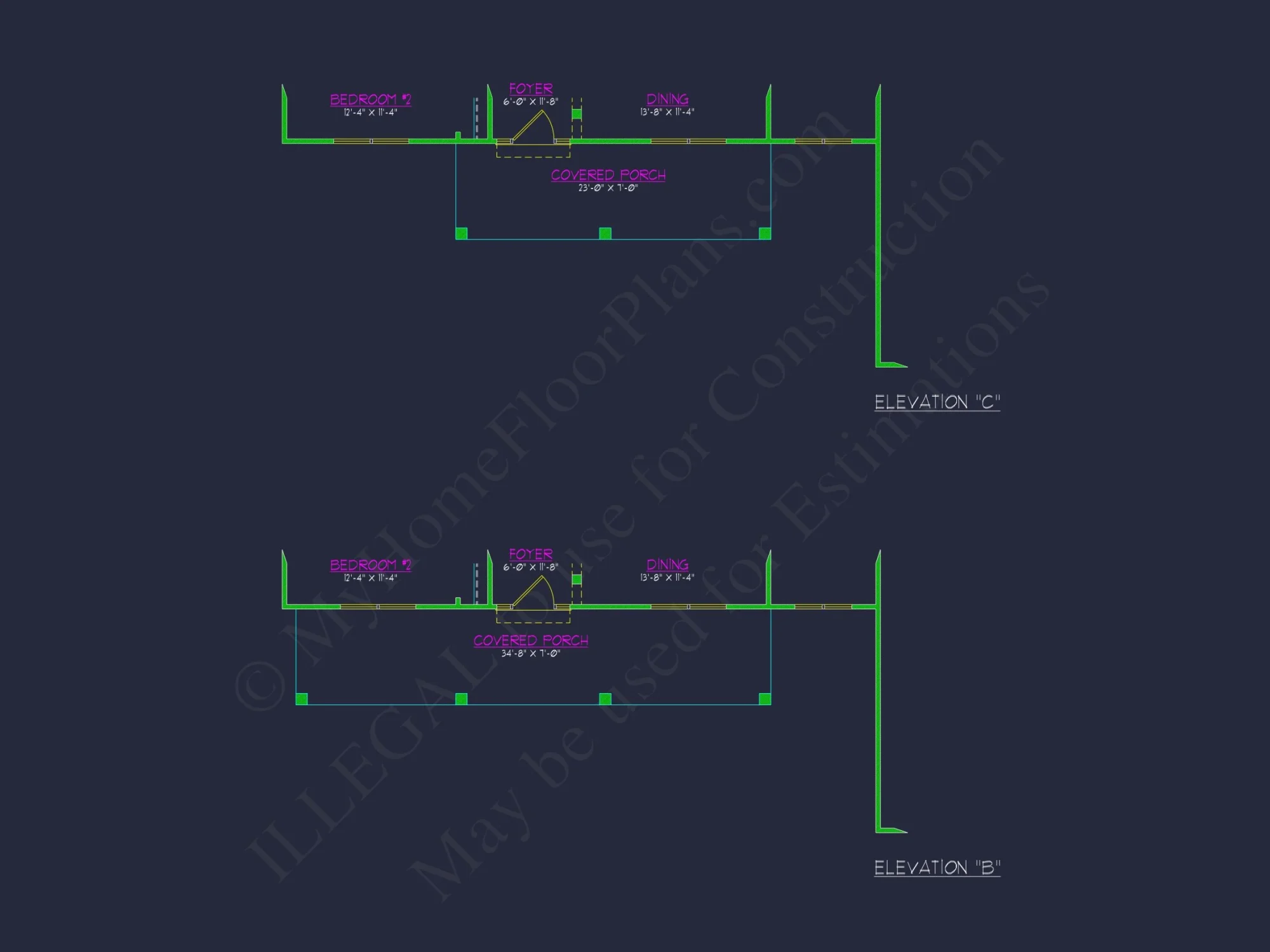

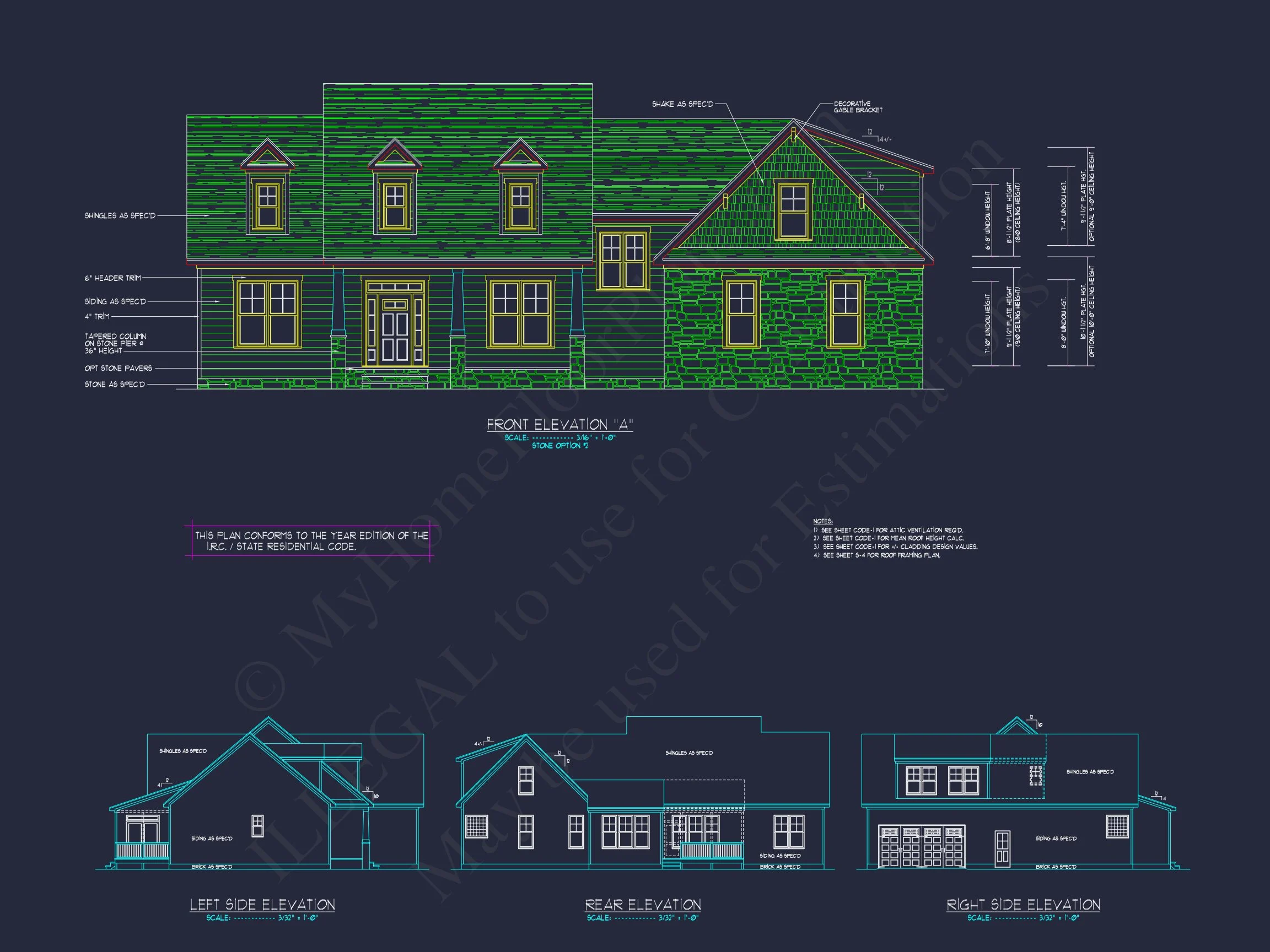

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

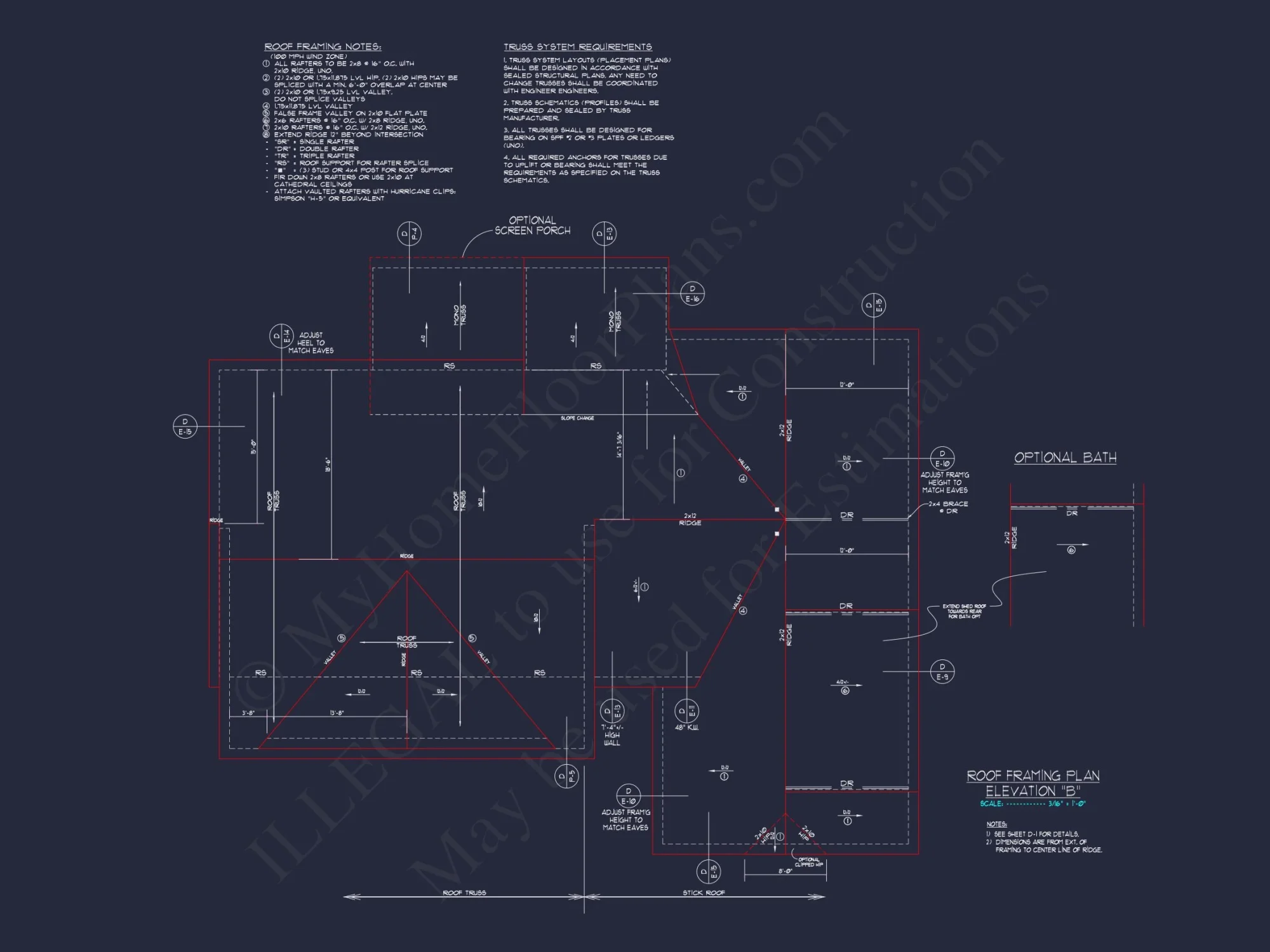

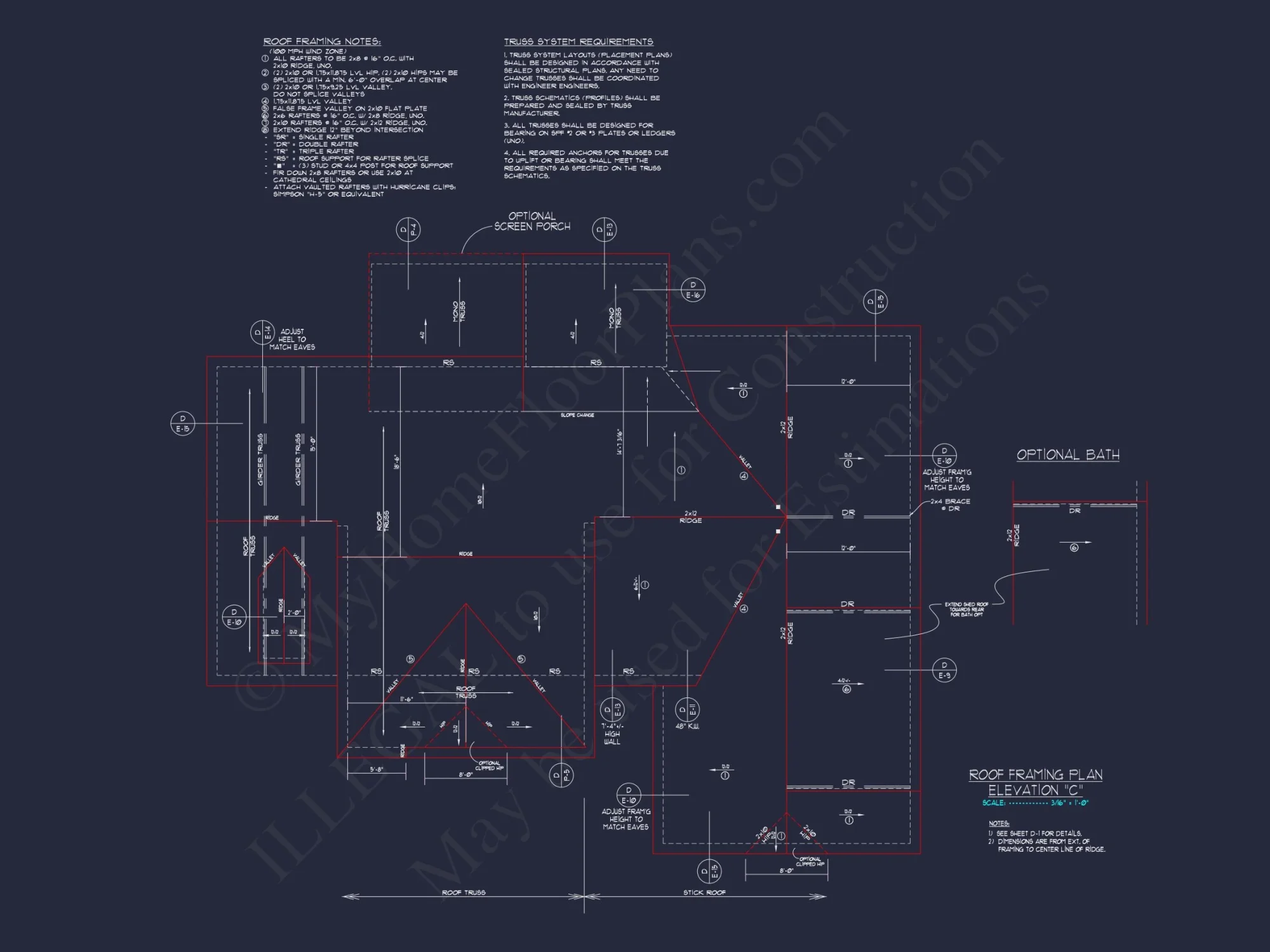

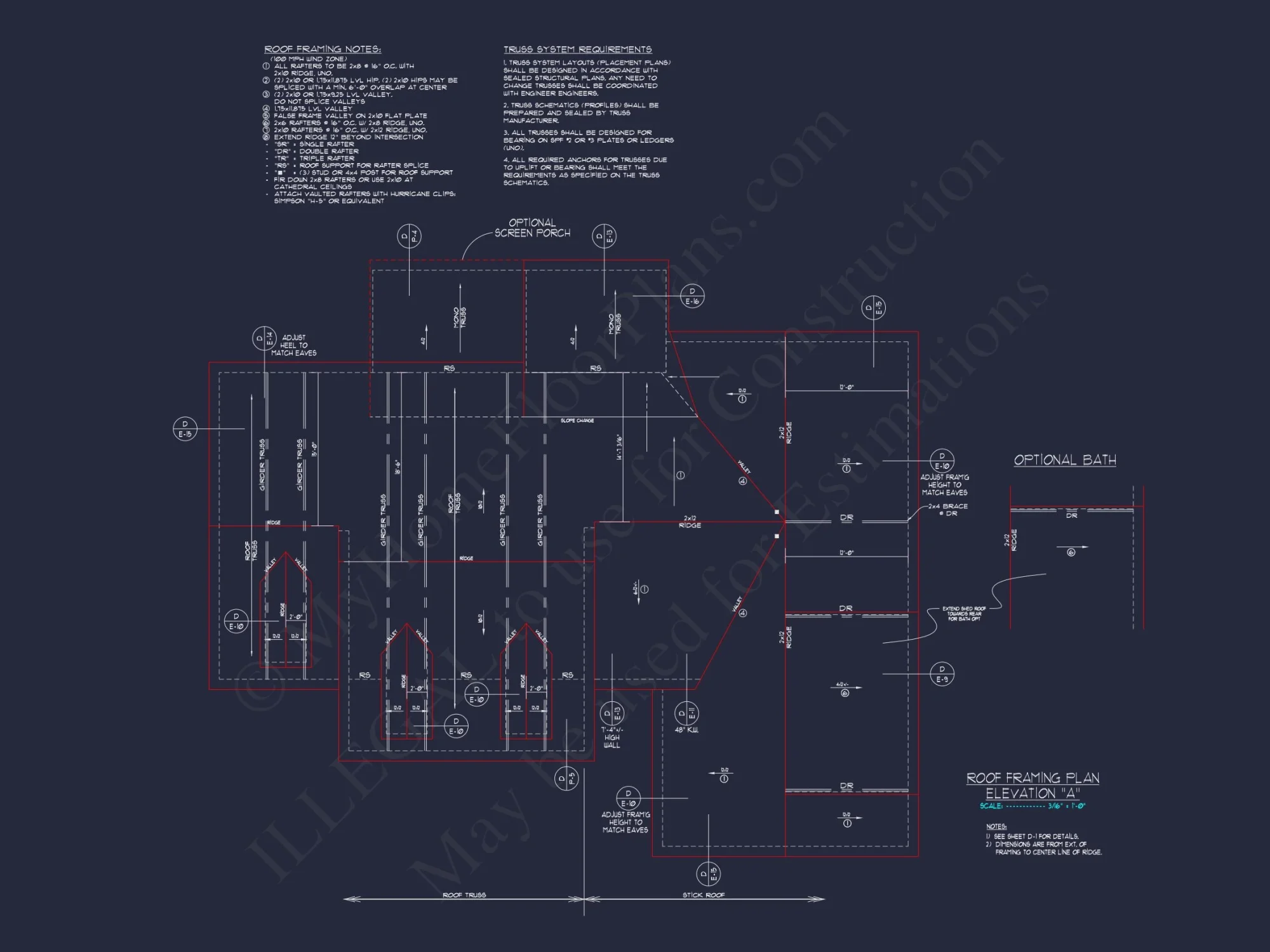

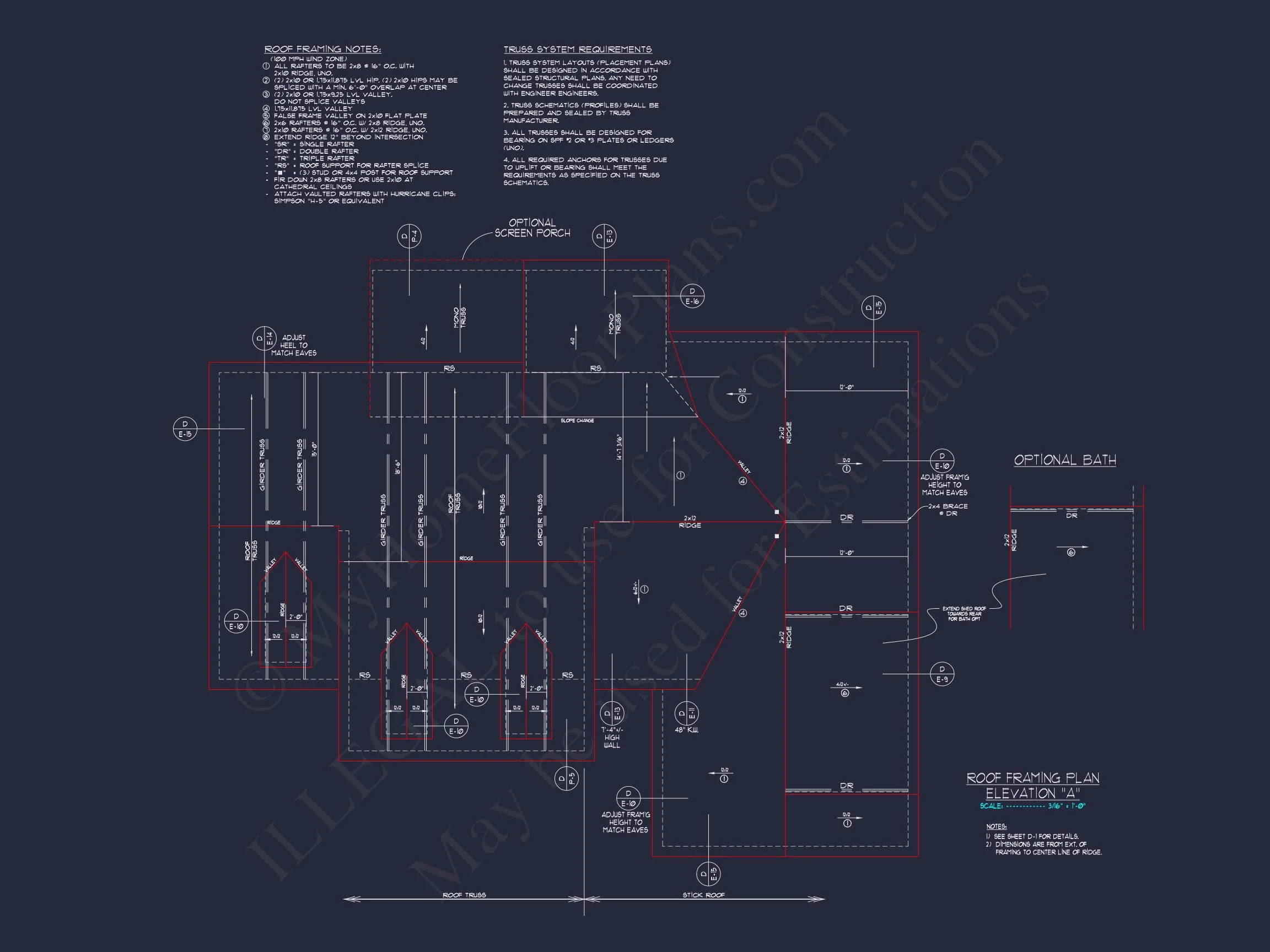

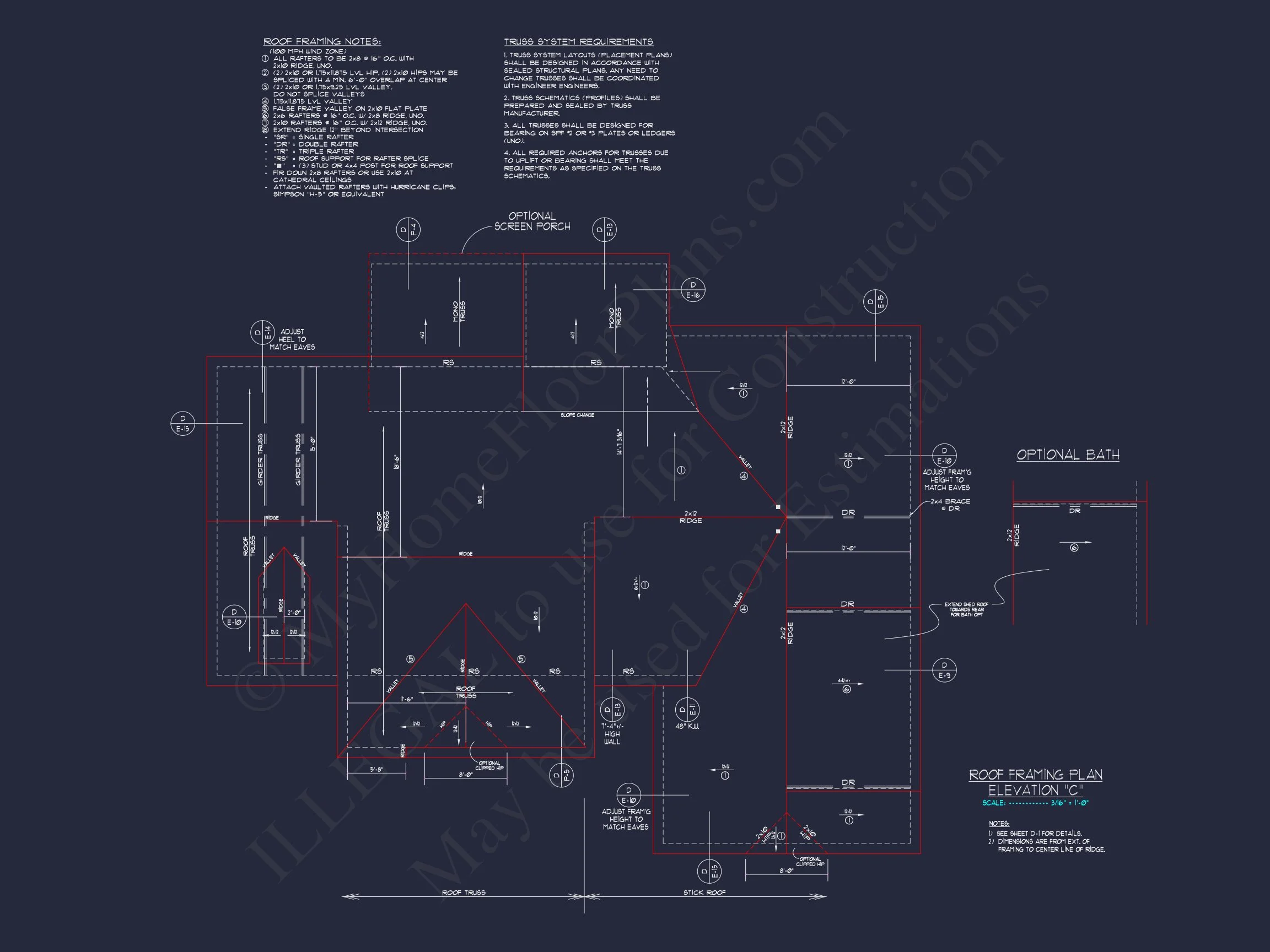

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1770 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
All plans are drawn to scale and include :
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
VERIFY DIMENSIONS, SQ FT, DESCRPTION TO THAT OF PRODUCT IMAGES BEFORE PURCHASE
My Home Floor Plans, Inc. does not assume liability for any deviation of these plans. All information must be confirmed by contractor prior to commencement of construction. Dimension govern over scale.
Reviews
