Beautiful house Plan: CAD Floor Designs for Spacious Living
Explore this stunning house plan featuring 4002 heated sq. ft., 4 bedrooms, and 3 bathrooms. Designed with detailed CAD architecture and unique floor designs.
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 89'-9" |
|---|---|
| Depth | 60'-6" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Fireplace, Foyer, Great Room, Mudroom, Open Floor Plan, Upstairs Laundry Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | Breakfast Nook, Butler's Pantry, Kitchen Island, Walk-in Pantry |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Beautiful 2-Story Home Plan with Colonial Farmhouse Design
Explore this stunning house plan featuring 4, 002 heated sq. ft., 4 bedrooms, 3 bathrooms, and detailed CAD architecture for spacious living and timeless elegance.
This Colonial farmhouse-style house plan offers a perfect blend of functionality, classic architecture, and open interior space. Designed for families who love space and style, it features flexible layouts and refined CAD detailing for a seamless building experience.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 002 sq. ft. across two expansive floors.
- Unheated extras: Covered front and rear porches, multi-level garage, and additional storage areas.
Bedrooms & Bathrooms
- 4 spacious bedrooms, including a luxurious Owner Suite with a generous walk-in closet and en-suite bath.
- 3 full bathrooms with privacy-enhancing layouts for family and guests.
Interior Highlights
- Great Room: A perfect space for family gatherings and entertaining friends.
- Open floor plan promotes natural flow between the kitchen, dining, and living areas. Explore more open floor plans.
- Bonus Room: Ideal for a playroom, gym, or home office.
- Kitchen Island & Butler’s Pantry: Convenient and spacious for food prep and entertaining.
- Walk-in Pantry: Offers abundant storage for kitchen essentials.
- 9ft+ Beamed Ceilings: Add volume and sophistication to the main living spaces.
- Dual Laundry Areas: Separate laundry rooms upstairs and down for maximum convenience.
Garage & Storage Details
- Garage Bays: Room for multiple vehicles with ample space for storage or a workshop.
- Garage Type: Traditional attached garage seamlessly integrated into the home’s layout.
- Storage: Built-in cubbies, closets, and attic space support organized family living.
Outdoor Living Features
- Covered front porch welcomes guests with Southern charm.
- Spacious rear porch provides a shaded retreat perfect for evening relaxation or weekend entertaining. See more covered porch layouts.
- Brick and siding combination for a balanced, durable exterior with timeless curb appeal.
Architectural Style: Colonial Farmhouse
This design masterfully blends traditional Colonial elegance with modern farmhouse charm. Families who appreciate craftsmanship and flexibility will love this layout. Discover more about the
All home plans include BOTH the CAD file and PDF file.

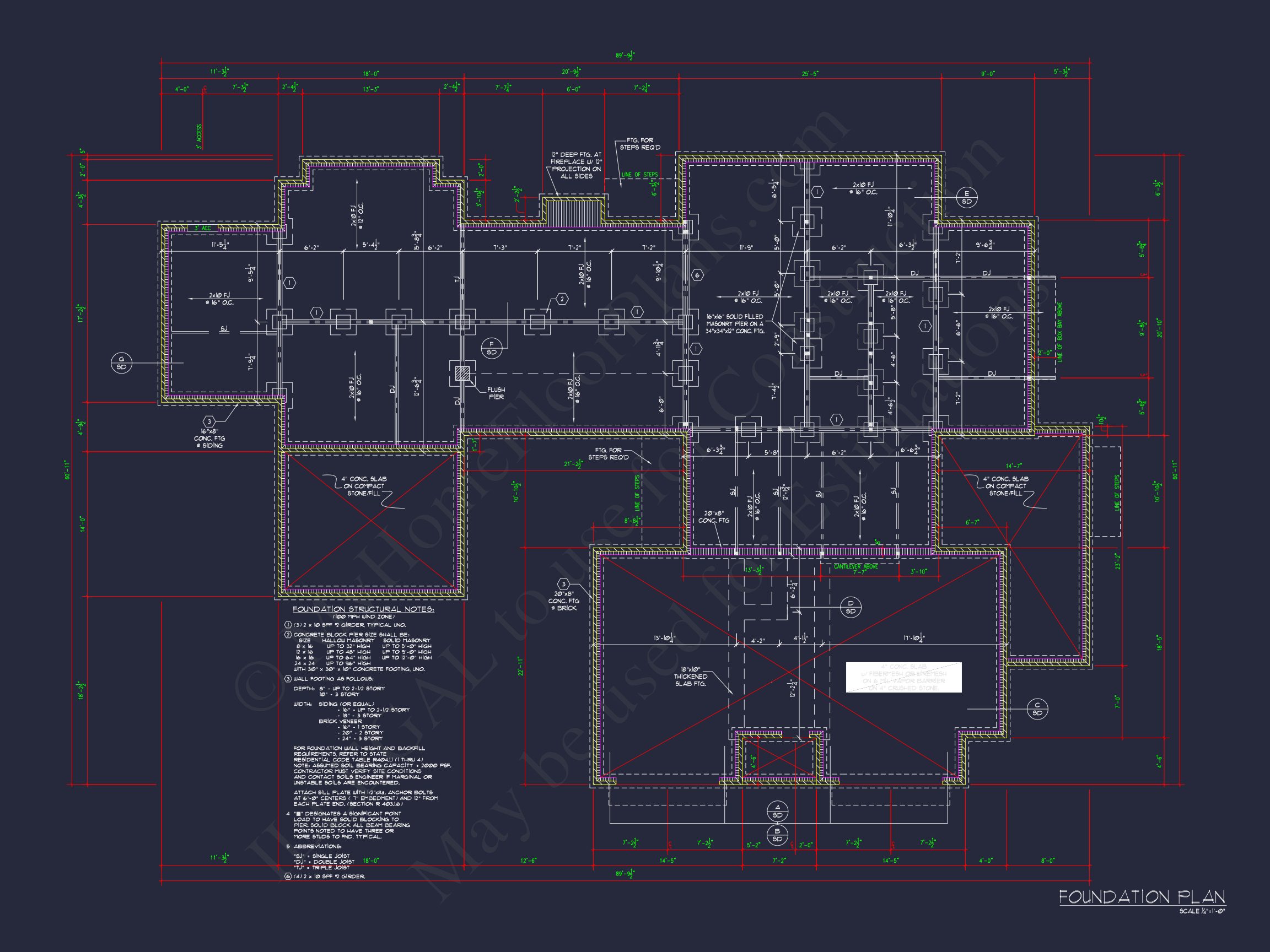

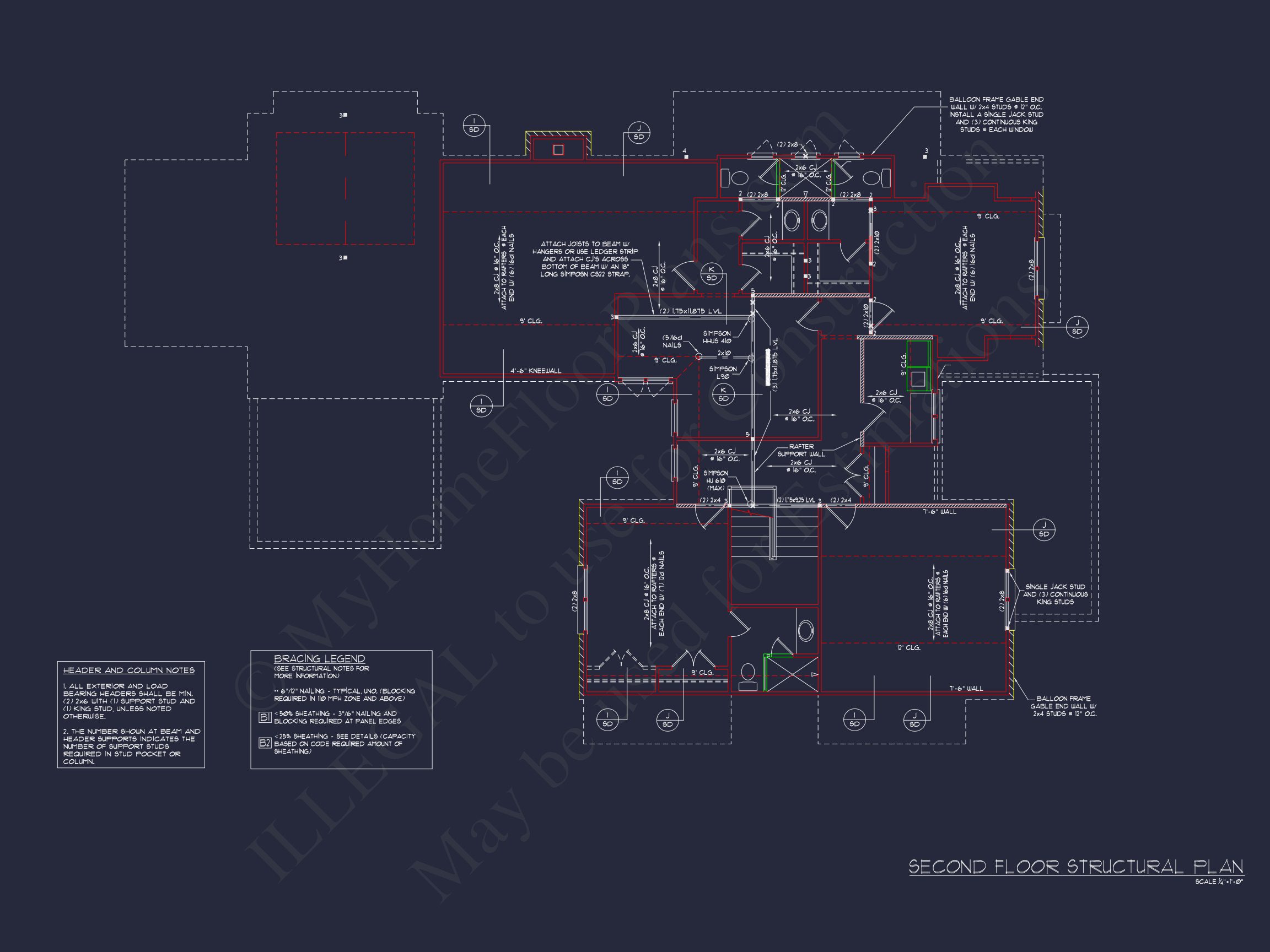

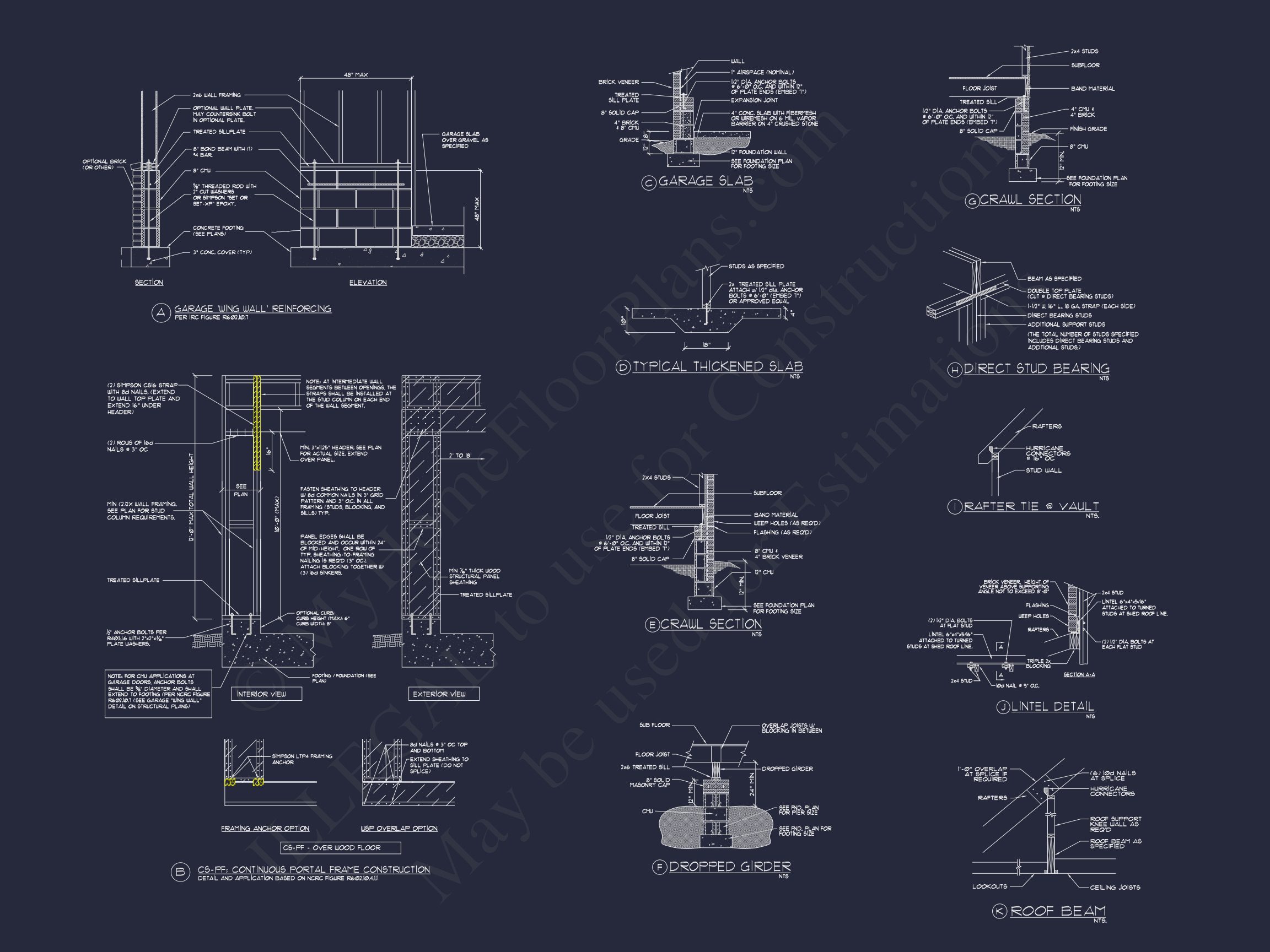

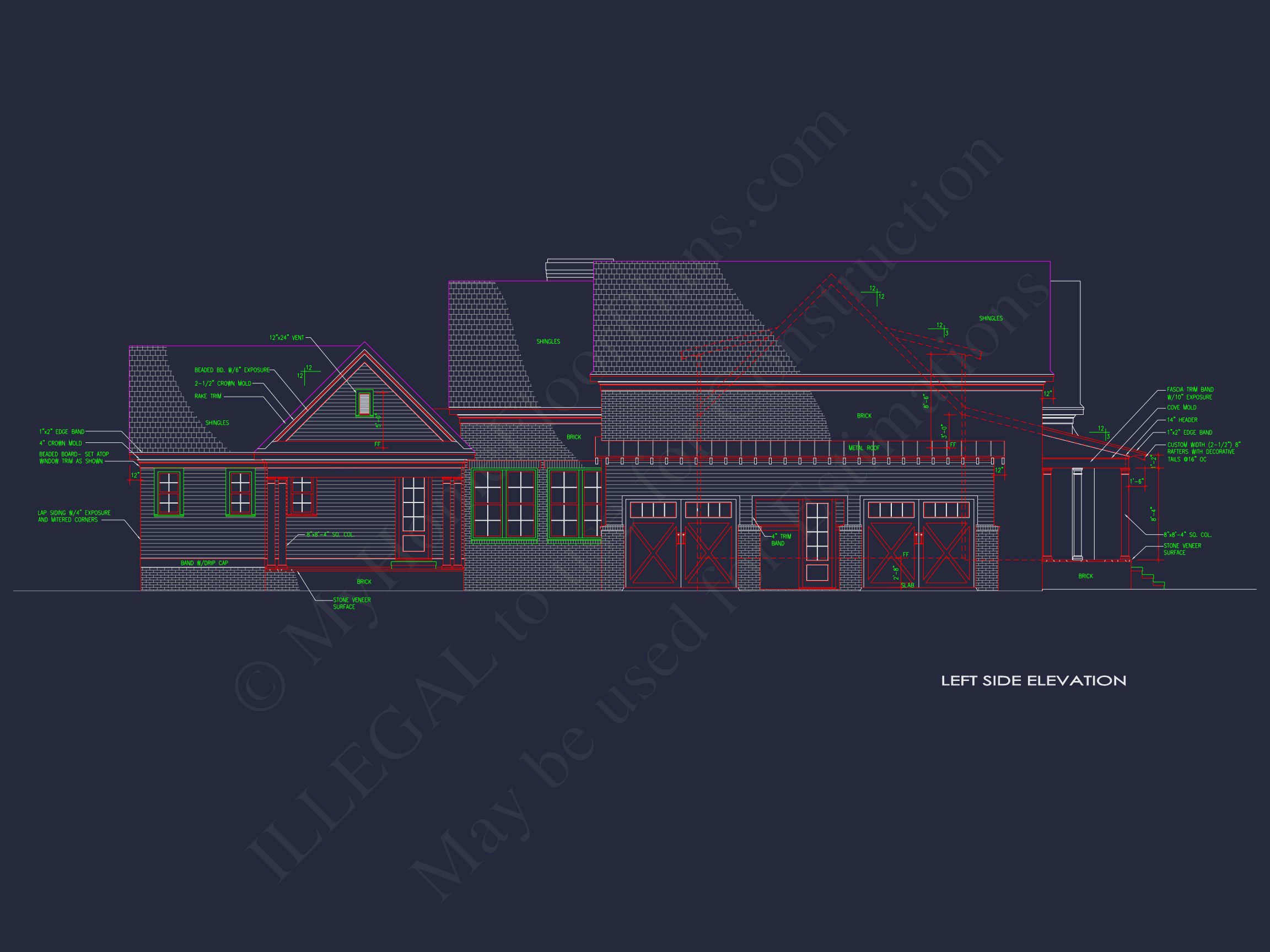

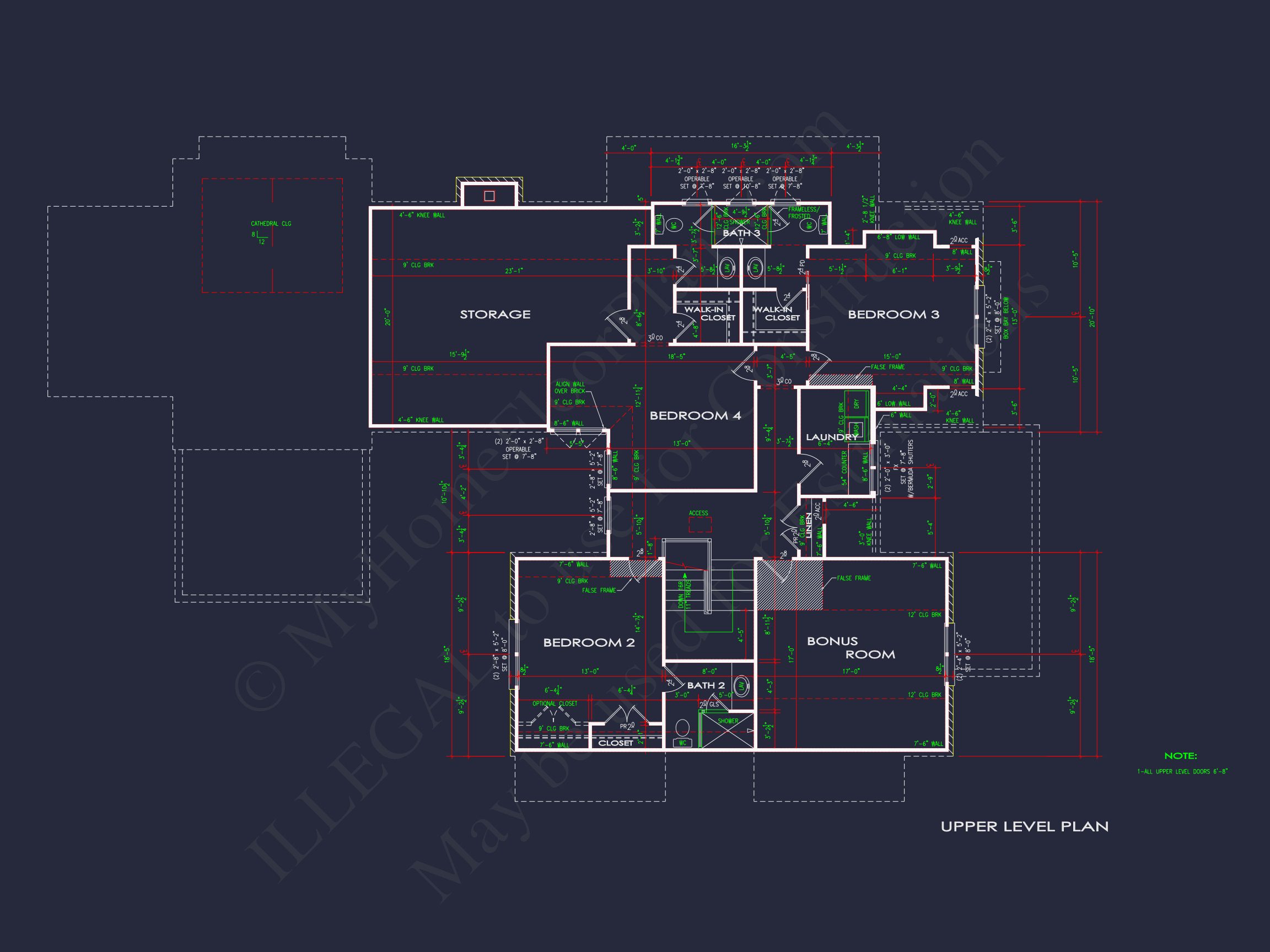

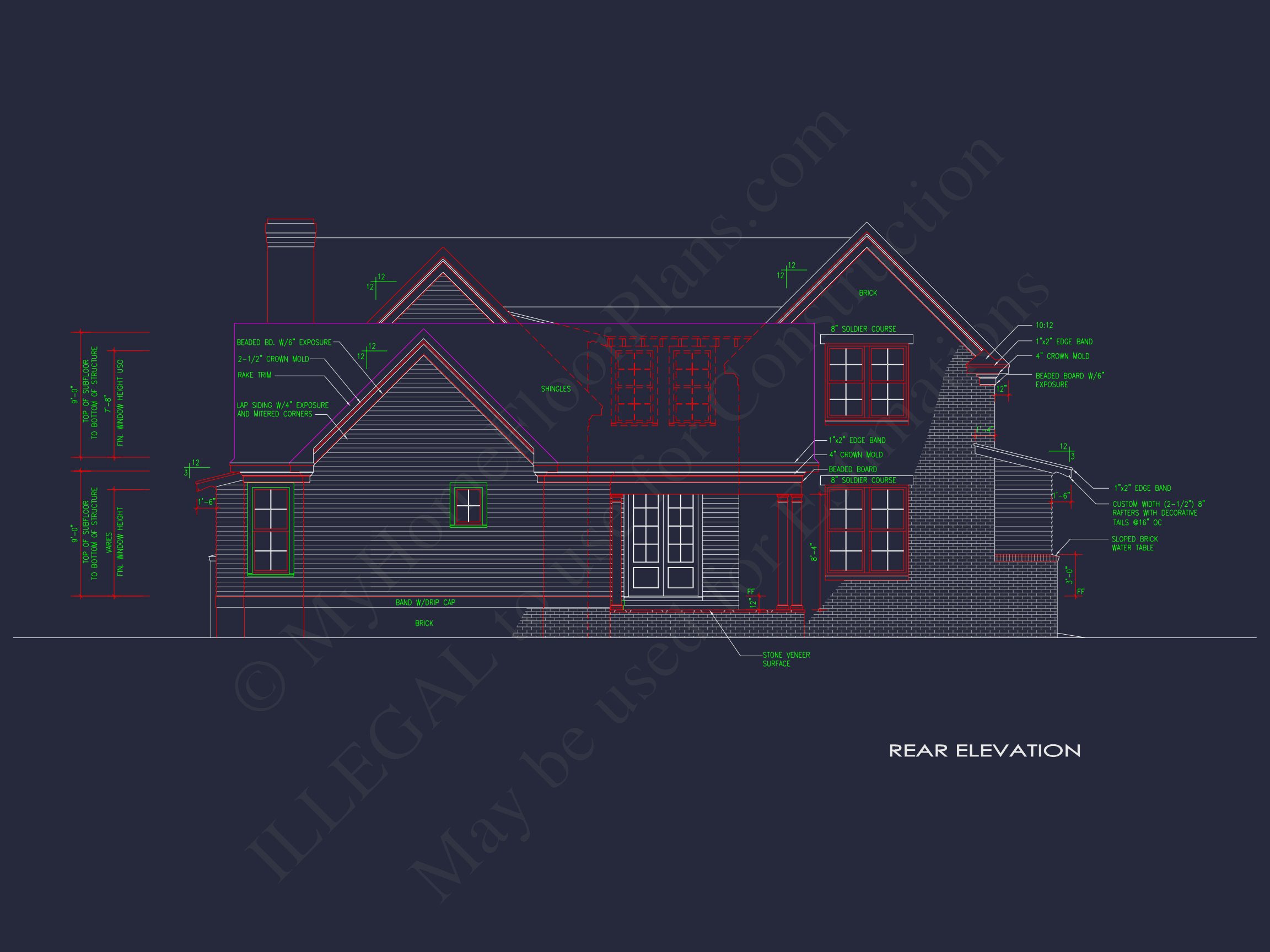

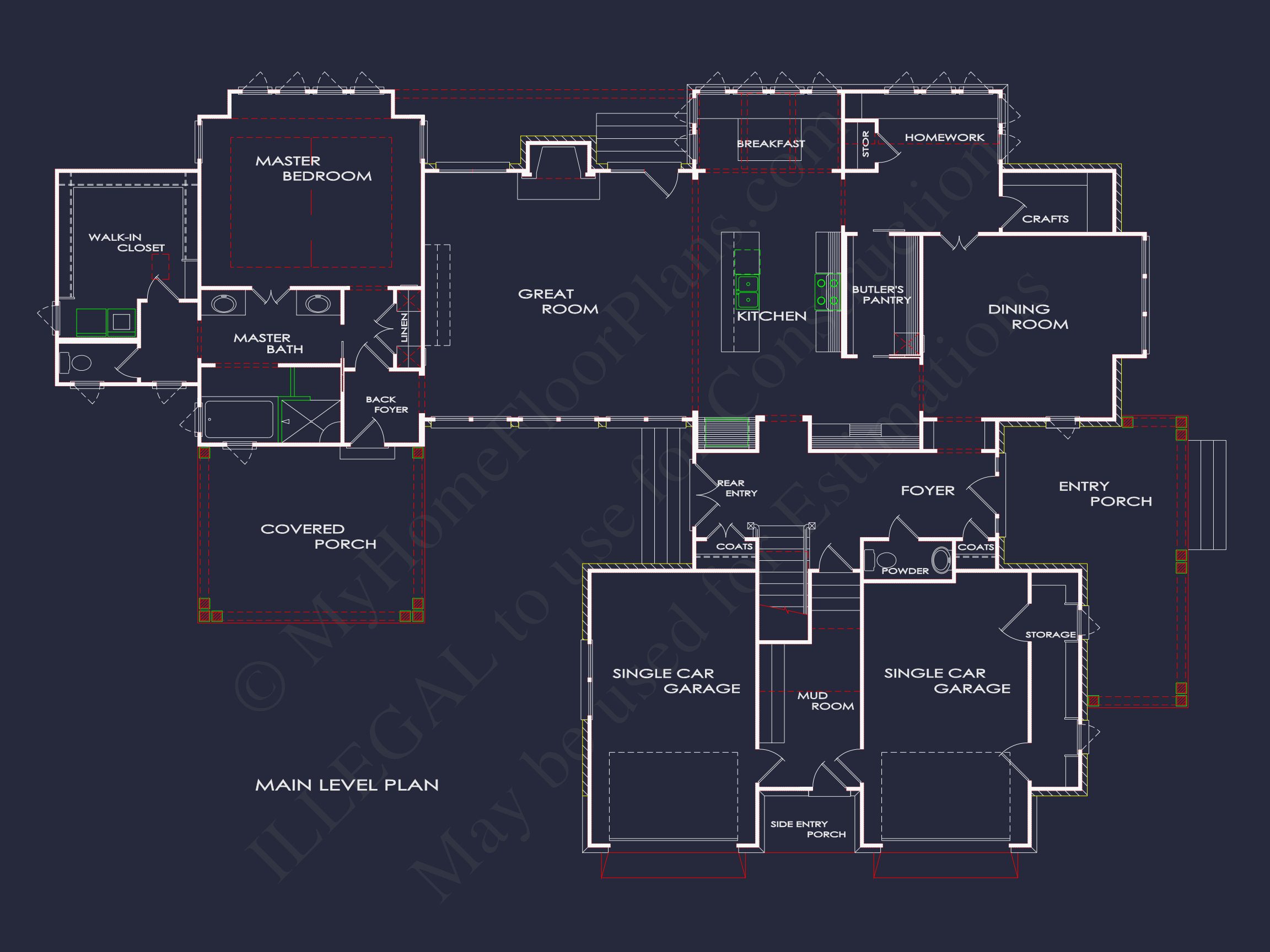

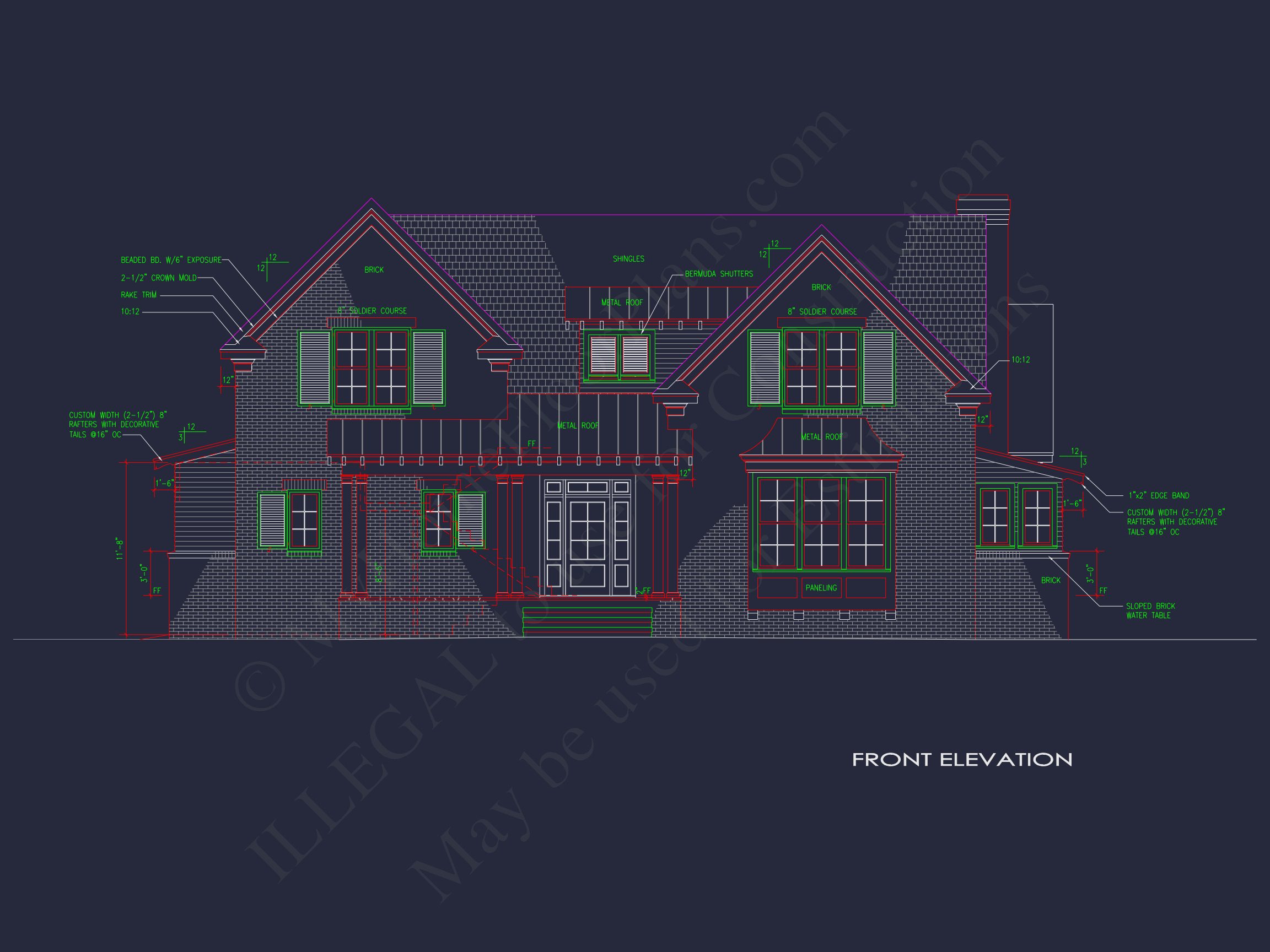

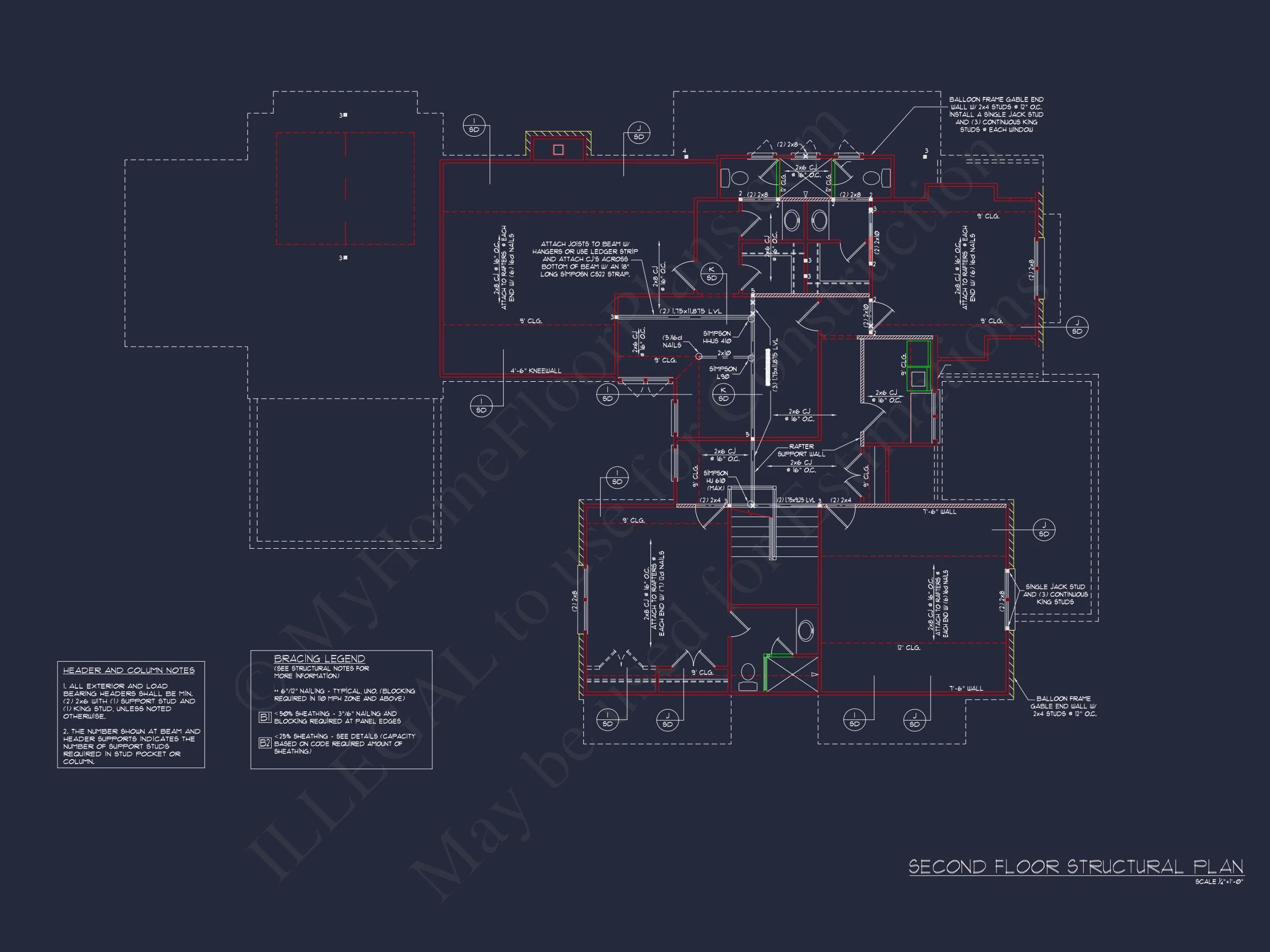

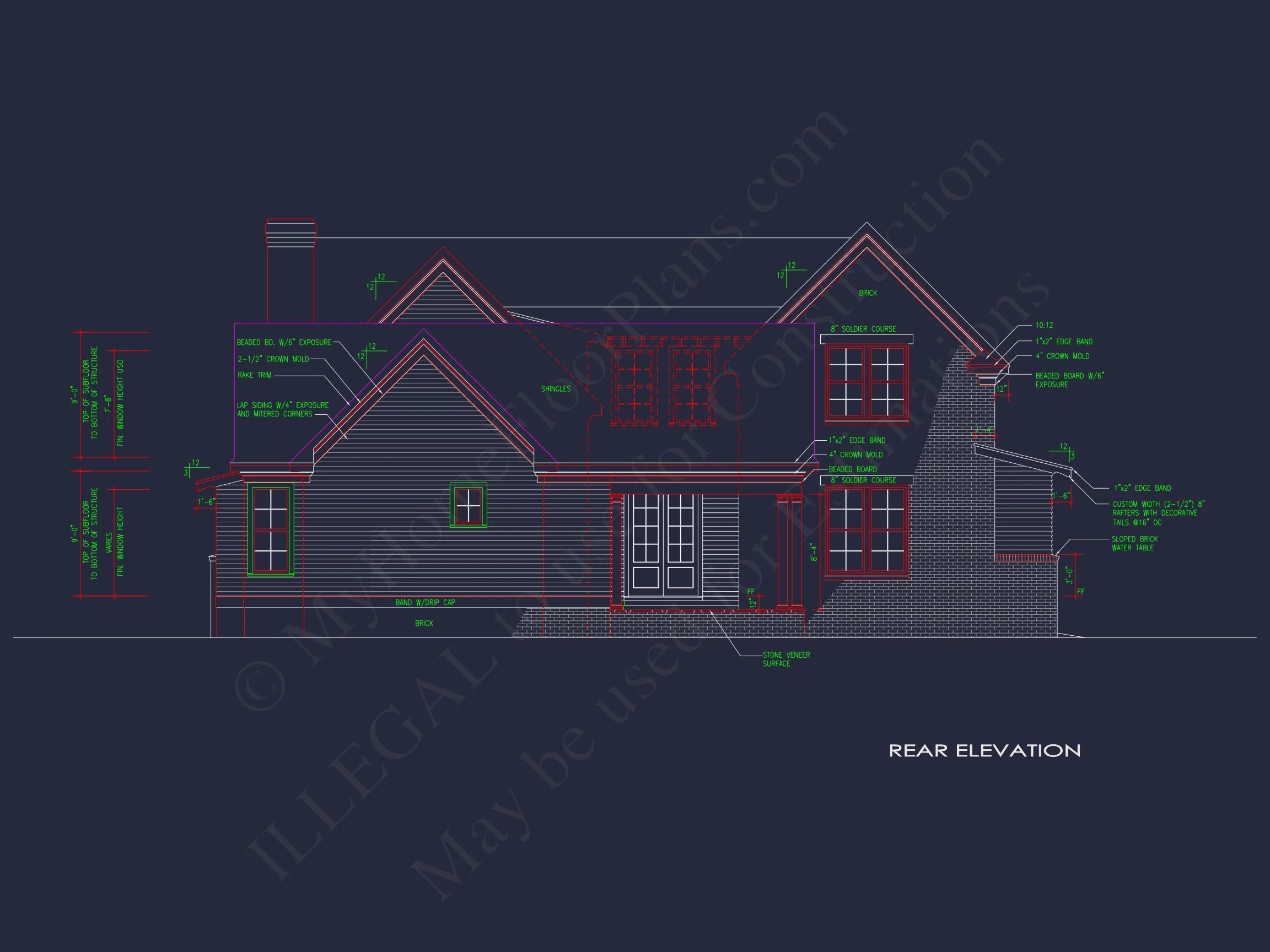

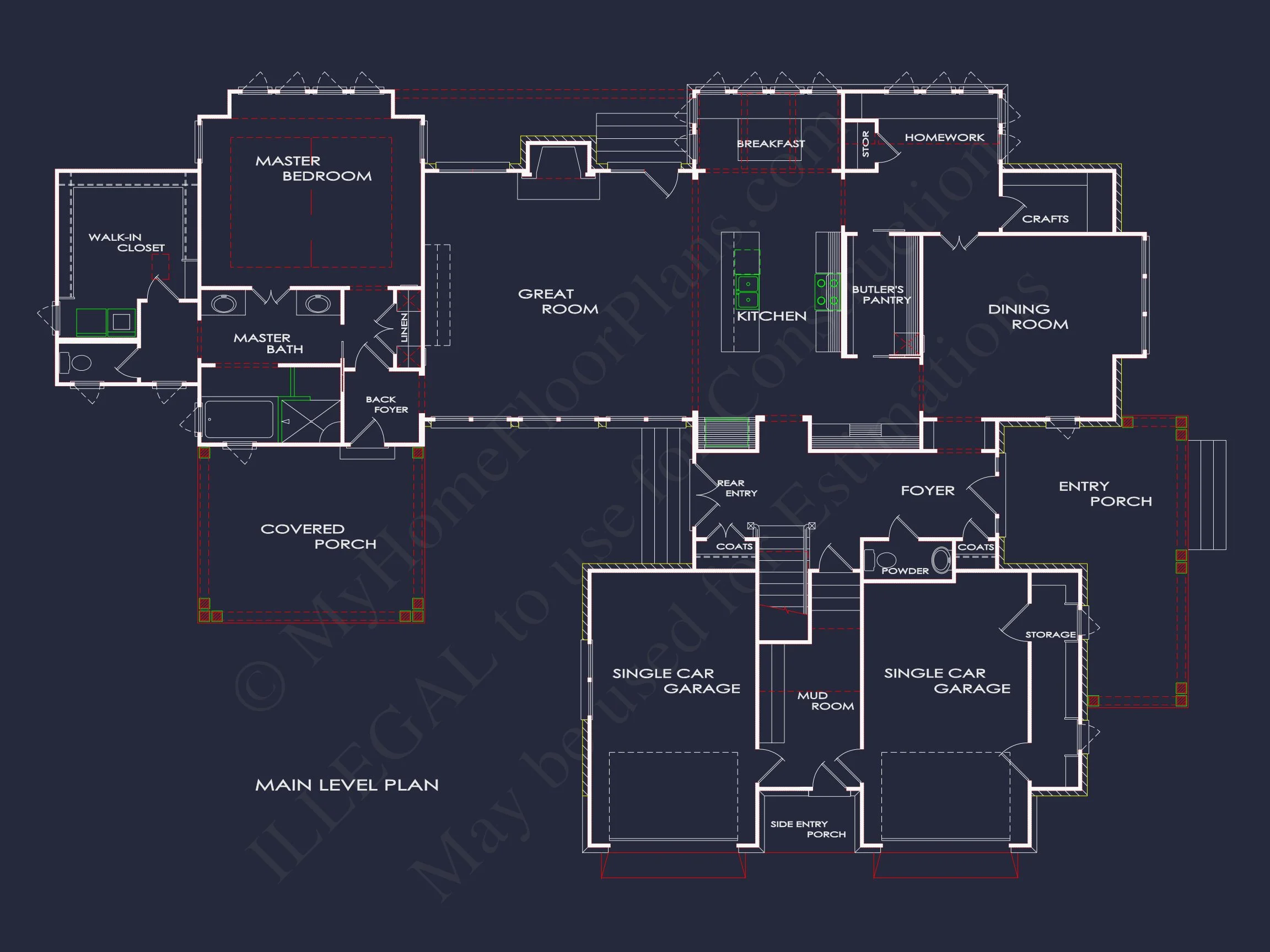

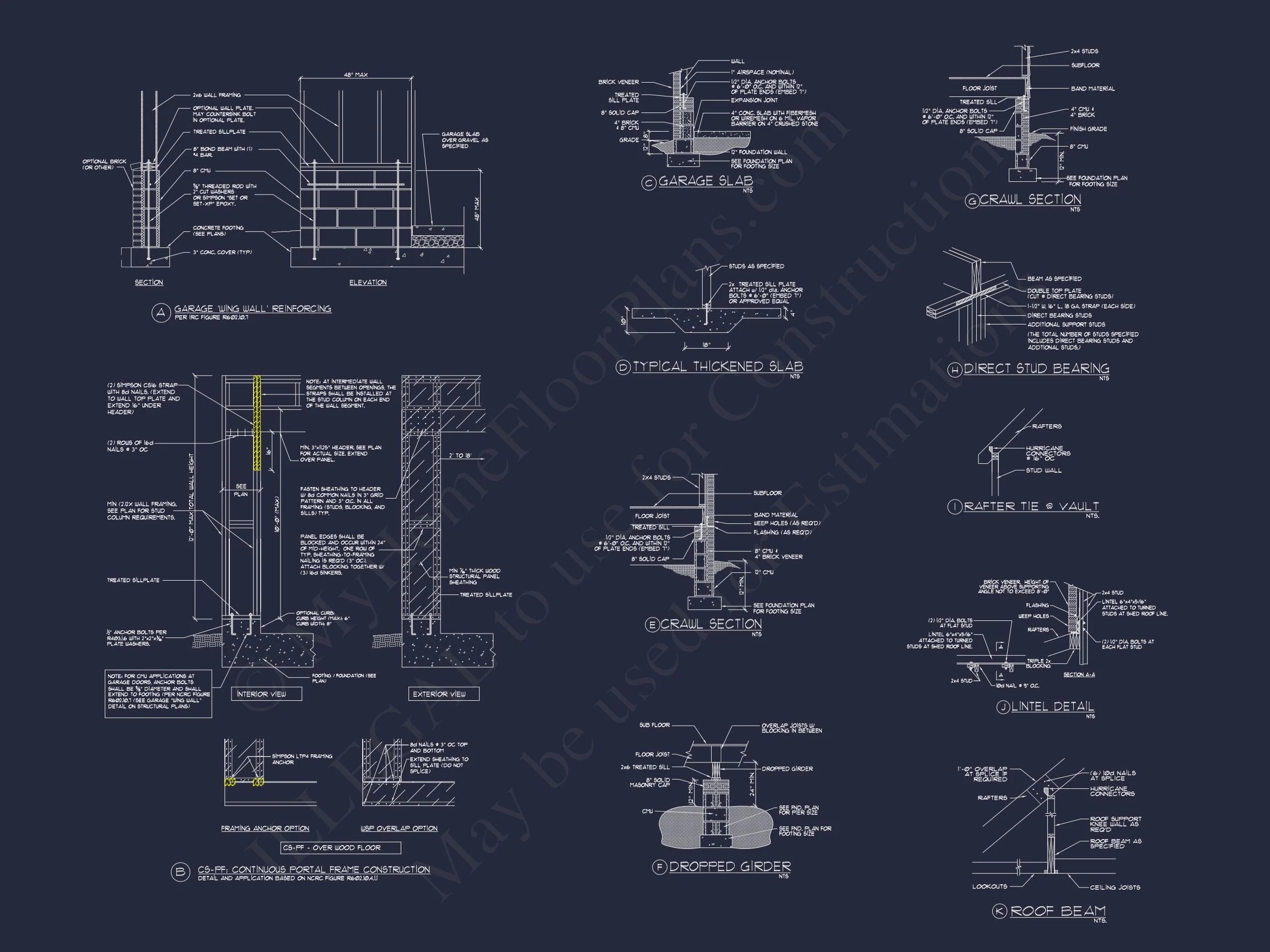

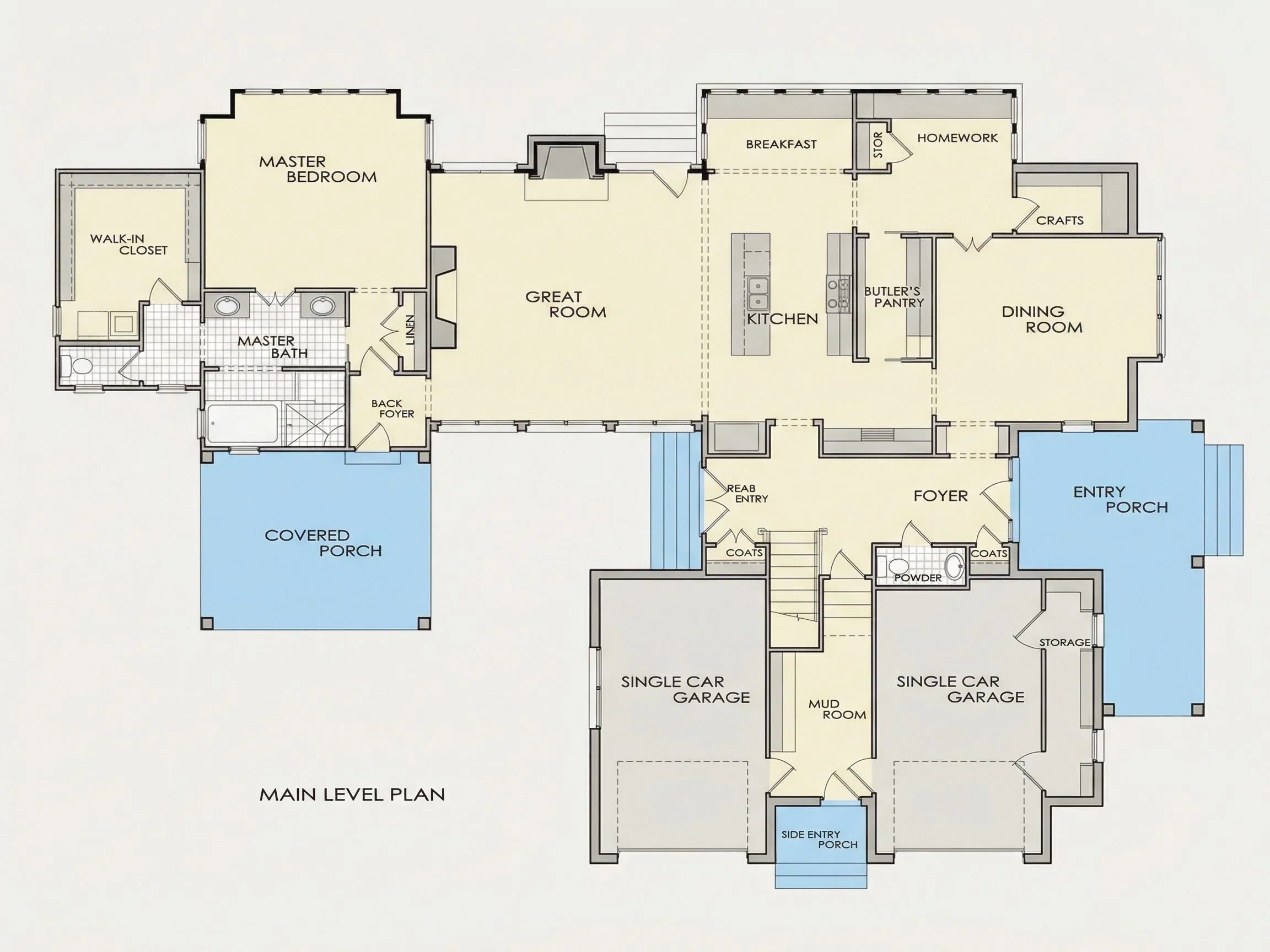

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

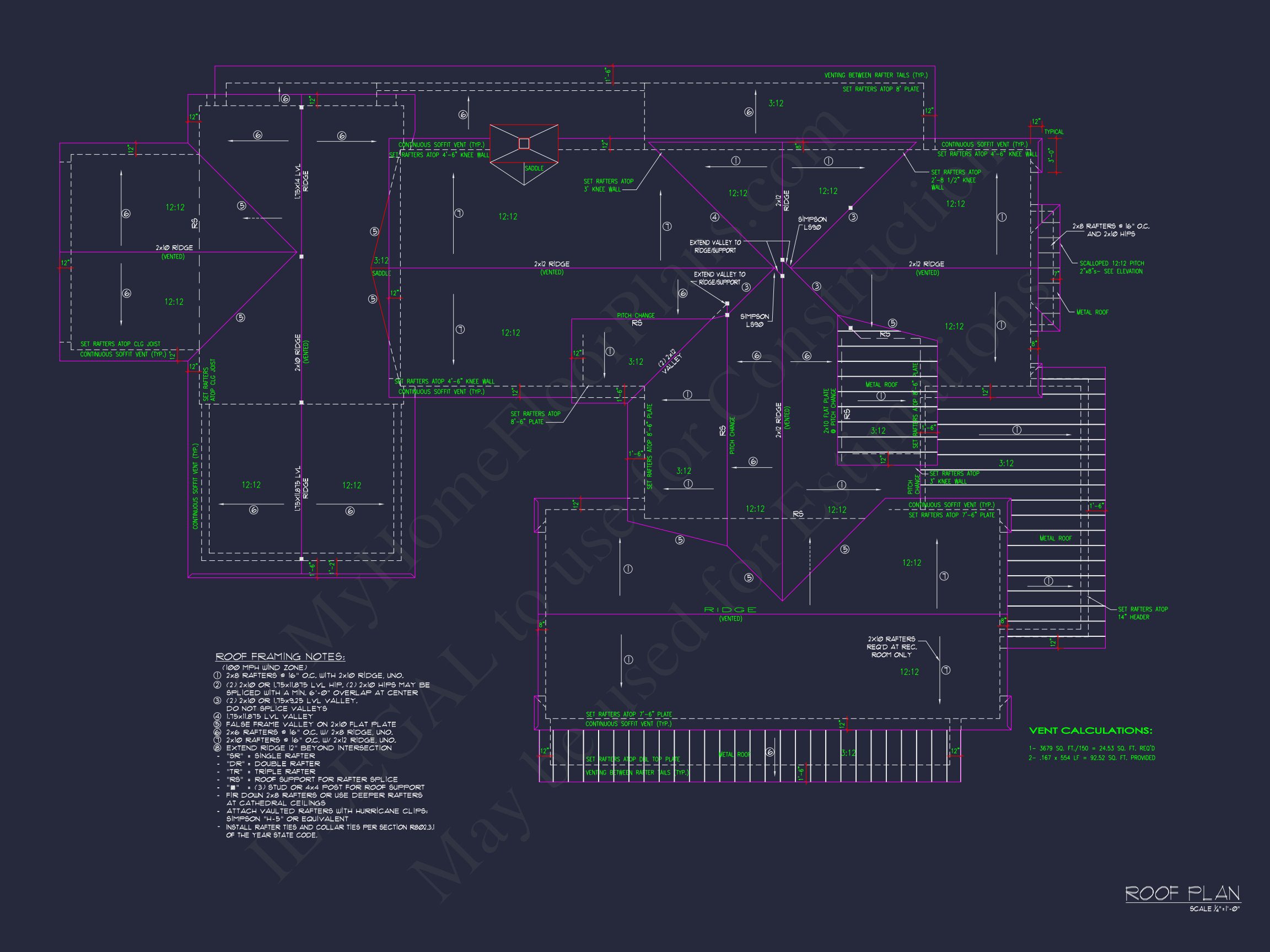

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
13-1007 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
