Spacious house Plan with Detailed CAD Floor Plan
Explore a spacious house design featuring 5 beds and 5+ baths. Discover detailed floor plans, CAD blueprints, and architectural designs for your dream house.
Spacious 3-Story House Plan with Colonial Revival Charm
Explore this detailed 3-story house design with 4, 301 heated sq. ft., 5 bedrooms, 5+ baths, and CAD blueprints included.
This Colonial Revival house plan offers a perfect mix of elegance and practicality. Designed with timeless architecture, this plan blends functional living with striking curb appeal.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 301 sq. ft. spread across three spacious stories.
- Unheated extras: Covered front porch, screened rear porch, and a large 3-bay garage.
Bedrooms & Bathrooms
- 5 generous bedrooms, including a private Owner Suite on the upper floor with a walk-in closet.
- 5+ bathrooms offer abundant convenience across all levels.
Interior Highlights
- Open floor plan connects family room, kitchen, and breakfast nook. View open layouts.

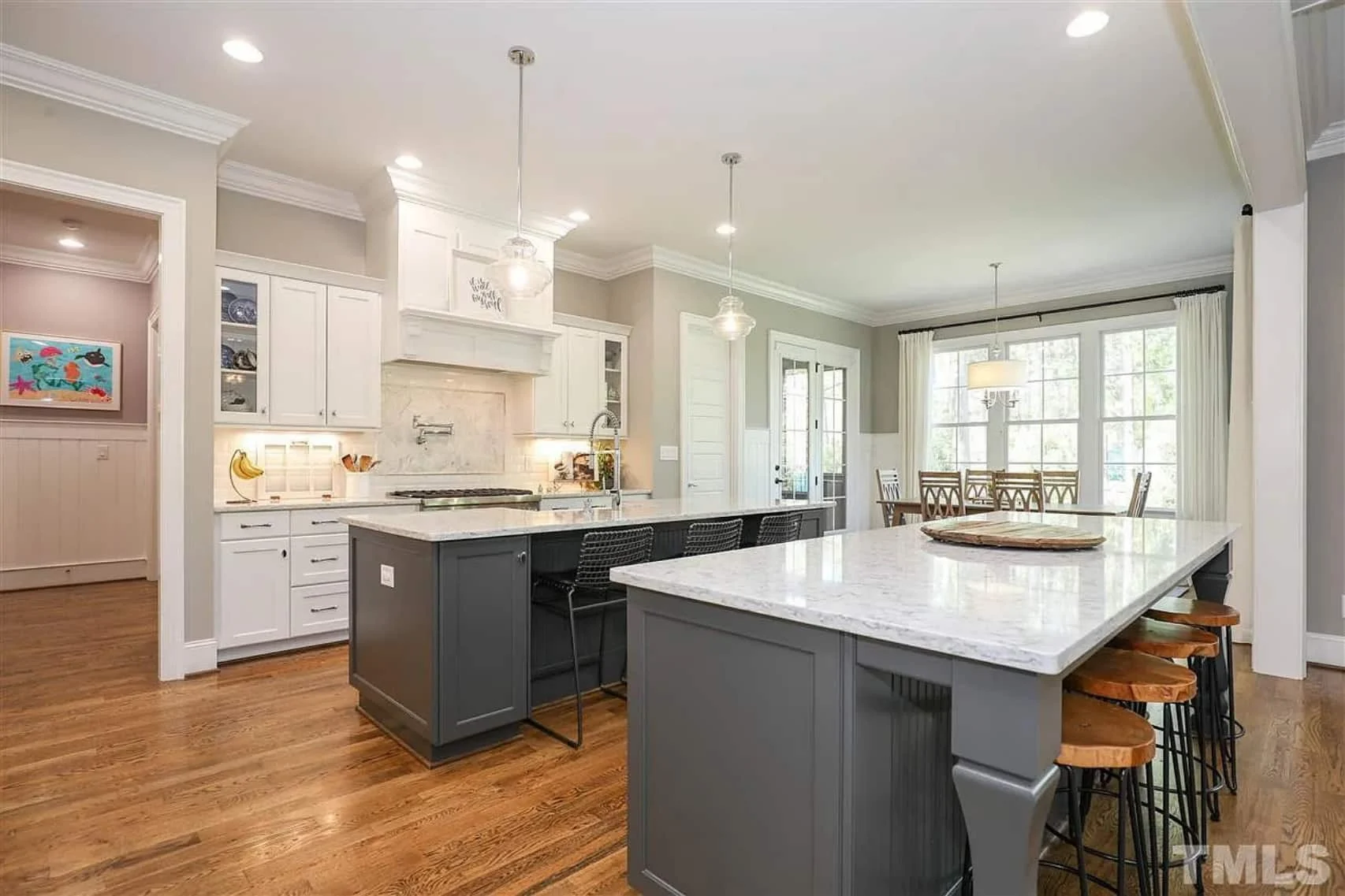

- Kitchen island and butler’s pantry maximize hosting functionality.
- Fireplace warms the family room for cozy nights. Browse fireplace plans.
- Dedicated office/study space for working from home or schoolwork.

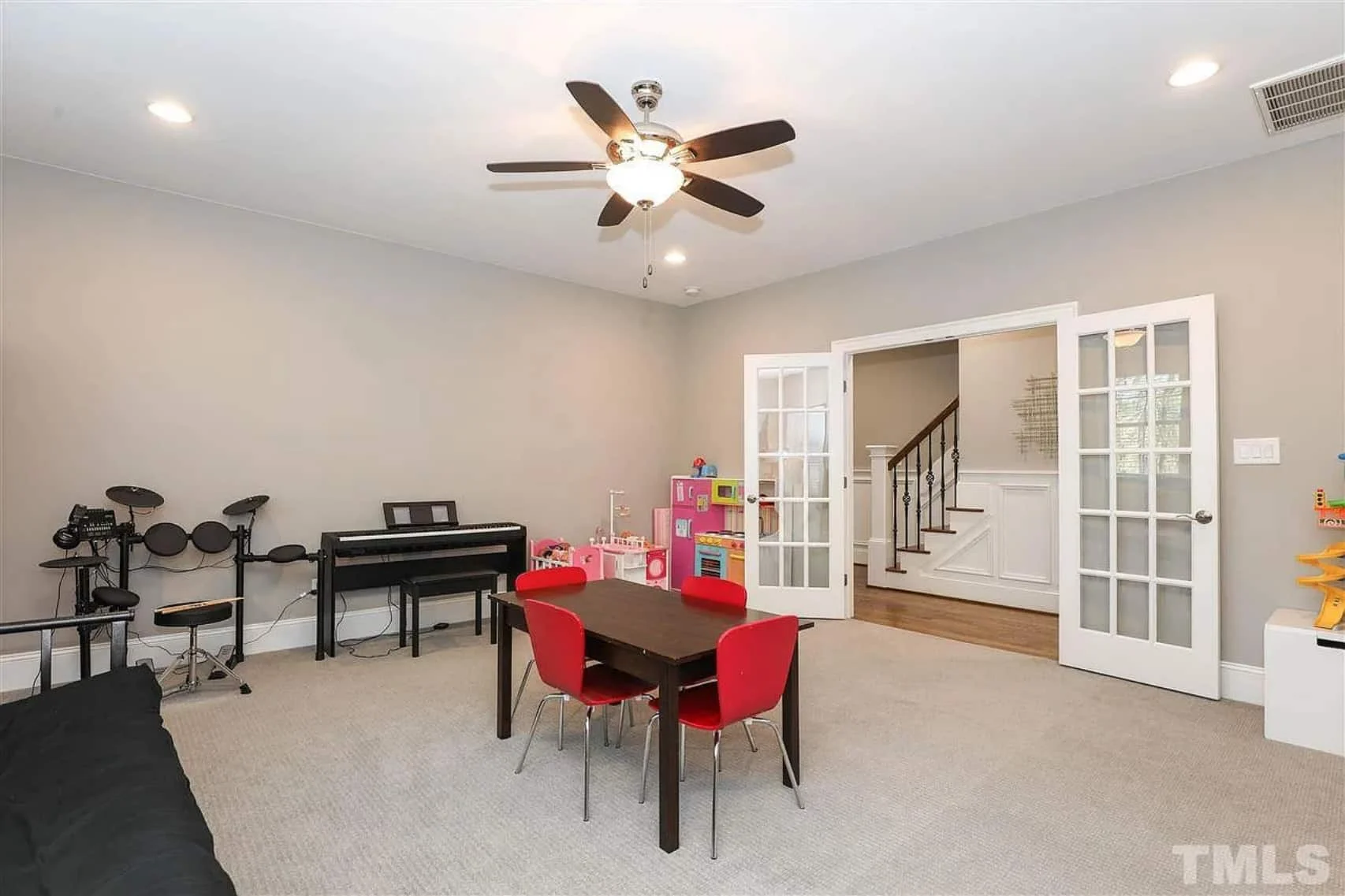

- Recreational room for leisure, media, or play.
Garage & Storage Details
- Garage Bays: 3-car garage with ample room for storage and vehicles.
- Garage Type: Side-entry garage integrated into the layout.
- Storage: Built-in closets, attic space, and mudroom cubbies.
Outdoor Living Features

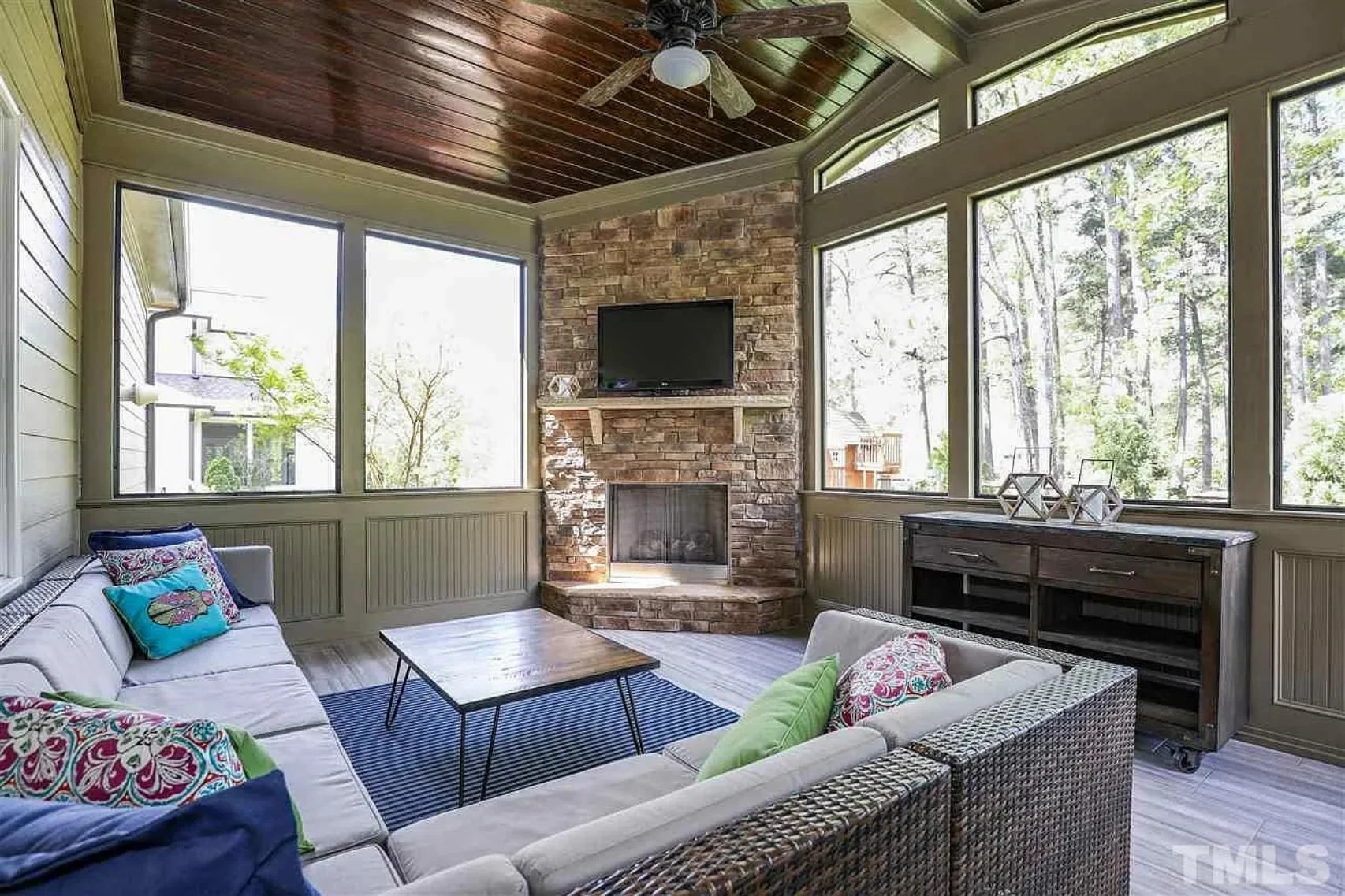

- Spacious covered front and screened rear porches—perfect for relaxing or entertaining.
- Mixed exterior materials including brick, shake, stone, wood, and siding for timeless Colonial appeal.
Architectural Style: Colonial Revival
This elegant design combines classic Colonial Revival elements with modern conveniences. Learn more about the Colonial style or explore its architectural roots on ArchDaily.
Bonus Features
- Private study ideal for quiet work or reading.
- Separate recreational room on upper floor—ideal for media or games.
- Breakfast nook with views of the screened porch and backyard.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and print-ready for your builder.
- Unlimited Build License: Build it once or multiple times—your license never expires.
- Free Foundation Changes: Choose between slab, crawlspace, or basement without extra charge.
- Structural Engineering Included: Every plan is reviewed for safety and code compliance.
- Lower Modification Costs: Save up to 50% compared to competitors.
- View Before You Buy: See all blueprint sheets upfront.
Similar Collections You Might Love
- Traditional House Plans
- 5-Bedroom House Plans
- Plans with Covered Porches
- Plans with Mudrooms
- Plans with Recreation Rooms
Frequently Asked Questions
What’s included with this house plan? You’ll receive CAD files, print-ready PDFs, unlimited build rights, structural engineering, and free foundation changes.
Can I customize the layout? Yes! We offer affordable and fast customizations. Get a custom quote here.
Is this suitable for multigenerational living? Definitely. With multiple floors, bathrooms, and bonus rooms, it’s ideal for larger households.
How many floors does this plan have? It’s a full 3-story house design with living areas thoughtfully distributed for privacy and function.
Can I view the floor plans before buying? Yes, preview all blueprint sheets before purchase.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or reach out through our contact form.
Your dream house starts with a smart, beautiful plan—customize yours today and start building with confidence!
Spacious 3-Story House Plan with Colonial Revival Charm Explore this detailed 3-story house design with 4,301 heated sq. ft., 5 bedrooms, 5+ baths, and CAD blueprints included. This Colonial Revival house plan offers a perfect mix of elegance and practicality. Designed with timeless architectu…
Read MoreOriginal price was: $1,870.56.$1,059.99Current price is: $1,059.99.
999 in stock
| Width | 71'-1" |
|---|---|
| Depth | 57'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Bonus Room, Family Room, Fireplace, Foyer, Office/Study, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
