Single-Story Ranch House Plan with Open Layout and 3-Car Garage
Discover this charming ranch house design with 3 bedrooms, 2 bathrooms, a spacious 3-car garage, and detailed CAD blueprints—ideal for modern families and builders.
This ranch-style house plan offers a perfect mix of comfort and functionality. Designed for relaxed living, it delivers timeless curb appeal and smart interior flow.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: Approx. 2, 000 sq. ft. on one story for easy single-level living.
- Unheated extras: Generous 3-car garage, screened porch, and a covered rear deck.
Bedrooms & Bathrooms
- 3 bedrooms including a first-floor Owner Suite with a spacious walk-in closet (WIC).
- 2 full bathrooms designed for privacy, including dual vanities in the Owner Suite.
Interior Highlights
- Vaulted ceilings enhance the great room’s sense of space and light.
- Open floor plan connects the kitchen, dining, and living areas seamlessly. View open layouts.
- Kitchen island ideal for entertaining or casual meals, with nearby breakfast nook.
- Fireplace in the great room adds warmth and style. Browse fireplace plans.
Garage & Storage Details
- Garage Bays: 3-car garage with ample room for storage or a workshop.
- Garage Type: Attached with front-entry access for convenience.
- Storage: Includes attic access, utility room, and optional unfinished space.
Outdoor Living Features
- Covered deck and screened porch—perfect for enjoying meals or quiet evenings outside.
- Exterior details include siding and shingles for a rustic, yet refined appearance.
Architectural Style: Traditional Ranch
This design blends classic materials with efficient planning—ideal for families wanting both charm and practicality. Learn more about the ranch style or explore its historical significance on ArchDaily.
Bonus Features
- Flex room that can serve as a fourth bedroom, home office, or hobby room.
- Large foyer for a welcoming entrance and smooth traffic flow.
- Optional unfinished storage area for future expansion or seasonal items.
Included Benefits with Every Plan
- CAD + PDF Files: Easy to edit or print for your contractor or builder.
- Unlimited Build License: Build once or multiple times—no added license fees.
- Free Foundation Changes: Choose between slab, crawlspace, or basement at no cost.
- Structural Engineering Included: Professionally stamped plans meet code requirements.
- Lower Modification Costs: Customize affordably—up to 50% cheaper than competitors.
- View Before You Buy: See the full blueprint set in advance.
Similar Collections You Might Love
- Traditional House Plans
- Covered Porch House Plans
- Plans with Kitchen Islands
- First Floor Owner Suite Designs
- House Plans with Fireplaces
Frequently Asked Questions
What’s included with this house plan? Every plan includes editable CAD files, print-ready PDFs, structural engineering, unlimited builds, and free foundation modifications.
Can I request changes? Yes! You can easily customize any part of the layout. Request a quote for affordable updates.
Is this plan suitable for warm climates? Definitely—its open flow, covered outdoor areas, and optional screened porch make it ideal for various environments.
How many stories is this house? This is a single-level ranch plan with a functional, open layout.
Do I get to see the plans before I buy? Absolutely. Preview every sheet here.
Start Building Your Dream Home Today
Have questions or want to customize your layout? Contact our expert team at [email protected] or submit a request.
Your perfect house begins with a flexible, builder-ready design—let’s make it a reality.
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

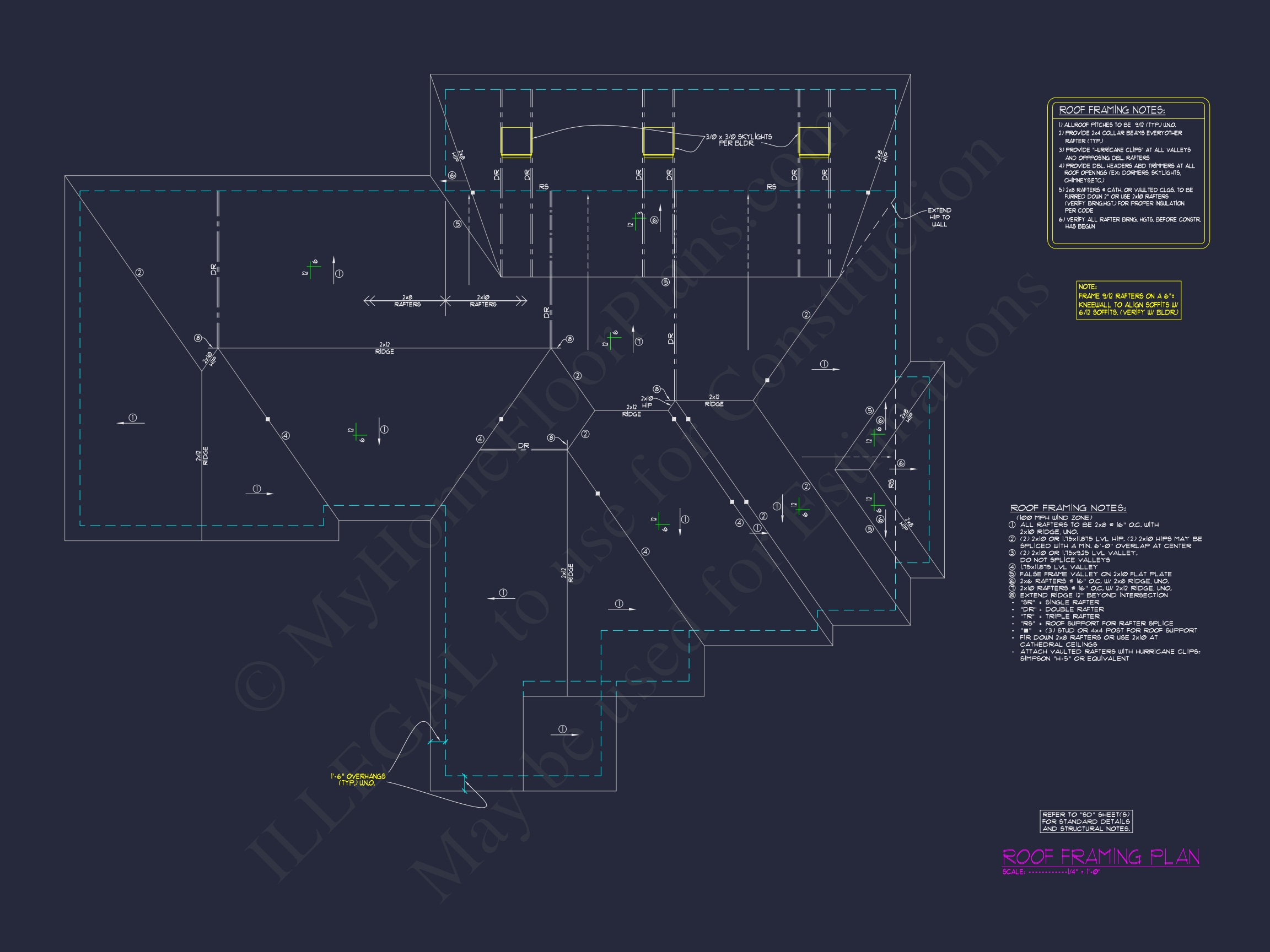

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

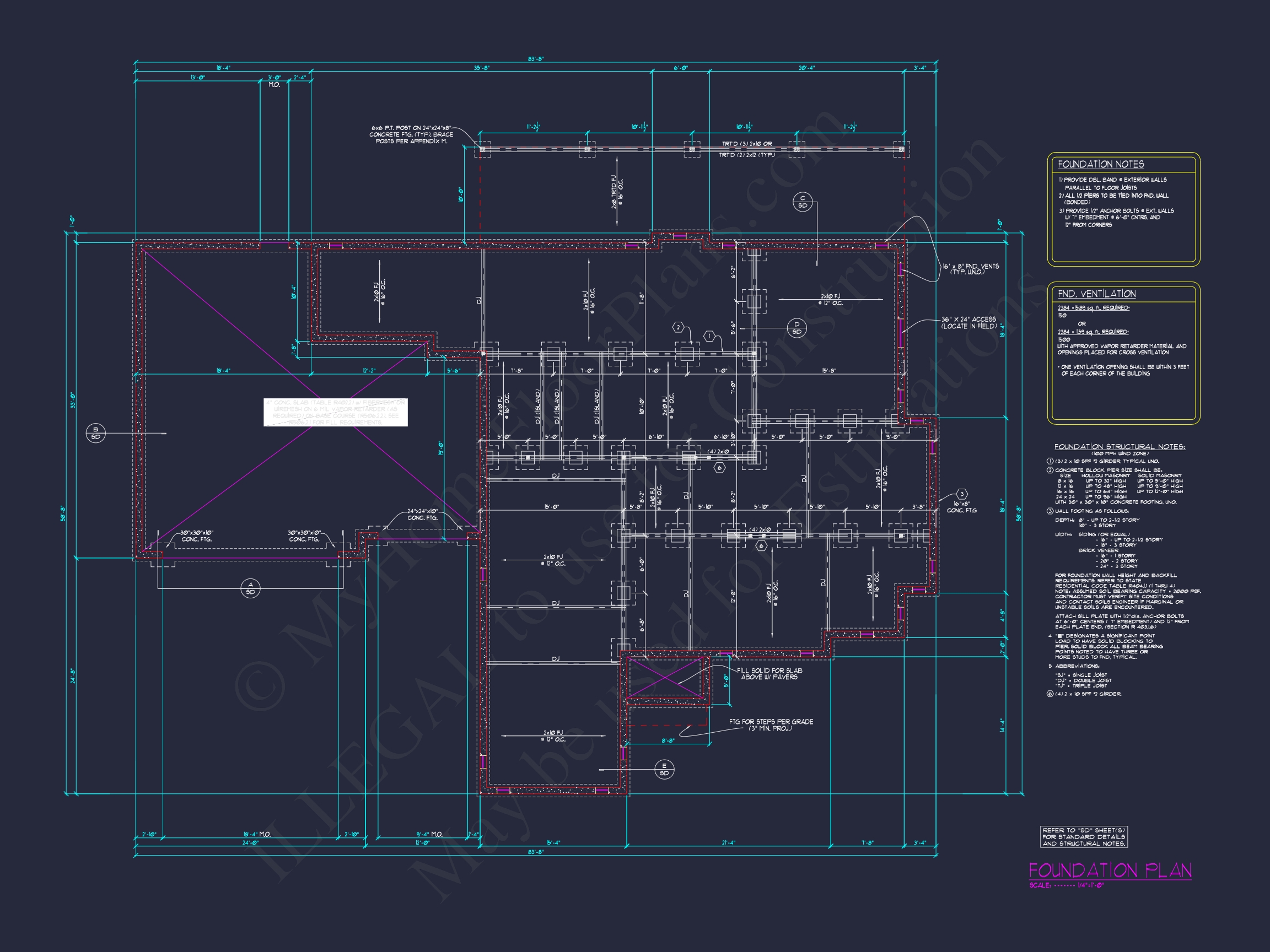

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
15-1305 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
