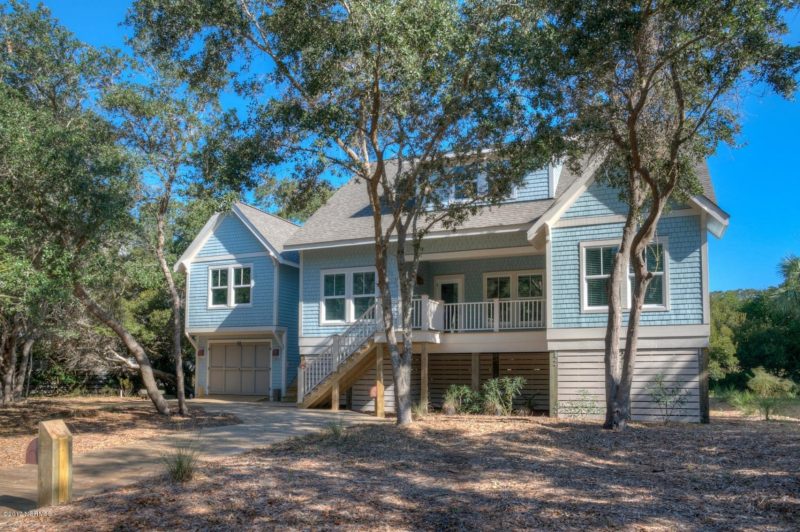

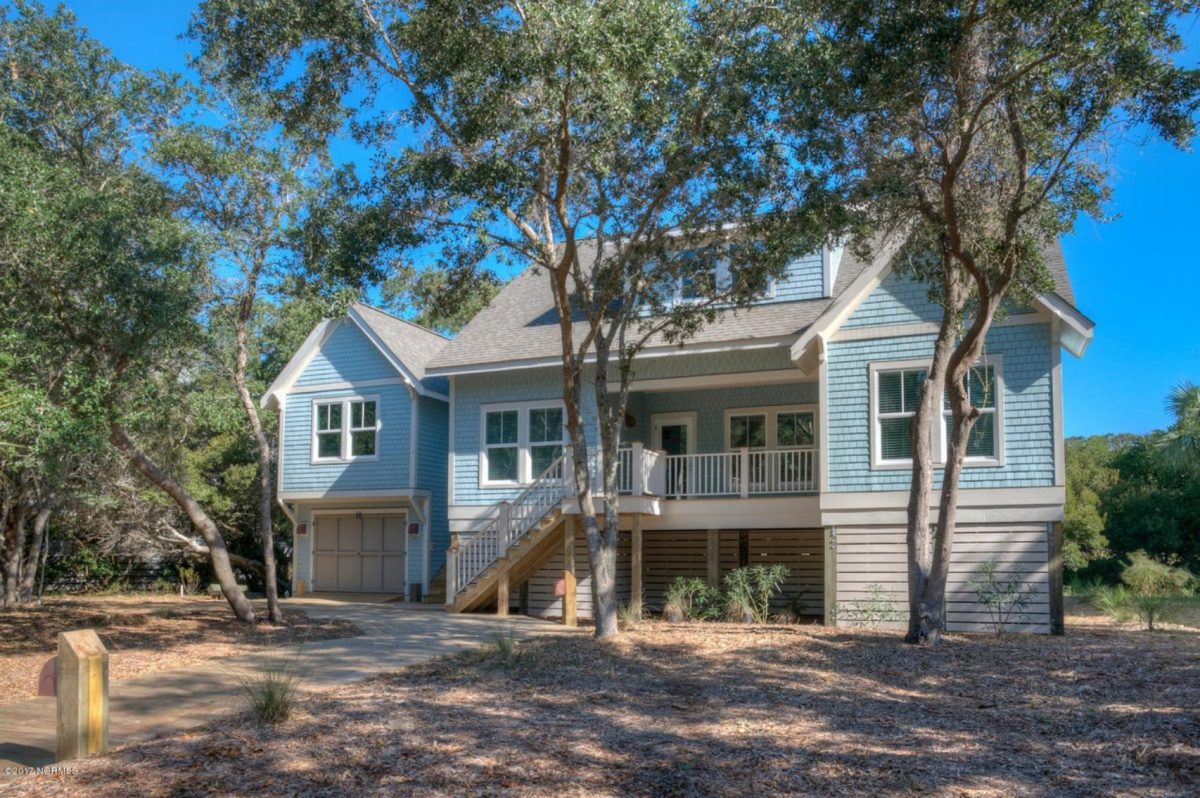

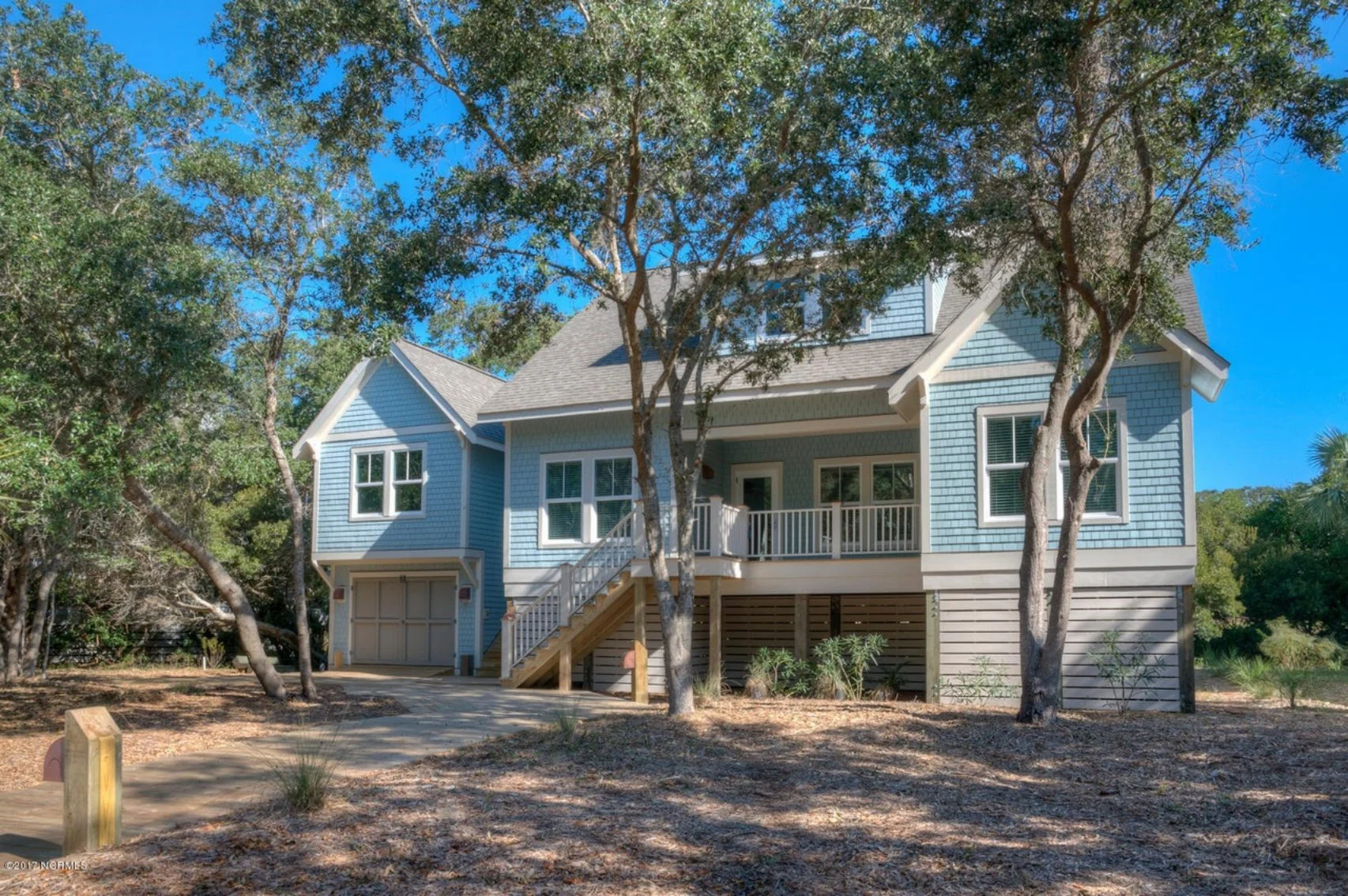

Charming Beach House Plan with 2 Floors & Detached Garage
Explore this coastal-inspired 2, 363 sq. ft. beach house design with 4 bedrooms, 2 stories, open layout, CAD blueprints, and a separate garage with living space.
This beach-style house plan offers a perfect mix of functionality and breezy charm. Designed for relaxed coastal living, it features an efficient layout and elegant design details throughout.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 363 sq. ft. spread across two thoughtfully planned stories.
- Unheated extras: Covered porches, a detached cart garage with upper-level living space, attic area, and storage zones.
Bedrooms & Bathrooms

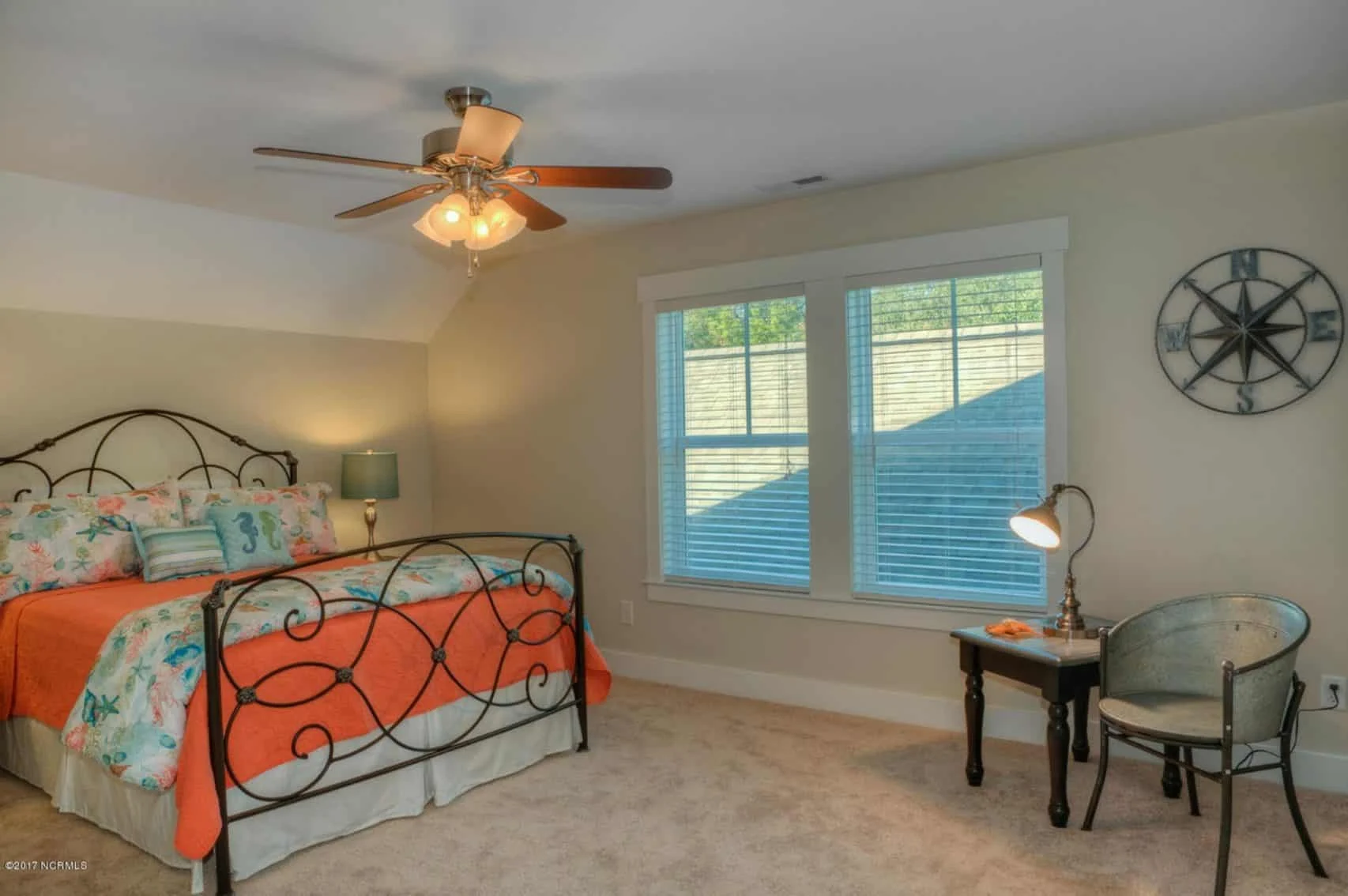

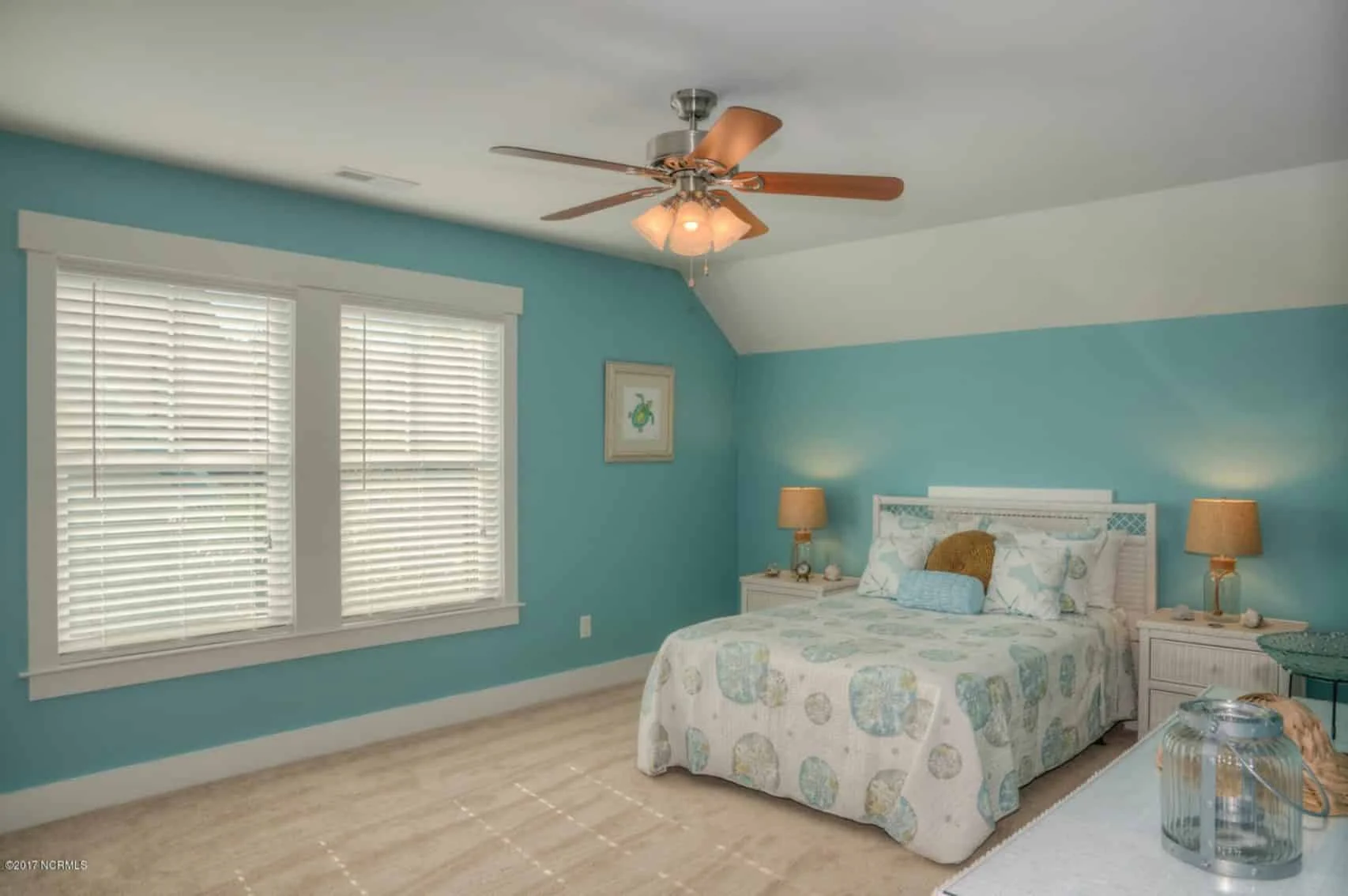

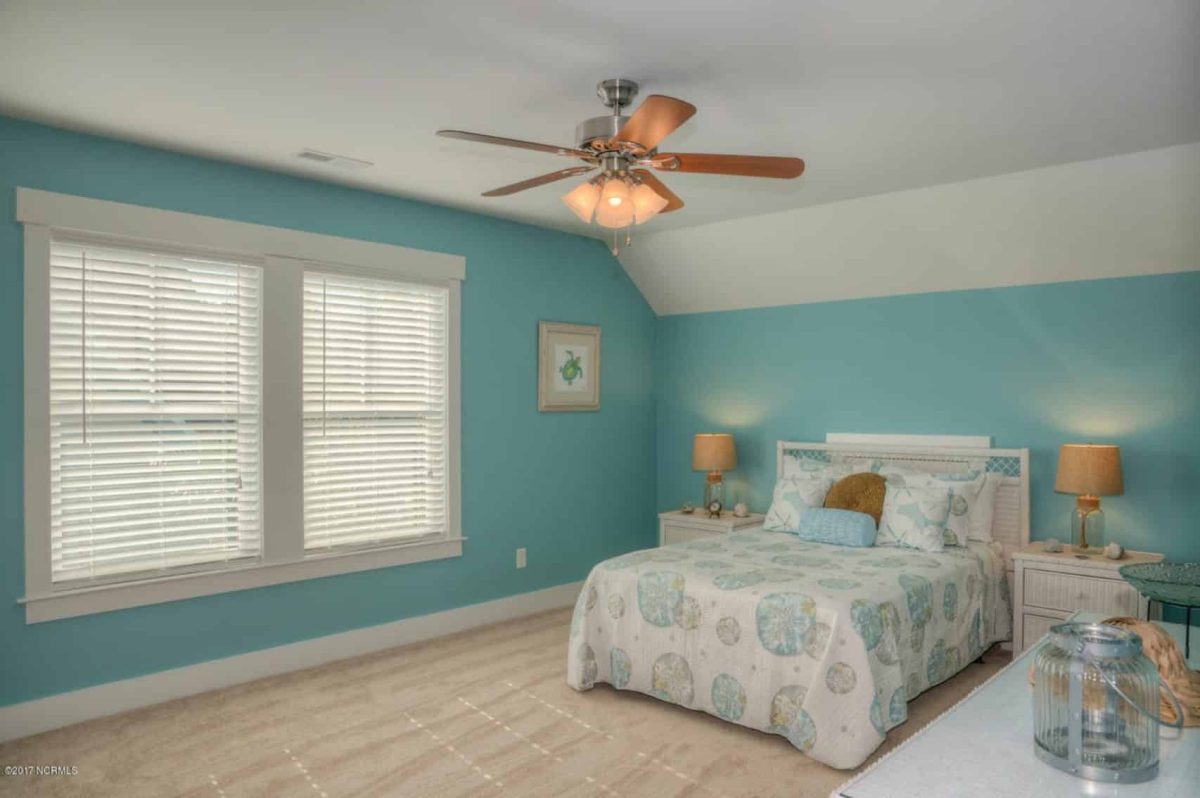

- 4 spacious bedrooms, including a comfortable Owner Suite with a large walk-in closet.

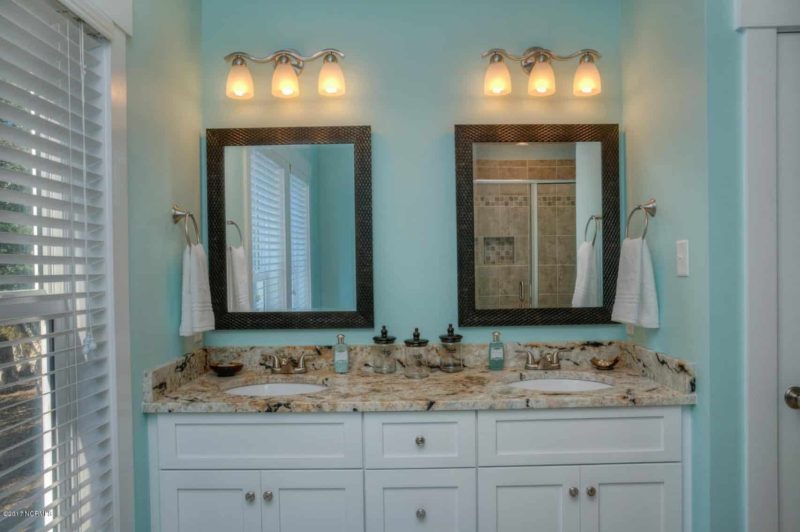

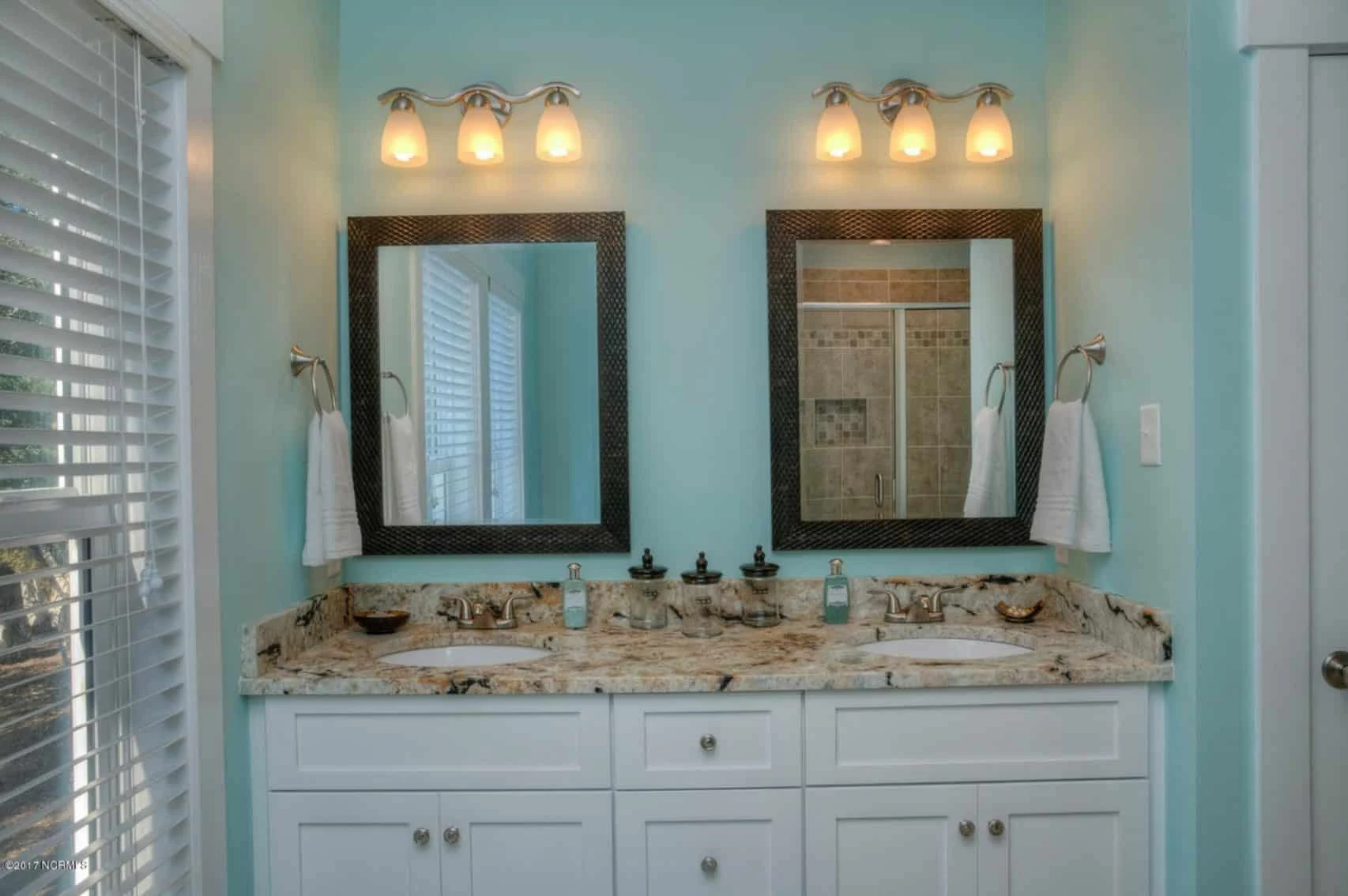

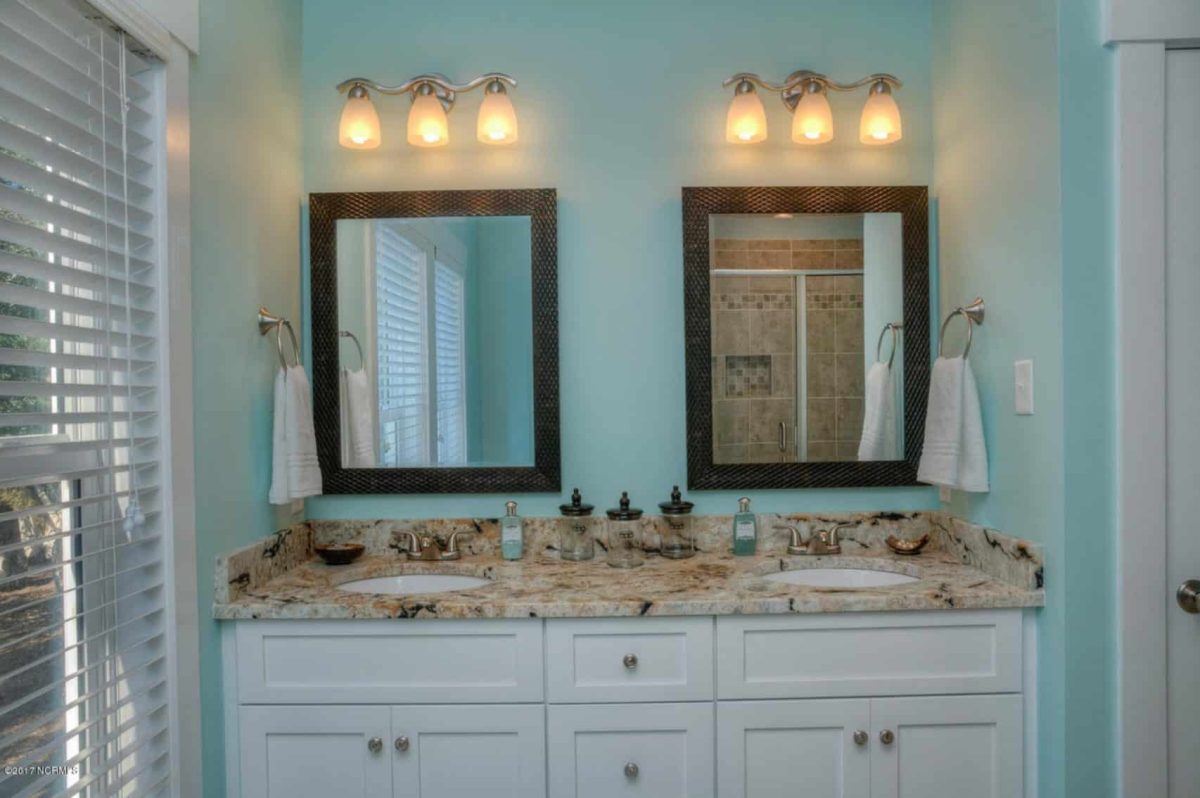

- 4.5 well-placed bathrooms, including a Jack and Jill bathroom for secondary bedrooms.
Interior Highlights

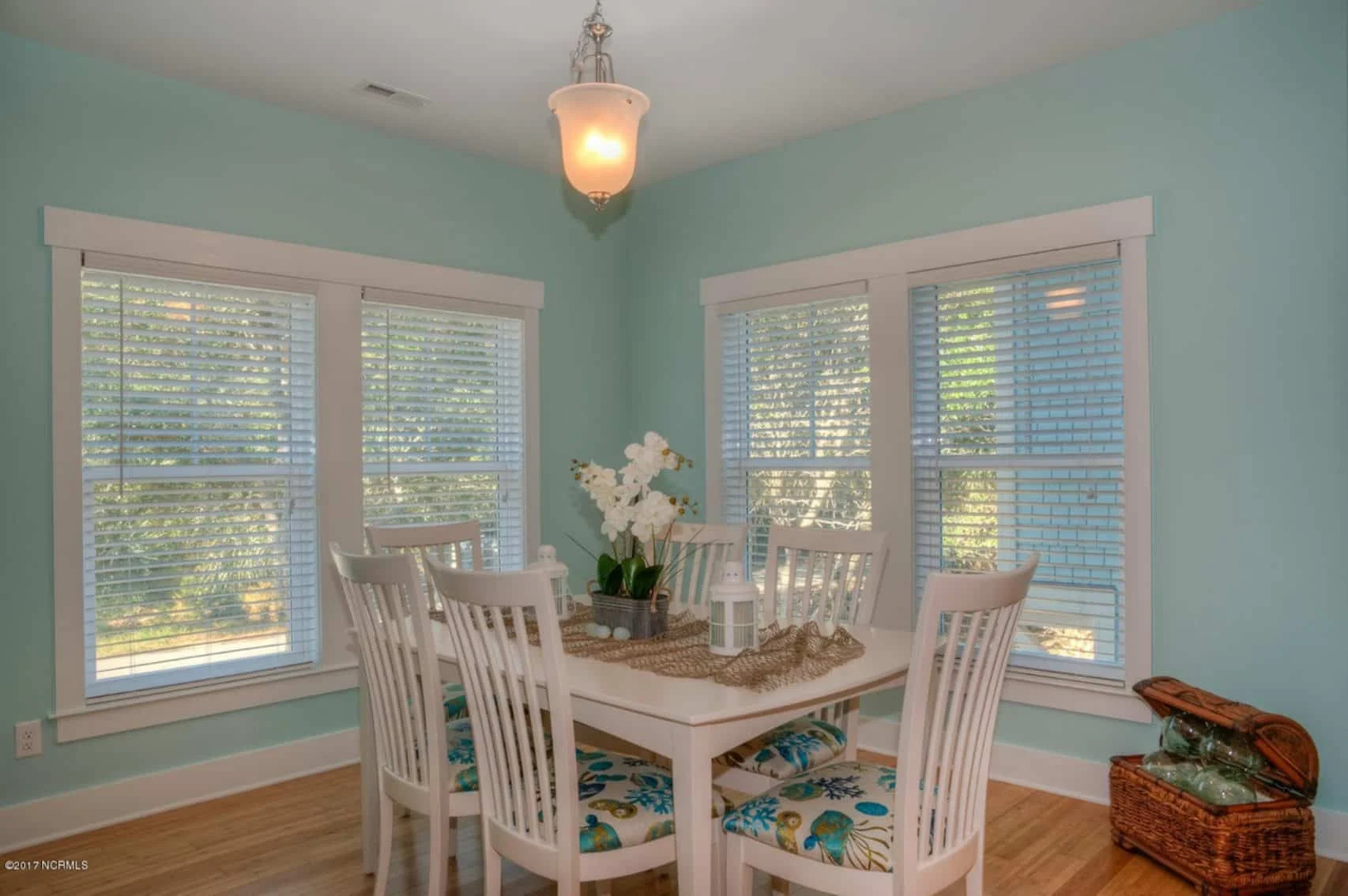

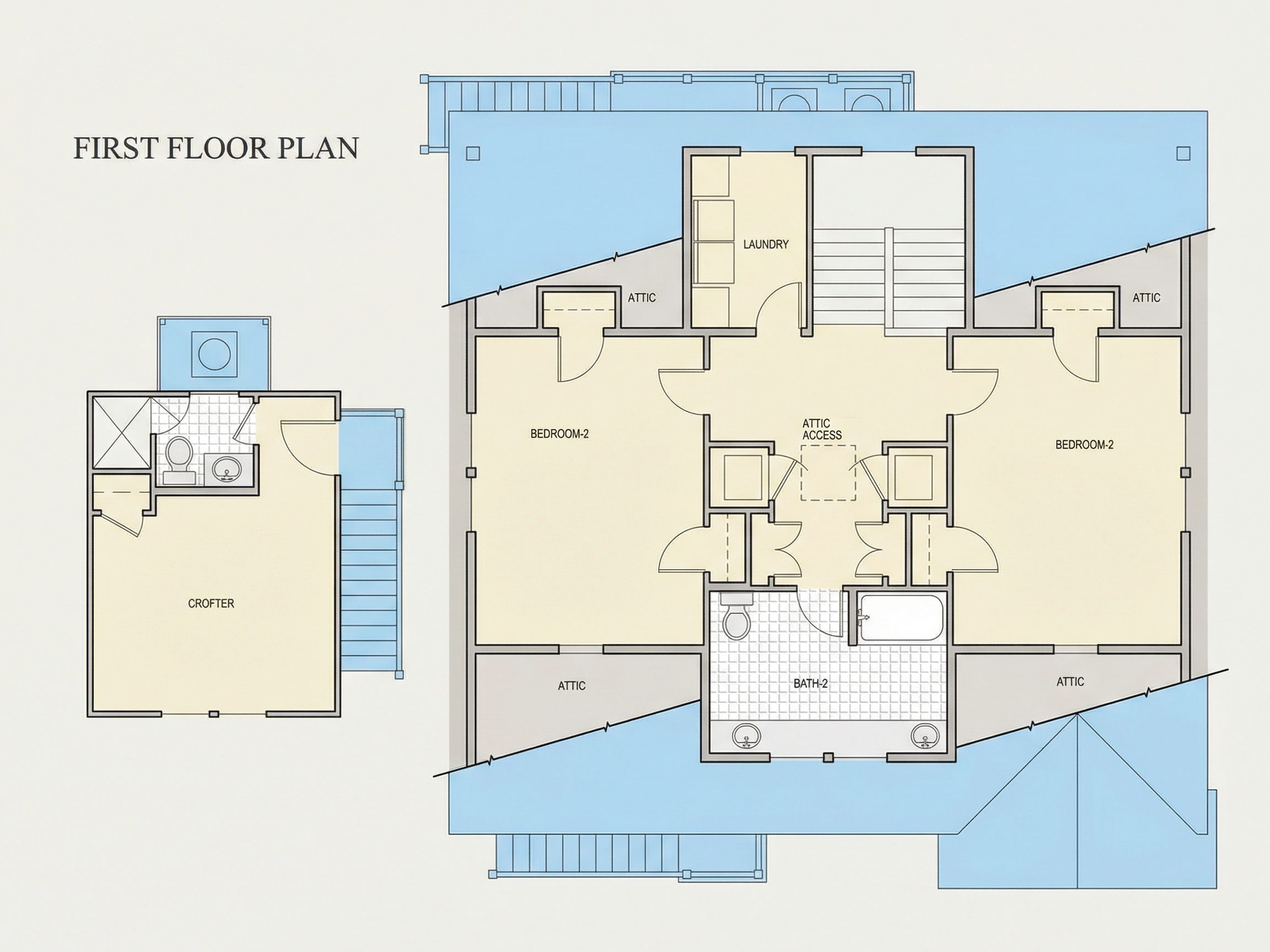

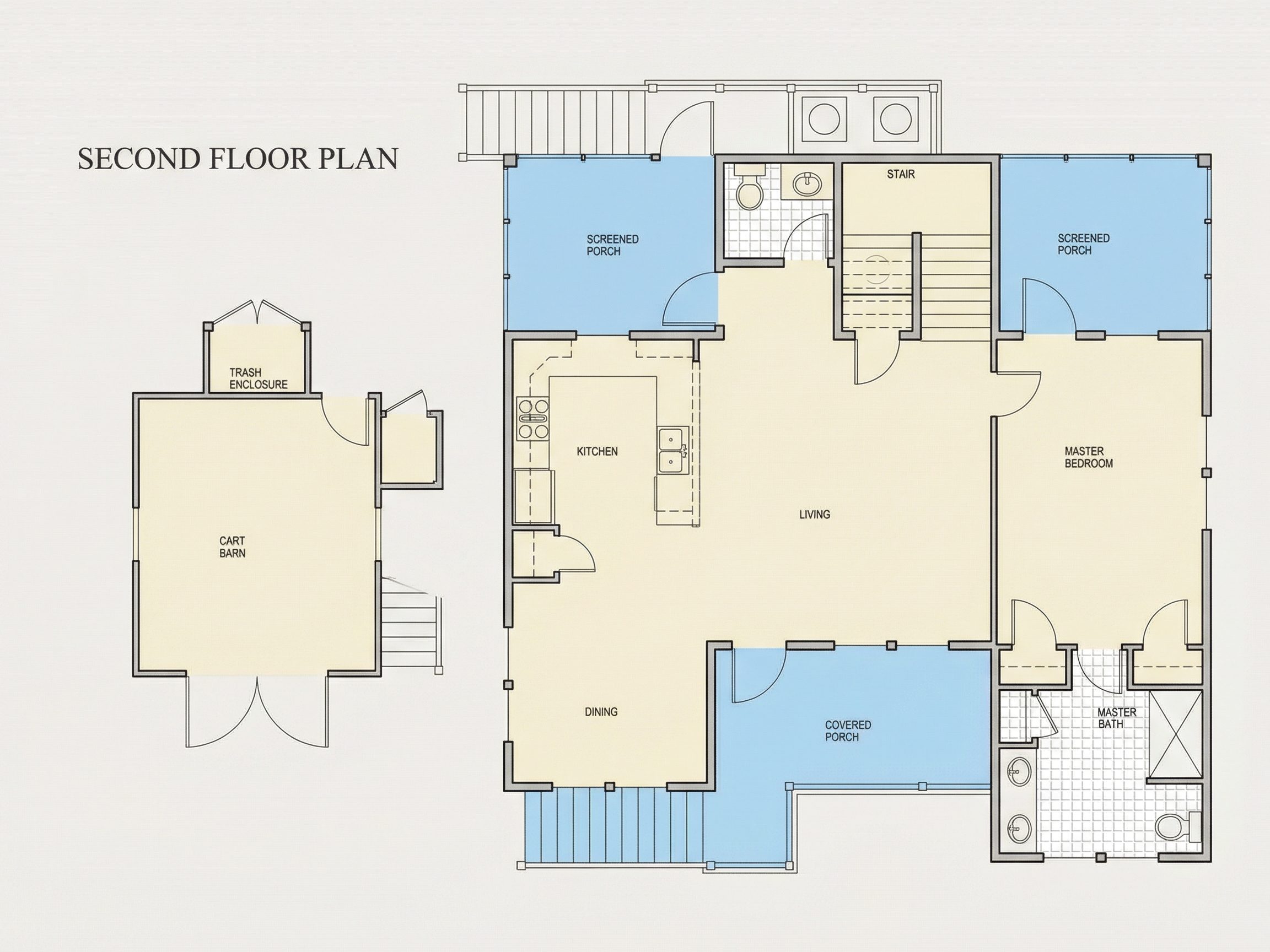

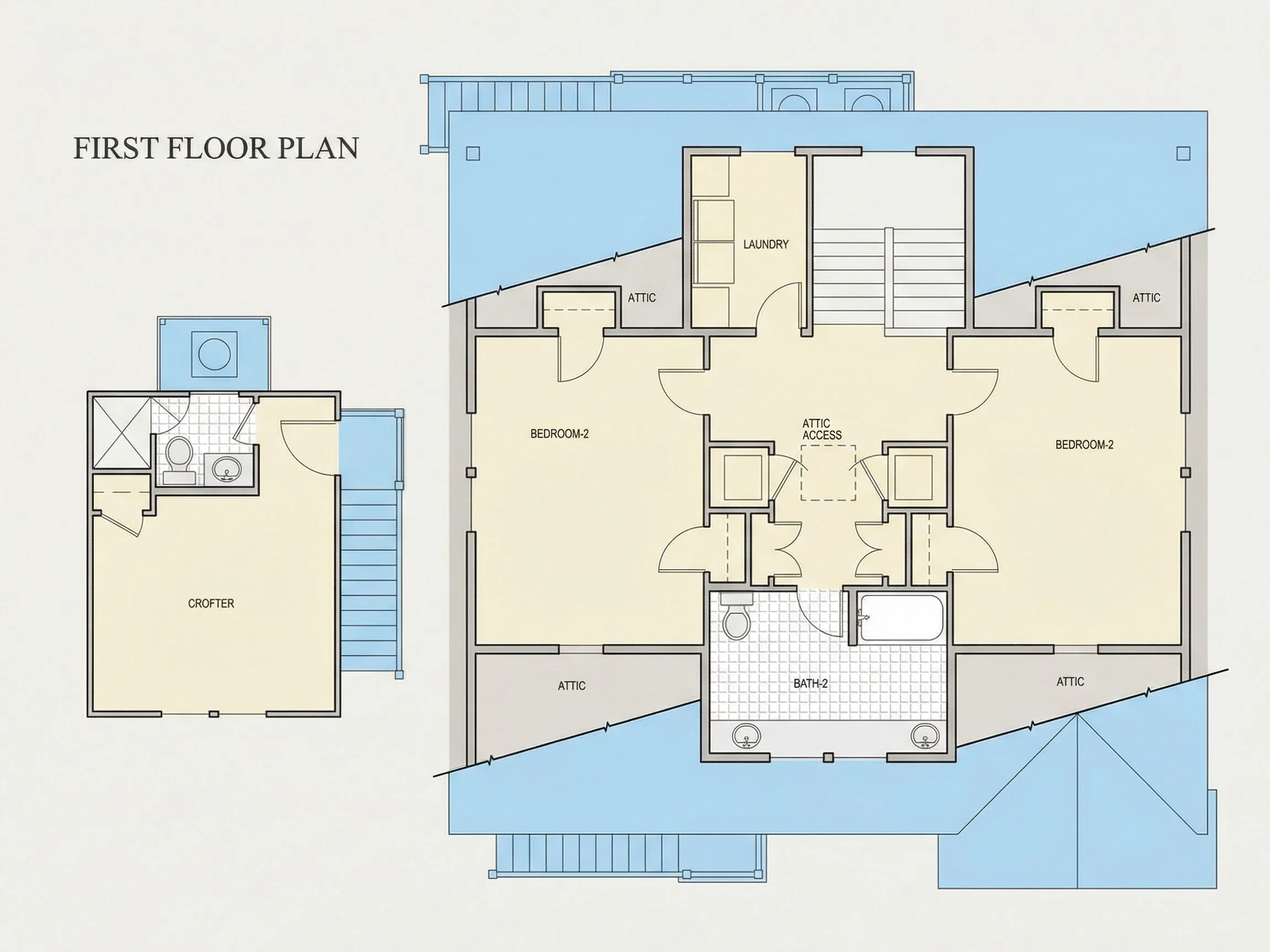

- Open floor plan connects kitchen, dining, and living areas seamlessly. See more open layouts.
- 9ft+ ceilings enhance light and openness.

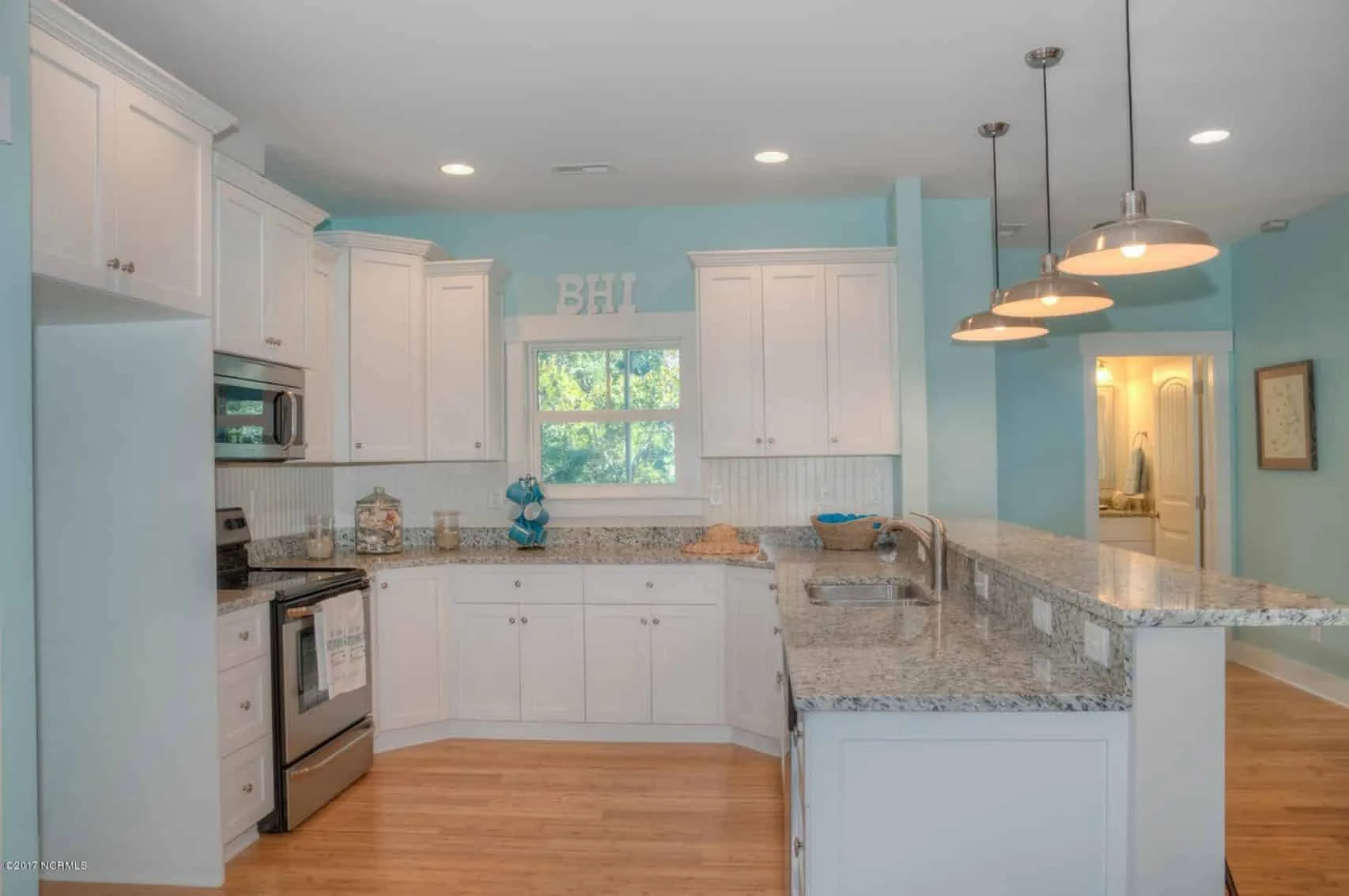

- Kitchen island and walk-in pantry perfect for family meals and entertaining.
- Dedicated laundry room with storage space for day-to-day convenience.
- Attic space for storage or optional finishing.
Garage & Storage Details
- Garage Bays: Detached cart-style garage offering flexible vehicle or utility storage.
- Garage Type: Detached structure with separate upper-level living or guest space.
- Storage: Attic area, walk-in closets in bedrooms, and garage-level storage options.
Outdoor Living Features

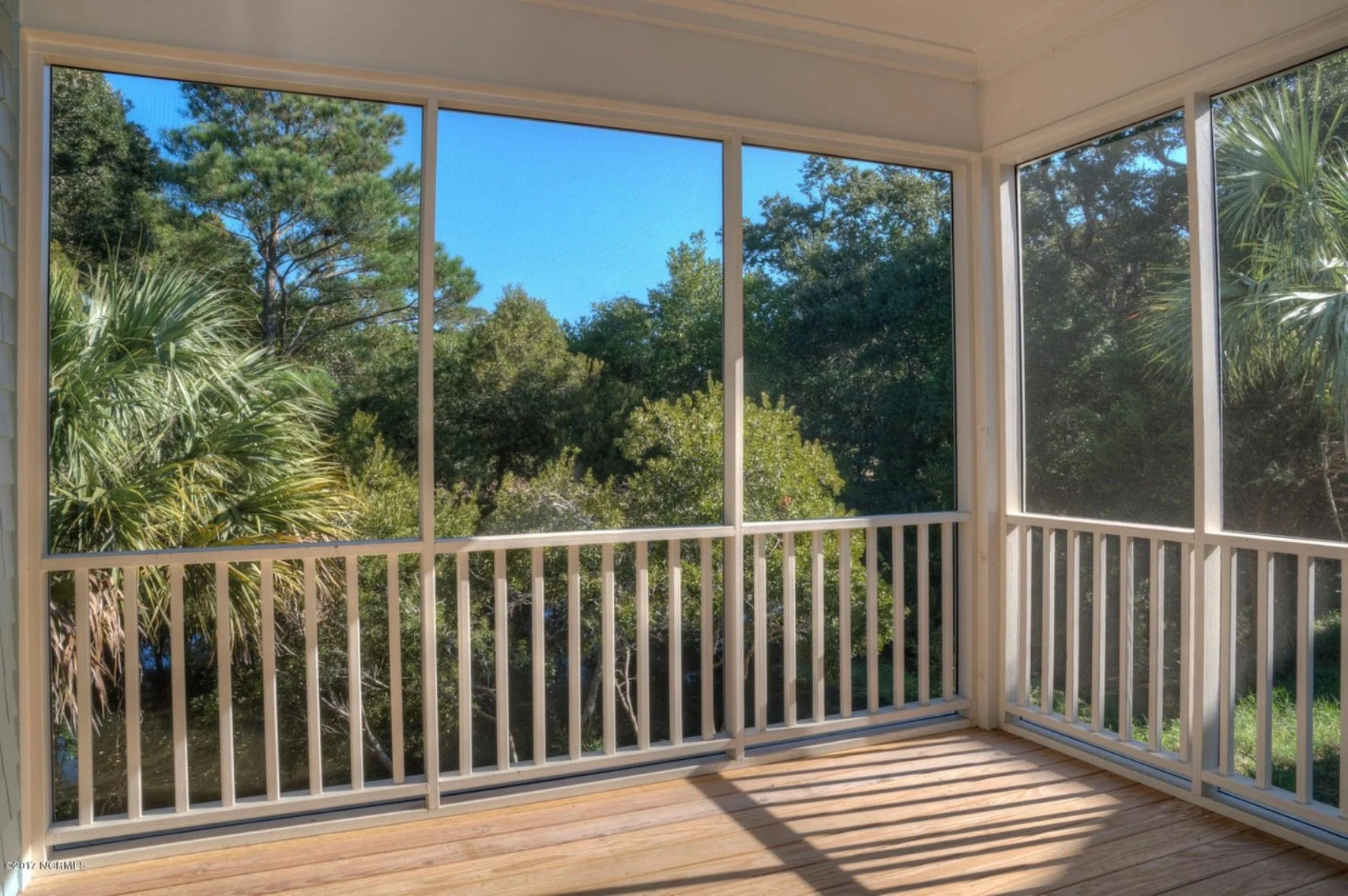

- Screened-in porch, covered front porch, and rear porch ideal for outdoor living and entertaining.

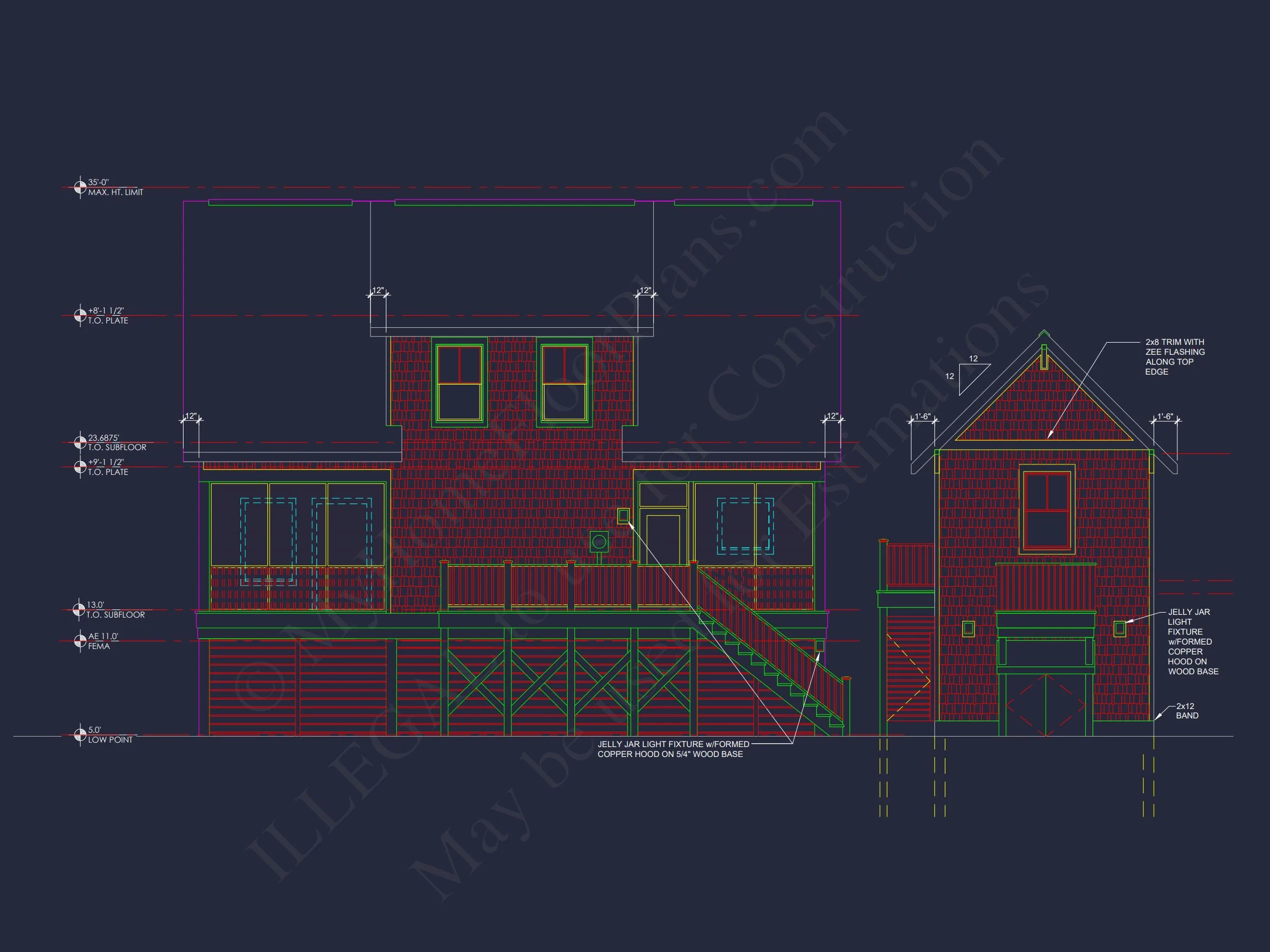

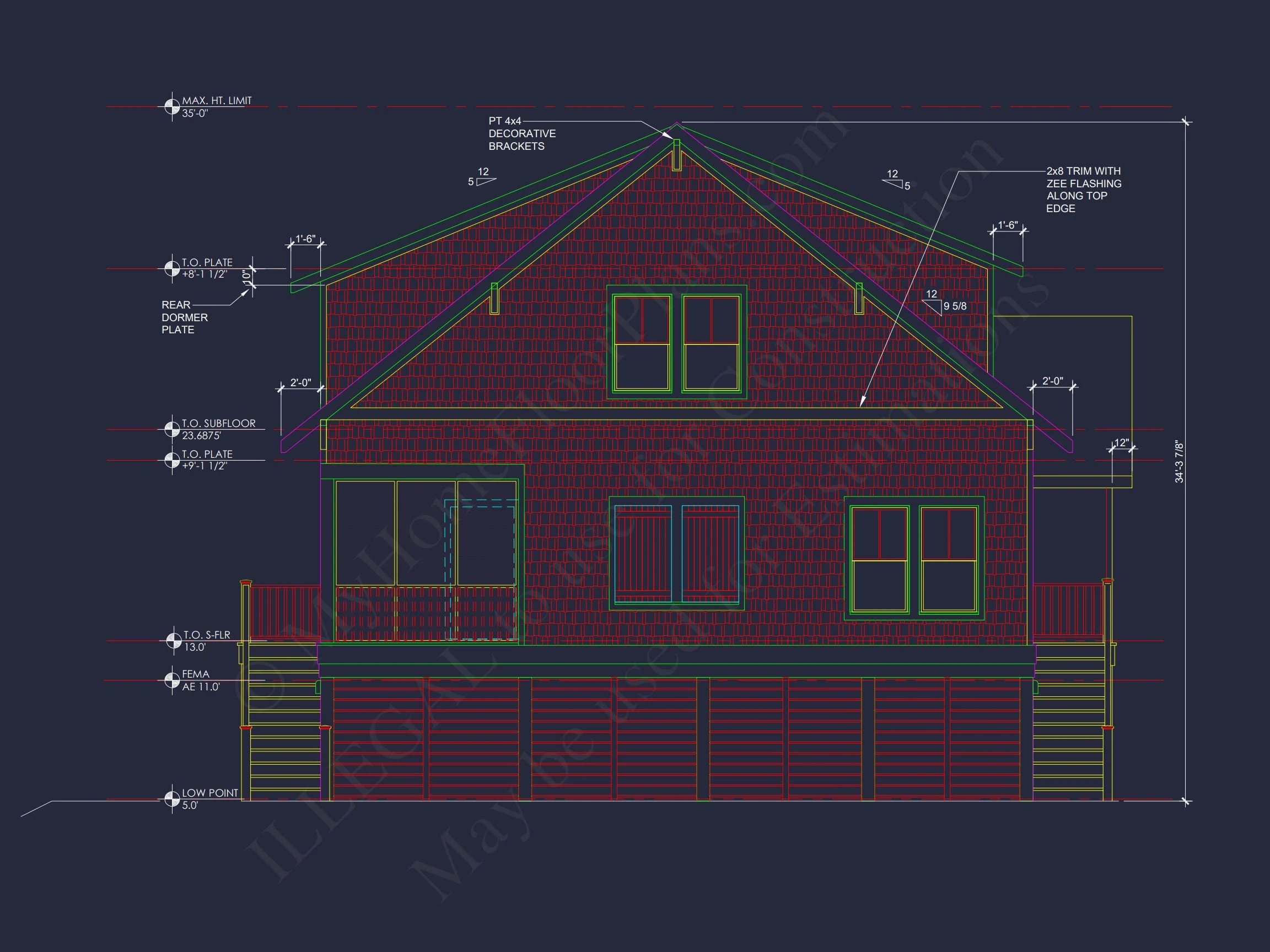

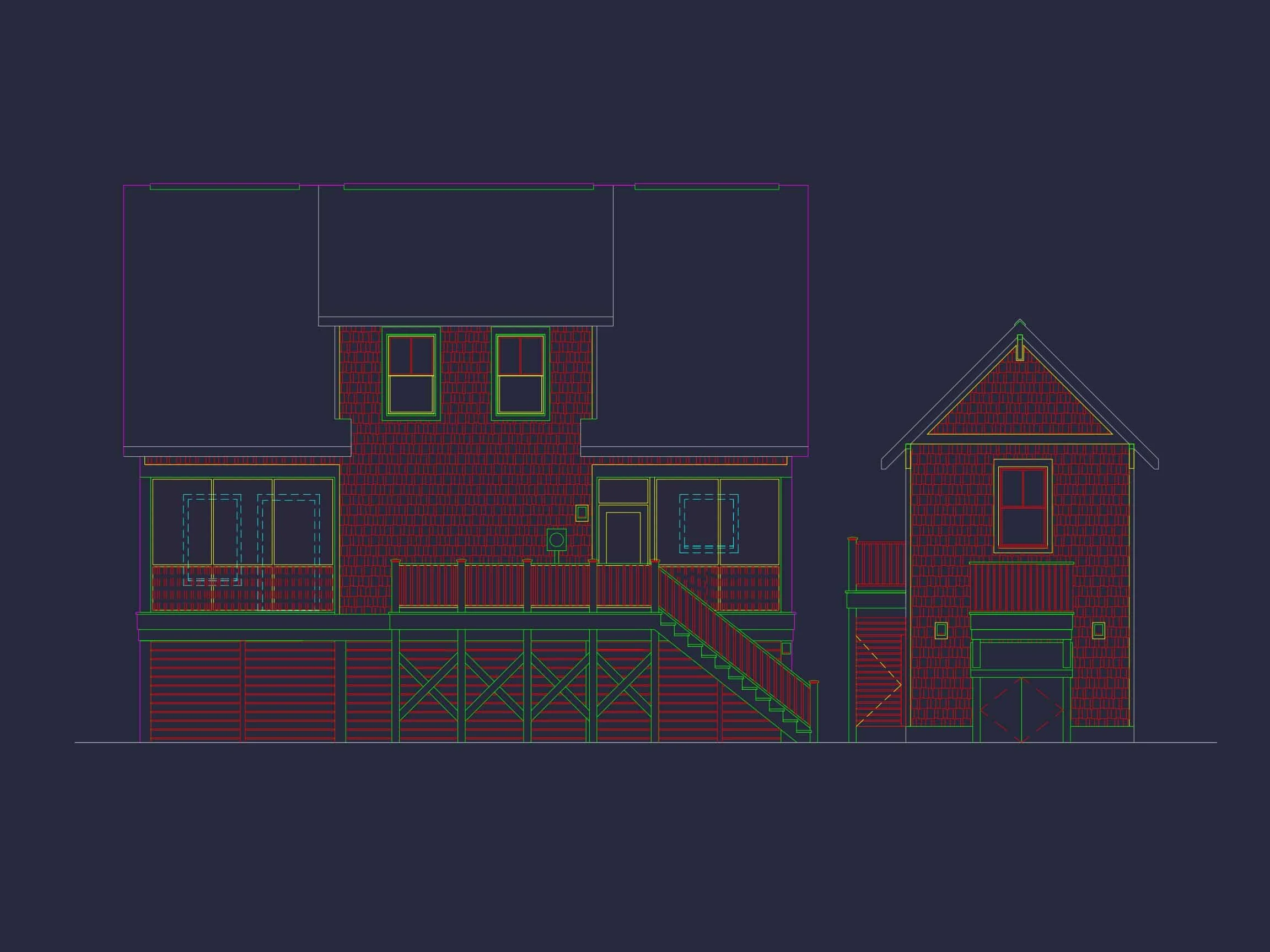

- Exterior materials include siding and shingles, enhancing the coastal aesthetic.
Architectural Style: Coastal Beach House
This design blends classic coastal elements with modern-day livability—ideal for those seeking a beachside or vacation-ready house plan. Learn more about Coastal House Plans or explore the influence of beach architecture on ArchDaily.
Bonus Features
- Jack and Jill bathroom enhances privacy and convenience for shared bedrooms.

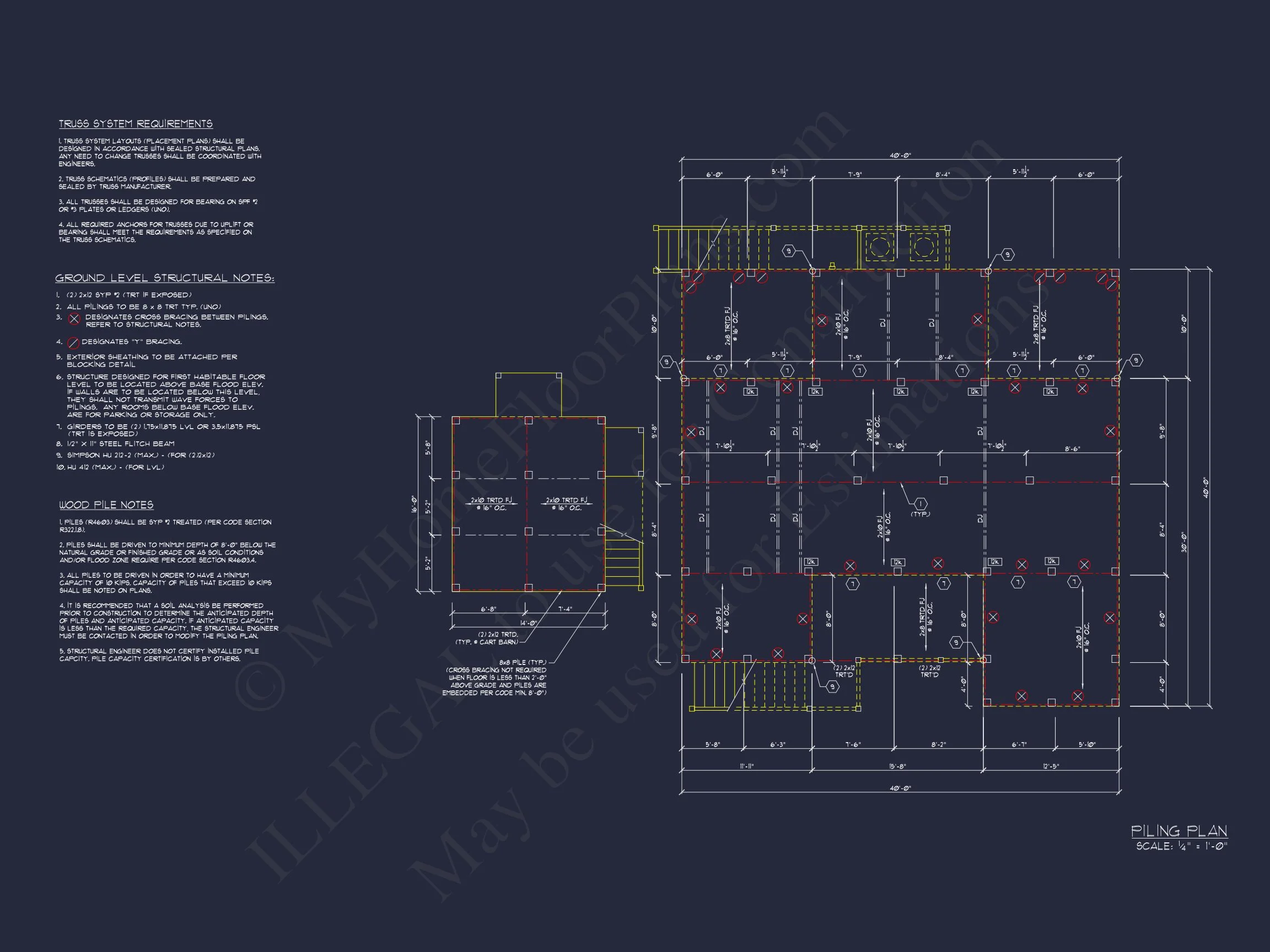

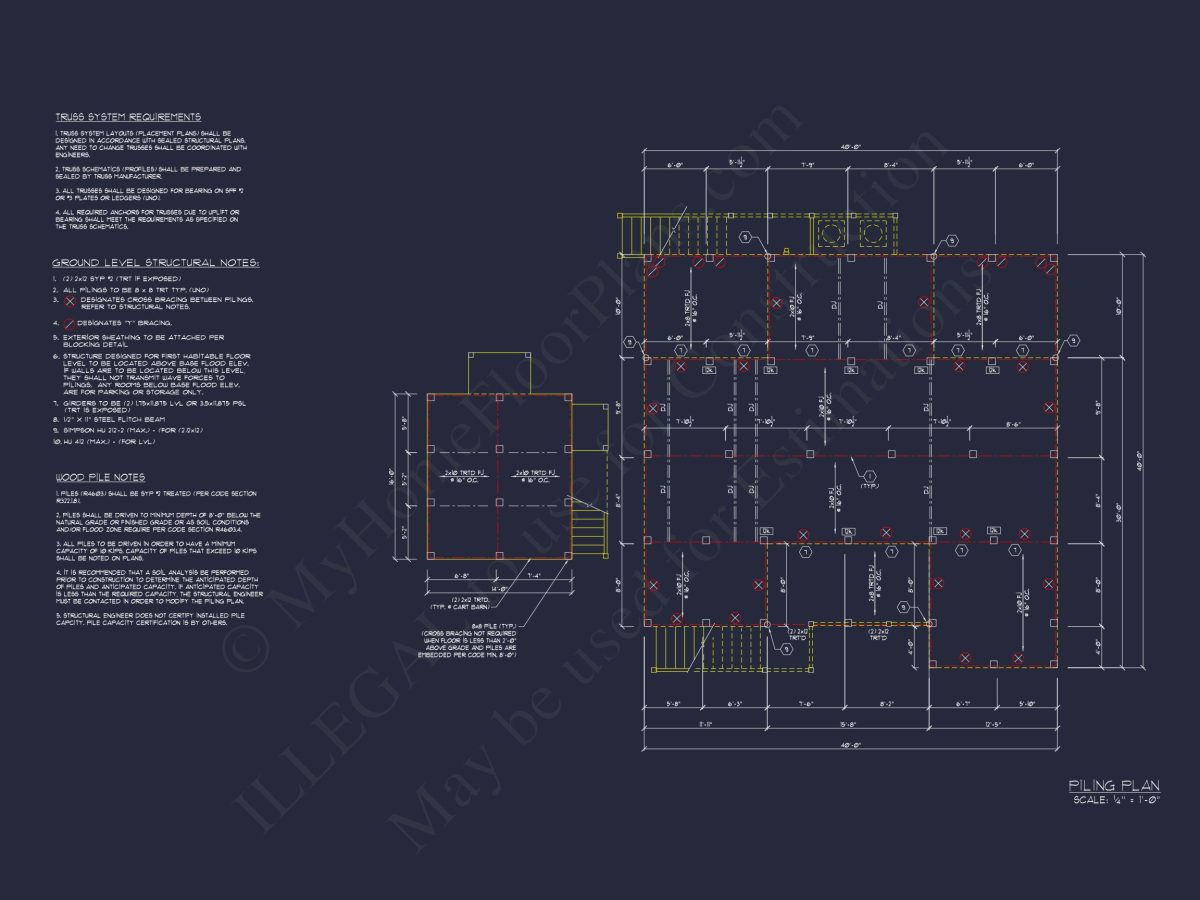

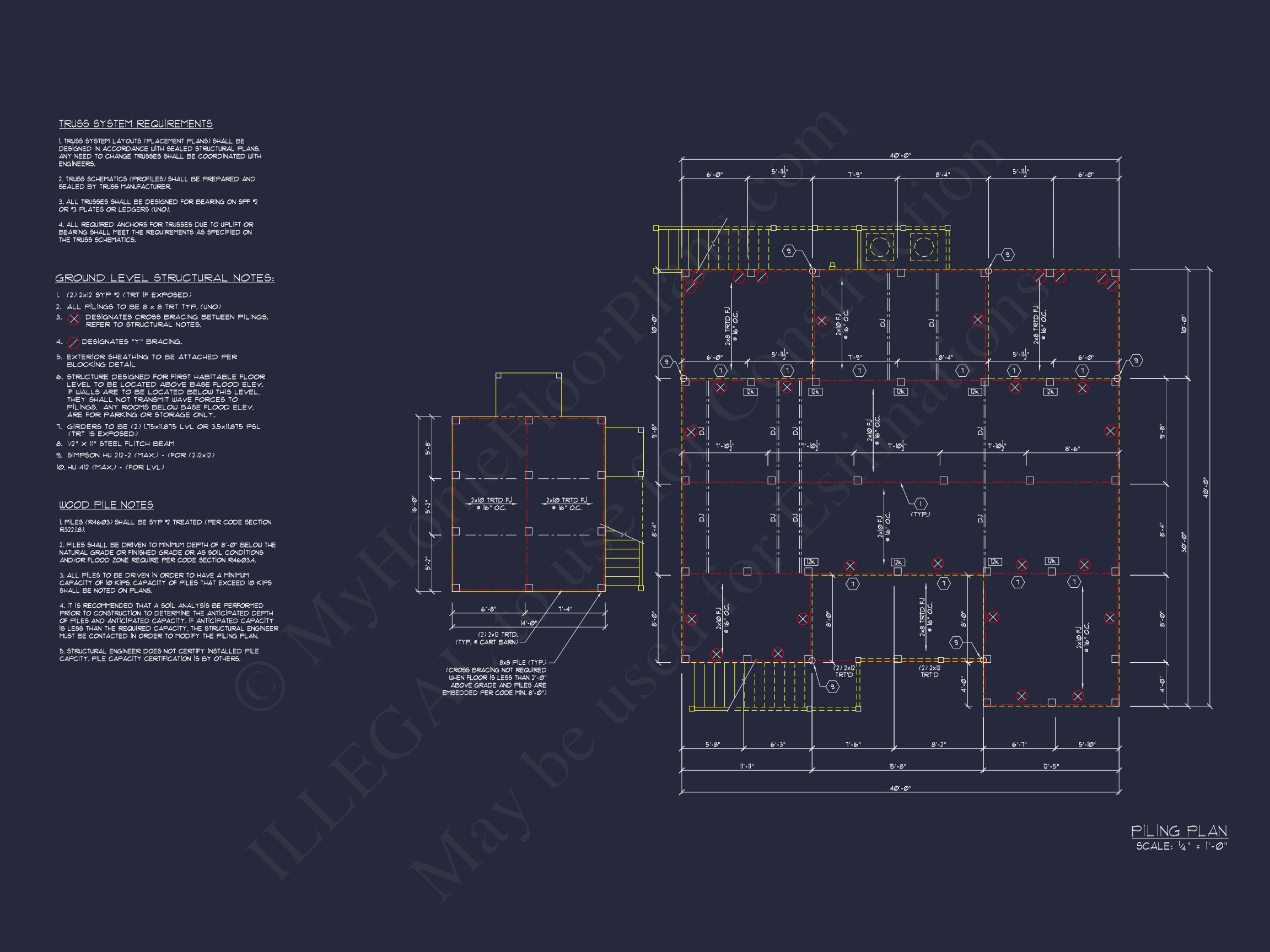

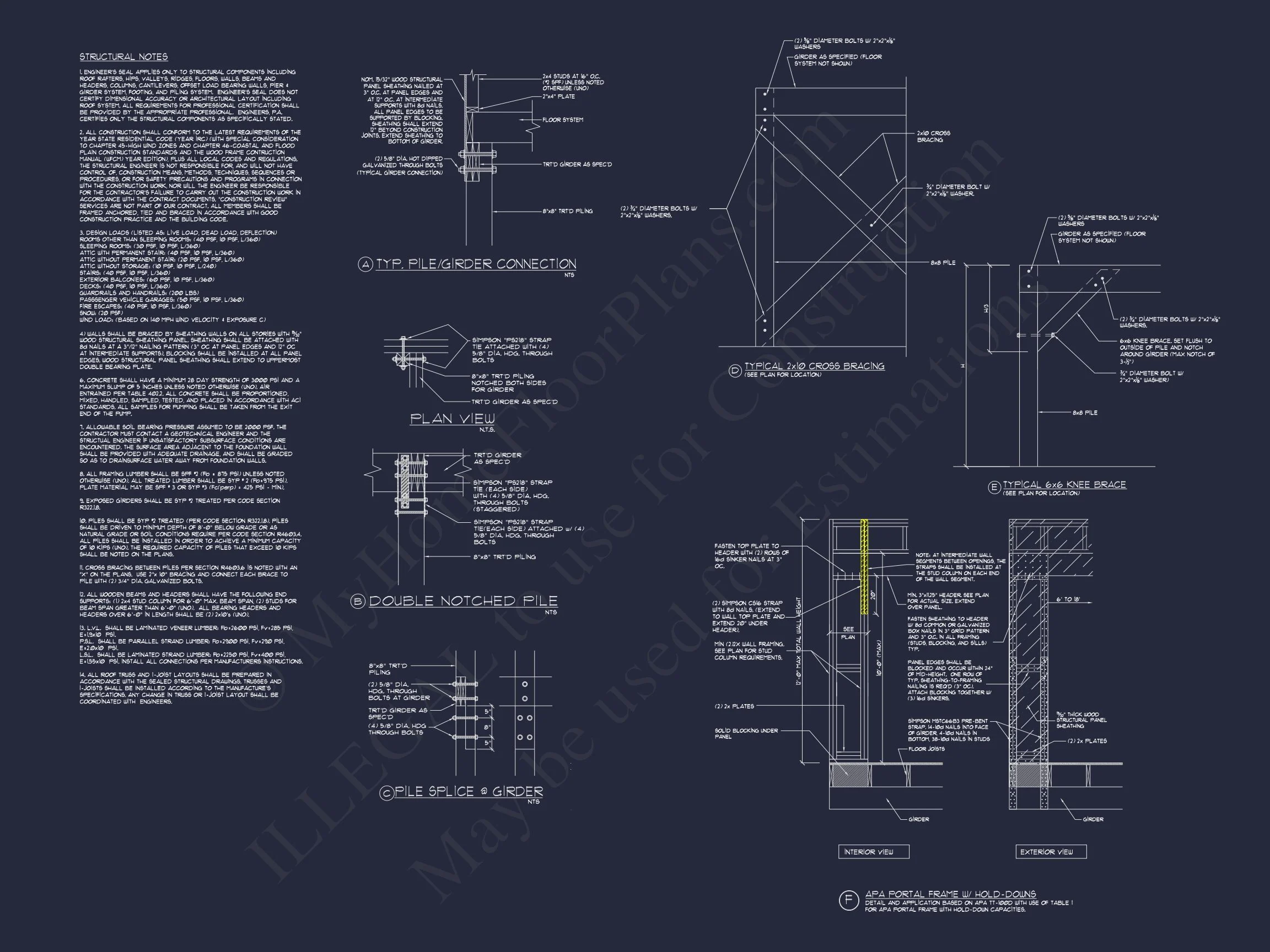

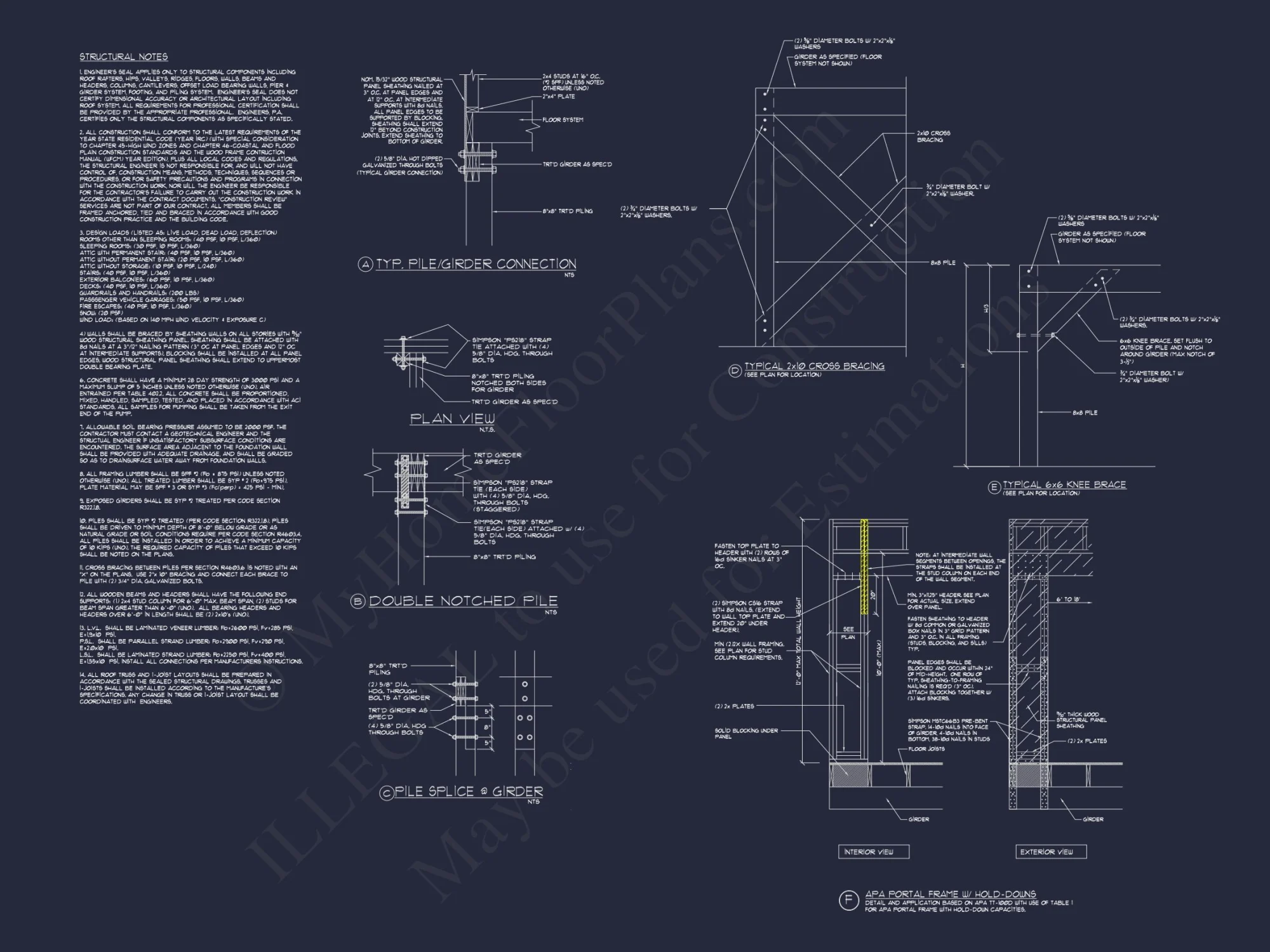

- Pile foundation—perfect for beach, flood-prone, or sloping lots.
- Detached garage with upper living space—ideal for guests or rental flexibility.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable, printable, and ready to submit for permits.
- Unlimited Build License: Build once—or as many times as needed—with no extra charge.
- Free Foundation Changes: Easily switch to slab, crawlspace, or basement at no cost. Learn how.
- Structural Engineering Included: Professionally stamped and fully code-compliant.
- Lower Modification Costs: Save up to 50% on custom changes compared to other vendors.
- View Before You Buy: See all sheets in advance and buy with confidence.
Similar Collections You Might Love
- Coastal House Plans
- Plans with Detached Garages
- Plans with Walk-In Closets
- Narrow Lot House Plans
- Plans with Covered Back Porches
Frequently Asked Questions
What’s included with this house plan? You receive CAD files, PDFs, structural engineering, unlimited build rights, and free foundation changes.
Can I make custom changes? Yes. Modifications are quick, affordable, and handled in-house. Request a quote here.
Does this work for a beach or flood-prone lot? Yes! The pile foundation makes it ideal for coastal or sloped terrain.
Is the garage living space included in the square footage? The 2, 363 heated sq. ft. applies to the main home; the garage living space is a bonus.
Can I see what I’m buying before checkout? Absolutely. Preview every page here.
Start Building Your Dream Home Today
Questions or ready to customize your design? Reach out to our friendly team at [email protected] or send us a message.
Your beachside dream house starts with the right plan—make it yours today!
Shortcode is running ✓
Preview: Charming Beach House Plan with 2 Floors & Detached Garage Explore this coastal-inspired 2,363 sq. ft. beach house design with 4 bedrooms, 2 stories, open layout, CAD blueprints, and a separate garage with living space. This beach-style house plan offers a perfect mix of functionality and breez…
Read MoreOriginal price was: $2,014.56.$1,141.59Current price is: $1,141.59.
999 in stock
| Width | 54'-0" |
|---|---|
| Depth | 40'-0" |
| Htd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Fireplace, Laundry Room, Living Room, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

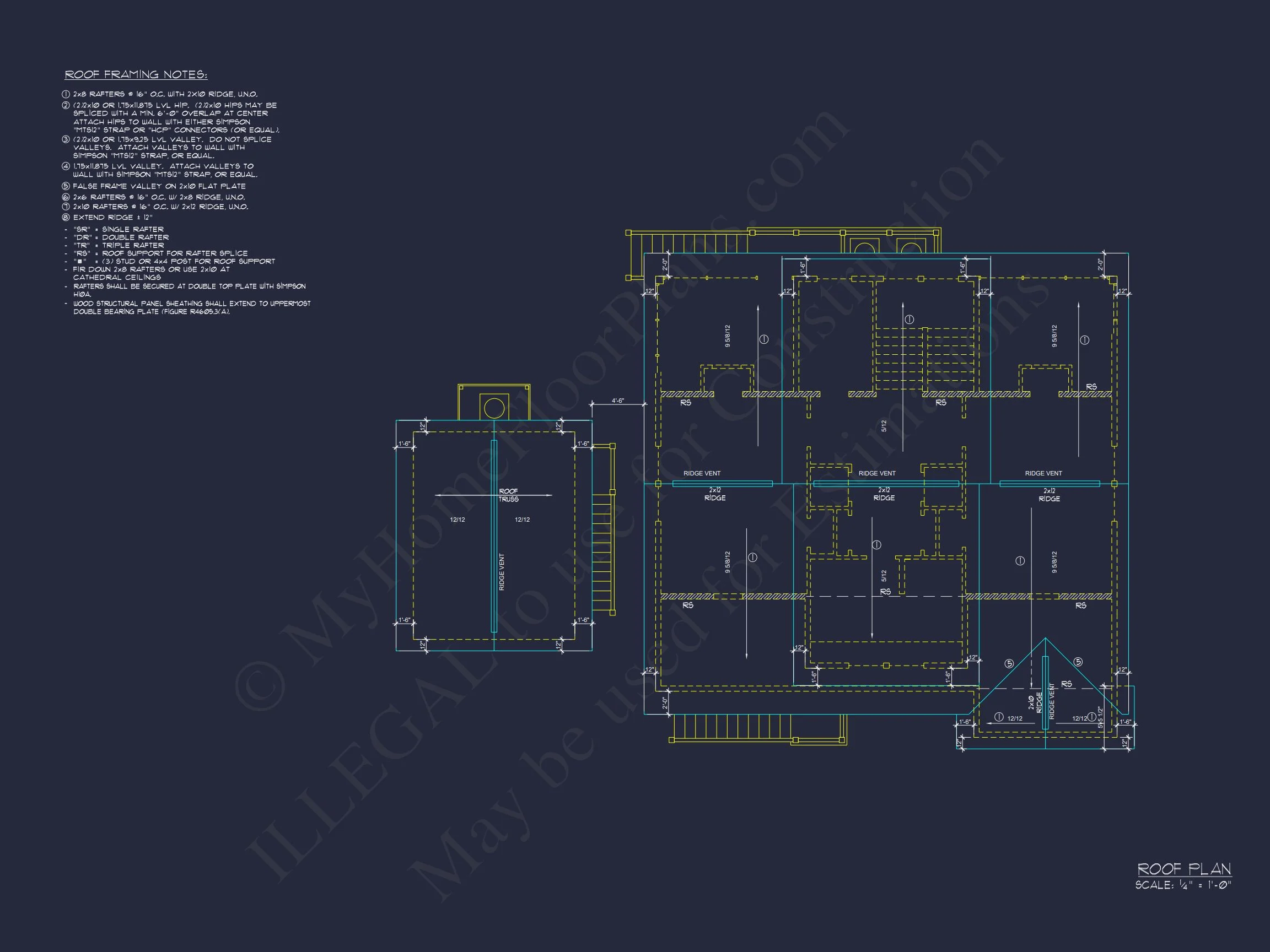

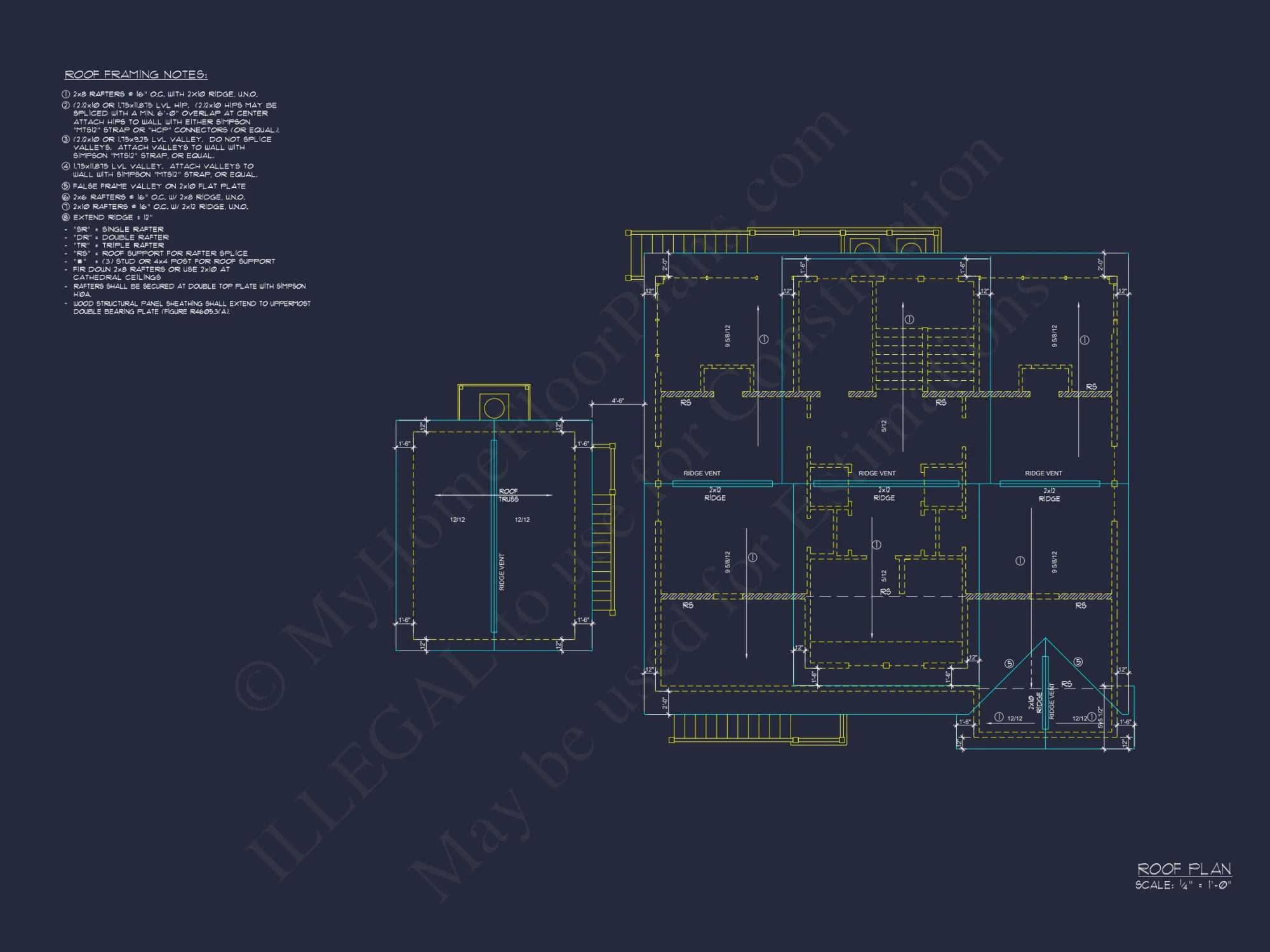

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
15-1602 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
