Craftsman Home Floor Plan with 2-Story Designs and CAD Blueprint
Explore this stunning 2-story Craftsman home plan featuring 4 bedrooms, a spacious great room, an elevator, and a detailed CAD blueprint for designers.
Design Your Dream Home with This Elegant Craftsman Floor Plan
A Perfect Blend of Style and Functionality
Discover a spacious 2-story Craftsman home design with 4 bedrooms and 3.5 bathrooms. This 70’x46’10” home plan offers 3591 square feet of heated space and 2045 square feet of unheated areas, including a side-entry garage and inviting porches. Perfect for families and designers seeking an ideal balance of comfort and functionality, this home is tailored for modern living.
Key Indoor Features
* Spacious Great Room: Ideal for family gatherings and entertaining guests.
* Elevator: Provides ease of access to all floors, perfect for aging in place.
* Open Floor Plan: Encourages natural flow and connectivity between spaces.
* Mudroom and Bonus Room: Practical spaces for storage and recreational use.
* Owner Bedroom on the First Floor: Complete with a walk-in closet for convenience.
Outdoor Features You’ll Love
This home plan includes covered front and rear porches, perfect for enjoying the outdoors in style. The wrap-around porch adds a touch of classic charm, enhancing the aesthetic appeal of this Coastal Craftsman design.
Why Choose This Plan?
Constructed with board and batten siding and shingles, this home boasts durability and style. The pile stem wall foundation ensures stability, making it suitable for various lot types, including narrow or sloped lots. Additionally, high ceilings and custom kitchen features like a butler’s pantry and breakfast nook elevate this home’s charm.
Benefits Included with Every Plan
Every purchase includes PDF and CAD files with an unlimited-build license and free foundation adjustments. You’ll also receive structural engineering certification and the option to view all plan sheets before purchase. Custom modifications are available at competitive rates.
Ready to design your dream home? Contact us today at support@https://myhomefloorplans.com and let’s bring your vision to life!
All home plans include BOTH the CAD file and PDF file.

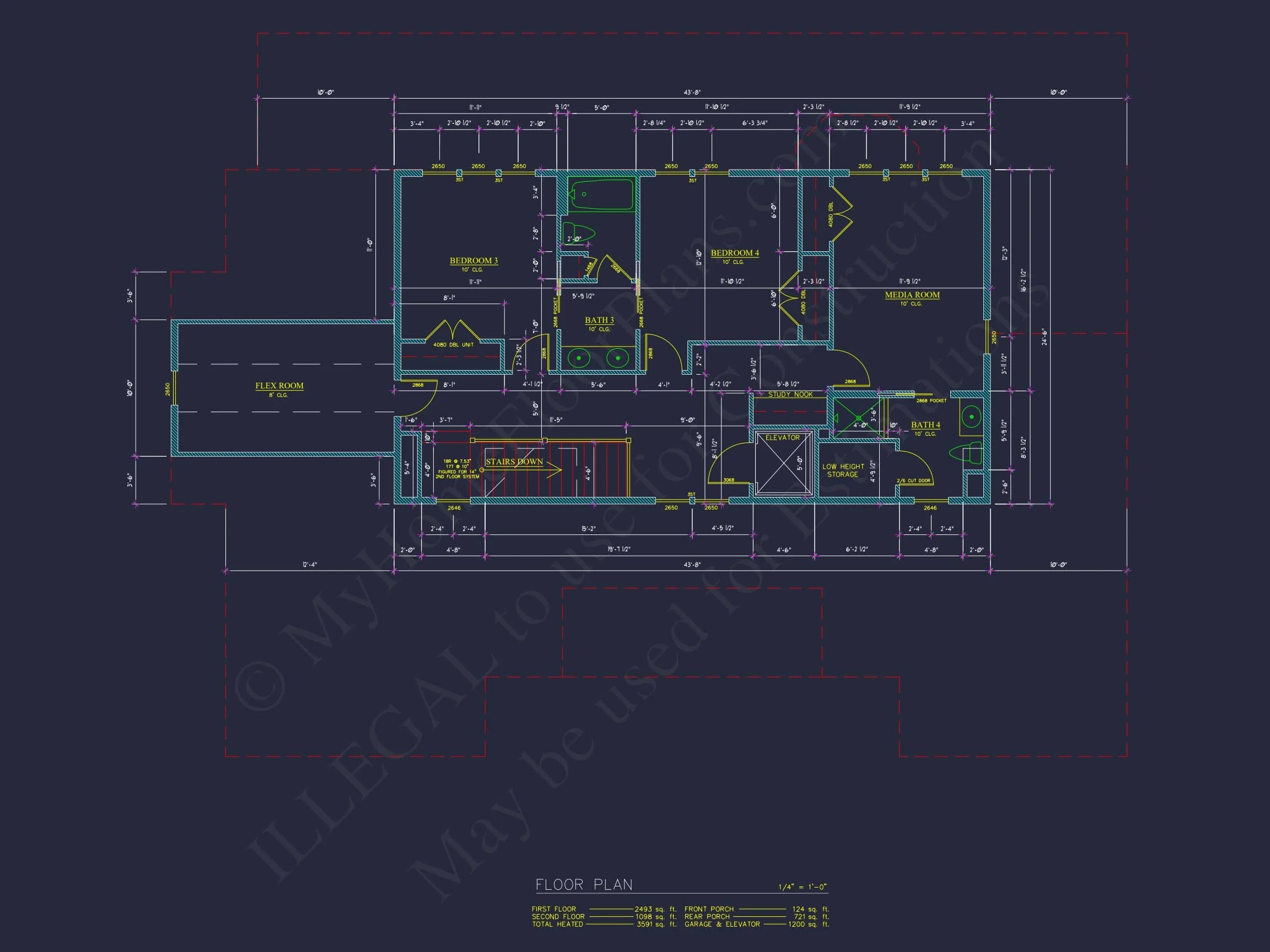

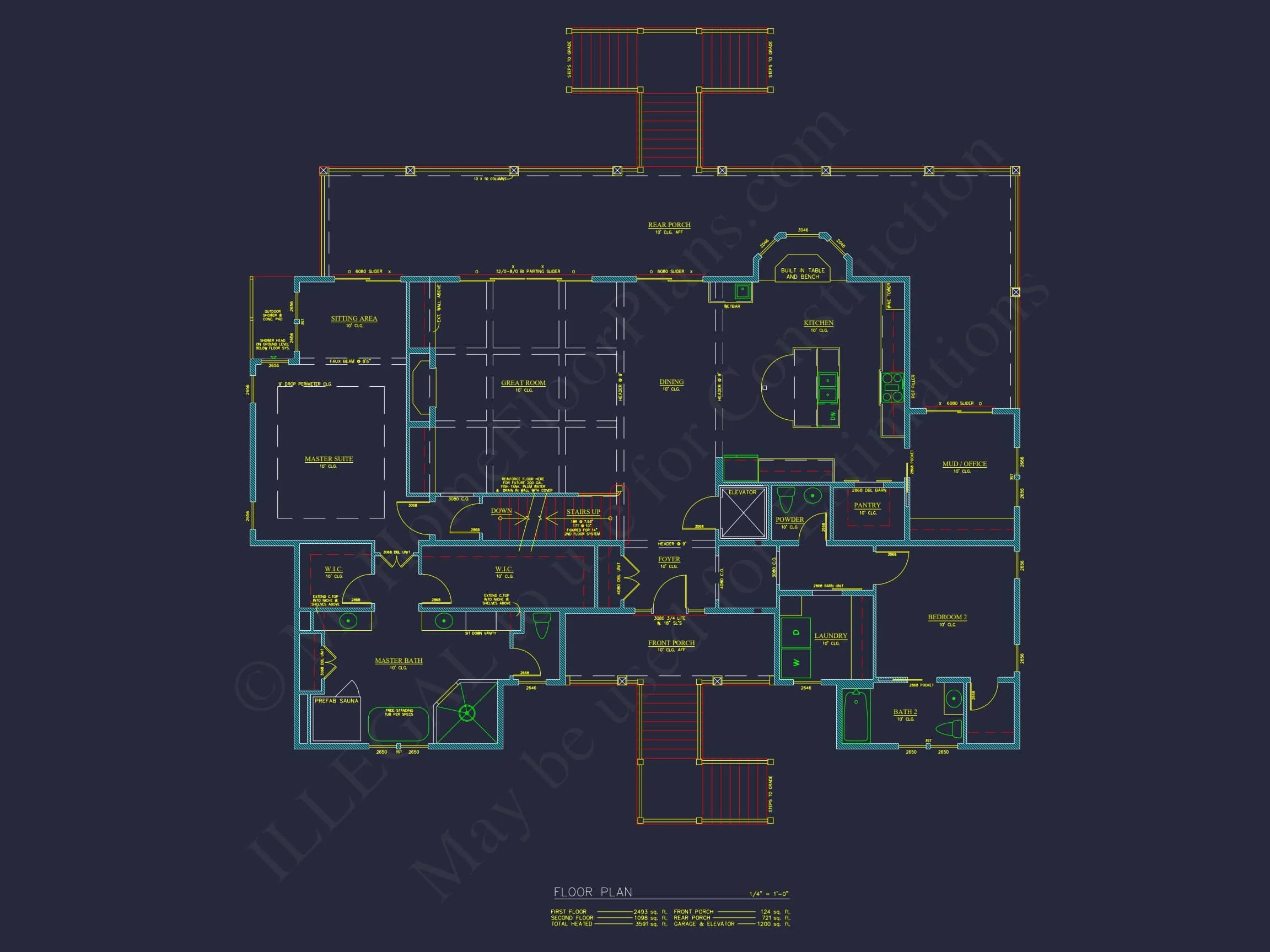

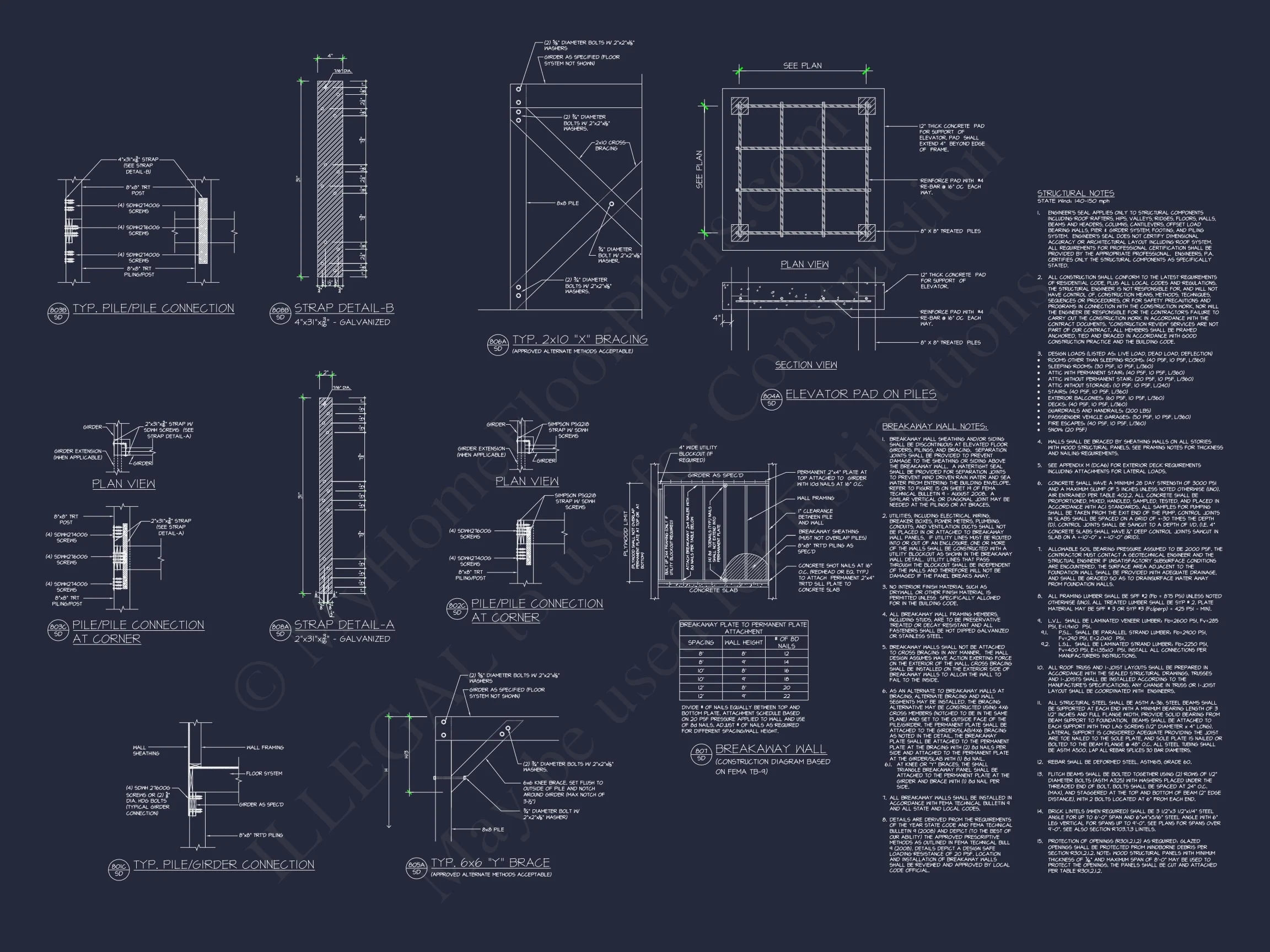

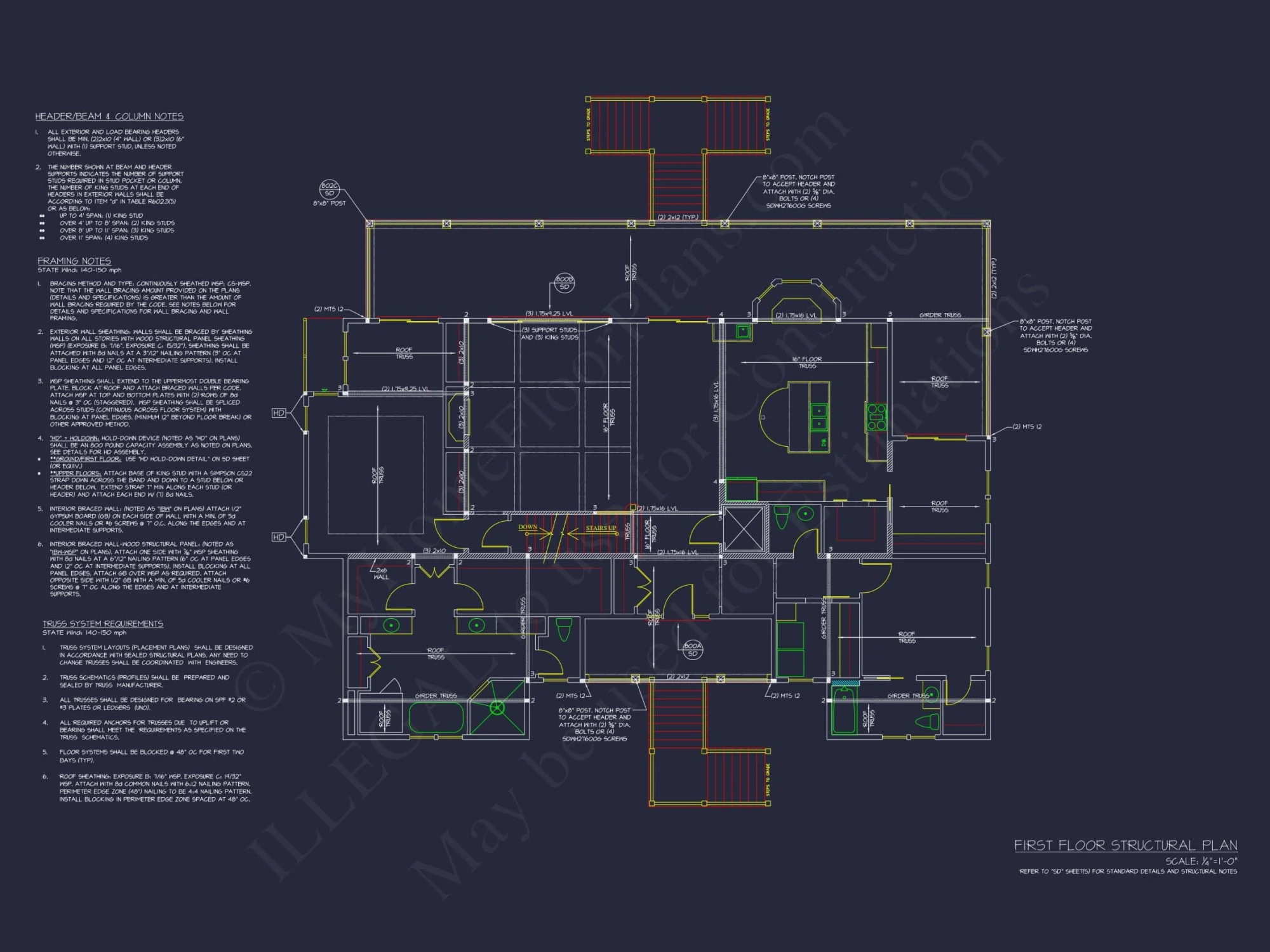

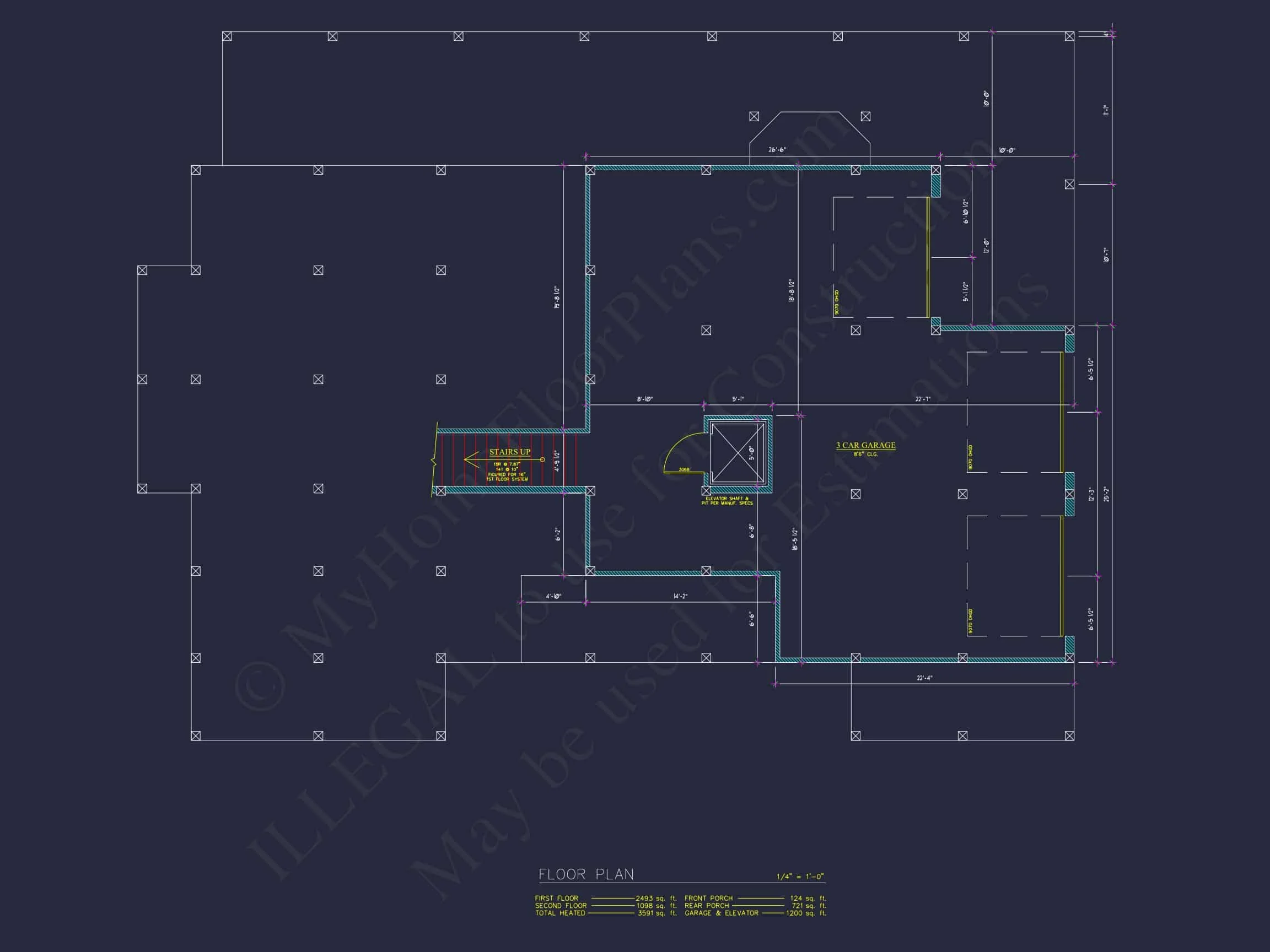

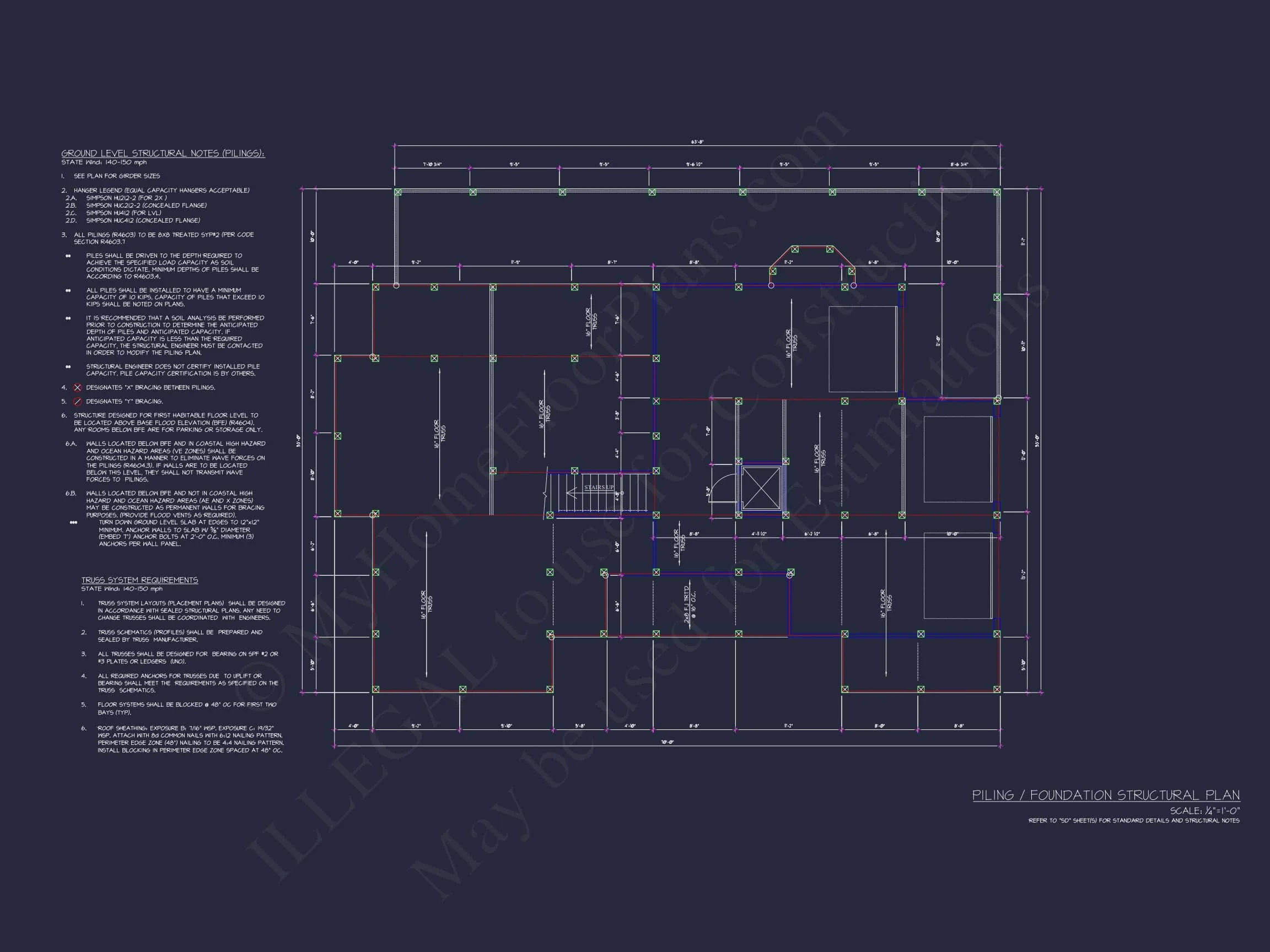

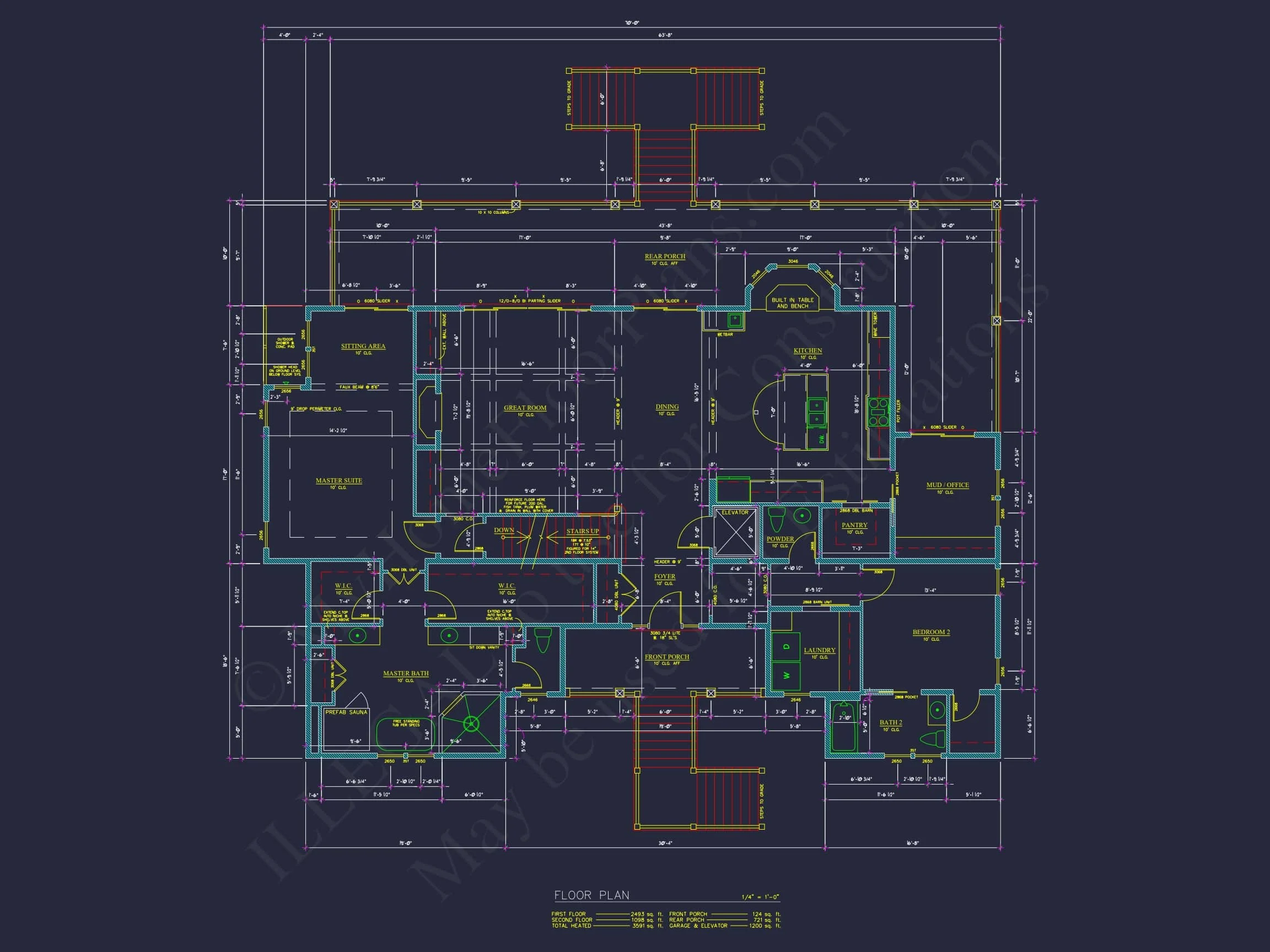

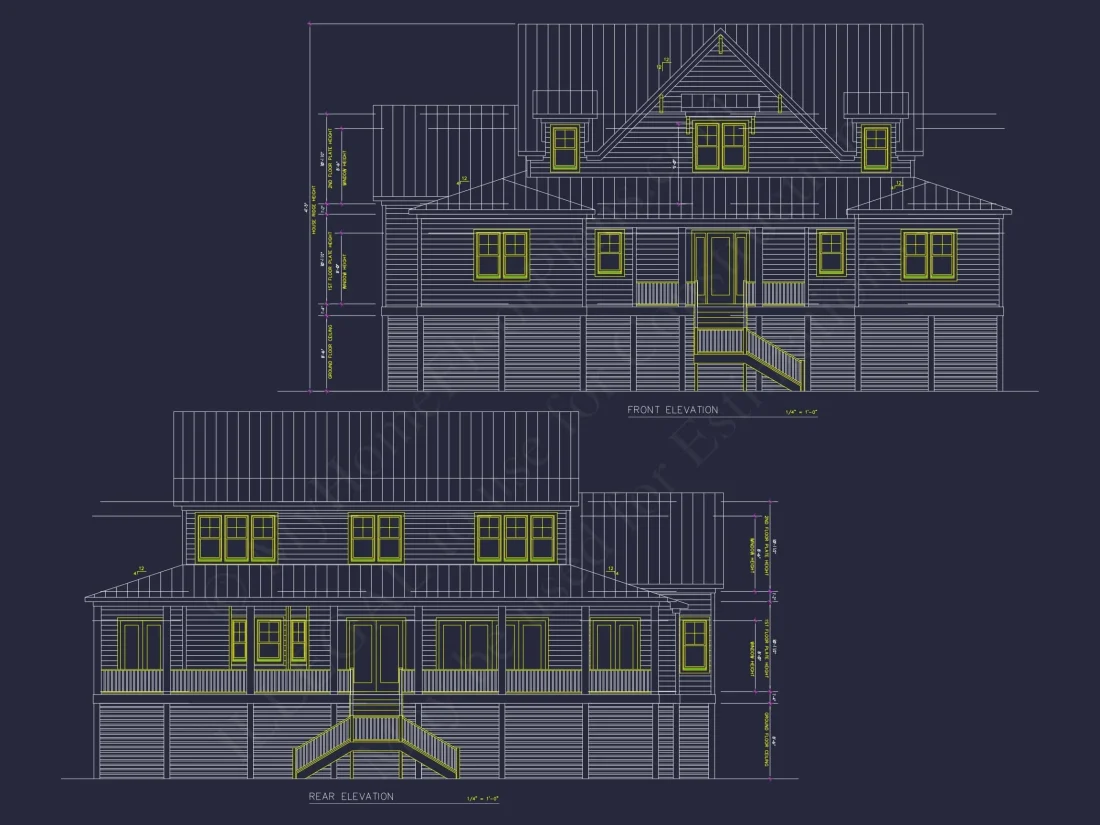

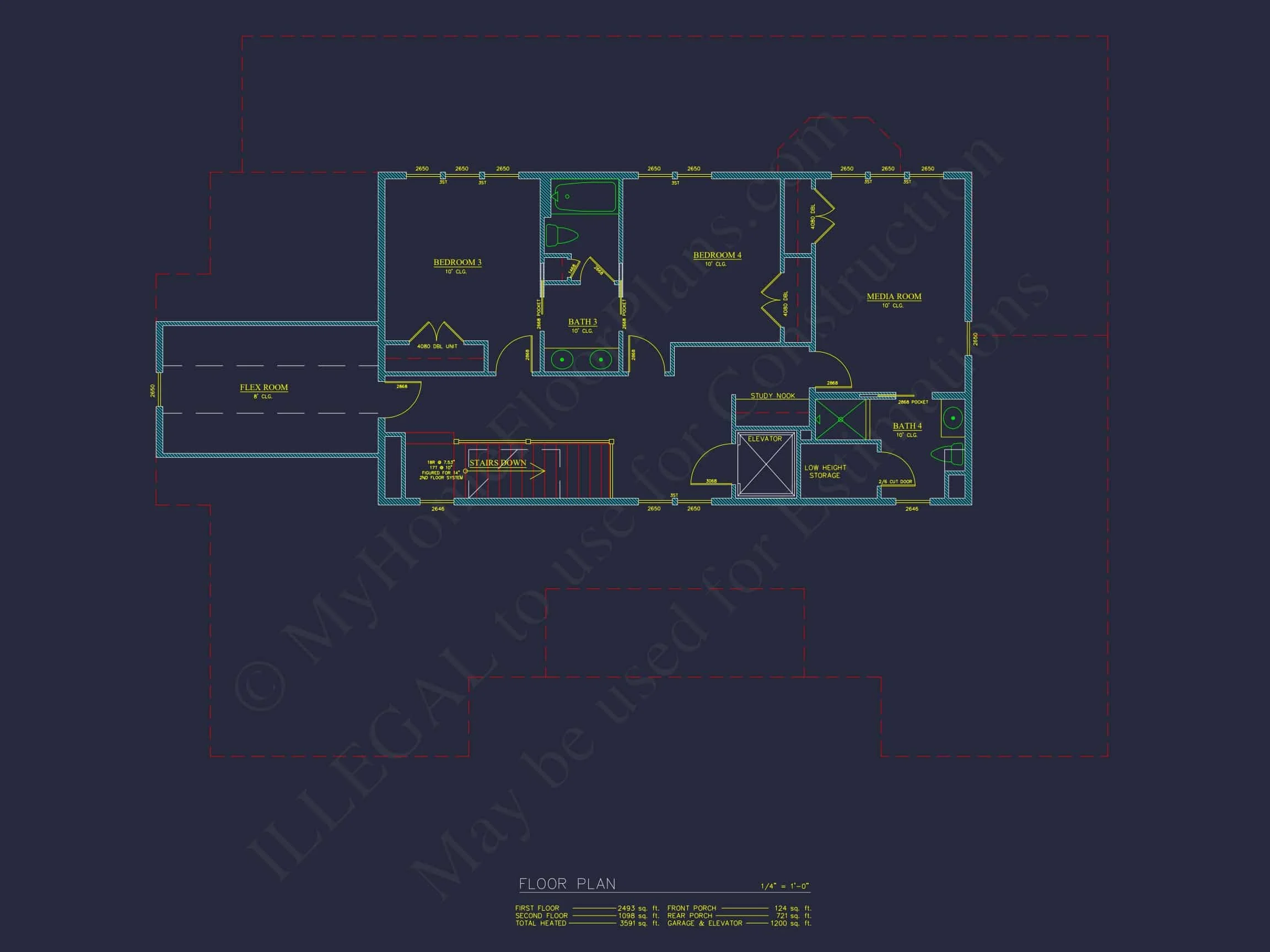

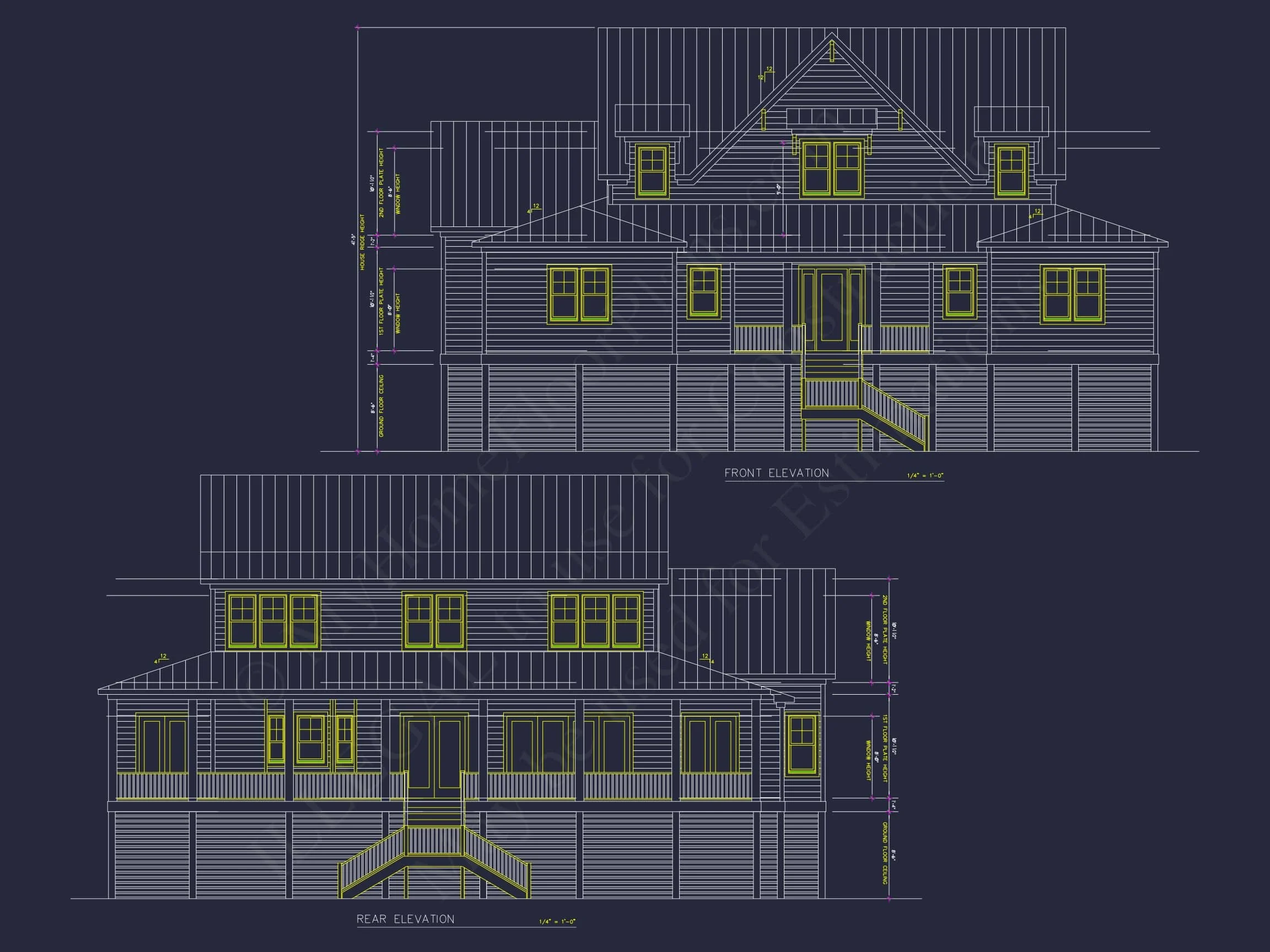

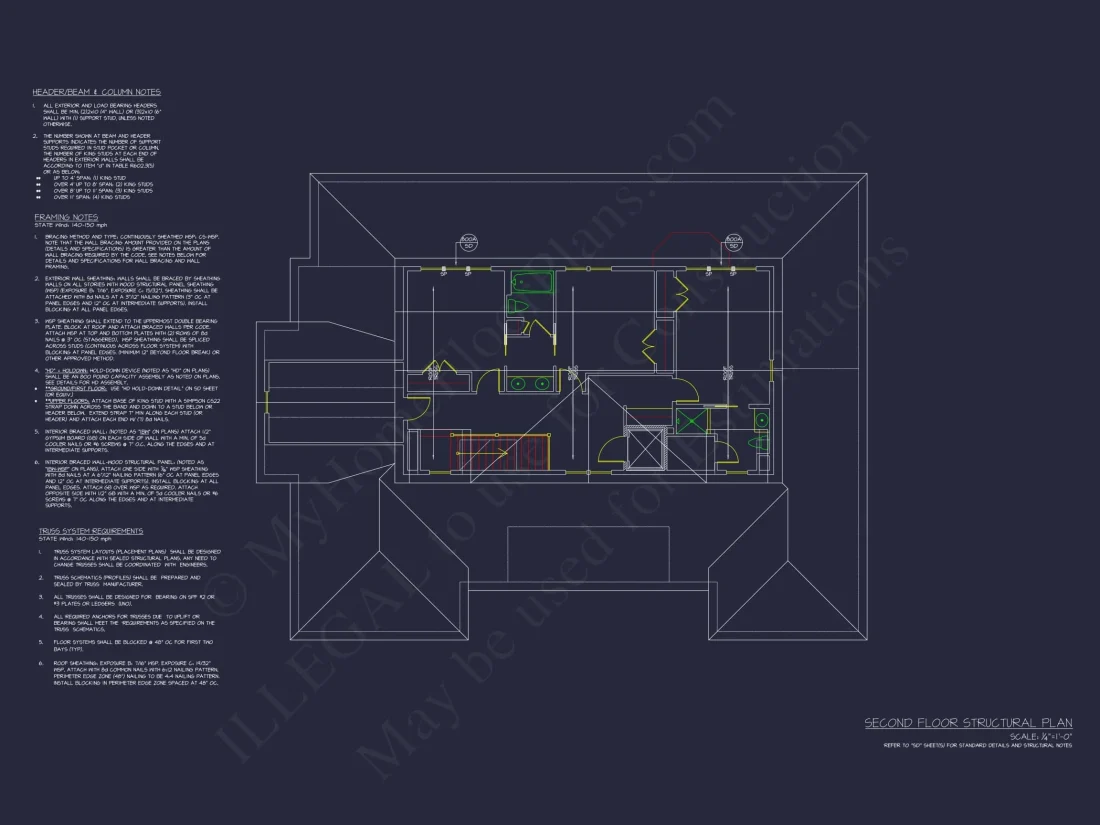

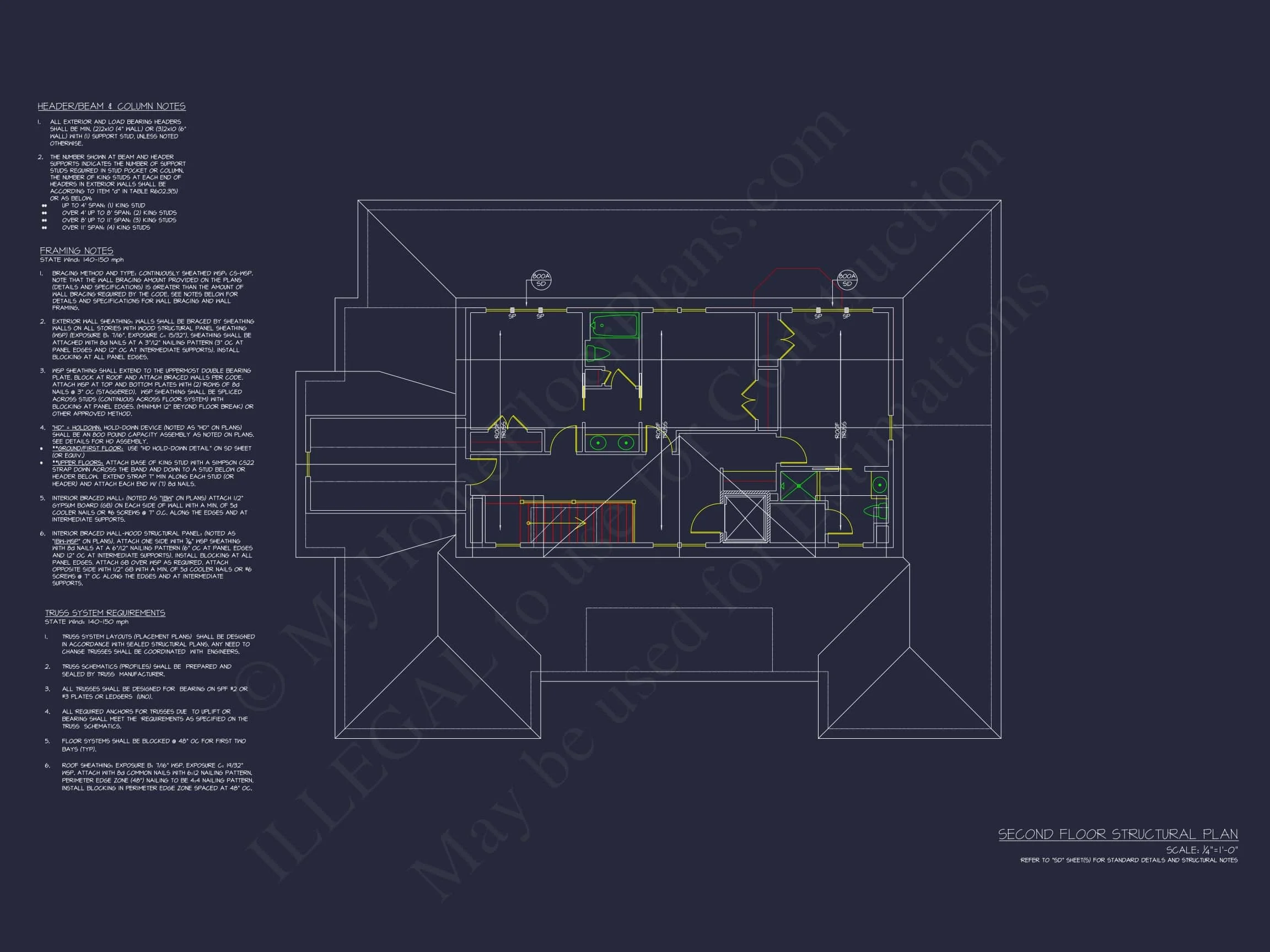

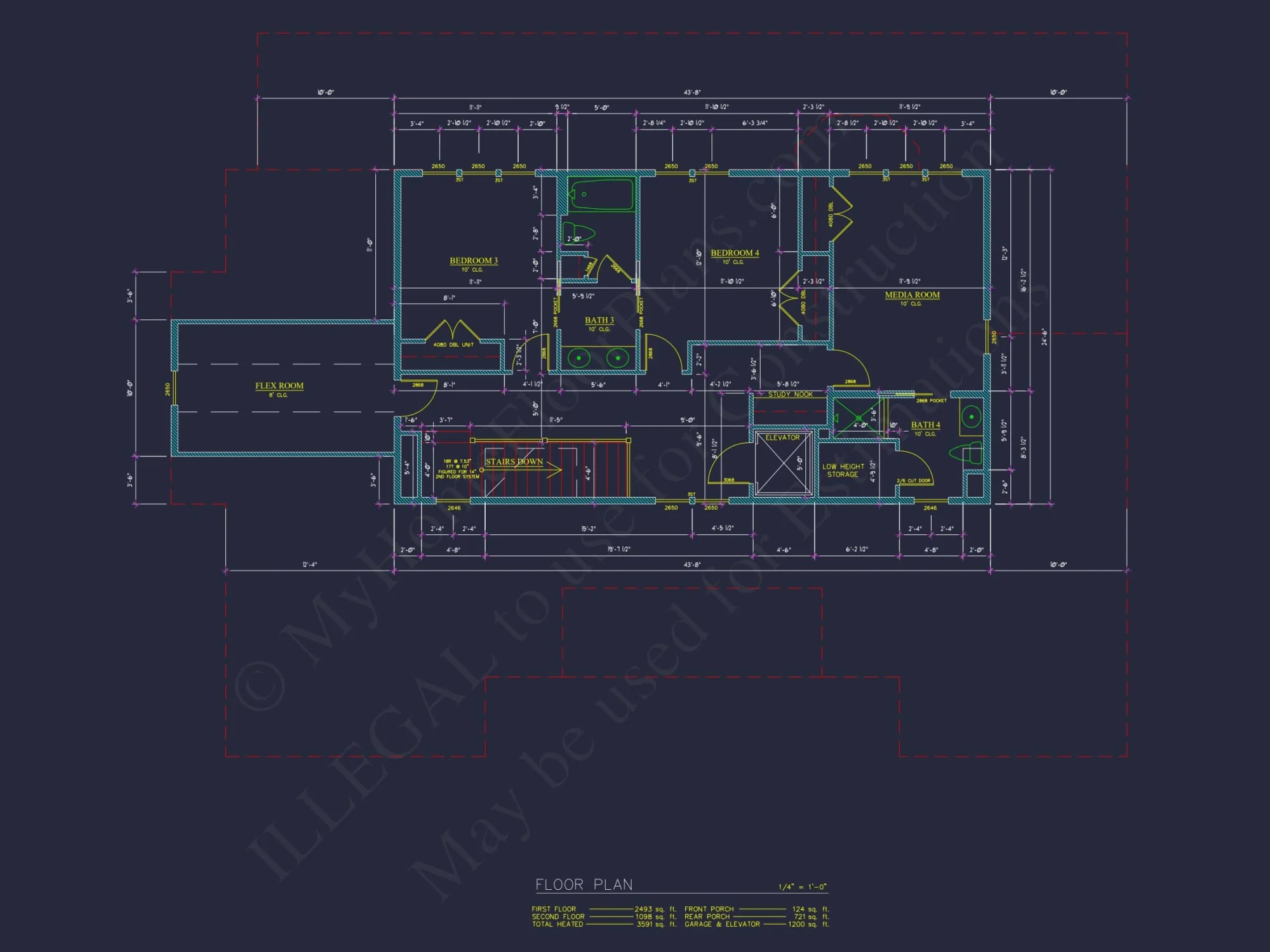

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

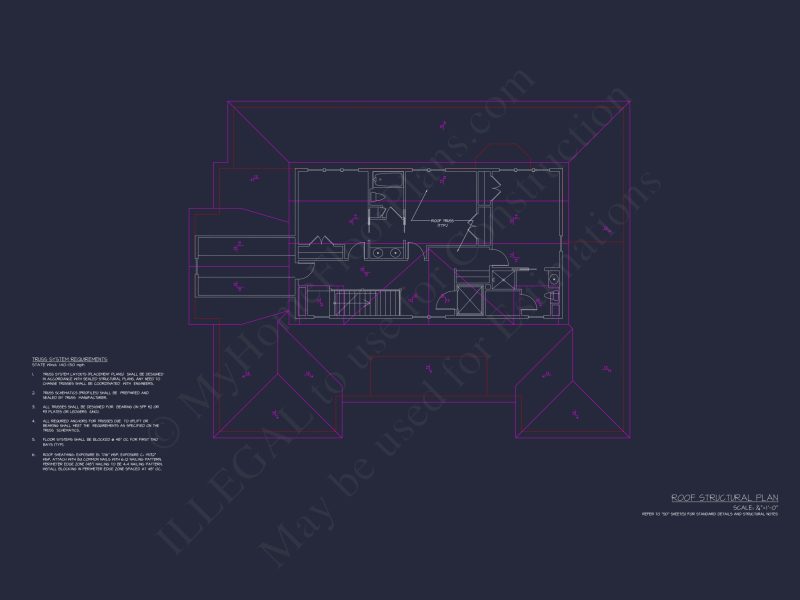

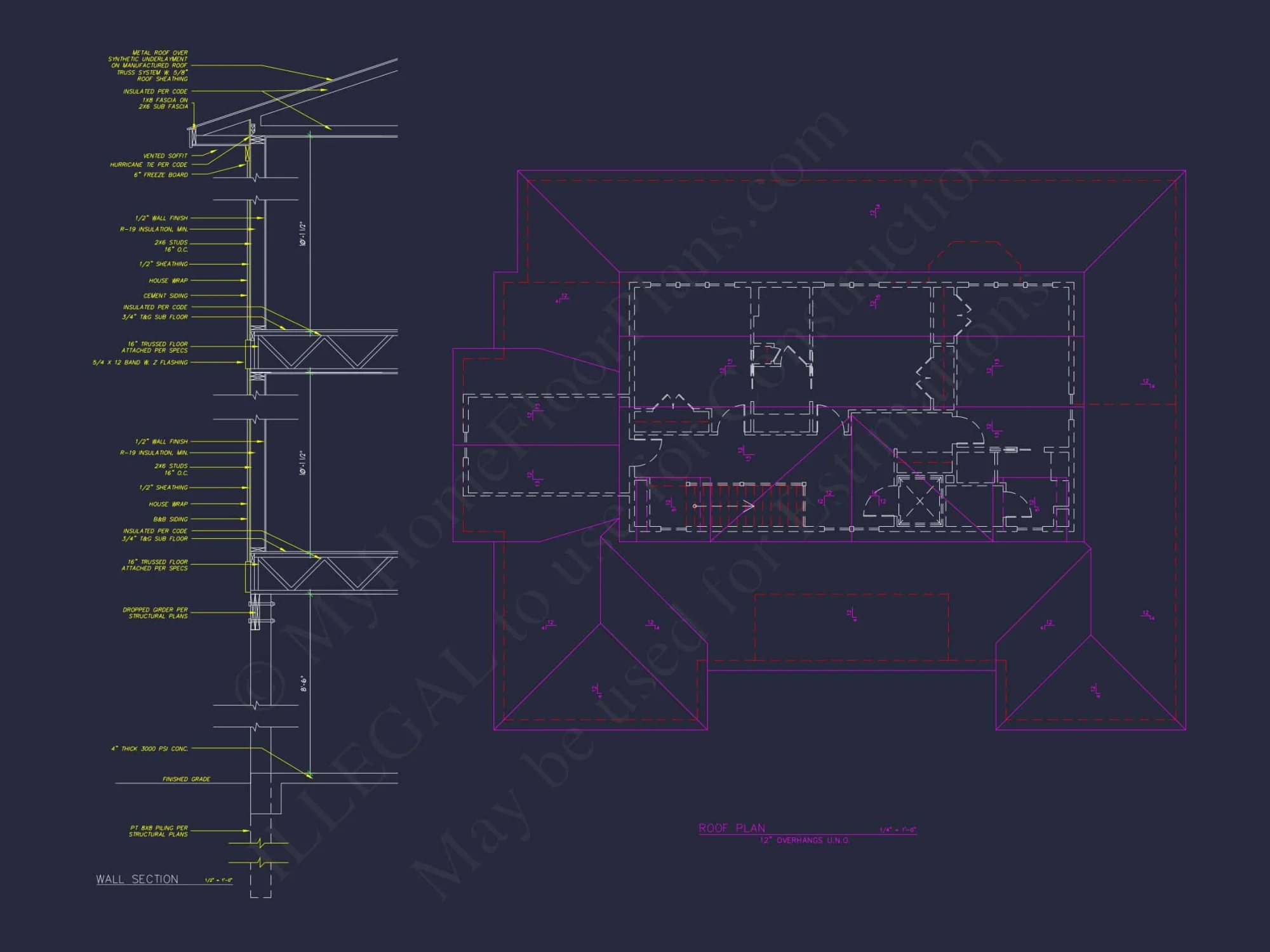

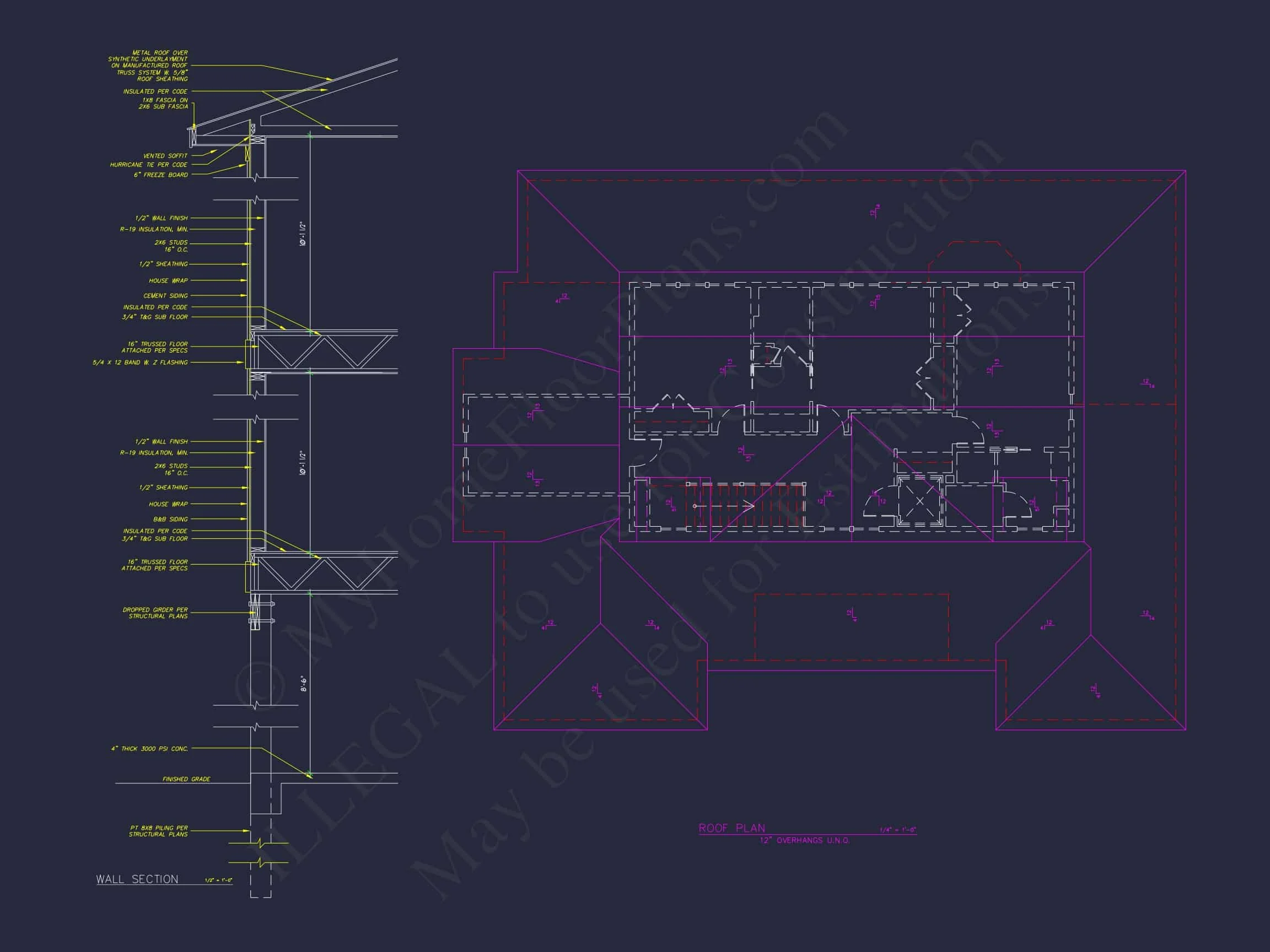

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
