Spacious 2-Story House Plan with CAD Layout & Stylish Architecture
Discover this luxurious 5-bedroom, 3, 661 sq. ft. house plan with CAD blueprints, elegant indoor-outdoor living, and modern open architecture.
This luxury house plan offers an exceptional blend of comfort and versatility. Designed for modern families, it delivers timeless architecture and smart space planning with customization-ready CAD files.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 661 sq. ft. across two stories.
- Unheated extras: Screened porch, covered front porch, and optional BBQ deck.
Bedrooms & Bathrooms

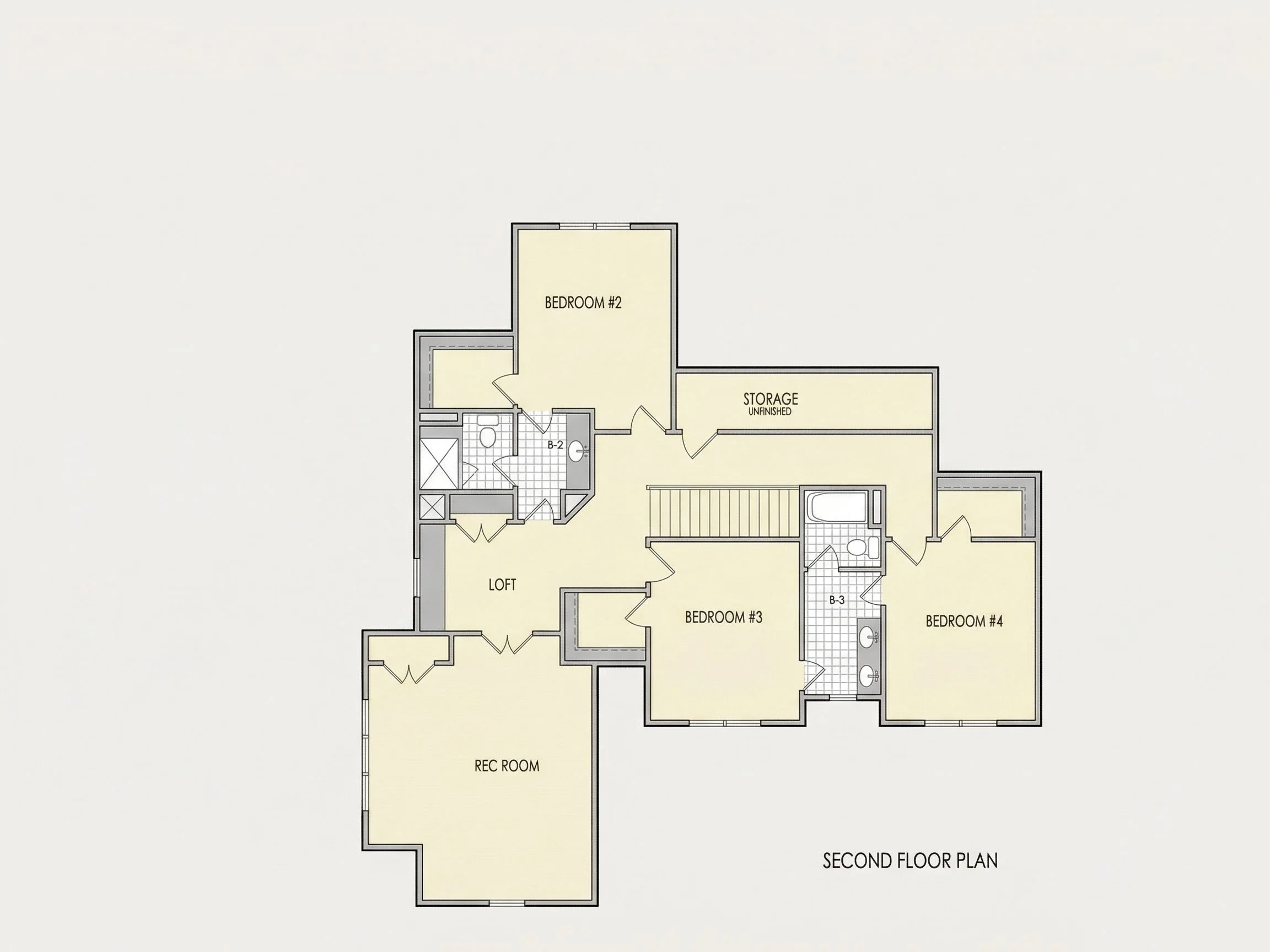

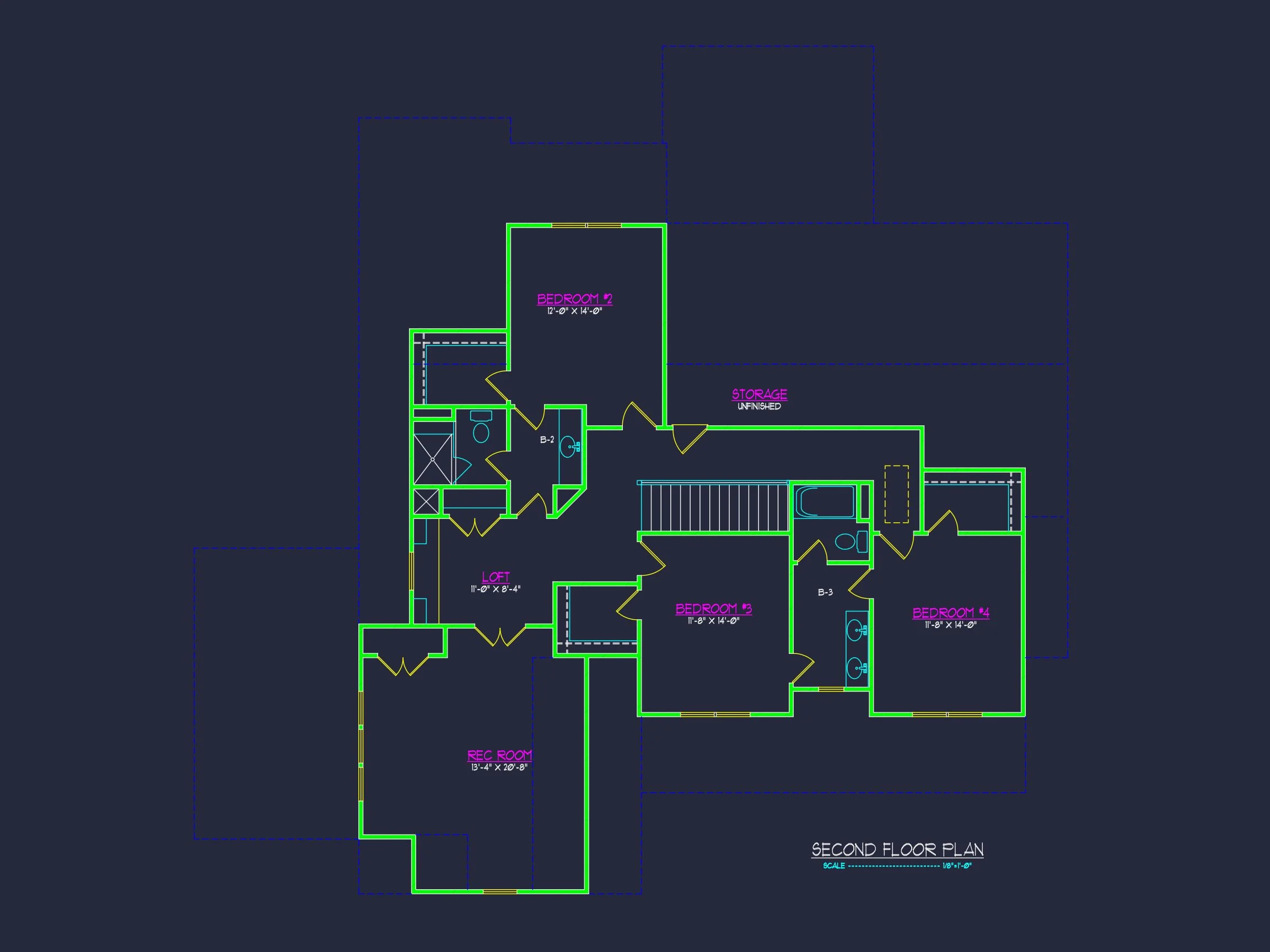

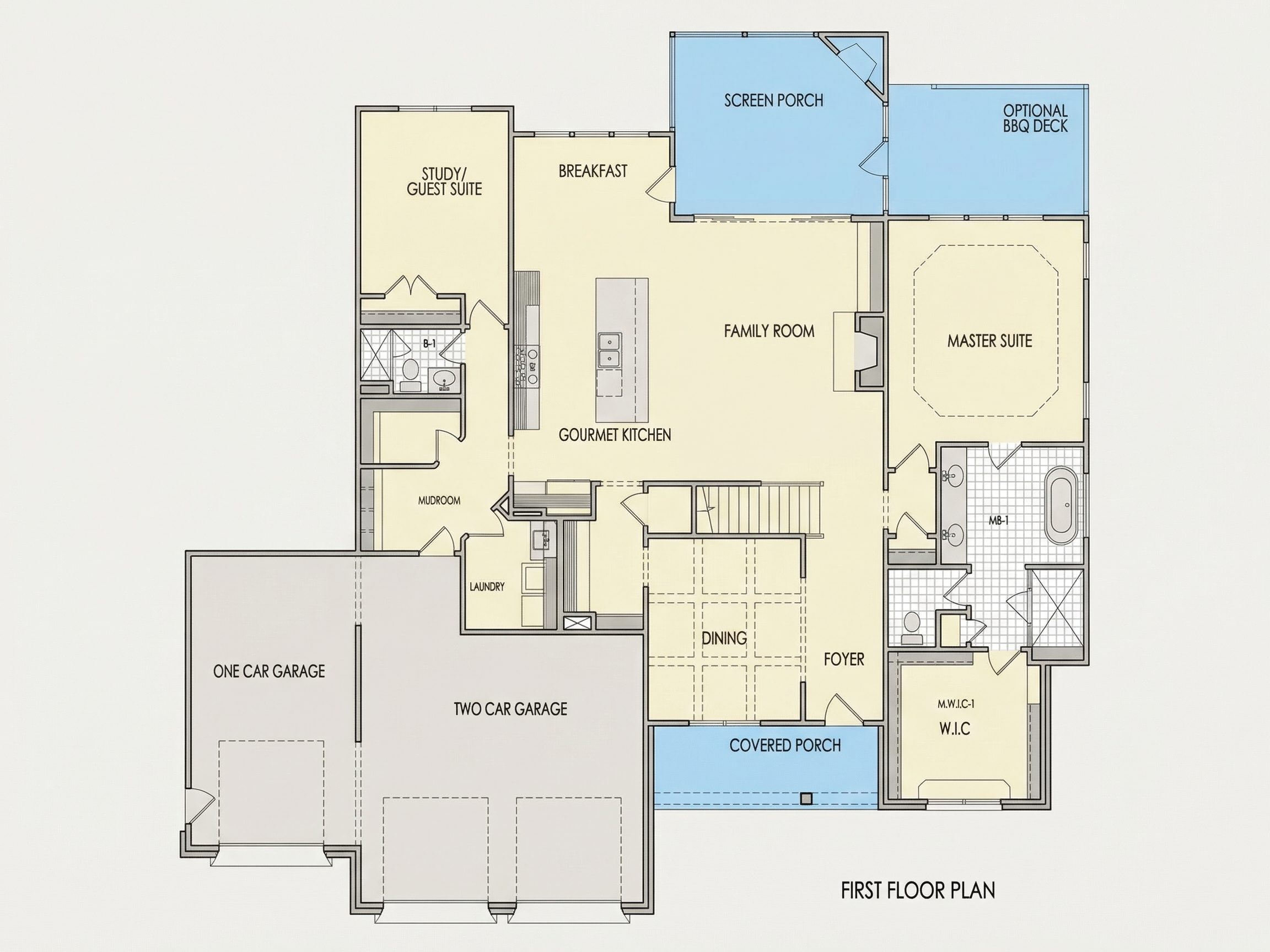

- 5 total bedrooms, including a spacious first-floor Owner Suite with a walk-in closet.
- 4 well-appointed bathrooms, including a convenient Jack and Jill layout upstairs.
Interior Highlights
- Vaulted ceilings enhance openness and airiness.
- Open floor plan connects living, dining, and kitchen. Explore open layouts.
- Gourmet kitchen with large island, walk-in pantry, and breakfast nook.
- Bonus recreational room perfect for games, media, or hobbies.
- Mudroom and laundry area designed for functionality and organization.
Garage & Storage Details
- Garage Bays: 2-car garage with side/front entry.
- Garage Type: Attached.
- Storage: Walk-in closets in multiple bedrooms and dedicated upstairs storage room.
Outdoor Living Features
- Screened rear porch and covered front porch for year-round outdoor comfort.
- Optional BBQ deck ideal for outdoor dining and entertaining.

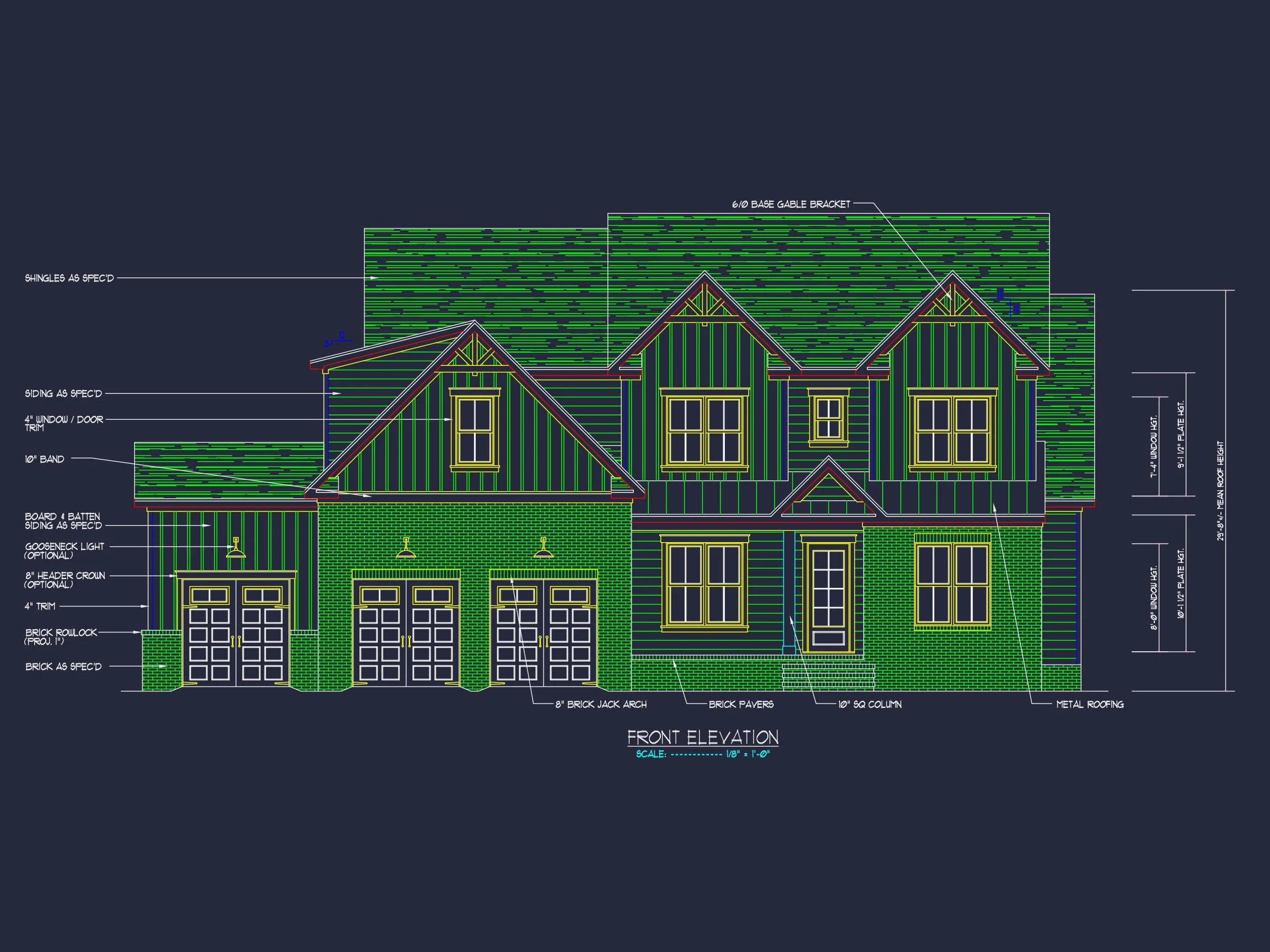

- Architectural finishes include brick, board and batten, and traditional siding for elegant curb appeal.
Architectural Style: Transitional Craftsman
This design blends Craftsman, Transitional, and Traditional elements, offering warmth and sophistication in every detail. Explore more Transitional house plans or learn more about traditional architecture.
Bonus Features
- Flex room on the main level—ideal for a home office or guest suite.
- Jack and Jill bathroom upstairs, perfect for children or shared guest use.
- Large recreation room for family activities or media setup.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and ready to print or modify as needed.
- Unlimited Build License: Build as many times as you like with no added fees.
- Free Foundation Changes: Choose between slab, crawlspace, or basement options at no extra cost.
- Structural Engineering Included: Professionally stamped and code-compliant documents.
- Lower Modification Costs: Save up to 50% compared to competitors.
- View Before You Buy: Preview all sheets included.
Similar Collections You Might Love
- 5-Bedroom House Plans
- First Floor Owner Suites
- Plans with Kitchen Islands
- Screened Porch House Plans
- Craftsman Style House Plans
Frequently Asked Questions
What’s included with this house plan? Each plan includes editable CAD files, high-resolution PDFs, unlimited-build rights, professional structural engineering, and complimentary foundation changes.
Can I make layout modifications? Absolutely. We offer quick, affordable customizations—get a quote here.
Is this plan good for a large family? Yes! With five bedrooms, multiple living areas, and flexible spaces, it’s ideal for bigger households.
Does the plan include outdoor living options? Yes. You’ll enjoy a screened rear porch, covered front porch, and optional BBQ deck for outdoor entertaining.
Can I preview the architectural drawings? Of course—view the full plan set before purchasing.
Start Building Your Dream Home Today
Have questions or need help customizing your plan? Reach out to our expert team at [email protected] or use our contact form.
Your dream home begins with the right blueprint—let’s design your future today!
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 69'-0" |
|---|---|
| Depth | 67'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bedrooms on the First Floor, Bedrooms on the Second Floor, Bonus Room, Family Room, Foyer, Living Room, Mudroom, Office/Study, Open Floor Plan, Recreational Room |
| Outdoor Features | Covered Front Porch, Covered Rear Porch, Grill Deck, Screened Porch |
| Bed and Bath Features | Bedrooms on First Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | Breakfast Nook, Kitchen Island, Ultimate Kitchen, Walk-in Pantry |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
9 FT+ Ceilings | Bedrooms on the First Floor | Bedrooms on the Second Floor | Bonus Rooms | Breakfast Nook | Covered Front Porch | Covered Rear Porches | Craftsman | Designer Favorite | Family Room | First-Floor Bedrooms | Foyer | Front Entry | Grill Deck | Home Plans with Mudrooms | Jack and Jill | Kitchen Island | Large | Living Room | Office/Study | Open Floor Plan Designs | Owner’s Suite on the First Floor | Recreational Room | Screened Porches | Side Entry Garage | Traditional | Transitional | Ultimate Kitchen | Walk-in Closet | Walk-in Pantry
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

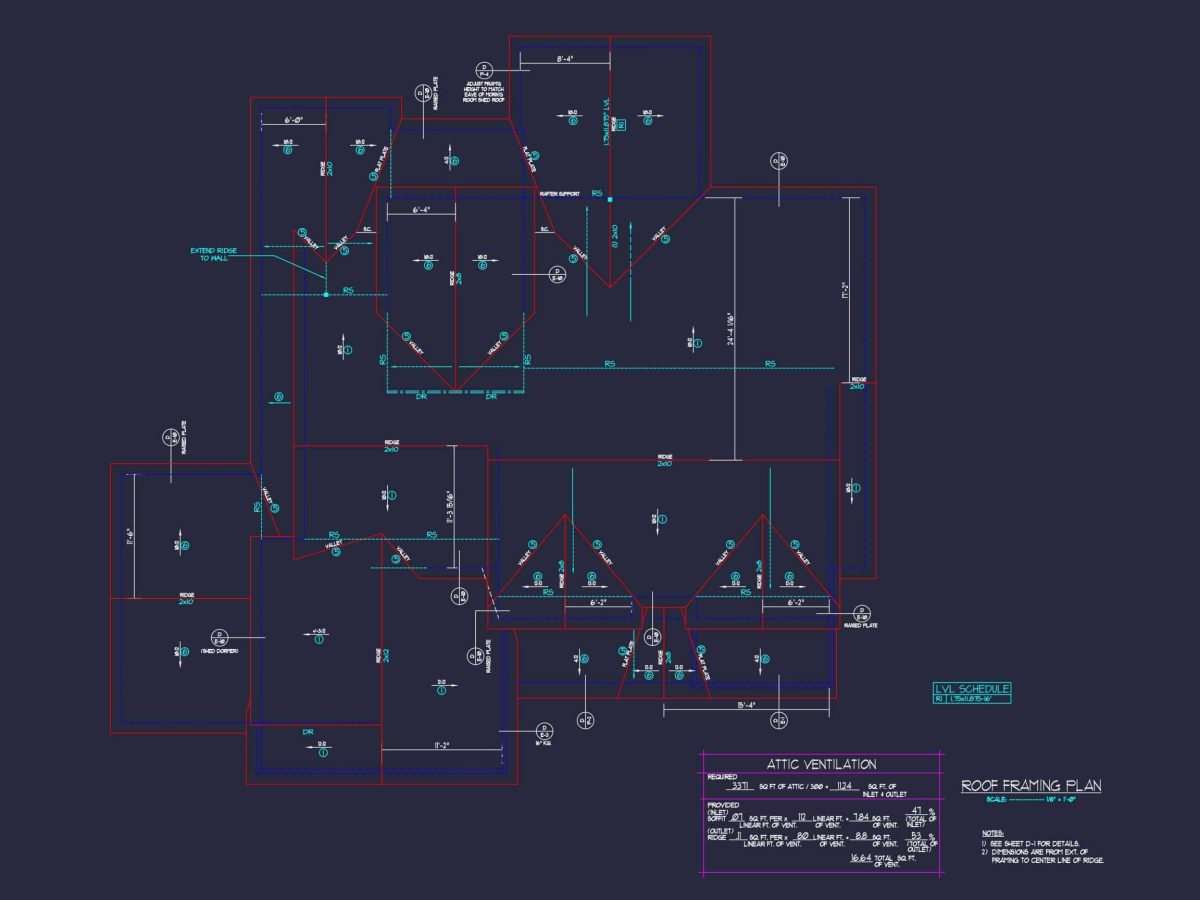

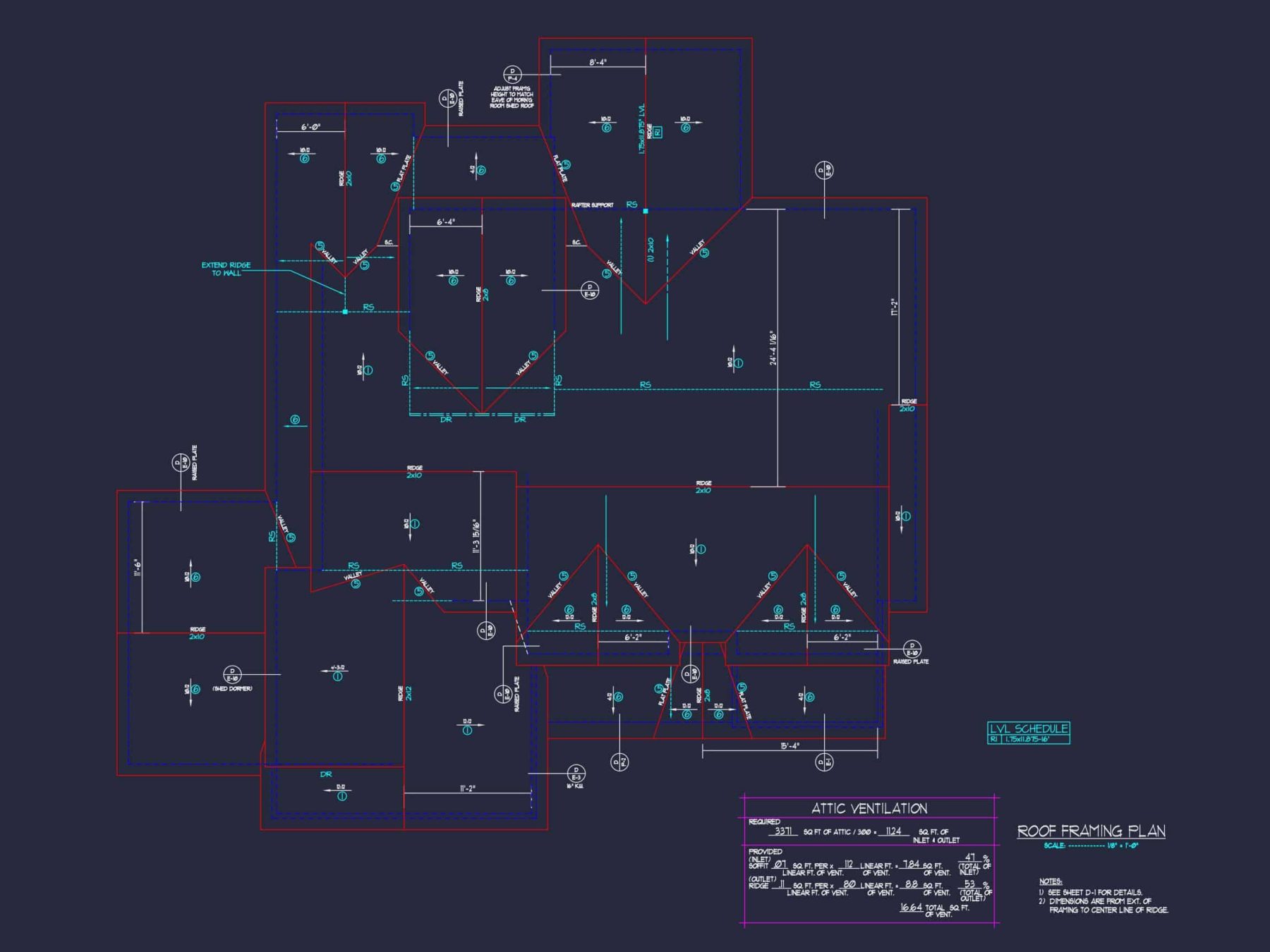

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

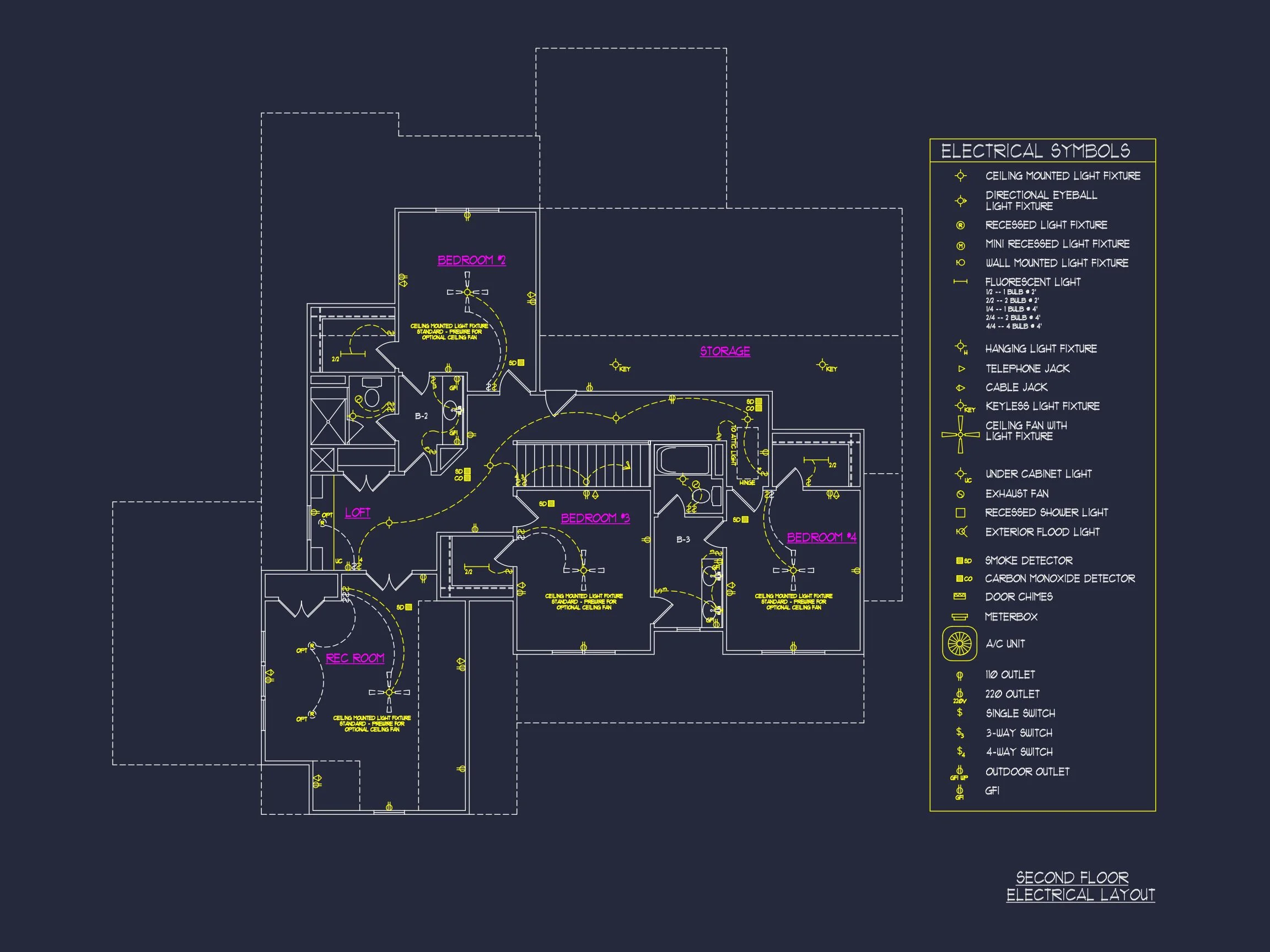

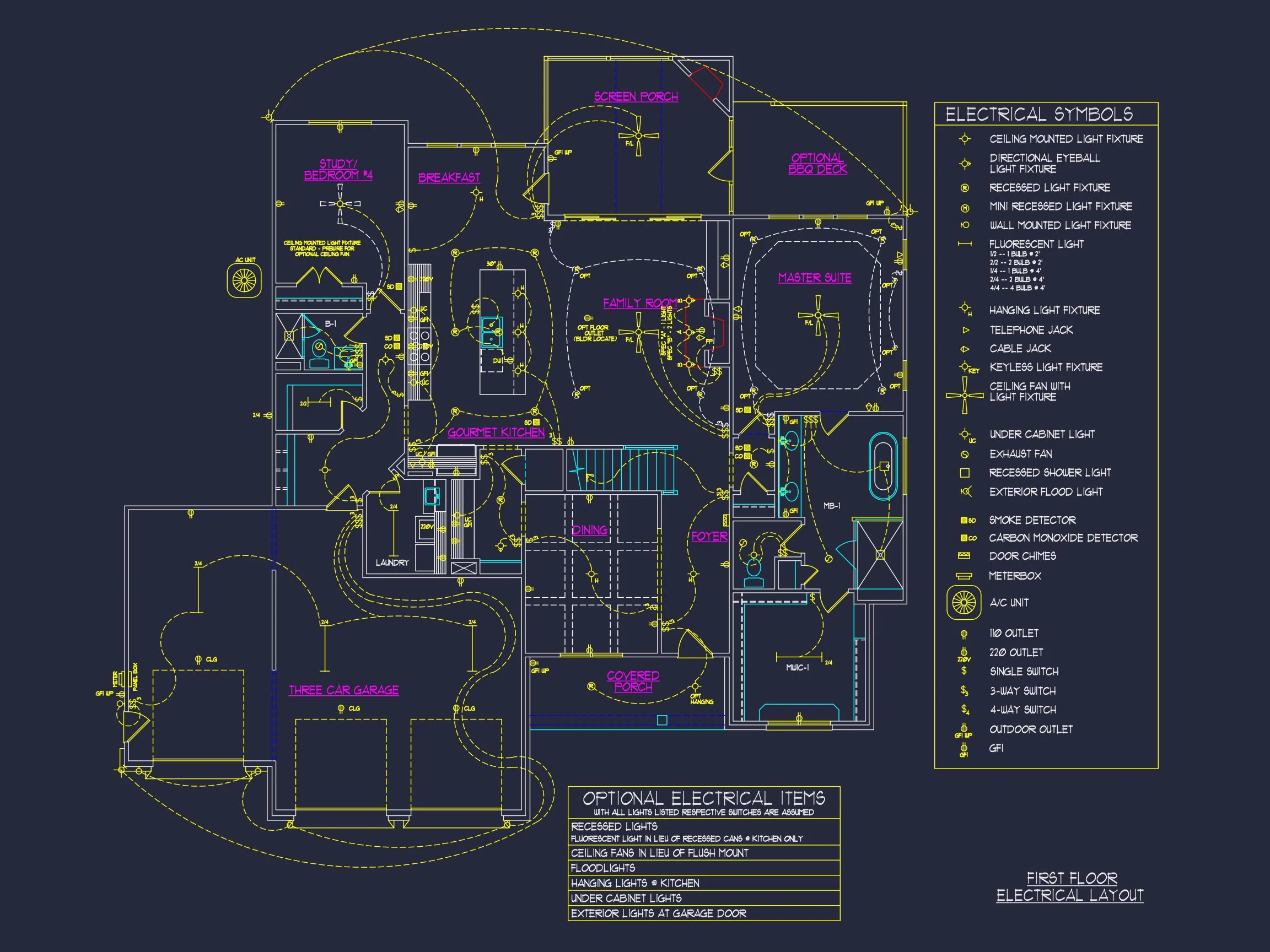

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
