Beautiful house Floor Plan with CAD Architecture Designs
Discover this stunning house plan with detailed floor blueprints, CAD architecture designs, and versatile layouts perfect for your dream house needs.
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 79'-4" |
|---|---|
| Depth | 68'-9" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Basement, Family Room, Fireplace, Foyer, Great Room, Office/Study, Open Floor Plan, Recreational Room |
| Outdoor Features | Covered Front Porch, Covered Patio, Covered Rear Porch, Screened Porch |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Beautiful House Floor Plan with CAD Architecture Designs
Discover this stunning house plan with 3, 604 heated sq. ft., detailed CAD blueprints, and versatile layouts—perfect for your dream house needs.
This architectural house plan offers the ideal mix of comfort and flexibility. Designed for modern living, it brings together timeless charm and smart spatial flow across two functional stories.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 604 sq. ft. across two stories.
- Unheated extras: Covered front porch, screened porch, and garage space.
Bedrooms & Bathrooms
- 4 spacious bedrooms including a luxurious Owner Suite on the first floor with a large walk-in closet and spa-style bath.
- 3.5 bathrooms thoughtfully placed for convenience and privacy, including a Jack and Jill upstairs.
Interior Highlights
- 10-foot ceilings enhance the open and airy feel.
- Open floor plan creates seamless flow between kitchen, family, and dining areas. See open floor plans.
- Kitchen island and walk-in pantry provide modern culinary ease.
- Fireplace in the living room offers warmth and ambiance. View fireplace options.
- Media room and recreational room on the upper floor enhance flexibility for entertainment or hobbies.
Garage & Storage Details
- Garage Bays: Front and side entry garages for multi-vehicle families.
- Garage Type: Attached, with options for angled entry depending on lot shape.
- Storage: Full basement, attic space, and mudroom for extra utility.
Outdoor Living Features
- Covered front porch, screened porch, and rear patio ideal for relaxing outdoors year-round.
- Brick and stone siding exudes timeless elegance and boosts curb appeal.
- Sloped lot design adapts beautifully to various terrains—see similar sloped lot house plans.
Architectural Style: Transitional Traditional
This design blends classic materials with clean, modern lines—making it a top choice for families seeking comfort, durability, and flexibility. Learn more about the Transitional house style or explore its influence on ArchDaily.
Bonus Features
- Dedicated office/study perfect for remote work or reading retreats.
- Jack and Jill bathroom for convenient family living.
- Flex room ideal for a gym, playroom, or guest quarters.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and print-ready for easy revisions and construction.
- Unlimited Build License: Use your plan multiple times without added fees.
- Free Foundation Changes: Choose from slab, crawlspace, or full basement without extra cost. Learn more about foundation options.
- Structural Engineering Included: Professionally reviewed to meet current codes and safety standards.
- Lower Modification Costs: Get changes done for up to 50% less than competitors. Request a custom change.
- View Before You Buy: Preview all drawings before purchase.
Similar Collections You Might Love
- Plans with First Floor Owner Suites
- Plans with Recreational Rooms
- Plans with Side Entry Garages
- Plans with Covered Back Porches
- Plans with Kitchen Islands
Frequently Asked Questions
What’s included with this house plan? Your purchase includes editable CAD files, ready-to-print PDFs, an unlimited build license, structural engineering, and free foundation adjustments.
Is the plan easy to customize? Yes! We offer quick, affordable layout changes. Contact us for a quote.
Does it work on sloped lots? Definitely. The design supports varied terrain and includes basement-ready options.
How large is the garage? It includes both front and side entries with space for multiple vehicles and storage.
Can I see the plans before buying? Yes—preview every detail before you purchase.
Start Building Your Dream Home Today
Still have questions or want to tailor this layout to your needs? Reach out to us at [email protected] or submit your request.
Your future dream house begins with a plan—customize it, build it, and enjoy it for a lifetime!
All home plans include BOTH the CAD file and PDF file.

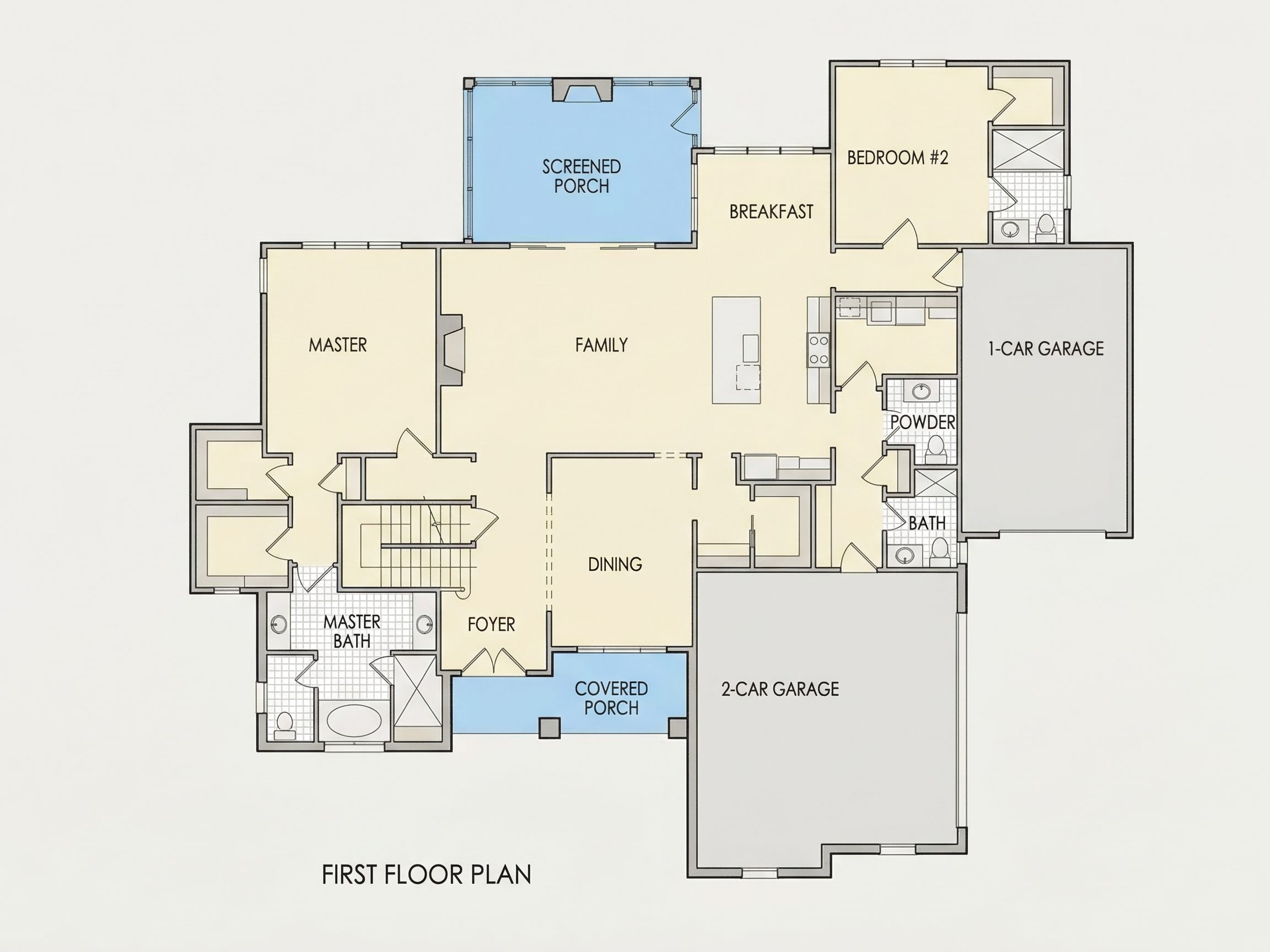

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
