Elegant Home Floor Plan with CAD Designs and Modern Architecture
Discover this beautiful home floor plan featuring modern architecture, 3, 686 heated sq. ft., detailed CAD blueprints, and flexible indoor and outdoor living spaces.
This modern house plan offers a perfect mix of elegance and functionality. Designed for families who want style and space, it features smart layouts and stunning curb appeal.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 686 sq. ft. spread across two thoughtfully designed stories.
- Unheated extras: 1, 611 sq. ft. including spacious porches and a 3-car garage.
Bedrooms & Bathrooms
- 4 spacious bedrooms including a large Owner Suite on the first floor with a walk-in closet.
- 3 full bathrooms and 1 half bath designed for convenience and privacy.
Interior Highlights
- Open floor plan enhances flow between living, kitchen, and dining areas. Explore open floor plan designs.
- Fireplace in the family room adds warmth and charm. View fireplace layouts.
- Dedicated Office/Study room perfect for working from home.
- Mudroom and bonus room provide versatile storage and living space.
- Walk-in pantry enhances the kitchen’s functionality.
Garage & Storage Details
- Garage Bays: 3-car garage ideal for vehicle storage or workshop use.
- Garage Type: Attached and easily accessible from the main house.
- Storage: Mudroom cubbies and bonus room allow for maximum organization.
Outdoor Living Features
- Covered front porch, screened porch, and a covered rear porch—ideal for year-round outdoor enjoyment.
- Classic materials like siding, shingles, and brick provide timeless curb appeal.
Architectural Style: Modern
This design blends sleek modern lines and practical layout—perfect for families who love contemporary charm with functional living. Learn more about modern architecture or explore its evolution on ArchDaily.
Bonus Features
- Flexible bonus room—great for play, hobbies, or extra guests.
- Dedicated mudroom that helps keep your living area clean and organized.
- Study that doubles as a home office or guest space.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and ready for your builder or architect.
- Unlimited Build License: Build as many times as you want with no added fees.
- Free Foundation Changes: Choose from slab, crawlspace, or basement at no extra charge. See foundation options.
- Structural Engineering Included: Every plan is professionally stamped for safety and compliance. Learn why this matters.
- Lower Modification Costs: Save up to 50% compared to competitors. Request custom changes.
- View Before You Buy: Preview all plan sheets to ensure it’s right for you.
Similar Collections You Might Love
- House Plans with First Floor Owner Suites
- House Plans with Covered Porches
- House Plans with Mudrooms
- Modern Suburban House Designs
- House Plans with Kitchen Islands
Frequently Asked Questions
What’s included with this house plan? Each plan includes editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and foundation change options.
Can I customize the layout? Yes! Our modification team can adjust rooms, garage placement, or square footage. Get a custom quote.
How many levels is this home? This is a spacious 2-story home with a first-floor Owner Suite.
Does it come with outdoor spaces? Yes, it includes a front porch, screened porch, and covered rear porch.
Can I view the blueprints first? Absolutely. Preview every plan sheet here before purchasing.
Start Building Your Dream Home Today
Have questions or want to tailor this plan to your needs? Contact us anytime at [email protected] or use our contact form.
Your future house starts with a great plan—explore, customize, and build with confidence!
All home plans include BOTH the CAD file and PDF file.

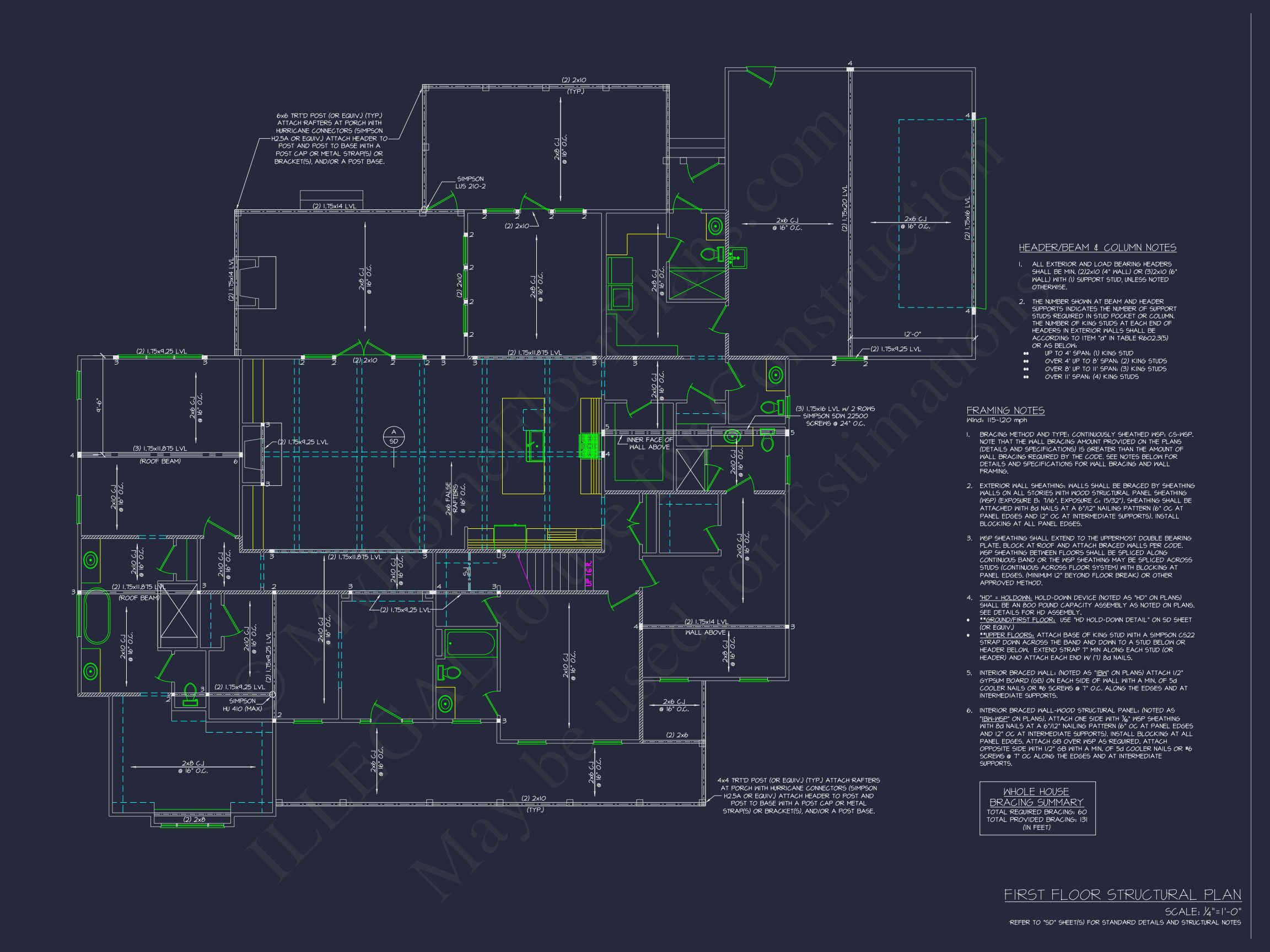

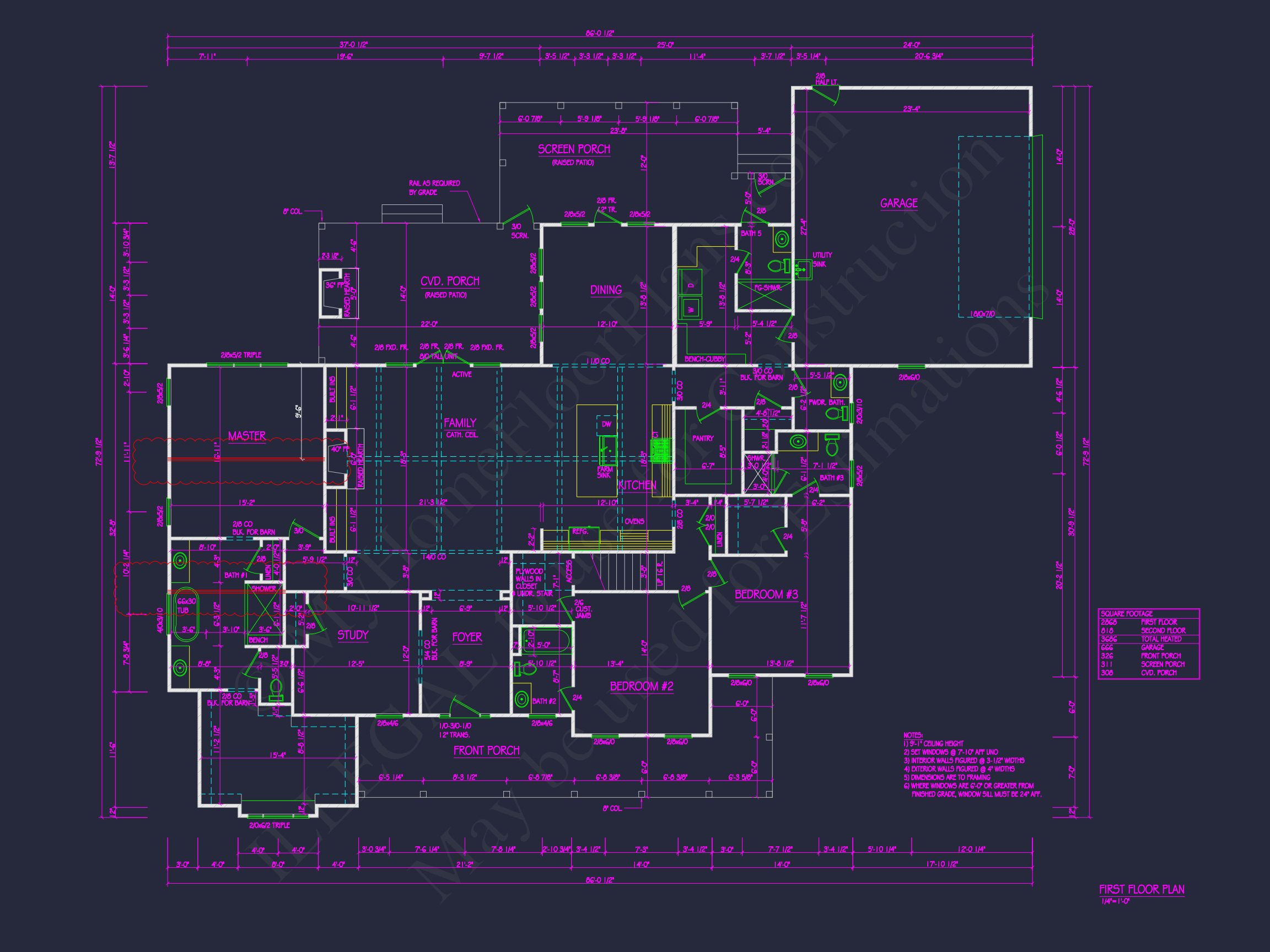

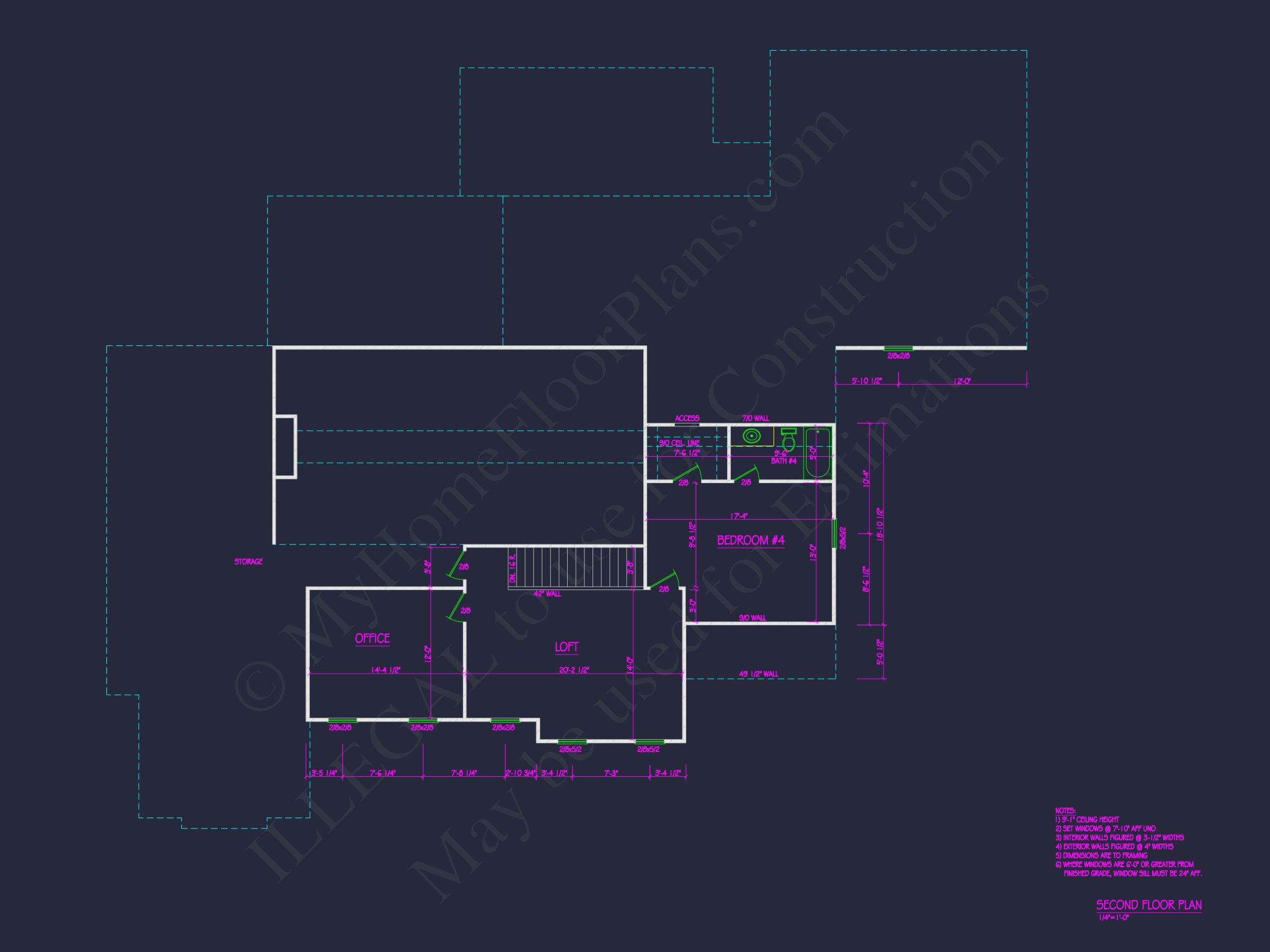

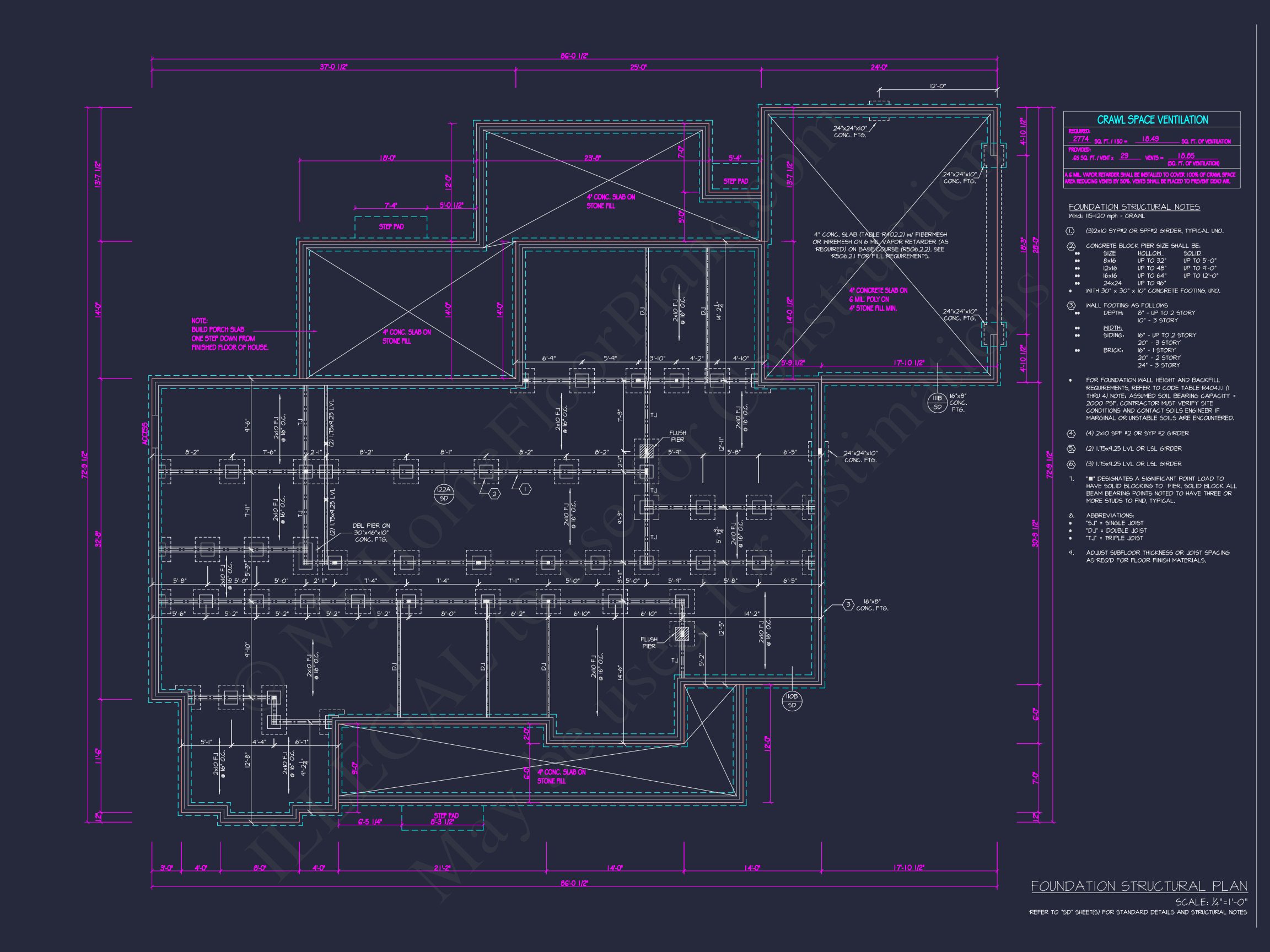

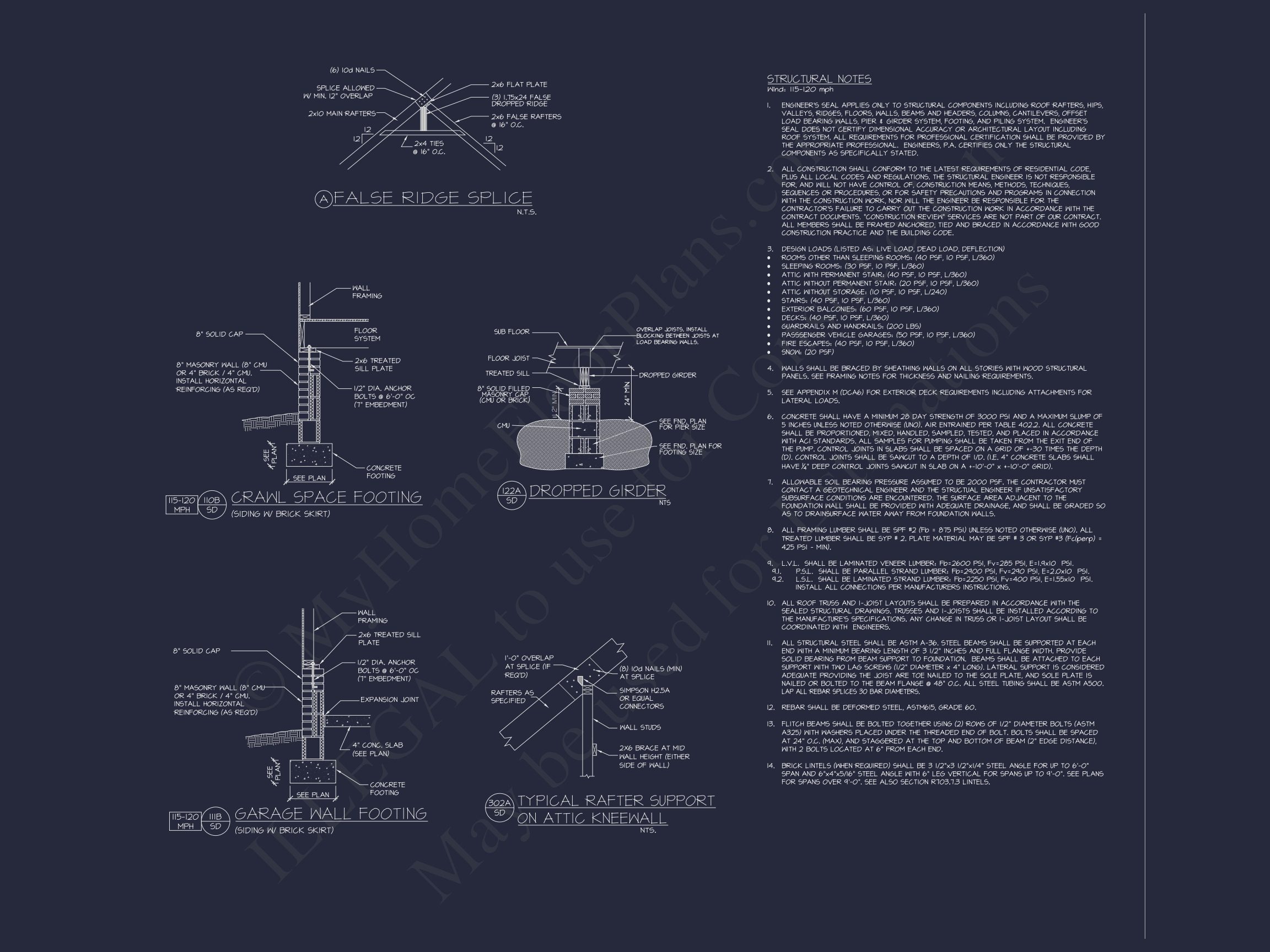

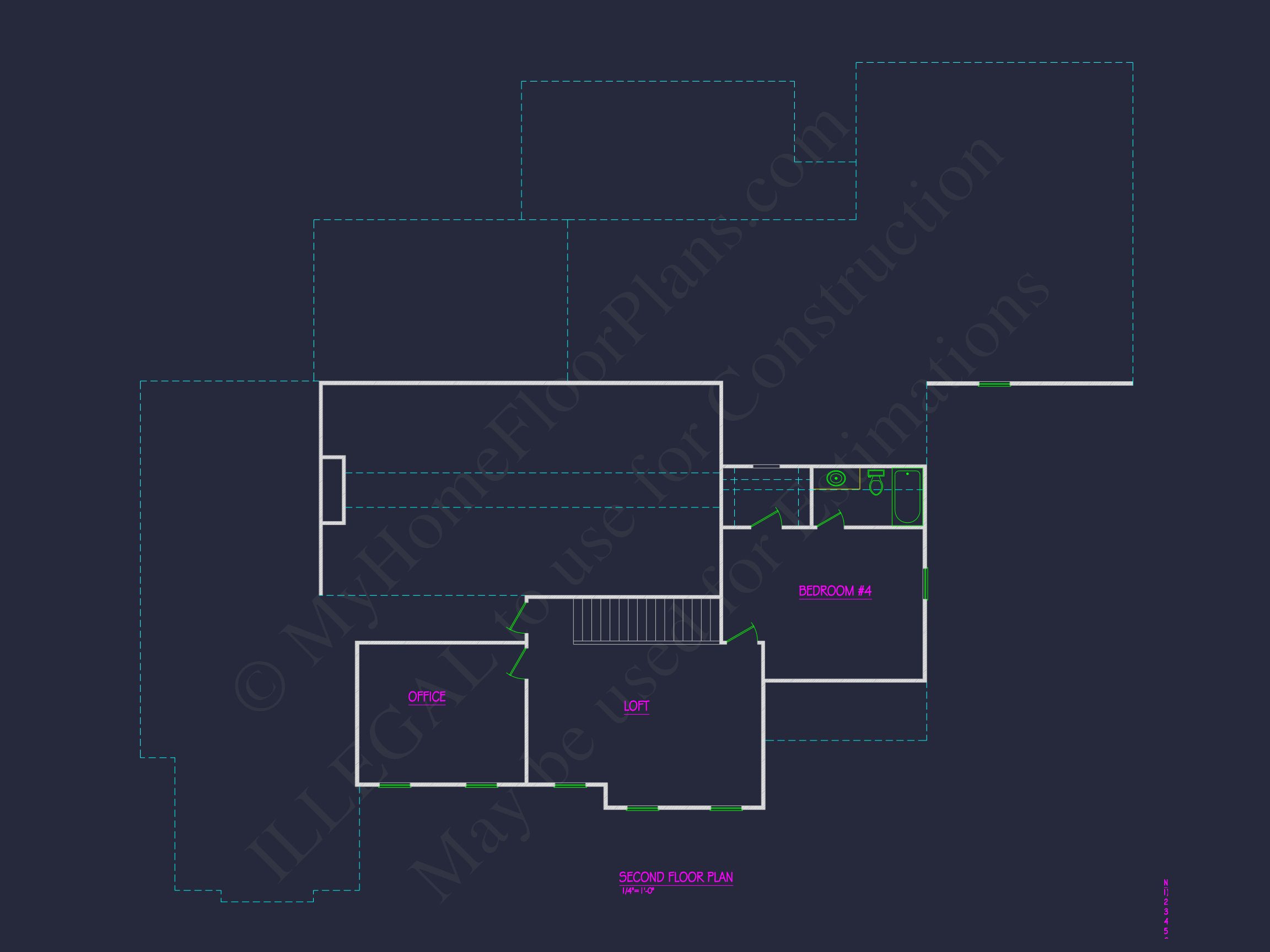

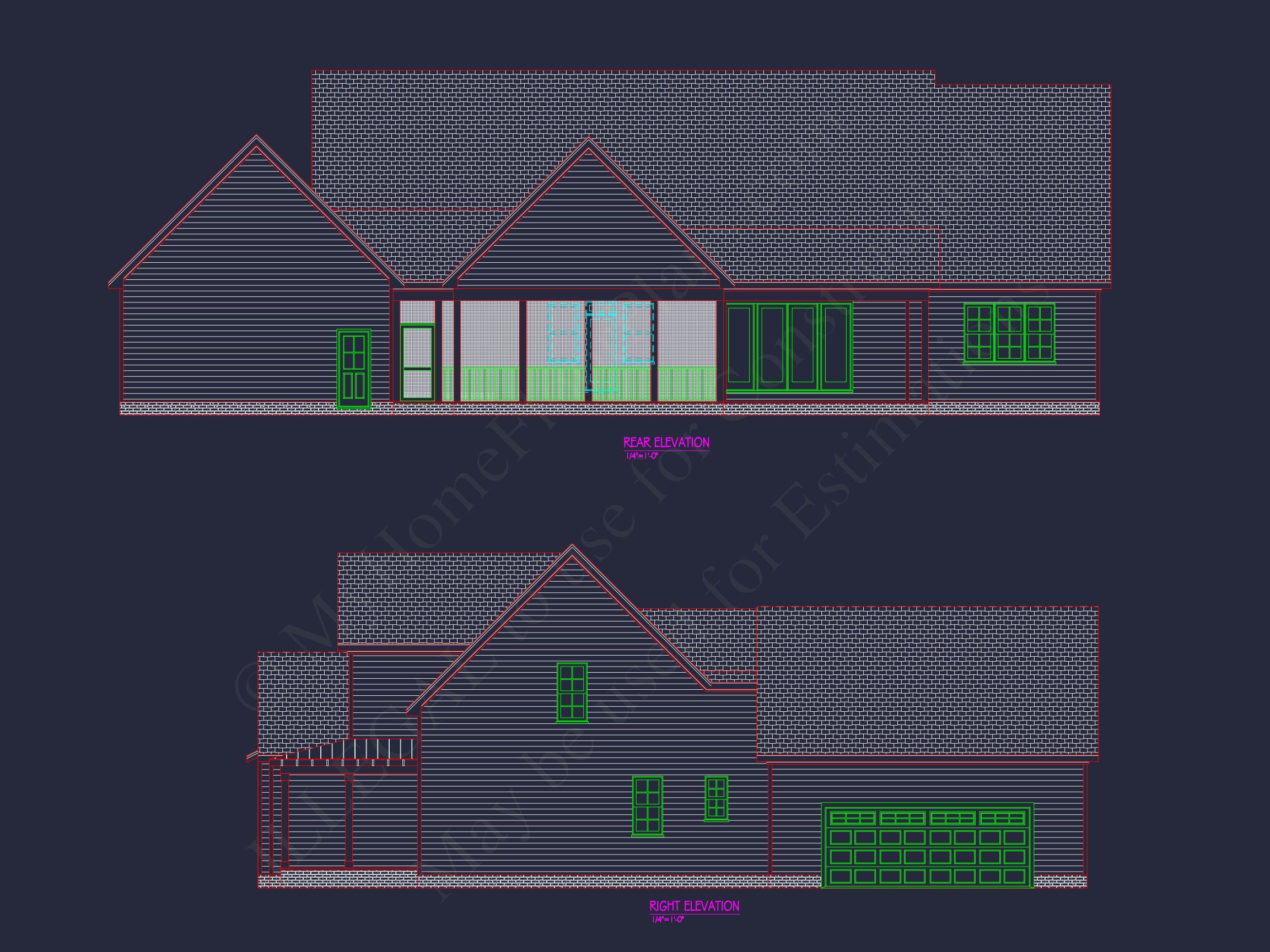

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
20-1890 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
