Modern Craftsman house Plan: CAD Floor Plan with 3 Bedrooms
Explore a stunning house plan with 3 bedrooms, 2.5 baths, and a spacious open floor layout. Includes CAD files, 2-car garage, fireplace, and more unique designs!
9 FT+ Ceilings | Attics | Bonus Rooms | Covered Front Porch | Covered Rear Porches | Craftsman | Eating Bar | Family Room | Fireplaces | Foyer | Front Entry | Grill Porch | Kitchen Island | Medium | Open Floor Plan Designs | Owner’s Suite on the First Floor | Simple | Smooth & Conventional | Split Bedroom | Traditional | Walk-in Closet | Walk-in Pantry
Original price was: $1,055.04.$298.93Current price is: $298.93.
999 in stock
| Width | 54'-0" |
|---|---|
| Depth | 57'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Bonus Room, Family Room, Fireplace, Foyer, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Modern Craftsman Home Plan: CAD Floor Plan with 3 Bedrooms
Explore a stunning home plan with 3 bedrooms, 2.5 baths, and a spacious open floor layout. Includes CAD files, 2-car garage, fireplace, and more unique designs!
A Modern Craftsman Home Plan for Your Dream Design
Are you looking for a thoughtfully designed home with a modern craftsman charm? This 2-story home plan is perfect for families, designers, and builders seeking functionality and aesthetic appeal. With 3 bedrooms, 2.5 baths, and a spacious open floor plan, it offers comfort and versatility for every lifestyle.
Features of the Home Plan
A Functional and Elegant Layout
This 1, 863 square foot heated home is designed with simplicity and practicality in mind. The Owner bedroom on the first floor ensures privacy, while the additional bedrooms on the second floor are ideal for family or guests. The split bedroom design adds to the functionality.
Indoor Highlights
* Spacious family room with a cozy fireplace
* Open floor plan for a seamless flow between living spaces
* Bonus room and attic for extra storage or customization
* Foyer entrance for an elegant welcome
* Walk-in closet (WIC) in the Owner suite
Kitchen Features
* Modern kitchen island for extra prep space
* Convenient walk-in pantry for ample storage
* Eating bar perfect for casual meals
Outdoor and Structural Features
* Charming covered front porch for curb appeal
* Relaxing rear porch and BBQ area for outdoor entertaining
* Durable board & batten siding complemented by elegant stone accents
* 2-car front-entry garage for secure parking
Designed for Every Lifestyle
This home plan is crafted to meet the needs of modern families and builders. The combination of traditional and craftsman architecture ensures timeless appeal, while features like 9ft+ ceilings add a touch of luxury.
Benefits of Every Plan Purchase
When you choose this home plan, you receive CAD files, PDF sheets, and an unlimited-build license. All plans include free foundation adjustments and access to structural engineering support. Modifications are available at competitive prices, making your dream home even more attainable.
Ready to design your dream home? Contact support@https://myhomefloorplans.com today to get started!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

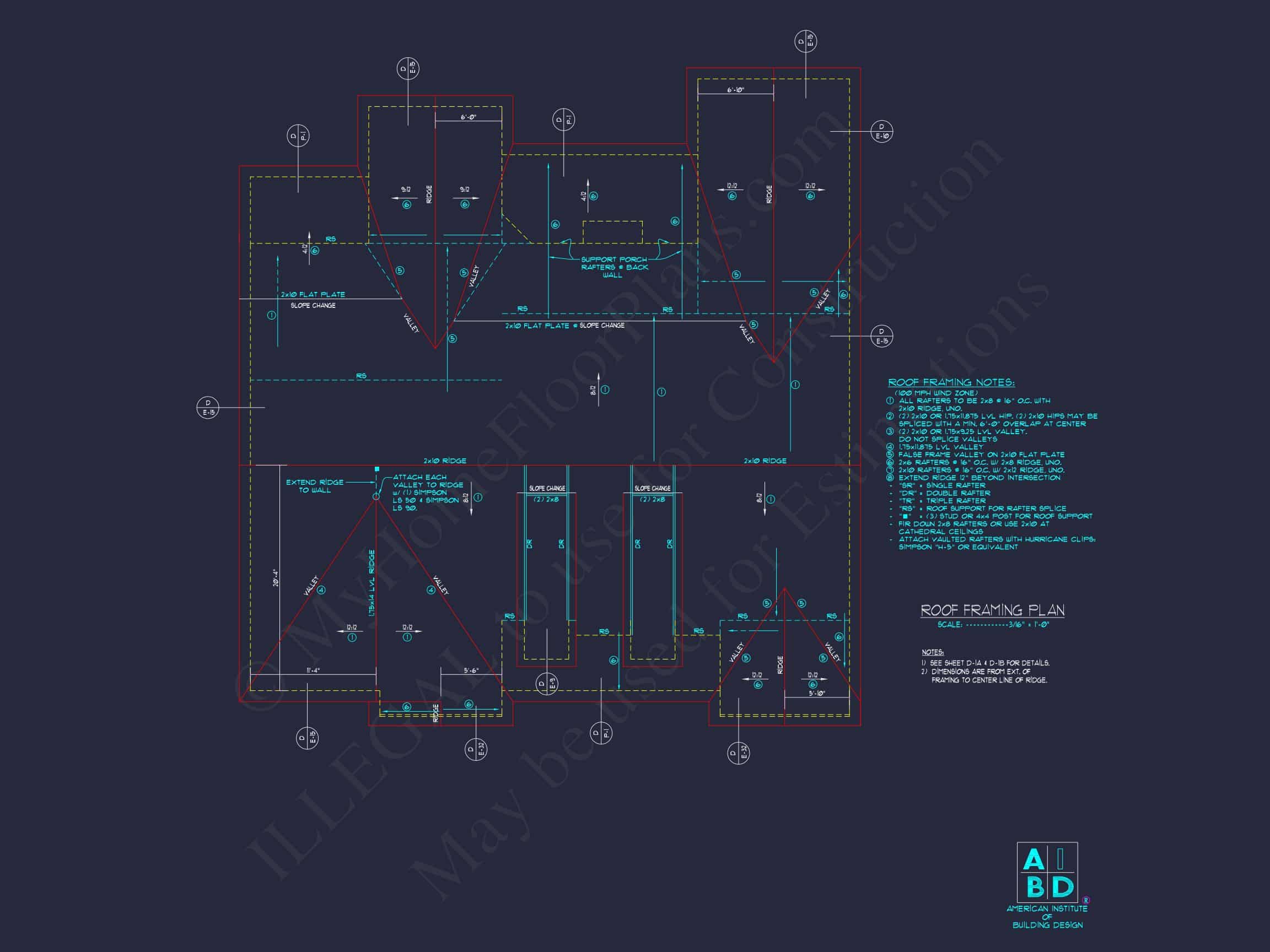

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
