10-1734 House PLAN – 5-Bed, 5.5-Bath, 4186 SF Traditional Craftsman House Plan
5 bed • 5.5 bath • 4186 SF. Vaulted ceilings, open great room, and bonus spaces. Includes CAD+PDF + unlimited build license. Start your build today.
Elegant 3-Story House Plan with 5 Bedrooms and Vaulted Ceilings
Discover this luxurious 4,186-heated-square-foot traditional Craftsman blend—spanning three levels—with five bedrooms, 5.5 baths, flexible bonus areas, and builder-ready CAD blueprints.
This generously scaled traditional house plan marries timeless curb appeal with modern function. Layered front gables, shake accents, and stone detailing evoke Craftsman character, while the interior organizes everyday life around an open kitchen–dining–great room sequence for effortless entertaining. With three complete floors of living space—including dedicated work zones, recreation areas, and abundant storage—this design adapts as families grow, hobbies expand, and guests come to stay. Every purchase includes editable CAD + PDF files so your builder and local engineer can coordinate bids, permits, and site adjustments with speed and precision.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- - Heated area: 4,186 sq. ft. distributed across three thoughtfully composed levels to balance connection and privacy.
- - Main gathering core: a vaulted great room with fireplace, open to the kitchen and dining area for seamless daily living and large-group hosting. Compare similar layouts on our open floor plan house plans.
- - Unheated extras: covered front and rear porches that extend living outdoors, plus a shaded terrace ideal for grilling or a conversation set.
- - Garage: oversized, attached 2-car garage with side entry for curb appeal and a short, weather-safe path to the mudroom.
Bedrooms & Bathrooms
- - Owner Suite on main: a calming retreat with tray ceiling potential, generous windows, and a spa-style bath with double vanities, separate tub and shower, and private water closet.
- - Secondary bedrooms: four additional bedrooms sized for queen beds and desks, including Jack-and-Jill configurations that streamline morning routines.
- - Bath count: 5.5 total—ample capacity for guests, holidays, and busy school days.
Interior Highlights
- - Vaulted and tray ceilings amplify volume and daylight, emphasizing the great room and owner suite.
- - Entertainer’s kitchen with a multi-seat island, breakfast nook, and walk-in pantry keeps counters clear during prep and service. Browse more options in our kitchen-island plans.
- - Fireplace focal point anchors the great room for cozy evenings; built-ins fit naturally on either side.
- - Dedicated office/study near the foyer supports quiet calls and client visits.
- - Bonus and recreation rooms flex for media, gaming, fitness, or a craft studio—spaces that change with your lifestyle.
Garage & Storage Details
- - Garage bays: oversized 2-car arrangement fits SUVs and room for tool storage.
- - Owner entry: a mudroom with bench, hooks, and cubbies captures daily clutter before it reaches living spaces.
- - Storage strategy: walk-in pantry, linen closets near baths, deep bedroom closets, and accessible attic areas help keep the home organized year-round.
Outdoor Living Features
- - Front porch with columned entry welcomes guests and provides rain cover at the door.
- - Rear porch and terrace open off the dining and kitchen zones for easy alfresco meals, weekend grilling, and relaxed gatherings. Explore more designs on our outdoor living collection.
Architectural Style: Traditional Craftsman Blend
The façade’s stacked stone, shake shingles, and gabled rooflines read as Craftsman, while balanced window groupings and refined trim details nod to classic American traditionalism. The result is a transitional palette that feels both rooted and current. Inside, the floor plan privileges daylight, short circulation paths, and easy furniture placement—qualities that increase comfort now and preserve resale value later. If you enjoy handcrafted character without sacrificing contemporary livability, this plan strikes the right balance. For a deeper dive into the movement that inspired these details, see ArchDaily’s overview of American Craftsman origins.
How the Plan Lives, Level by Level

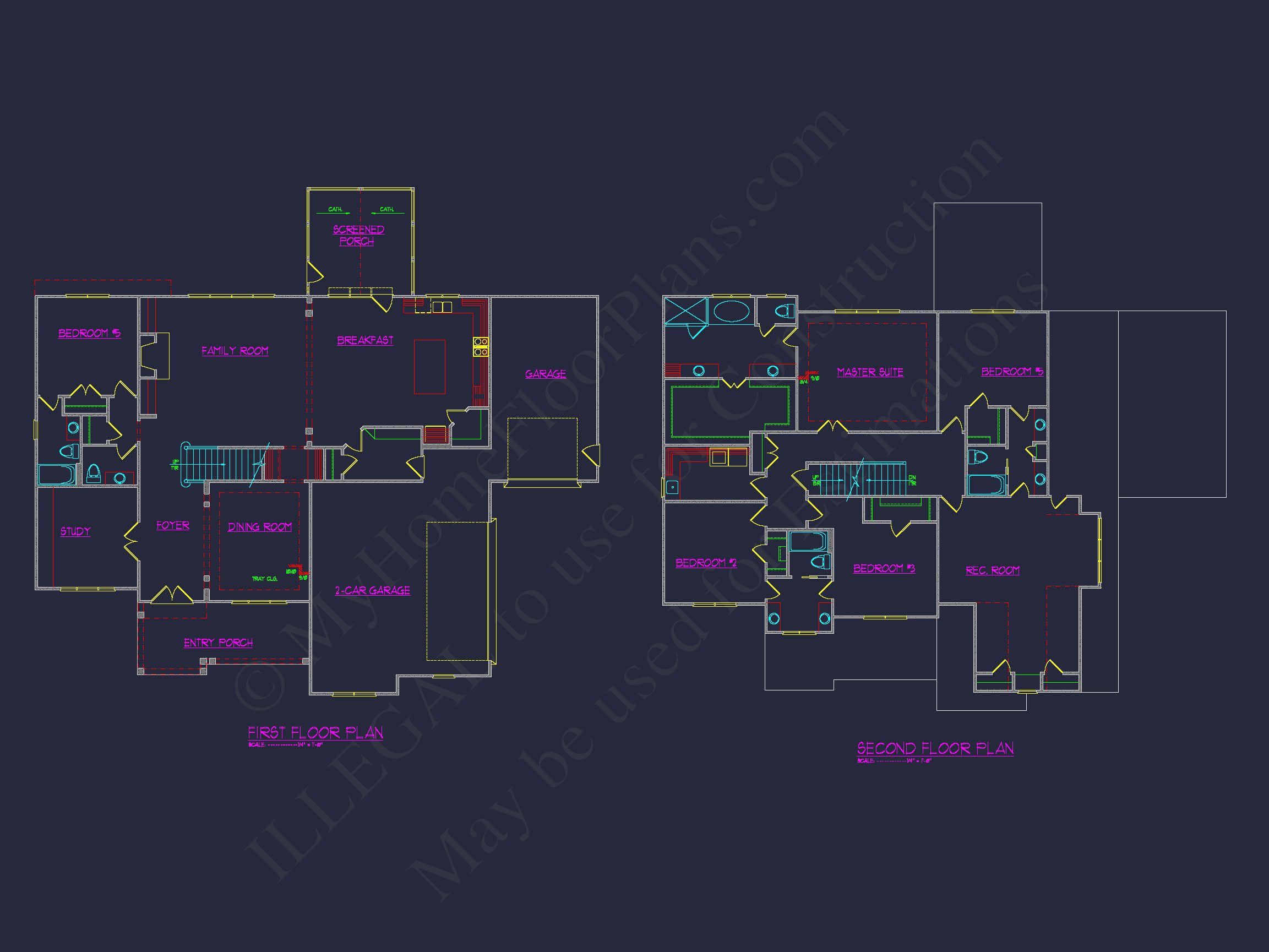

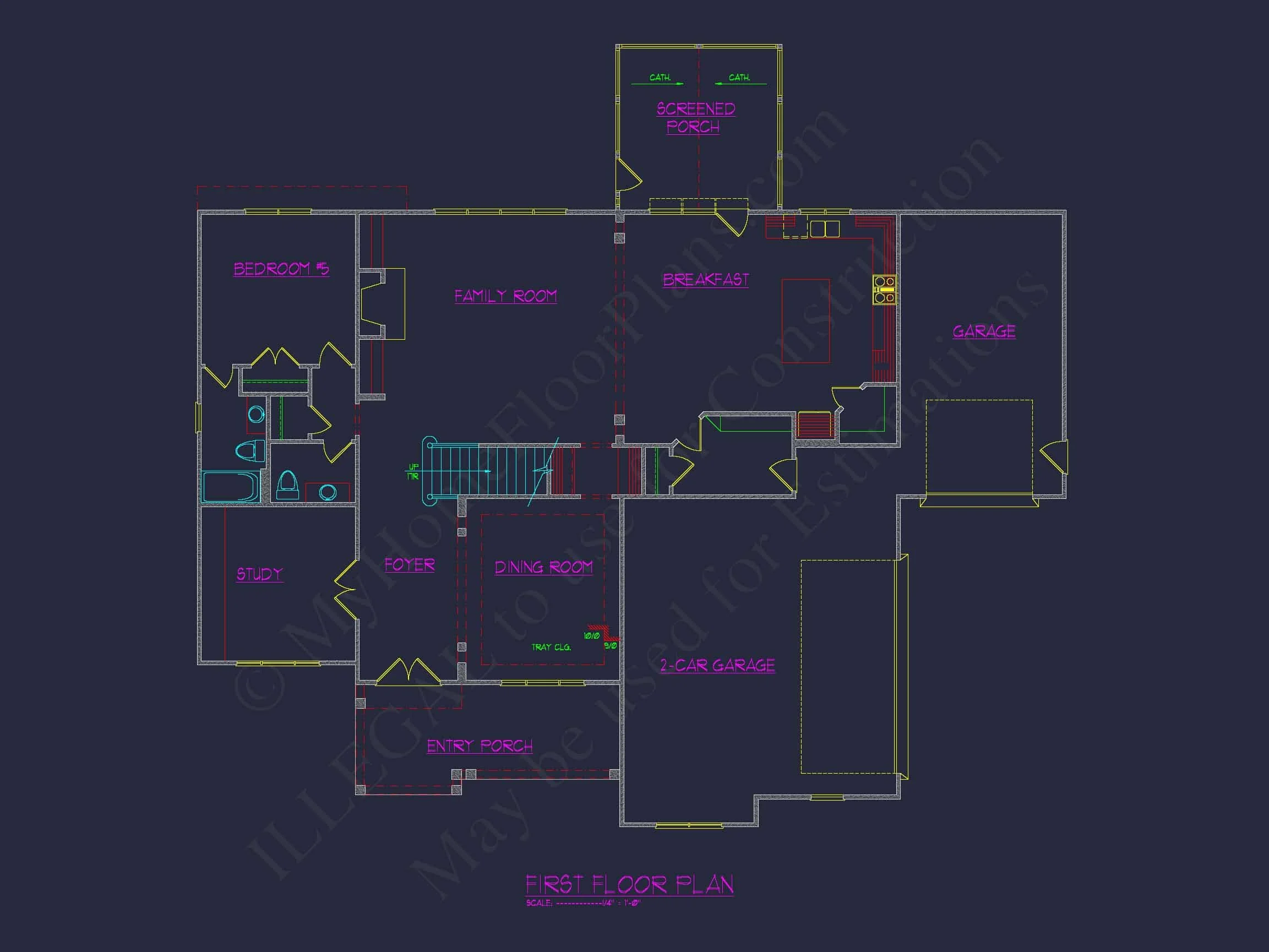

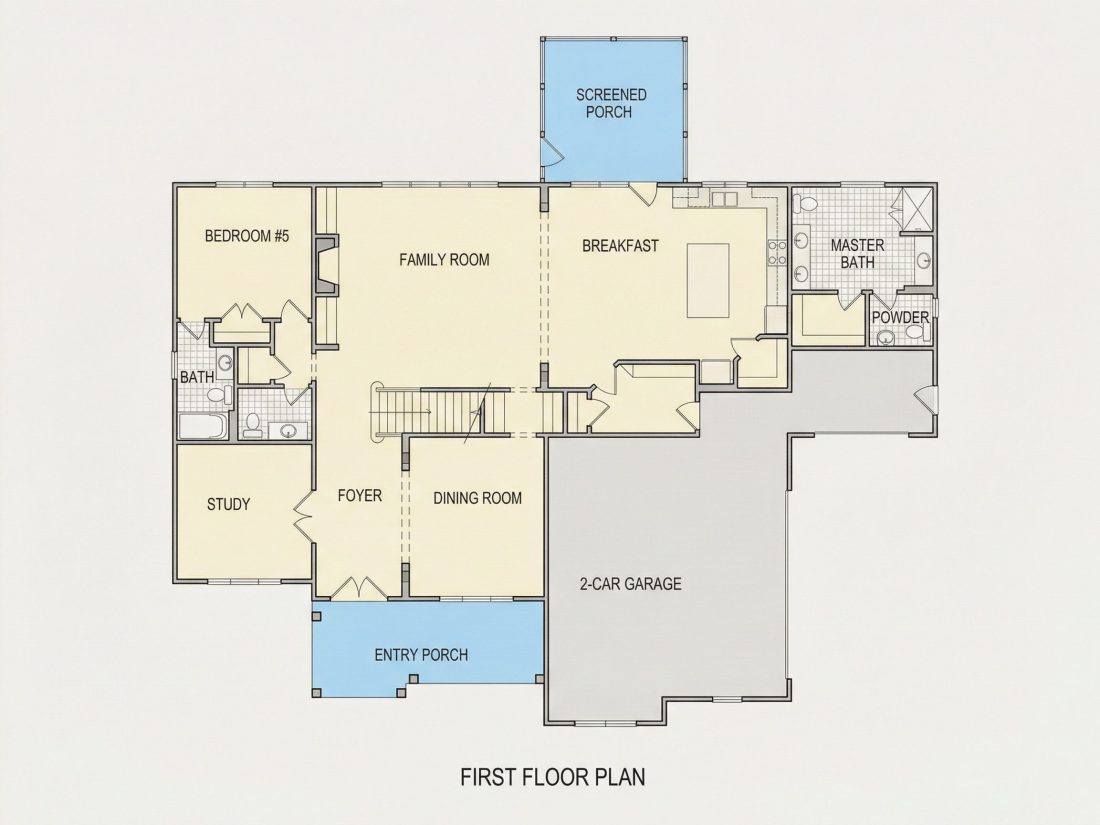

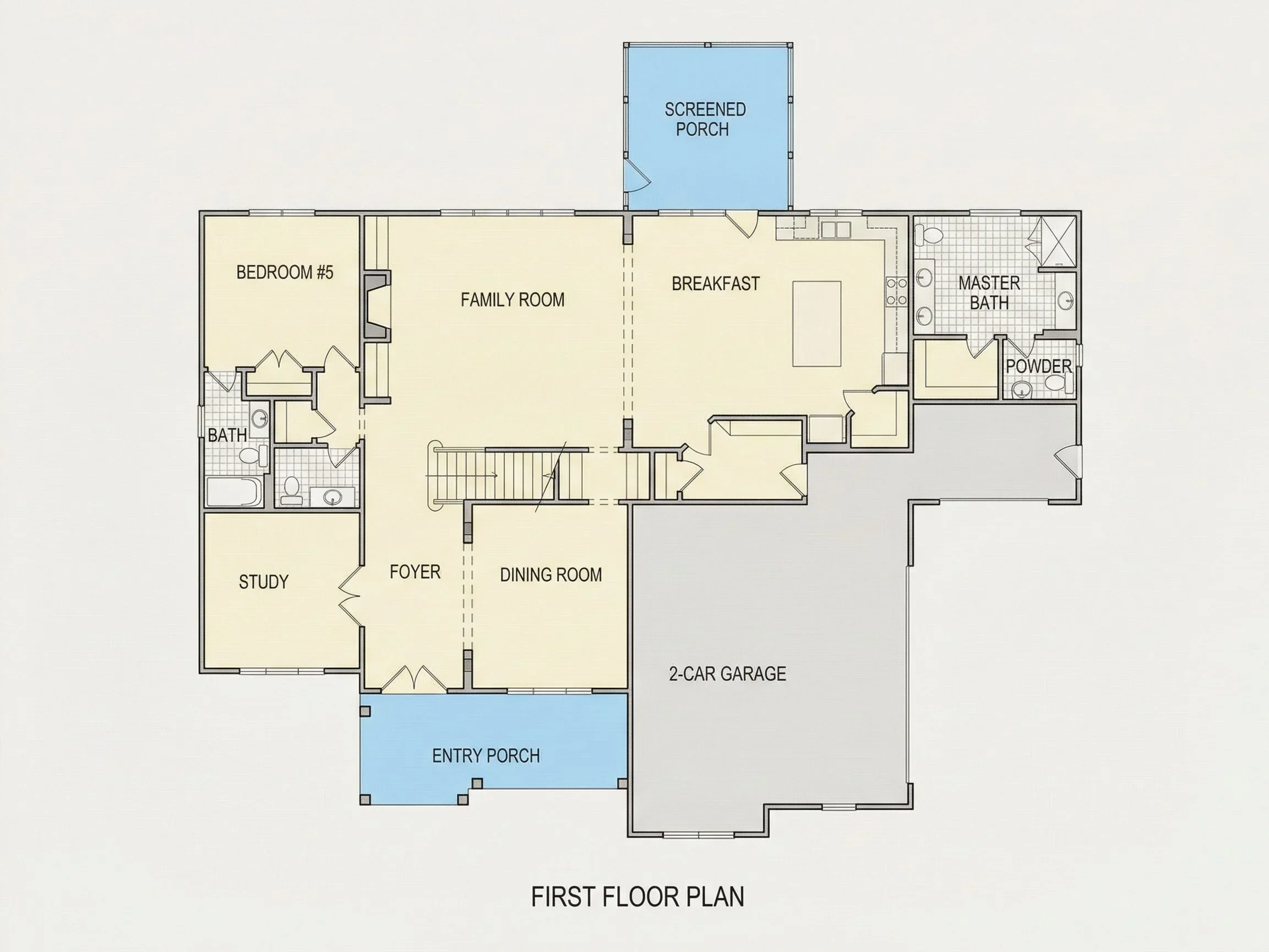

Main Level. The foyer offers a moment of arrival—space for a console, art, and a closet for guests—before opening to the vaulted great room. The kitchen–dining–living axis supports weeknight efficiency and weekend hosting alike: the island seats four for breakfast and homework, the dining area accommodates a full-size table, and the great room orients seating toward the fireplace and backyard views. A discreet powder room serves public zones. The owner suite is positioned for privacy and fast access to laundry and linen storage. A side service door from the garage leads directly to the mudroom bench and pantry for smooth grocery runs.

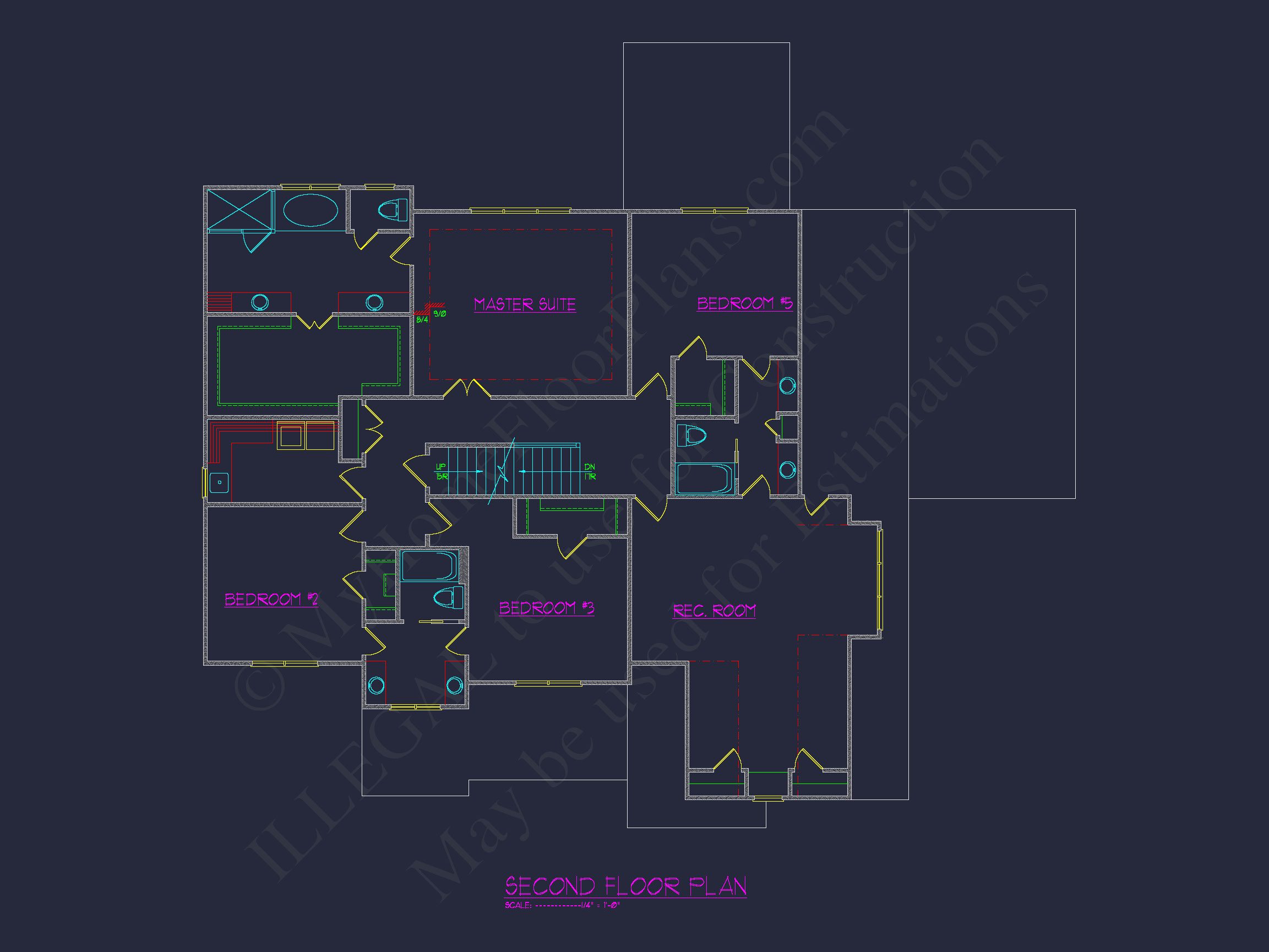

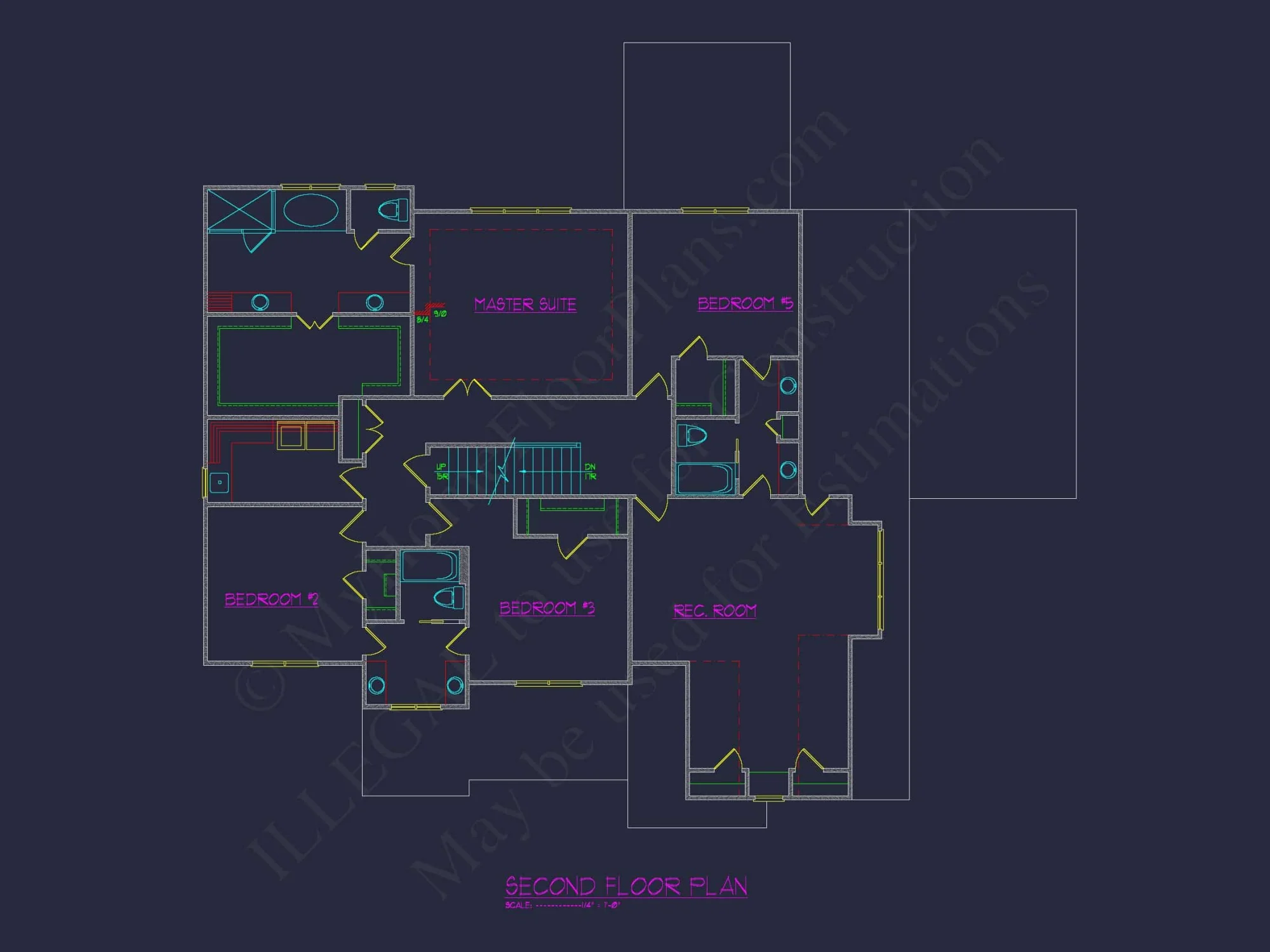

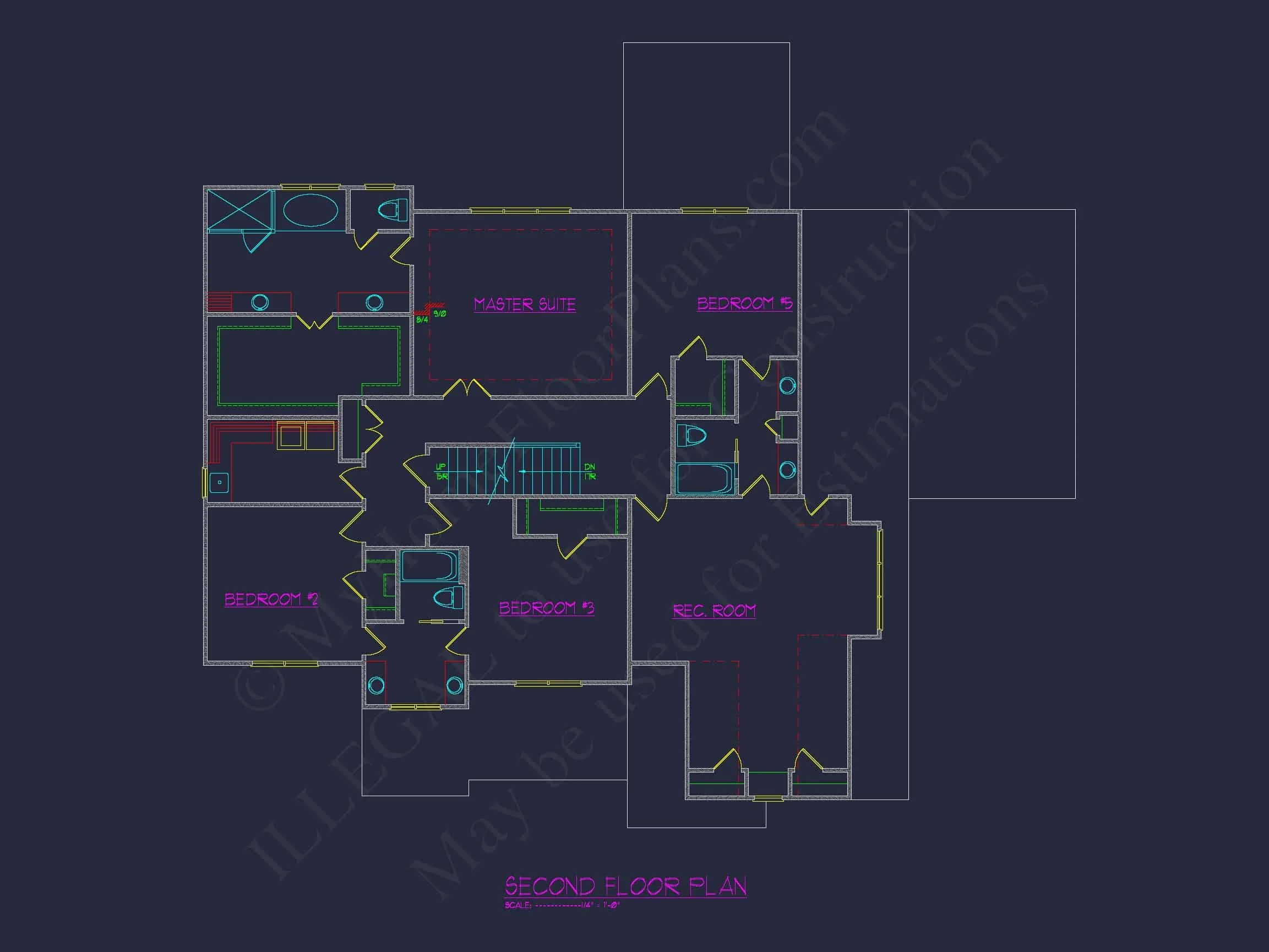

Upper Level. Four secondary bedrooms and a pair of well-placed baths (including Jack-and-Jill) keep mornings flowing. A generous bonus/loft becomes a teen lounge, homework hub, or media space that contains noise away from the great room. Closets are deep enough for seasonal storage, and a linen cabinet sits just off the hall for easy access to sheets and towels.

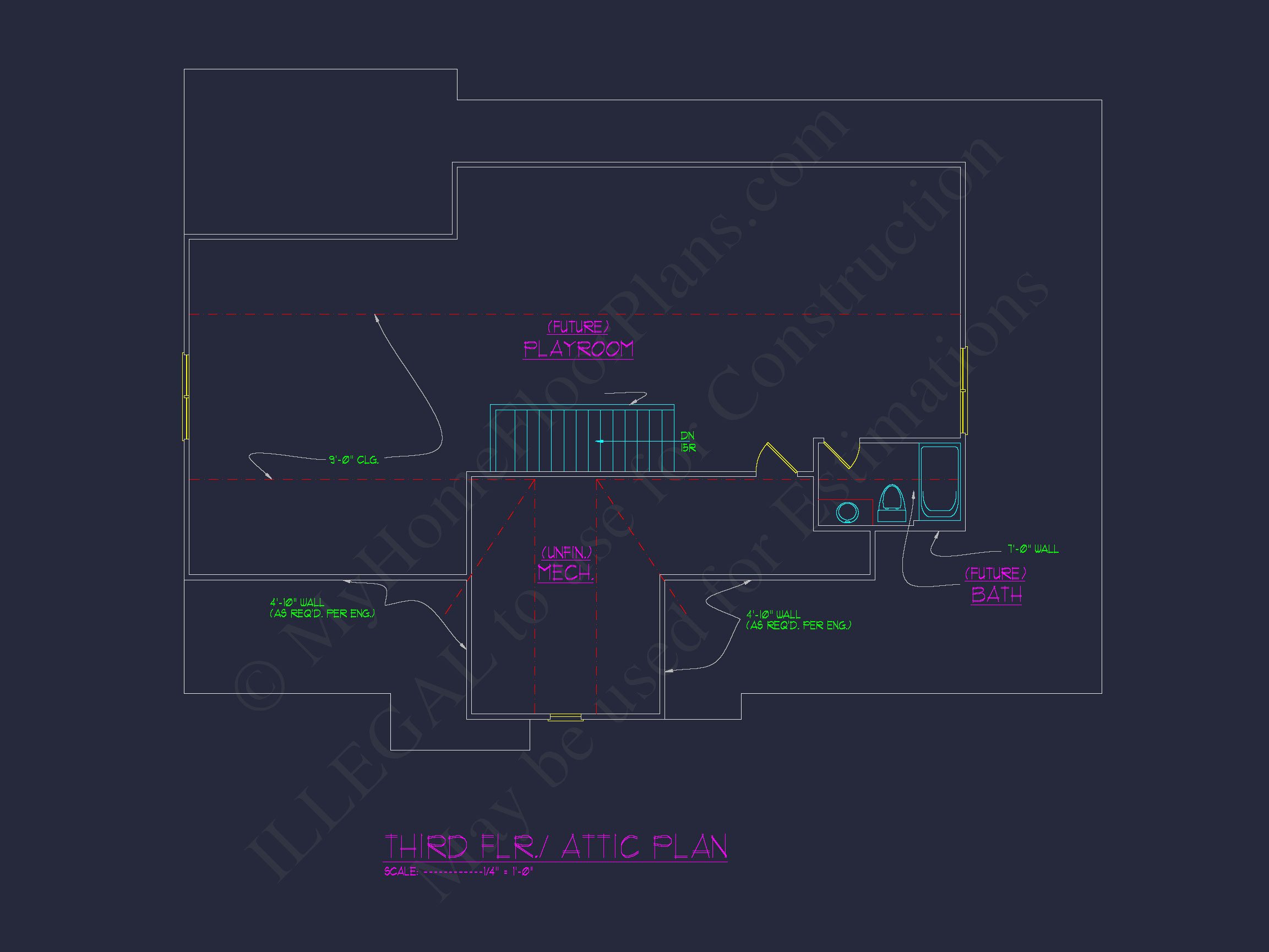

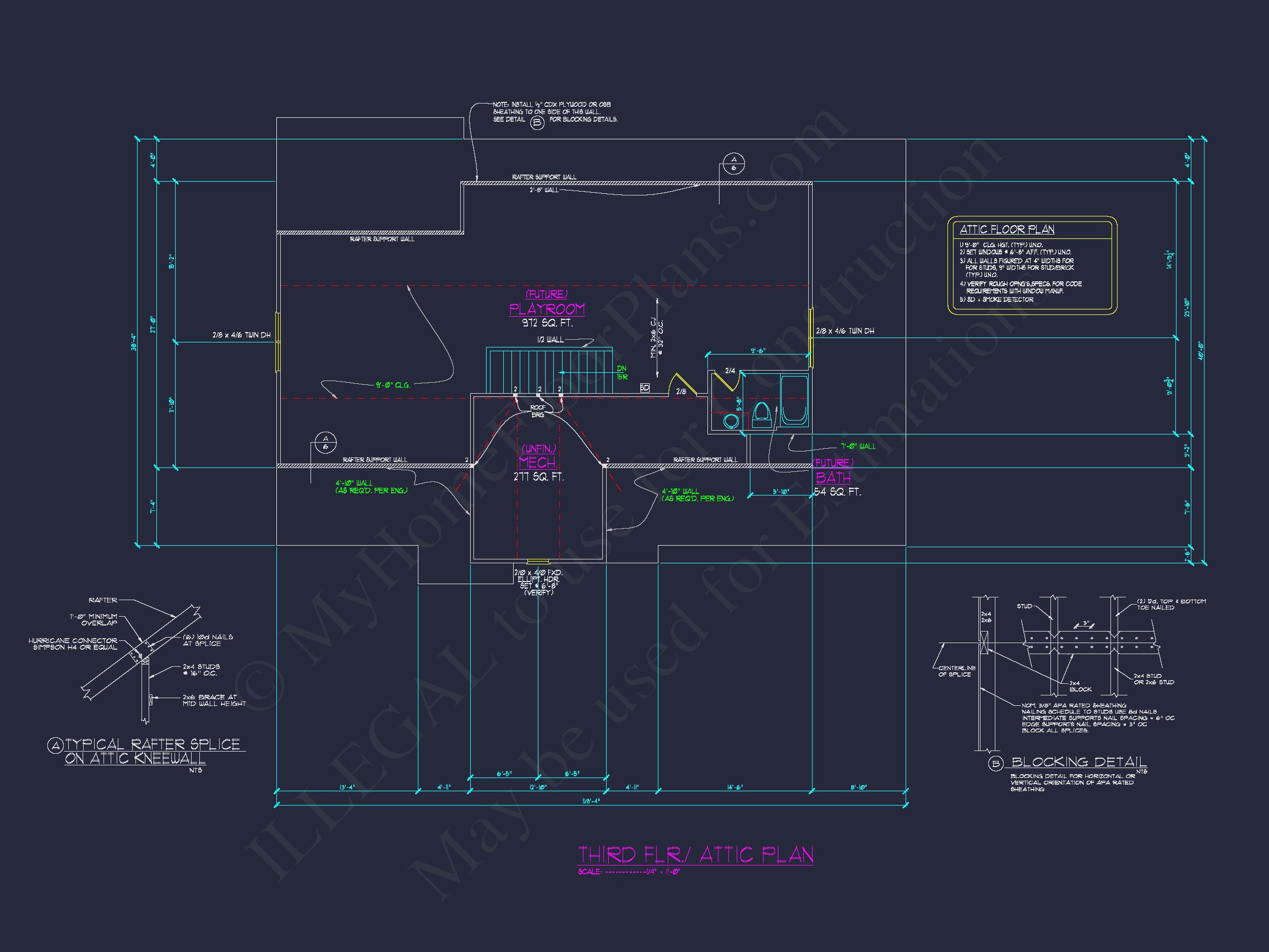

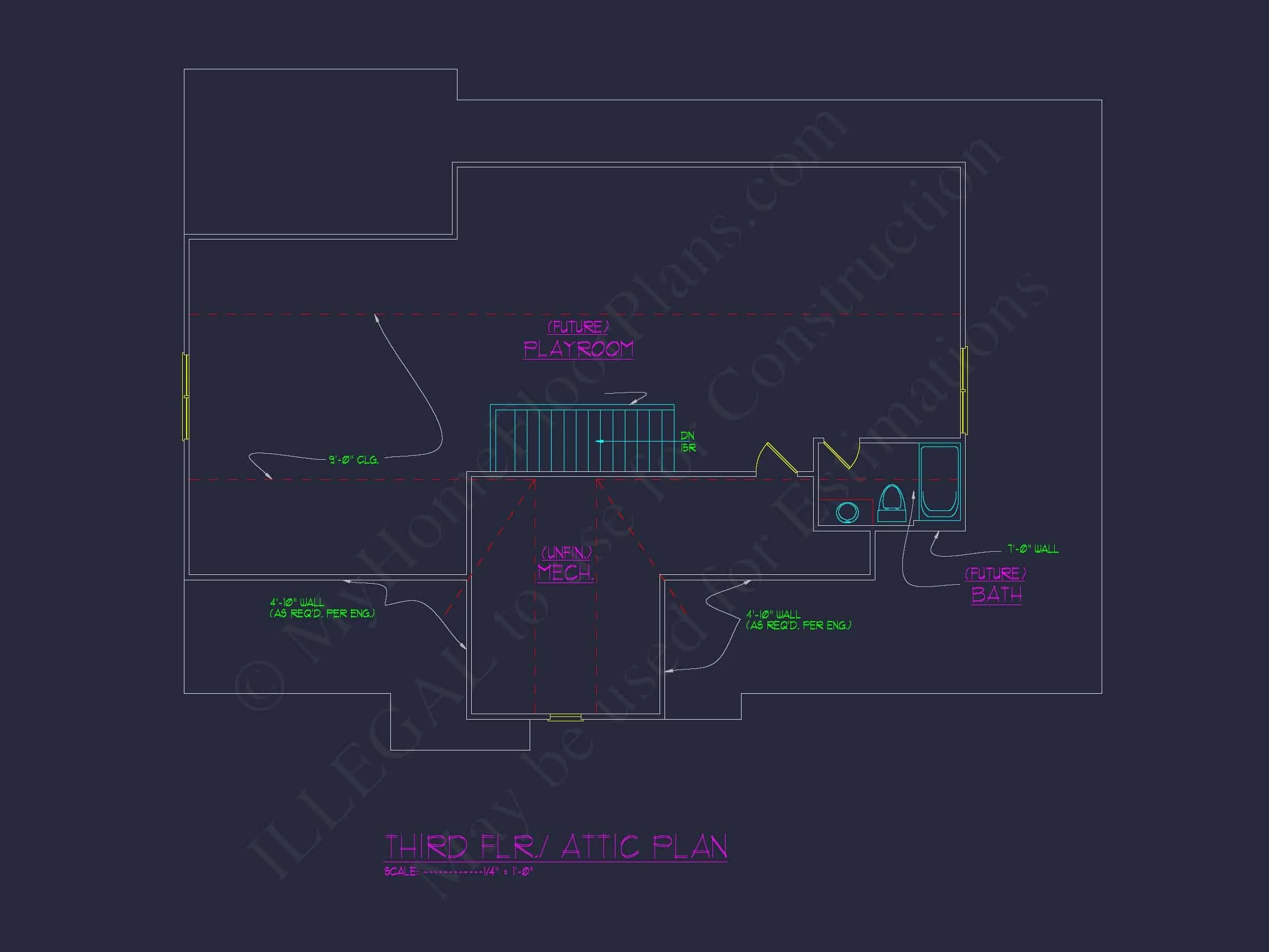

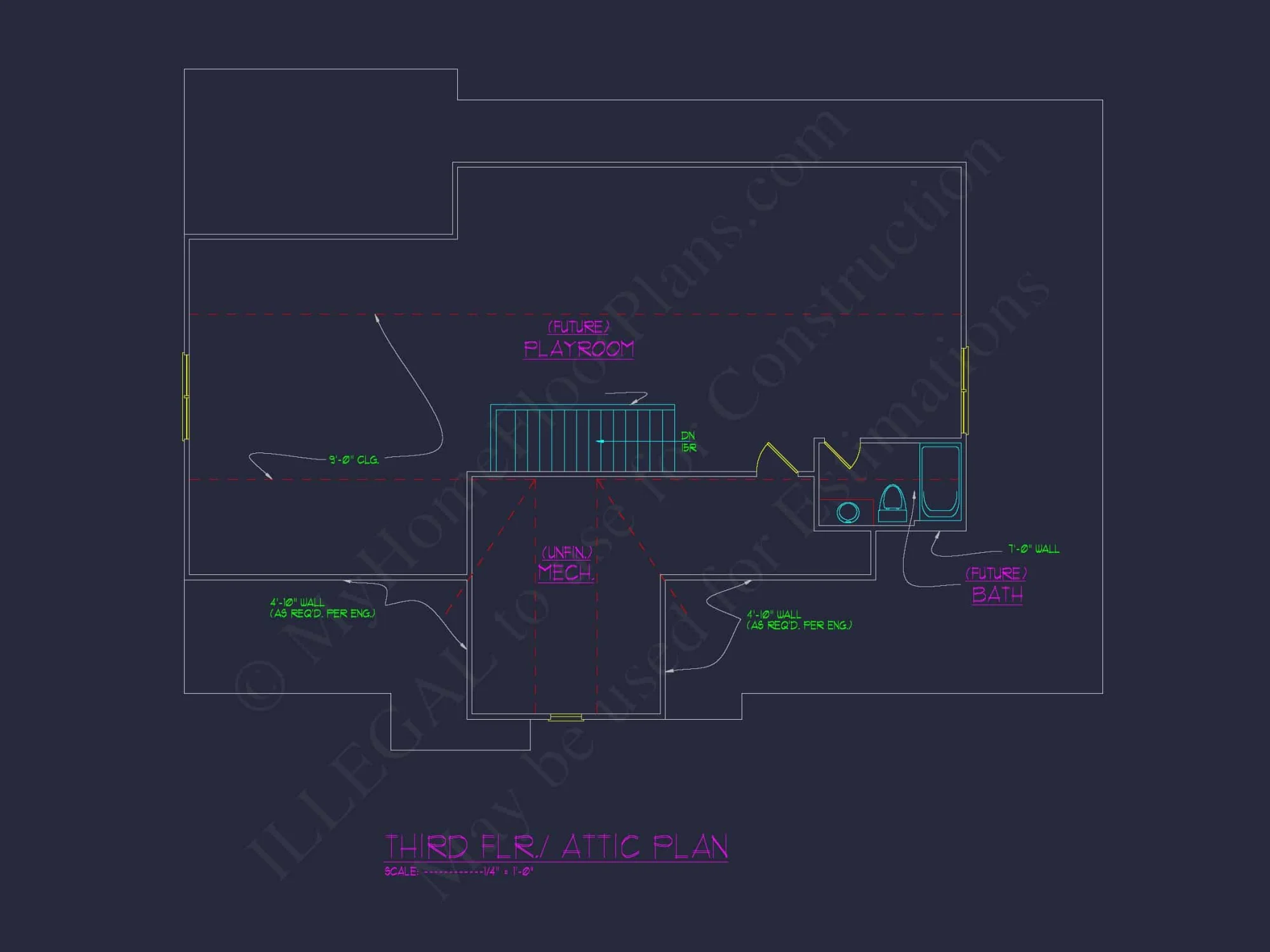

Lower/Third Level (if finished): This floor flexes for a gym, workshop, playroom, guest suite, or home theater. Clear spans simplify future finish-outs, and mechanical locations are planned to keep duct runs efficient.
Buildability, Comfort & Performance
- - Clean structure: logical bearing lines and repeatable spans keep framing predictable and cost-effective.
- - HVAC friendly: straight runs, planned returns, and accessible chases support right-sized systems and easy maintenance.
- - Envelope upgrades: the drawings accommodate advanced air-sealing, insulated headers, and continuous exterior insulation where climate-appropriate. For best practices, see Fine Homebuilding’s Energy-Smart Building guide.
- - Durable finishes: fiber-cement siding, engineered trim, and weather-sensible flashing details help the exterior age gracefully with minimal upkeep.
Everyday Conveniences That Matter
- - Drop zone by the garage contains shoes, backpacks, and deliveries before they reach living areas.
- - Kitchen work triangle keeps refrigerator, sink, and range within efficient reach while preserving prep space on the island.
- - Natural light strategy places grouped windows at the rear to brighten the core without compromising wall space for cabinetry and media.
- - Laundry access positioned to minimize backtracking between bedrooms and closets.
- - Quiet office with door and wall space for shelving, pinboards, or a printer cabinet.
Included Benefits with Every Plan
- - CAD + PDF Files: fully editable and printable, ready for engineers, permitting, and accurate bids.
- - Unlimited Build License: construct the design more than once without repurchasing the plan.
- - Free Foundation Changes: select slab, crawlspace, or basement at no extra cost. Learn more on our foundation options page.

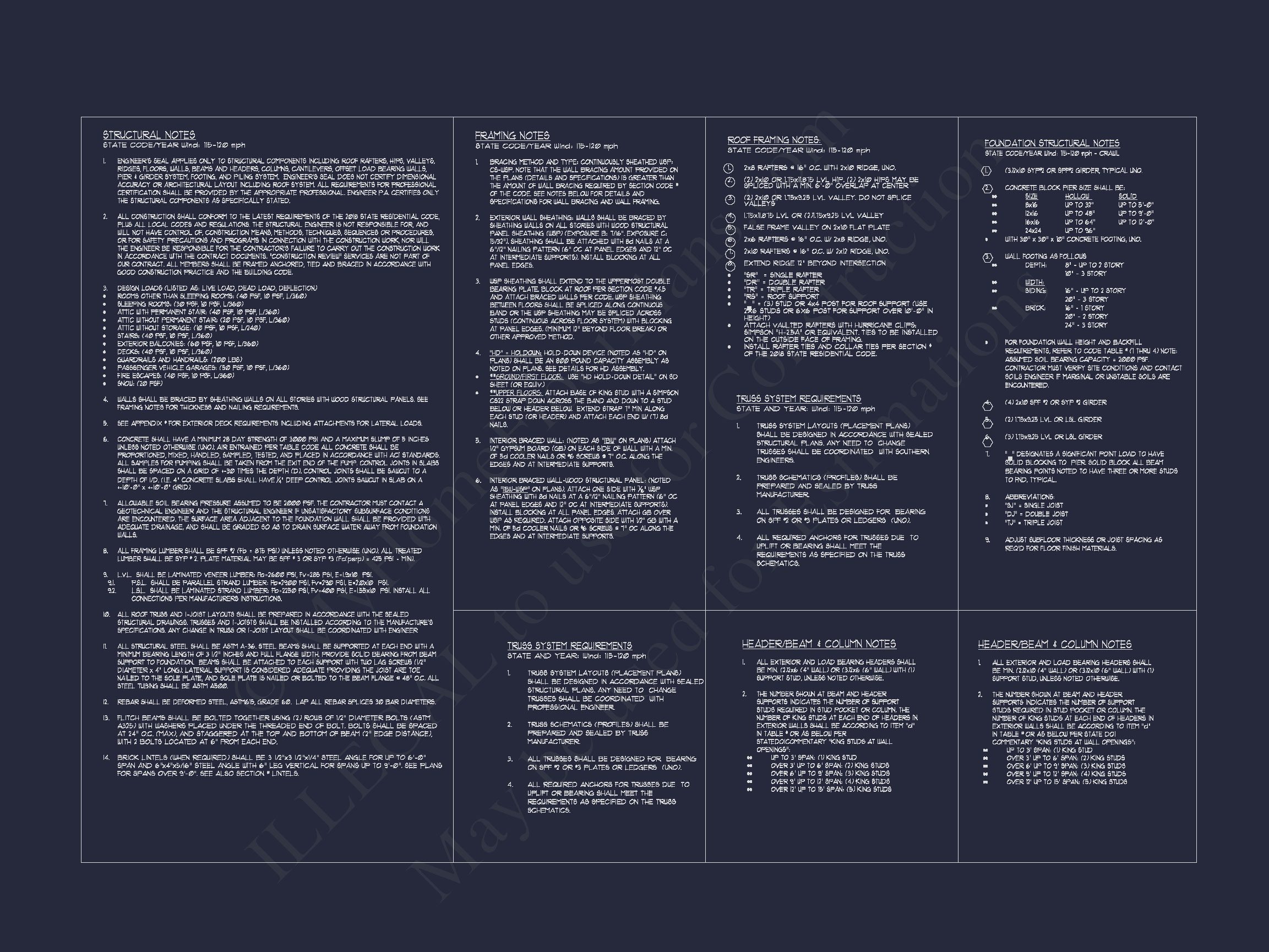

- - Structural Engineering Included: drawings are prepared for code compliance and safety—streamlining approvals. Details here: structural engineering in home plans.
- - Lower Modification Costs: our in-house team completes edits quickly, typically saving up to 50% versus third-party redrafts. Start a request at house plan modifications.
- - View Before You Buy: preview the complete sheet set in advance via our plan preview.
Who This Plan Fits
This layout is ideal for households that host often, work from home, or need flexible spaces for hobbies and fitness. The main-level owner suite supports aging in place or multigenerational living. The side-entry garage keeps the façade elegant on corner or cul-de-sac parcels, and the balanced massing suits a wide range of neighborhoods.
Design Options & Easy Customizations
- - Add a grilling porch extension or convert part of the rear porch to a screened room.
- - Enlarge the pantry or shift cabinetry to include a built-in coffee bar.
- - Reconfigure a secondary bath for a luxury shower or shared hall access.
- - Add built-ins flanking the great-room fireplace for storage and display symmetry.
- - Adjust window placements for optimal solar orientation and views on your site.
Five Practical Planning Tips
- - Plan electrical for holiday decor and outdoor lighting early to avoid change orders.
- - Rough-in for a future EV charger in the garage while access is simple.
- - Reserve a closet near the entry for cleaning tools to keep the pantry food-focused.
- - Consider sound-attenuating insulation around bedroom and bath walls for privacy.
- - If finishing the lower level, align plumbing stacks with upstairs baths to control costs.
Similar Collections You Might Love
- 5-Bedroom House Plans
- Large House Plans (3,000–5,000 SF)
- Bonus Room House Plans
- Plans with Owner Suite on Main
- Traditional House Plans
Frequently Asked Questions
What’s included with this house plan? You receive editable CAD files, PDFs, an unlimited build license, structural engineering, and free foundation swaps—everything you need to move from design to permits.
Can I customize this plan? Yes. Our team completes most modifications quickly and affordably. Request a custom quote to tailor the plan to your site and lifestyle.
Is this suitable for large families? Absolutely. Five bedrooms, multiple living zones, and generous storage support multigenerational living and frequent guests.
How many stories does the home have? Three complete levels provide separation between quiet bedrooms and active spaces.
Can I preview the full blueprint? Yes—use our view-before-you-buy option to see every sheet prior to purchase.
Start Building Your Dream Home Today
Have questions about siting, code requirements, or small tweaks? Email support@myhomefloorplans.com or submit your request here. With CAD + PDF files, structural engineering, and an unlimited build license included, this Traditional Craftsman blend gives you the clarity, flexibility, and confidence to break ground sooner—without sacrificing style or performance.
Original price was: $3,370.56.$1,754.99Current price is: $1,754.99.
999 in stock
* Please verify all details with the actual plan, as the plan takes precedence over the information shown below.
Width | 79'-4" |
---|---|
Depth | 52'-0" |
Htd SF | |
Unhtd SF | |
Bedrooms | |
Bathrooms | |
# of Floors | |
# Garage Bays | |
Architectural Styles | |
Indoor Features | Attic, Basement, Bonus Room, Fireplace, Great Room, Living Room, Mudroom, Office/Study, Open Floor Plan, Recreational Room |
Outdoor Features | |
Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
Kitchen Features | |
Garage Features | |
Ceiling Features | |
Structure Type | |
Exterior Material |
