Custom Home Blueprint with 5 Beds, Open Floor Plan — CAD Designs
Explore this 5-bedroom home plan with stunning architecture, a spacious layout, vaulted ceilings, and CAD-enabled blueprints perfect for your dream home design.
Exceptional Home Design with Thoughtful Floor Plan
Designing your dream home starts with the right blueprint, and this spacious 5-bedroom design has everything you need for a modern and functional layout. Featuring 3, 885 heated square feet, this CAD-enabled floor plan combines luxury, practicality, and seamless architectural styles suited for craftsman, traditional, and coastal-inspired homes.
A Perfect Layout for Family Living

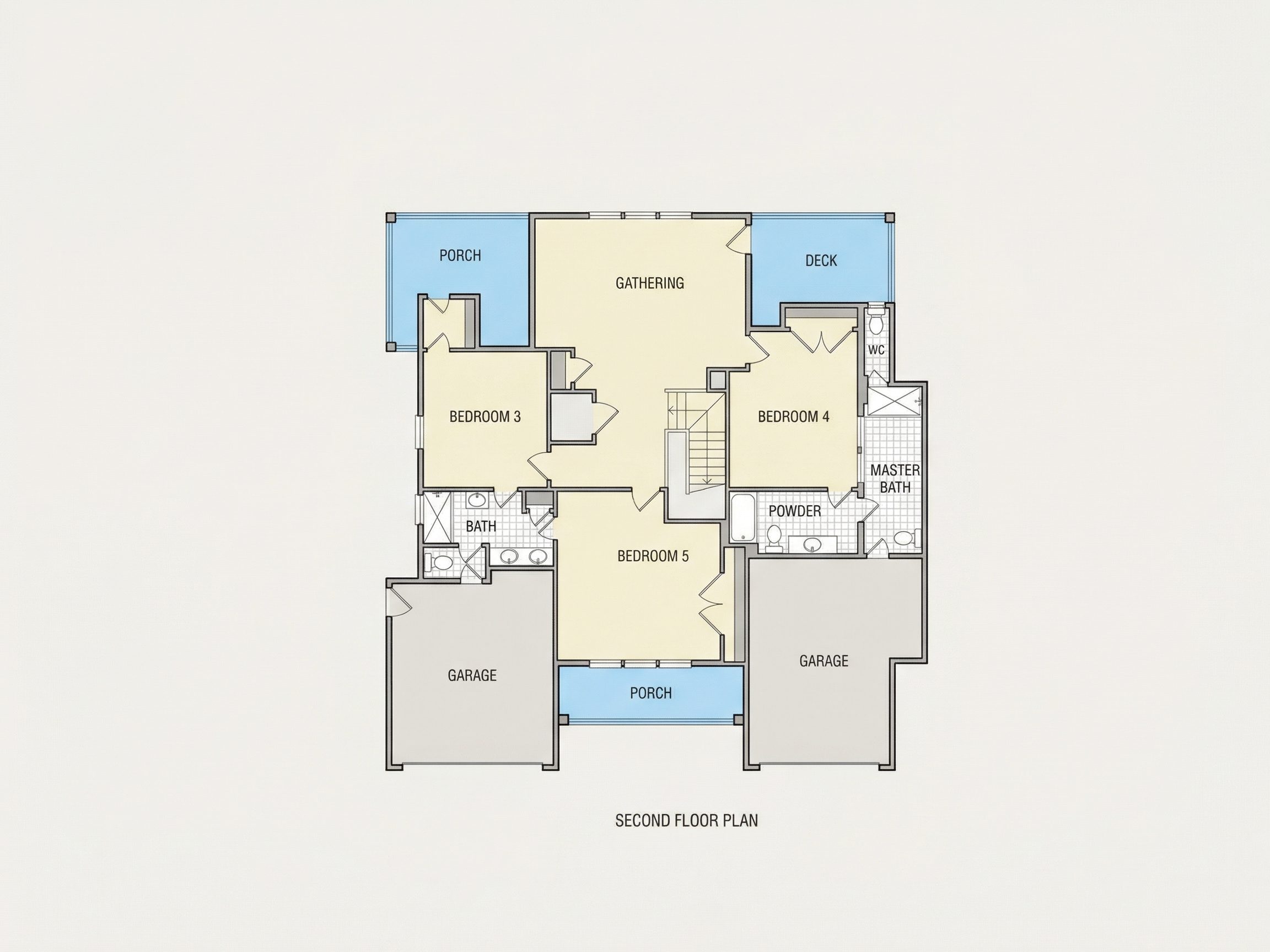

This two-story home is designed for easy family living and entertaining. With five bedrooms, including a Owner suite conveniently located on the first floor, this floor plan offers a balance between private retreats and open spaces. Upstairs, find additional bedrooms plus shared baths with Jack and Jill layouts, ensuring enough space for all. A bonus gathering room, perfect for use as a den or recreational area, rounds out the second floor.

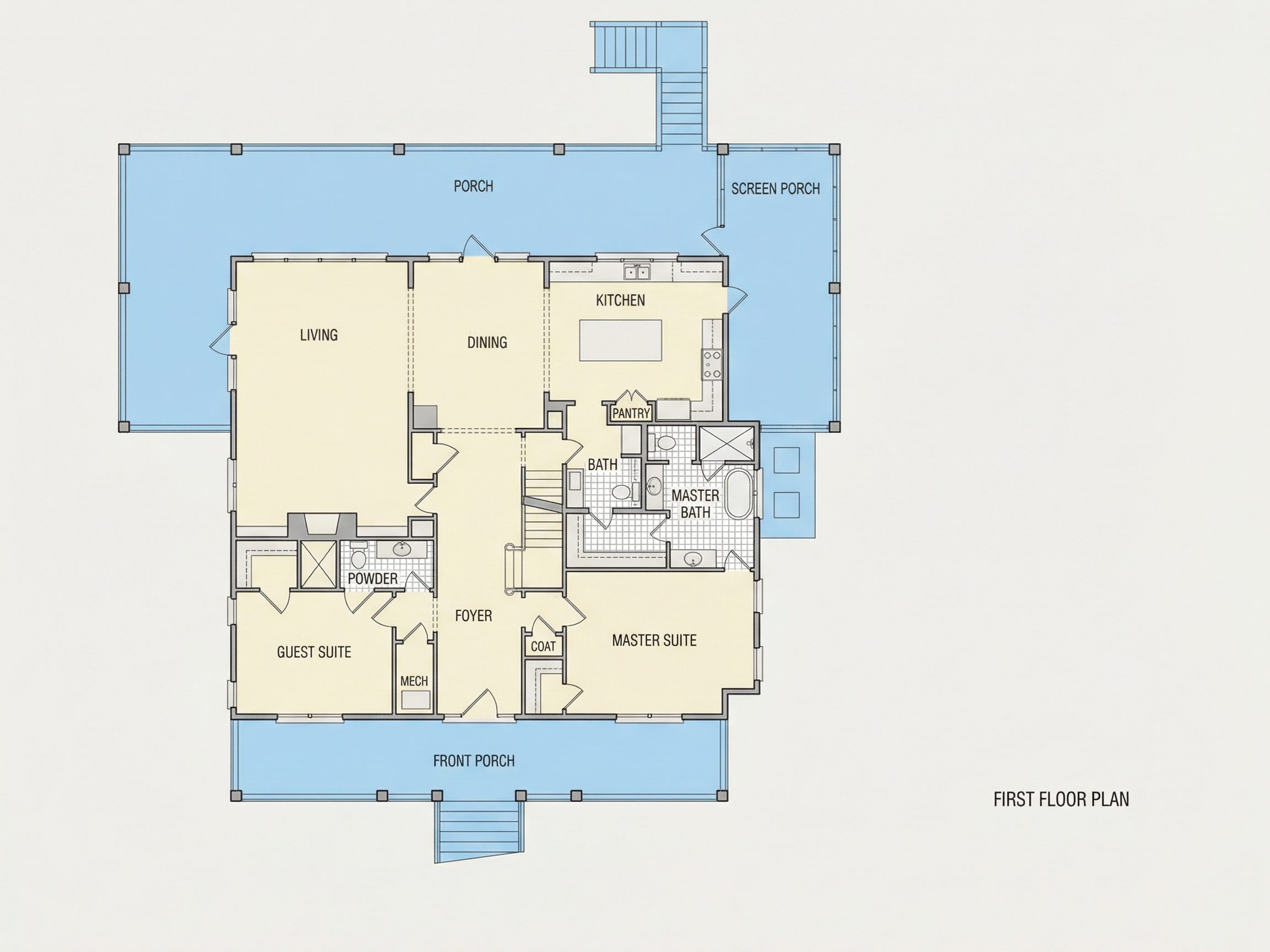

Downstairs, the open concept design features a living room with a fireplace flowing seamlessly into the dining room and kitchen. A well-appointed kitchen island with a walk-in pantry offers ample storage and prep space for hosting.
A Blend of Indoor and Outdoor Living
Outdoor enthusiasts will love the covered front porch and screened porch included in this design. These spaces make it easy to enjoy the outdoors while staying protected from the elements. Whether hosting a summer gathering or relaxing on a quiet evening, these features deliver functionality and charm.
Unique Features That Define the Plan
This large home design fulfills every need, offering the following highlights:
* Indoor Features
* Mudroom perfect for organization and storage.
* A cozy foyer that warmly welcomes guests.
* Vaulted ceilings for a touch of grandeur.
* Walk-in closets and bathrooms with high-quality finishes.
* Outdoor Features
* A relaxing patio and covered porches for easy outdoor access.
* Screened porches offering year-round enjoyment.
Craftsmanship in Every Detail
The exterior material selection—a blend of shingles, board & batten, and shake details—enhances curb appeal while ensuring durability in any weather. Convenient garage bays with a workshop space make this home both stylish and practical. With pier-and-slab foundation options, this home is built for stability and versatility, suitable for many terrains.
Why Choose Our Designs?
Every home plan comes with CAD files and PDFs to ensure easy modifications and limitless possibilities. All homes include an unlimited-build license, free foundation changes, and professional engineering support.
Ready to bring your ideas to life? Contact us today at support@https://myhomefloorplans.com to design the home of your dreams!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

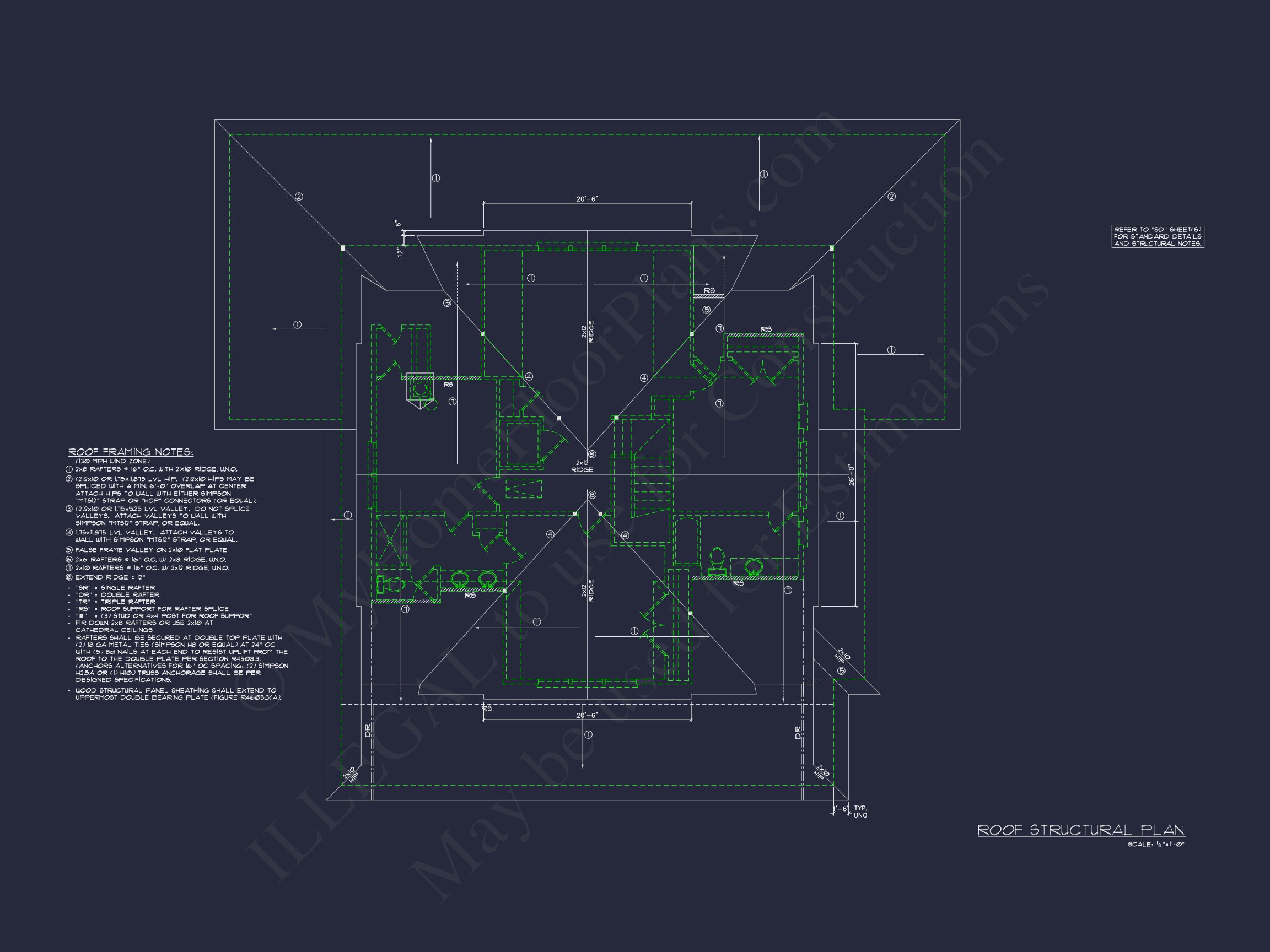

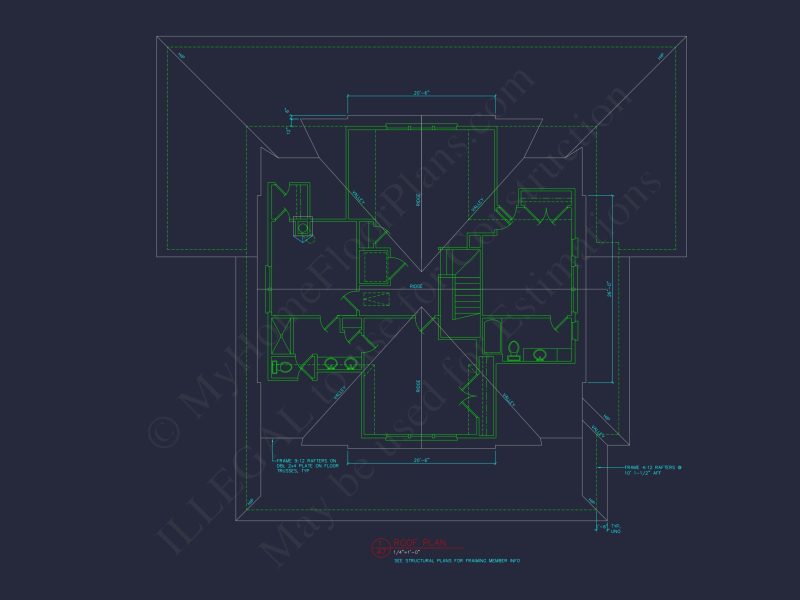

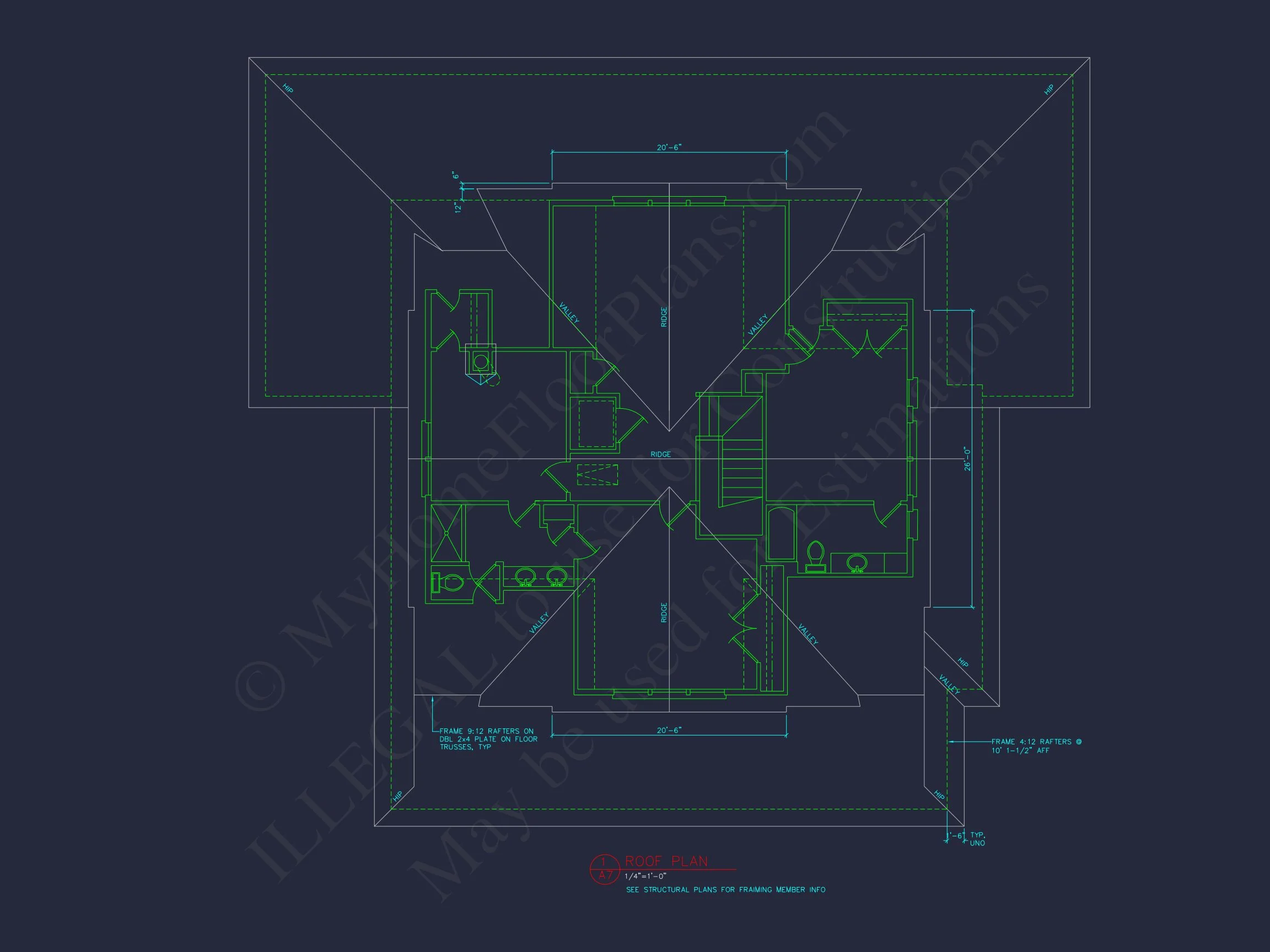

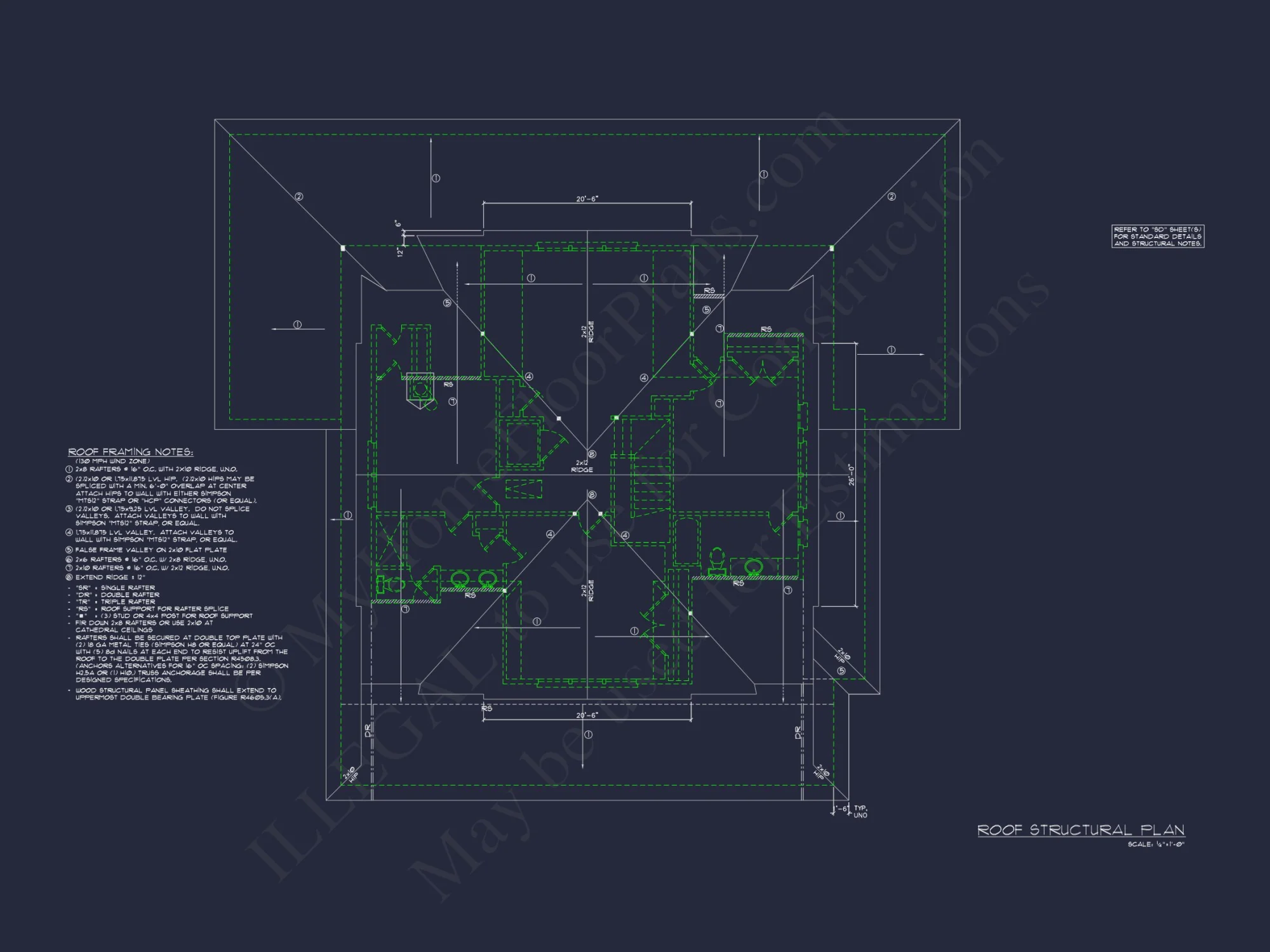

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

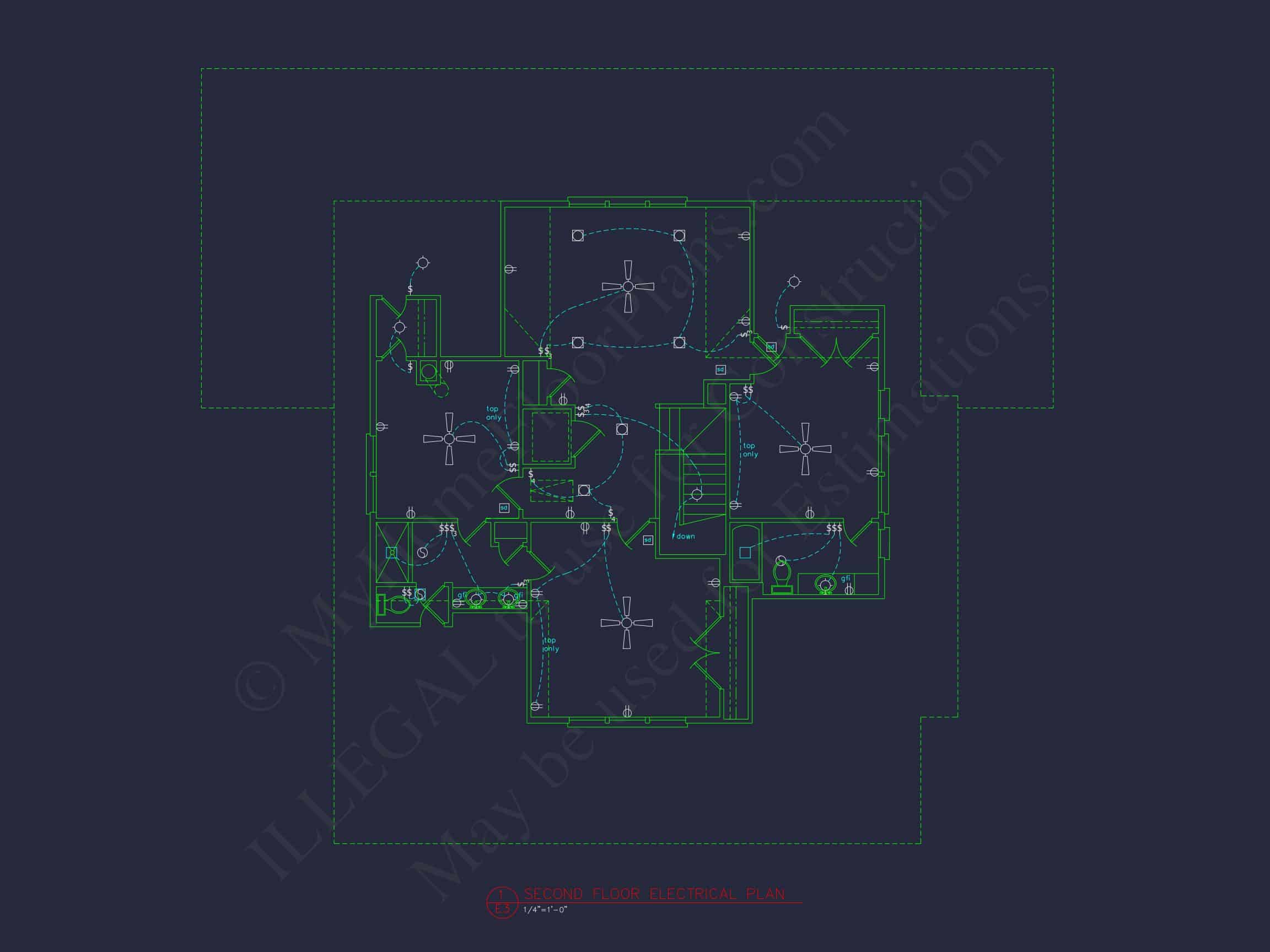

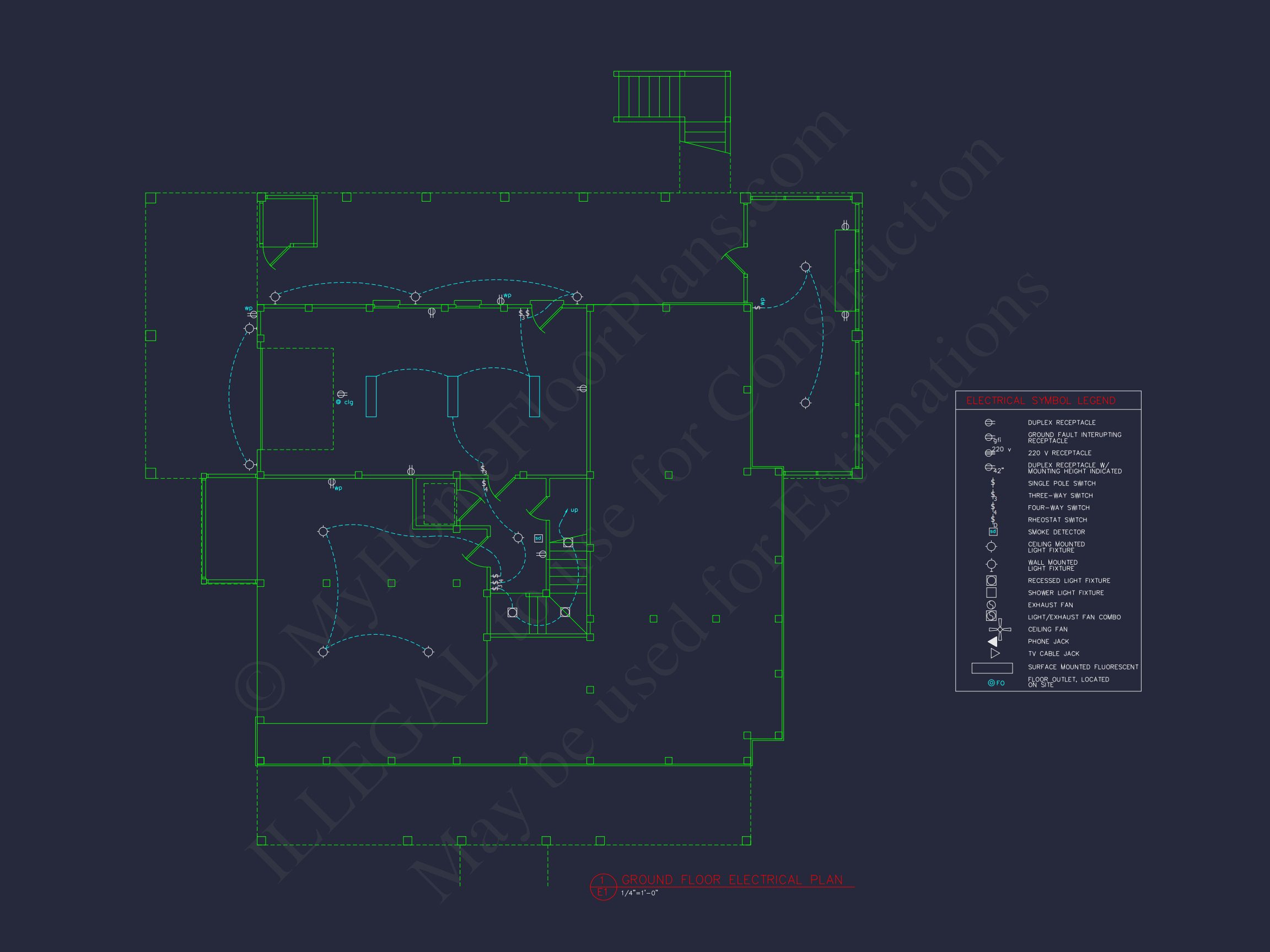

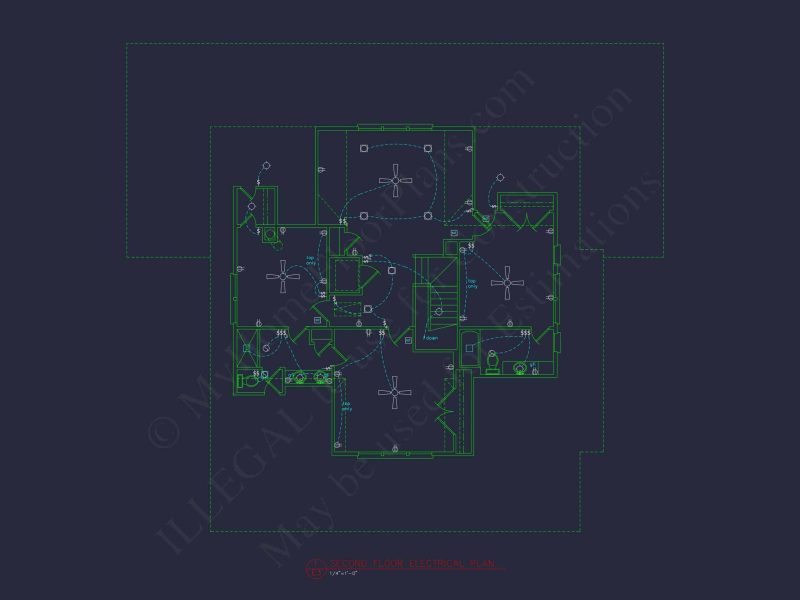

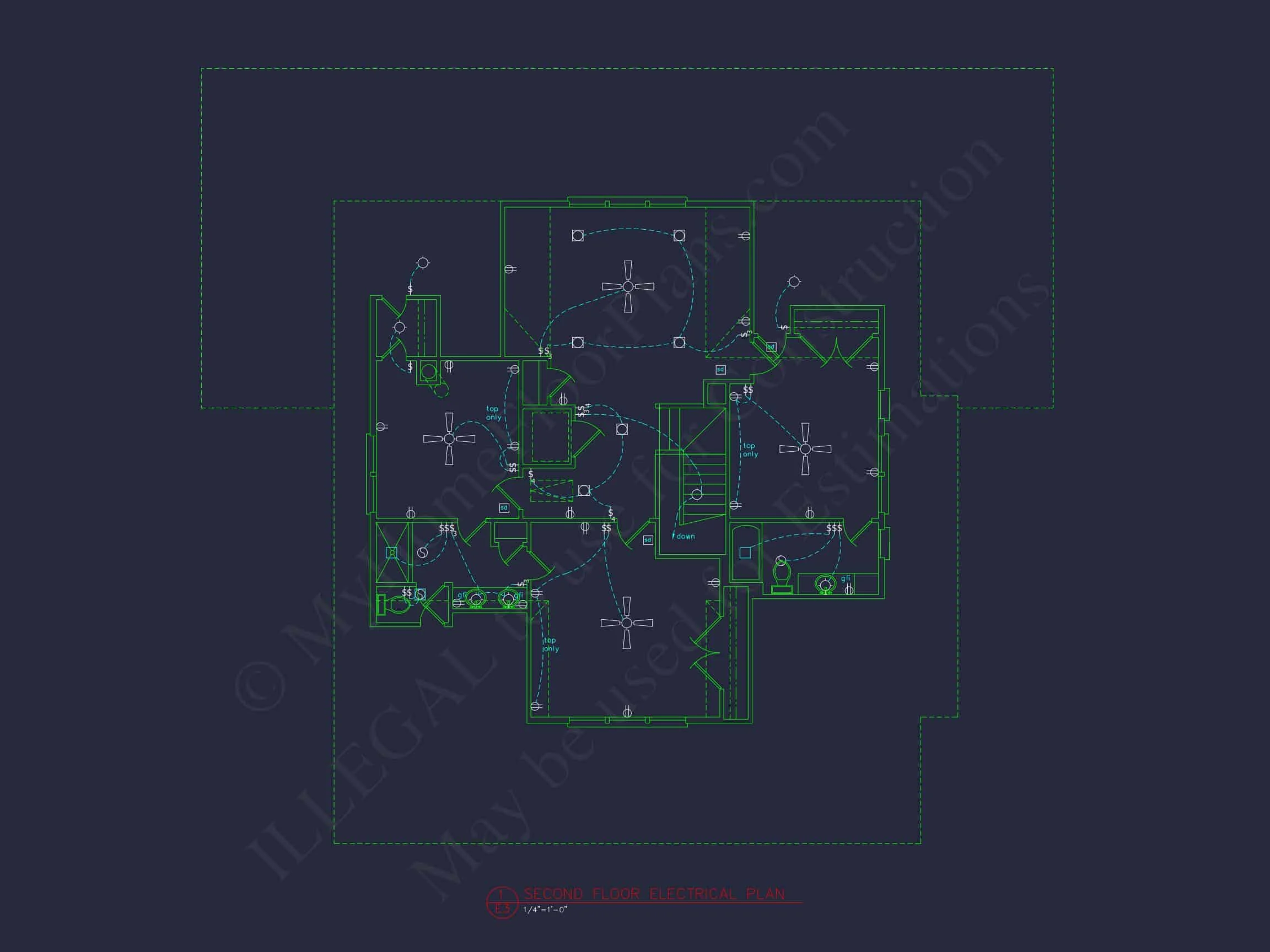

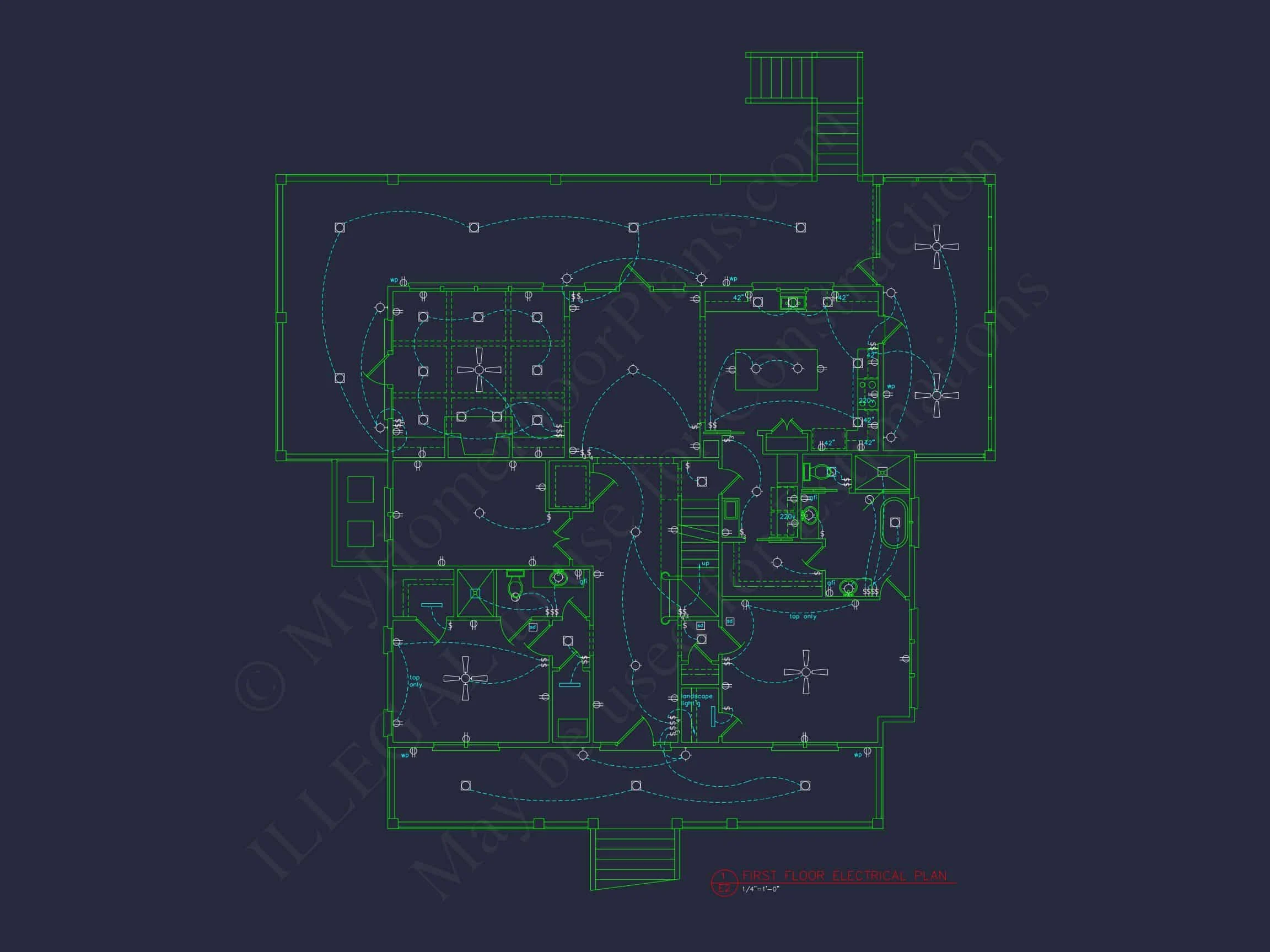

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
