Expansive house Plan with 6 Baths, CAD Designs & Features
Discover this expansive house plan with 6 baths, a 106' width, and detailed CAD designs. Features include 3830 SF, 3 bedrooms, open layout, and bonus spaces.
9 FT+ Ceilings | Balconies | Bonus Rooms | Covered Front Porch | Covered Rear Porches | Craftsman | Family Room | Fireplaces | First-Floor Bedrooms | Foyer | Front Entry | Kitchen Island | Large | Living Room | Office/Study | Open Floor Plan Designs | Owner’s Suite on the First Floor | Second Floor Bedroom | Side Entry Garage | Terrace | Traditional | Transitional | Vaulted Ceiling | Walk-in Closet | Walk-in Pantry
Original price was: $519.60.$207.84Current price is: $207.84.
999 in stock
| Width | 106'-0" |
|---|---|
| Depth | 65'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Family Room, Fireplace, Foyer, Living Room, Office/Study, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |

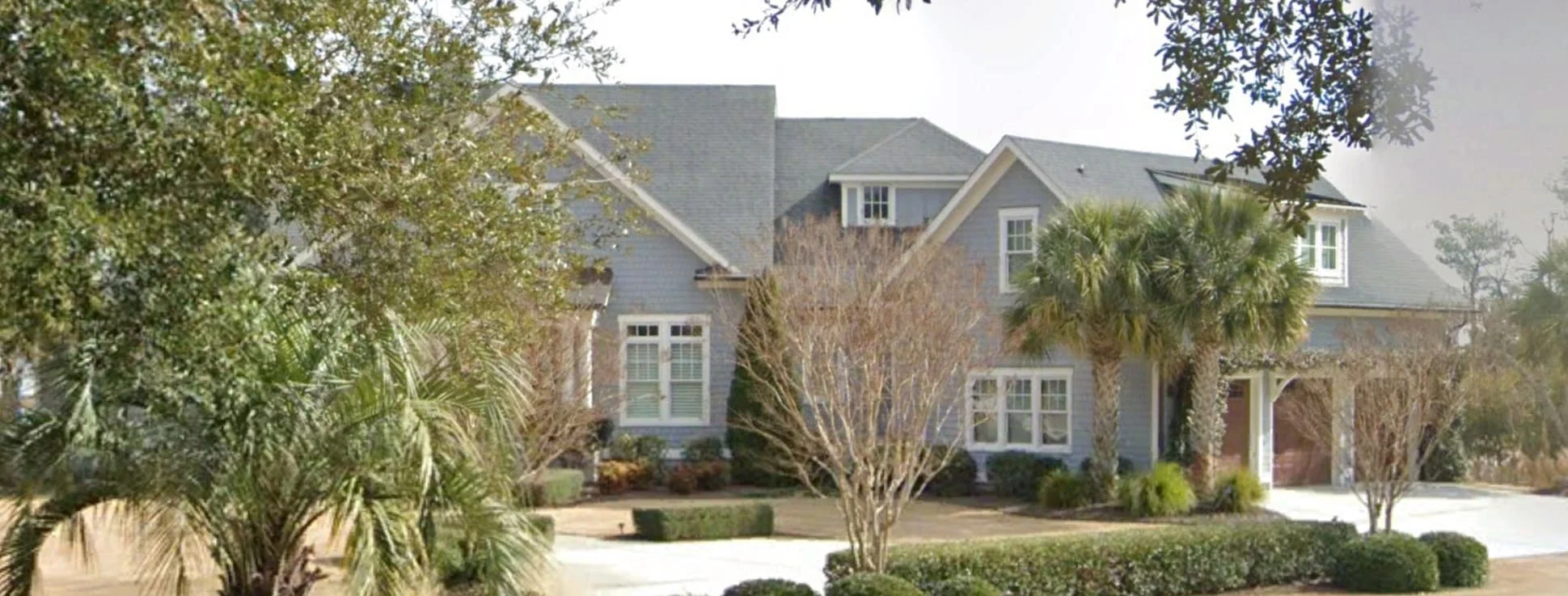

| After Build Photos |
Expansive house Plan with 6 Baths, CAD Designs & Features
Discover this expansive house plan with 6 baths, a 106′ width, and detailed CAD designs. Features include 3830 SF, 3 bedrooms, open layout, and bonus spaces.
Luxurious house Plan with Exceptional Architectural Details

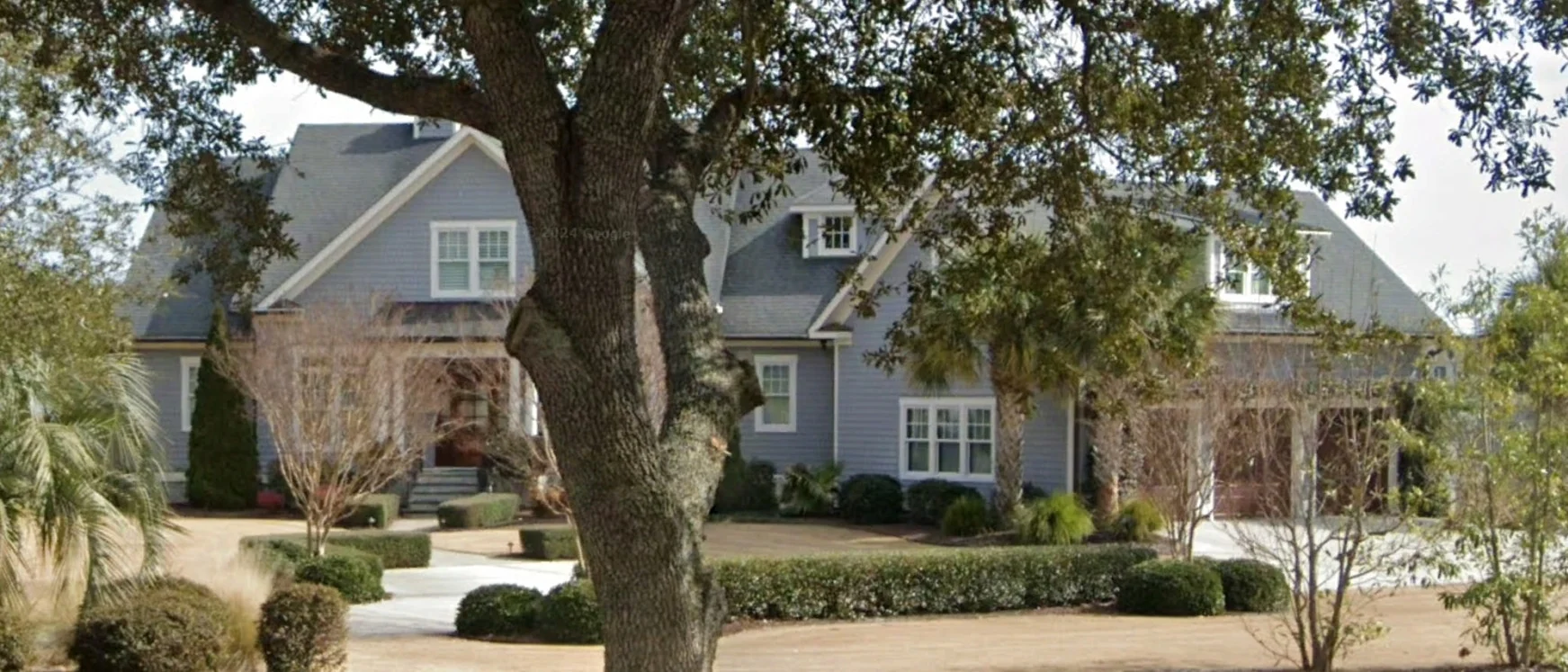

Welcome to a spacious and stunning house design that combines functionality with timeless style. With a width of 106 feet, a depth of 65 feet 8 inches, and 3830 square feet of heated space, this house is perfect for families or individuals who value luxury and comfort.
Features of the house
Indoor Highlights:
* 6 Bathrooms: Ample facilities for large families or guests.
* Open Floor Plan: Designed for seamless interaction between the living, dining, and kitchen spaces.
* Fireplace: A cozy centerpiece for the main living area.
* Foyer: Welcomes you into a beautifully designed interior.
* Bonus Room: Offers flexibility for a gym, game room, or extra lounge.
* Office/Study: Ideal for remote work or quiet reading.
* Spacious Kitchen: Equipped with a kitchen island and a walk-in pantry for all your culinary needs.
Outdoor Features:
* Balcony: Perfect for enjoying scenic views or relaxing outdoors.
* Covered Front and Rear Porches: Designed for all-weather enjoyment and gatherings.
* Terrace: Adds an elegant touch to your outdoor living space.
Architectural Excellence

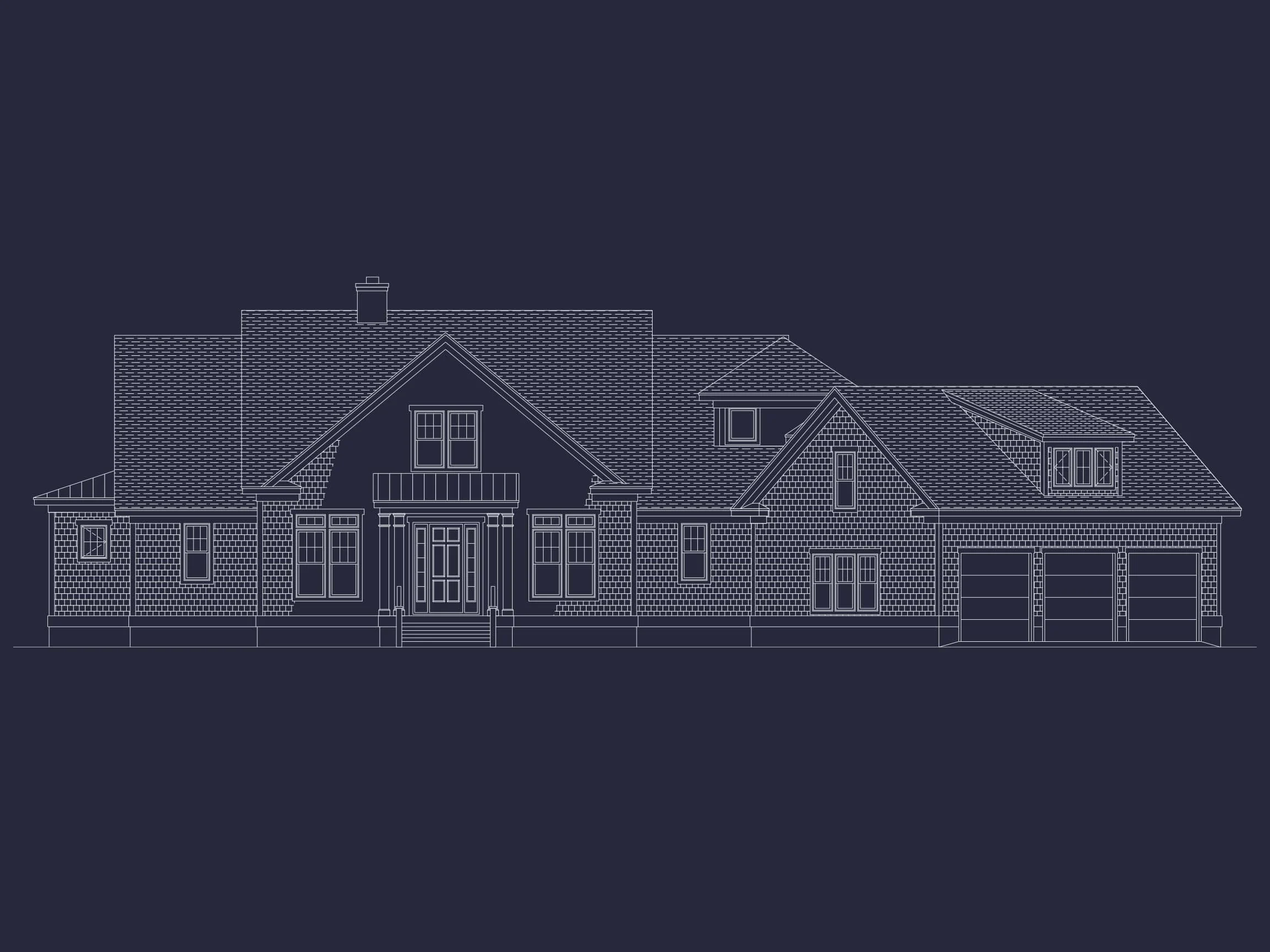

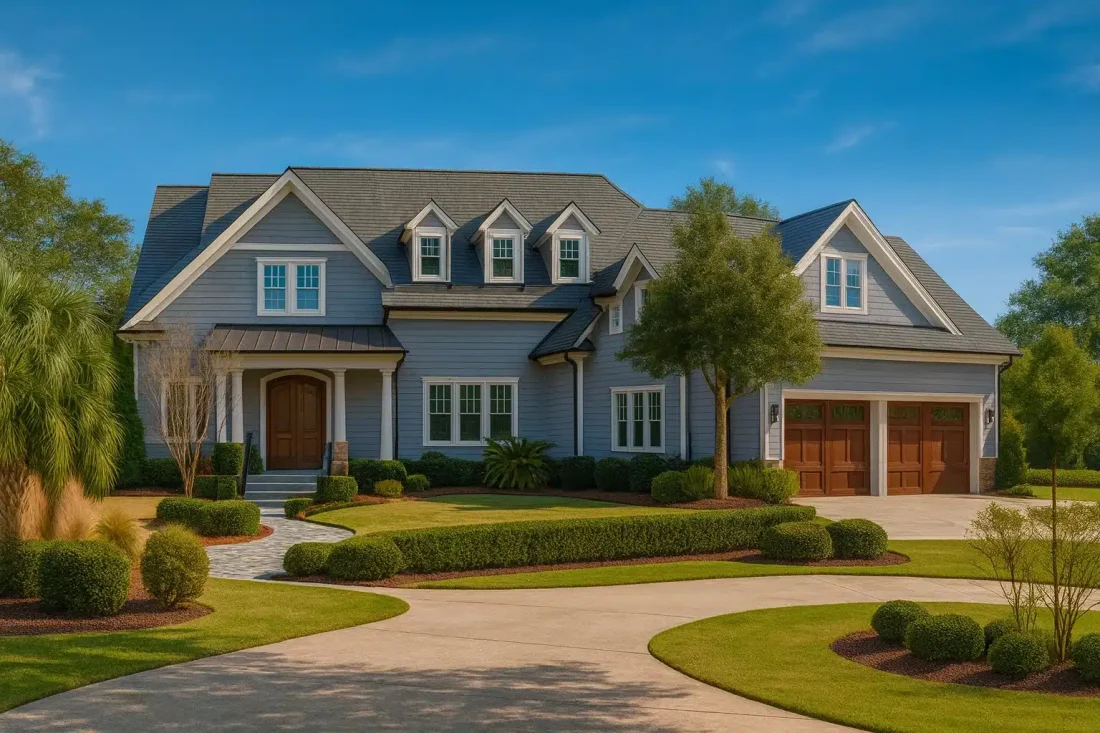

This craftsman-style house features shake, shingle, and siding exteriors that blend traditional aesthetics with modern appeal. The 9ft+ ceilings and vaulted designs enhance the house’s grandeur, making every room feel open and inviting.
Why Choose This house Plan?
* Ample Living Space: 3 bedrooms, 6 bathrooms, and additional spaces like a bonus room and office/study cater to various needs.
* Garage Convenience: A 3-bay garage with both front and side entry options.
* Spacious Design: Offers a width of 106 feet and depth of 65 feet 8 inches, accommodating diverse lot sizes.
Benefits Included with Every Plan
Each house plan comes with a CAD file and a PDF, along with an unlimited-build license. Foundation changes are complimentary, and structural engineering services are included. Additionally, plan modifications are available at unbeatable rates, ensuring your vision becomes a reality.
Ready to build your dream house? Reach out to us at [email protected] and start your journey today!
All home plans include BOTH the CAD file and PDF file.

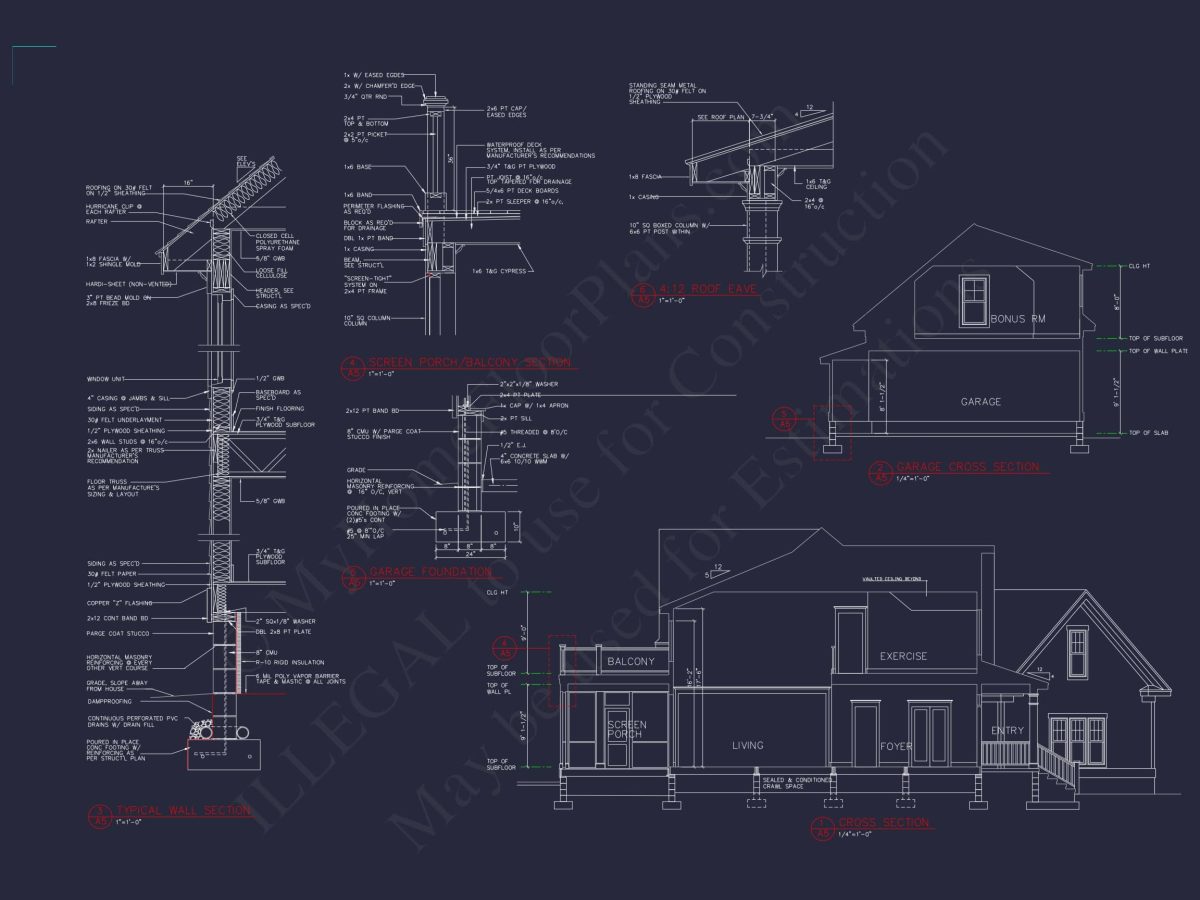

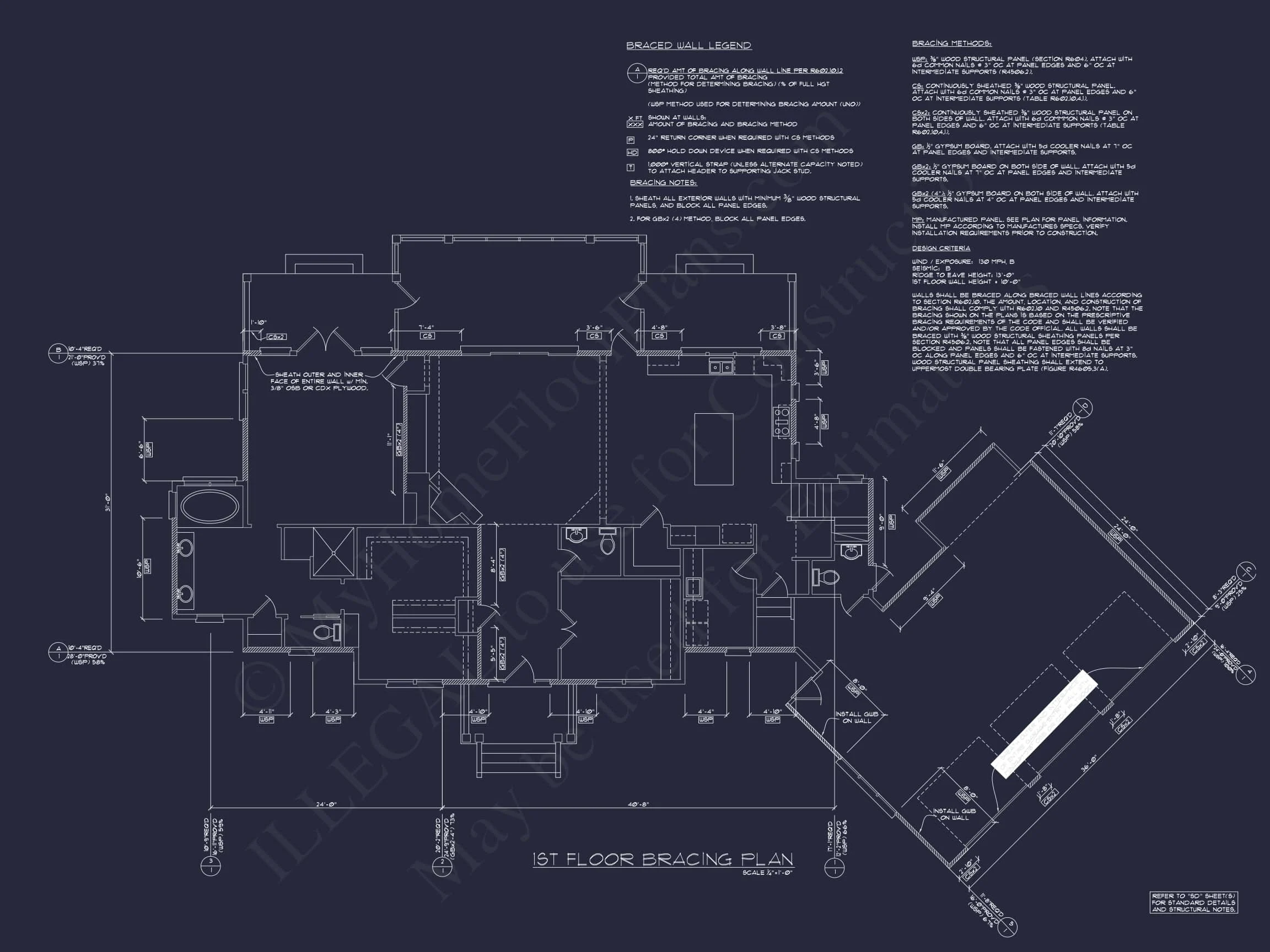

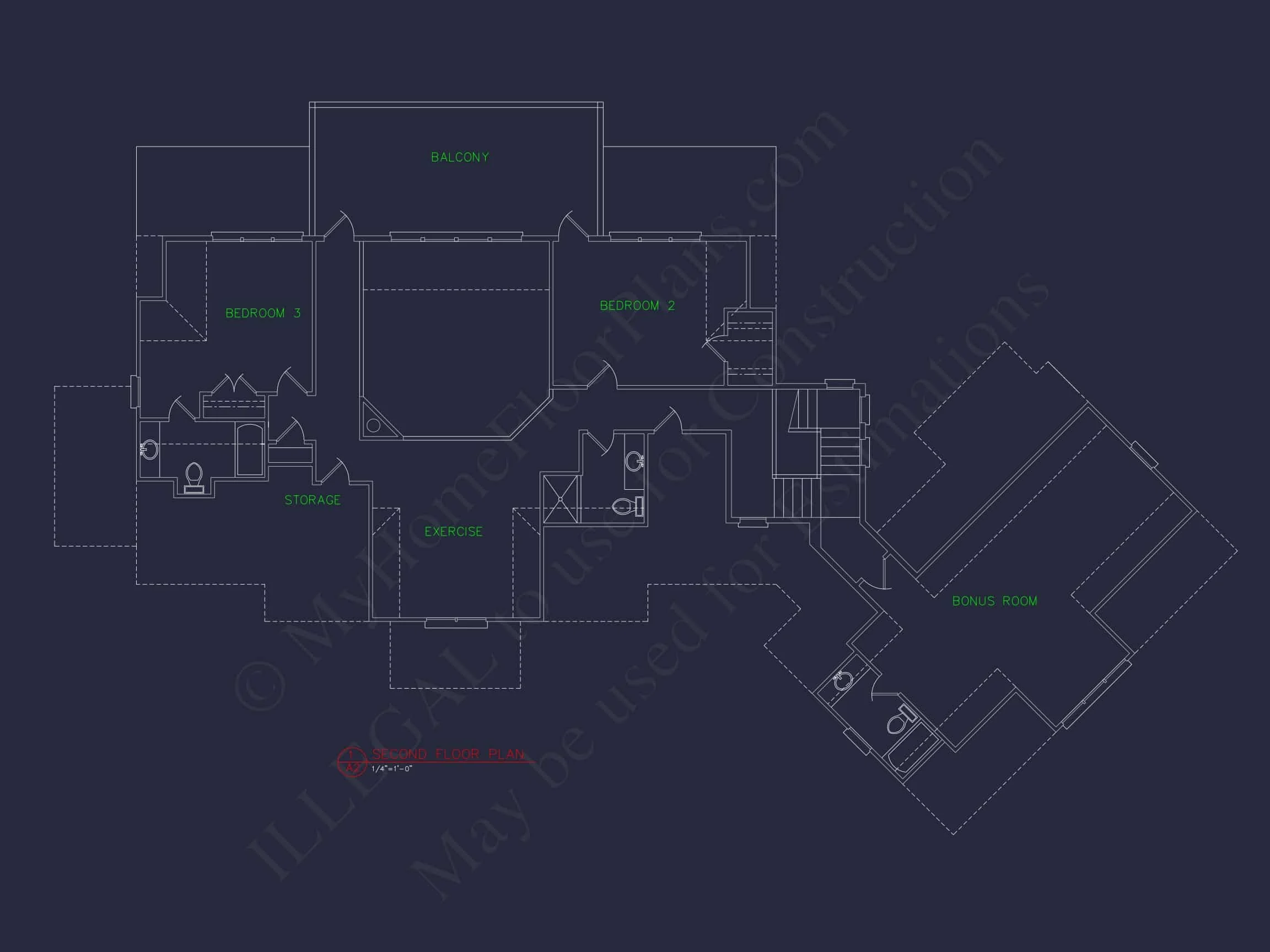

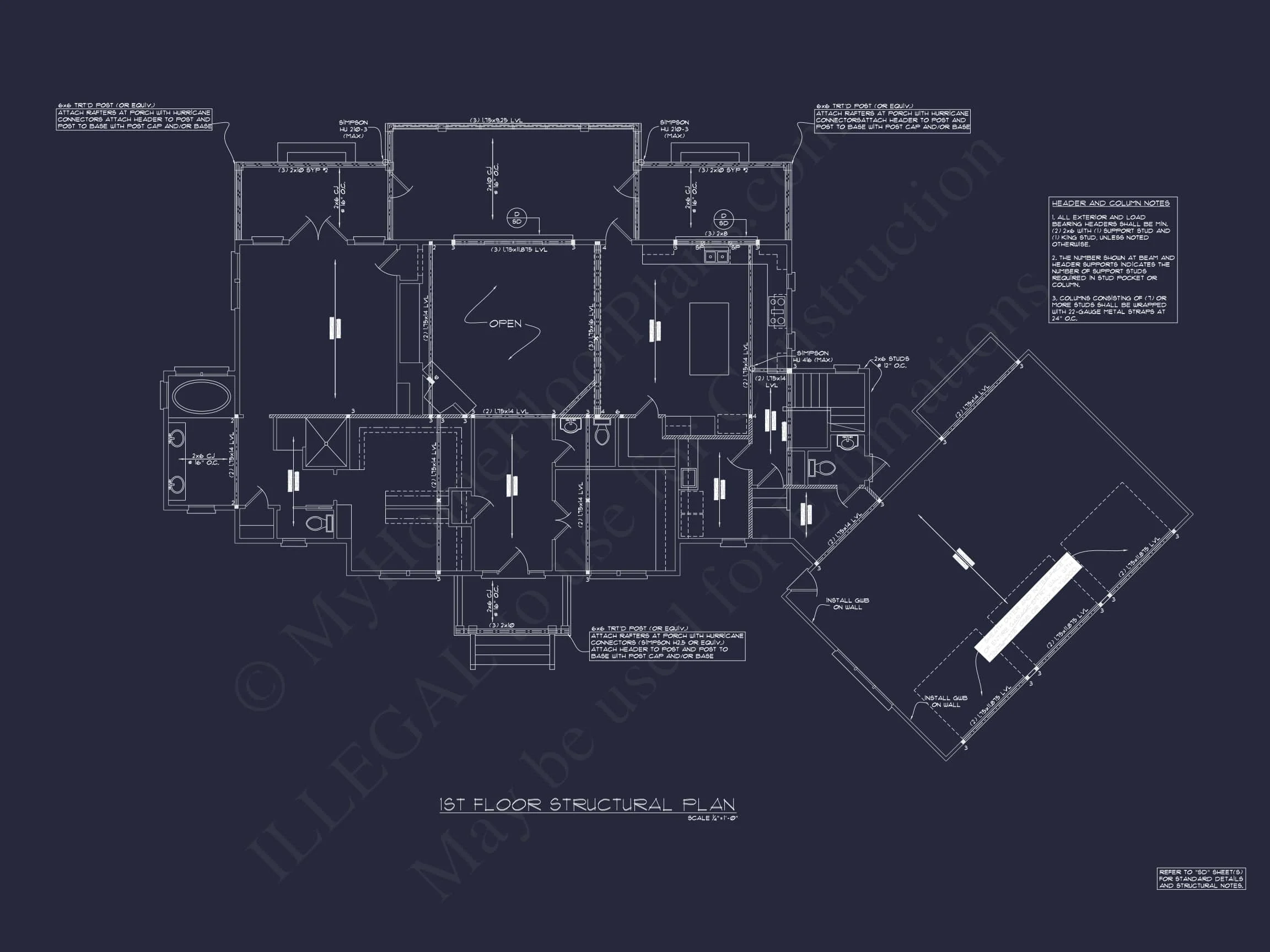

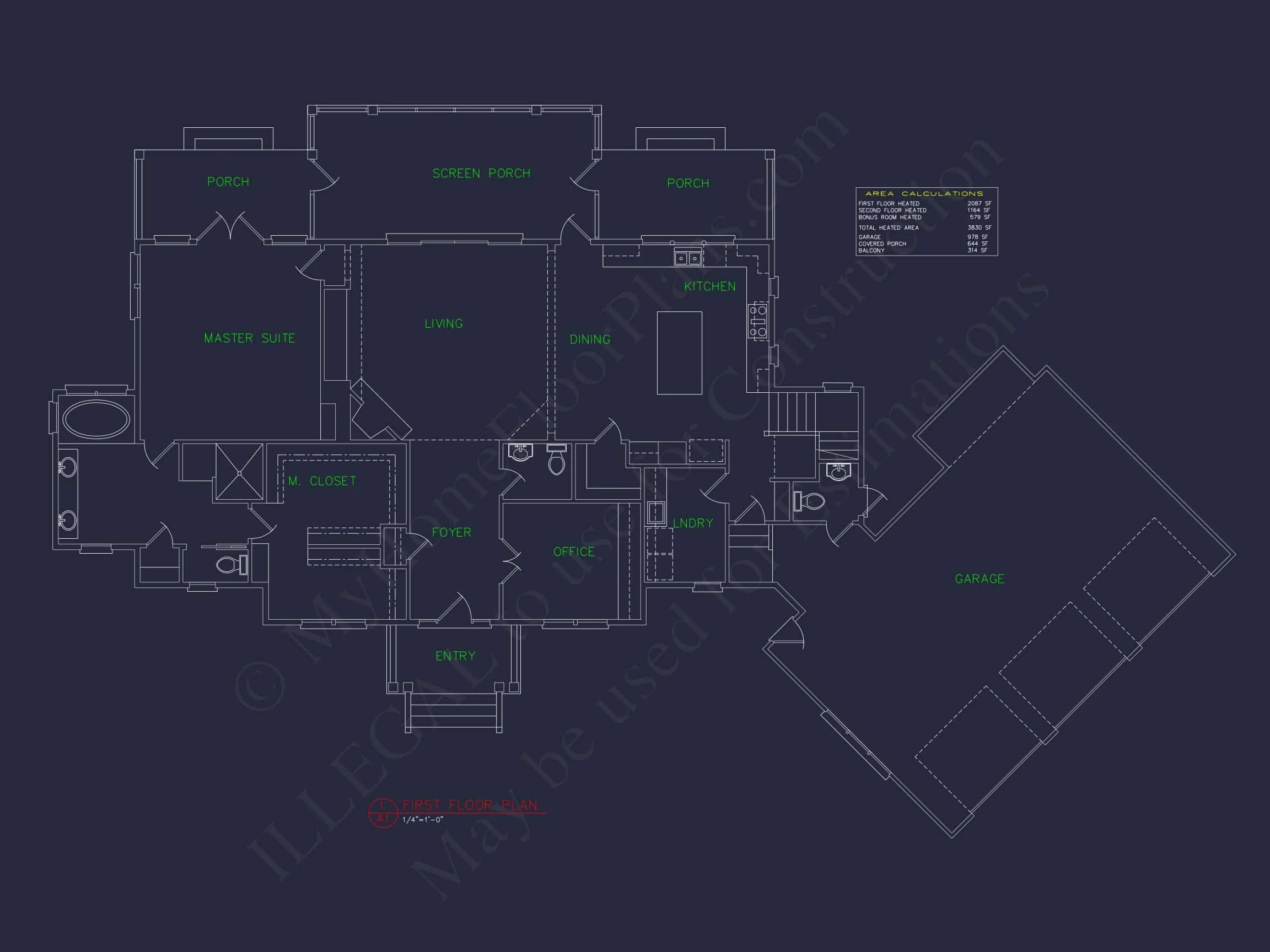

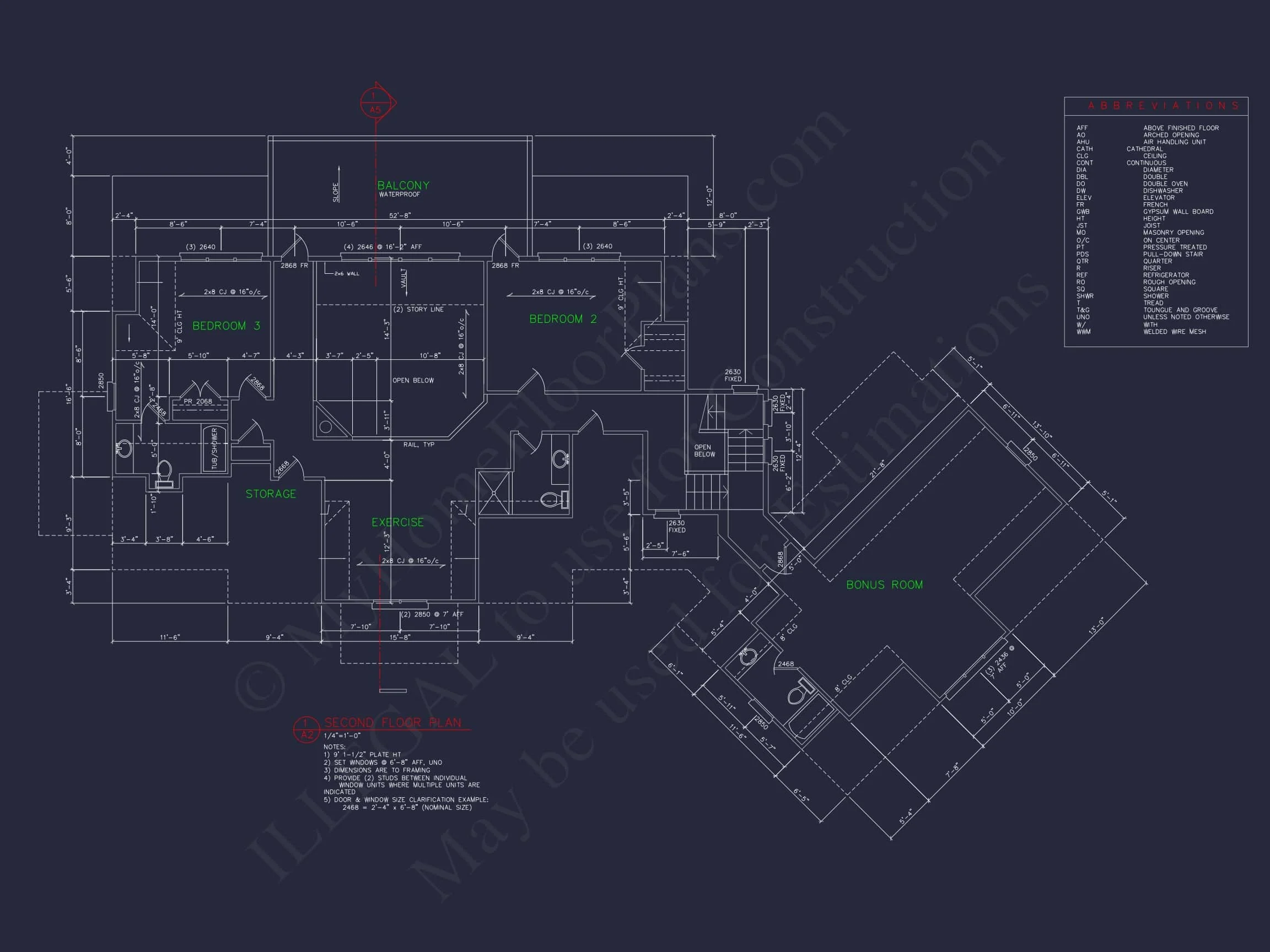

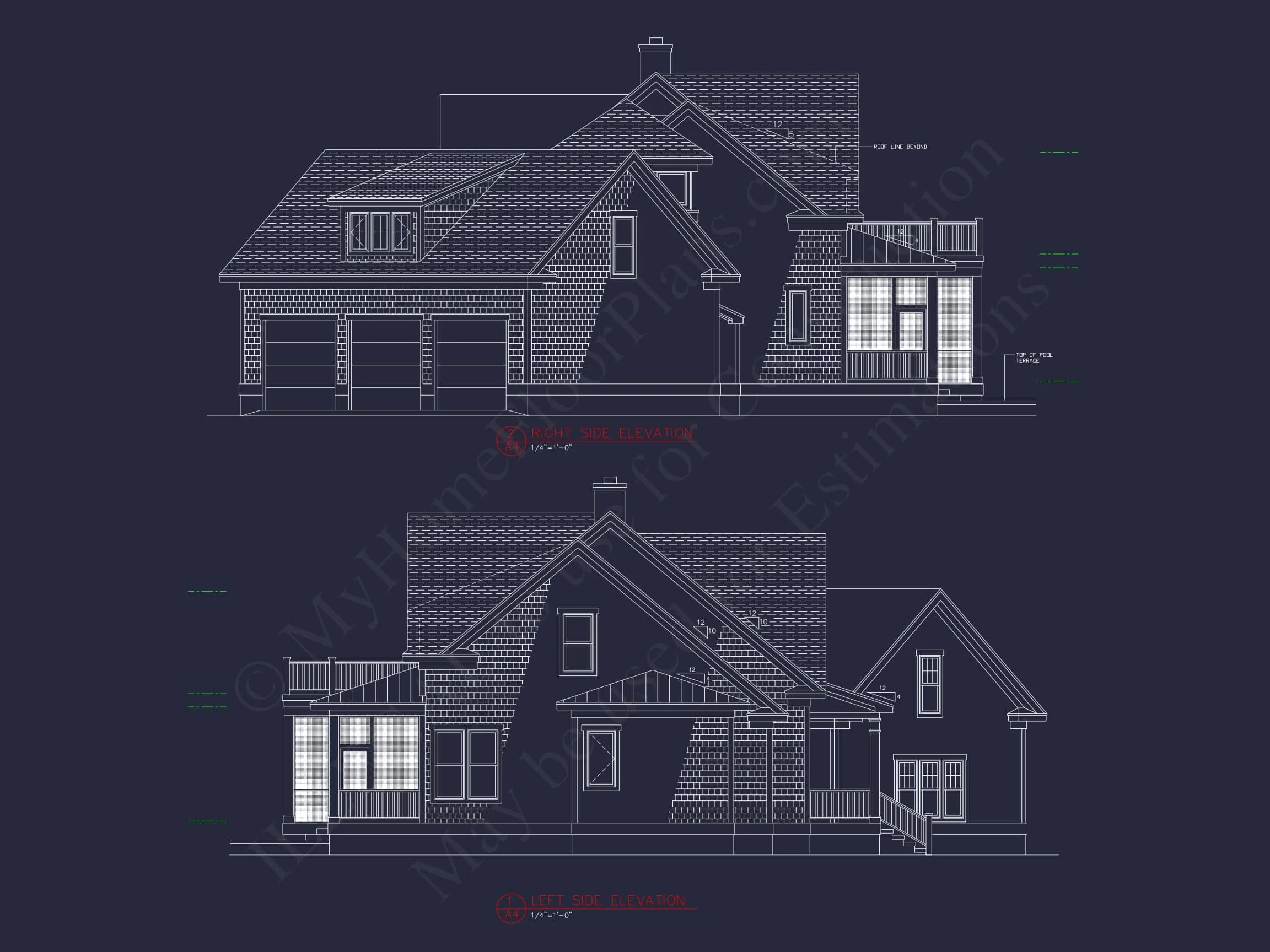

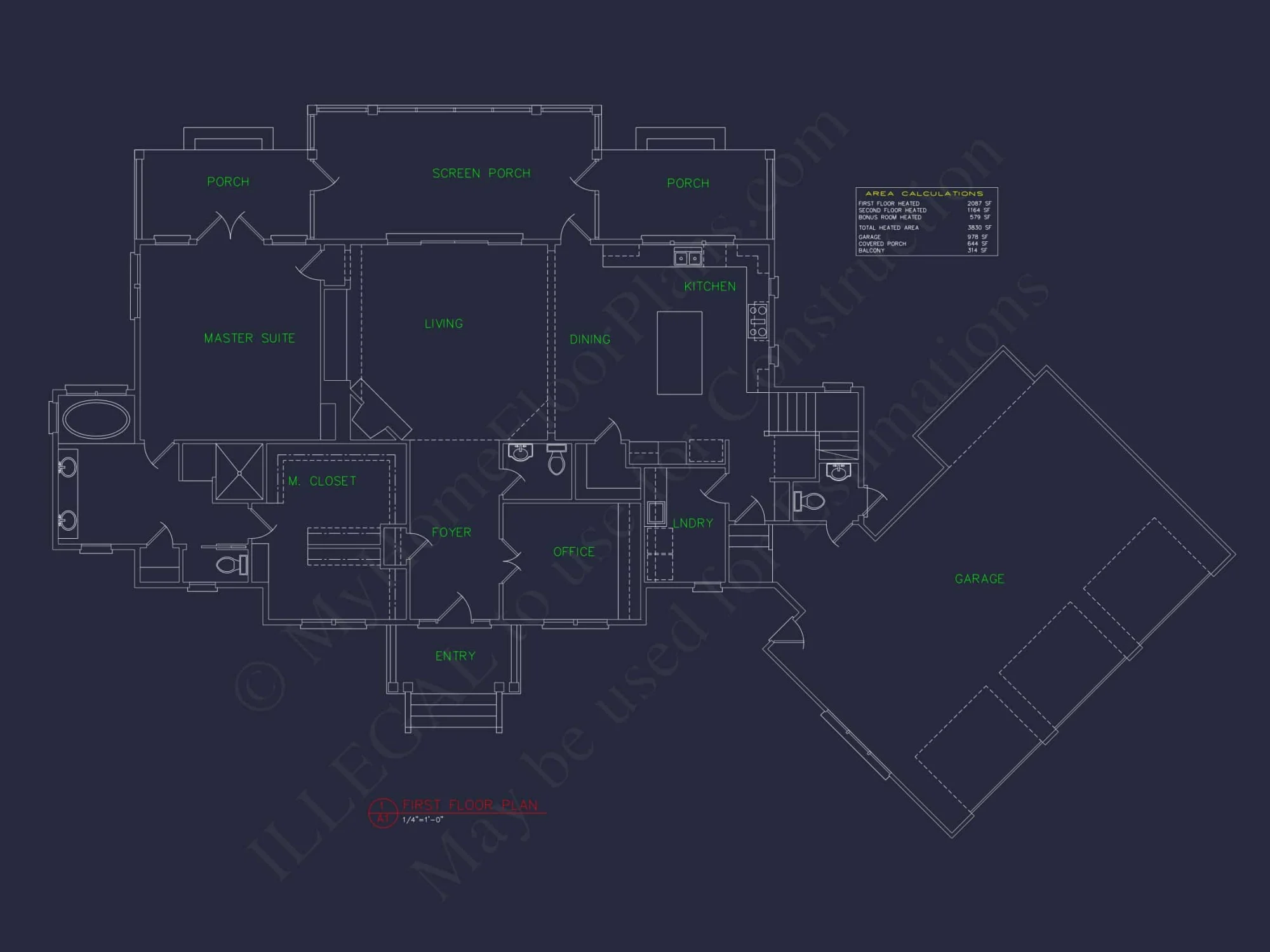

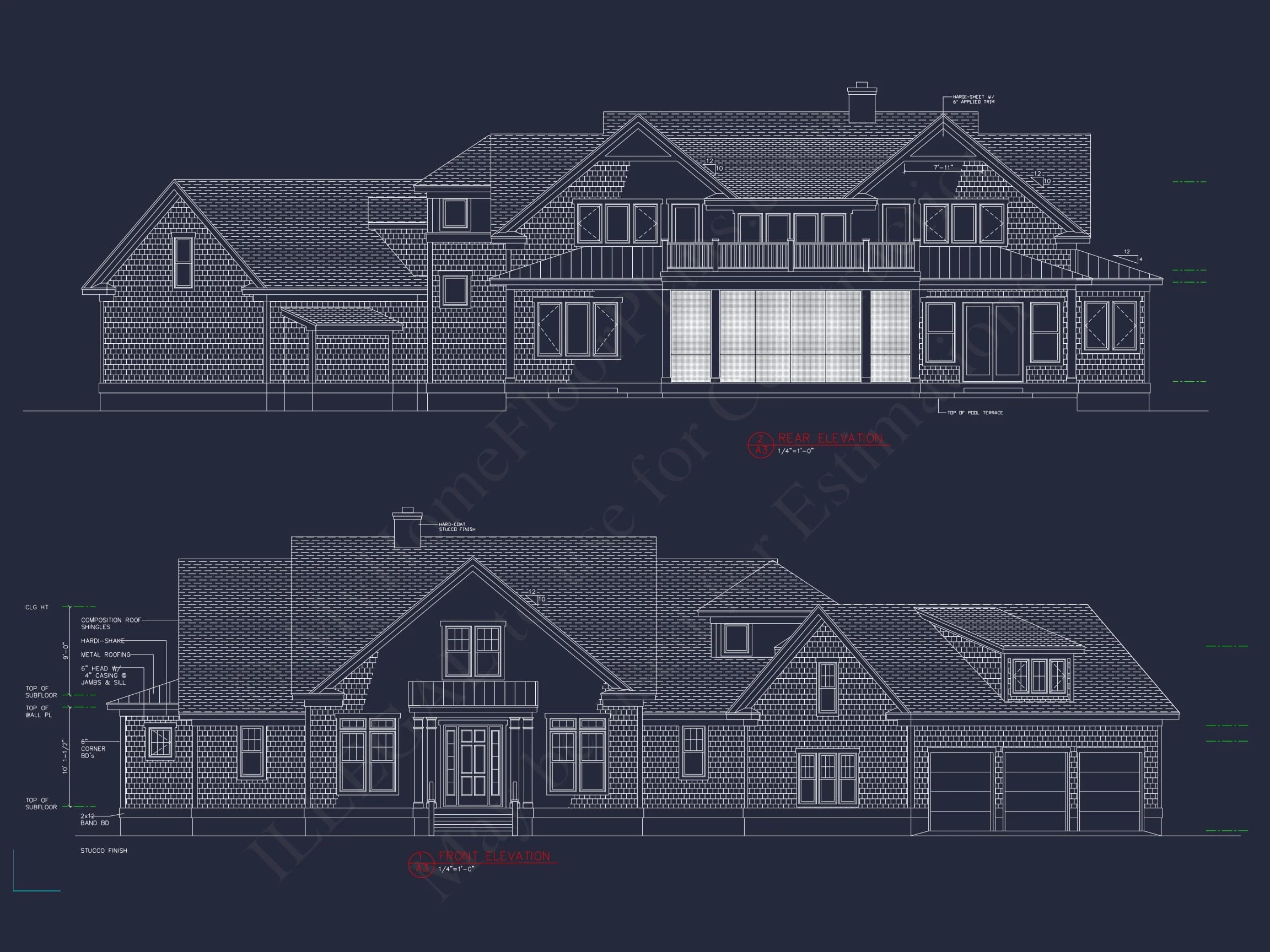

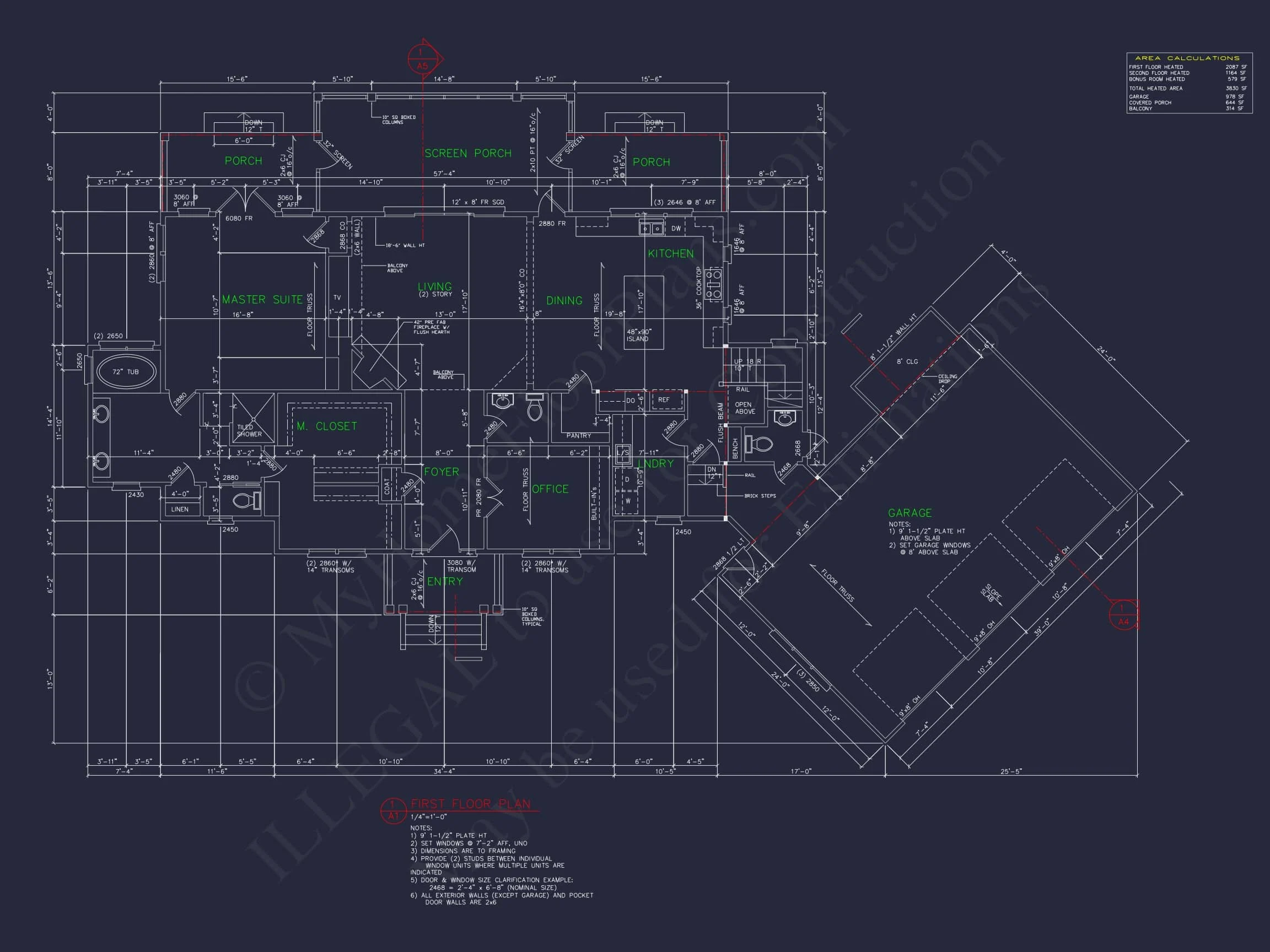

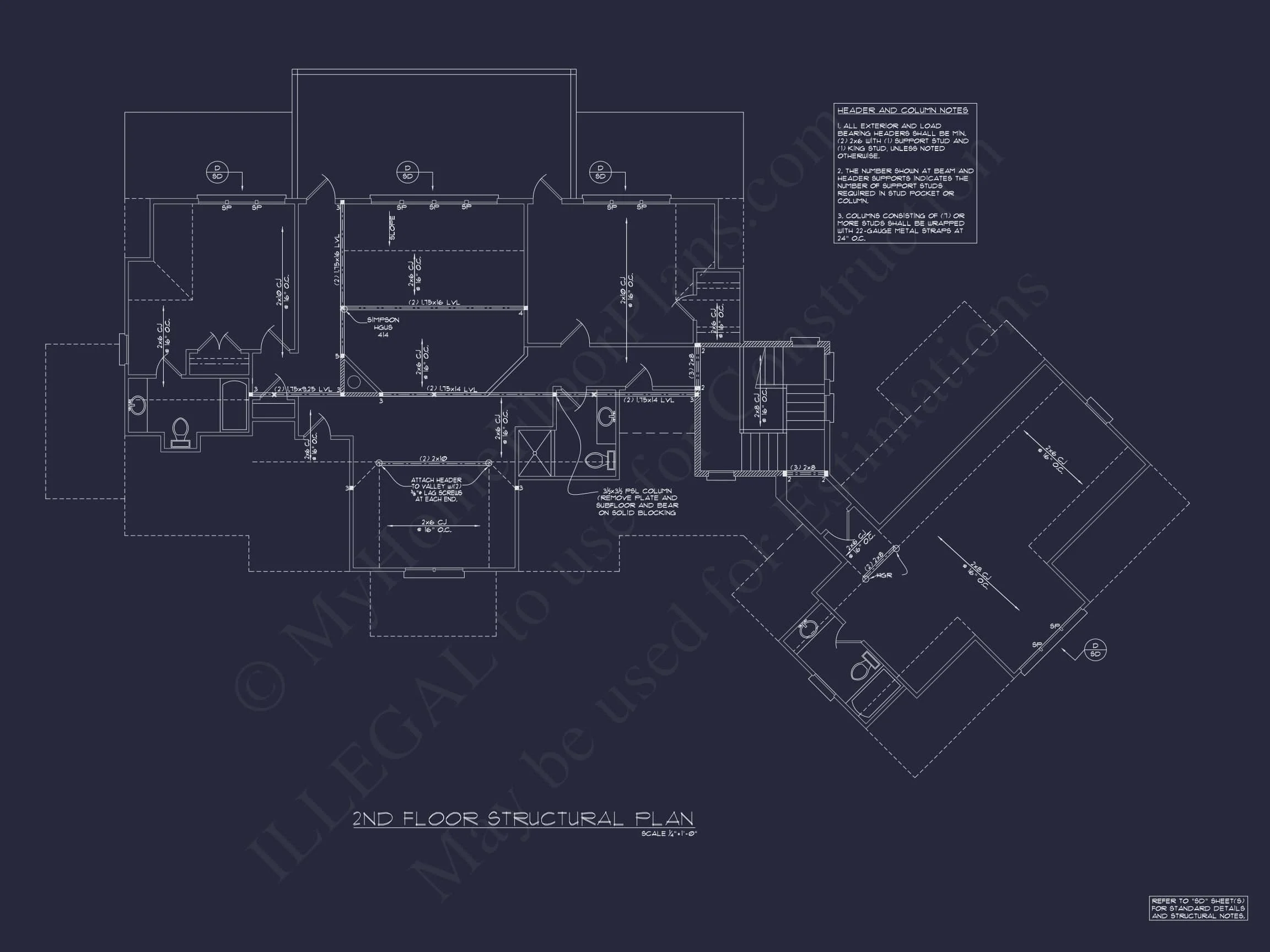

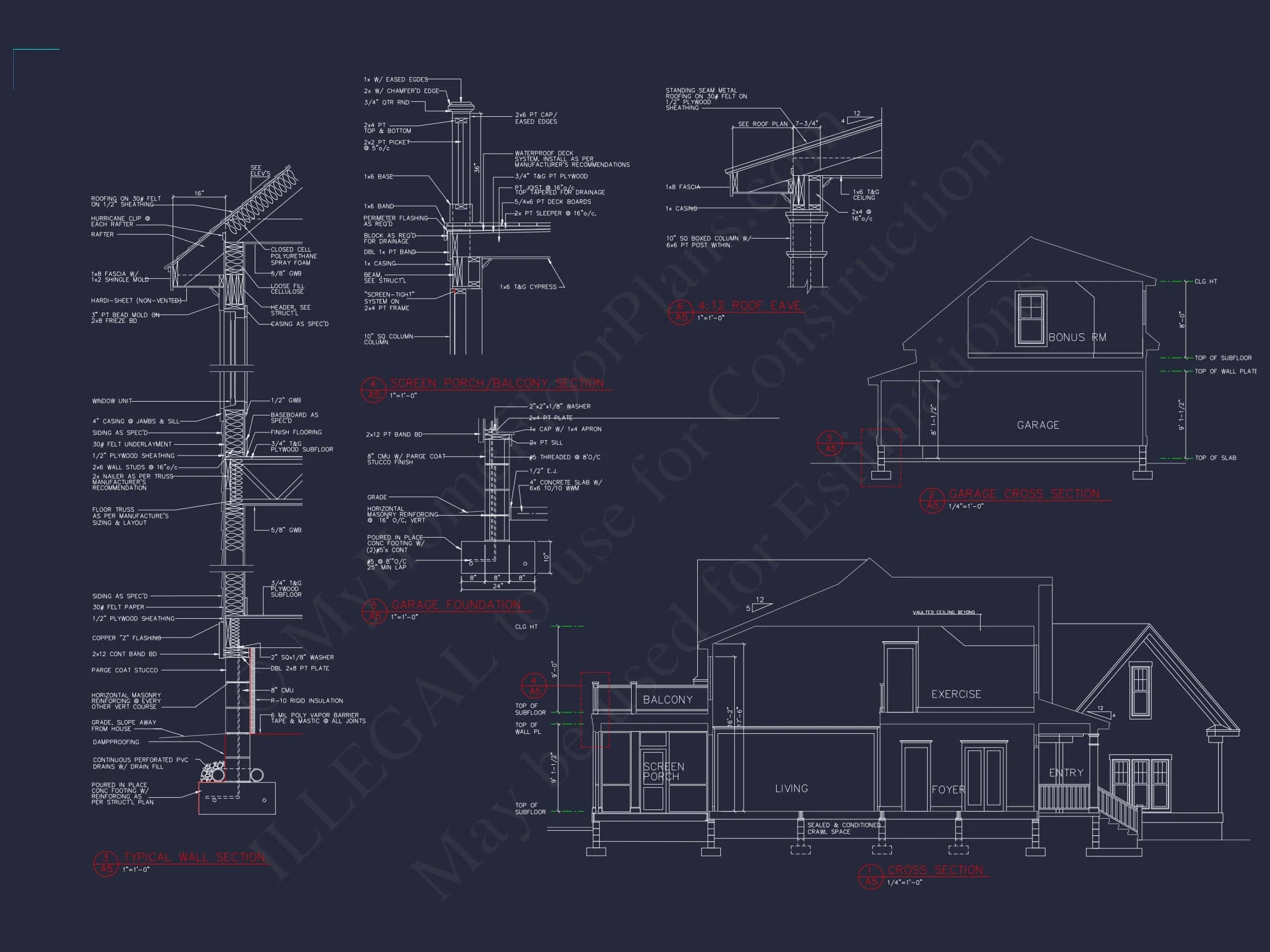

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

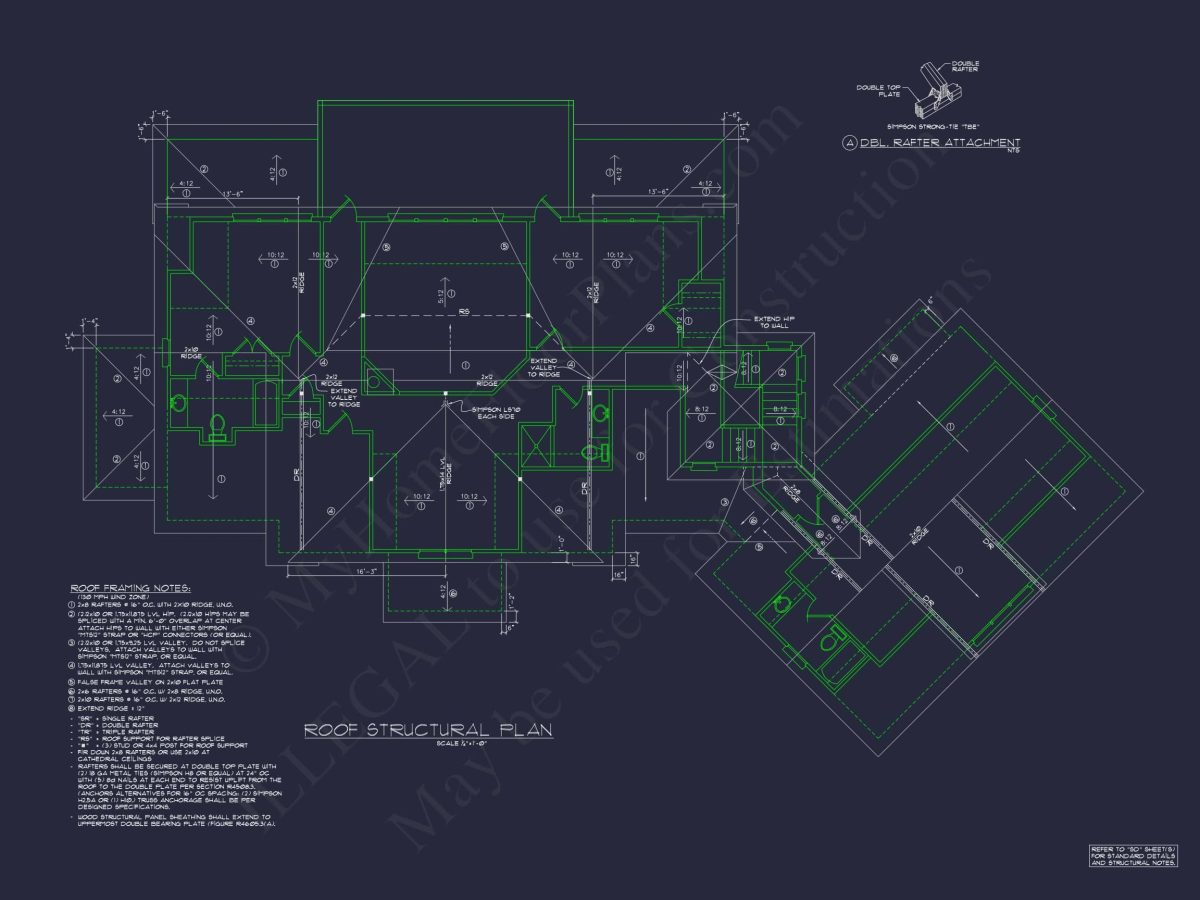

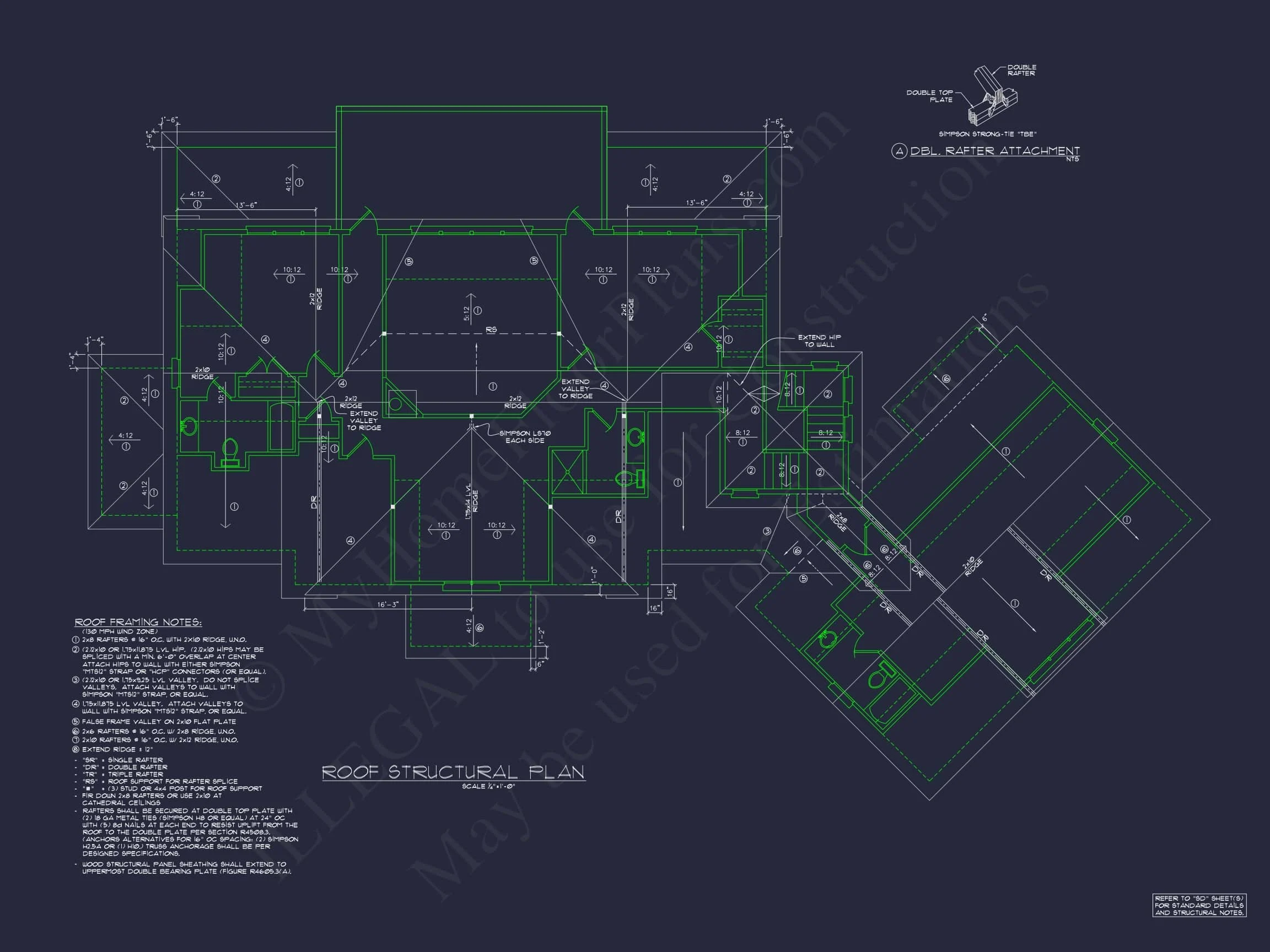

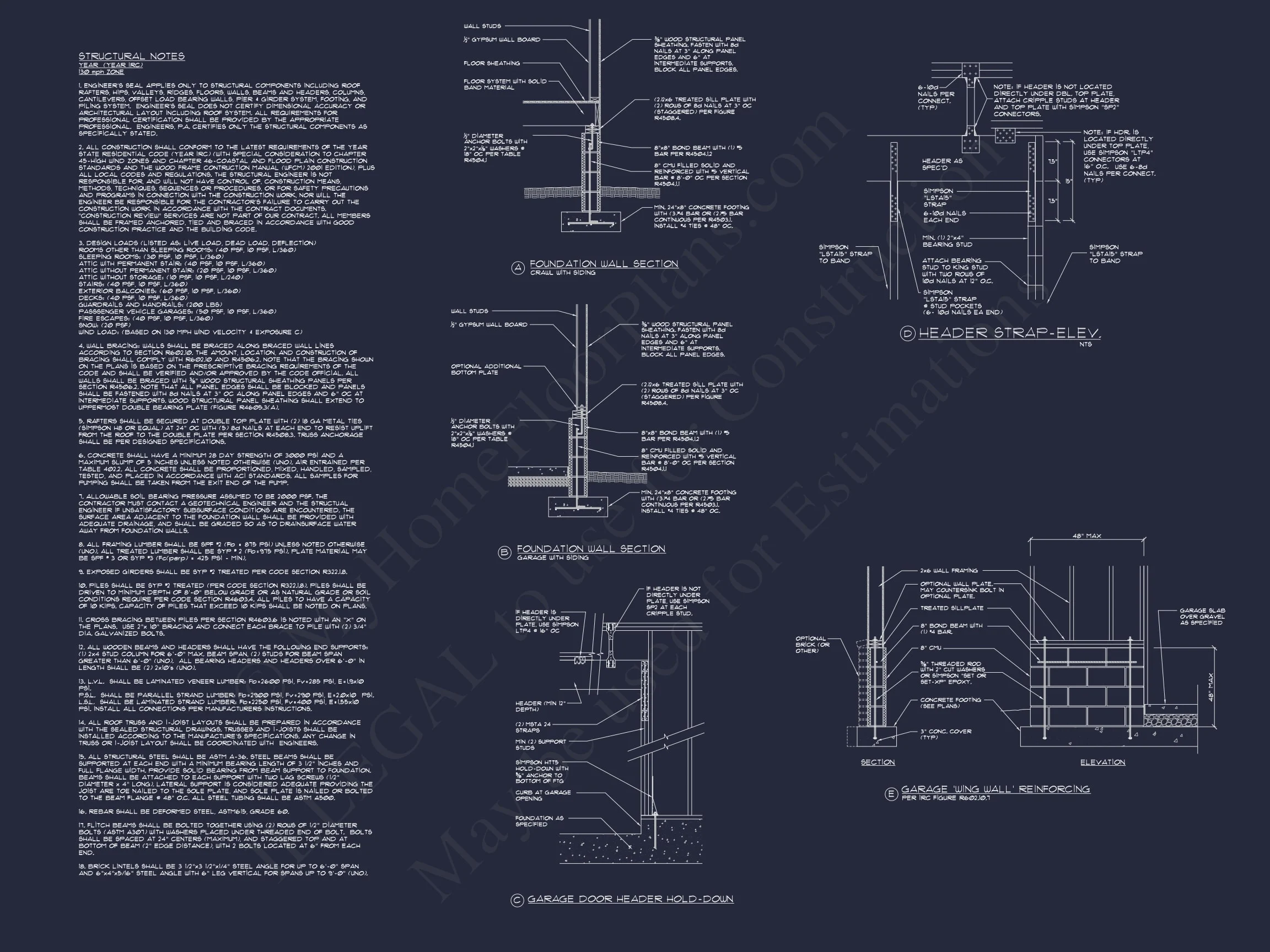

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

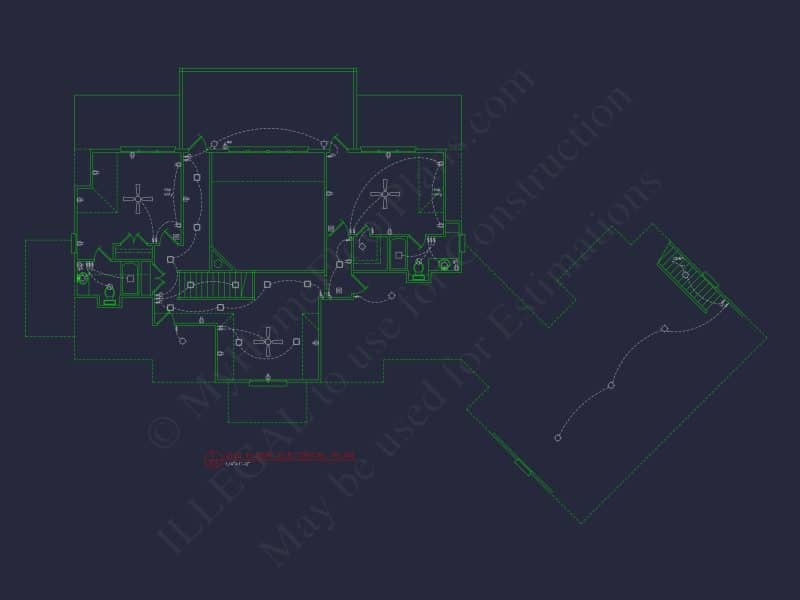

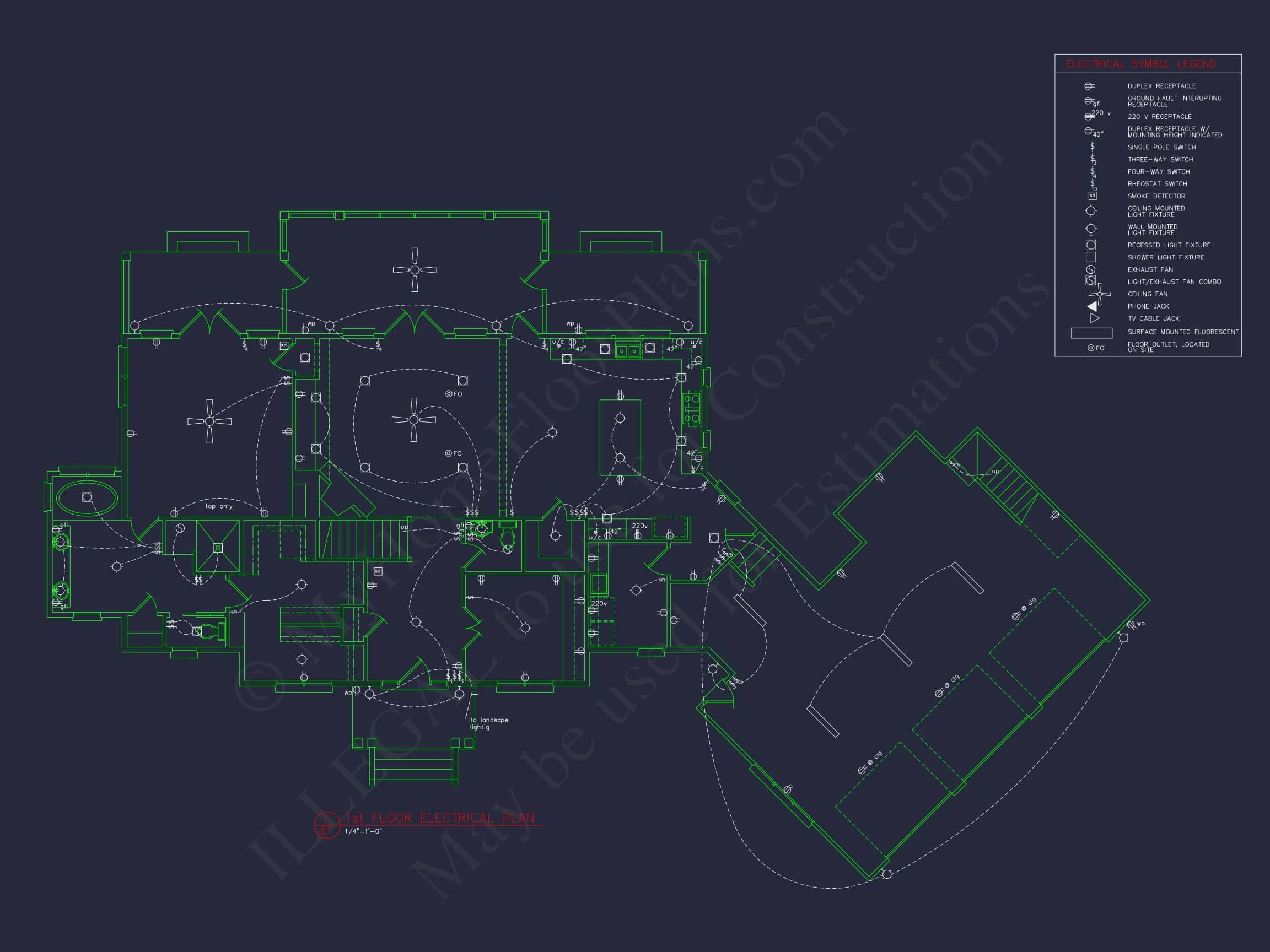

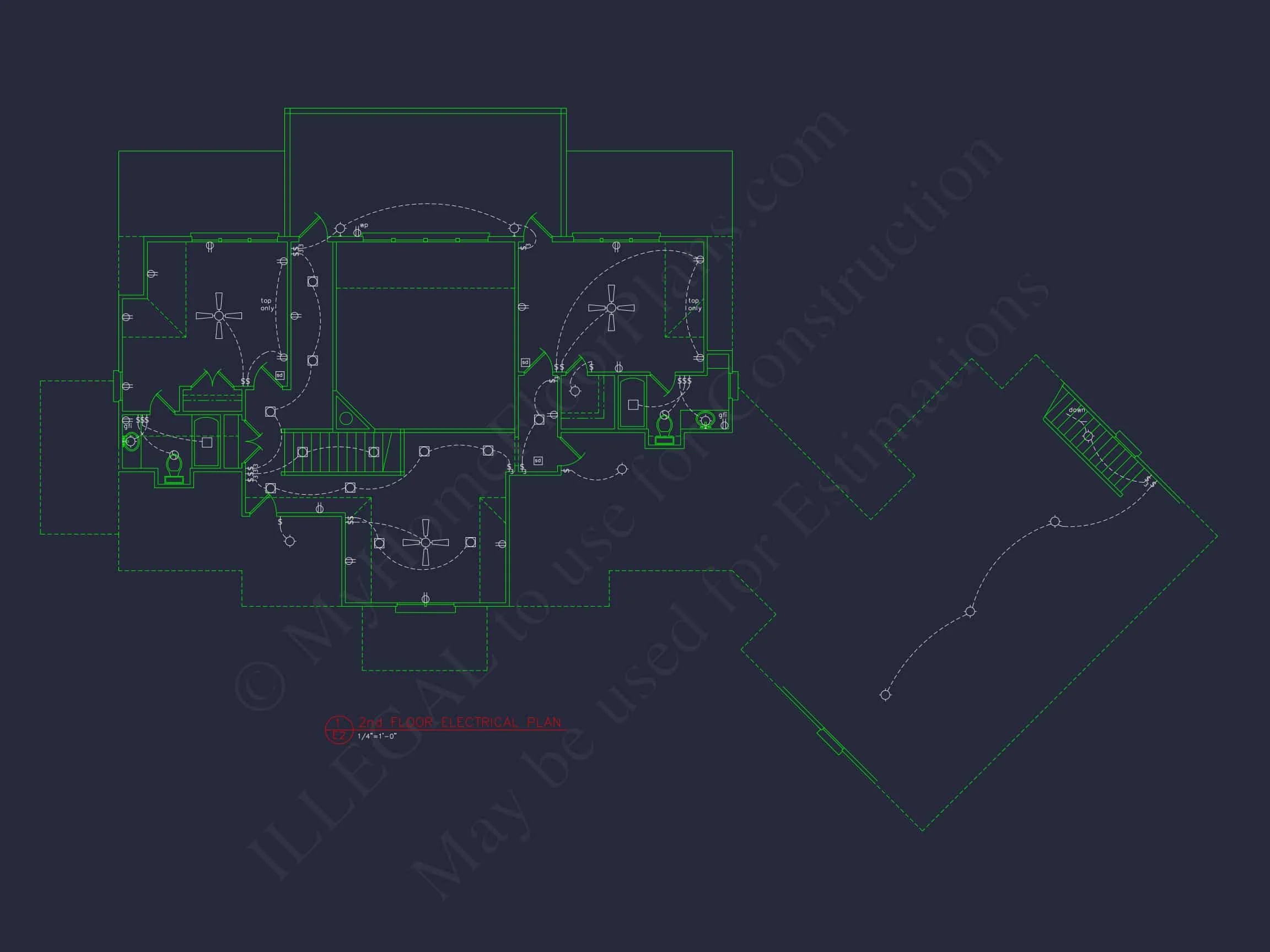

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

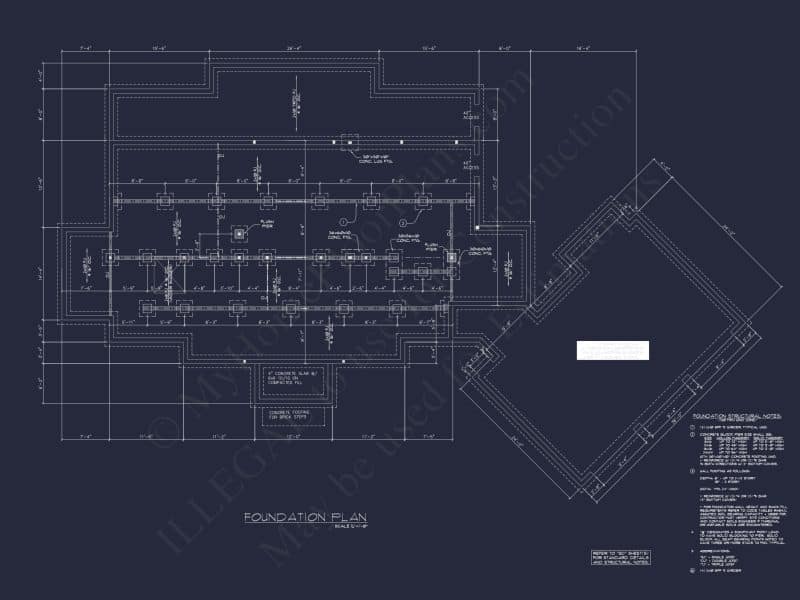

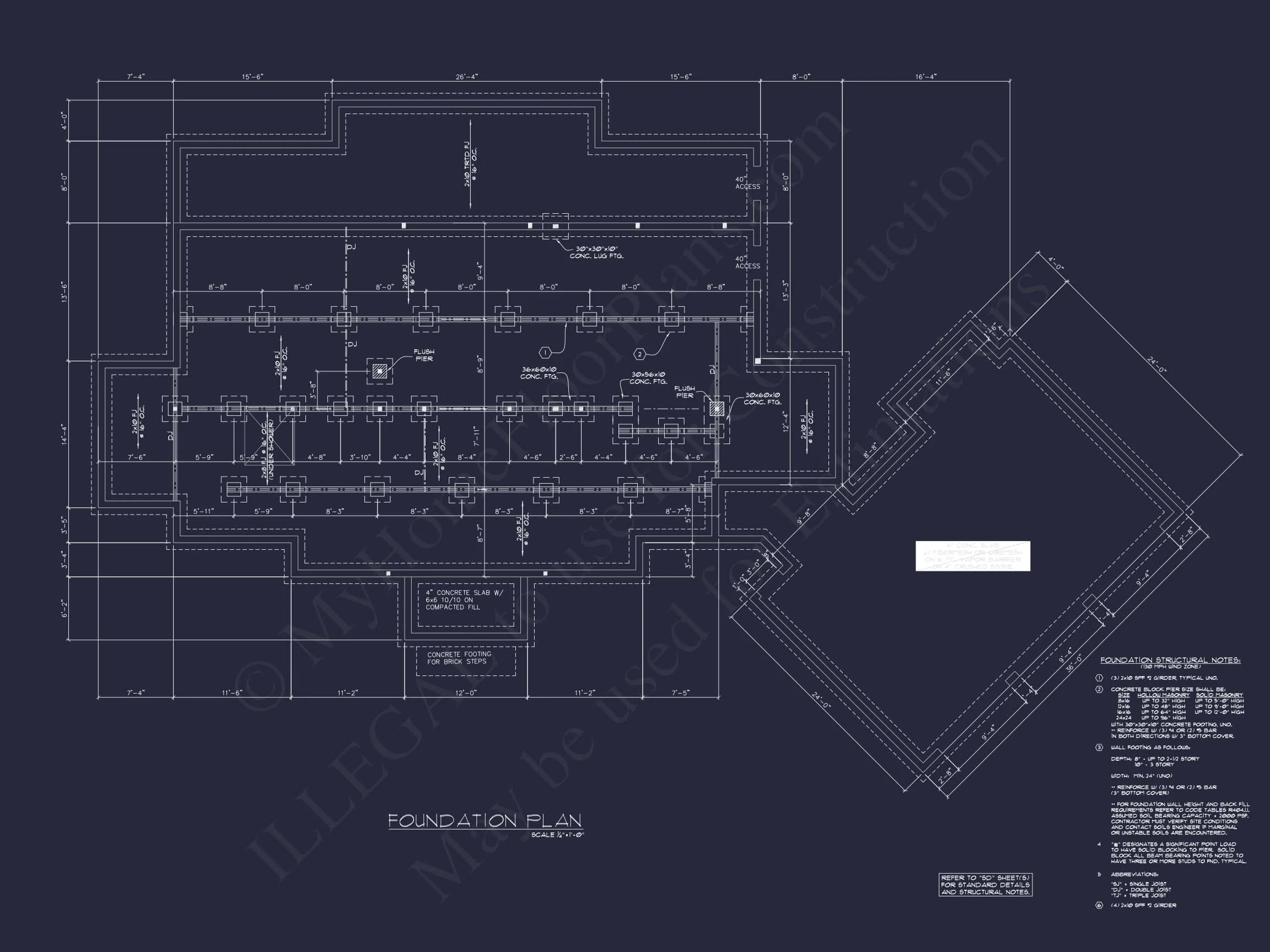

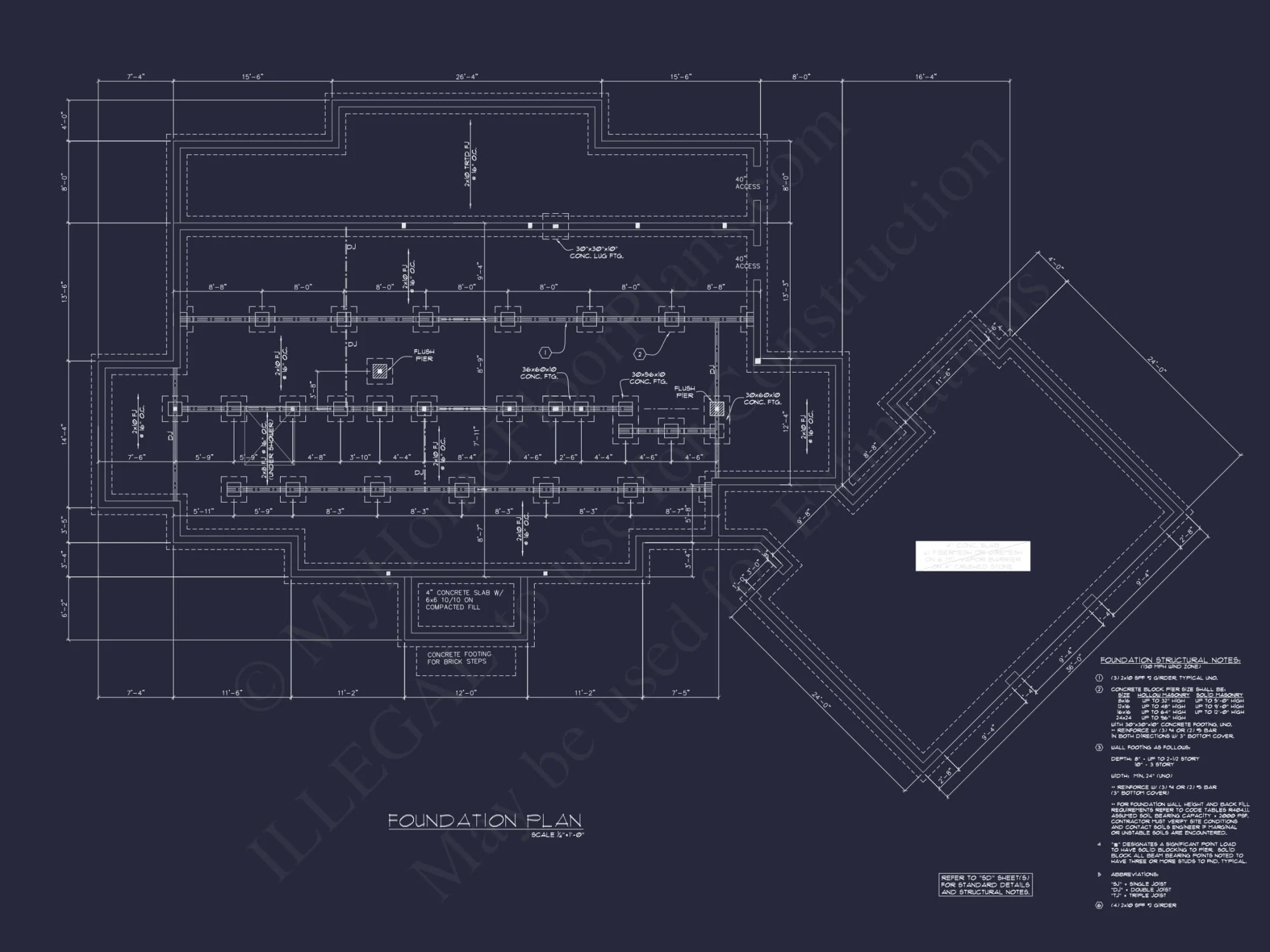

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
12-2201 house PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
