Craftsman Ranch house Plan with 5 Bedrooms and Open Floor Layout
Explore this detailed Craftsman Ranch house plan featuring 5 bedrooms, an open floor layout, and a covered porch. Includes CAD blueprint and architectural designs.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 34'-9" |
|---|---|
| Depth | 52'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bedrooms on the First Floor, Foyer, Living Room, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Craftsman Ranch Home Plan with 5 Bedrooms and Open Floor Layout
Explore this detailed Ranch-style Craftsman house plan with 1, 459 heated sq. ft., 5 bedrooms, open concept, and dual porches—includes CAD files and unlimited-build license.
This Craftsman Ranch house plan offers a perfect mix of comfort and functionality. Designed for flexible living, it delivers timeless curb appeal and smart room placement throughout the home.
Key Features of the Home Plan
Living Areas – Heated & Unheated

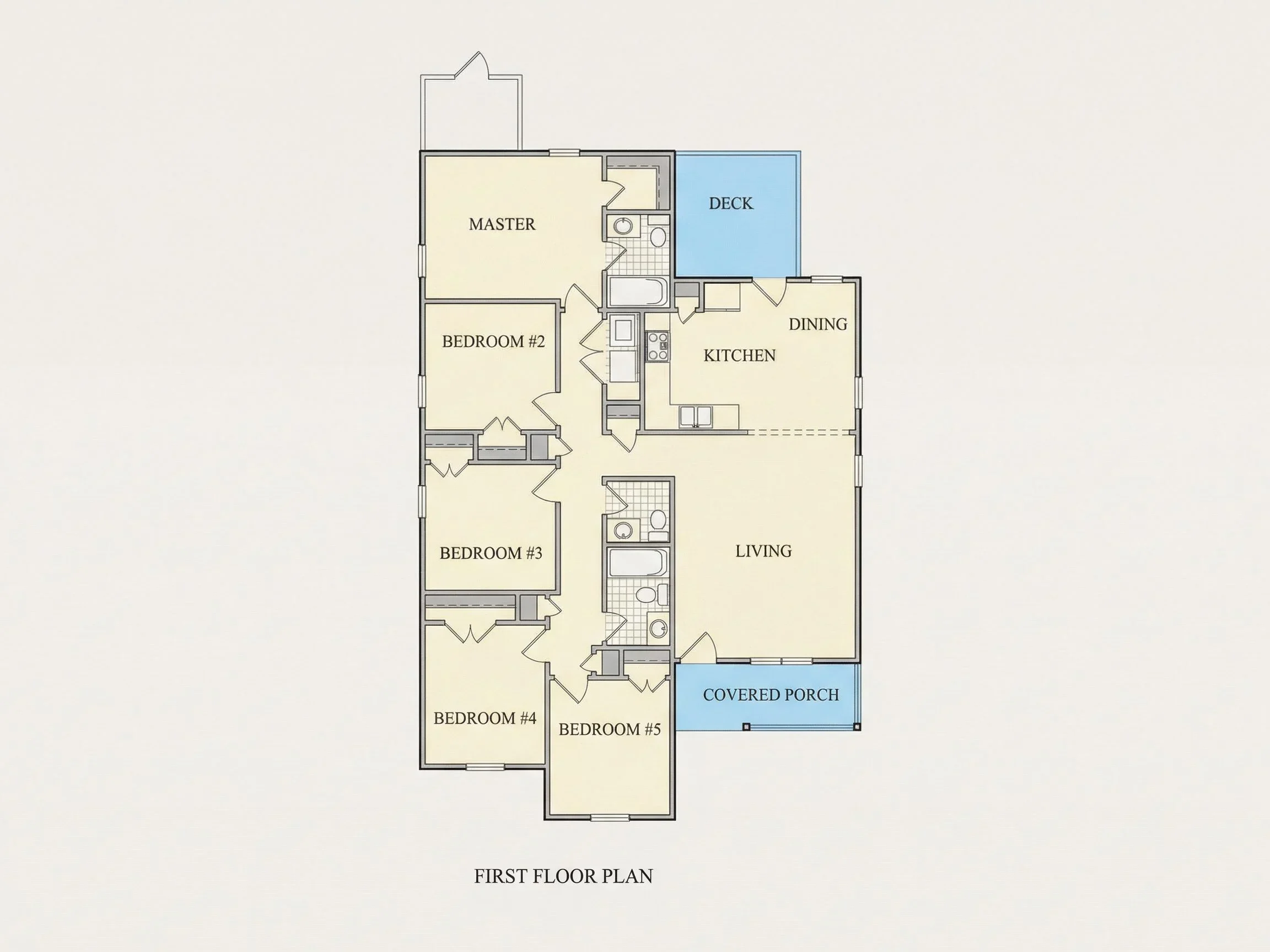

- Heated area: 1, 459 sq. ft. across a single-level ranch layout.
- Unheated extras: Covered front porch, covered rear porch, and a small uncovered deck for added outdoor flexibility.
Bedrooms & Bathrooms
- 5 total bedrooms, including a first-floor Owner Suite with walk-in closet for added privacy.
- 2 full bathrooms placed conveniently between bedrooms for ease of access.
Interior Highlights
- Open floor layout that connects the living room, dining area, and kitchen in a seamless flow. See more open layouts.
- Split-bedroom design offers maximum privacy—ideal for families, guests, or remote workers.
- Breakfast nook adjacent to the kitchen creates a cozy spot for casual meals or coffee breaks. View plans with breakfast nooks.
- Dedicated laundry area adds function without taking up living space.
Garage & Storage Details
- Garage Bays: Optional detached or front-entry garage (customizable).
- Garage Type: Not included in base design—can be added during modifications.
- Storage: Walk-in closets and linen storage throughout, plus attic access depending on foundation type.
Outdoor Living Features
- Enjoy a covered front porch for welcoming curb appeal and relaxed mornings.
- The covered rear porch is perfect for shaded dining or evening lounging.
- An open deck adds bonus space for grilling or sunny afternoons.
- Brick and siding finishes provide classic Craftsman texture and durability.
Architectural Style: Traditional Craftsman Ranch
This design blends low-pitched rooflines, natural materials, and efficient layouts—perfect for homeowners seeking both simplicity and warmth. Learn more about the Craftsman style or explore its roots on ArchDaily.
Bonus Features
- Split bedroom design enhances peace and quiet for sleeping areas.
- Uncovered deck provides sunlight for container gardening or BBQ space.
- Open concept makes entertaining seamless and fun.
Included Benefits with Every Plan
- CAD + PDF Files: Printable and fully editable construction documents.
- Unlimited Build License: Use the plan as many times as needed, no restrictions.
- Free Foundation Changes: Choose from pier, slab, crawlspace, or basement.
- Structural Engineering Included: All plans come stamped for safety and code compliance.
- Lower Modification Costs: We offer customizations for less than half the price of competitors.
- View Before You Buy: Preview every plan sheet here.
Similar Collections You Might Love
- Ranch House Plans
- 5-Bedroom House Plans
- House Plans with Covered Back Porch
- House Plans with First Floor Owner Suites
- House Plans with Functional Layouts
Frequently Asked Questions
Does this plan include blueprints and CAD files? Yes! Each purchase includes editable CAD files and ready-to-print PDFs.
Can I make changes to the number of bedrooms or add a garage? Absolutely. We offer low-cost modifications—just get a quick quote here.
Is this house plan suitable for narrow lots? With its compact width and single-story format, it’s ideal for both urban and suburban plots.
Are outdoor living areas included? Yes. This plan includes a front porch, rear covered porch, and an open deck.
Can I preview the design before I buy? Definitely. See all included plan sheets here.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our online form.
Your future home starts with a plan that works for you—get started today and build with confidence!
