Architectural house Plan: 1-Story Craftsman Design with CAD
Explore this 1-story architectural house plan featuring an open floor plan,3 beds,2 baths,vaulted ceilings,CAD blueprint designs,and full customization!
12 FT+ Ceilings | Breakfast Nook | Builder Favorites | Covered Front Porch | Covered Rear Porches | Craftsman | Downstairs Laundry Room | First-Floor Bedrooms | Foyer | Front Entry | Great Room | Large Laundry Room | Living Room | Medium | Open Floor Plan Designs | Owner’s Suite on the First Floor | Screened Porches | Side Entry Garage | Sloped Lot | Split Bedroom | Traditional | Transitional | Vaulted Ceiling | Walk-in Closet | Walk-in Pantry
Original price was: $1,099.00.$898.00Current price is: $898.00.
999 in stock
| Width | 80'-4" |
|---|---|
| Depth | 60'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Downstairs Laundry Room, Foyer, Great Room, Large Laundry Room, Living Room, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Architectural Home Plan: 1-Story Craftsman Design with CAD
Explore this 1-story architectural home plan featuring an open floor plan, 3 beds, 2 baths, vaulted ceilings, CAD blueprint designs, and full customization!
Discover the Perfect Architectural Home Plan for Your Needs
Designing your dream home begins with selecting the ideal floor plan. This charming 1-story Craftsman-style home design offers an open floor plan, luxurious features, and timeless architectural appeal. Built for functionality and beauty, this well-thought layout can fit a range of design preferences and construction needs.
A Spacious and Functional Floor Plan
This 2, 303 sq. ft. heated home combines modern amenities with classic style. The split-bedroom layout contains three bedrooms, including a luxurious Owner suite with a walk-in closet and two full bathrooms. A vaulted ceiling in the great room adds an air of openness and sophistication, pairing seamlessly with the large open kitchen and breakfast nook for effortless entertainment.
With its 2-bay garage featuring side and front entry options, this home also ensures ample storage and accessibility. The spacious laundry room, conveniently located on the main floor, boasts over 15 feet of functional space.
Indoor Features Designed for Comfort
The interior of this medium-sized home is thoughtfully designed to maximize comfort and convenience:
* Open Floor Plan for seamless flow across living spaces
* Great Room with Vaulted Ceilings for added depth and light
* Downstairs Laundry Room adjacent to the bedrooms
* Walk-In Pantry providing functional kitchen storage
These features create a home perfect for families and those who enjoy entertaining.
Outdoor Features for Relaxation and Connectivity
The traditional Craftsman-style exterior offers a comfortable front porch, a covered rear porch, and a screened porch, providing ample ways to enjoy the outdoors. Combinations of brick, stone, shingles, and siding ensure durability and elegance for years to come.
Why Choose This Architectural Plan?
Designed for a sloped lot on a hill, this home captures stunning views and complies with various topographies. It's one of our most builder-favorite and top-selling designs due to its uniquely efficient blueprint and timeless appeal.
Benefits of Every Plan
With every home plan purchase, you will receive CAD files alongside a PDF version for hassle-free modifications. We include an unlimited-build license and free foundation changes with each design. All engineering details are covered, and we offer modifications at competitive rates.
Ready to start building your dream home? Reach out to our friendly team at support@https://myhomefloorplans.com and take the first step toward your ideal home today!
All home plans include BOTH the CAD file and PDF file.

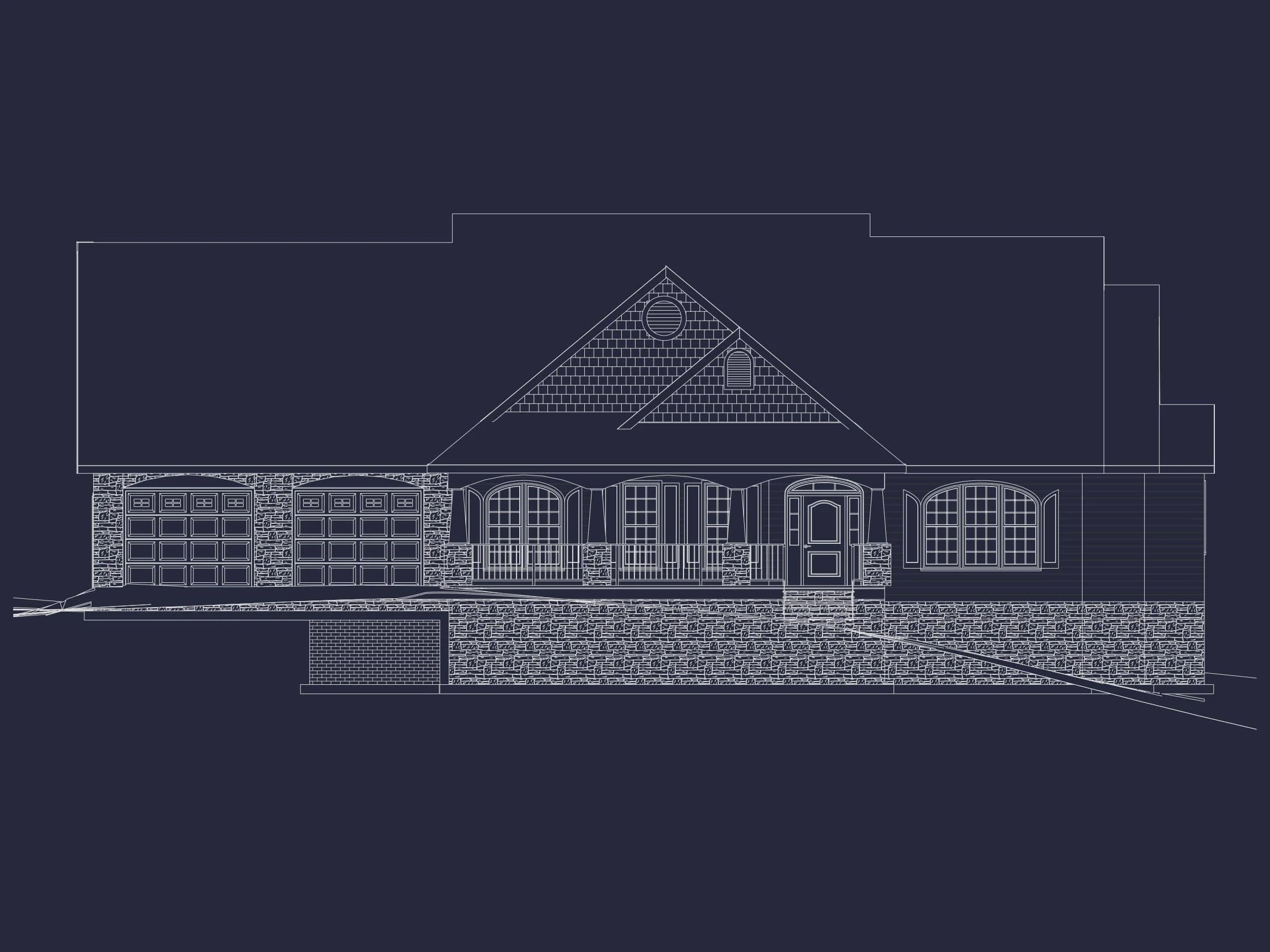

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
