Stunning house Plan with 3D Floor Blueprint CAD Designs
A breathtaking house design featuring four floors,5 bedrooms,and 5+ baths. Includes CAD blueprints,modern architecture,and customizable floor plans.
9 FT+ Ceilings | Attics | Balconies | Basement | Bonus Rooms | Breakfast Nook | Butler’s Pantry | Covered Front Porch | Covered Rear Porches | Designer Favorite | Family Room | Fireplaces | Foyer | Front Entry | Great Room | Kitchen Island | Large | Living Space | Modern Suburban | Owner’s Suite on Second Floor | Patios | Second Floor Bedroom | Shingle Style | Sloped Lot | Split Bedroom | Terrace | Traditional | Upstairs Laundry Room | Vaulted Ceiling | Walk-in Closet | Walk-in Pantry
Original price was: $1,699.00.$1,498.00Current price is: $1,498.00.
999 in stock
| Width | 65'-0" |
|---|---|
| Depth | 44'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Basement, Bonus Room, Family Room, Fireplace, Foyer, Great Room, Upstairs Laundry Room |
| Outdoor Features | Covered Front Porch, Balcony, Covered Rear Porch, Patio, Terrace |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on Second Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | Breakfast Nook, Butler's Pantry, Kitchen Island, Walk-in Pantry |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Stunning Home Plan with 3D Floor Blueprint CAD Designs
A breathtaking home design featuring four floors, 5 bedrooms, and 5+ baths. Includes CAD blueprints, modern architecture, and customizable floor plans.
Explore Stunning Home Plan Designs
Elegant Architectural and CAD Blueprint Details
This four-plus-floor home design is the epitome of elegance and functionality, boasting 5 spacious bedrooms, 5+ bathrooms, and a luxury blueprint crafted with precision. Designed for versatile family living, this 3.5-story home comes with fully customizable CAD architectural plans that simplify the process for builders and designers alike.
With a width of 65 feet and a depth of 44 feet, this modern suburban home is perfect for families requiring spacious interiors without compromising style. The heated area extends to 4, 500 square feet, while additional unheated areas, such as the garage and attic, span another 1, 000 square feet.
Key Indoor Features for Dream Living
This thoughtfully crafted floor plan features:
* 5 Bedrooms, including a Owner suite on the second floor with a walk-in closet
* A cozy fireplace, perfect for creating a warm atmosphere during winter months
* A bonus room and family room, ideal for gatherings or relaxation
* An upstairs laundry room for convenience
* Elegant living spaces like a grand foyer and a great room, ensuring a spacious feel
This home plan includes ceilings at 9 feet or higher, with vaulted designs in key spaces, offering a modern yet timeless aesthetic.
Transformative Outdoor Living and Structure Features
Outdoor lovers will appreciate the inclusion of a covered front and rear porch, balcony, patio, and terrace, offering various spaces for relaxing and entertaining amidst nature. The architectural style, characterized by shingle siding and stone exteriors, adds a traditional yet modern charm, making the house blend perfectly into suburban landscapes.
The garage space, sufficient for three vehicles, doubles as a smart design with optional living quarters, offering unrivaled adaptability.
Kitchen and Utility Highlights
The large kitchen is equipped with a kitchen island, butler's pantry, and walk-in pantry, catering to culinary lovers and those seeking convenience. A breakfast nook is included for casual meals, ensuring homeowners enjoy every part of their mealtime gatherings.
Benefits Include Custom CAD Designs
Every homeowner gains access to PDF and CAD files, designed for efficiency. Each purchase includes free foundation modifications and engineering assistance. Customization services—affordable and expansive—are available to suit your exact needs.
Are you ready to design your dream home? Inquire today at support@https://myhomefloorplans.com for personalized assistance in creating your perfect plan!
All home plans include BOTH the CAD file and PDF file.

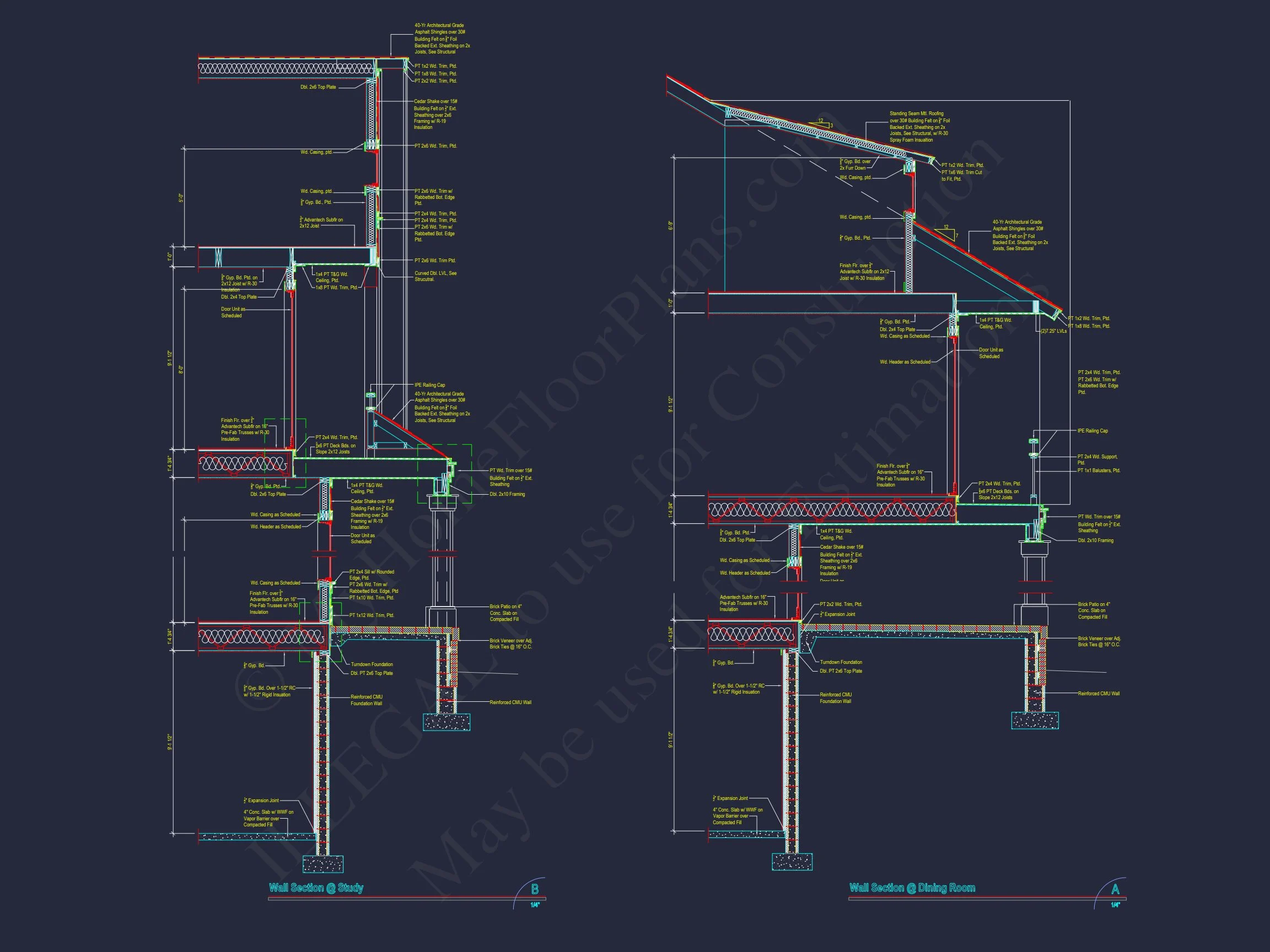

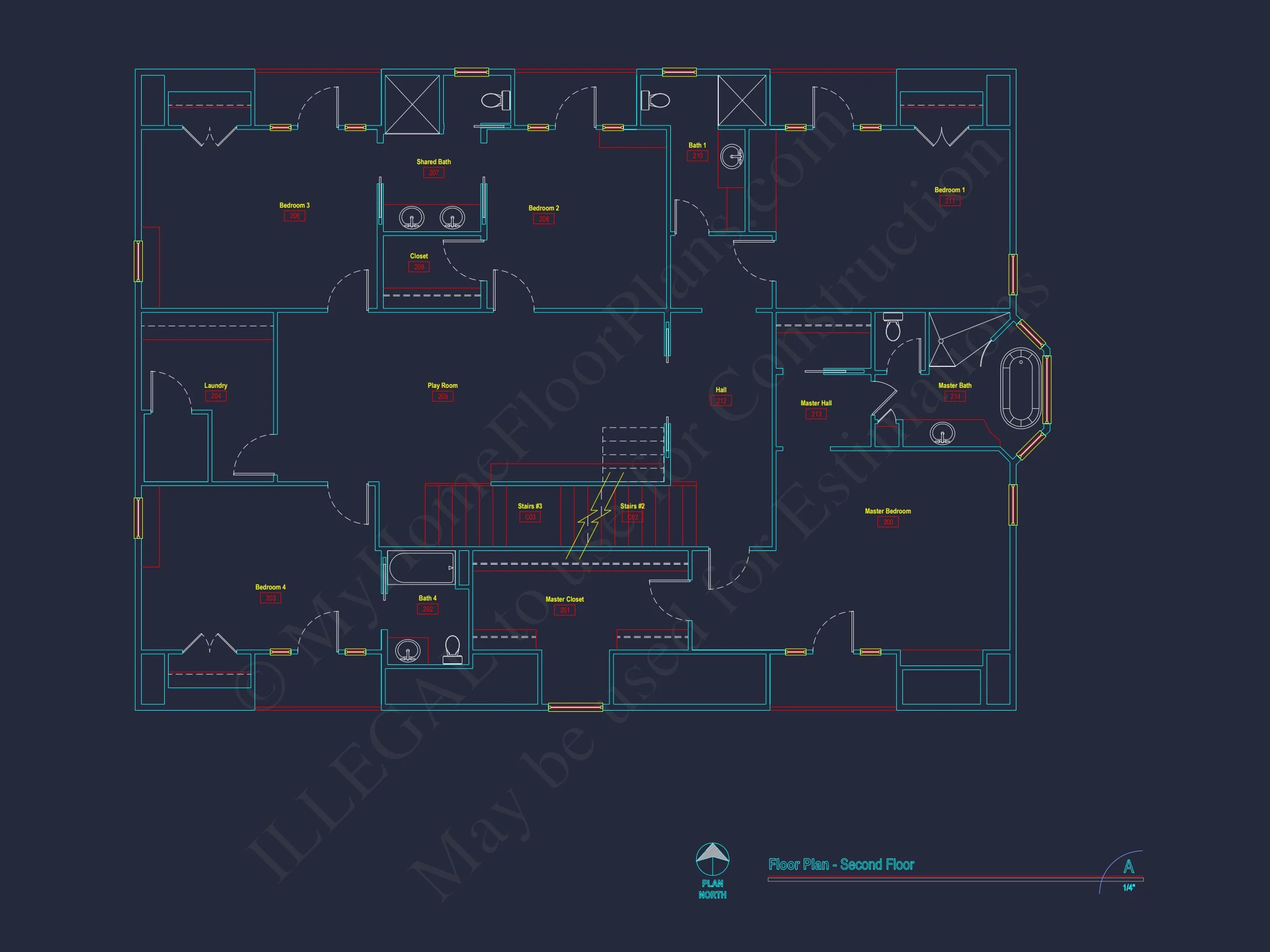

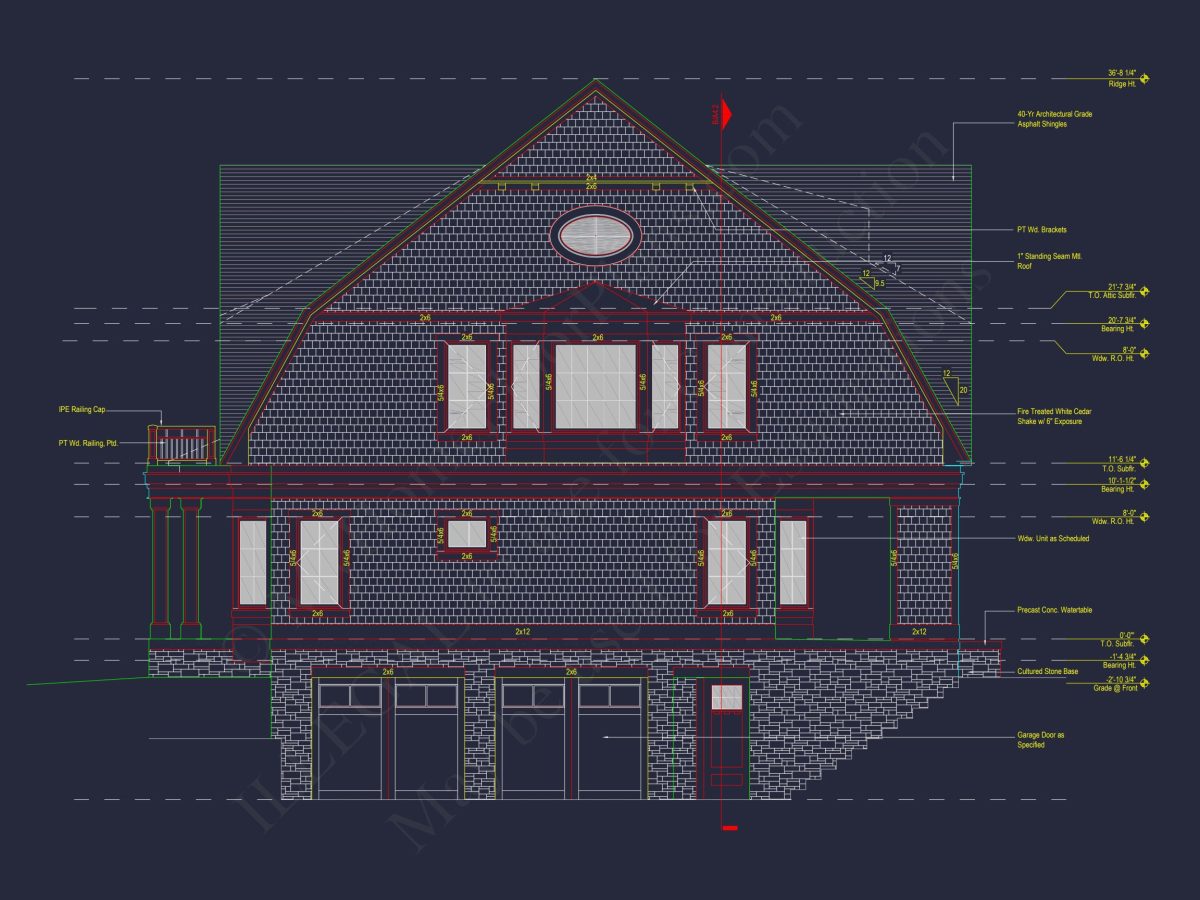

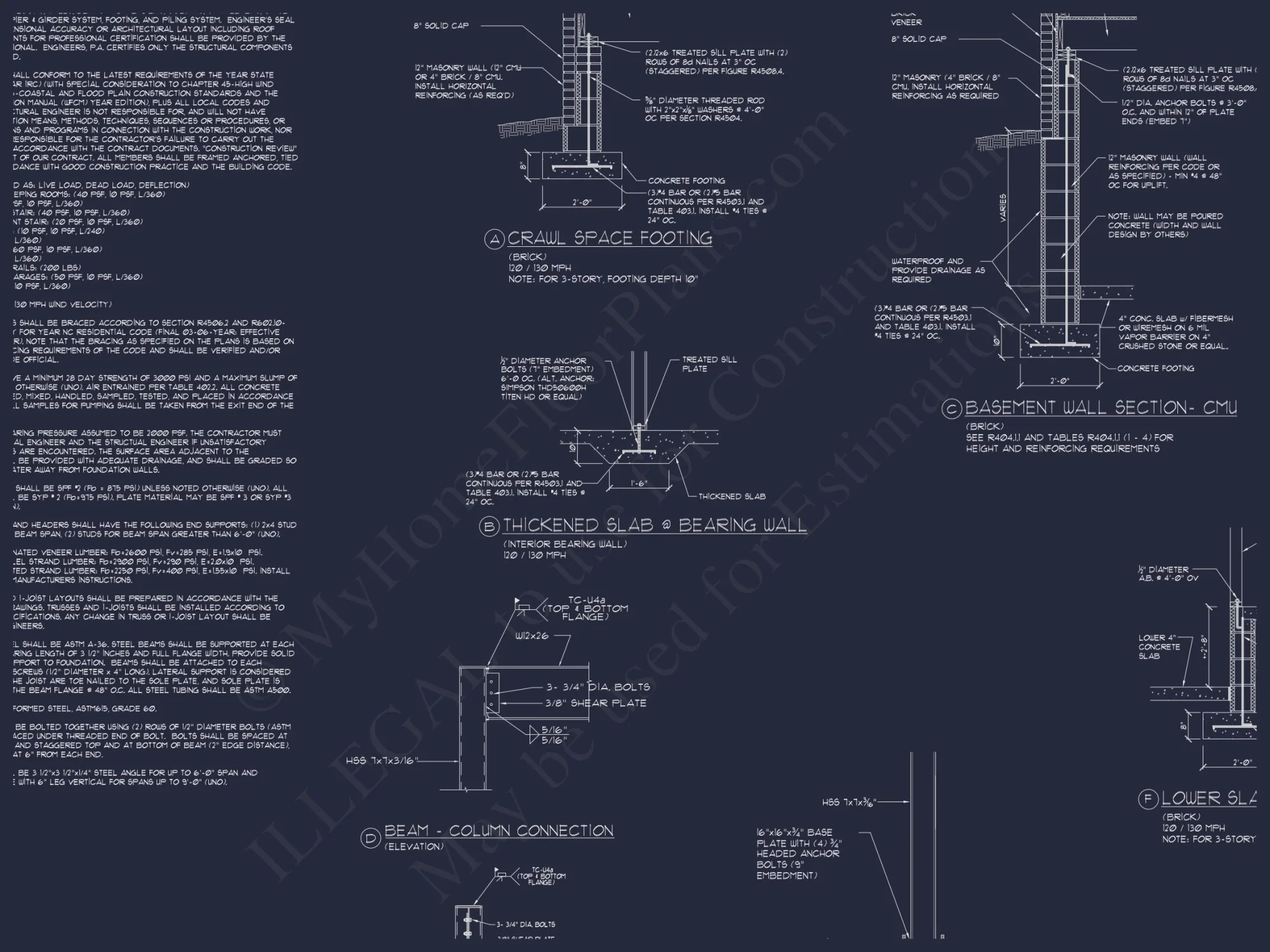

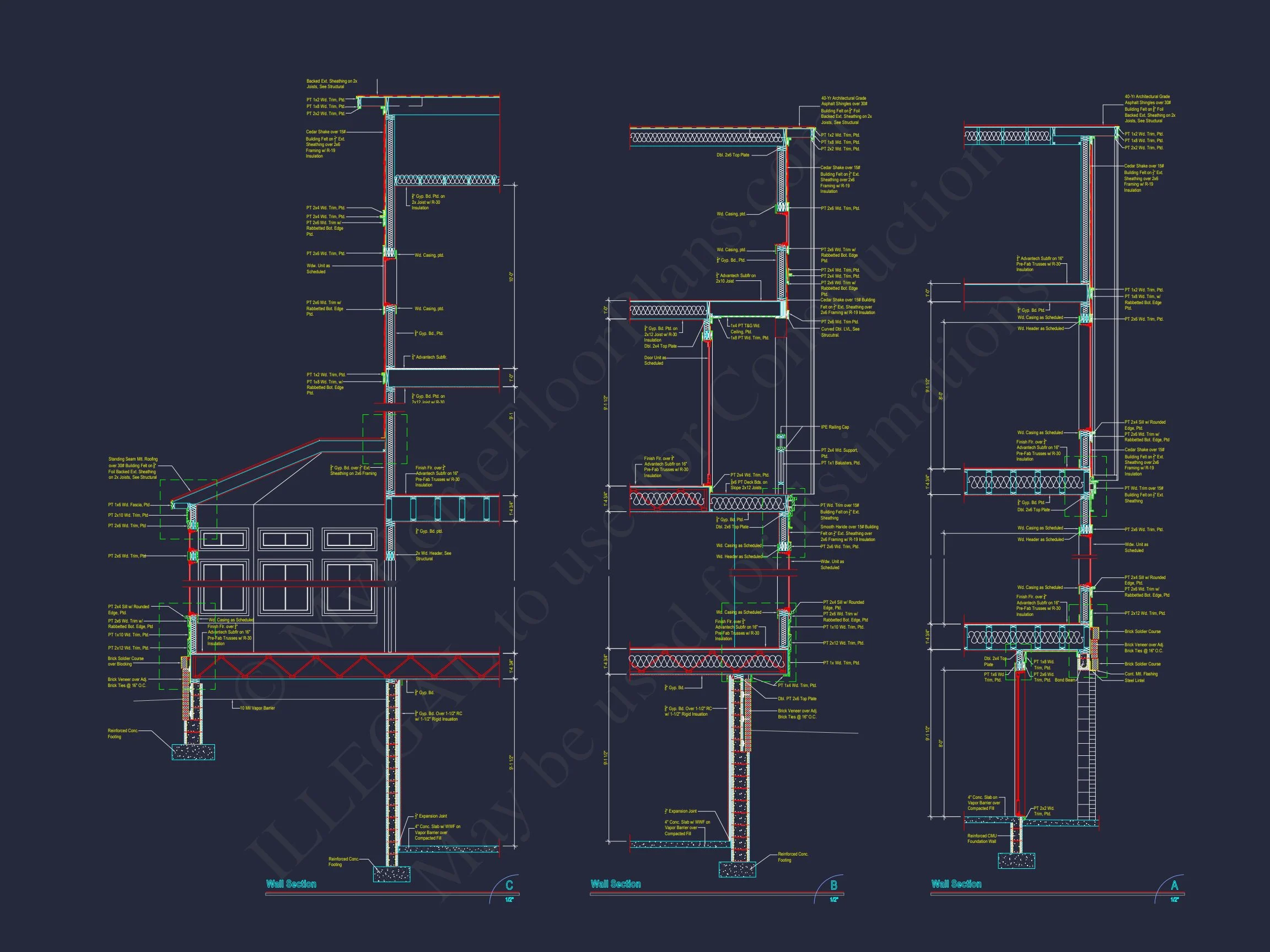

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

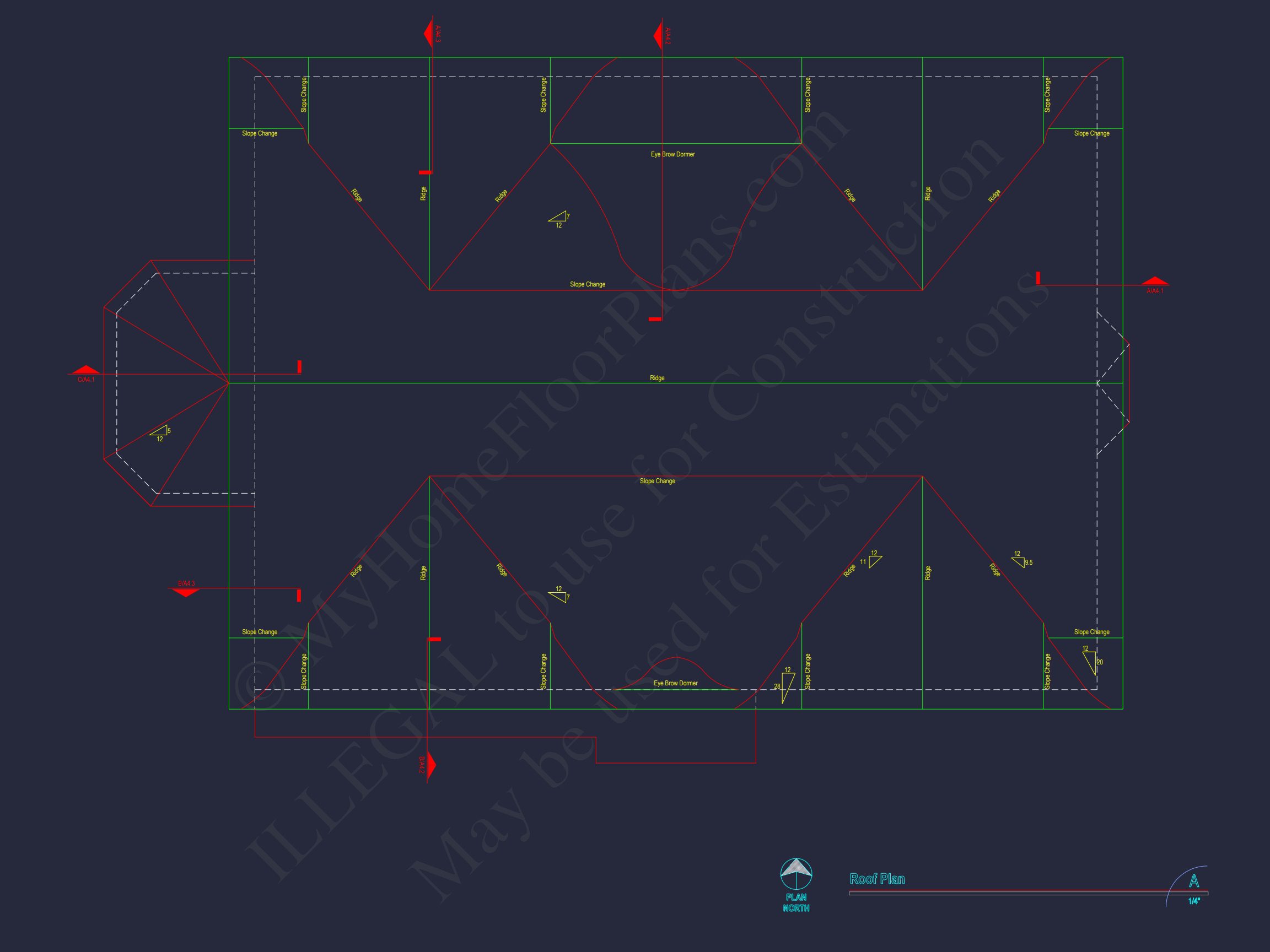

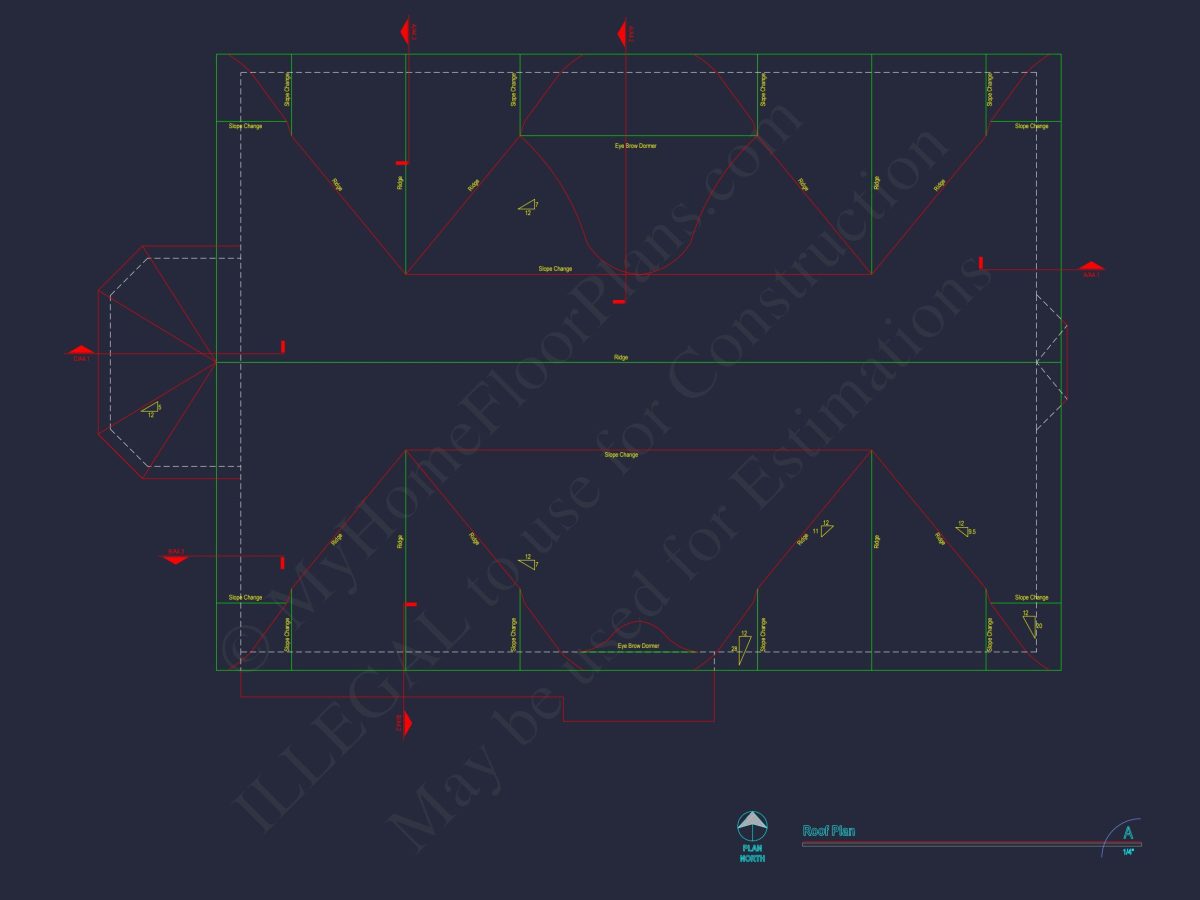

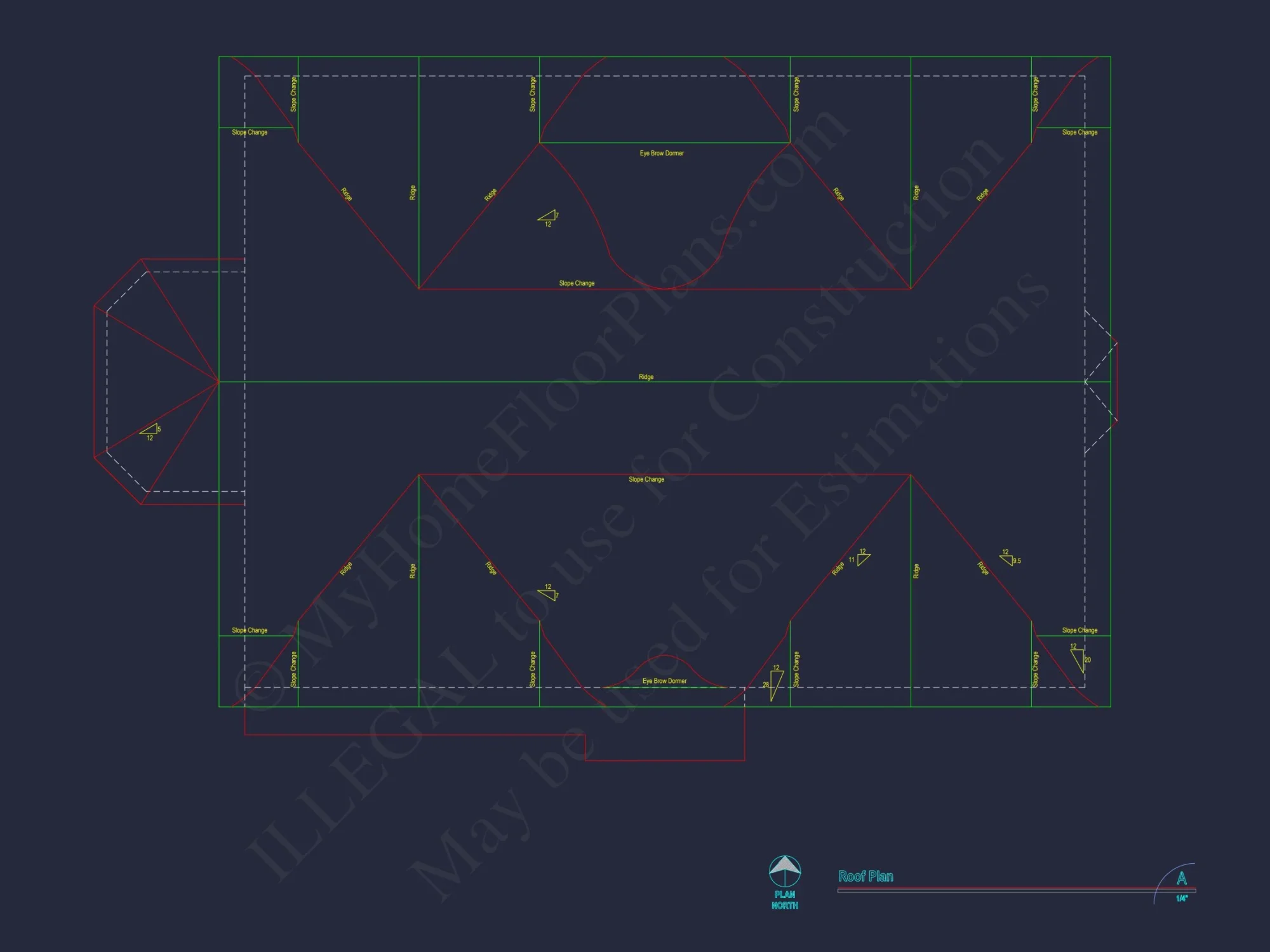

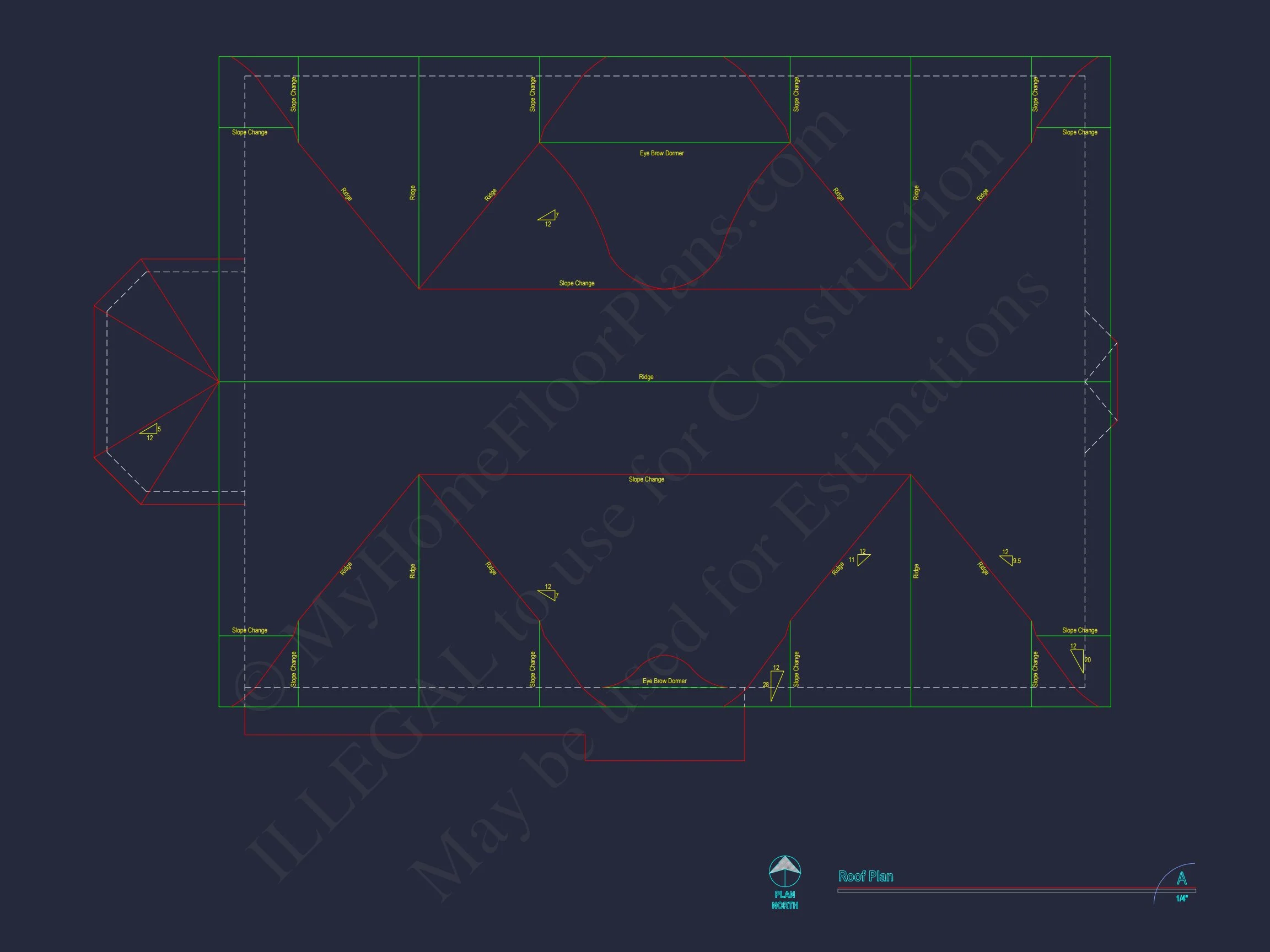

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
