Beach House Floor Plan with CAD, 5 Bedrooms, and 2 Levels
Explore this stunning beach house floor plan featuring 5 bedrooms, expansive living spaces, and modern architecture. Includes CAD designs and versatile layouts.
Elevate Your Beach House Experience with This Exclusive Design
Welcome to a modern beach house floor plan designed to inspire elegance and functionality. This 2-story beach house is perfect for those seeking a blend of aesthetics and practicality in their architectural design. With a heated space of 3, 215 square feet, this large single-family house is tailored to meet the needs of families or vacationers who desire comfort by the coast.
Modern, Spacious Layout
This house offers a versatile layout with 5 bedrooms, including a Owner suite on the first floor for added convenience, and a second-story guest suite ensuring privacy for all occupants. The house also includes 5+ bathrooms, promising ample space for everyone’s daily routines. Its open floor plan seamlessly connects the kitchen, dining, and living areas, promoting natural light and a sense of spaciousness.
Indoor Features Built for Comfort
The indoor spaces are brimming with thoughtful features designed for comfort and utility:
* Vaulted ceilings and 10ft+ ceiling heights for a grand appearance
* Elevator access for easy movement between floors
* A living room, great room, and an office/study, perfect for relaxation or productivity
* A mudroom and downstairs laundry room to keep your house tidy and organized
* A chef-inspired kitchen with a kitchen island, walk-in pantry, and a breakfast nook
Outdoor Bliss
The outdoor amenities feature a covered front porch, rear porch, and lanai, ideal for entertaining or enjoying serene sunsets. You’ll also find a patio perfect for outdoor day-to-day recreation.
Designed for Coastal Living
Built with beach traditions in mind, this house flaunts board & batten siding and durable structural features to handle coastal conditions. With a slab foundation and front entry garage, the design is both practical and visually appealing.
All home plans include BOTH the CAD file and PDF file.

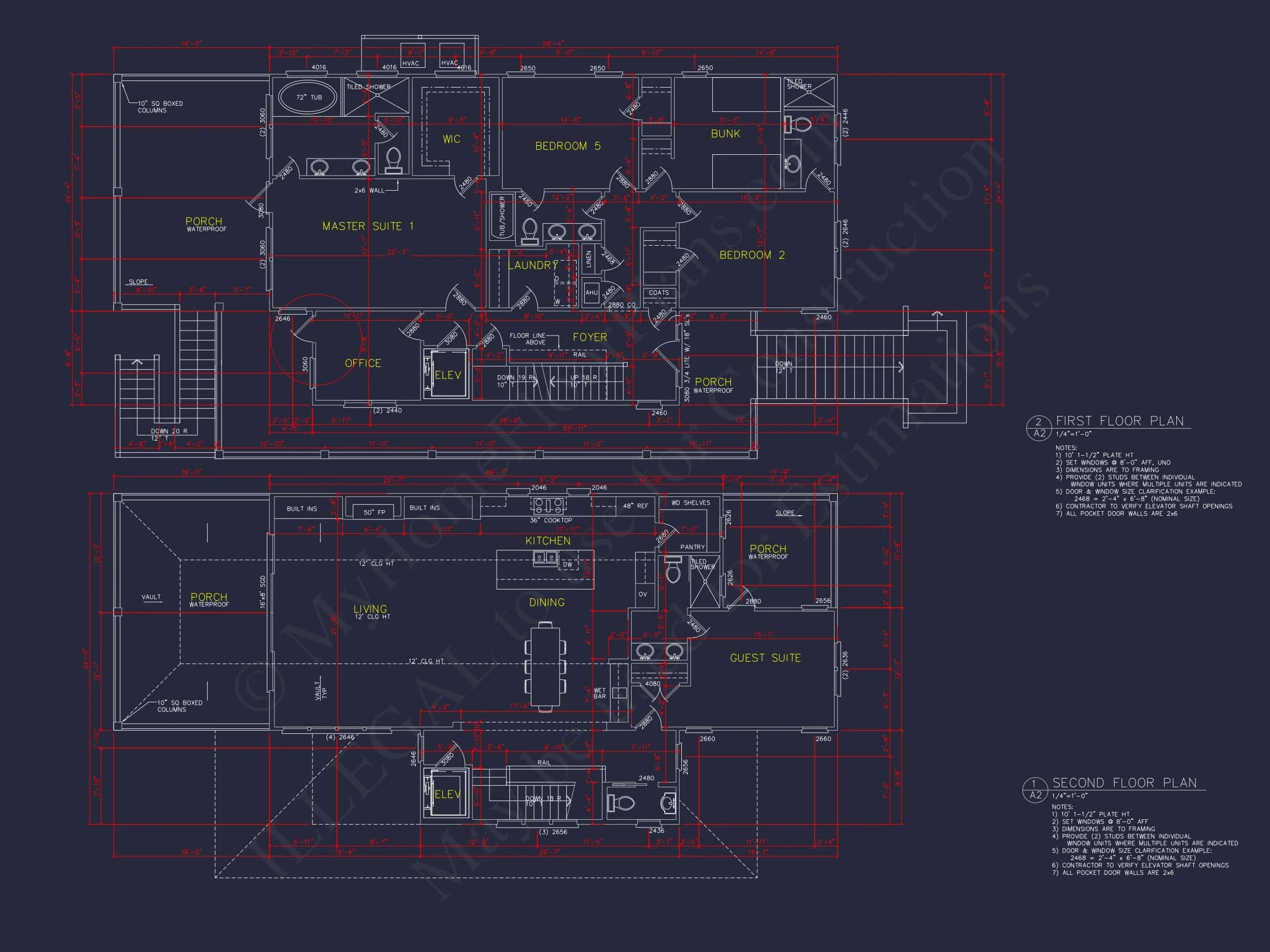

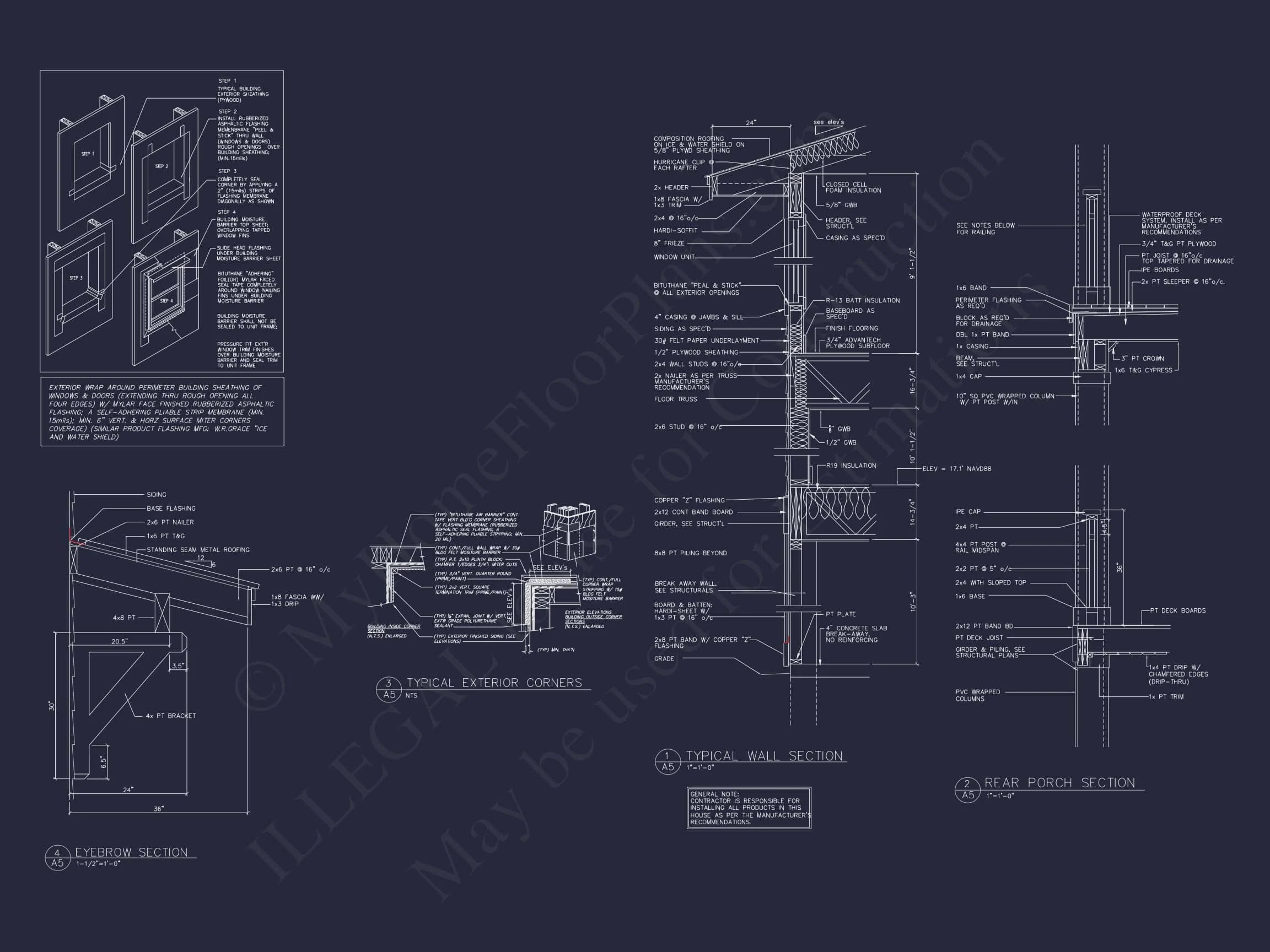

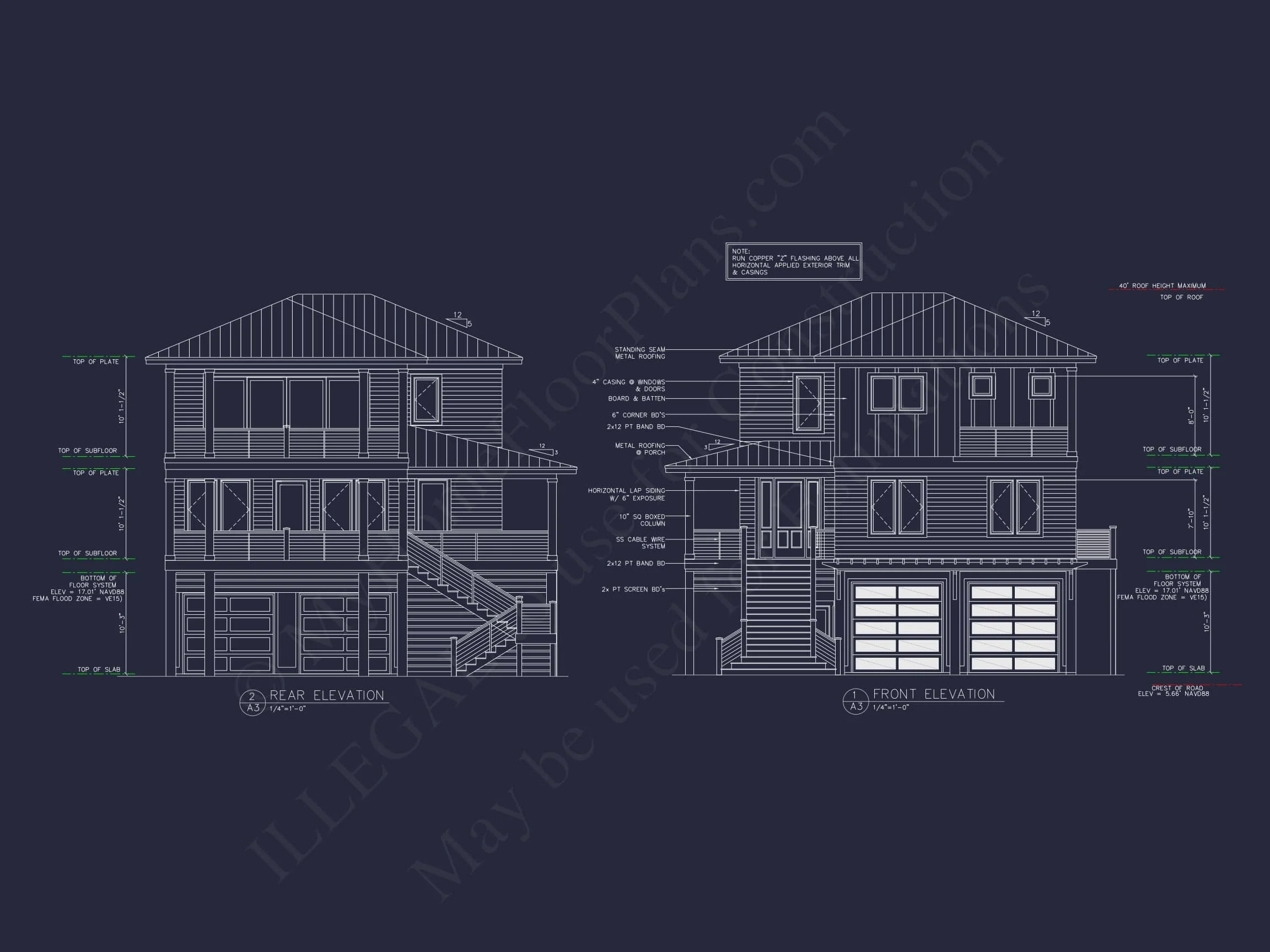

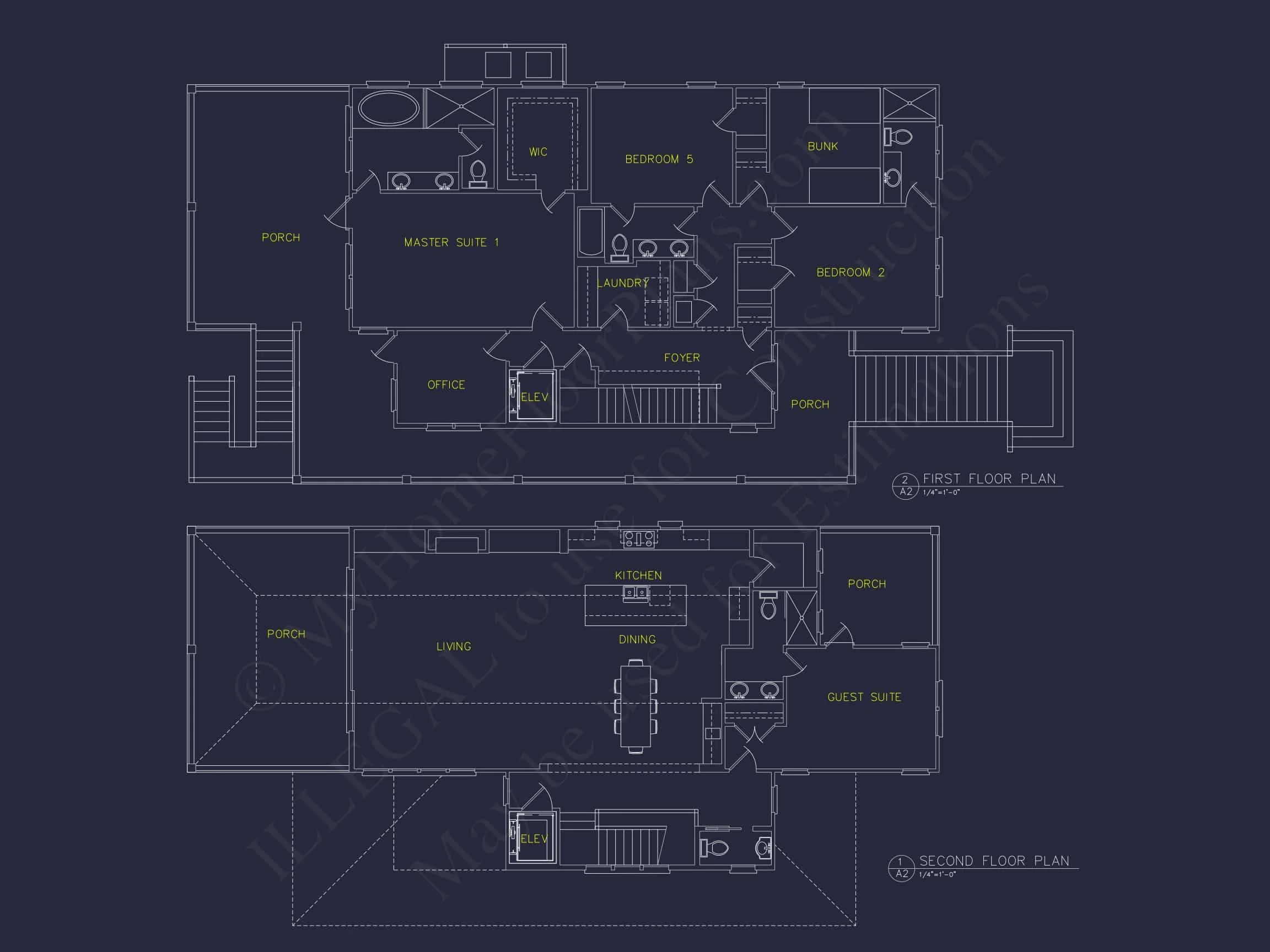

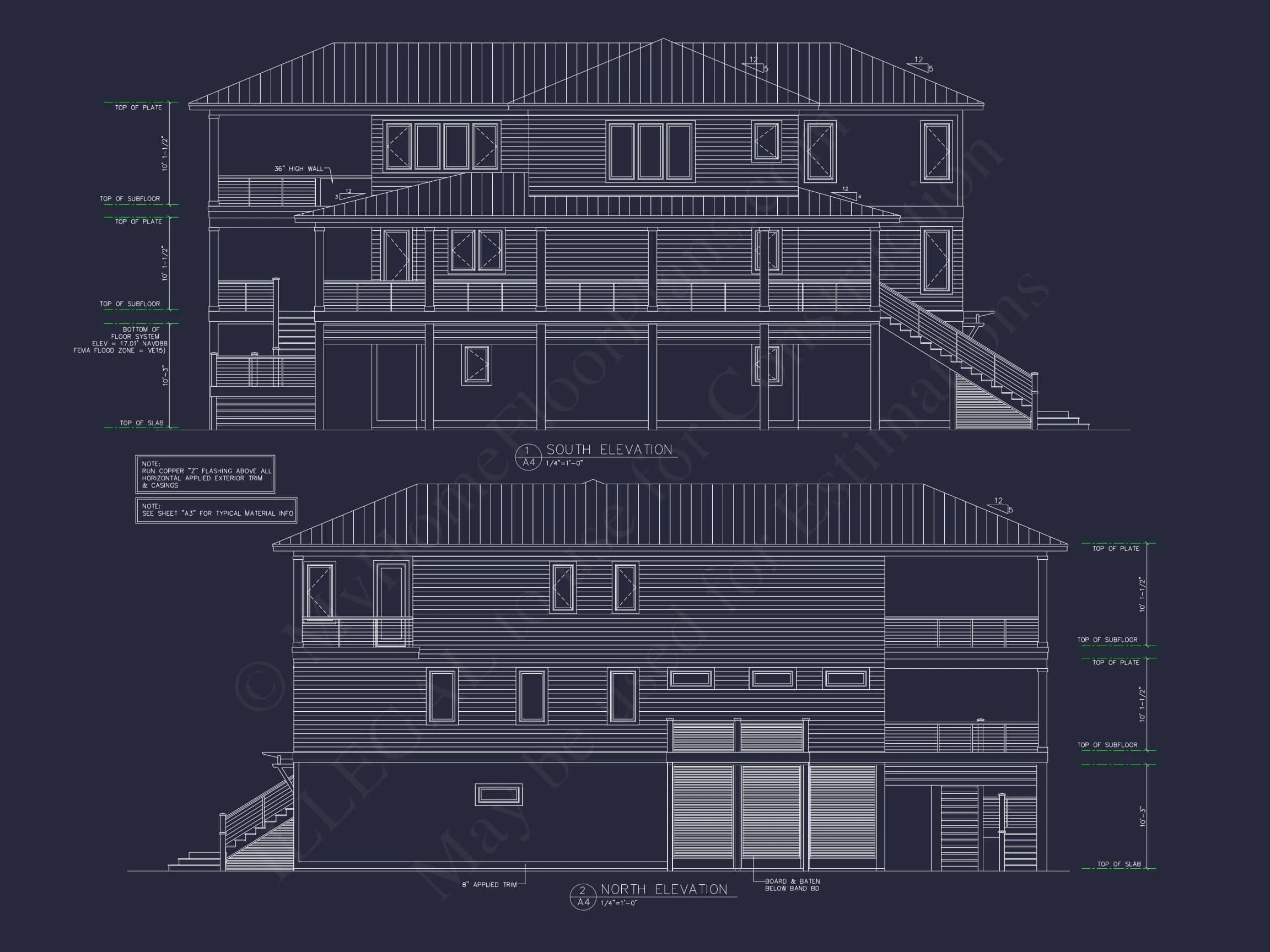

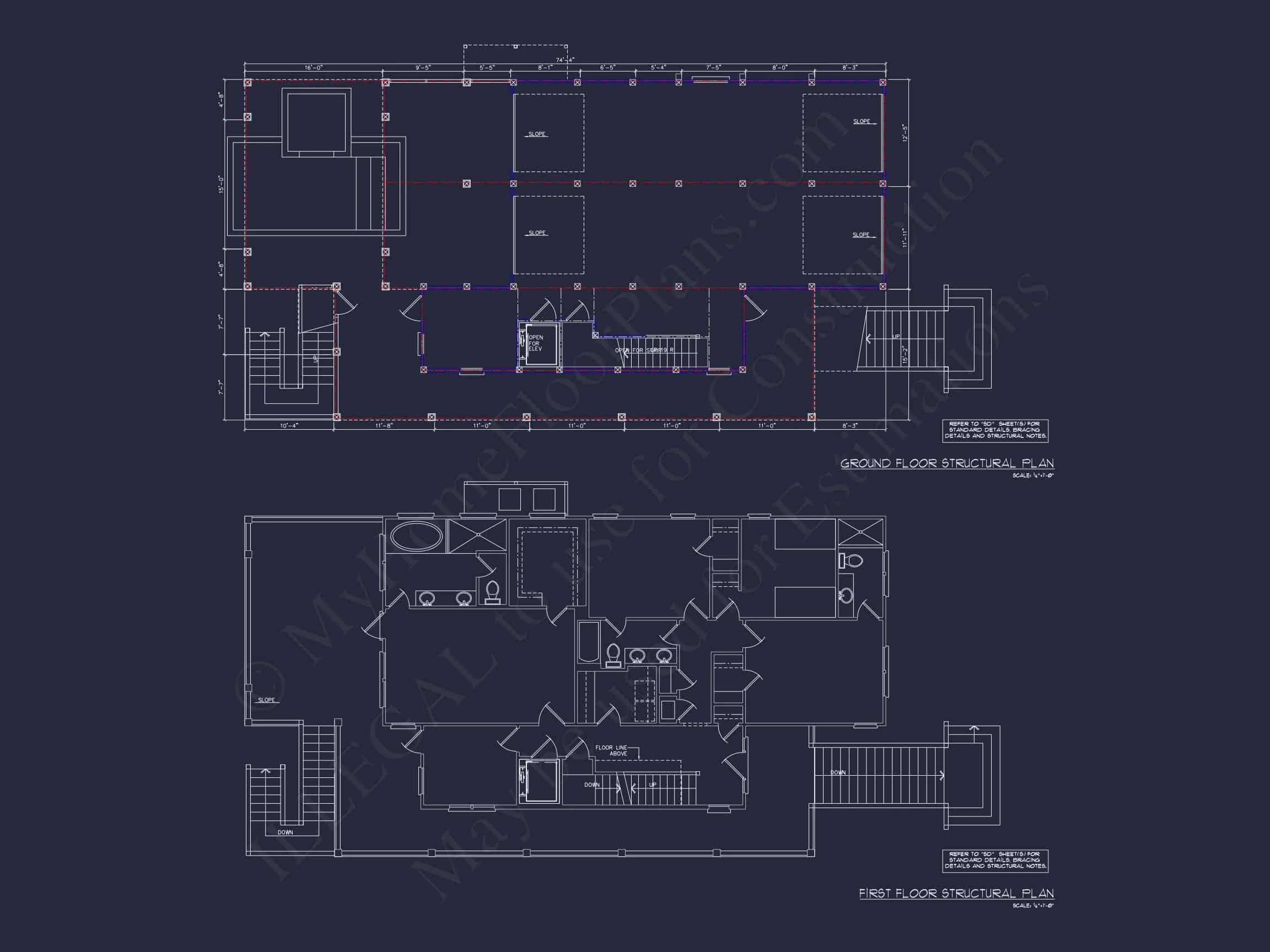

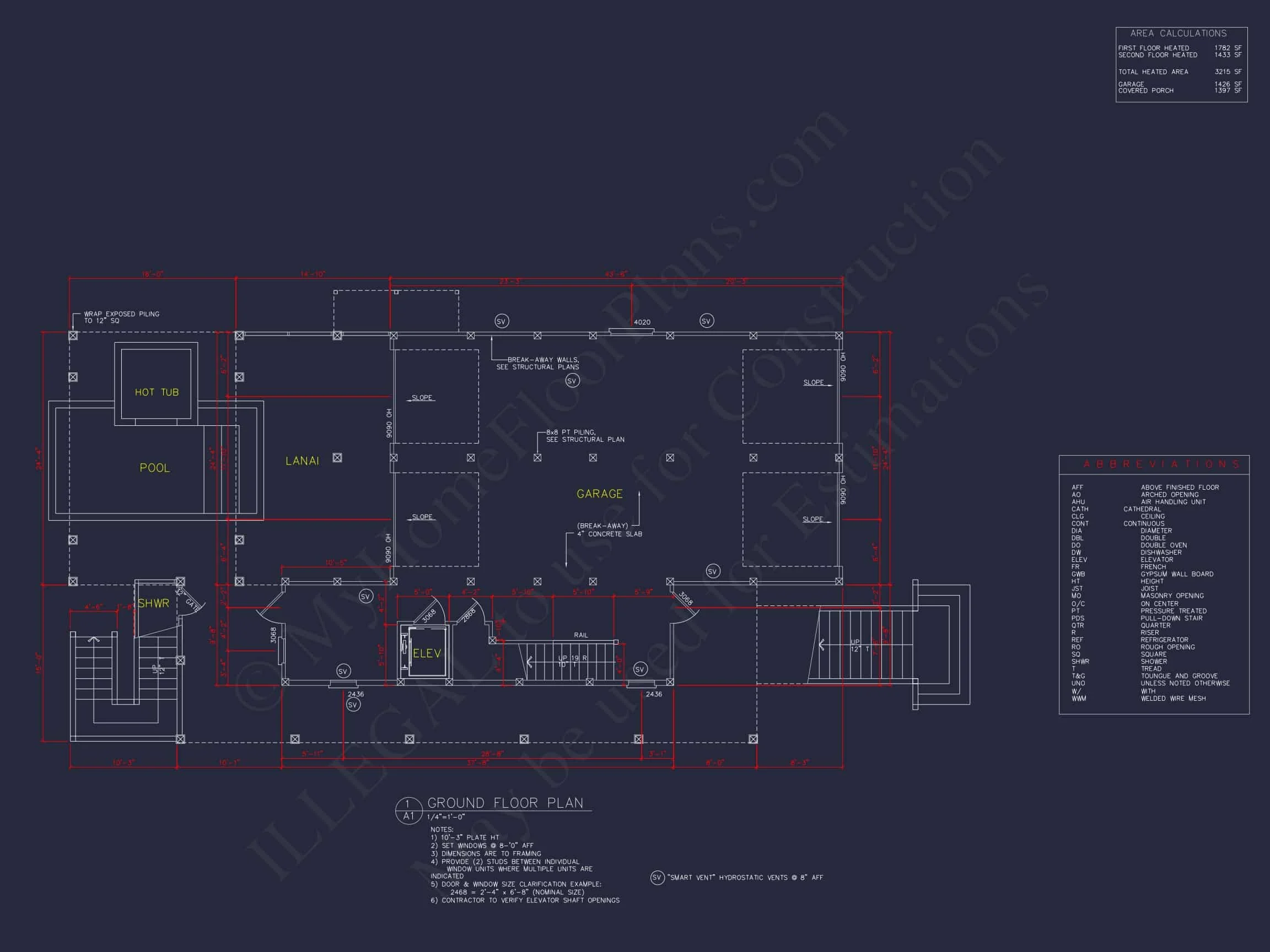

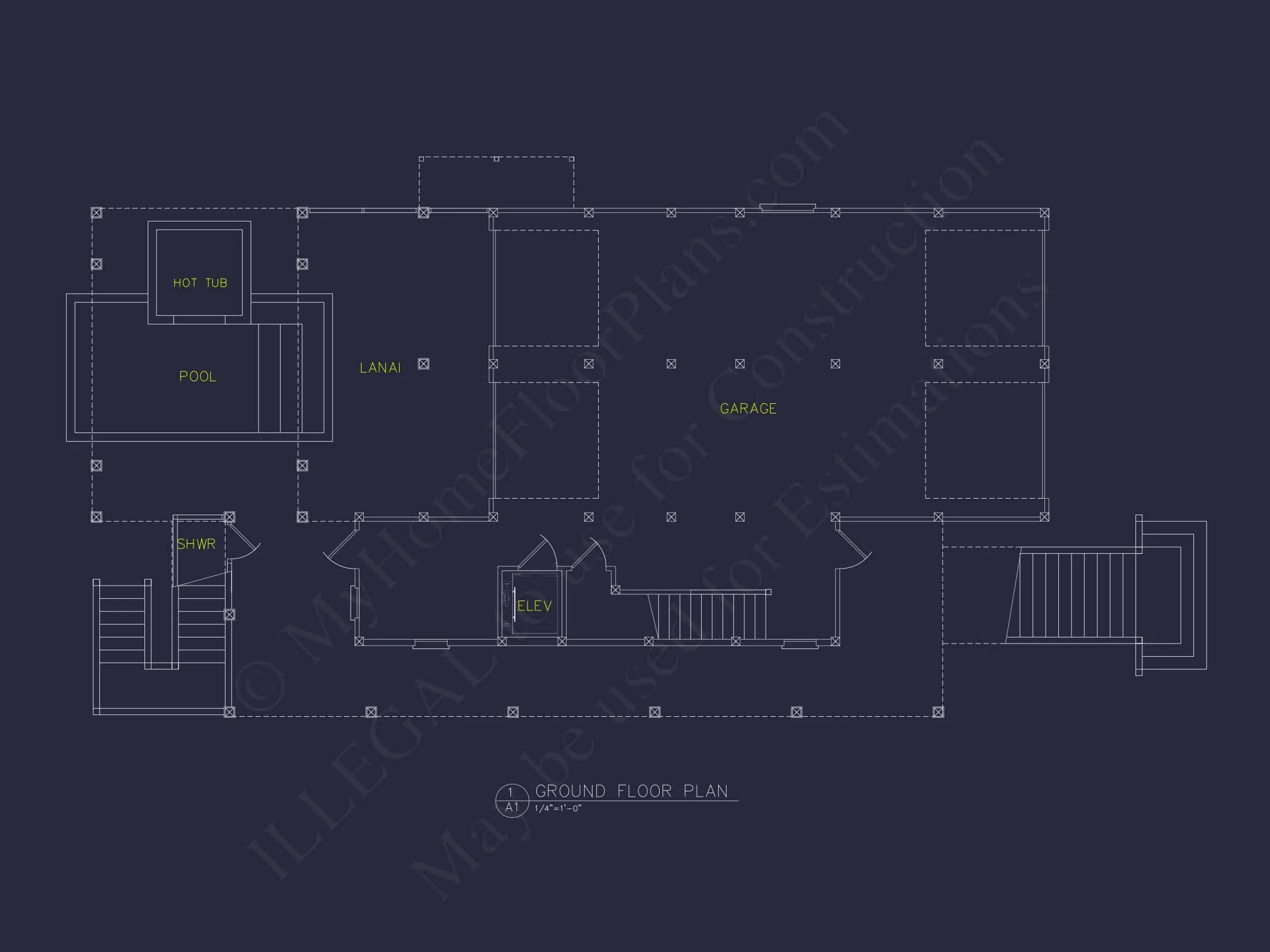

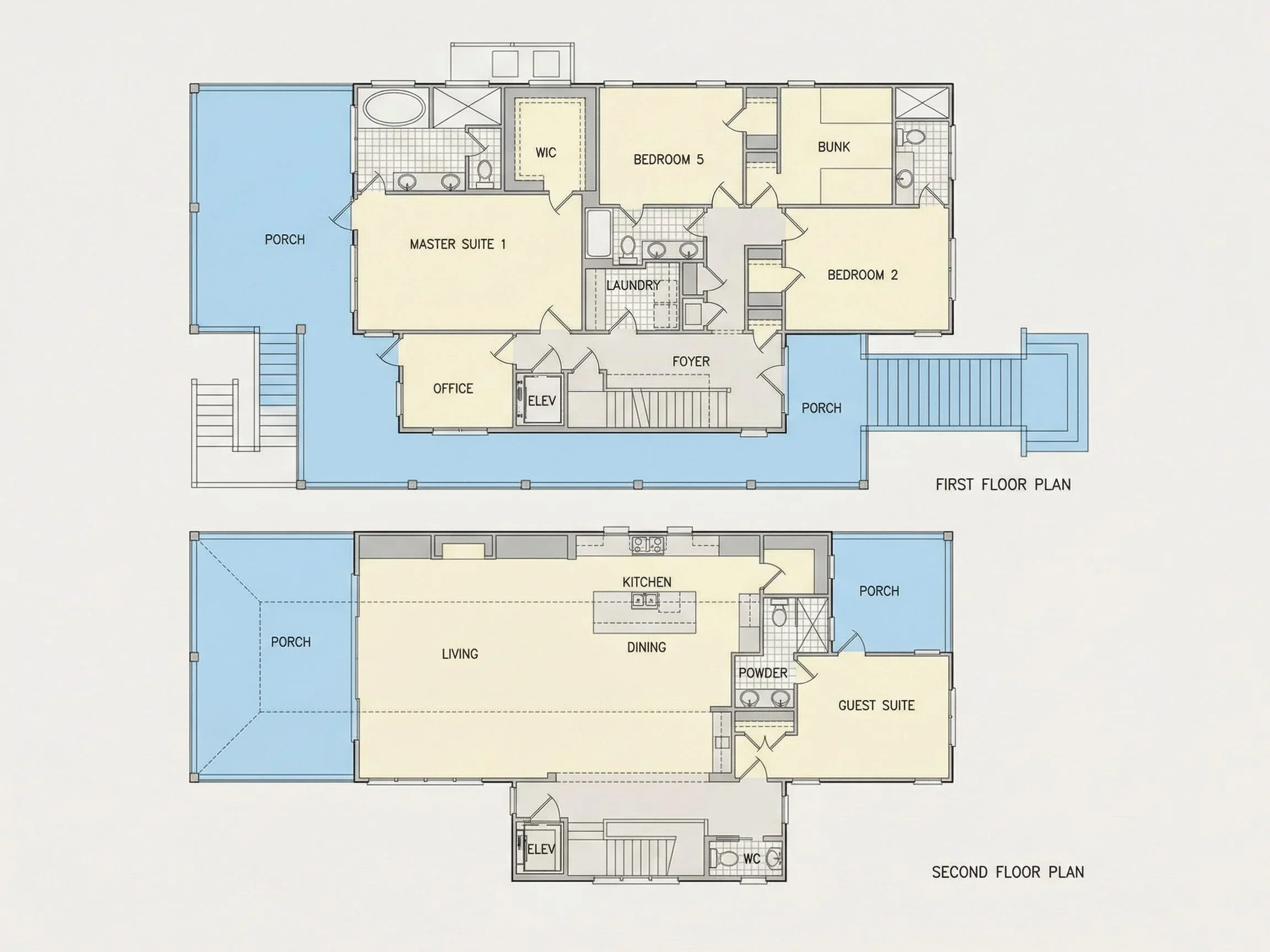

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

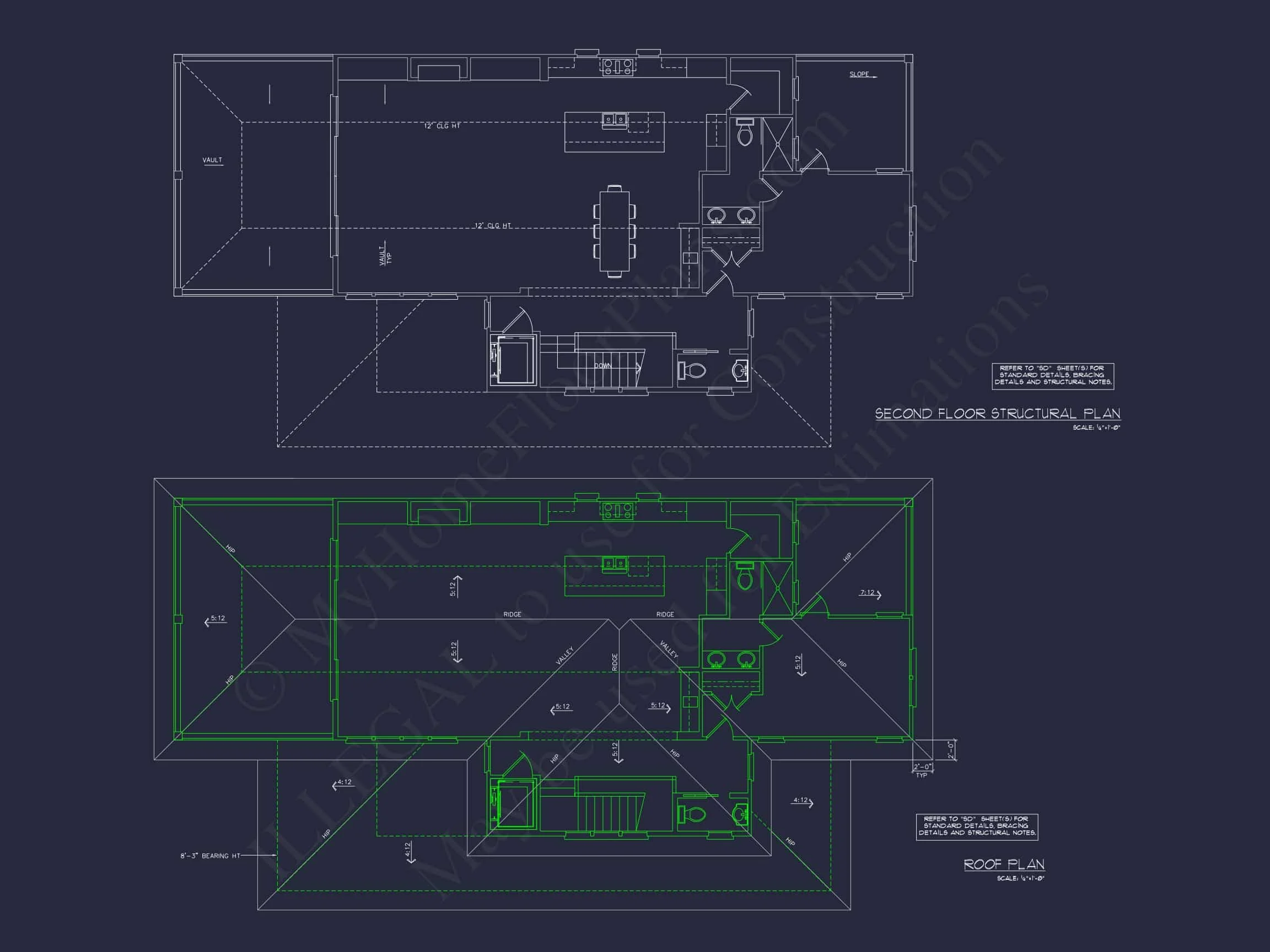

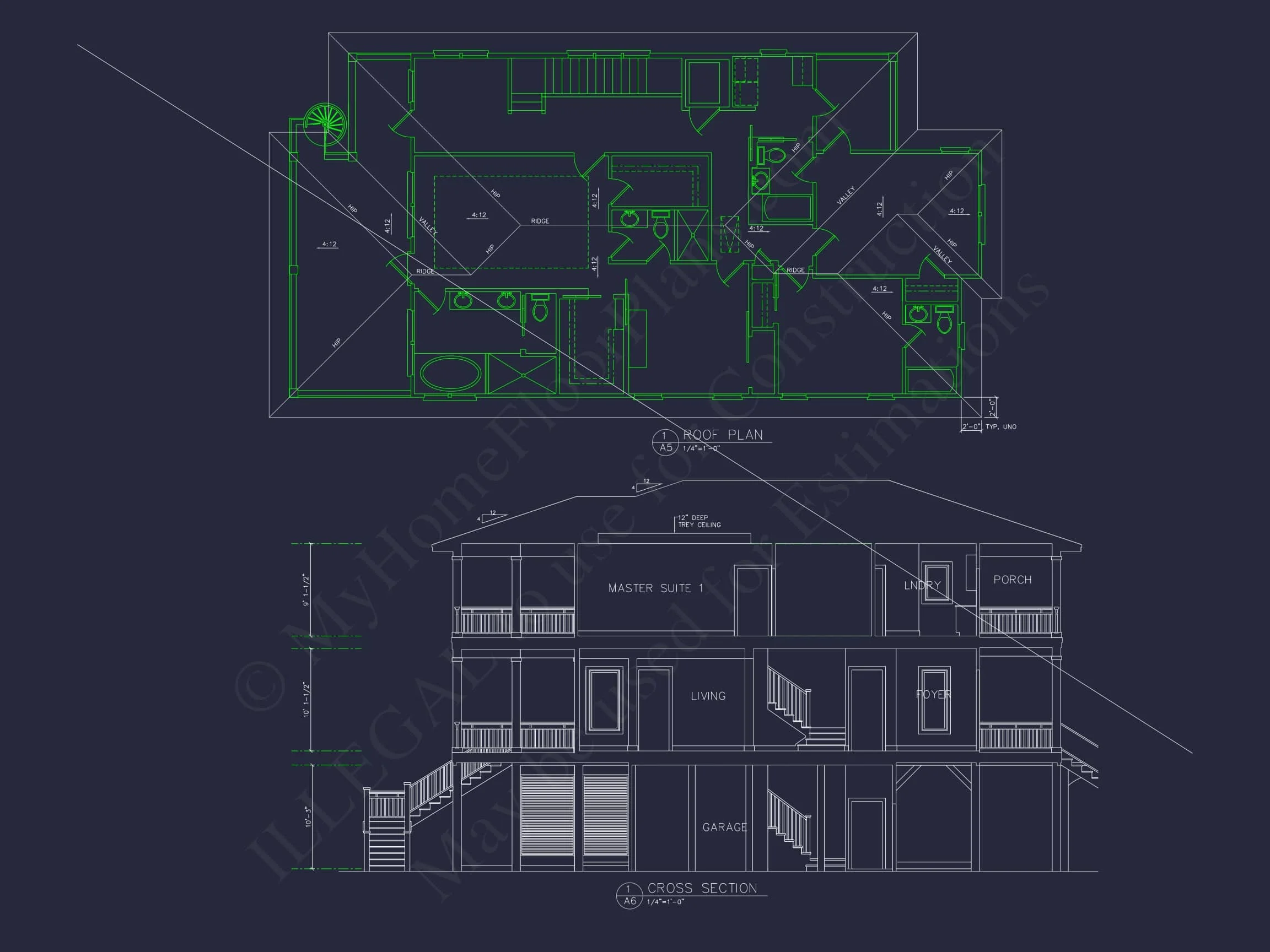

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

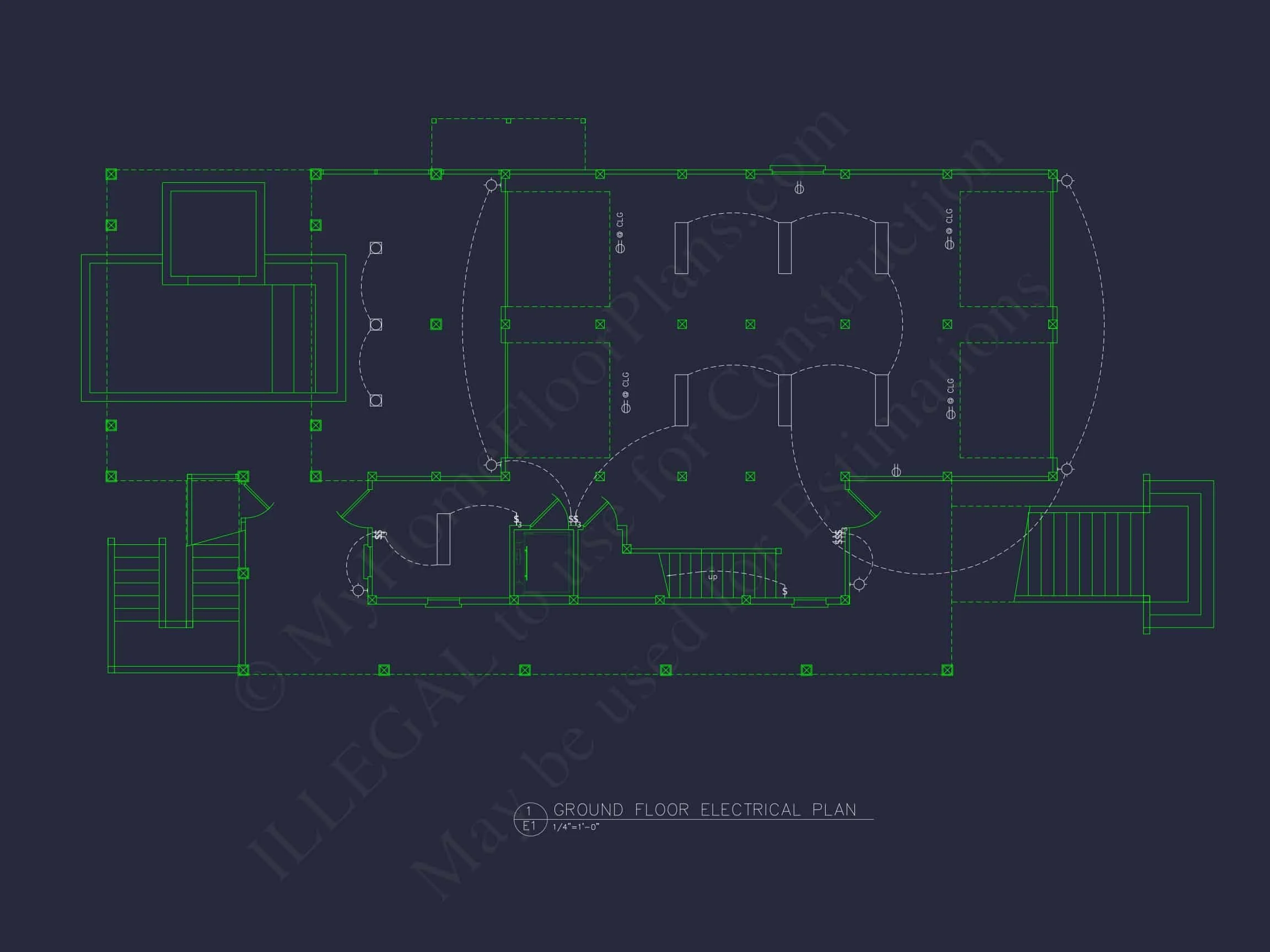

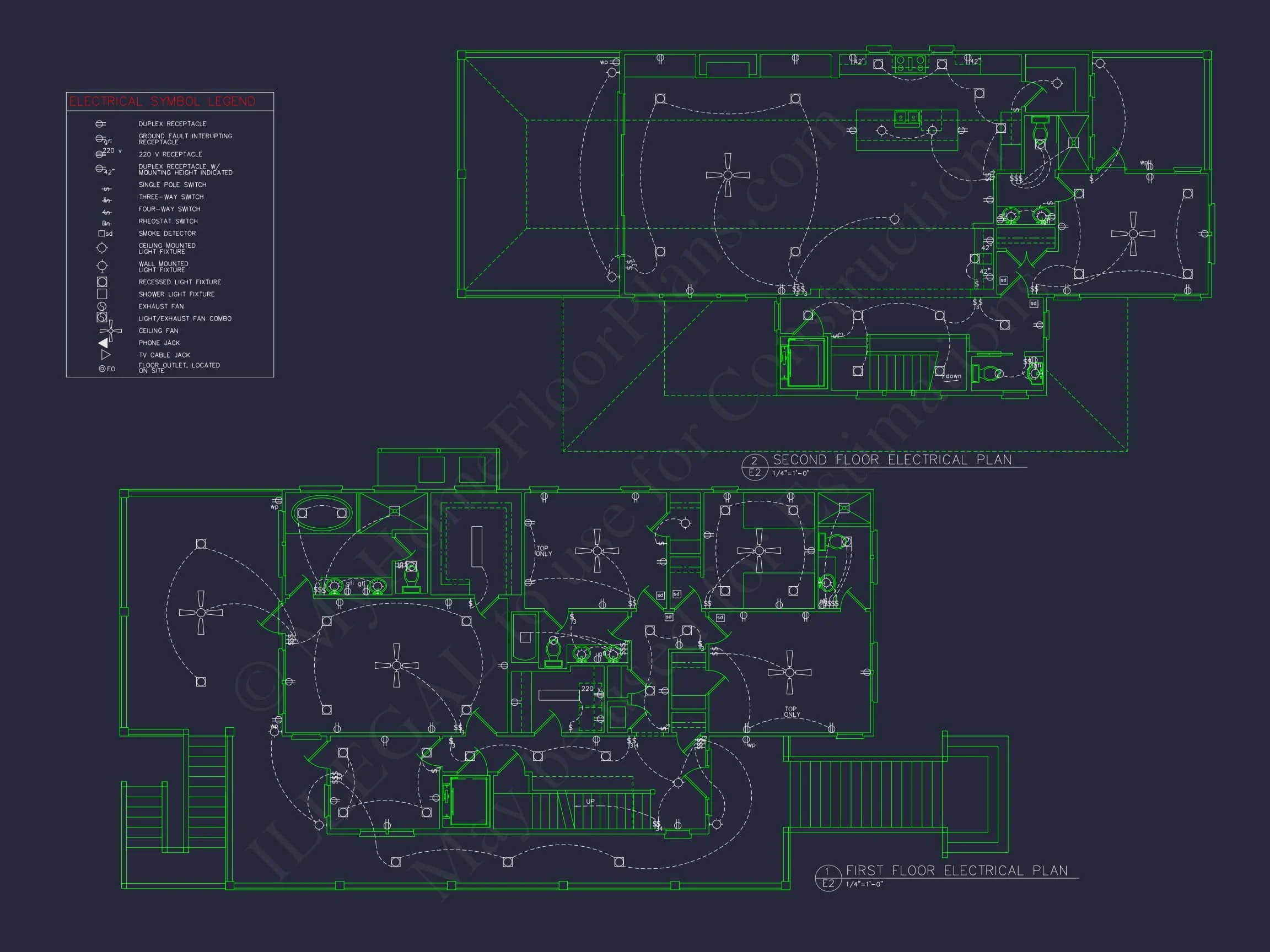

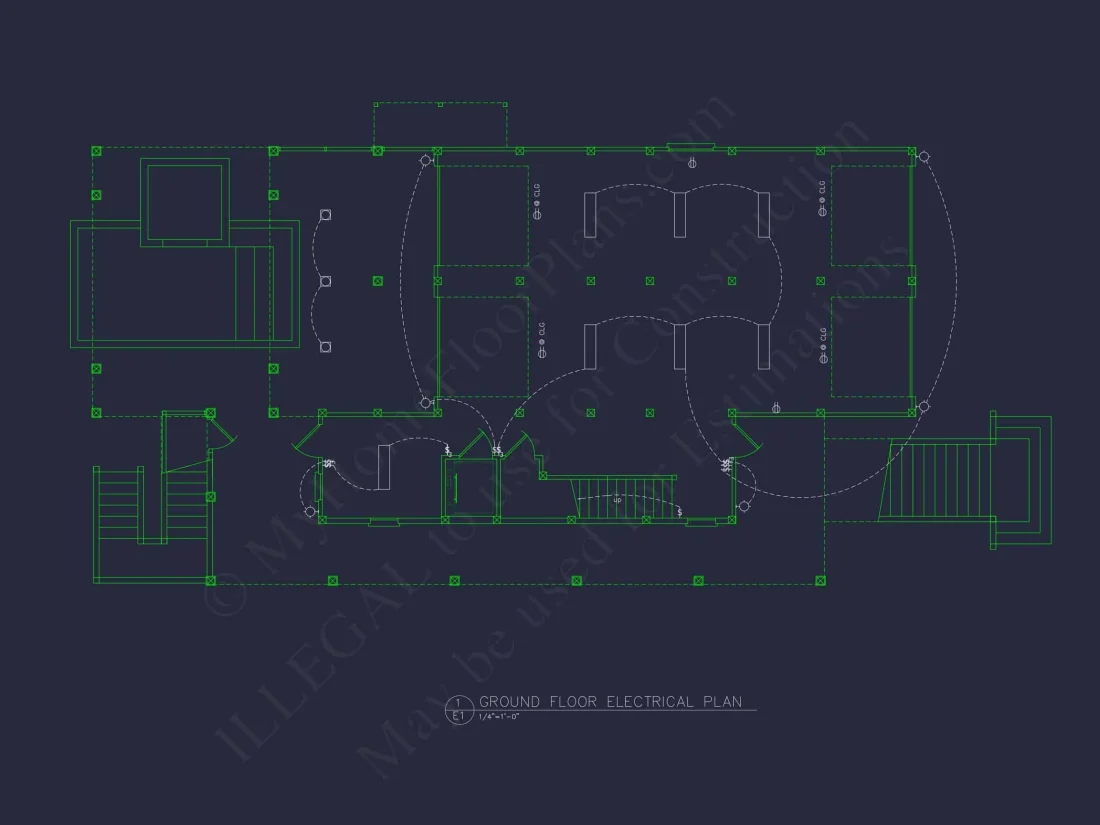

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
16-1162 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
