Craftsman Home Plan with 2-Story Design and CAD Blueprint
Discover this craftsman home design featuring 1, 958 heated sq. ft., 2 stories, 3 bedrooms, and open floor plans. Includes CAD files and architectural details.
Your Dream Craftsman Home Blueprint
Designing a home doesn't have to be overwhelming. This thoughtfully designed Craftsman-style home plan offers a cozy yet functional layout with versatile features for family living. From its aesthetic curb appeal to the intricate floor plans, this home blueprint is a designer's dream.
Functional and Beautiful Layout

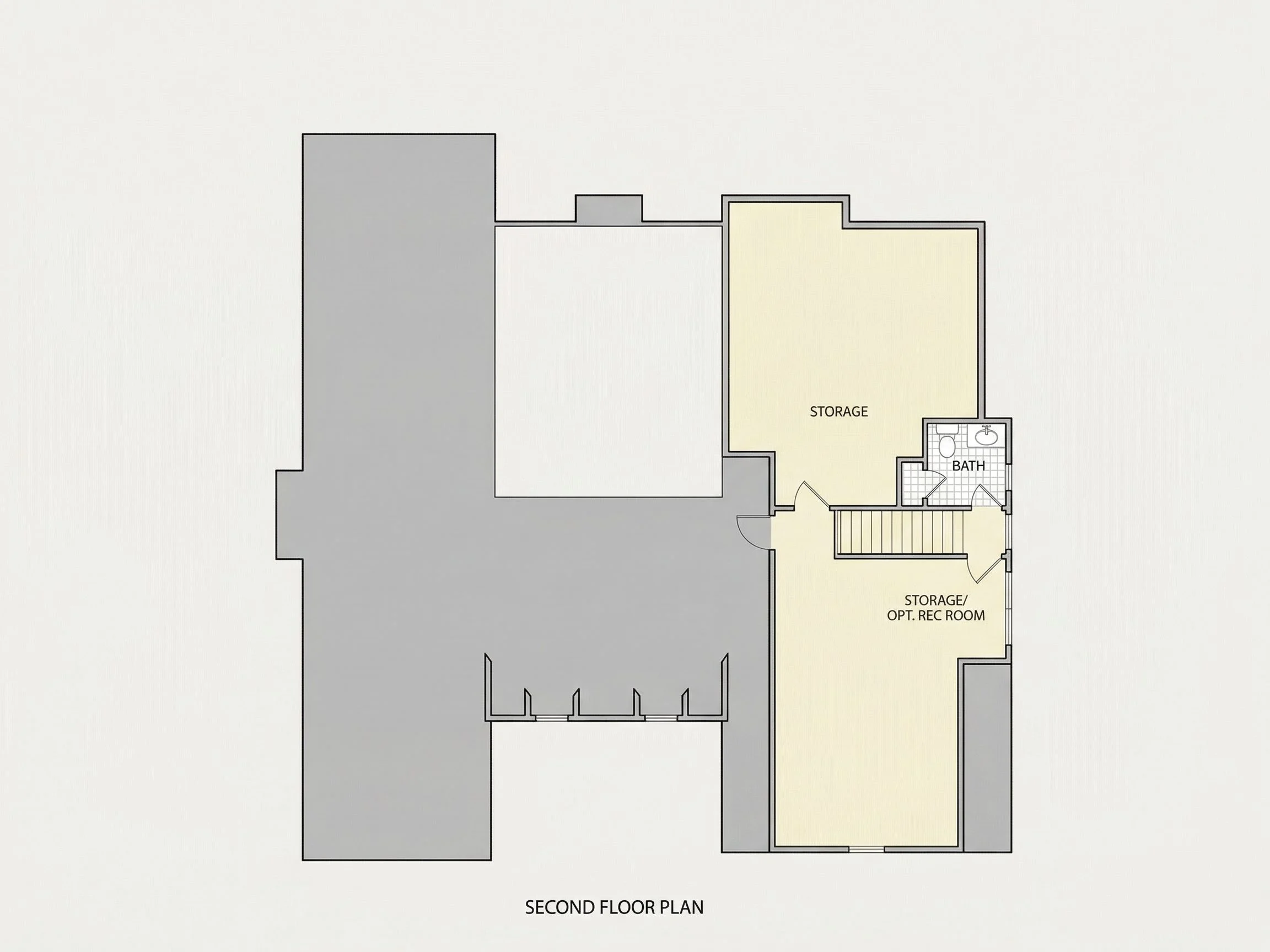

This 1, 958 heated sq. ft. home combines elegance and practicality with two floors of detailed architectural design. The home boasts three bedrooms and two bathrooms, including the convenience of a Owner bedroom suite on the main floor. Upstairs, you'll find ample storage space or the option to create additional recreational areas.
Indoor Features to Elevate Your Living
The design highlights an open floor plan, ideal for family gatherings. Key features include:
* Spacious Kitchen with island, breakfast nook, and walk-in pantry
* Comfortable fireplace for family evenings
* Dedicated office or study space for work or leisure
* Vaulted ceilings that enhance natural light and create airy spaces
* Separate laundry room and large walk-in closets for practical living
Outdoor Living and Exterior Elegance
Enjoy peaceful mornings or evenings on the covered front porch, screened rear porch, or optional patio. The stone and shake exterior adds unique charm, while multiple garage entry options provide added flexibility.
Customizable Features
This medium-sized plan allows for flexibility in foundation options, including slabs or crawlspaces. Complete with front entry or side-load garage options, it's adaptable to your lot and location needs.
Benefits Included with Every Plan
Included in our package, you receive the CAD file and a PDF blueprint with every purchase. Enjoy structural engineering, unlimited foundations, and viewable sheets online. Additional plan modifications are available at an unbeatable price to suit your vision.
Ready to bring this home to life? Email us at support@https://myhomefloorplans.com to get started today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
17-1015 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
