Craftsman Home Plan with 3 Floors, 5 Beds, and CAD Designs
Explore this stunning 5-bedroom home plan featuring 3 floors, spacious designs, CAD blueprints, and craftsman architecture perfect for modern living.
Explore This Stunning Craftsman Home Design
Craft your dream home with this beautiful 3-story Craftsman-style home plan. With 5 bedrooms, 5+ bathrooms, and a blend of modern and traditional design features, this home offers comfort, functionality, and elegance. Its spacious heated area of 3, 381 square feet and additional 1, 309 square feet of unheated space ensure ample room for families of all sizes.
Highlights of This Home Plan
Thoughtful Indoor Features
This plan is designed for modern lifestyles, offering:
* 5 Bedrooms: Perfect for families or those needing guest accommodations.
* 5+ Bathrooms: Includes a luxurious Owner bath and Jack-and-Jill options.
* Open Living Spaces: A family room, study, and recreational room ensure flexibility for entertaining or relaxing.
* Mudroom & Bonus Room: Additional space for storage and hobbies.
* Walk-in Closets (WIC): Keep your spaces organized with ample storage.
* Smooth Ceilings and Coffered Details: Enhances the elegance of the interiors.
Impressive Outdoor Features
Step outside to enjoy:
* Covered Front and Rear Porches: Ideal for relaxing or entertaining.
* Screened Porch and Patio: Adds functional outdoor space in all weather conditions.
* Optional Deck: Expand your outdoor living area as needed.
Quality Materials and Style
The exterior combines shake, siding, and stone, creating a timeless and durable façade. This design blends traditional and craftsman elements, making it perfect for any neighborhood or rural setting.
Perfect for Builders and Designers
This plan includes comprehensive CAD files and PDF blueprints, ensuring ease for architects and builders. Modify the layout with free foundation changes and structural engineering included.
Why Choose This Home Plan?
All home designs come with an unlimited-build license, and our team offers personalized modifications at a fraction of the cost. Don’t settle for less—get a design that fits your unique needs and lifestyle.
Ready to start designing your dream home? Contact us at support@https://myhomefloorplans.com today and take the first step toward making your vision a reality!
All home plans include BOTH the CAD file and PDF file.

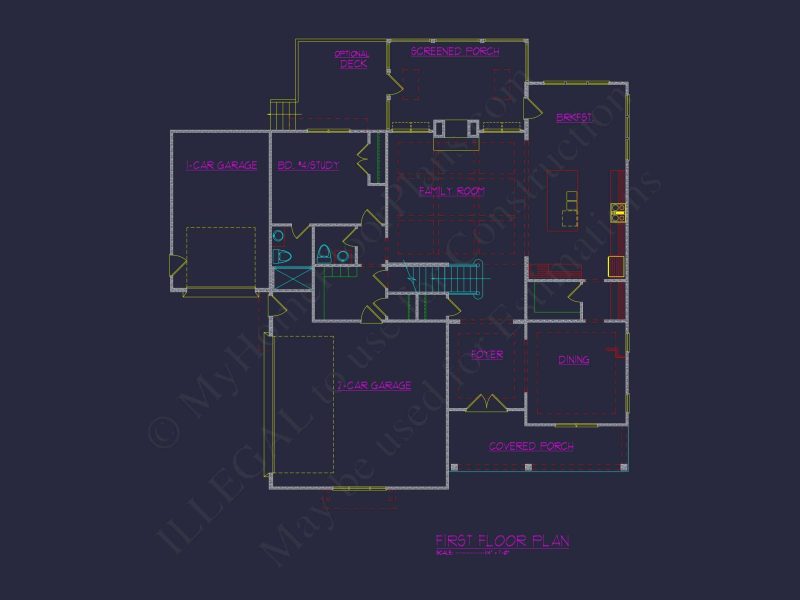

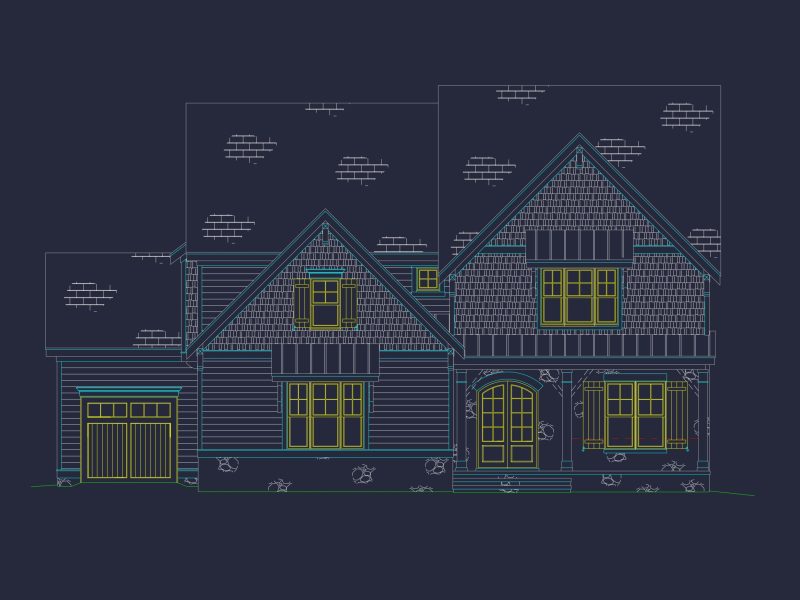

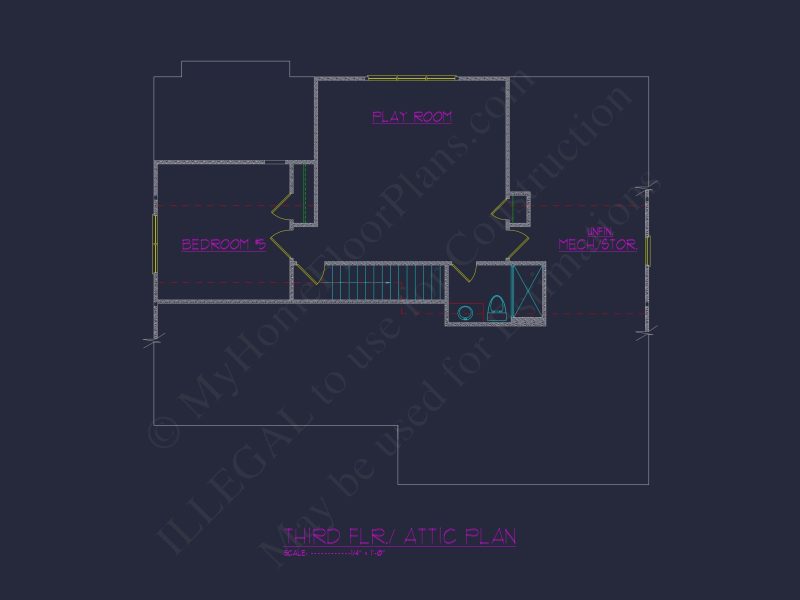

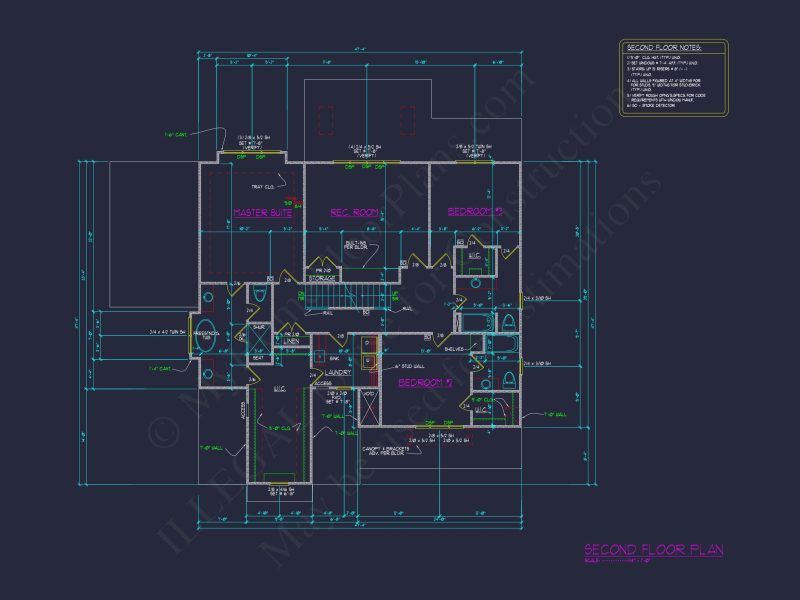

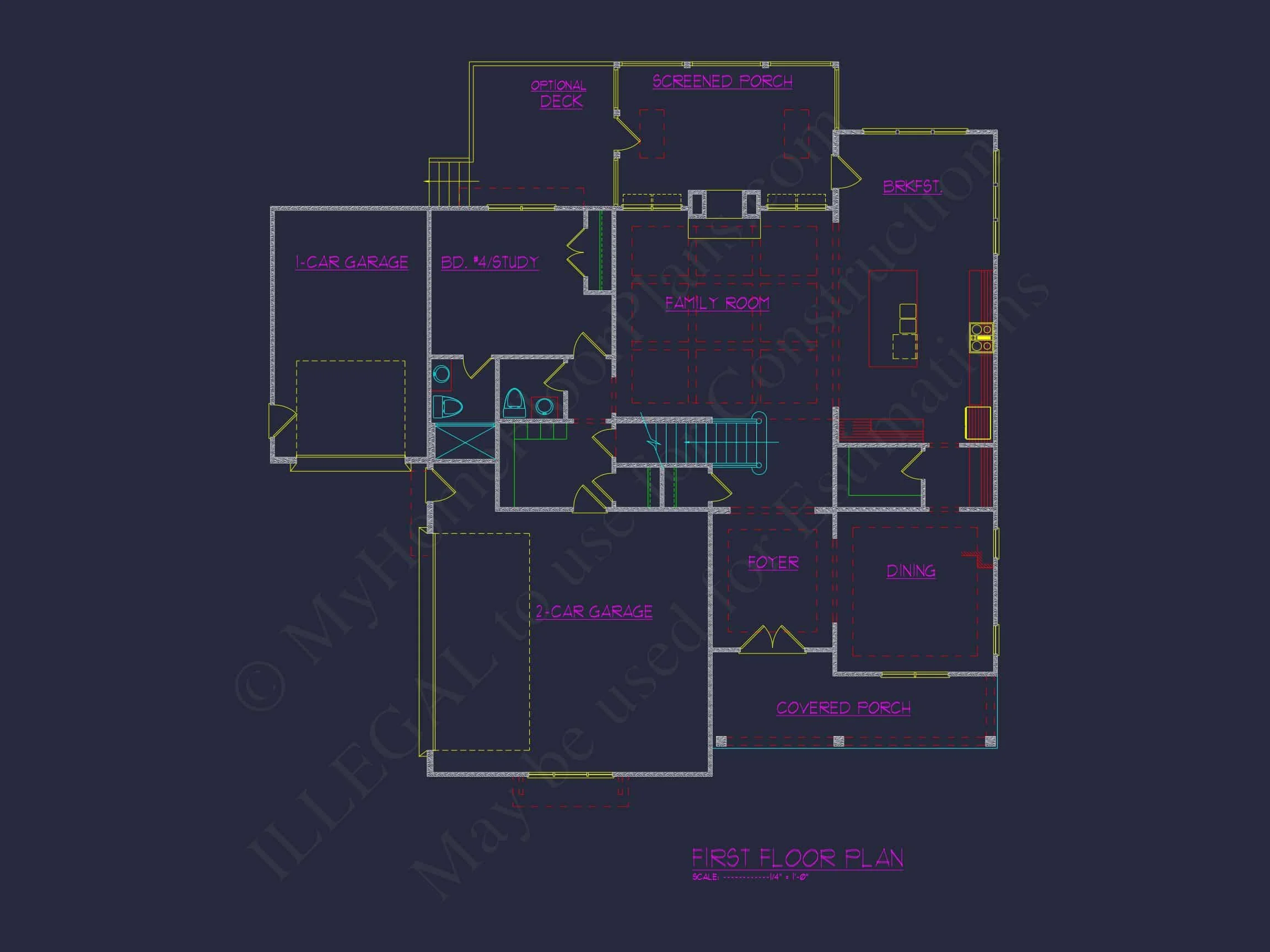

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

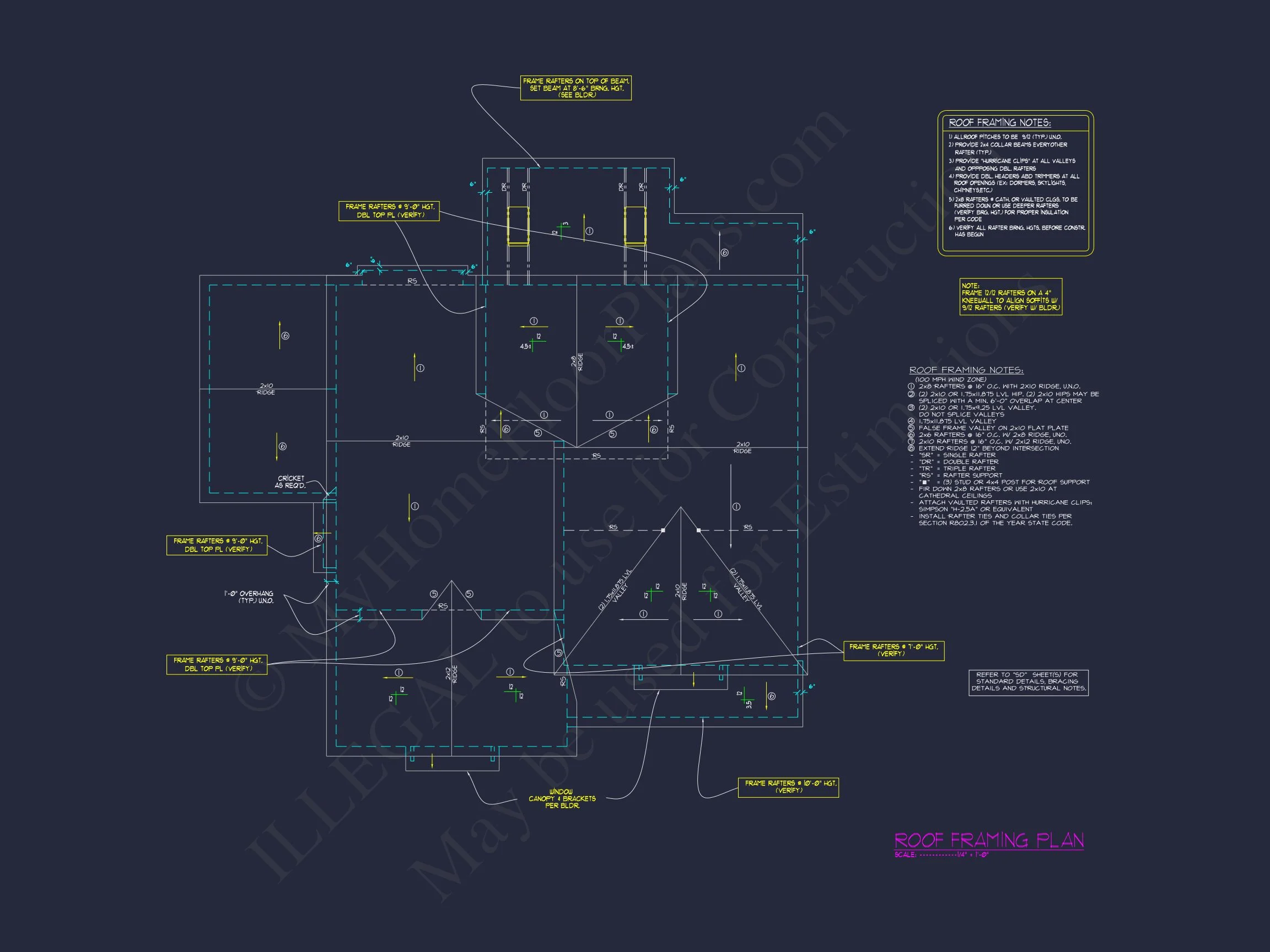

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

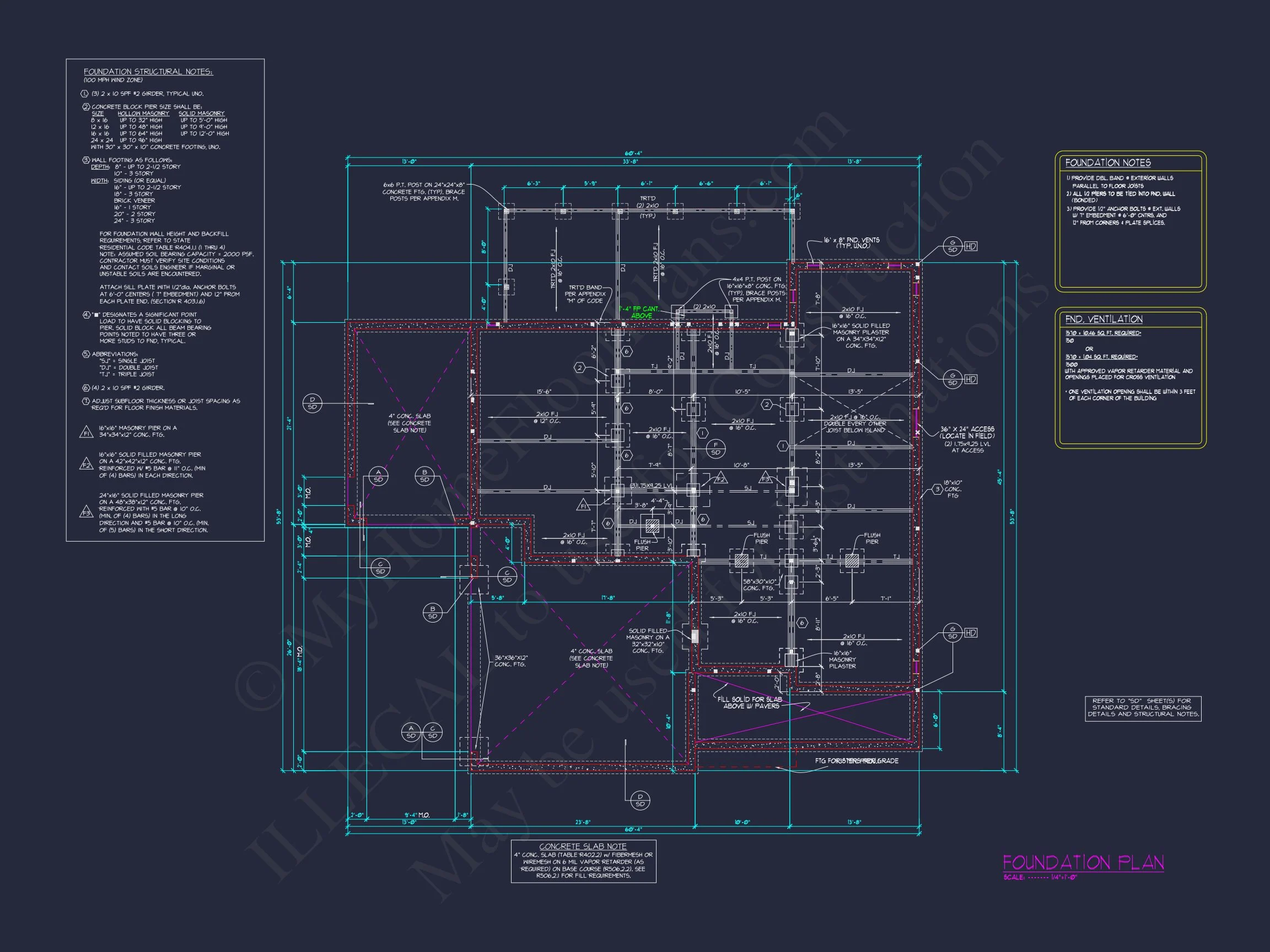

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
18-1636B HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
