Spacious 2-Story House Plan with CAD Designs & Vaulted Ceilings
Explore this 2-story house layout with 3, 634 heated sq. ft., 4 bedrooms, a 3-car split garage, and elegant vaulted ceilings—includes editable CAD blueprints and engineering!
This traditional-style house plan offers a perfect mix of comfort and architectural functionality. Designed for growing families and modern living, it delivers timeless appeal and intelligent space planning across two levels.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 634 sq. ft. across two floors.
- Unheated extras: Covered porches, screened porch, and 3-car split garage.
Bedrooms & Bathrooms
- 4 spacious bedrooms including a main-level Owner Suite with a large walk-in closet (WIC).
- 3 full bathrooms placed for privacy, including Jack-and-Jill access upstairs.
Interior Highlights
- Vaulted ceilings bring volume, light, and elegance to main areas.
- Open floor plan seamlessly connects the kitchen, family room, and dining area. Explore open layouts.
- Kitchen island plus both a walk-in pantry and a butler’s pantry for extra storage and prep space. See kitchen island plans.
- Fireplace in the family room adds cozy ambiance. Browse fireplace homes.
- Recreational room provides additional space for hobbies, gaming, or guests.
Garage & Storage Details
- Garage Bays: 3-car garage with a split layout for enhanced curb appeal.
- Garage Type: Attached front-load with functional flow to the mudroom.
- Storage: Mudroom cubbies, bonus closet space, and pantry storage options.
Outdoor Living Features
- Covered front porch welcomes guests with charm and shelter.
- Screened rear porch and rear patio perfect for relaxing, grilling, or entertaining.
- Exterior combines board & batten with brick for a durable, timeless facade.
Architectural Style: Transitional Traditional
This design blends modern utility with classic charm—perfect for homeowners who appreciate flexible design with enduring curb appeal. Learn more about the Transitional style or explore its origins on ArchDaily.
Bonus Features
- Dedicated foyer adds a formal touch to the entrance layout.
- Mudroom for seamless organization of daily essentials.
- Flex space in the recreational room allows for a home gym, media zone, or guest room setup.
Included Benefits with Every Plan
- CAD + PDF Files: Professionally designed, editable blueprints ready for use.
- Unlimited Build License: Build as many homes as you want with no additional fees.
- Free Foundation Changes: Choose between slab, crawlspace, or basement—at no cost.
- Structural Engineering Included: All plans are stamped and code-compliant.
- Lower Modification Costs: Save up to 50% compared to other providers.
- View Before You Buy: Preview every sheet in advance.
Similar Collections You Might Love
- House Plans with First Floor Bedrooms
- House Plans with Mudroom
- Plans with Covered Back Porches
- Plans with Kitchen Islands
- House Plans with Recreation Rooms
Frequently Asked Questions
What’s included with this house plan? Every plan includes editable CAD files, printable PDFs, a full unlimited-build license, structural engineering approval, and free foundation options.
Can I customize the layout? Yes, our team offers affordable and fast modifications to fit your lifestyle. Get a customization quote here.
Is this a 2-story house? Yes, this layout spans two full floors with the primary Owner Suite located on the first level.
What garage style does it include? This plan features a split 3-car front-entry garage with enhanced curb appeal.
Can I view the plans before buying? Absolutely! Click here to preview every page of the blueprint before you commit.
Start Building Your Dream Home Today
Have questions or need help personalizing this plan? Contact our experienced support team at [email protected] or submit a request online.
Don’t wait—bring your vision to life with CAD-accurate blueprints and flexible design features!
All home plans include BOTH the CAD file and PDF file.

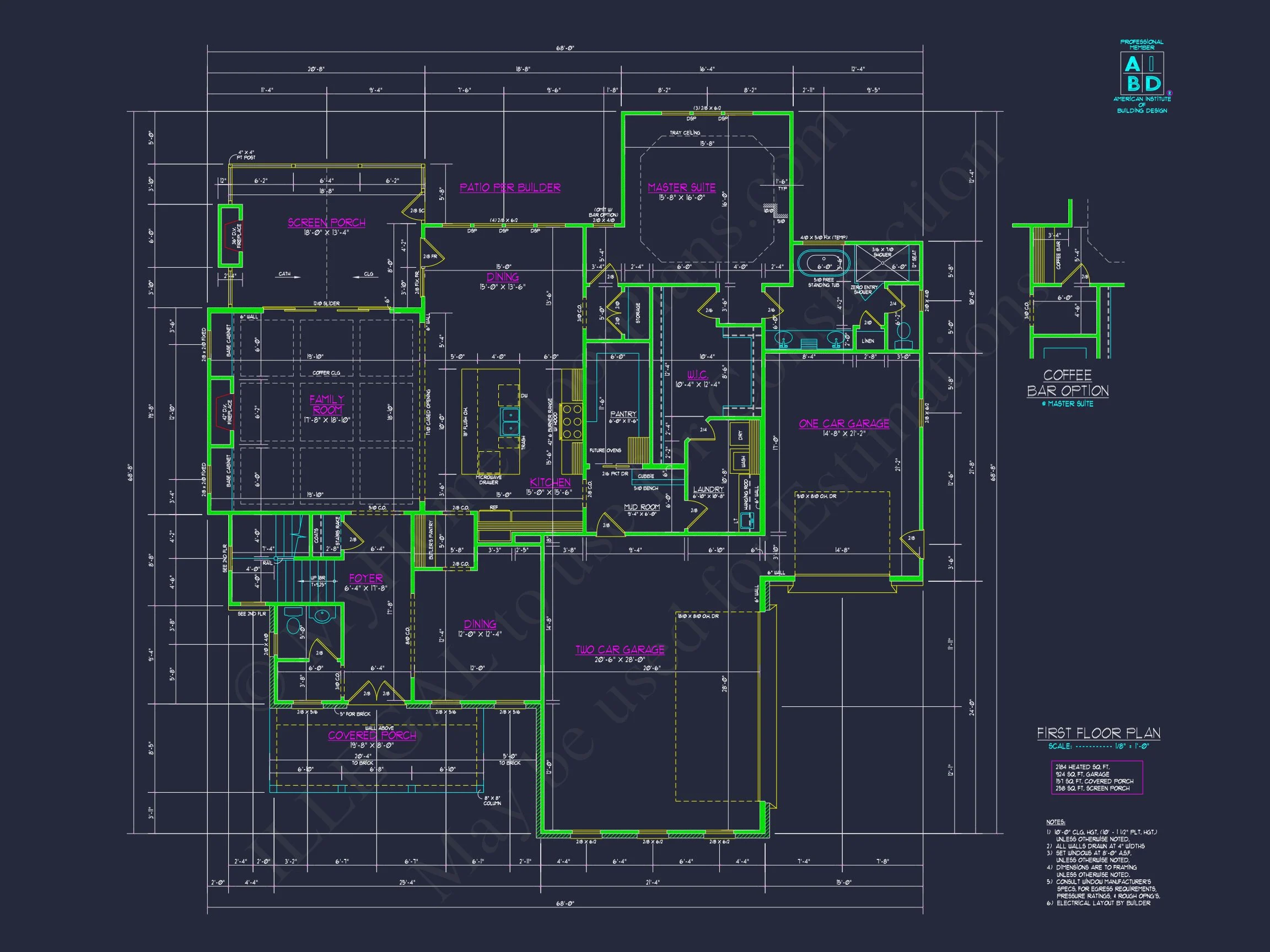

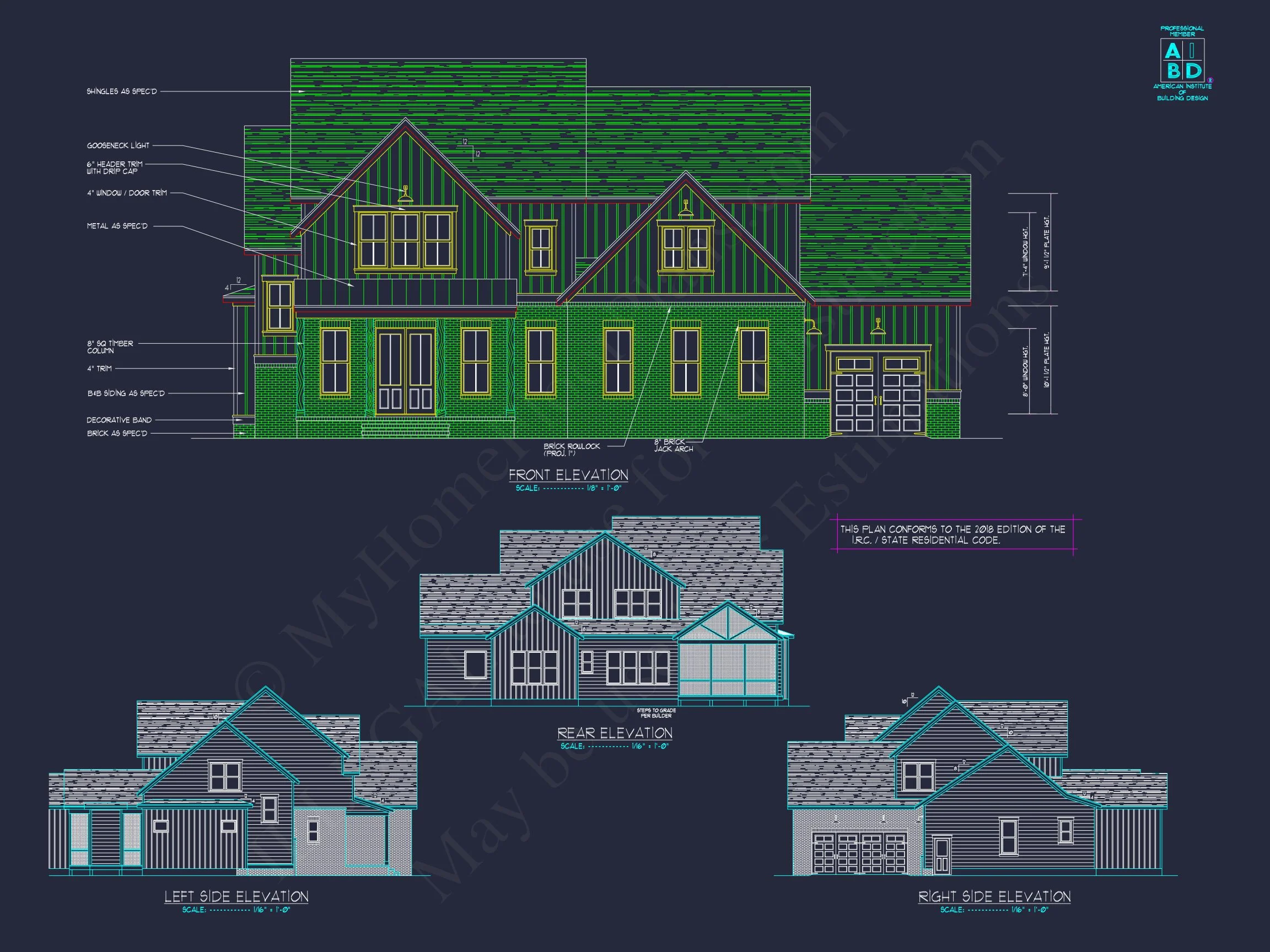

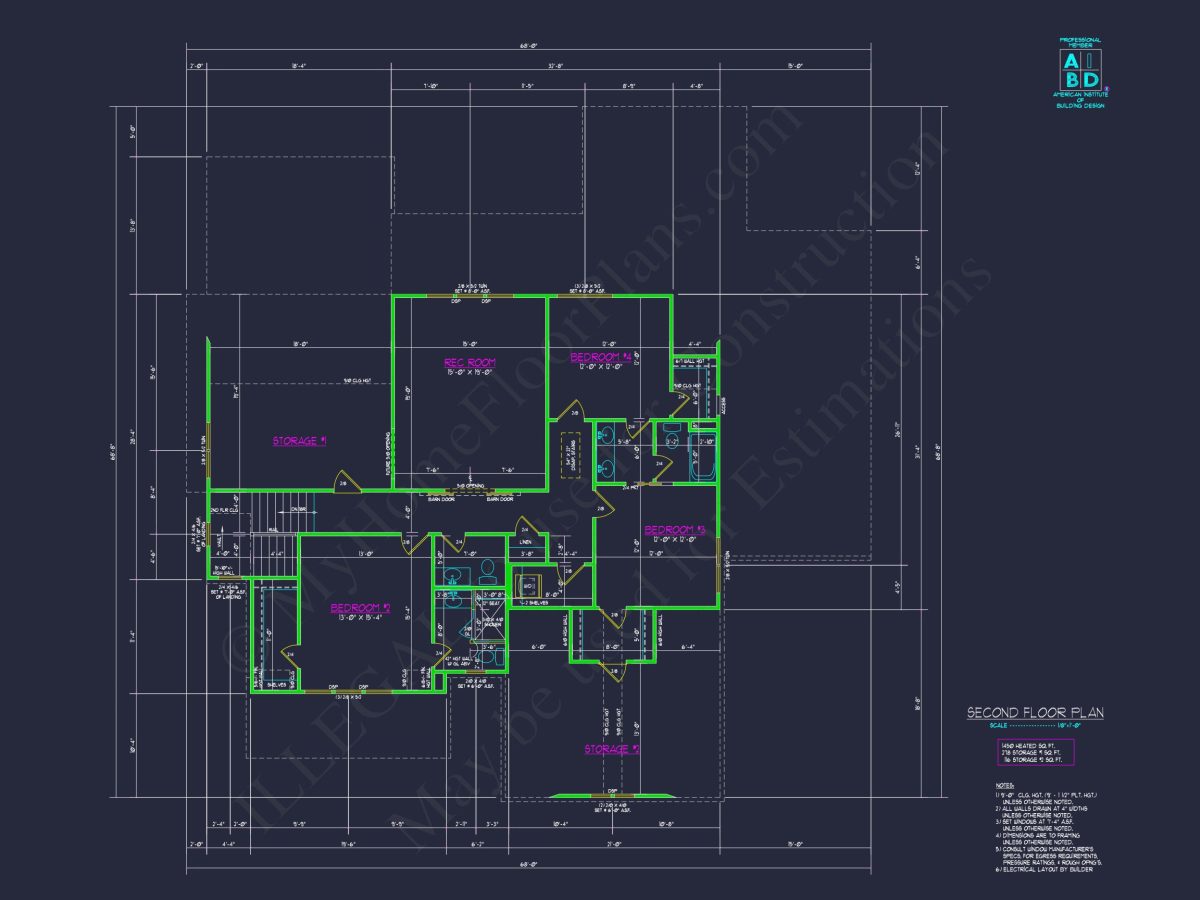

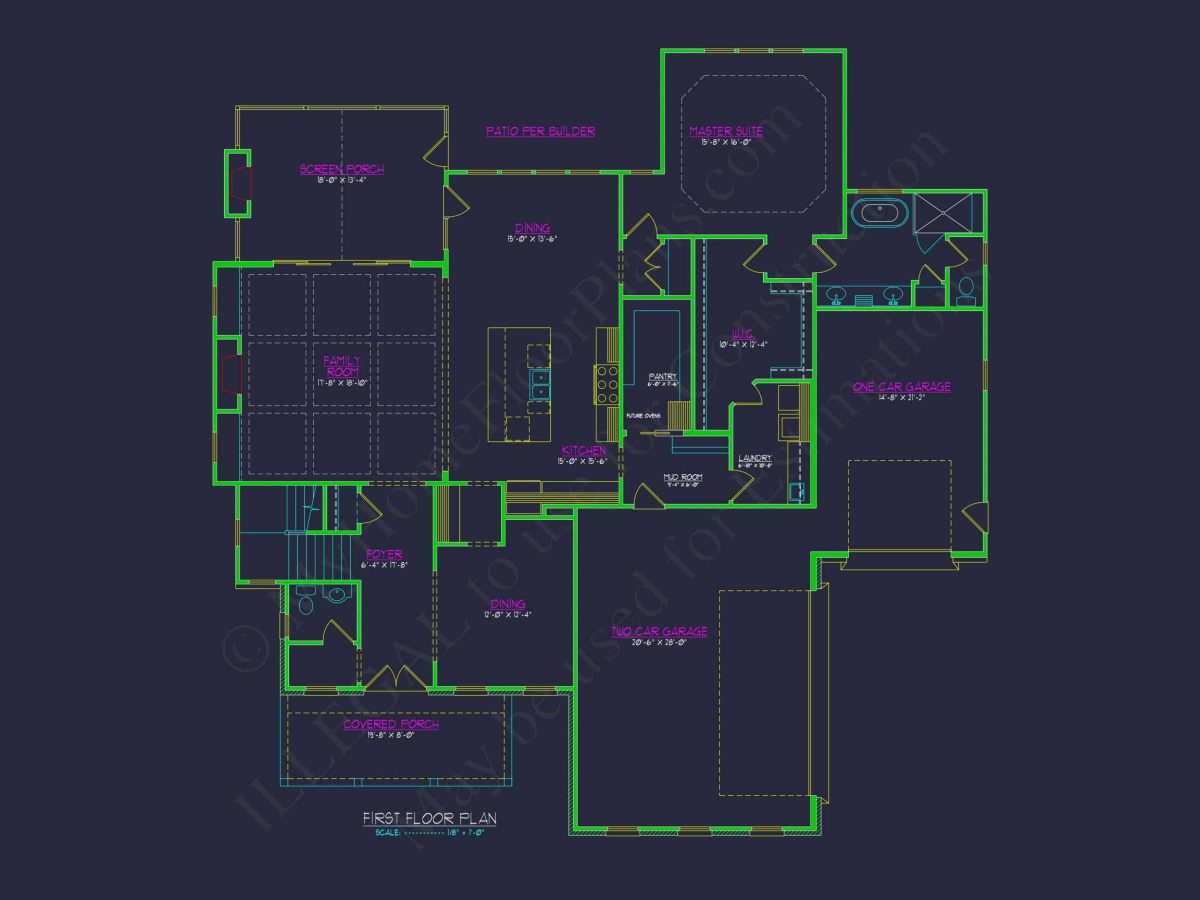

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
19-2161 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
