Charming 2-Story Coastal House Plan with Vaulted Ceilings & Breezy Blueprint
Explore this stunning coastal-style house plan with 2, 607 heated sq. ft., 5 bedrooms, 5+ baths, open layout, and CAD + PDF files for easy customization.
This coastal house plan offers a perfect mix of elegance and functionality. Designed for comfort and lifestyle living, it brings timeless coastal charm and smart architectural flow across two well-appointed stories.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 607 sq. ft. across two spacious levels.
- Unheated extras: Covered front and rear porches, screened outdoor living, detached garage with golf cart bay.
Bedrooms & Bathrooms
- 5 bedrooms total with a private second-floor Owner Suite overlooking coastal views.
- 5+ bathrooms, including Jack-and-Jill options and guest-friendly powder room.
Interior Highlights
- Vaulted ceilings elevate the great room and Owner Suite for airy living.
- Open floor plan links the kitchen, dining, and family zones. See open layouts.
- Ultimate kitchen with a large island, granite countertops, and walk-in pantry.
- Fireplace anchors the living space with year-round warmth. View fireplace plans.
- Dedicated Office/Study for work-from-home or quiet retreat.
Garage & Storage Details
- Garage Bays: 2-car detached garage plus a golf cart bay.
- Garage Type: Detached with convenient rear access.
- Storage: Multiple walk-in closets, linen storage, and mudroom cubbies.
Outdoor Living Features

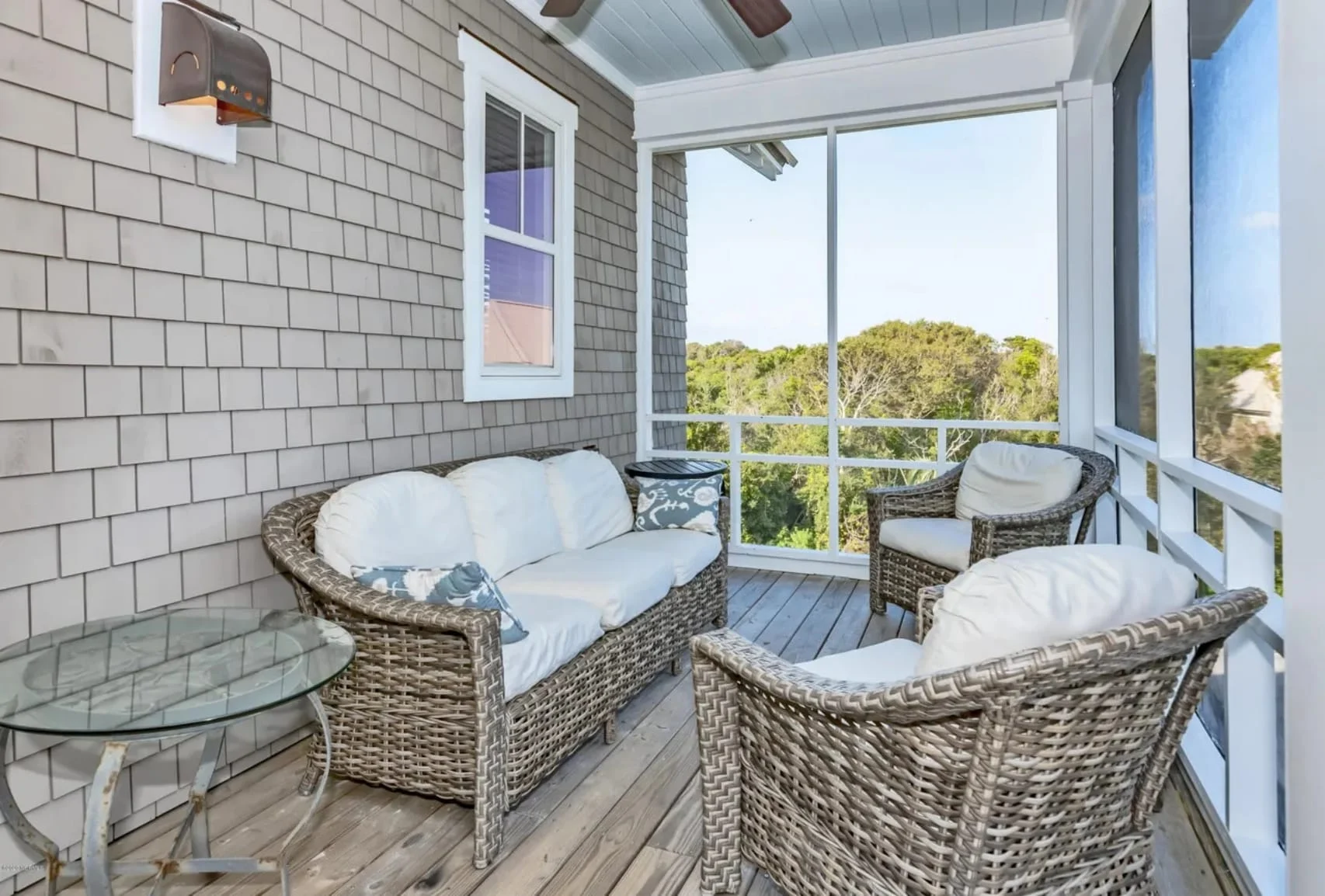

- Spacious screened porch ideal for shaded outdoor dining.
- Upper-level balcony perfect for morning coffee or coastal breezes.
- Covered front and rear porches enhance curb appeal and daily relaxation.
Architectural Style: Coastal
This design blends shake shingle siding, pier foundation, and breezy layouts to create the ultimate coastal experience—ideal for narrow lots and beachside communities. Learn more about the Coastal house style or explore its history on ArchDaily.
Bonus Features
- Jack-and-Jill bathrooms enhance convenience and space efficiency.
- Walk-in closets in multiple bedrooms for easy organization.
- Private Owner balcony offers retreat-like privacy and views.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and printable for builders and designers.
- Unlimited Build License: Build the plan as many times as you like—no extra charge.
- Free Foundation Changes: Choose slab, crawlspace, or basement at no cost. See details.
- Structural Engineering Included: Professionally stamped and code-ready.
- Lower Modification Costs: We offer up to 50% savings compared to competitors.
- View Before You Buy: Preview full sheet sets online.
Similar Collections You Might Love
- Coastal House Plans
- Narrow Lot House Plans
- Plans with Balcony or Deck
- Covered Porch House Plans
- Detached Garage House Plans
Frequently Asked Questions
What’s included with this house plan? Your purchase includes CAD files, PDFs, unlimited build license, free foundation modifications, and structural engineering.
Is this house suitable for coastal or narrow lots? Yes! It’s designed with a pier foundation and compact footprint to suit tight spaces or coastal land.
Can I preview the blueprints? Absolutely—view all design sheets online before purchasing.
Can I make changes to the plan? Yes. We offer fast, affordable customizations. Request a quote here.
What’s the garage setup? It includes a detached 2-car garage plus an extra bay for golf cart storage.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our contact form.
Your future house begins with a beautiful, buildable blueprint—let’s bring your coastal dream to life!
All home plans include BOTH the CAD file and PDF file.

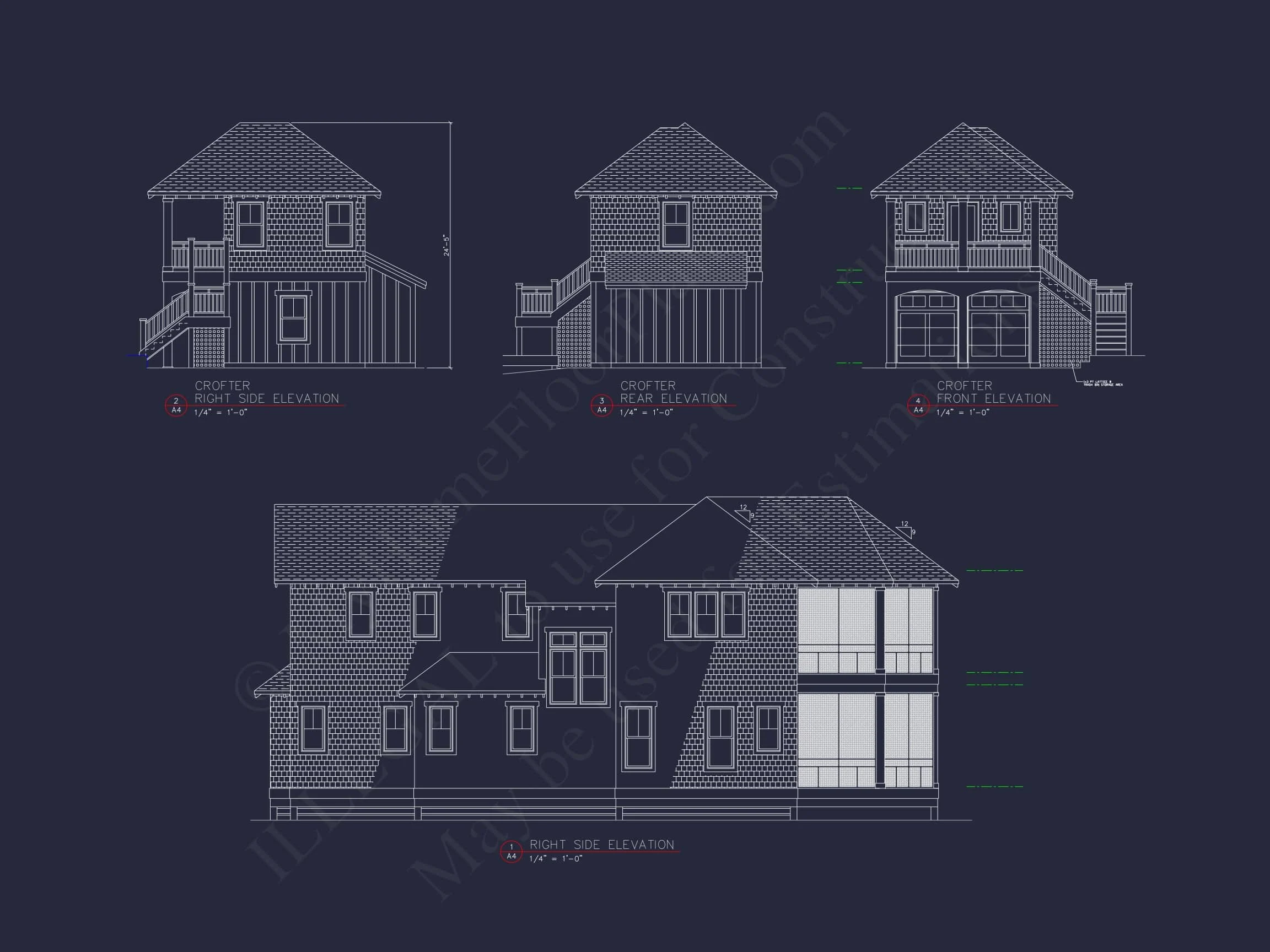

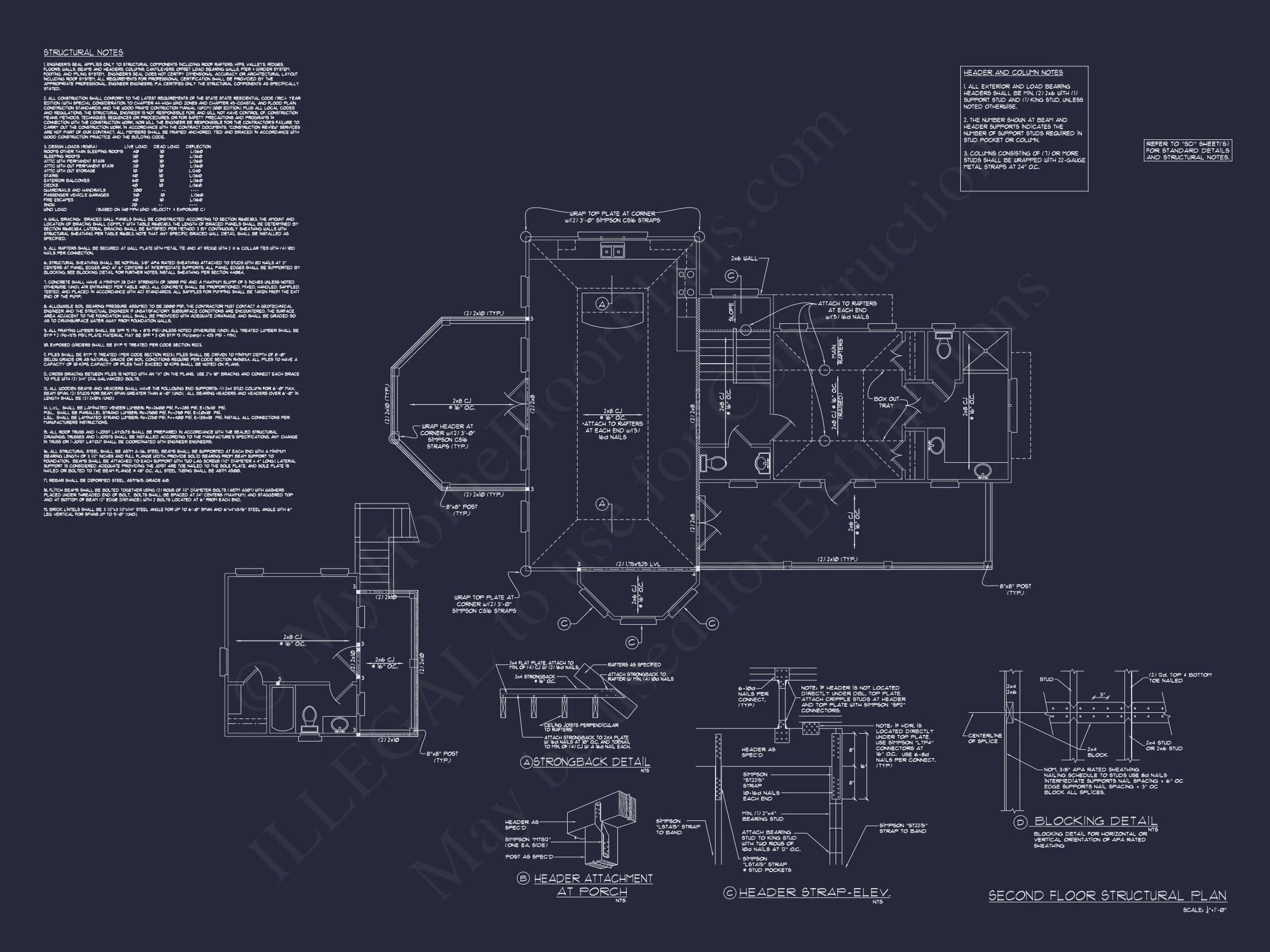

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

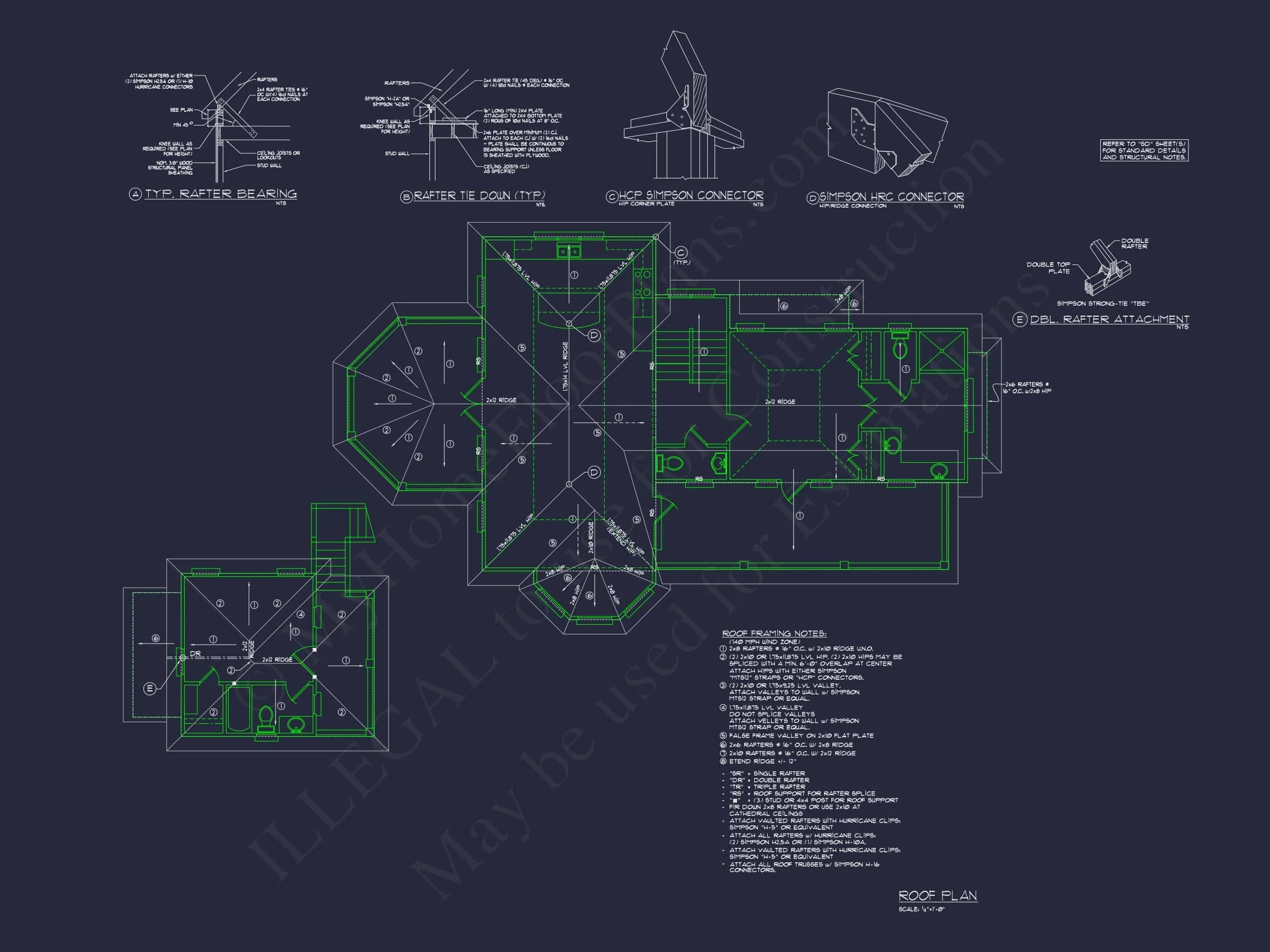

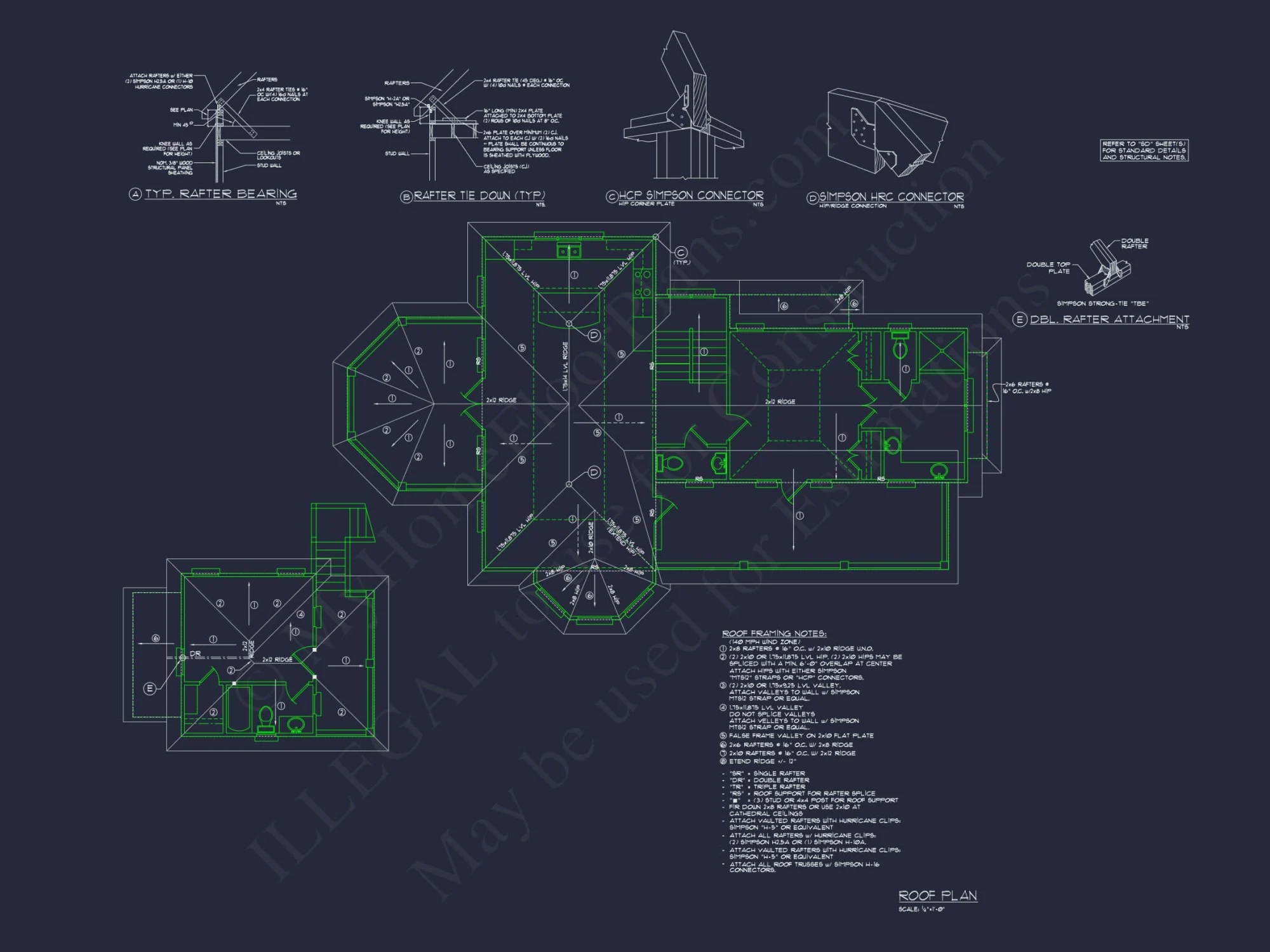

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

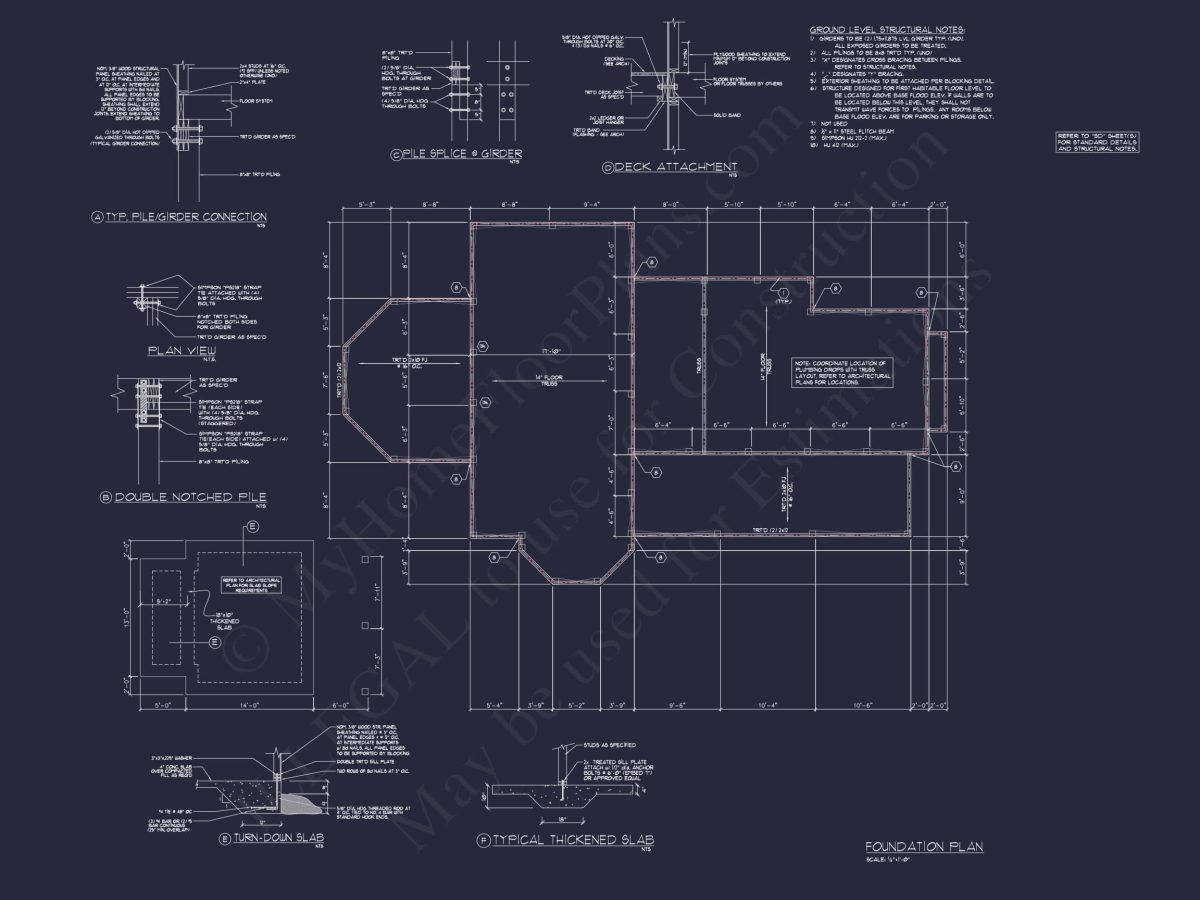

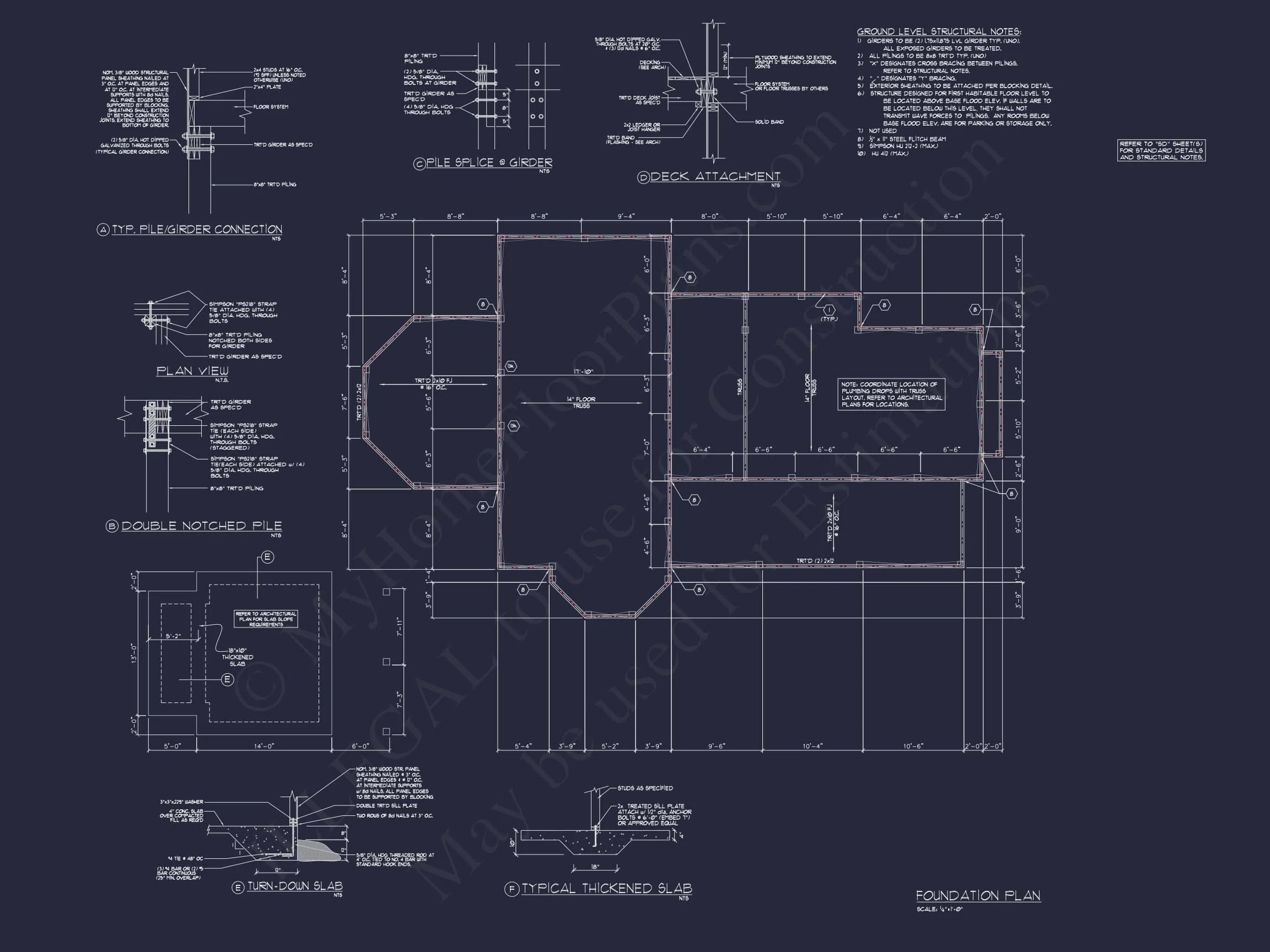

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1840 house PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
