Custom 1.5-Story House Plan with Walk-In Pantry & CAD Blueprints
Explore this stunning 4-bedroom custom home design featuring 3, 012 heated sq. ft., open layout, and CAD blueprints—perfect for modern families and builders.
This customizable house plan offers a perfect blend of practicality and architectural elegance. Designed with builders, architects, and homeowners in mind, it pairs smart planning with modern comfort.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 012 sq. ft. across 1.5 stories.
- Unheated extras: 1, 371 sq. ft. including garage, porches, and optional attic storage.
Bedrooms & Bathrooms
- 4 spacious bedrooms, including a first-floor Owner Suite with walk-in closet for added privacy and comfort.
- 3 full bathrooms, including a Jack-and-Jill layout upstairs for convenience and efficiency.
Interior Highlights
- Tray and vaulted ceilings add height and natural light.
- Open floor plan connects the foyer, family room, and kitchen for seamless entertaining. See open layout plans.
- Large kitchen island and walk-in pantry for optimal function. Browse pantry plans.
- Fireplace in the family room for cozy evenings. Explore fireplace plans.
- Bonus recreational room on the second floor for flexible living needs.
Garage & Storage Details
- Garage Bays: 2-car side-entry garage with optional oversize bay.
- Garage Type: Attached garage ideal for daily convenience.
- Storage: Ample attic space, bonus storage near recreational room, and optional mudroom cubbies.
Outdoor Living Features
- Inviting covered front porch and shaded rear patio for all-season enjoyment. See porch house plans.
- Brick, siding, and shake exterior materials provide durability and visual appeal.
- Optional outdoor grilling area enhances your backyard entertaining space.
Architectural Style: Transitional Meets Traditional
This design showcases a harmonious blend of transitional and traditional architecture. Clean rooflines and classic materials offer curb appeal and timeless value. Discover more about transitional house plans or explore its design origins at ArchDaily.
Bonus Features
- Recreational flex room perfect for gaming, workouts, or guest space.
- Attic storage accessible via upstairs hall.
- Optional mudroom for everyday family convenience.
Included Benefits with Every Plan
- CAD + PDF Formats: Every plan includes editable CAD files and printable PDFs for seamless customization.
- Unlimited Build License: No extra fees—build the plan as many times as you need.
- Foundation Flexibility: Choose slab, crawlspace, or basement at no added cost. Learn more.
- Structural Engineering Included: Professionally stamped and code-compliant documentation for peace of mind. Why it matters.
- Modifications Made Easy: Customize affordably—our fees are 50% lower than competitors. Request a quote.
- Preview Every Sheet: View complete blueprints before you buy.
Similar Collections You Might Love
- Traditional House Plans
- Transitional House Plans
- Owner Suite on Main Floor Plans
- Plans with Rec Rooms
- Plans with Walk-In Pantry
Frequently Asked Questions
Can this home be built on a crawlspace? Yes, the foundation can be modified to slab, crawlspace, or full basement at no extra charge.
Is this a good plan for families? Absolutely! With 4 bedrooms, a flex room, and open gathering spaces, it’s ideal for families of all sizes.
Are structural plans included? Yes. All plans include stamped, code-compliant structural engineering—standard with every purchase.
Can I use this plan more than once? Yes, it comes with an unlimited-build license, so you can reuse it freely for multiple projects.
How soon can I see the full design? You can preview every sheet before you buy to ensure it meets your needs.
Start Building Your Dream Home Today
Interested in personalizing this plan or getting started? Reach out to our team at [email protected] or send us a message here.
Get everything you need to build confidently—CAD files, engineering, and full support are all included!
All home plans include BOTH the CAD file and PDF file.

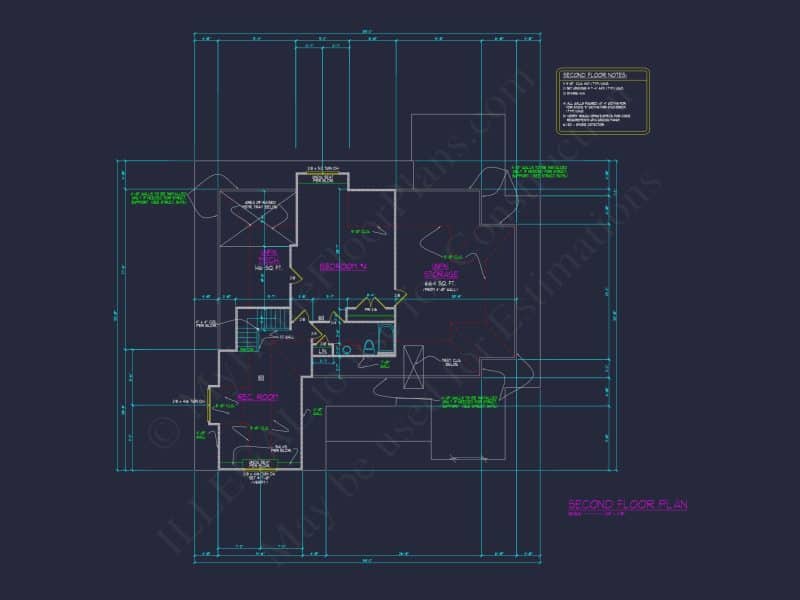

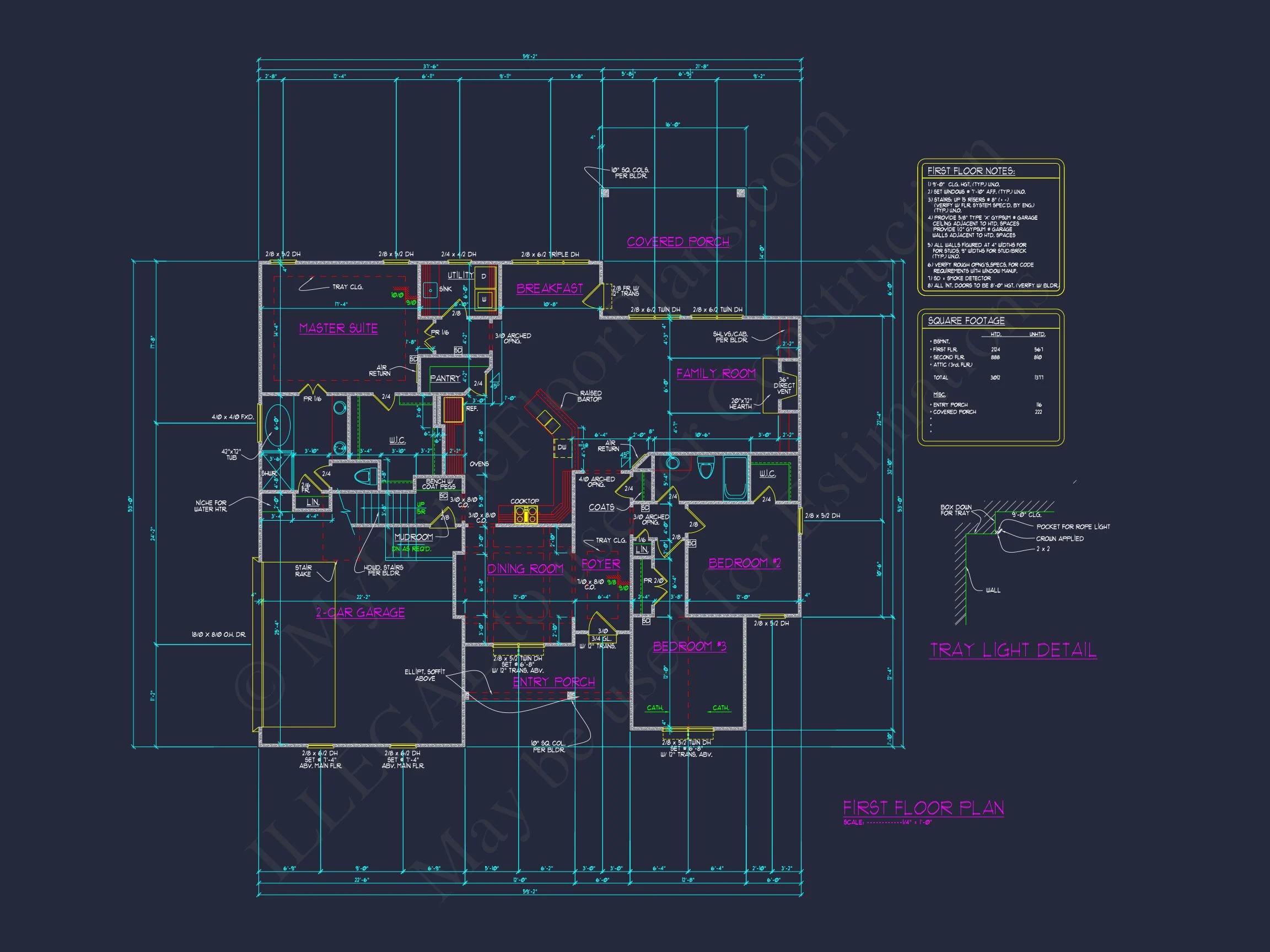

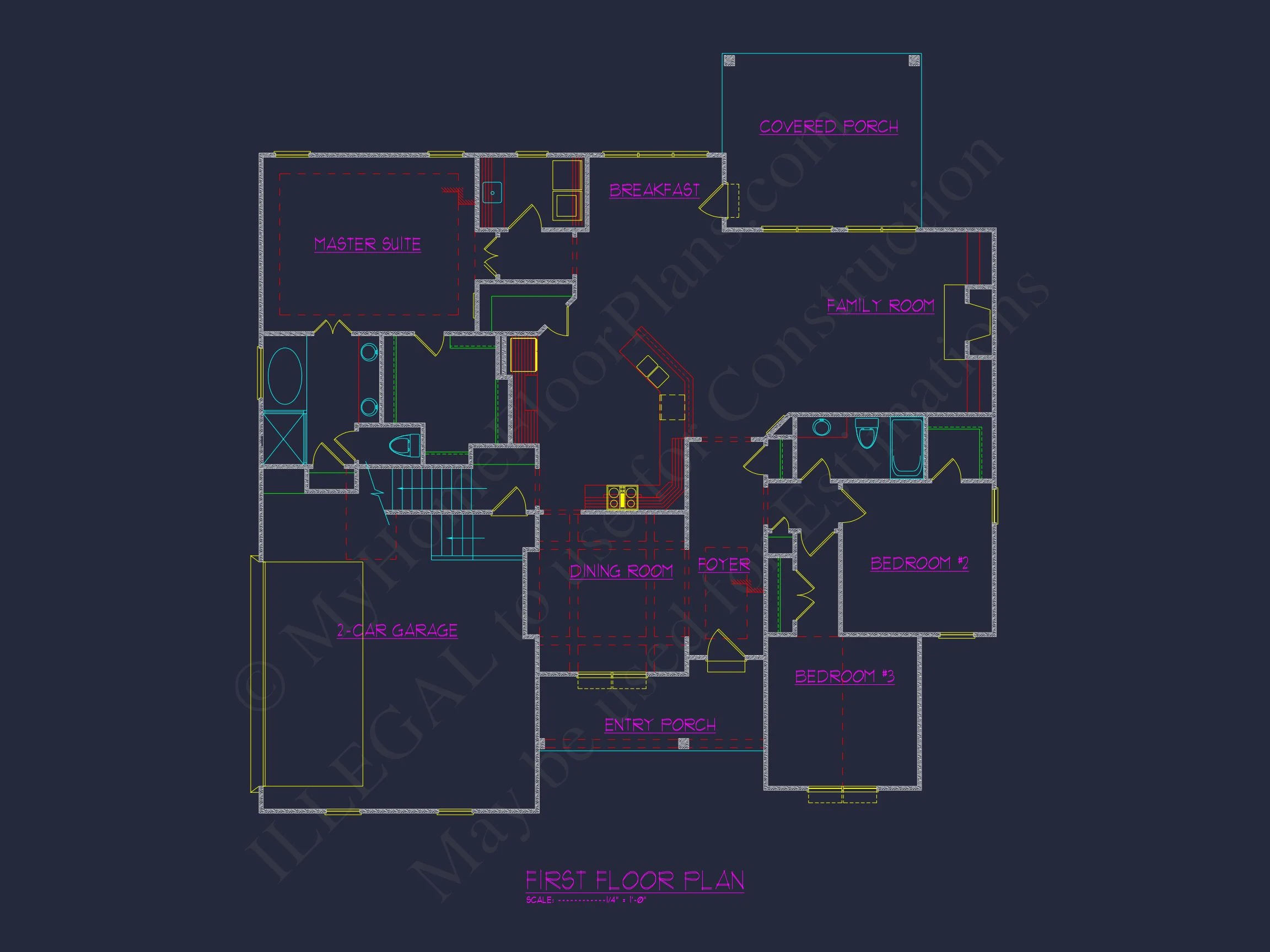

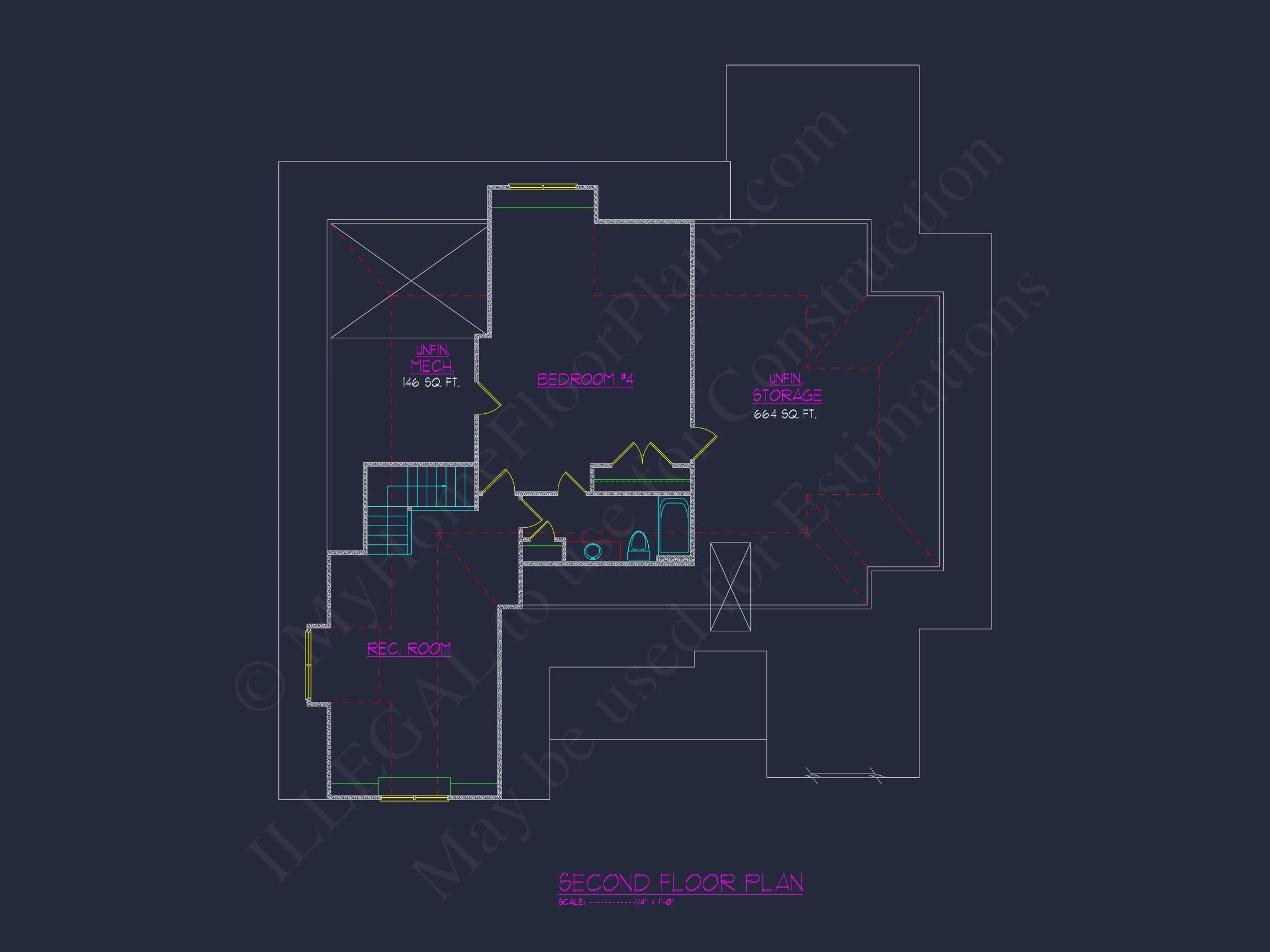

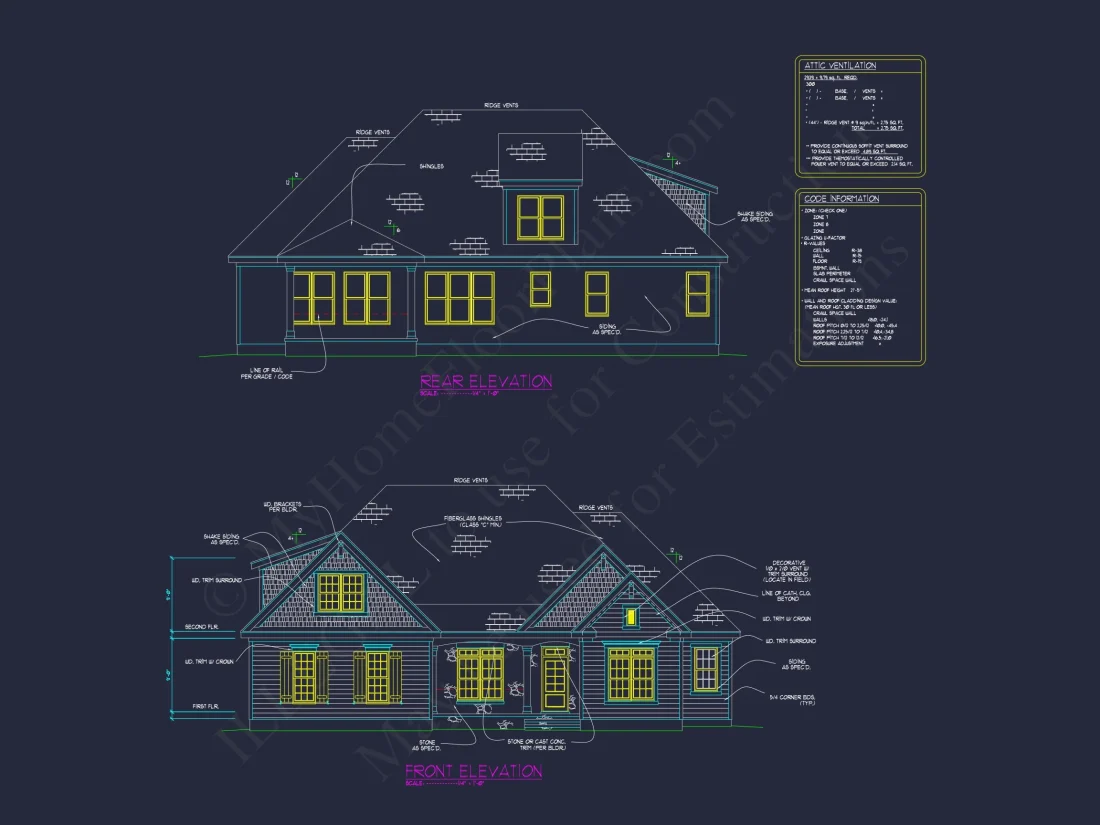

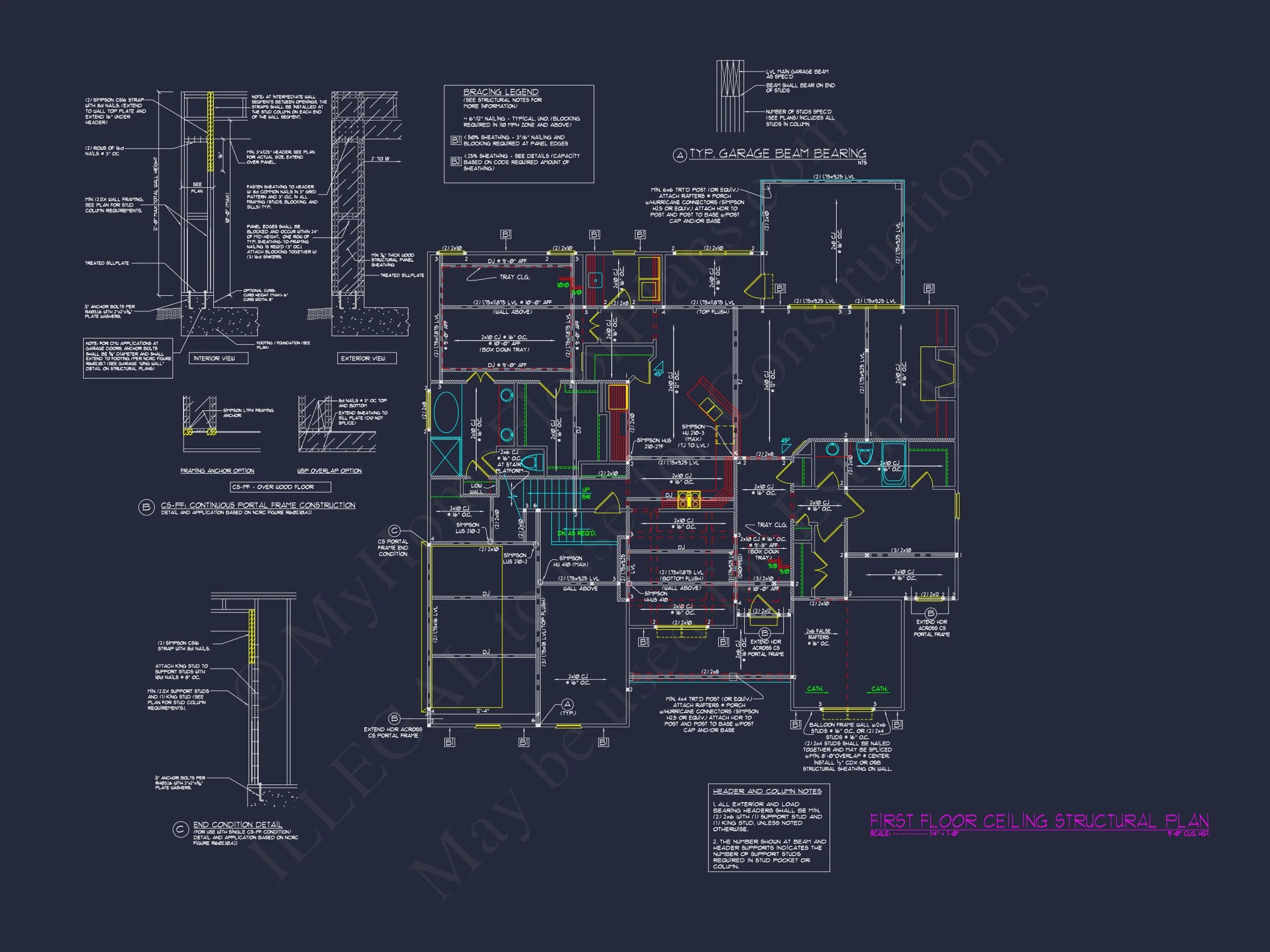

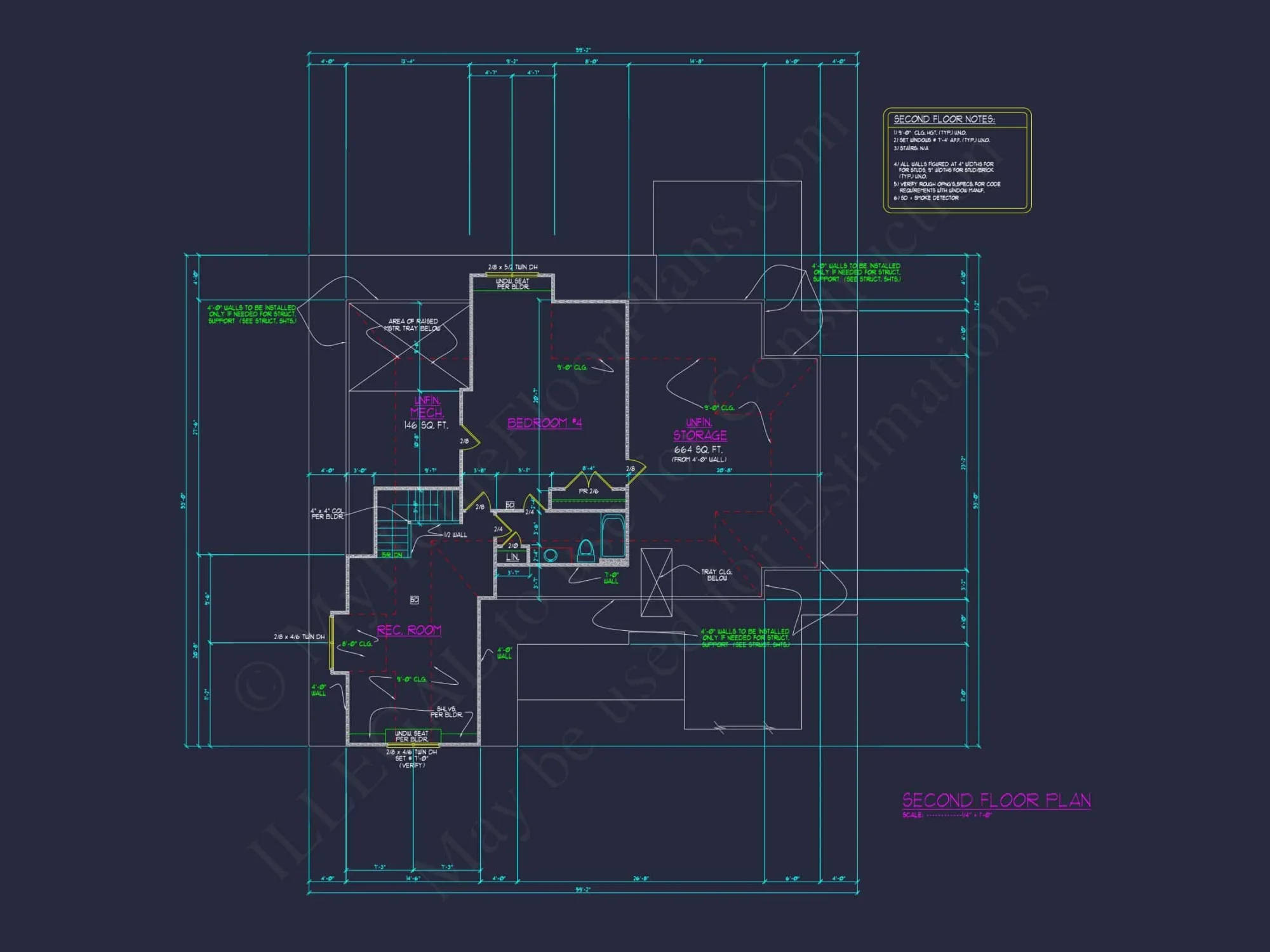

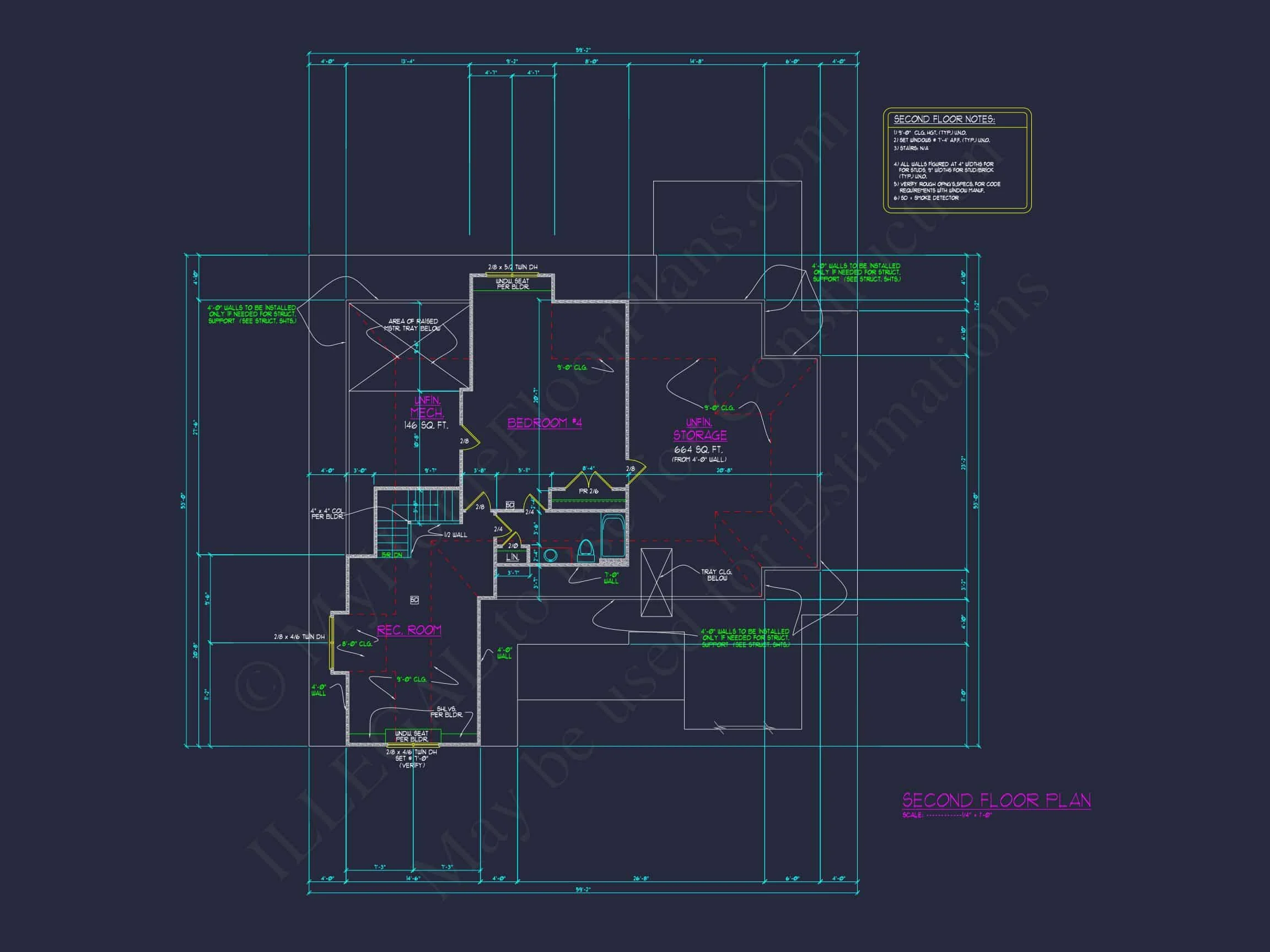

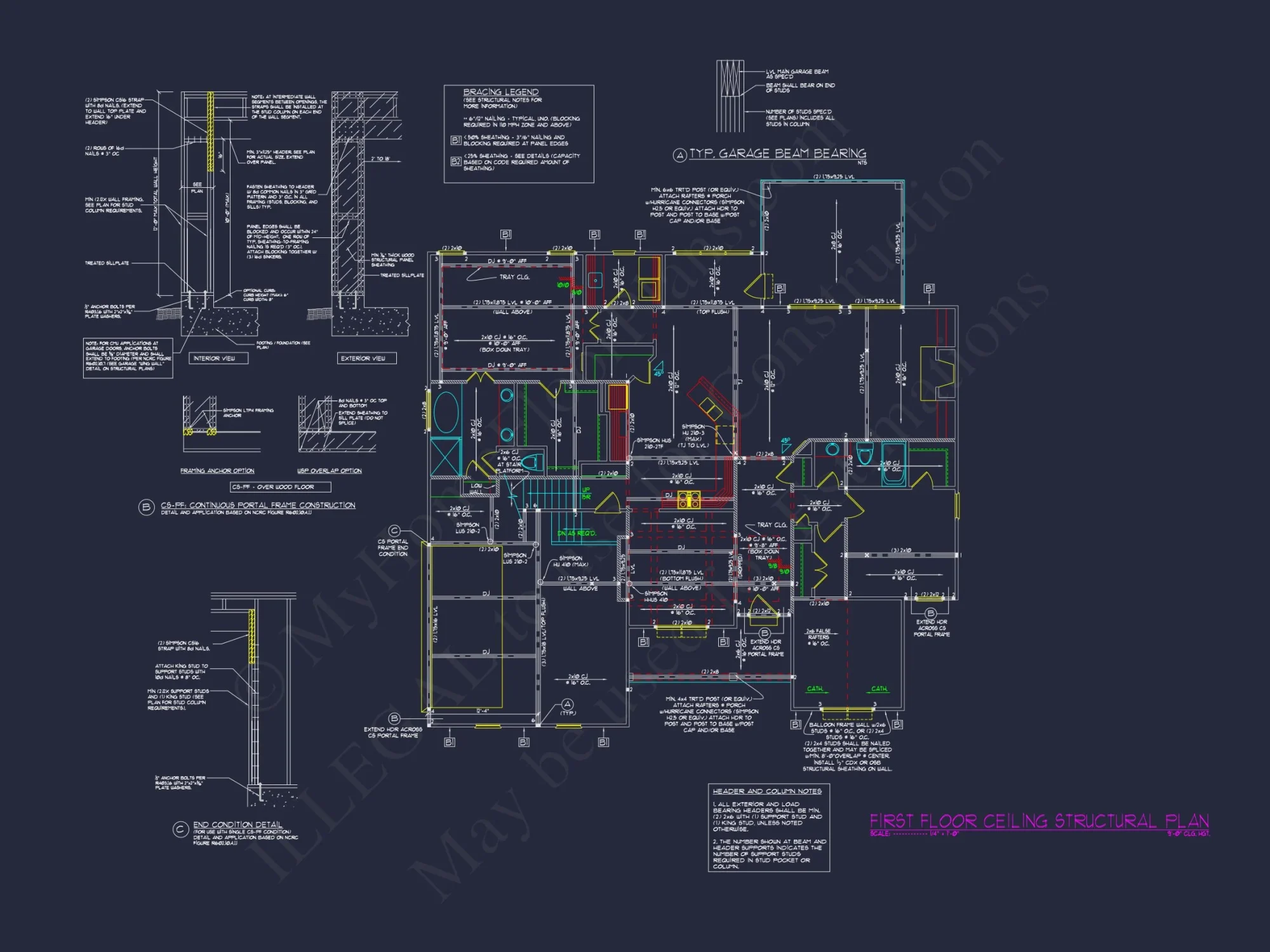

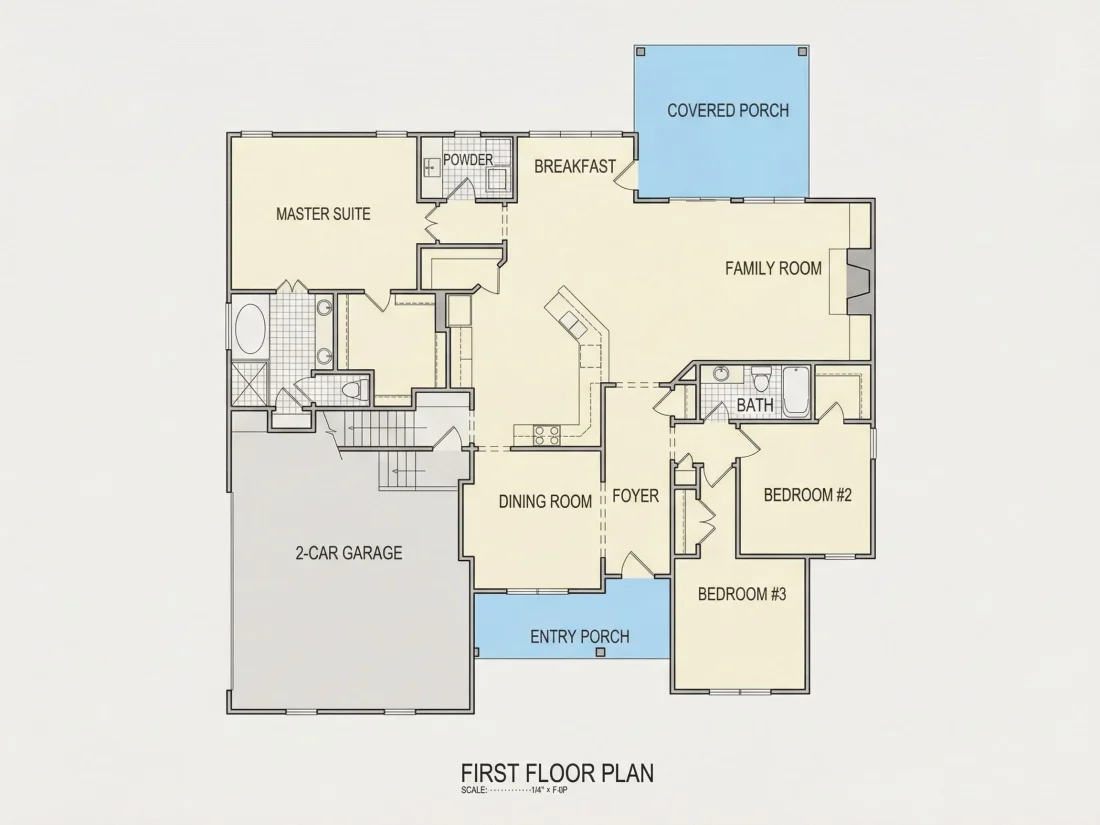

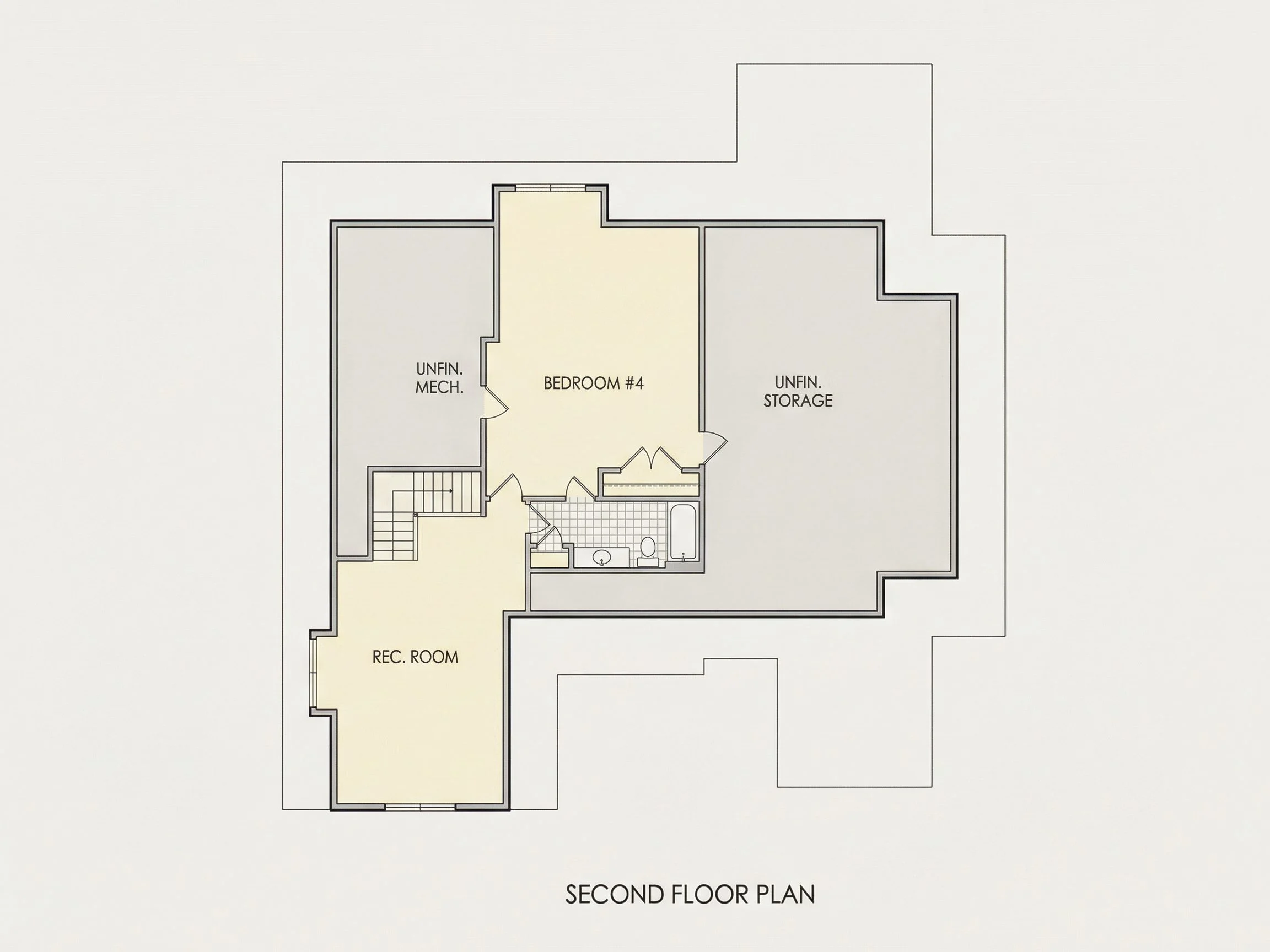

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

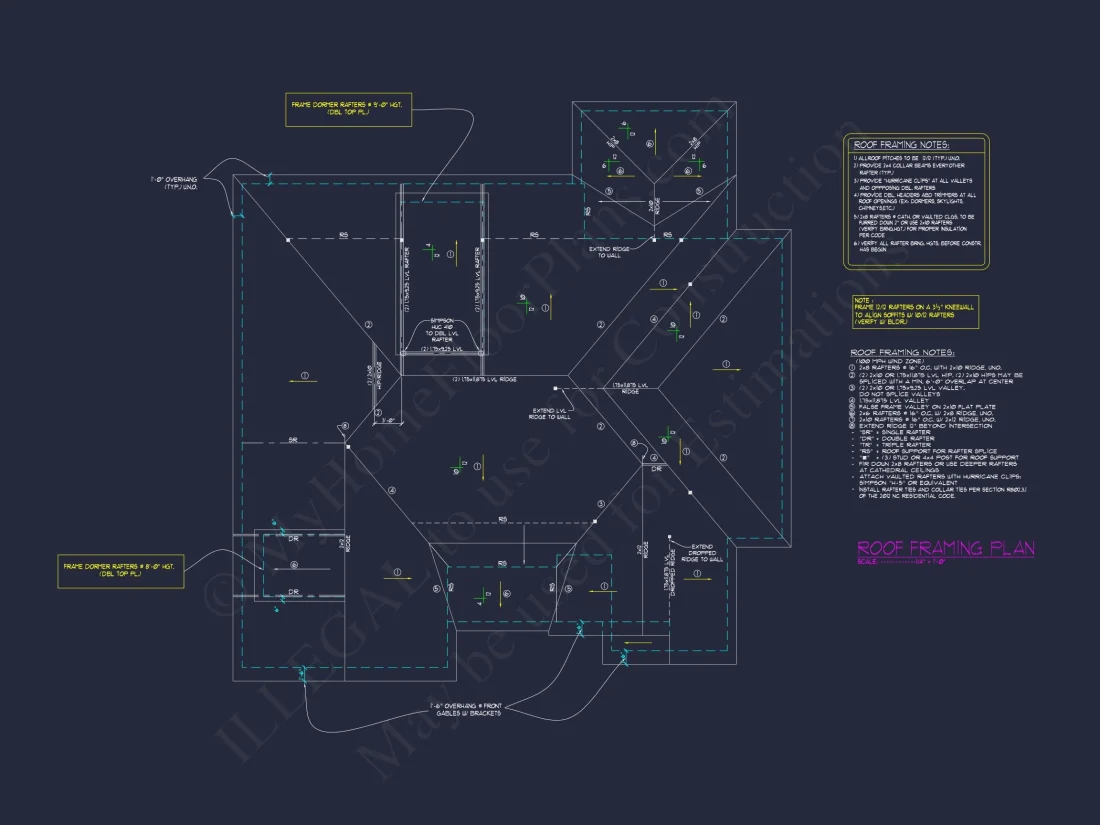

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
13-1721 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
