Custom house Design - Floor Plans, CAD Blueprints & Features
Find the perfect single-family house design! This floor plan features 4 bedrooms, vaulted ceilings, garage bays, a screened porch, and CAD architectural designs.
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 83'-2" |
|---|---|
| Depth | 56'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Bonus Room, Family Room, Fireplace, Foyer, Mudroom, Office/Study, Recreational Room |
| Outdoor Features | Covered Front Porch, Covered Rear Porch, Screened Porch, Terrace |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on the First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | Breakfast Nook, Butler's Pantry, Kitchen Island, Walk-in Pantry |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Custom Home Design with Vaulted Ceilings, 4 Bedrooms & CAD Blueprints
Find your dream house with this 1.5-story layout featuring 3, 436 heated sq. ft., 4 bedrooms, vaulted ceilings, a 3-car garage, and full CAD architectural plans.
This customizable house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning for growing families, builders, and designers alike.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 436 sq. ft. over 1.5 stories.
- Unheated extras: 1, 685 sq. ft. including screened porch, front/rear covered porches, terrace, and 3-car garage.
Bedrooms & Bathrooms
- 4 spacious bedrooms including a luxurious first-floor Owner Suite with walk-in closet.
- 3 full bathrooms with convenient layouts for family and guest access.
Interior Highlights
- Vaulted ceilings create an open and airy ambiance.
- Open floor plan enhances flow between the family room, kitchen, and dining areas. Explore open layouts.
- Gourmet kitchen with butler’s pantry, breakfast nook, and walk-in pantry.
- Family room with fireplace ideal for cozy evenings. See fireplace plans.
- Bonus room, recreational space, mudroom, and private study for flexibility and organization.
Garage & Storage Details
- Garage Bays: 3-car garage with oversized layout.
- Garage Type: Attached, with flexible storage and workshop potential.
- Storage: Mudroom cubbies, bonus room storage, and ample closet space throughout.
Outdoor Living Features
- Covered front and rear porches provide all-weather outdoor relaxation.
- Screened porch and terrace offer additional entertaining areas and comfort.
- Brick and shingle exterior adds curb appeal with long-lasting durability.
Architectural Style: Modern Craftsman & Traditional Blend
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Traditional Craftsman or explore its roots on ArchDaily.
Bonus Features
- Dedicated office/study ideal for remote work or creative projects.
- Recreational room for family games or home theater setups.
- Butler’s pantry for elegant entertaining and kitchen prep.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and ready for contractors, permitting, and build teams.
- Unlimited Build License: Build the design once—or many times—without extra fees.
- Free Foundation Changes: Choose between slab, crawlspace, or basement at no extra cost. Learn more.
- Structural Engineering Included: Professionally stamped and code-compliant plans. Read about the benefits.
- Lower Modification Costs: Save up to 50% vs. other vendors. Modify this plan.
- View Before You Buy: Preview every sheet online.
Similar Collections You Might Love
- Traditional House Plans
- First Floor Owner Suite Plans
- House Plans with Bonus Rooms
- Plans with Covered Back Porches
- Plans with Kitchen Islands
Frequently Asked Questions
What’s included with this house plan? You’ll receive editable CAD files, printable PDFs, unlimited build rights, structural engineering, and free foundation changes.
Can I customize this house layout? Absolutely. We offer fast, low-cost modifications to fit your lifestyle. Request a quote.
Is this a 1 or 2-story design? This is a 1.5-story layout with the Owner Suite on the first floor.
Can I see what’s in the blueprint before buying? Yes. You can preview all sheets online.
Do you offer support during the build? Yes! Our team is available to assist during any stage of construction.
Start Building Your Dream Home Today
Have questions or want to personalize this plan? Contact our expert team at [email protected] or submit your request online.
Secure your perfect house plan today—and enjoy the freedom to build it your way!
All home plans include BOTH the CAD file and PDF file.

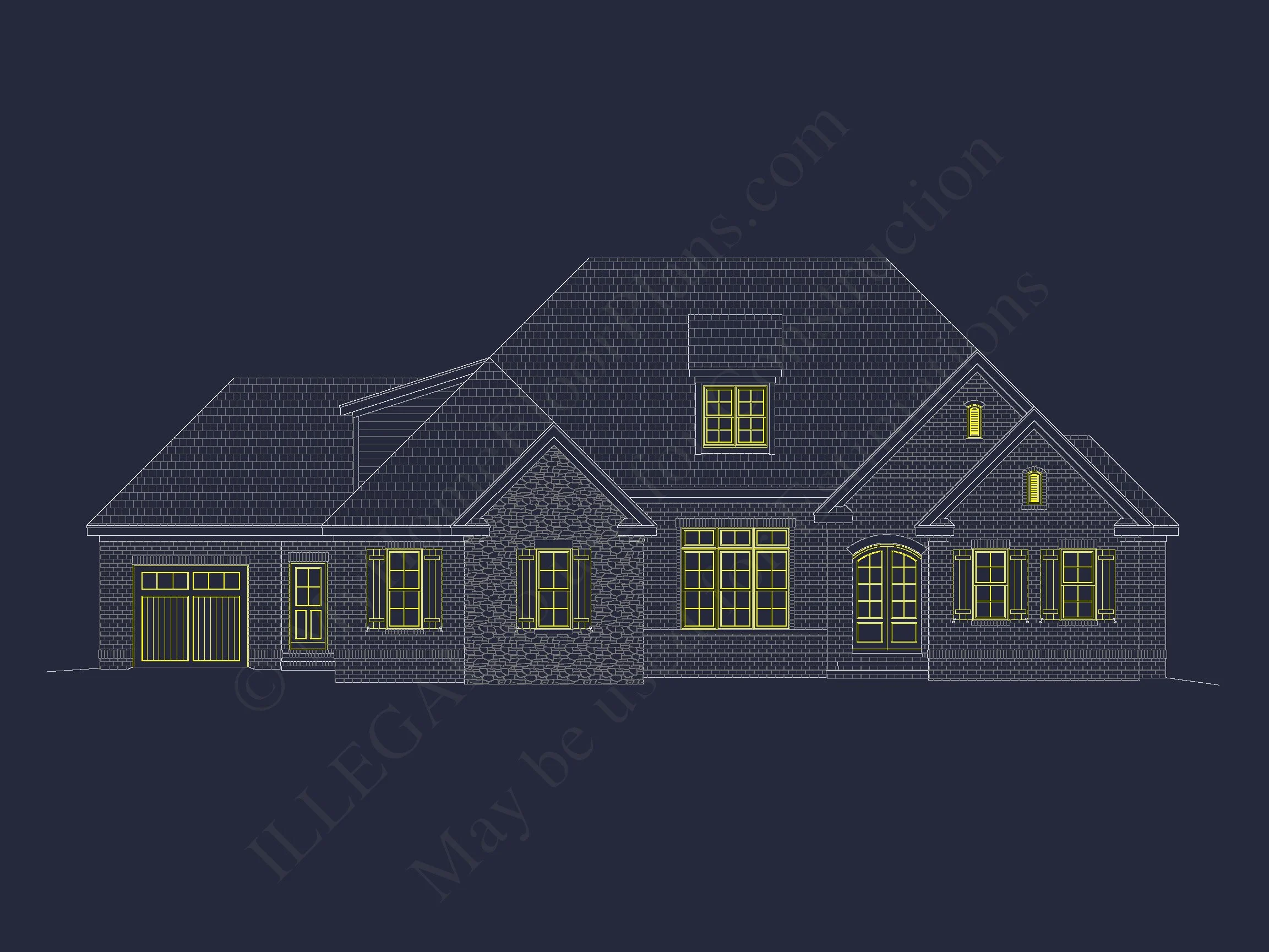

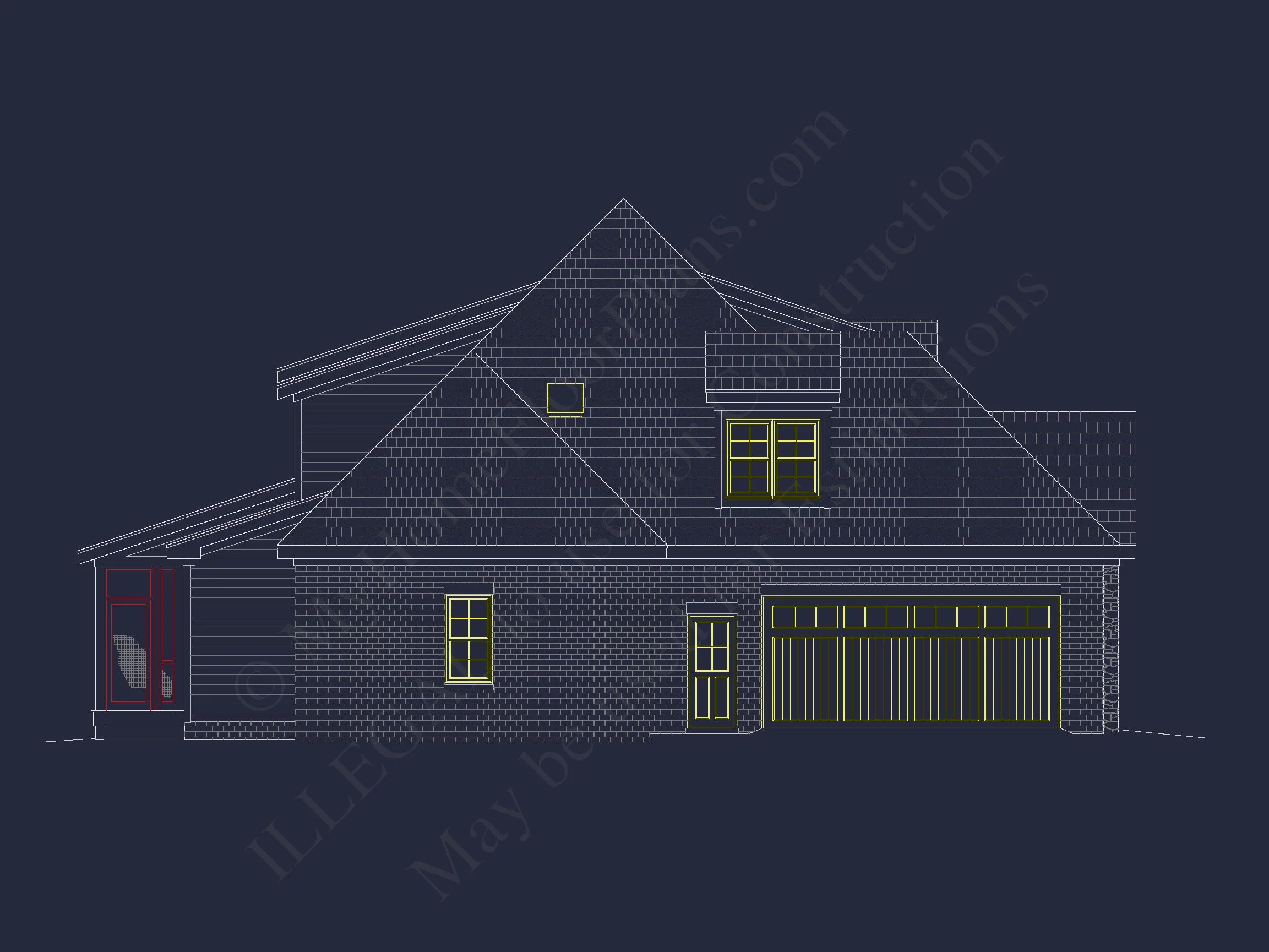

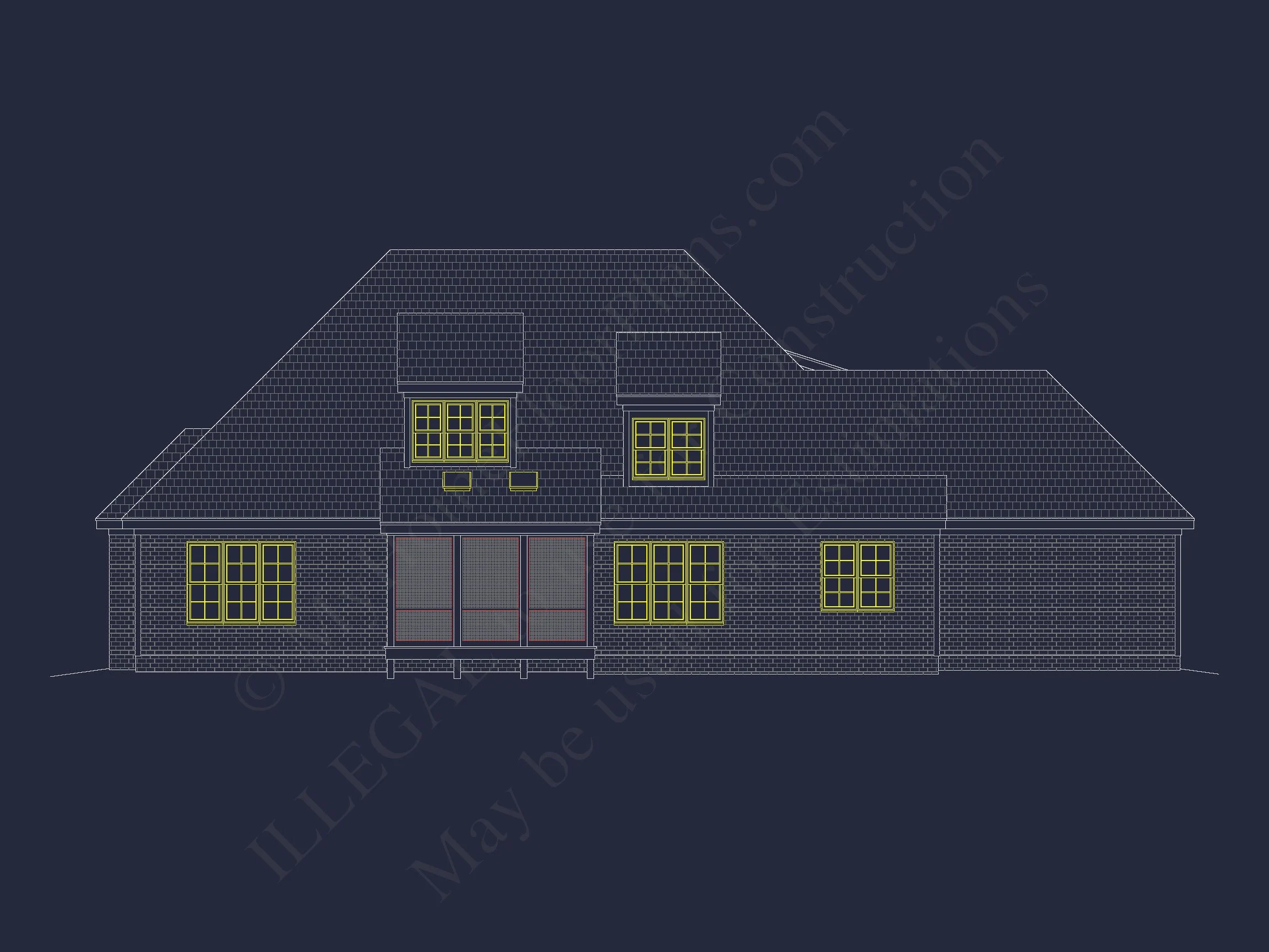

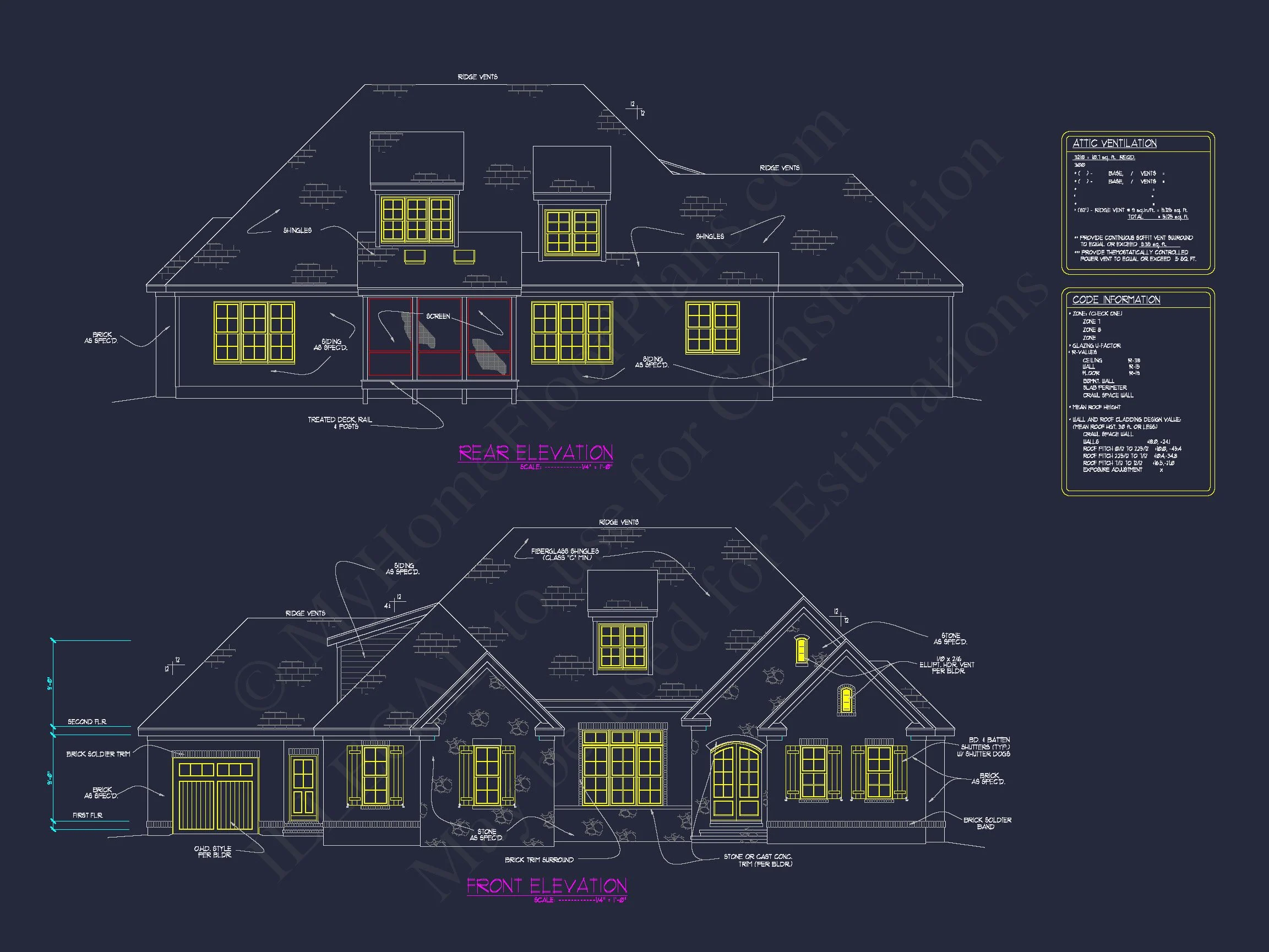

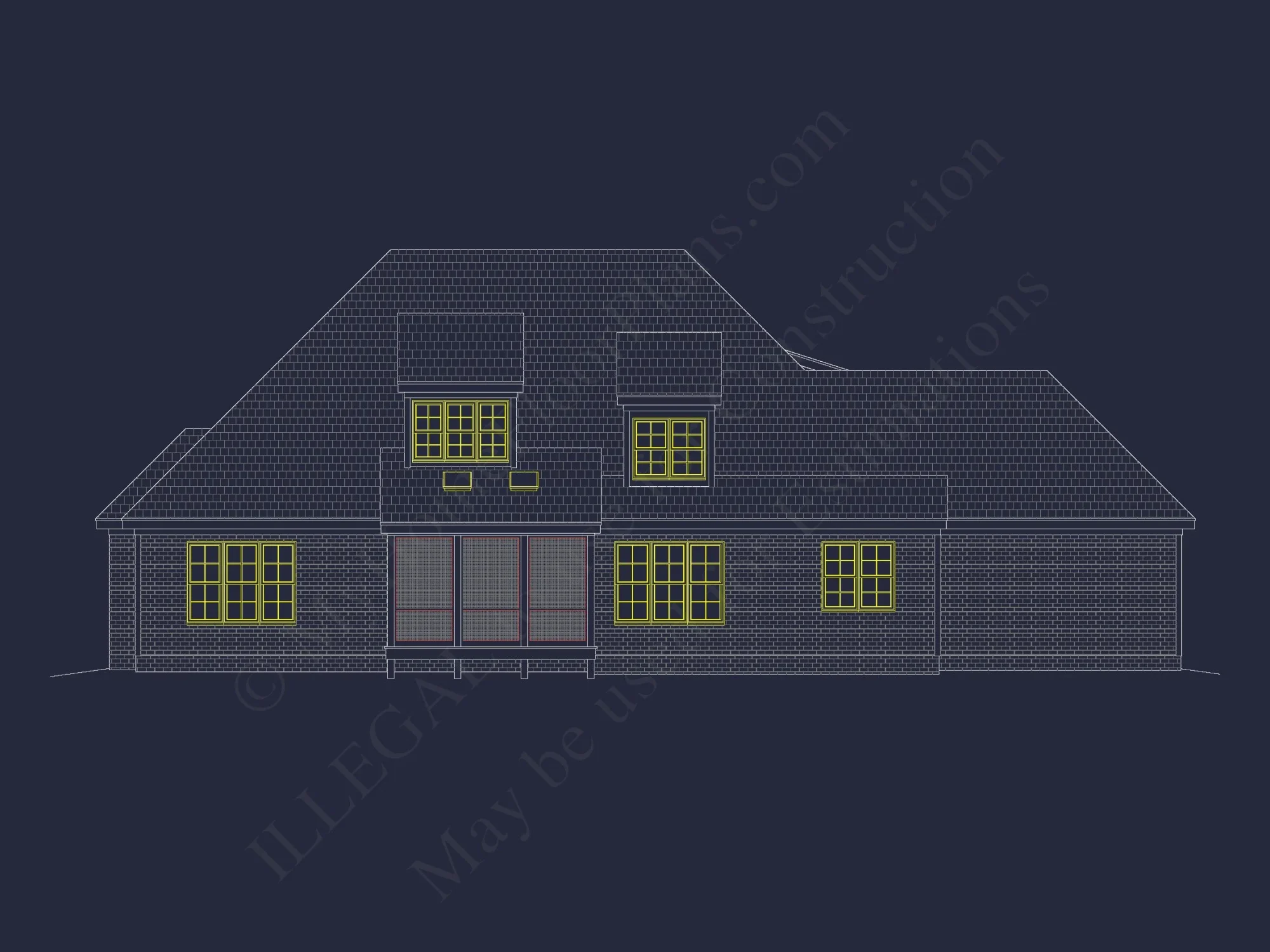

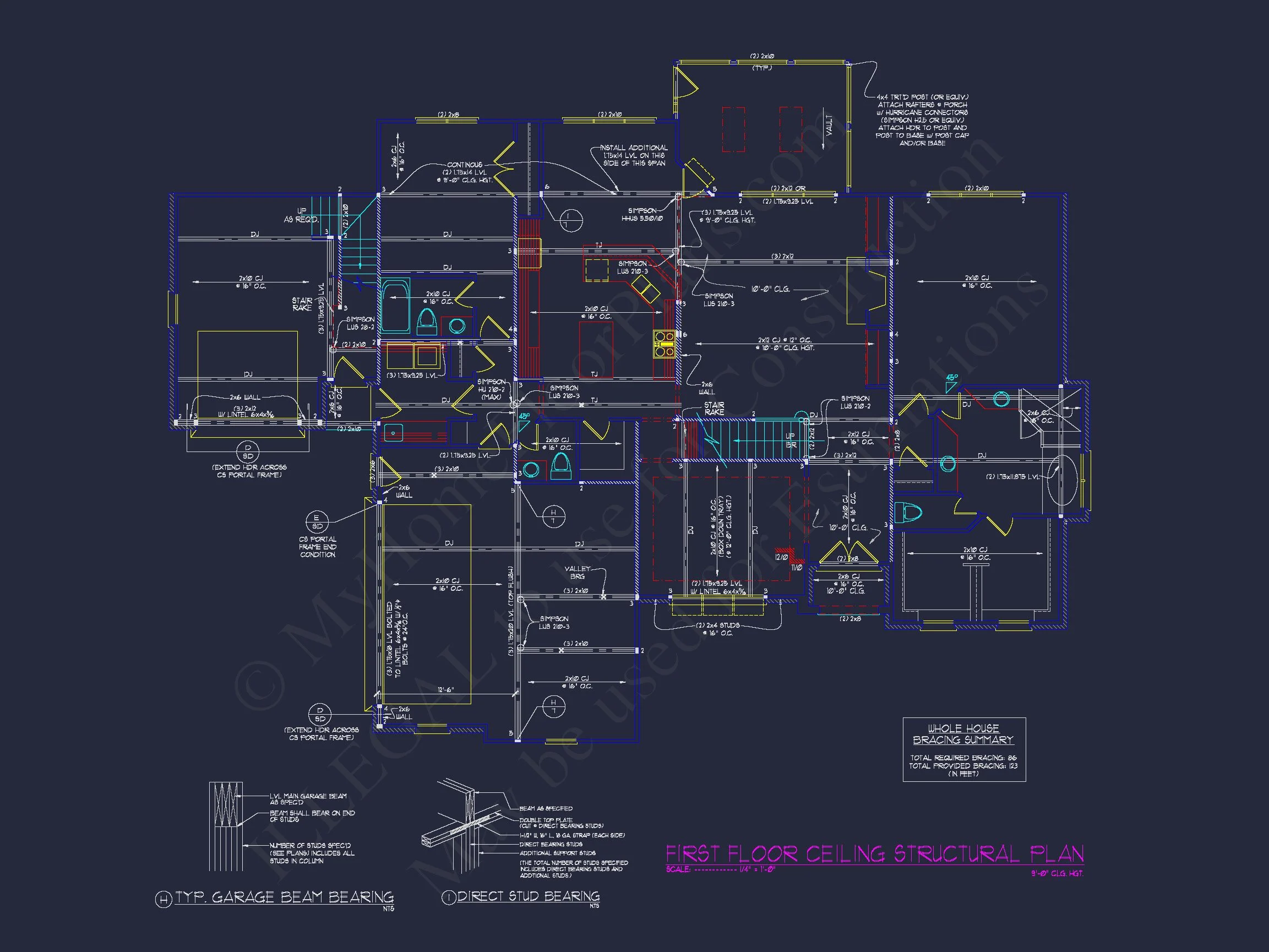

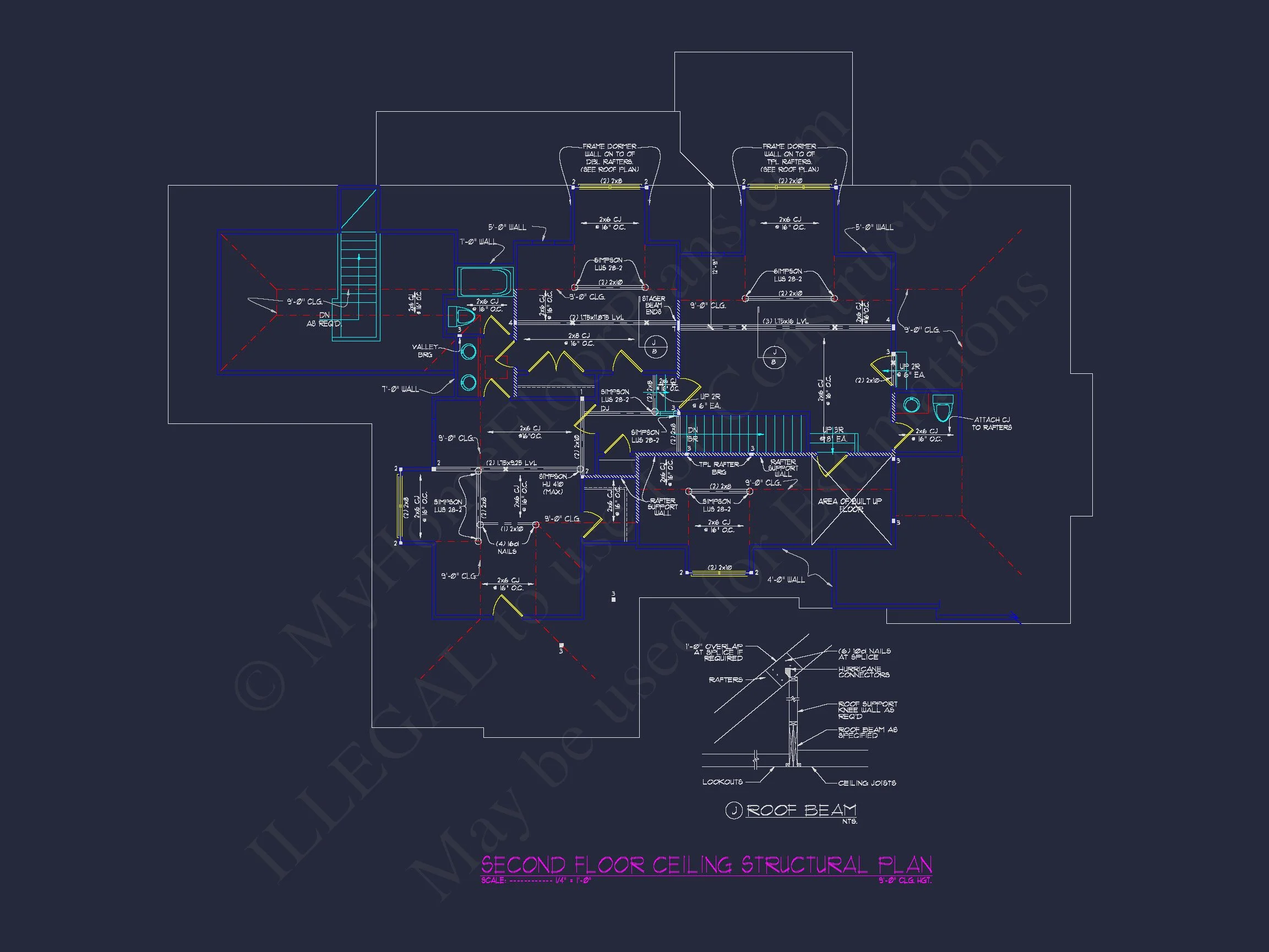

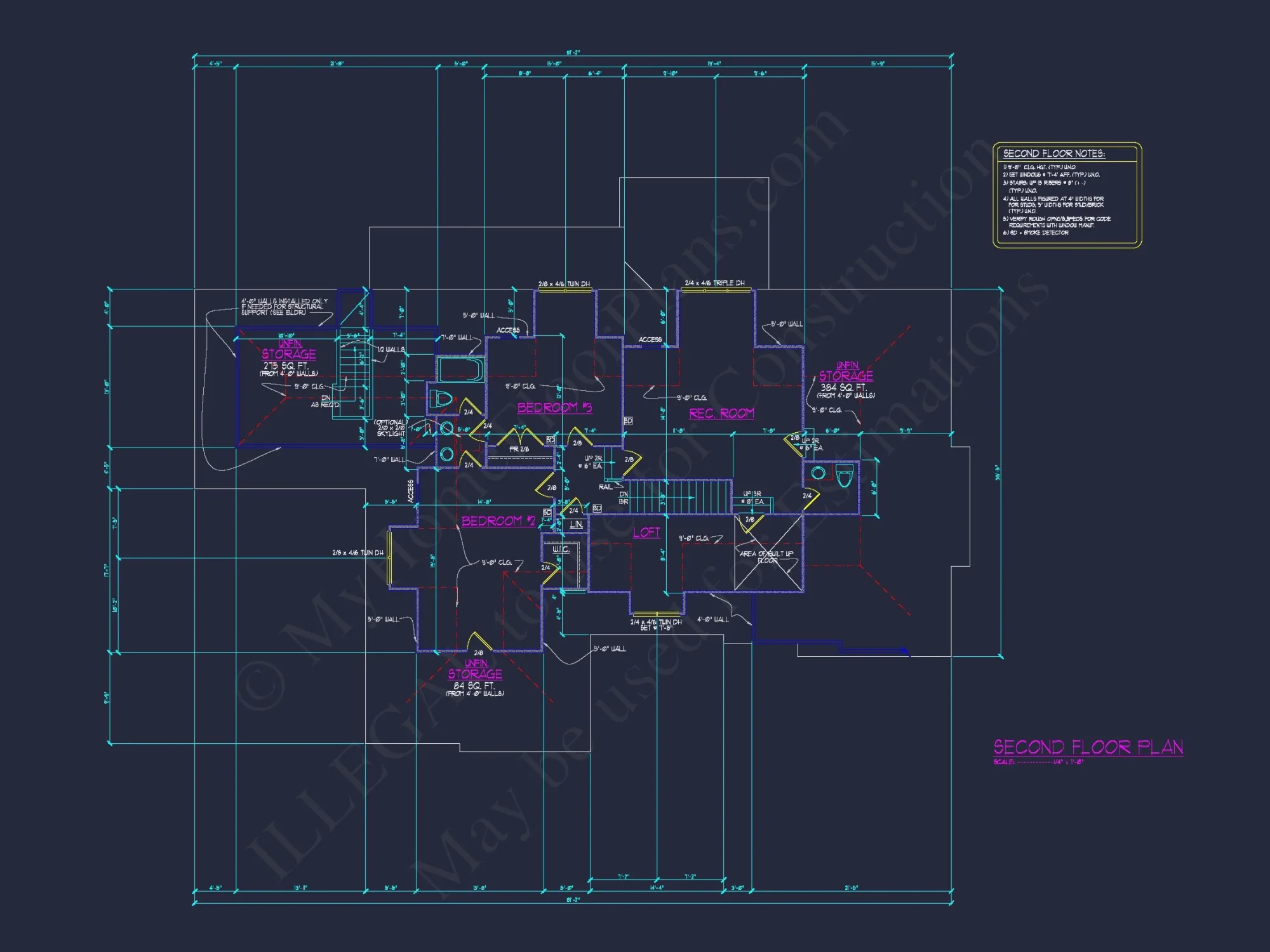

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

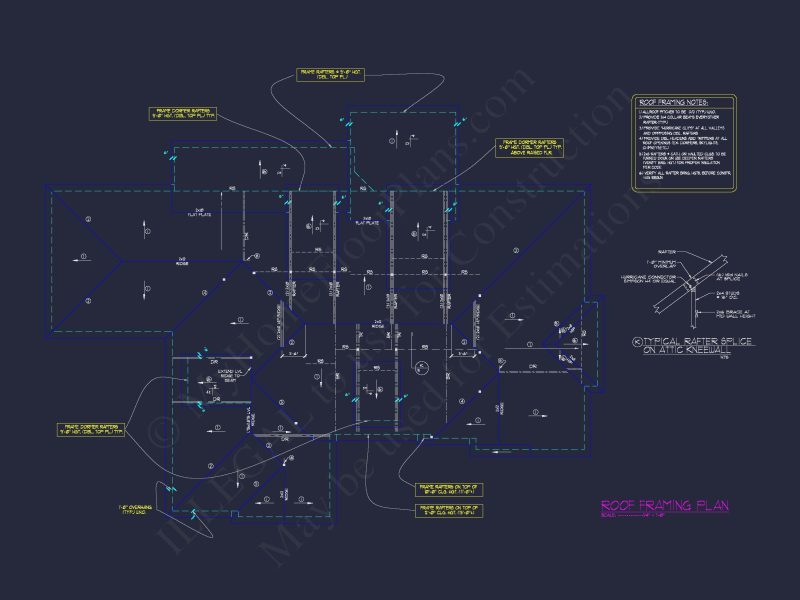

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
