Elegant Home Plan with CAD Blueprints for Modern Architecture
Explore this stunning 4, 067 sq. ft. home design featuring detailed CAD blueprints, versatile floor plans, and refined Shingle and Traditional architecture.
This Traditional and Shingle-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 067 sq. ft. over two spacious stories.
- Unheated extras: Covered porches and side-entry garage provide added utility and outdoor enjoyment.
Bedrooms & Bathrooms
- 3 spacious bedrooms, including a luxurious Owner Suite on the first floor with privacy and elegance.
- 3 well-placed bathrooms, including a Jack-and-Jill layout and convenient half bath for guests.
Interior Highlights
- Tray ceilings in key areas add sophistication and height.
- Open floor plan connects the kitchen, dining, and living areas seamlessly. View open layouts.
- Kitchen island, walk-in pantry, and breakfast nook make cooking and hosting a joy. Explore island kitchen designs.
- Fireplace in the living room creates a cozy ambiance. Browse fireplace plans.
- Bonus room and home office provide flexible space for work, hobbies, or guests.
Garage & Storage Details
- Garage Bays: Spacious side-entry garage with ample room for two vehicles.
- Garage Type: Attached for seamless interior access.
- Storage: Includes a mudroom, laundry room, and extra closet spaces throughout.
Outdoor Living Features
- Covered front porch and rear porch—perfect for relaxing, entertaining, or enjoying morning coffee.
- Classic exterior materials like shake siding elevate curb appeal.
Architectural Style: Shingle & Traditional
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Traditional House Style or explore Shingle style inspiration on ArchDaily.
Bonus Features
- Flexible bonus room for entertainment, media, or exercise.
- Dedicated office/study space with privacy—ideal for remote work.
- Jack-and-Jill bath connecting secondary bedrooms for family convenience.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Traditional House Plans
- House Plans with Bonus Rooms
- Plans with Mudrooms
- Covered Porch House Plans
- First Floor Owner Suite Plans
Frequently Asked Questions
What’s included with this house plan? Every plan includes CAD files, print-ready PDFs, structural engineering, foundation options, and an unlimited-build license.
Can I request custom changes? Yes! We offer affordable modifications and quick turnaround times.
Is this plan good for families? Absolutely. The spacious layout, private Owner Suite, and flexible rooms make it ideal for growing families.
Does it support energy-efficient features? Yes, the layout can be customized to include energy-saving insulation, windows, and HVAC zones.
How do I preview the full blueprint set? Just visit this preview page to see what’s included.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our contact form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

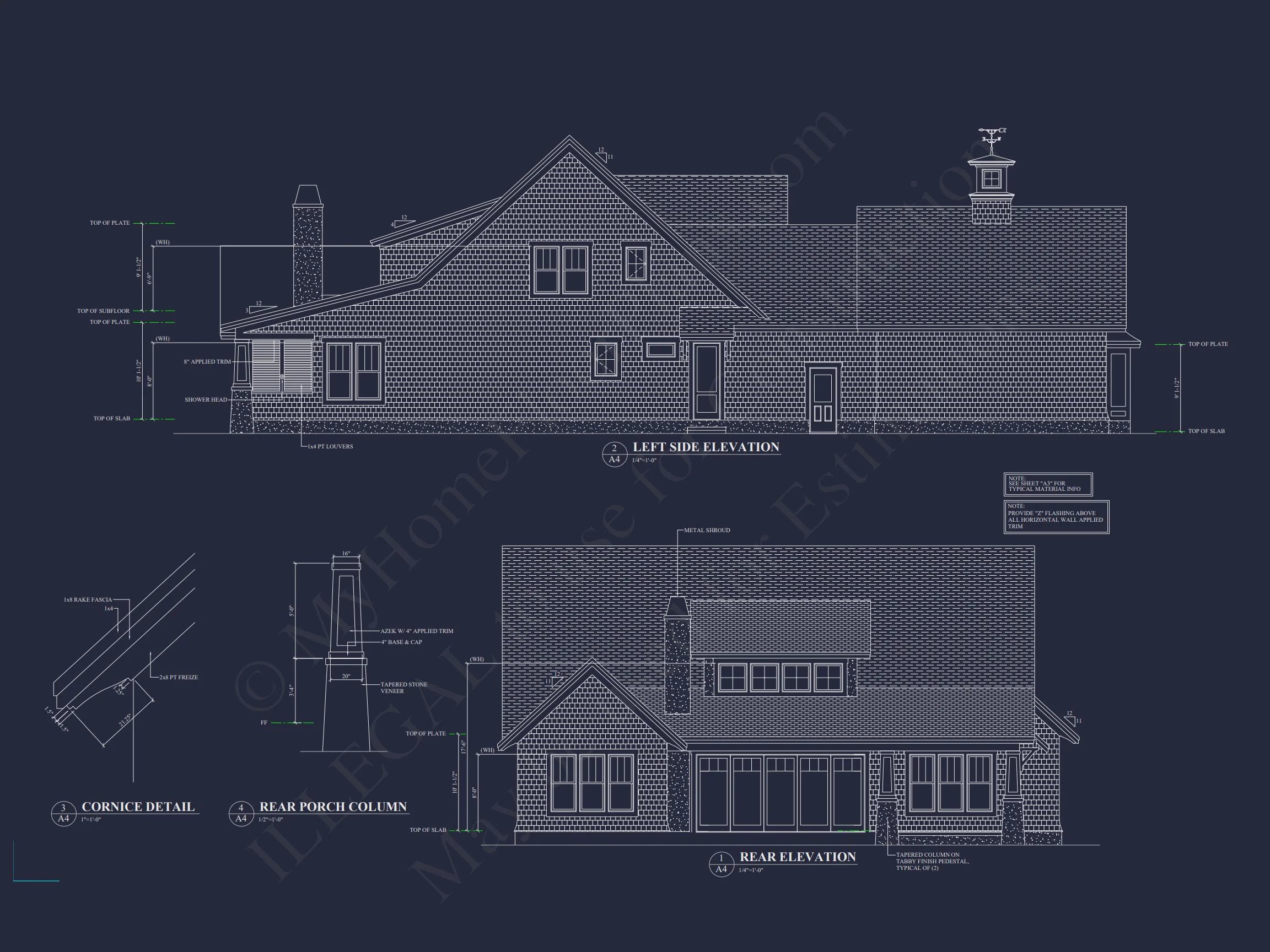

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

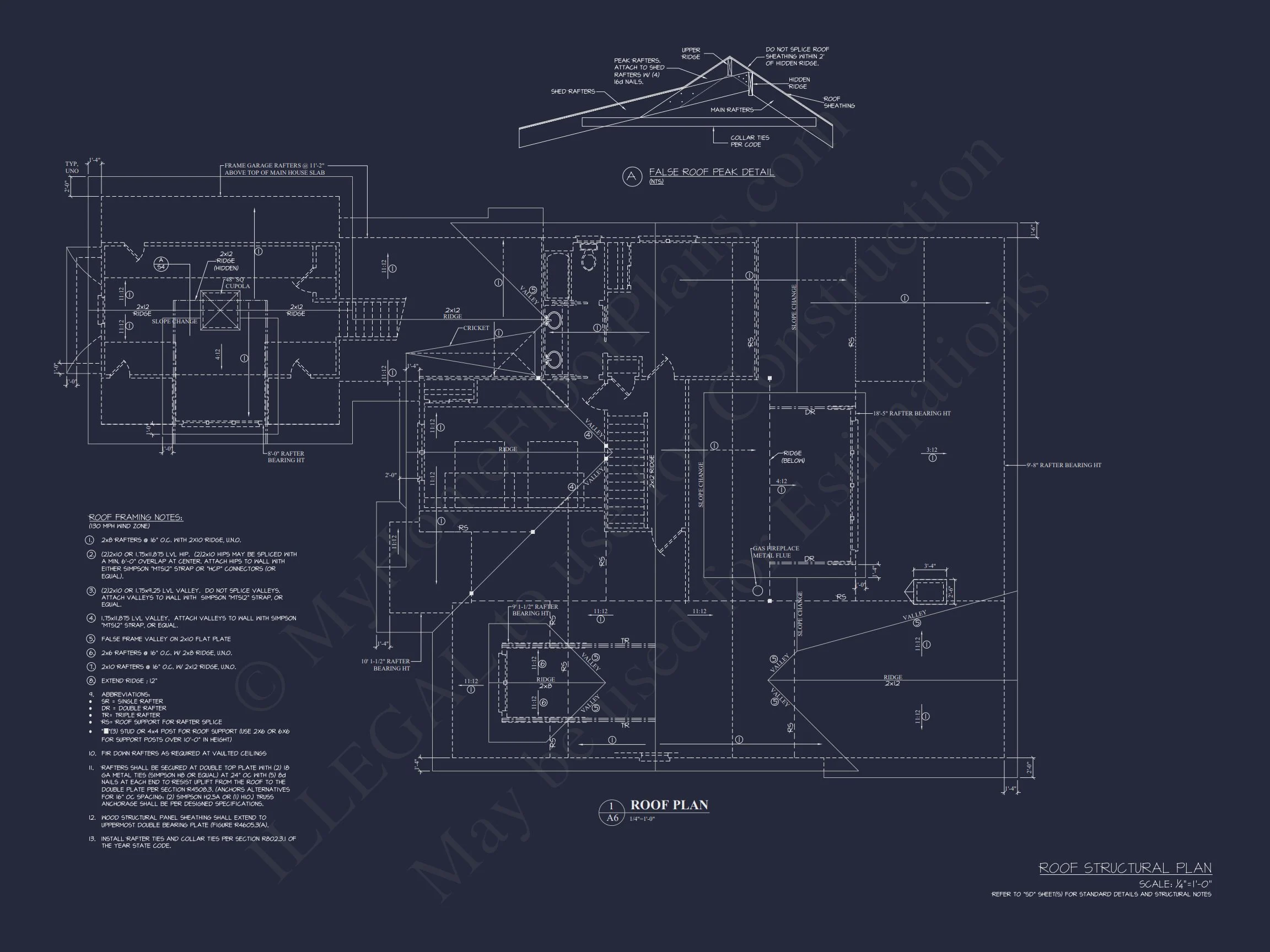

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

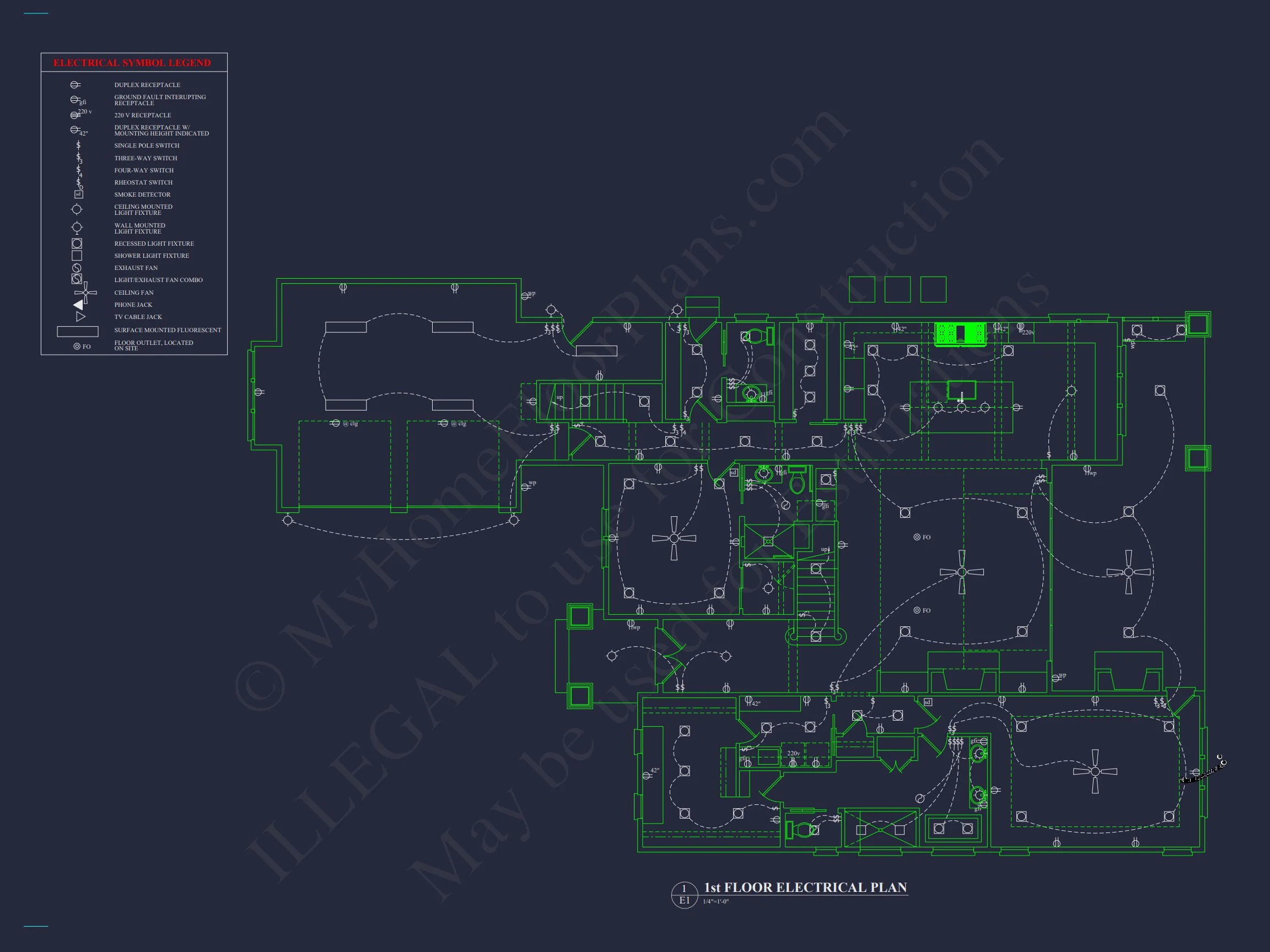

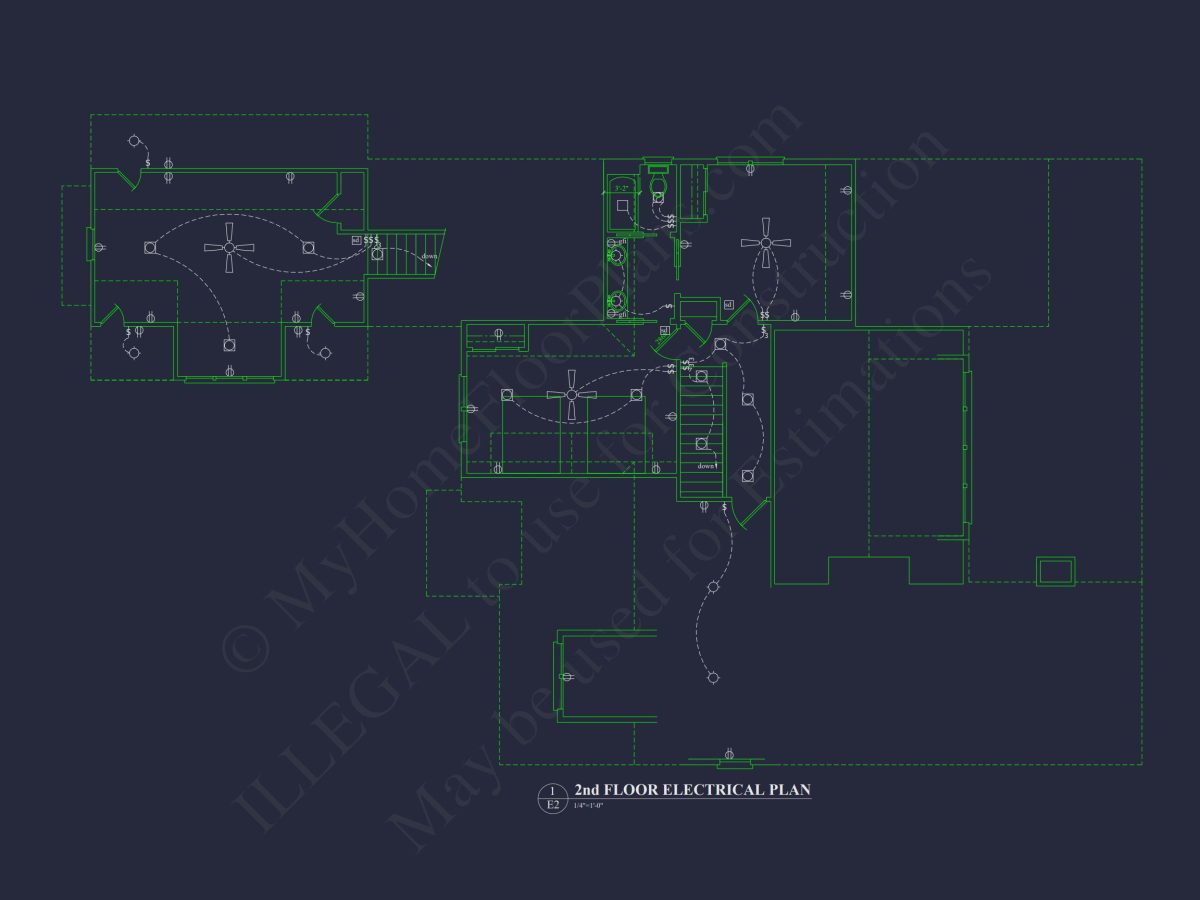

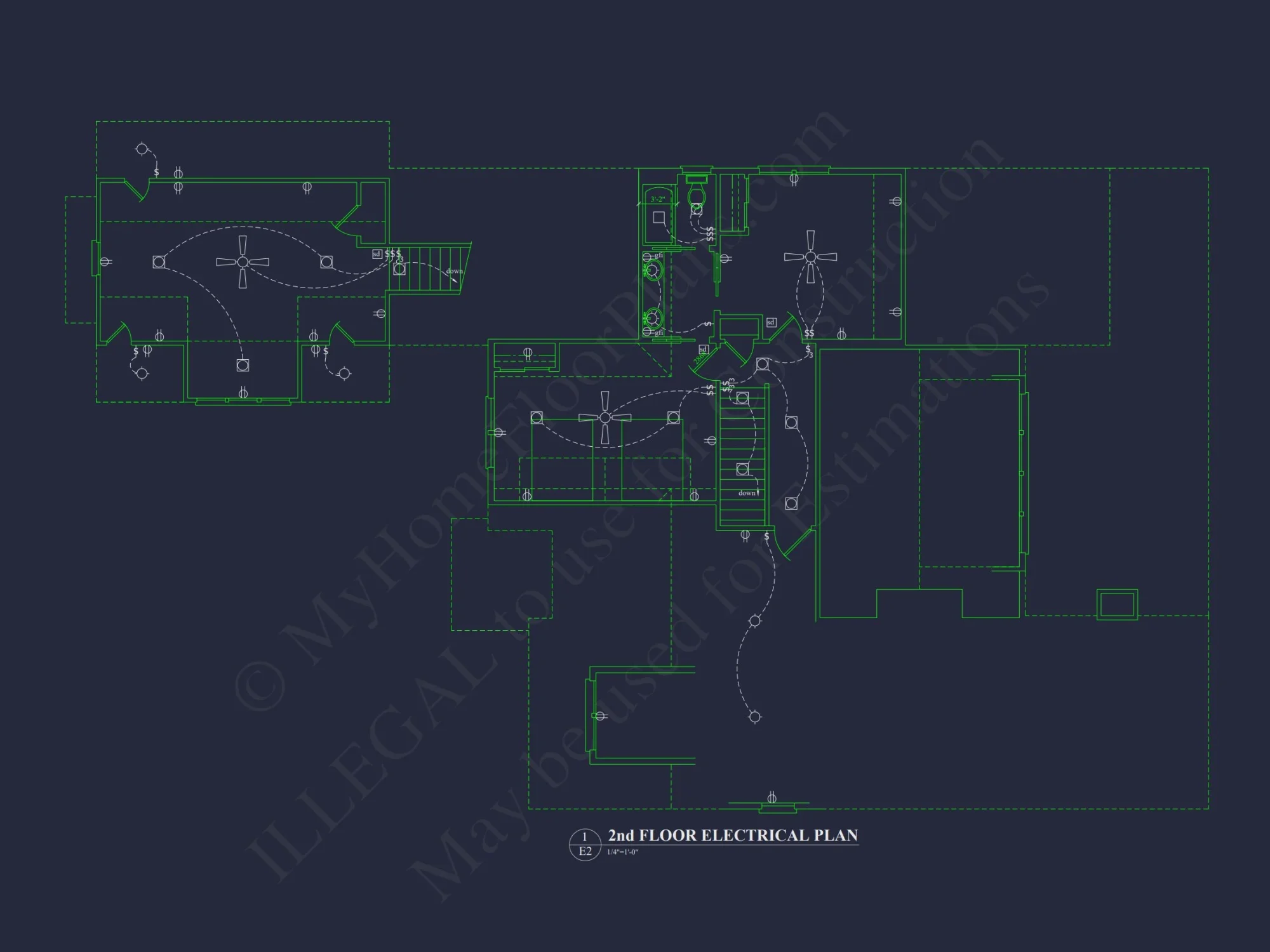

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

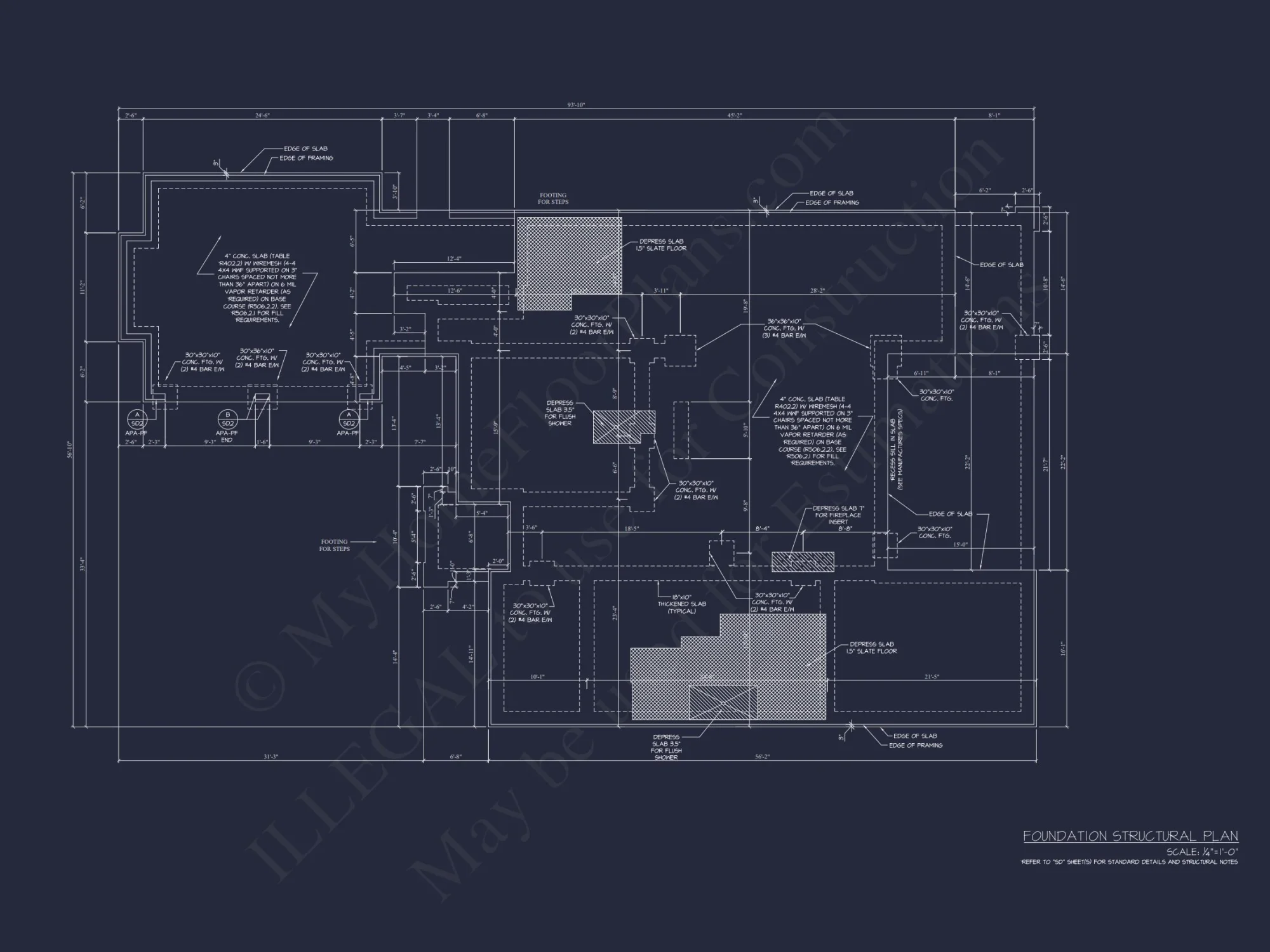

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
