Modern Ranch house Floor Plan with CAD Blueprint Designs
Explore this stunning modern ranch house plan featuring 3 bedrooms, 2 baths, a spacious family room, and open floor plan. Includes CAD blueprints for architecture designs.
9 FT+ Ceilings | Affordable | Beamed | Bonus Rooms | Breakfast Nook | Covered Front Porch | Covered Rear Porches | Family Room | Fireplaces | Foyer | Front Entry | Jack and Jill | Kitchen Island | Large | Modern Suburban | Open Floor Plan Designs | Owner’s Suite on the First Floor | Ranch | Side Entry Garage | Split Bedroom | Starter Home | Study | Top Selling | Traditional | Walk-in Closet | Walk-in Pantry
Original price was: $1,870.56.$1,059.99Current price is: $1,059.99.
999 in stock
| Width | 67'-8" |
|---|---|
| Depth | 57'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Family Room, Fireplace, Foyer, Open Floor Plan, Study |
| Outdoor Features | |
| Bed and Bath Features | Jack and Jill Bathroom, Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Modern Ranch Home Floor Plan with CAD Blueprint Designs
Explore this stunning modern ranch house plan with 2, 786 heated sq. ft., 3 bedrooms, open layout, and rear porch—includes CAD files and unlimited build license.
This modern ranch-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 786 sq. ft. across 1.5 stories.
- Unheated extras: Front and rear covered porches for outdoor living.
Bedrooms & Bathrooms
- 3 spacious bedrooms including a first-floor Owner Suite with walk-in closet.
- 2 full bathrooms including a Jack and Jill bath for secondary bedrooms.
Interior Highlights
- Open floor plan enhances flow and natural light. Explore open floor plans.
- Study/Office room perfect for remote work or reading nook.
- Bonus room adds extra flexibility for a guest suite or playroom.
- Walk-in pantry keeps your kitchen tidy and well-stocked. See pantry-equipped plans.
- Kitchen island designed for cooking and casual dining. More kitchen island plans.
Garage & Storage Details
- Garage Bays: 2-car garage with convenient access to interior.
- Garage Type: Attached with side or front entry (customizable).
- Storage: Mudroom cubbies, bonus room closets, attic space.
Outdoor Living Features
- Covered front and rear porches for relaxing and entertaining outdoors.
- Brick and stone exterior with timeless siding for enhanced curb appeal.
Architectural Style: Modern Ranch
This design blends clean lines, open layouts, and functional flow—perfect for families who value one-level living and elegant simplicity. Learn more about the ranch house style or explore its design legacy on ArchDaily.
Bonus Features
- Jack and Jill bathroom adds privacy and utility for shared bedrooms.
- Dedicated flex room for a study, playroom, or fitness studio.
- Spacious kitchen perfect for hosting and family meals.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and printable for builders and engineers.
- Unlimited Build License: Build once—or 100 times—with no added fees.
- Free Foundation Changes: Choose slab, crawlspace, or basement at no cost. Learn about foundation options.
- Structural Engineering Included: All plans are code-compliant and reviewed for safety.
- Lower Modification Costs: Save up to 50% compared to other providers. View customization options.
- View Before You Buy: Preview every sheet in advance.
Similar Collections You Might Love
- Ranch House Plans
- Plans with First Floor Owner Suites
- Bonus Room House Plans
- Covered Back Porch Plans
- House Plans with Home Office
Frequently Asked Questions
What’s included with this house plan? All plans include editable CAD files, print-ready PDFs, unlimited build rights, structural engineering, and free foundation adjustments.
Can I personalize the layout or style? Yes! We offer cost-effective customizations. Get your free quote.
Is this a true ranch layout? It’s a 1.5-story ranch design, offering the benefits of single-floor living with bonus space above.
How do I access the blueprints before purchasing? You can preview every sheet online before finalizing your order.
Do you include engineering and code checks? Yes. Structural engineering is included with all our plans for code compliance and safety.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our contact form.
Your future house starts with a smart, modern design—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

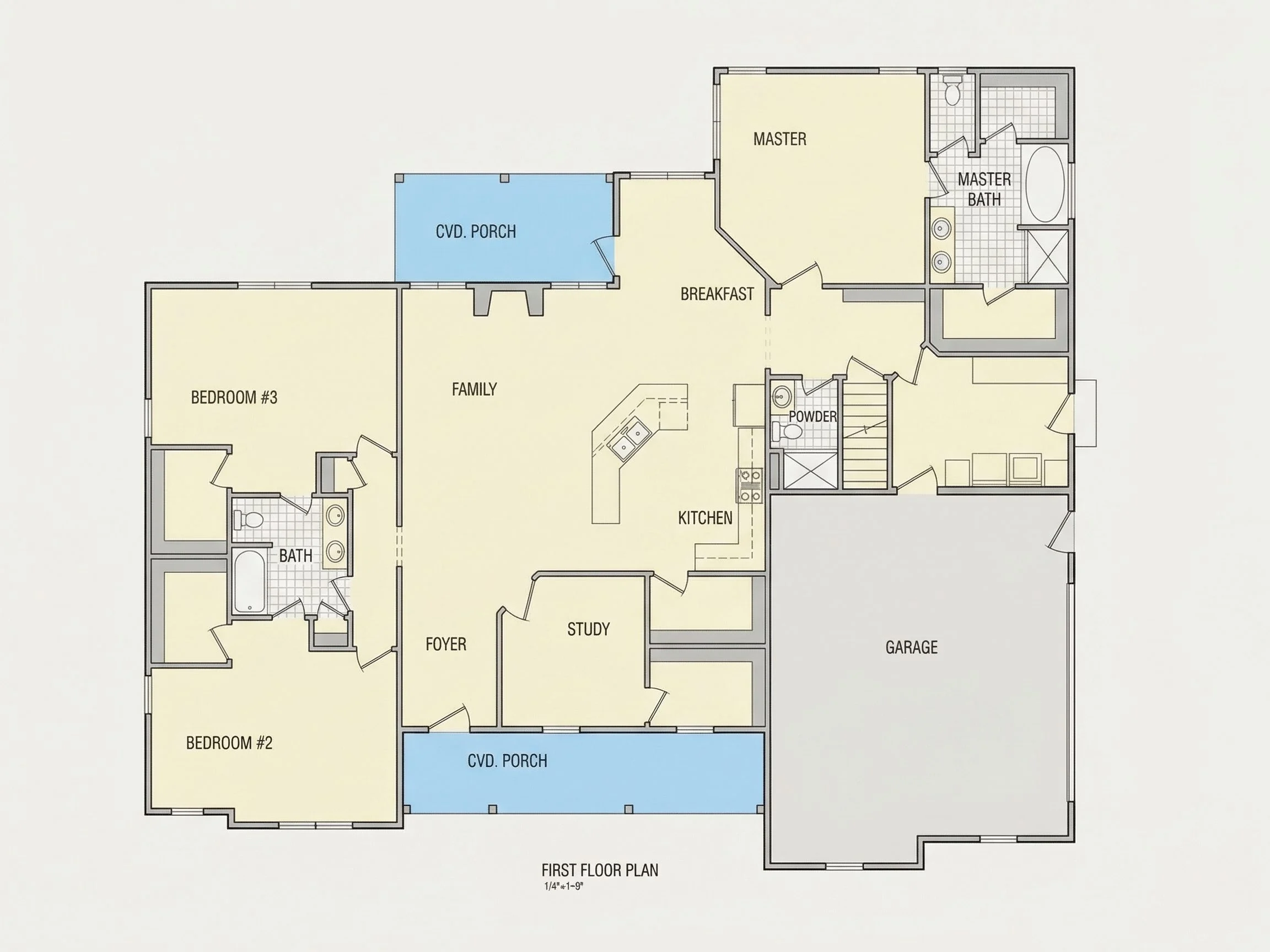

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

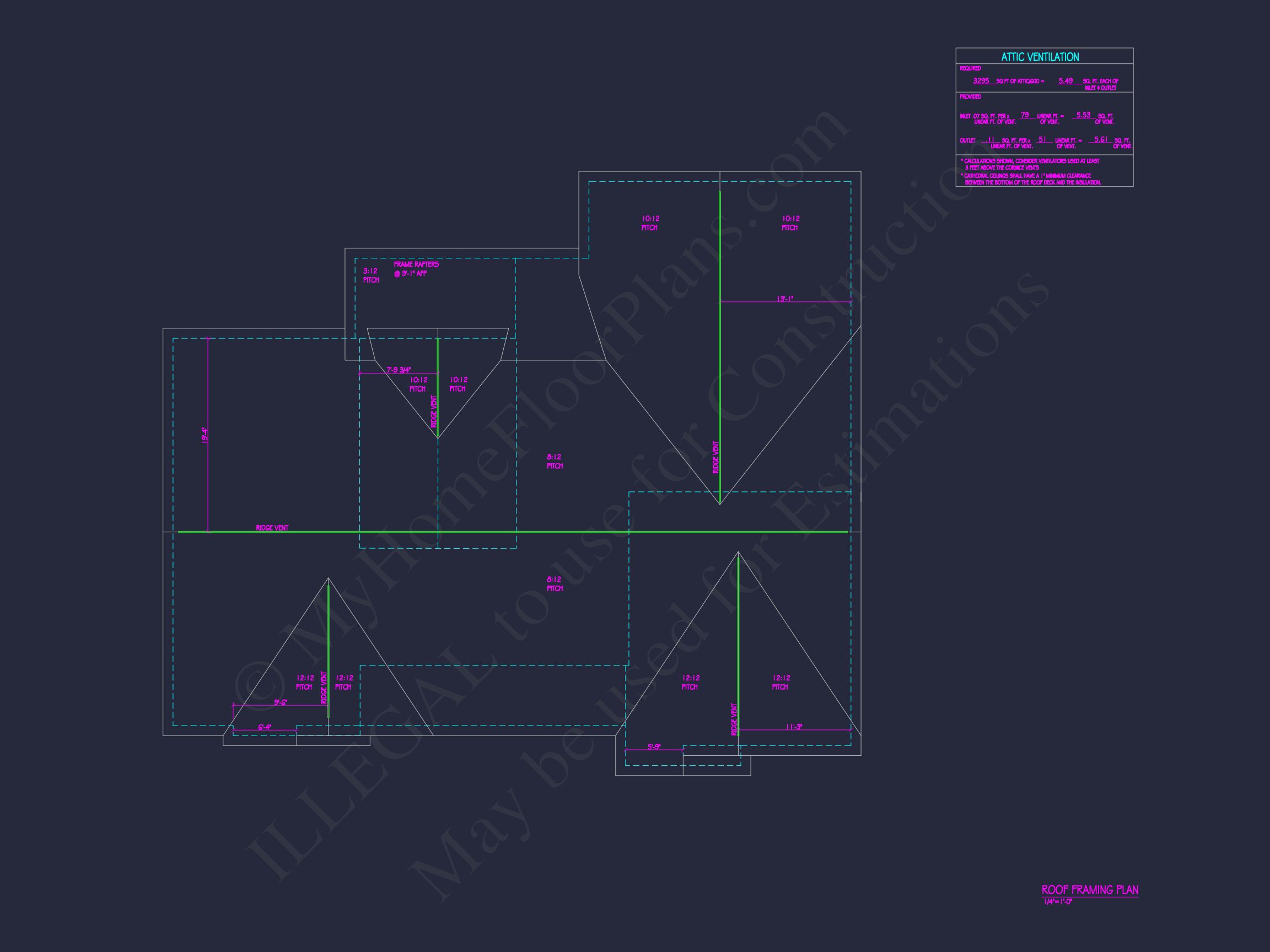

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
19-2291 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
