Traditional Craftsman house Floor Plan with CAD Designs
Explore this spacious house floor plan with 4 bedrooms,3 bathrooms,open layout,and bonus room. Includes blueprint CAD designs for architects and builders.
9 FT+ Ceilings | Affordable | Attics | Bonus Rooms | Breakfast Nook | Covered Front Porch | Covered Rear Porches | Craftsman | Family Room | Fireplaces | First-Floor Bedrooms | Foyer | Front Entry | Great Room | Home Plans with Mudrooms | Jack and Jill | Kitchen Island | Living Room | Medium | Office/Study | Open Floor Plan Designs | Owner’s Suite on the First Floor | Recreational Room | Second Floor Bedroom | Side Entry Garage | Southern | Traditional | Transitional | Uncovered Deck | Vaulted Ceiling | Walk-in Closet | Walk-in Pantry | Wrap Around Porch
Original price was: $1,699.00.$1,398.00Current price is: $1,398.00.
999 in stock
| Width | 77'-0" |
|---|---|
| Depth | 66'-10" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Bonus Room, Family Room, Fireplace, Foyer, Great Room, Living Room, Mudroom, Office/Study, Open Floor Plan, Recreational Room |
| Outdoor Features | Covered Front Porch, Covered Rear Porch, Uncovered Deck, Wrap Around Porch |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Traditional Craftsman Home Floor Plan with CAD Designs
Explore this spacious home floor plan with 4 bedrooms, 3 bathrooms, open layout, and bonus room. Includes blueprint CAD designs for architects and builders.
Traditional Craftsman Home Floor Plan
A Spacious and Functional Design for Modern Living

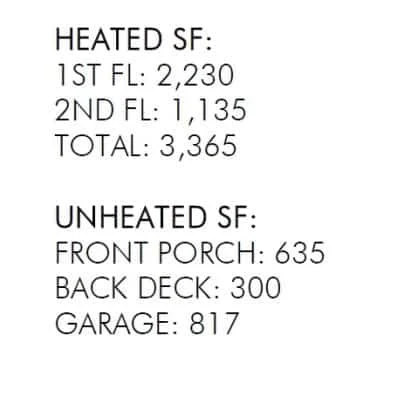

This 4-bedroom, 3-bathroom home design offers an ideal blend of comfort, functionality, and style. Spanning 3, 365 heated square feet, the traditional craftsman-style architecture is perfect for families and individuals seeking a practical yet elegant living space. With 9ft+ vaulted ceilings and an open floor plan, this home creates a welcoming and airy atmosphere.
Features that Make This Home Stand Out
Indoor Features
* Great Room: Perfect for family gatherings and entertaining guests.
* Bonus Room: A flexible space ideal for a home office, gym, or playroom.
* Mudroom: Keeps your home tidy by providing a dedicated space for shoes and coats.
* Attic: Offers extra storage space for seasonal items and more.
* Owner Suite on First Floor: Ensures convenience and privacy for the homeowners.
* Walk-In Pantry: A practical addition to the kitchen for organized storage.
Outdoor Features
* Wrap Around Porch: Adds charm and functionality to the home's exterior.
* Covered Front and Rear Porches: Extend your living space outdoors, ideal for relaxing or entertaining.
* Uncovered Deck: Provides a perfect spot for outdoor dining or lounging.
A Blend of Style and Practicality
The home's siding and brick exterior exudes timeless appeal, while features like the front and side entry garages and Jack and Jill bathroom add convenience for modern living. Whether you're an architect designing a dream home for clients or a family looking for the perfect blueprint, this CAD-ready floor plan caters to all your needs.
Benefits Included with Every Plan
All home plans include the CAD file and PDF for detailed visualization. Plus, with your purchase, you'll receive an unlimited-build license, free foundation adjustments, and structural engineering services. Unlike competitors, our packages include access to all plan sheets on our website, with affordable modification options.
Ready to design your dream home? Contact us at support@https://myhomefloorplans.com to bring your vision to life!
All home plans include BOTH the CAD file and PDF file.

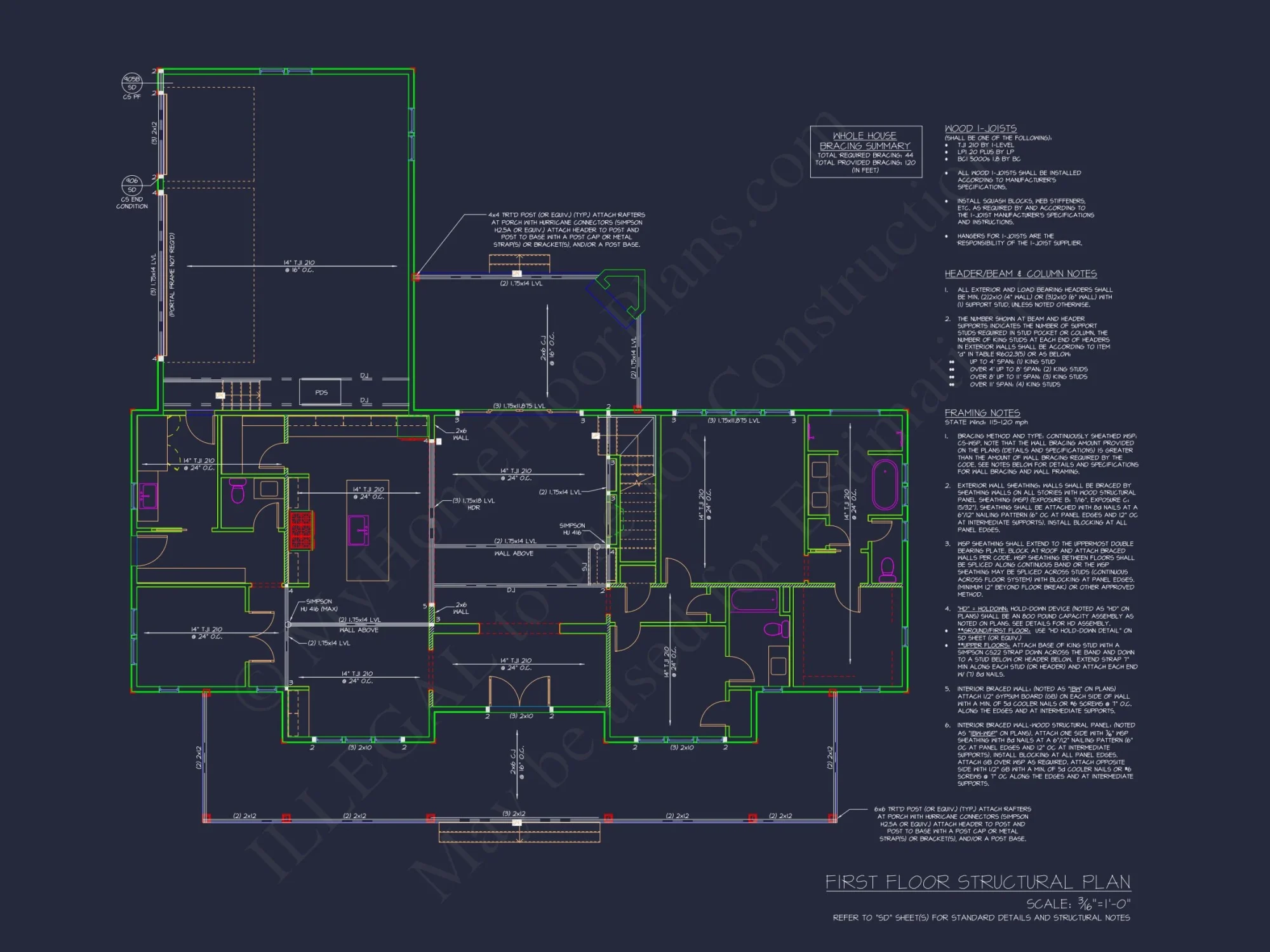

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

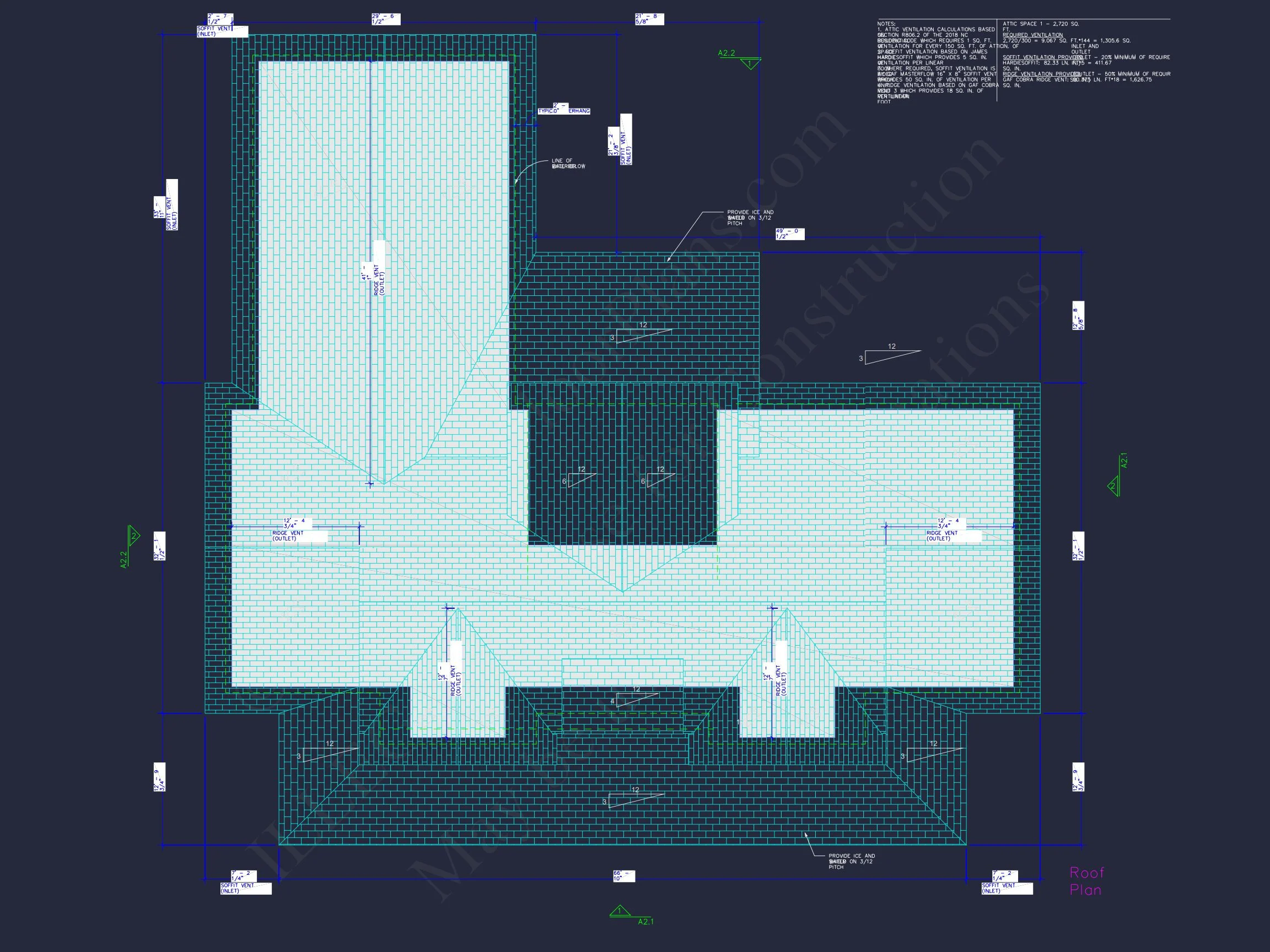

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
20-1573 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
