Elegant house Plan with 3D CAD Blueprint and Craft Designs
Explore this stunning house plan featuring 4 bedrooms, 3 floors, and 3, 112 sq ft of heated space. Includes CAD blueprint with traditional and modern designs.
Stunning 3-Story house Plan with Versatile Indoor and Outdoor Features
Designing your dream house starts with selecting the perfect floor plan to suit your needs. This three-story architectural Ownerpiece blends modern charm with traditional craft details to deliver a functional yet elegant house. Boasting 3, 112 heated square feet and 1, 644 unheated square feet, this spacious layout ensures ample living space for every lifestyle.
Thoughtfully Laid-Out Floor Plan
Spread over three levels, this house offers 4 bedrooms and 4.5 bathrooms, catering effortlessly to families of all sizes. The Owner suite on the main floor ensures convenient living, with walk-in closets for added storage. Families will love the Jack and Jill bathrooms on the upper level, while the open-concept design of the kitchen, breakfast nook, and family room promotes seamless interaction.
The attic and basement provide additional storage options or recreational areas, and the bonus room ensures space for entertainment or a house office. For those who love hosting, this plan offers a butler’s pantry and kitchen island, making entertaining a breeze.
Attractive Indoor Features
This house design includes:
* Open Floor Plan: Promotes spaciousness and interconnectivity between living areas.
* Family Room with Fireplace: Cozy ambiance for memorable family moments.
* Laundry Rooms on Main and Upper Levels: Simplifies daily chores.
* Recreation Room and Bonus Space: Versatile areas to meet your specific needs.
Outdoor and Garage Benefits
Luxury doesn’t stop indoors! The outdoor areas feature a covered porch, screened patio, and rear patio perfect for entertaining. Add to that an oversized three-car garage with side entry, and you have plenty of storage for vehicles and equipment. The sturdy shake siding, stone, and modern exterior complement any landscaping.
Crafted for Flexibility and Style
The house combines Traditional Craftsman and Modern Craftsman architecture, ensuring it stays timeless while appealing to contemporary tastes. High ceilings of 9+ feet on the first and second levels create a sense of openness, while coffered ceiling details add character to central living spaces.
Exclusive Benefits Included
Every plan includes detailed CAD files, a PDF version, and an unlimited-build license, allowing you to make this house your own. Structural engineering plans and complimentary foundation adjustments ensure a seamless customization process.
Ready to design your dream house? Contact us at [email protected] to start creating the perfect blueprint for your future today!
All home plans include BOTH the CAD file and PDF file.

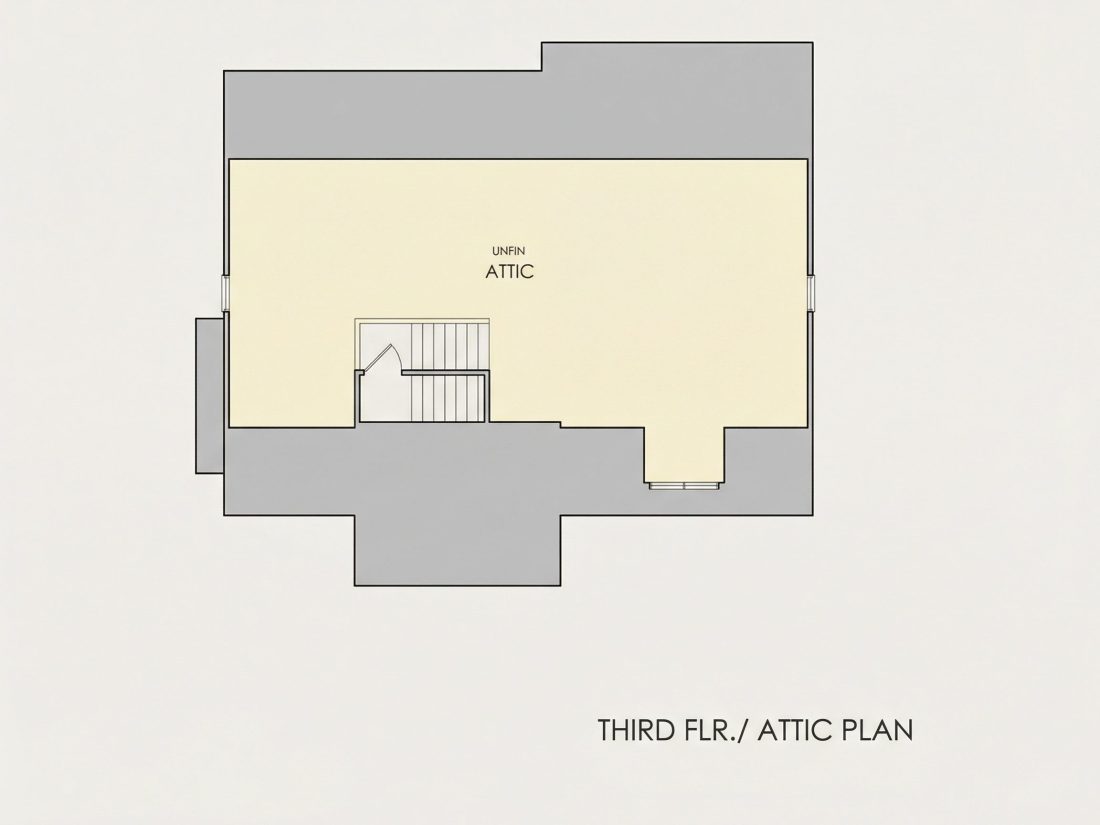

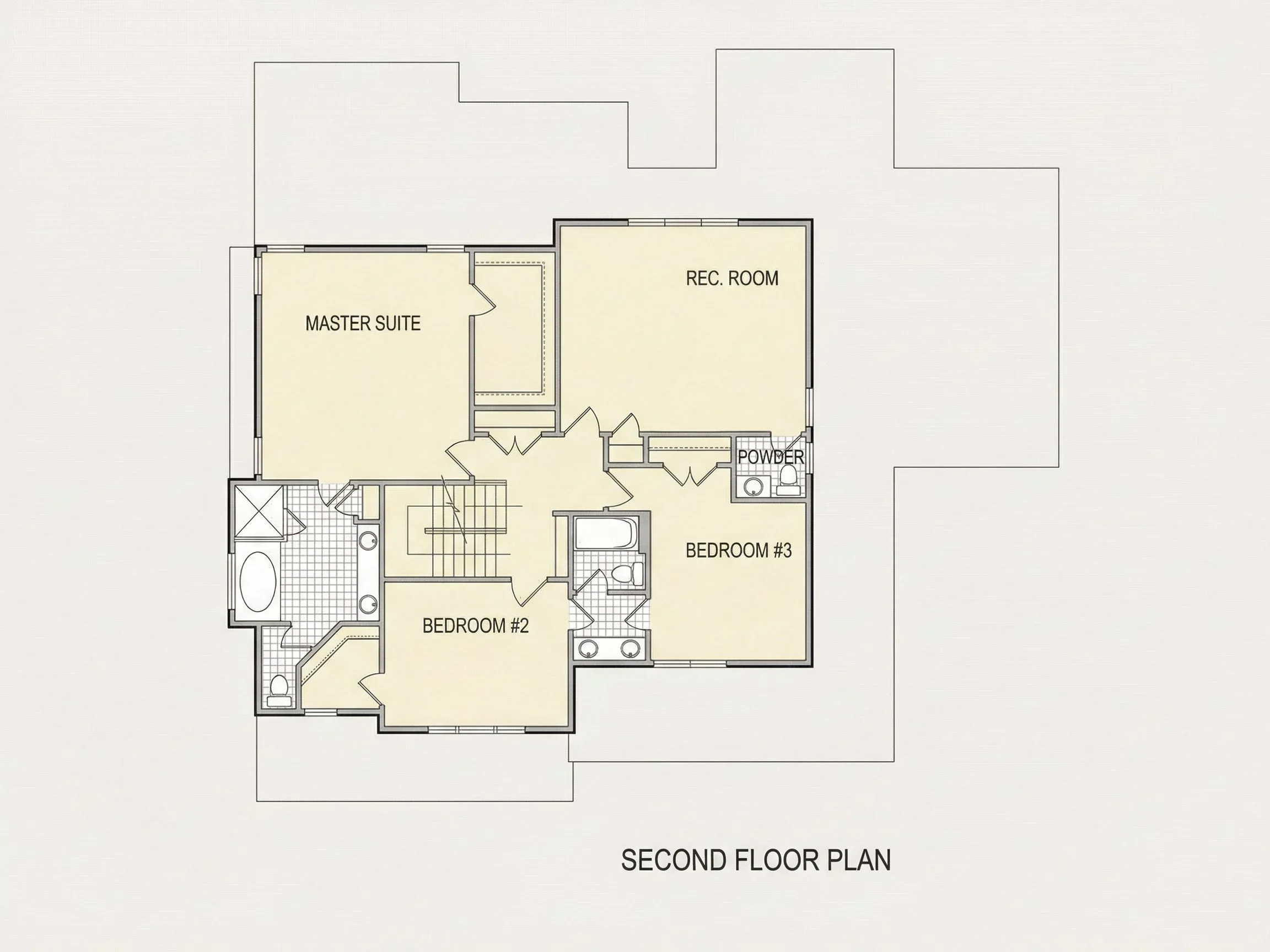

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

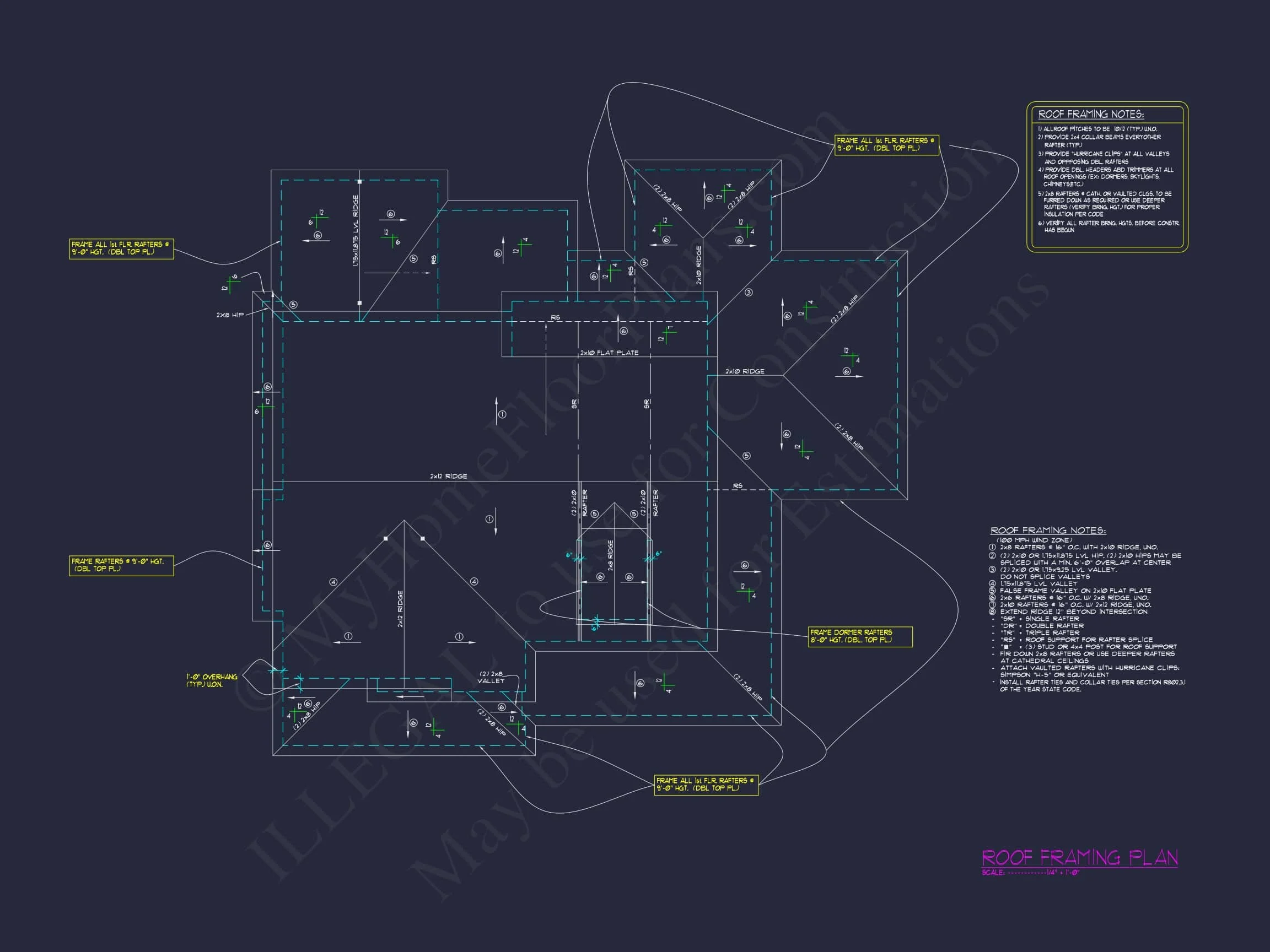

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
12-2789 house PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
