Modern Suburban Home Floor Plan | Blueprint CAD Designs
Discover this spacious modern home plan with 5 bedrooms, 4 bathrooms, and a 2-car garage. Perfectly detailed with CAD blueprints for your architectural designs.
A Perfect Blend of Comfort and Elegance: Modern Home Design
This modern suburban home floor plan offers the ideal layout for families, architects, and home builders. With 4244 heated square feet, it features an impressive combination of indoor and outdoor spaces designed for functionality and style.
Spacious Indoor Features for Modern Living
This home boasts 5 bedrooms and 4 bathrooms, offering ample living space for families of all sizes. Highlights of the design include:
* Open Floor Plan: Seamlessly connect the living room, dining area, and family room for easy interaction.
* Owner Suite on the First Floor: Enjoy privacy with a luxurious suite featuring a walk-in closet.
* Functional Kitchen Layout: A kitchen island and walk-in pantry ensure plenty of storage and workspace for cooking enthusiasts.
* Mudroom and Laundry Room: Added convenience for daily routines.
* Vaulted Ceilings and Fireplace: Elegant touches that enhance the home’s character.
Outdoor Features to Love
Step outside to enjoy a covered front porch and rear porch, ideal for relaxation or entertaining guests. A balcony extends the second-floor living area, adding charm and additional outdoor space.
Efficient and Stylish Design
The house’s brick and stone exterior reflects timeless beauty, while the 2-car garage ensures convenience for vehicles and storage. With 9ft+ ceilings and a smart layout, this home is designed for modern living.
Benefits of Choosing Our Plans
Every purchase includes detailed CAD files and a PDF blueprint, along with a license for unlimited builds. We offer free foundation changes and the flexibility to modify designs at competitive prices. All plans come with structural engineering included, ensuring a hassle-free building experience.
Ready to design your dream home? Contact us at support@https://myhomefloorplans.com to start planning your future today!
All home plans include BOTH the CAD file and PDF file.

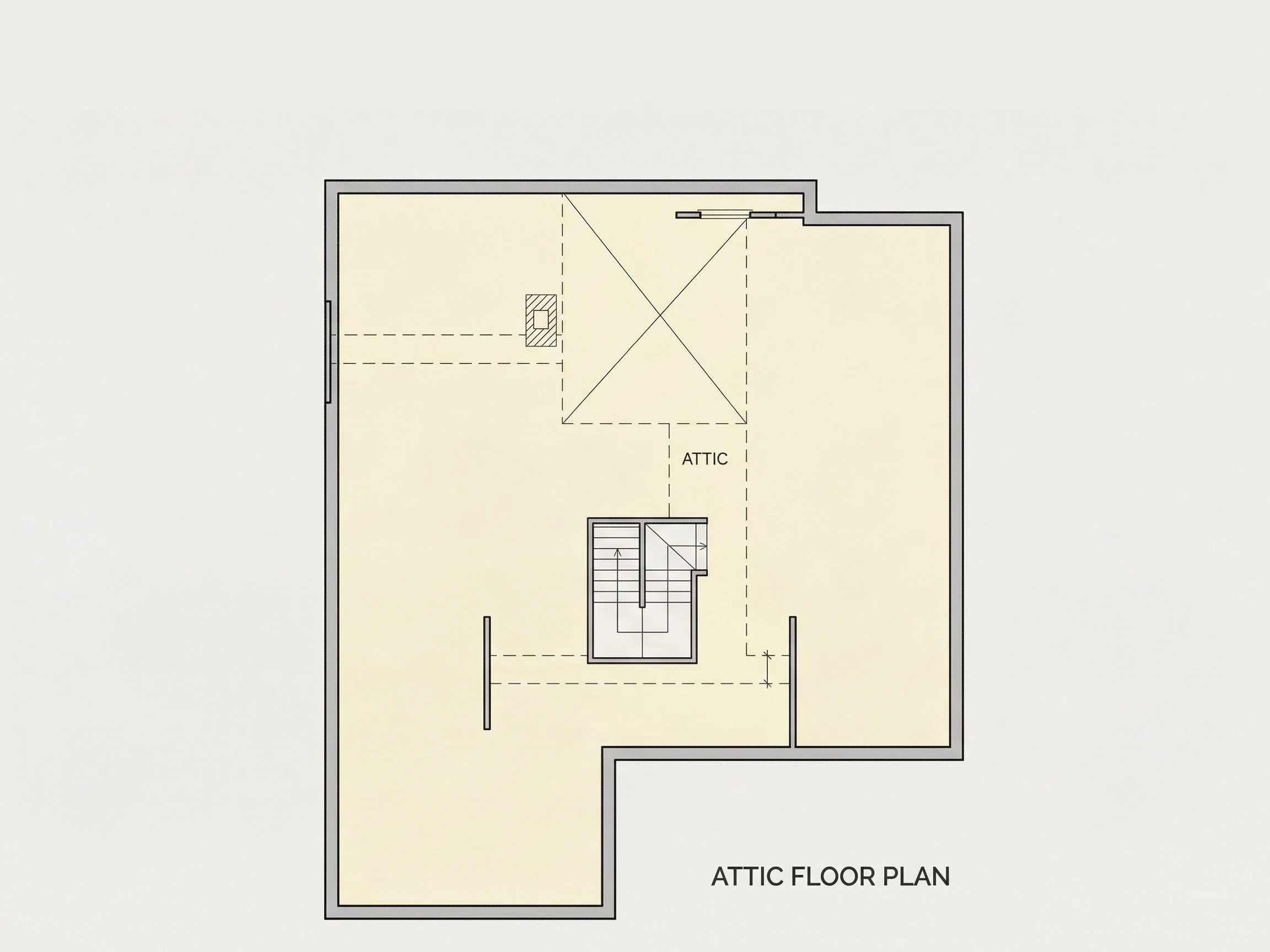

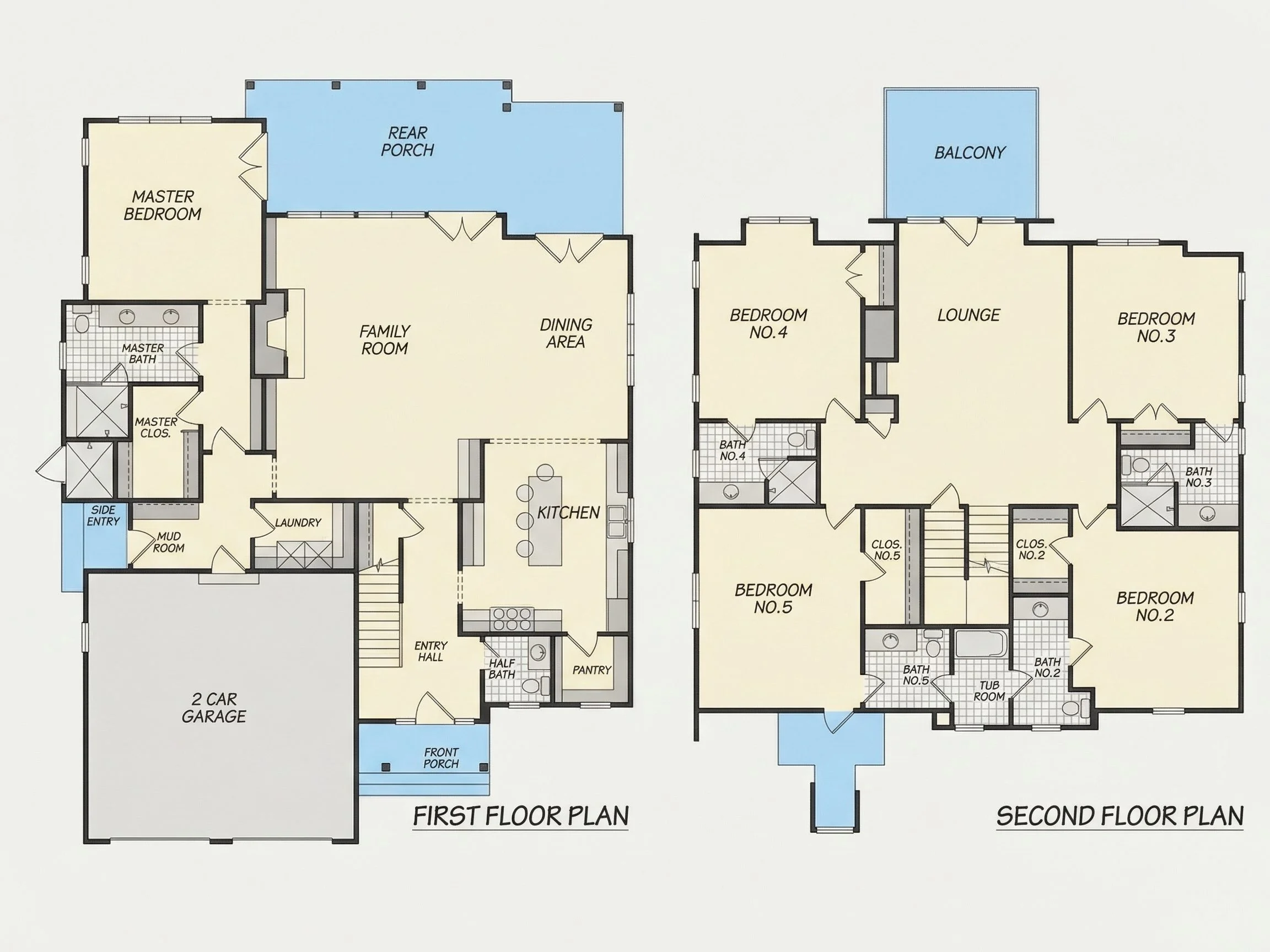

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
