Modern 3-Story Home Floor Plan with Elevator & Coastal-Inspired Design
Explore a stunning 6, 164 heated sq. ft., 3-story layout featuring 4–5 bedrooms, 4.5 baths, an elevator, butler’s pantry, and CAD blueprints included.
This modern house plan offers an ideal blend of elegance, functionality, and architectural charm. Crafted for those who value luxurious comfort, this three-level design is perfect for families, architects, and builders alike.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 6, 164 sq. ft. over three beautifully arranged stories.
- Total under roof: 8, 714 sq. ft. including porches, garage, and optional spaces.
Bedrooms & Bathrooms
- 4–5 spacious bedrooms including a luxurious Owner Suite on the main floor with dual walk-in closets.
- 4.5 well-placed bathrooms including Jack and Jill configurations and a main-level powder room.
Interior Highlights
- Elevator connecting all floors for added accessibility.
- Open floor plan for fluid transitions between living, dining, and kitchen. Explore open layouts.
- Kitchen island, butler’s pantry, and walk-in pantry for culinary convenience. Browse island kitchens.
- Optional bonus spaces including study, flex room, or additional bedrooms for customization.
Garage & Storage Details
- Garage Bays: Oversized garage with under-home parking for efficient use of space.
- Garage Type: Front-load garage integrated into the lower level.
- Storage: Ample closets, laundry room storage, and pantry shelving.
Outdoor Living Features
- Covered front porch, rear porch, terrace, and balcony for relaxing or entertaining outdoors.
- Exterior design inspired by coastal house plans for light, breezy curb appeal.
Architectural Style: Modern Coastal Fusion
This home combines sleek modern lines with coastal architectural flair, perfect for sloped lots or properties with scenic views. Discover more modern house plans or explore the style’s evolution via ArchDaily.
Bonus Features
- Residential elevator servicing all three floors.
- Flex space suitable for an office, media room, or guest suite.
- Breakfast nook for casual dining with natural light.
Included Benefits with Every Plan
- CAD + PDF Files: Instantly downloadable and editable for permits and customization.
- Unlimited Build License: Build as many times as you like without added cost.
- Free Foundation Changes: Choose from slab, crawlspace, or basement at no extra charge.
- Structural Engineering Included: Professionally stamped and code-compliant drawings.
- Lower Modification Costs: Save 50% compared to other sites. Get modifications here.
- View Before You Buy: Preview full blueprints in advance.
Similar Collections You Might Love
- Modern House Plans
- Plans with Elevators
- Terrace House Plans
- Plans with Walk-In Pantries
- Balcony House Plans
Frequently Asked Questions
What’s included with this modern home plan? Your purchase includes CAD files, printable PDFs, a full build license, and professionally engineered documents.
Can I remove the elevator or add more rooms? Absolutely. This plan is flexible and can be modified for your needs—get a quote here.
Does the garage sit below the main level? Yes, this under-house garage design is great for sloped lots and compact footprints.
Is the Owner Suite on the main floor? Yes, the Owner Suite is located on the main floor for privacy and convenience.
Can I see the entire blueprint before purchase? Yes. Preview every sheet here.
Start Building Your Dream Home Today
Have questions or ready to customize this luxurious 3-story design? Reach out to our support team at [email protected] or contact us here.
This modern floor plan is your blueprint for elegant living—customize and start building with confidence today.
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

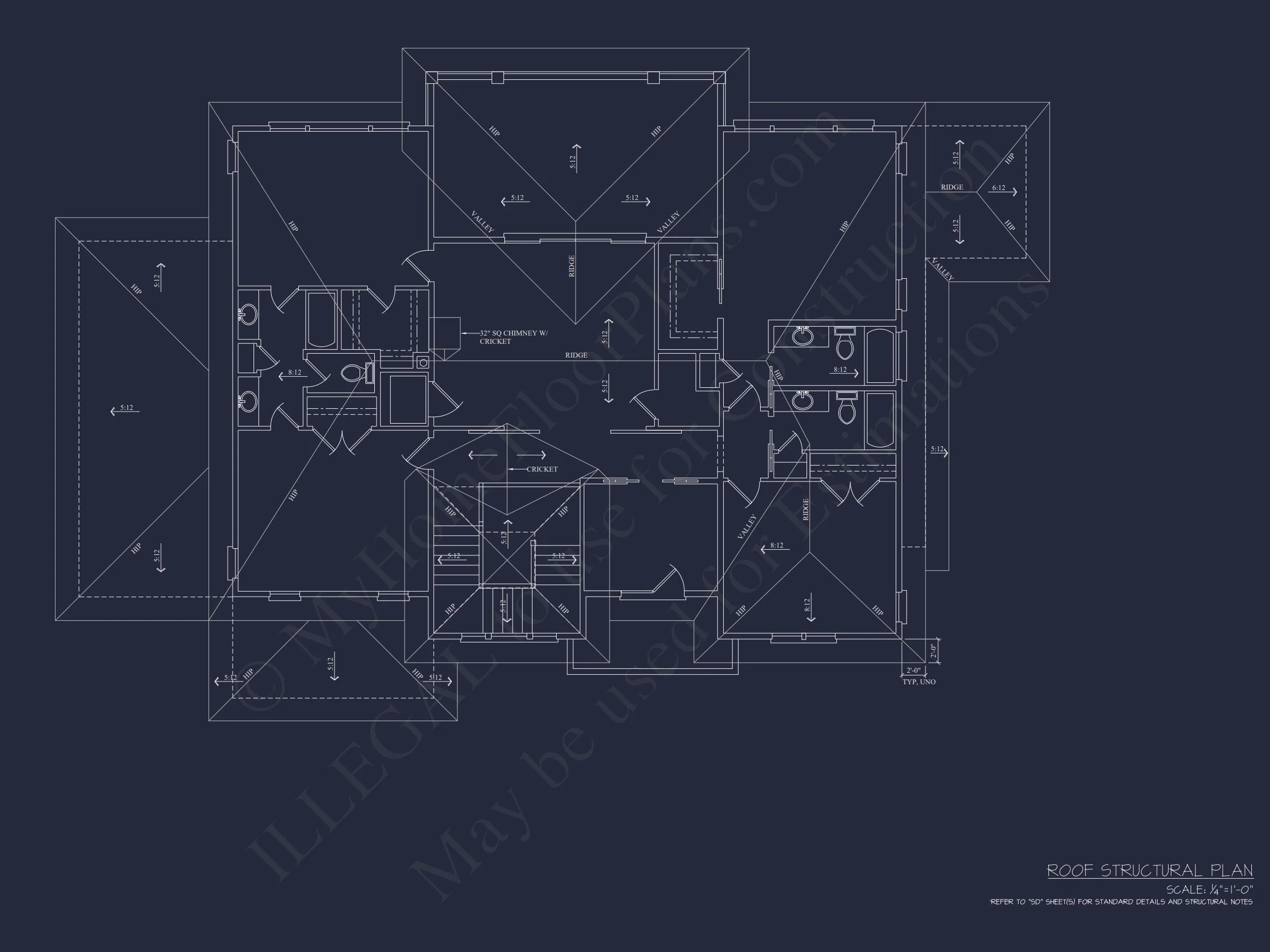

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

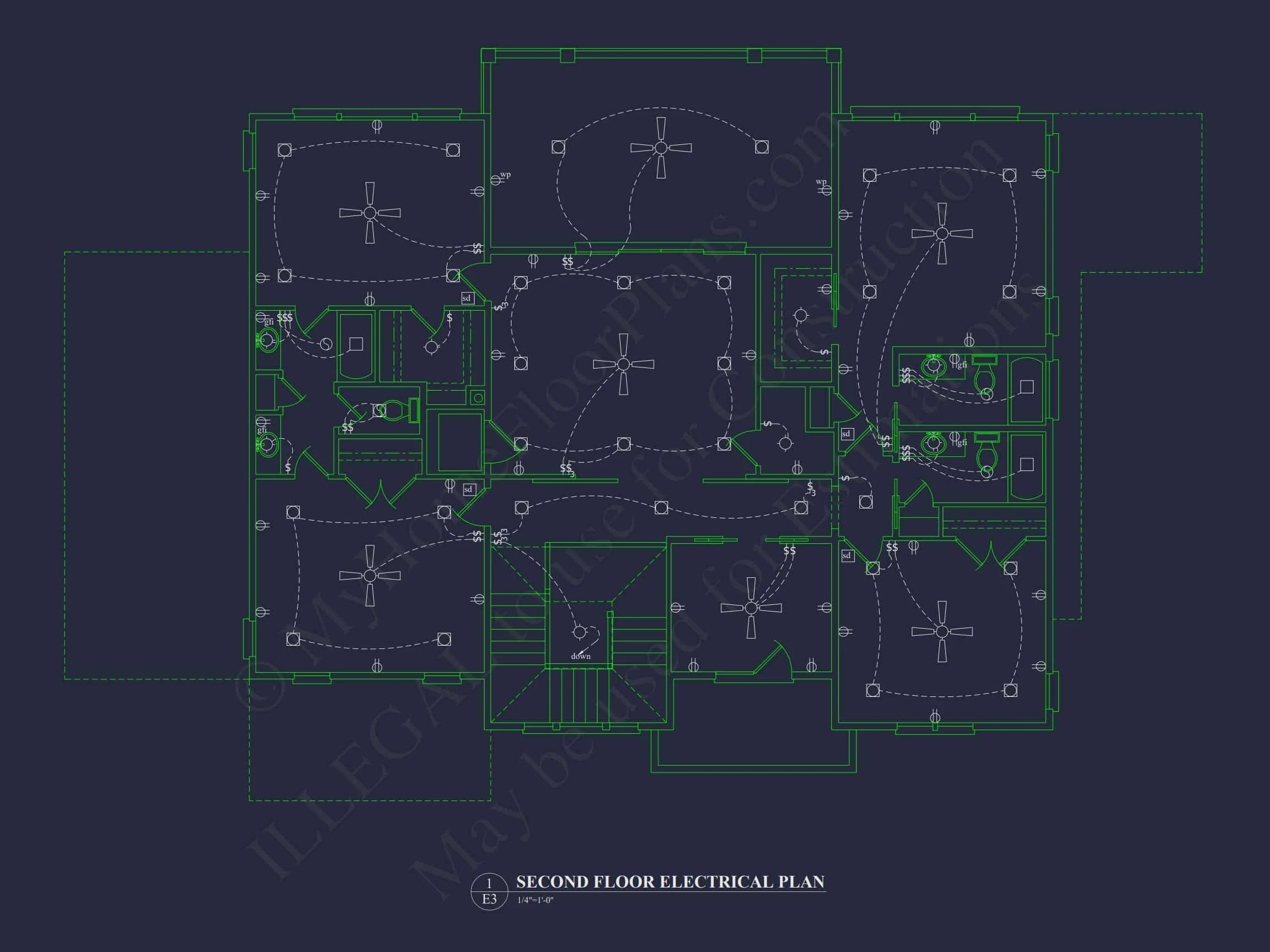

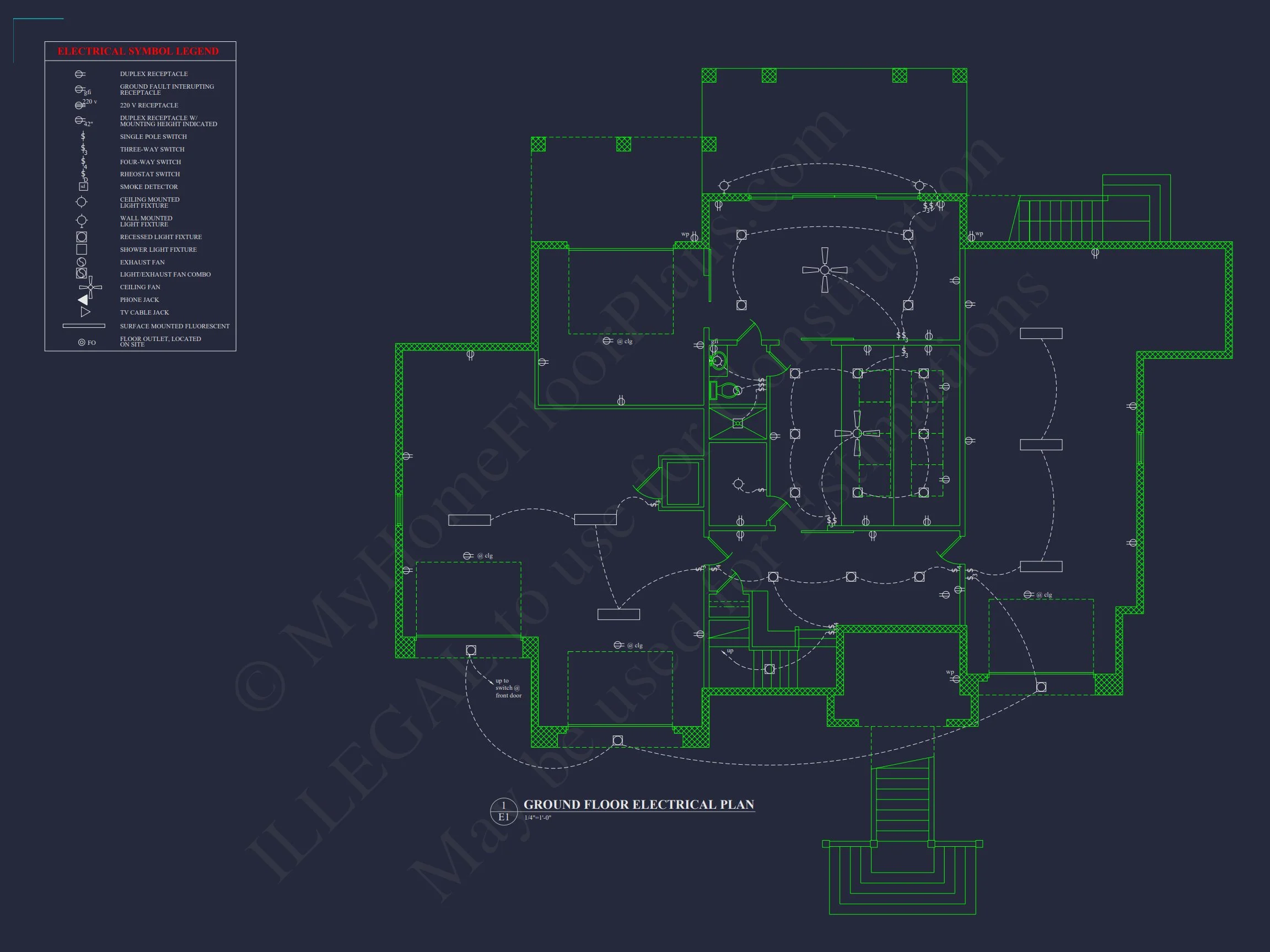

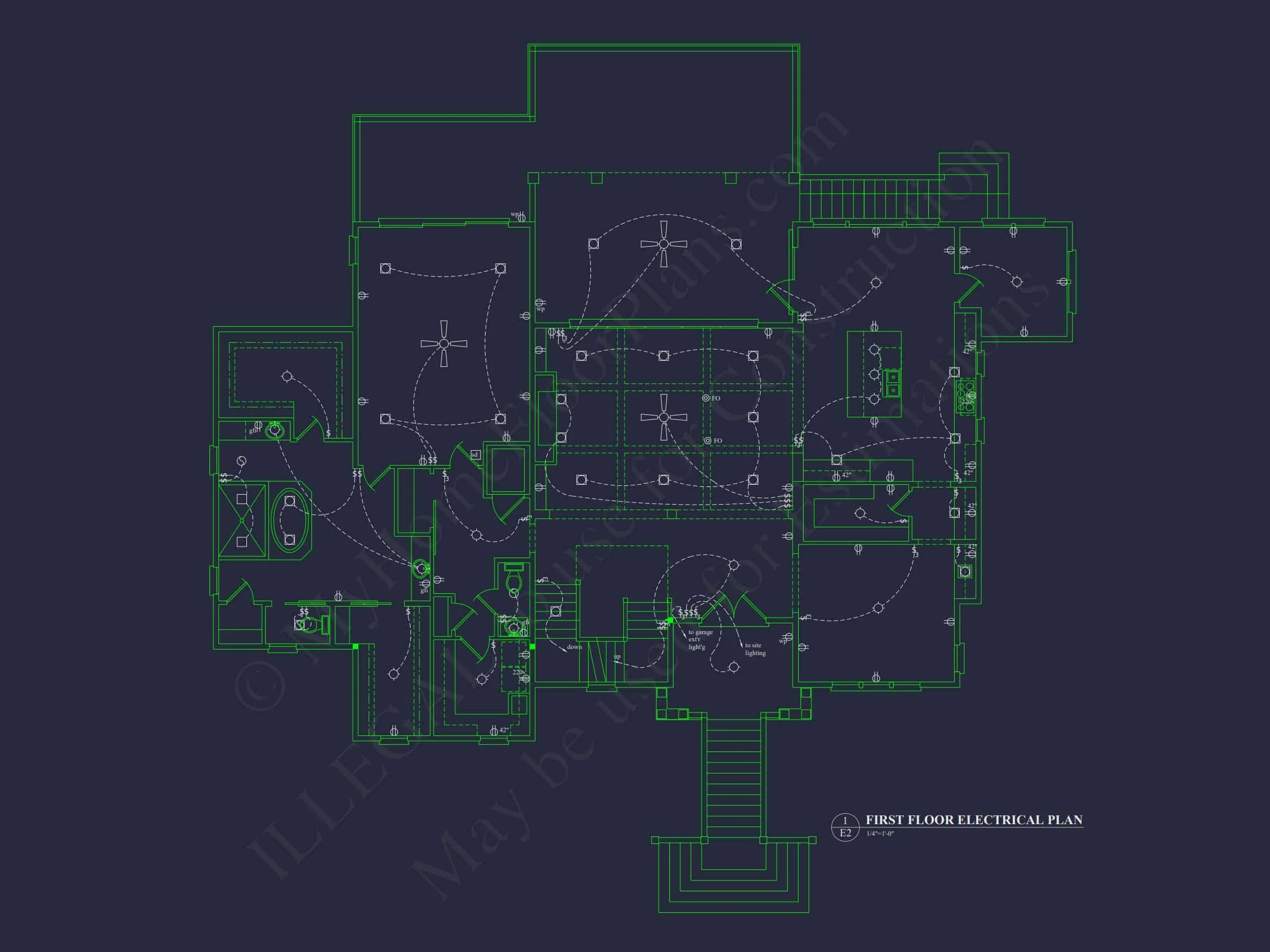

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
