Elegant house Plan with Floor Plan, CAD, and Modern Designs
Discover an elegant house floor plan featuring CAD blueprints & modern architecture. With luxury amenities, 5 bedrooms & 5+ baths, this design is stunning!
Original price was: $3,598.56.$2,039.19Current price is: $2,039.19.
999 in stock
| Width | 84'-10" |
|---|---|
| Depth | 110'-10" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Family Room, Fireplace, Foyer, Great Room, Large Laundry Room, Living Room, Mudroom, Office/Study, Open Floor Plan, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Elegant 2-Story House Plan with Vaulted Ceilings and Luxury Layout
Discover this spacious 5-bedroom house plan with 5, 483 heated sq. ft., modern open layout, vaulted ceilings, and CAD blueprints included—perfect for luxury living.
This luxury house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless elegance, smart space planning, and high-end finishes throughout.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 5, 483 sq. ft. over two stories.
- Unheated extras: Covered rear porch, balcony, patio, and porte cochere.
Bedrooms & Bathrooms
- 5 spacious bedrooms, including a luxurious first-floor Owner Suite with walk-in closet and spa-style bath.
- 5 full bathrooms, thoughtfully placed for convenience and privacy.
Interior Highlights
- Vaulted ceilings create stunning vertical space and natural light.
- Open floor plan seamlessly connects living, kitchen, and dining areas. View open layouts.
- Gourmet kitchen with large island and walk-in pantry for storage and entertaining.
- Fireplace in the great room offers a cozy focal point. Browse fireplace plans.
- Recreational room, bonus room, and dedicated office/study for flexible use.
Garage & Storage Details
- Garage Bays: 3-car garage with side entry and porte cochere feature.
- Garage Type: Attached, with covered connection for elegance and utility.
- Storage: Mudroom, laundry room, and built-in closet spaces throughout.
Outdoor Living Features
- Covered rear porch, open patio, and upper-level balcony for exceptional outdoor enjoyment.
- Stylish stucco and siding exterior materials enhance curb appeal and durability.
Architectural Style: Modern Transitional
This design blends modern sophistication with transitional detailing—perfect for families who value clean lines and flexible space. Learn more about the Transitional House Plan style or explore related inspiration on ArchDaily.
Bonus Features
- Optional Jack and Jill bathrooms for upstairs bedrooms.
- Study or home office for work-from-home flexibility.
- Family room and recreational areas perfect for gatherings and relaxation.
Included Benefits with Every Plan
- CAD + PDF Files: Professionally prepared, ready to modify and build.
- Unlimited Build License: Build your dream house as many times as you want—no extra fees.
- Free Foundation Changes: Choose slab, crawlspace, or basement—at no additional charge.
- Structural Engineering Included: Stamped for compliance, safety, and peace of mind.
- Lower Modification Costs: Save up to 50% compared to other plan vendors.
- View Before You Buy: Preview every blueprint sheet before purchase.
Similar Collections You Might Love
- Luxury House Plans
- 5-Bedroom House Plans
- Owner Suites on Main Level
- Plans with Kitchen Islands
- Covered Porch Designs
Frequently Asked Questions
Does this house plan include garage and porch layouts? Yes. It includes full CAD and PDF blueprints for all covered areas, including the porte cochere and patio.
Is the Owner Suite on the main floor? Yes. The Owner Suite is located on the first level for convenience and privacy.
Can I make changes to the exterior materials or layout? Absolutely. Modifications are easy and affordable—just contact our team for a quote.
Does this plan support multiple generations? With five bedrooms and flexible living spaces, it’s great for extended families or multi-gen households.
Is this home plan structurally engineered? Yes—structural engineering is included for safety and code compliance.
Start Building Your Dream Home Today
Have questions or ready to customize? Reach out to our friendly team at [email protected] or use our contact form.
Your dream home starts with a proven floor plan—get yours today and build with confidence!
All home plans include BOTH the CAD file and PDF file.

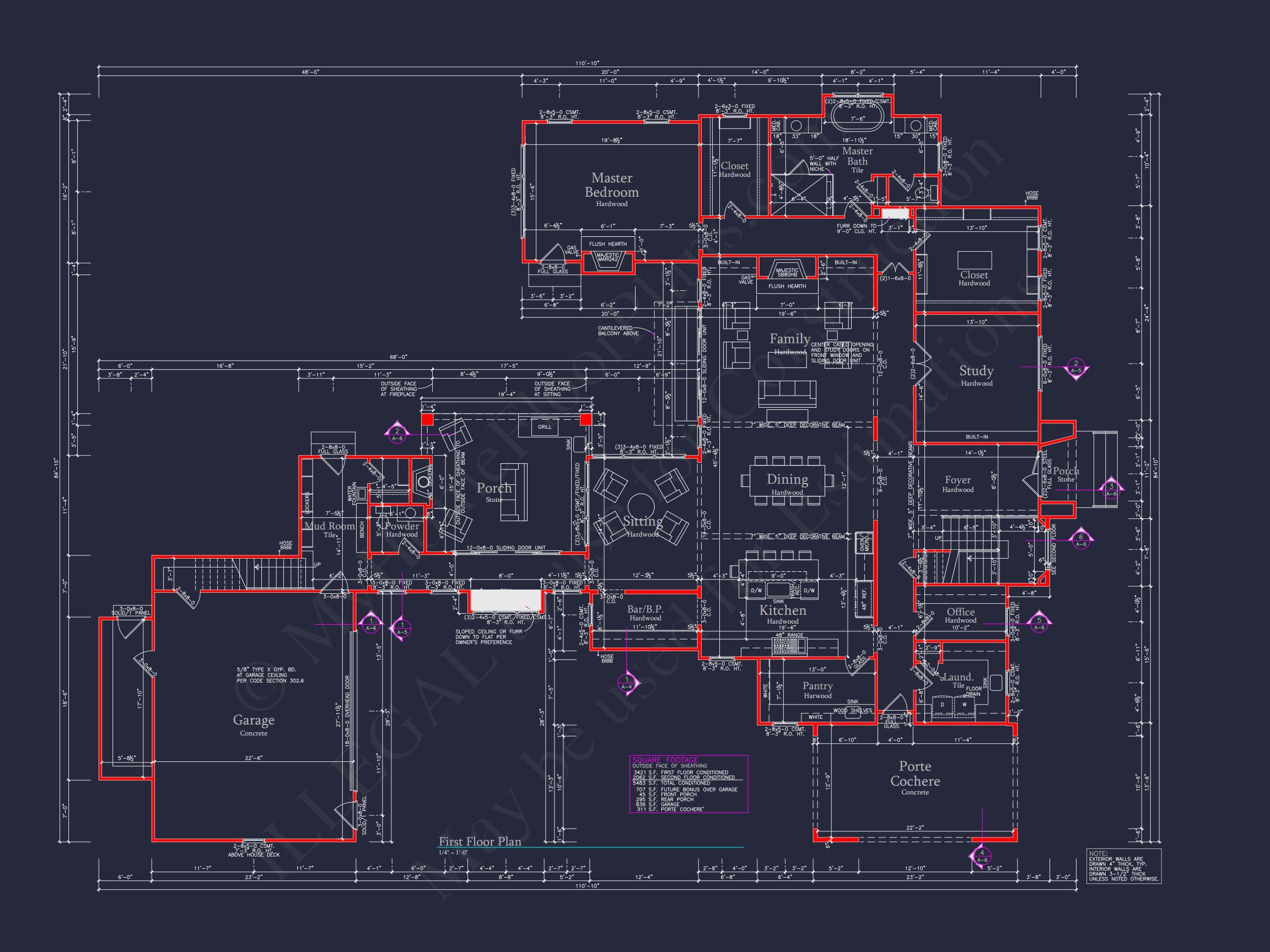

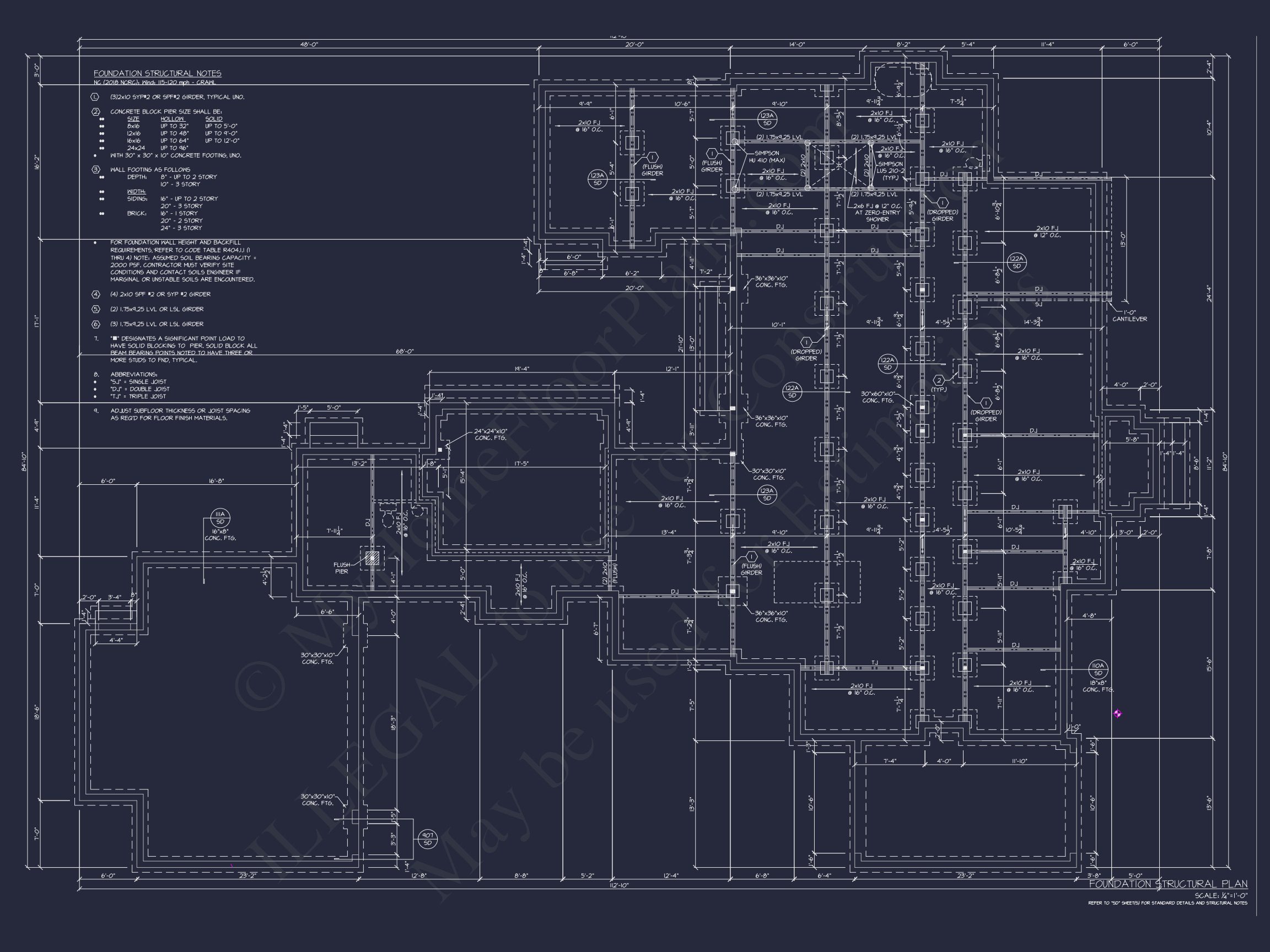

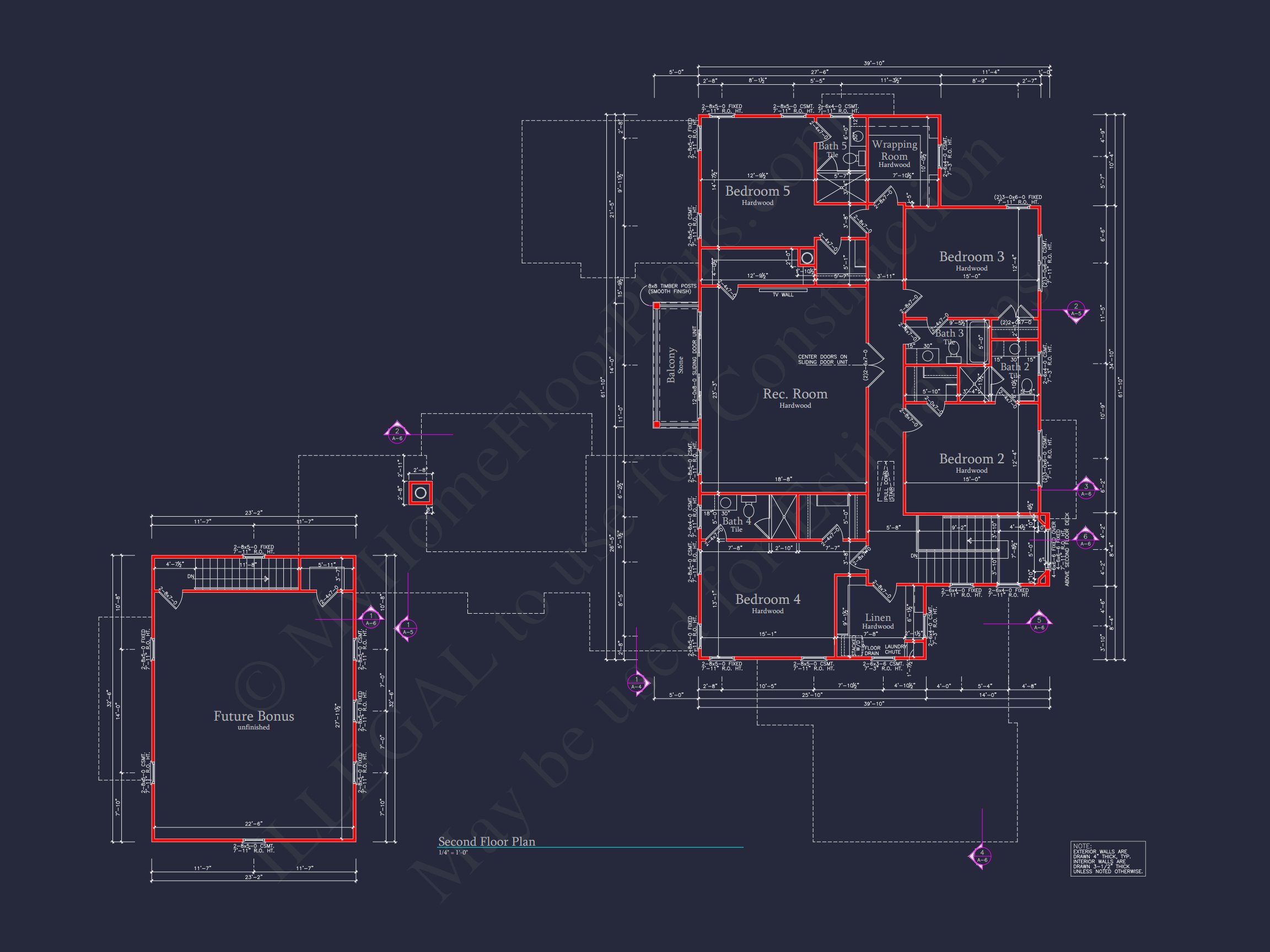

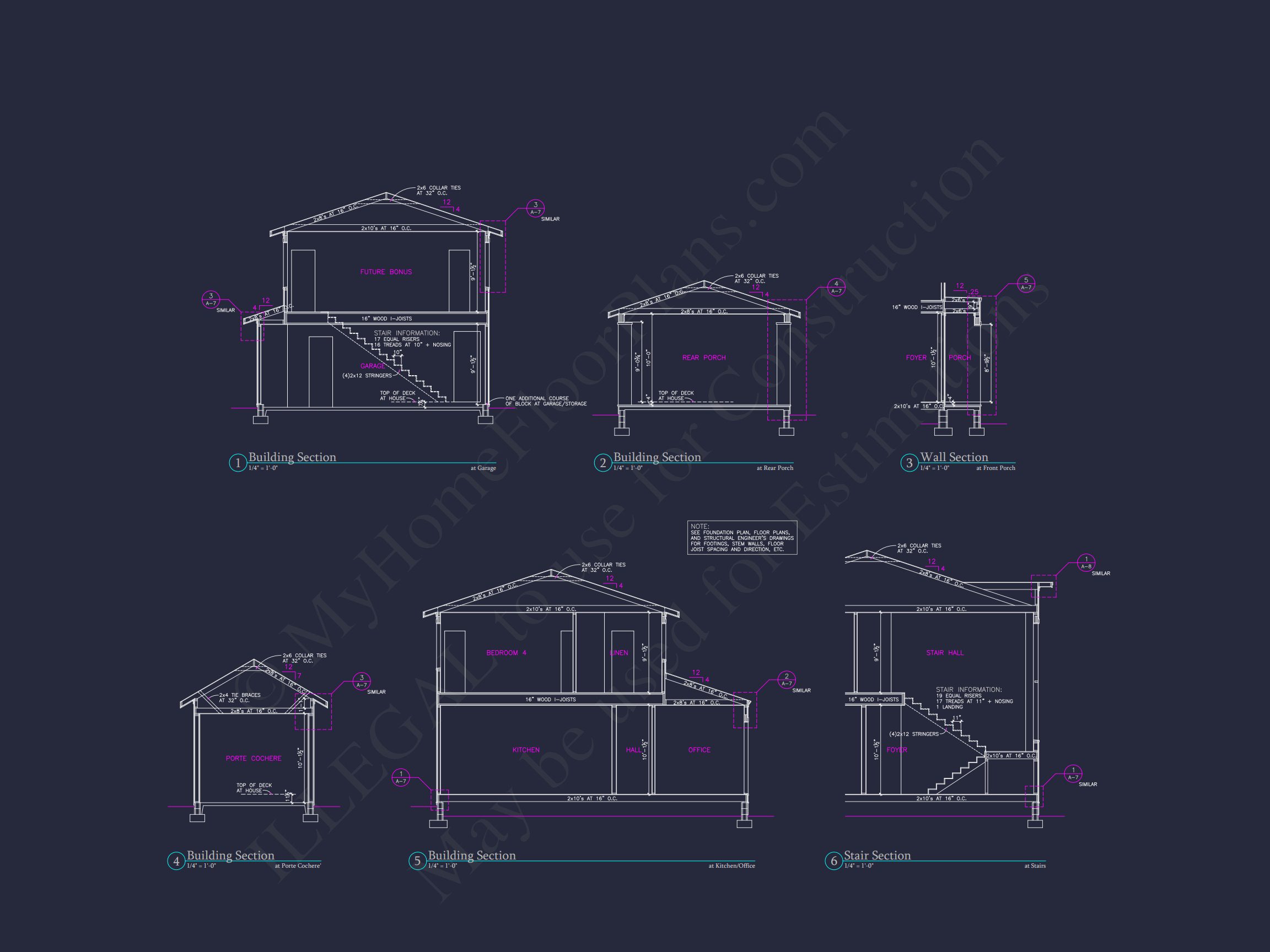

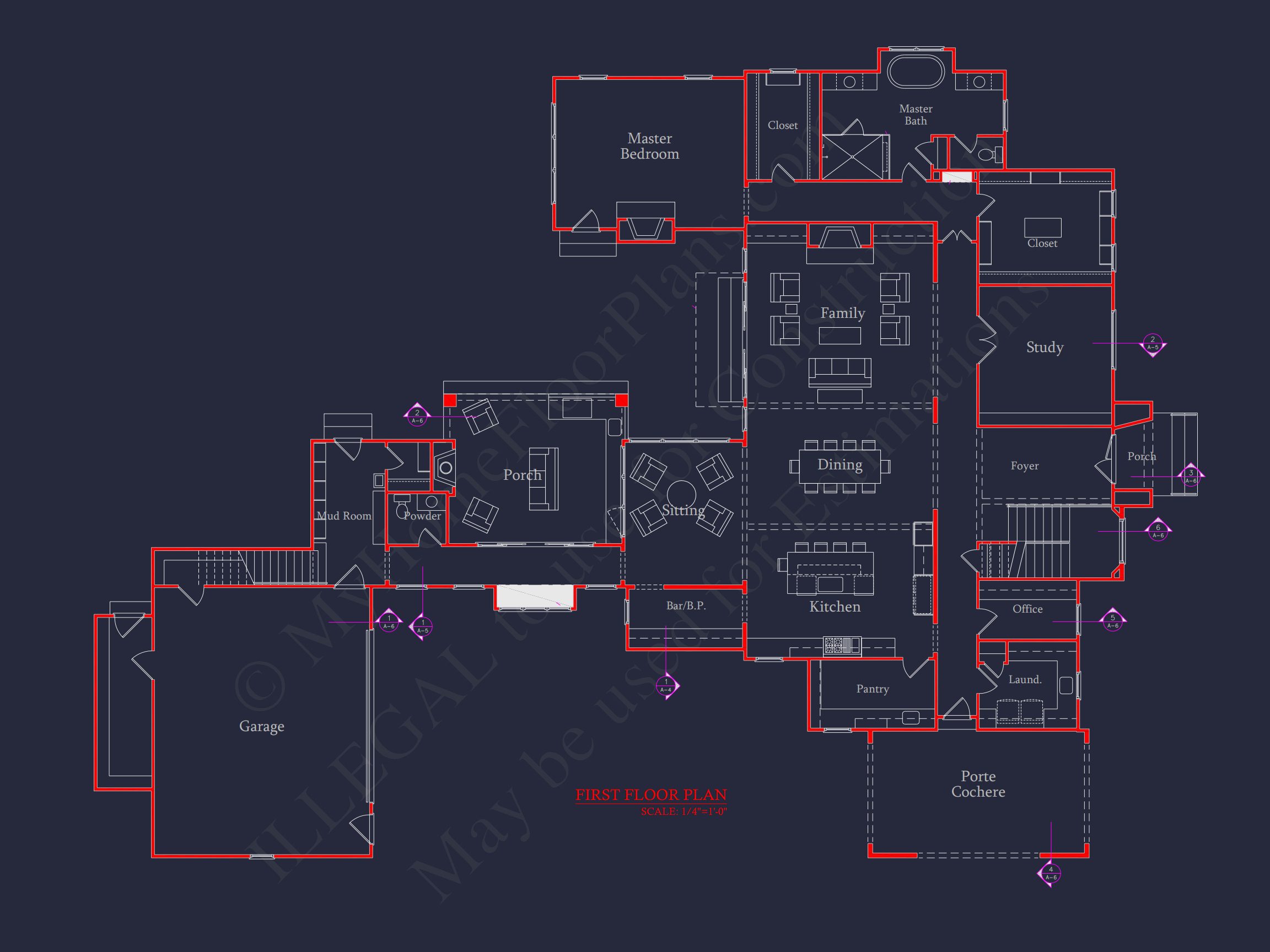

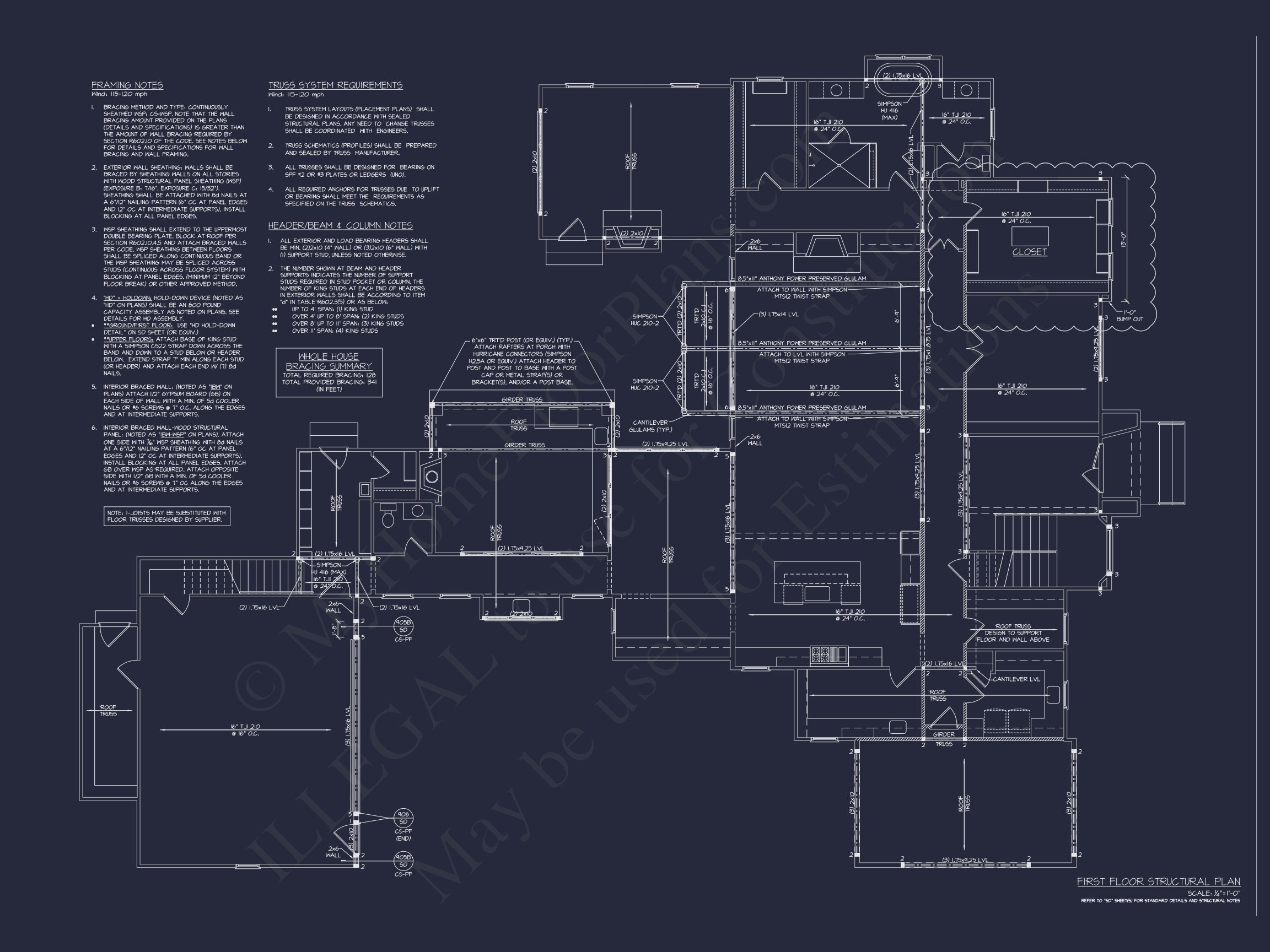

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
